JAC Gallop A5L 5.1L Diesel 240hp 4X2(6 wheels) Fast Gear 8-Speed 6.8m Van Cargo Truck

Export reference
MSRP N/A
Horsepower: 240
Emission: China VI
Fuel: Diesel
Engine: Yuchai5.1L
Transmission: Fast Gear
Curb Weight:: 8.15ton
JAC Gallop A5L 5.1L Diesel 240hp 4X2(6 wheels) Fast Gear 8-Speed 6.8m Van Cargo Truck exterior
View more photos (9)
seating capacity: 2Personnel
Rated payload: 9.72ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The JAC Gallop A5L 5.1L Diesel 240hp 4X2(6 wheels) Fast Gear 8-Speed 6.8m Van Cargo Truck is a Medium-duty truck featuring 6.8m cargo length, Van body cargo body, 2Personnel volume and 9.72t payload. On the powertrain side, it comes with a Yuchai5.1L engine, 240 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 240 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): HFC5181XXYP2K2A50CS
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 5000mm
Box length class: 6.8m
engine: YuchaiYCK05240-60
transmission: Fast Gear 8-speed
Rear Axle Ratio: 4.333
Cab length: 9.04m
Cab width: 2.55m
Cab height: 3.99m
Front track width: 1920mm
rear track: 1800mm
Curb Weight: 8.15ton
Rated payload: 9.72ton
GVWR: 18ton
Max. speed: 89km/h
Origin: Hefei, Anhui
tonnage class: Medium-duty truck
Approach angle: 18°
departure angle: 10°
Front/rear suspension: 1.4/2.64m
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YCK05240-60
Engine info: Yuchai5.1L
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 5.13L
Emission standard: China VI
Max output power: 176kW
Max hp: 240Horsepower
Max torque: 900N·m
Max torque speed: 1200-1600rpm
Rated speed: 2200rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: Fast Gear 8-speed
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Van body
Cargo box length: 6.8m
Cargo box width: 2.48m
Cargo box height: 2.6m
*Cargo box interior width: 2.46
Cab parameters
Cab width: 2380mm
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 6500kg
rear axle allowable load: 11500kg
Axle ratio: 4.333
Leaf spring count: 3/9+3
Tire
Tire Size: 11R22.5 18PR
Number of tires: 6pcs
Control configuration
ABS:
Stability control system:
EBS electronic braking system:
Inter-axle Differential Lock:
Inter-axle Differential Lock:
interior configuration
Steering Wheel Material: leather
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Power interface:
Reverse Radar:
Seat material: leather
Reverse Camera:
Remote key:
Electronic Central Lock:
Independent AC:
Exterior features
Air deflector:
Aluminum air tank:
Diesel primary filter heating:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
lighting configuration
Headlight brand: none
Front fog lamp:
daytime running lights:
Headlight height adjustment:
LED taillight:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Telematics System:
Cruise control (CCS):
Forward Collision Warning (FCW):
Emergency Brake Assist (EBA):
adaptive cruise control (ACC):
Tire Pressure Monitoring System (TPMS):
Lane change assist (ALC):
Fatigue driving monitoring:

Photos

Exterior3

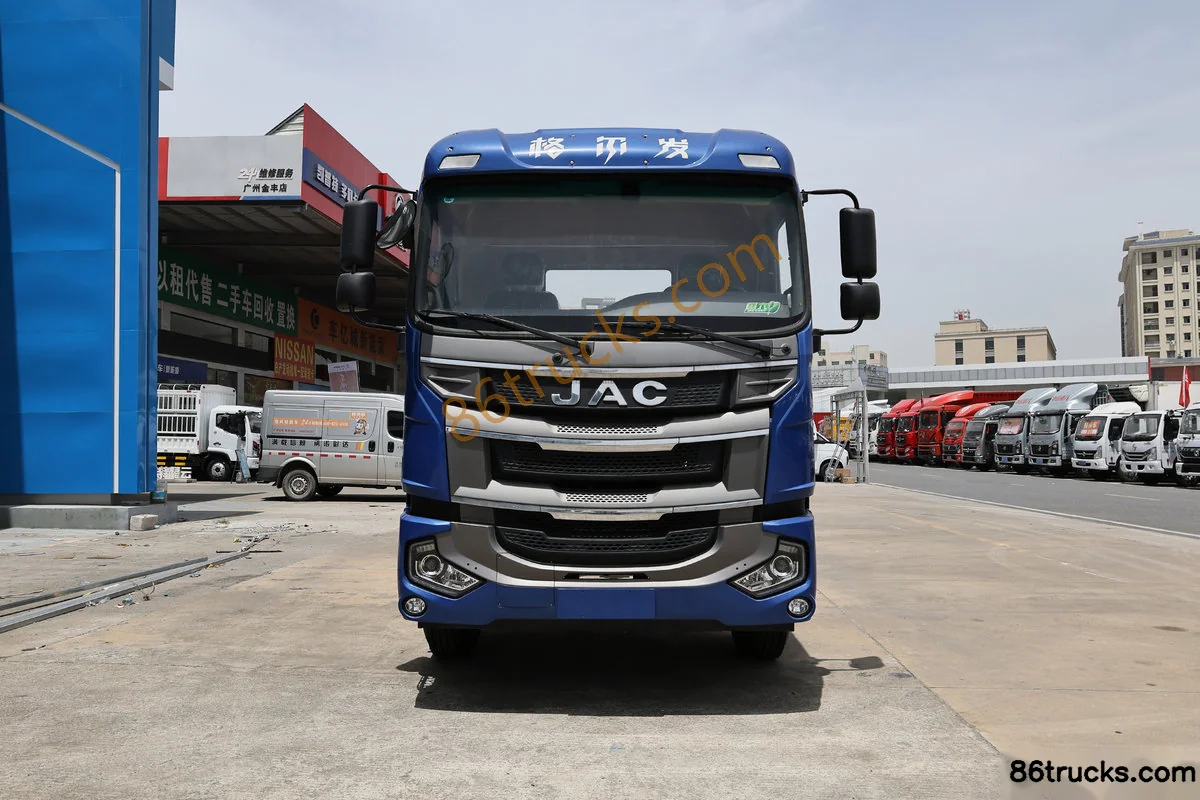

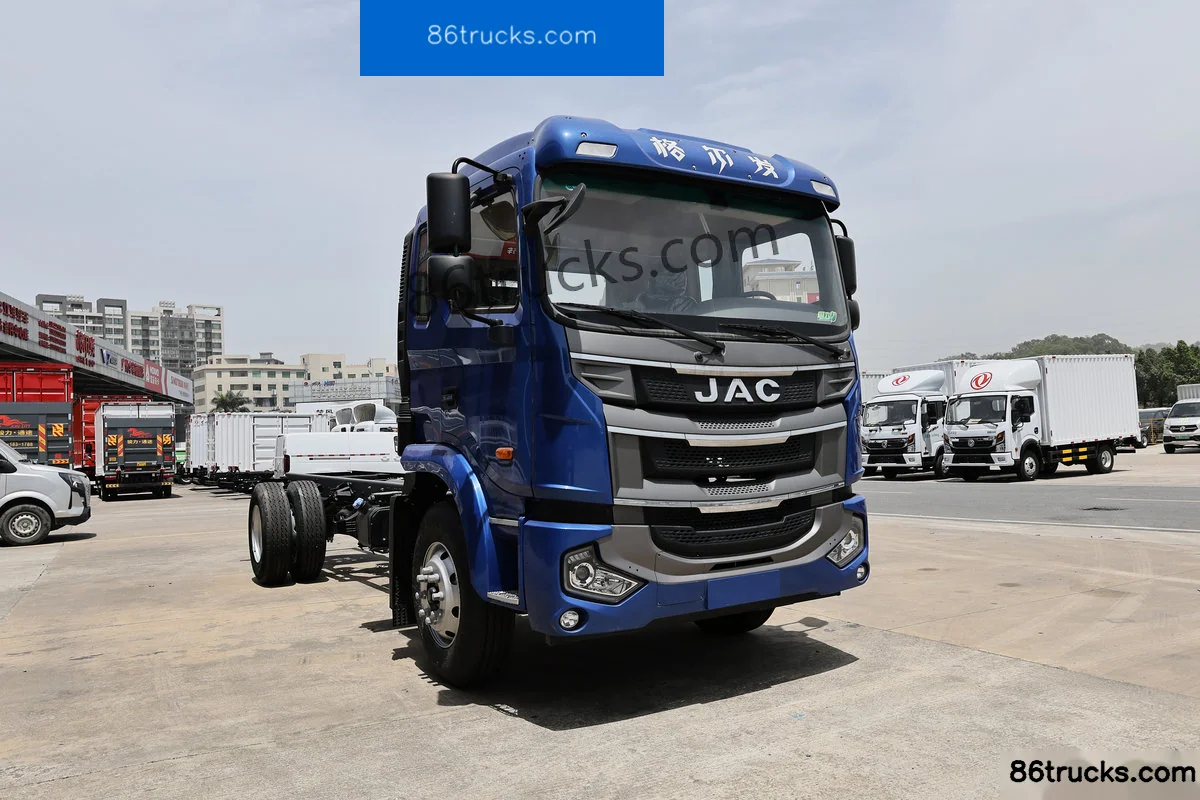

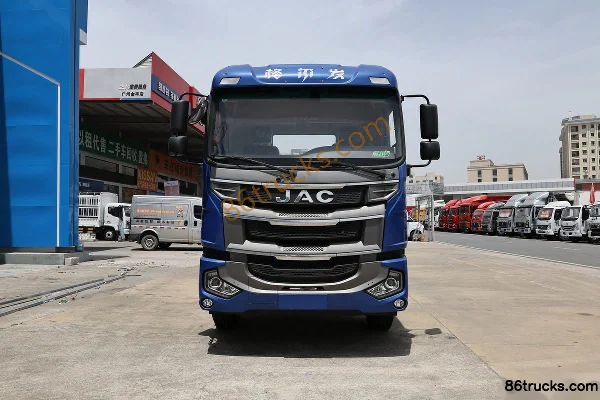

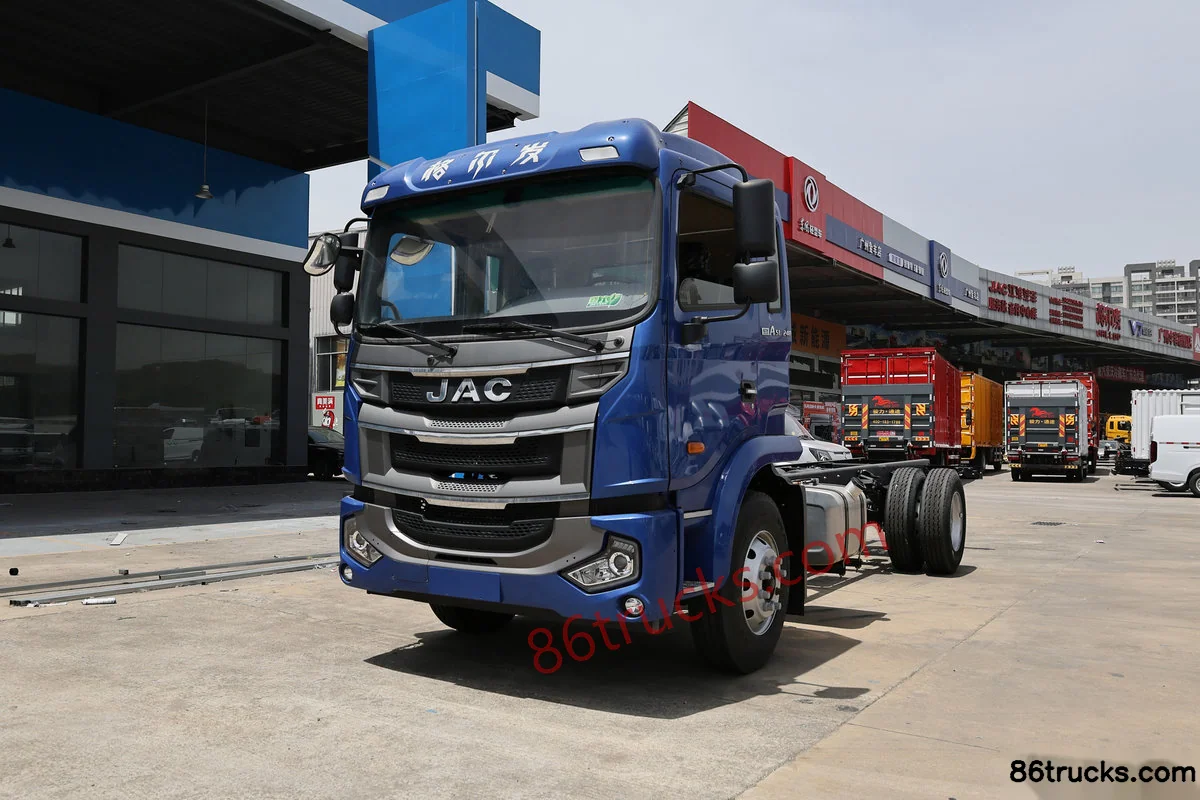

JAC Gallop A5L 5.1L Diesel 240hp 4X2(6 wheels) Fast Gear 8-Speed 6.8m Van Cargo Truck Exterior (1) | 86Trucks JAC Gallop A5L 5.1L Diesel 240hp 4X2(6 wheels) Fast Gear 8-Speed 6.8m Van Cargo Truck Exterior (2) | 86Trucks JAC Gallop A5L 5.1L Diesel 240hp 4X2(6 wheels) Fast Gear 8-Speed 6.8m Van Cargo Truck Exterior (3) | 86Trucks

Cab3

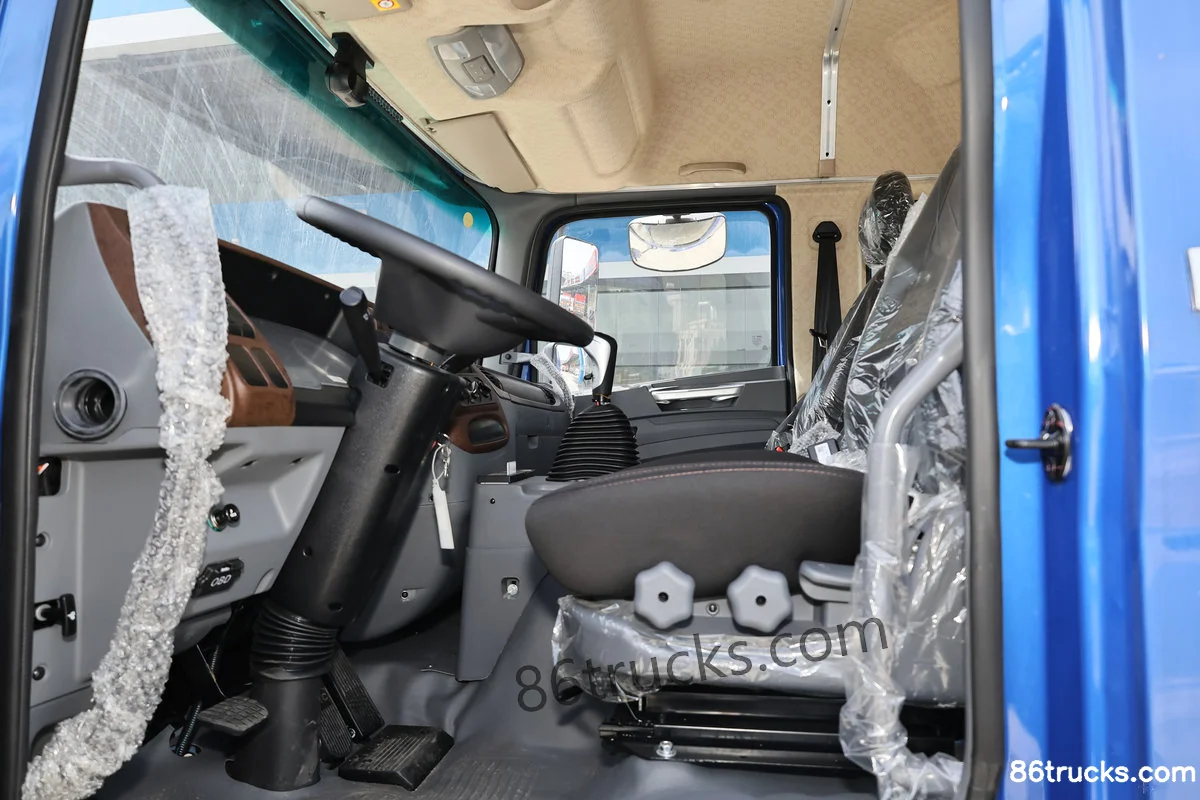

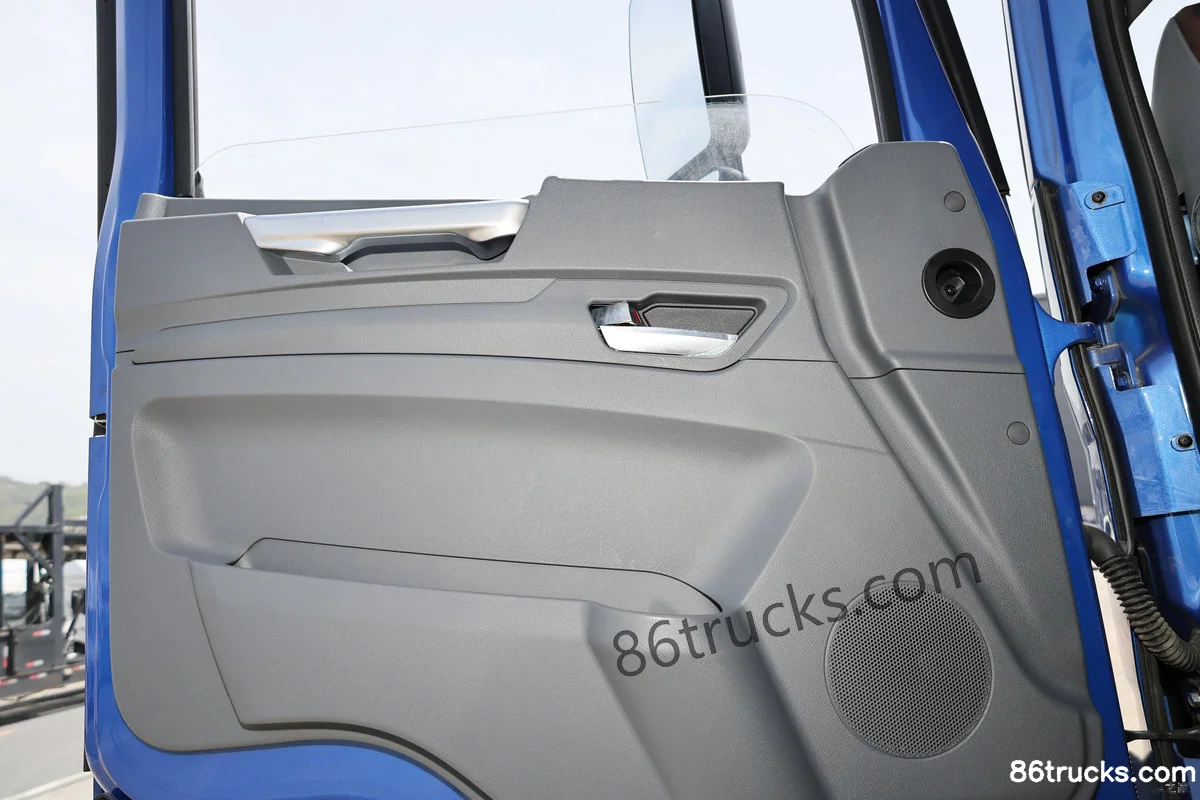

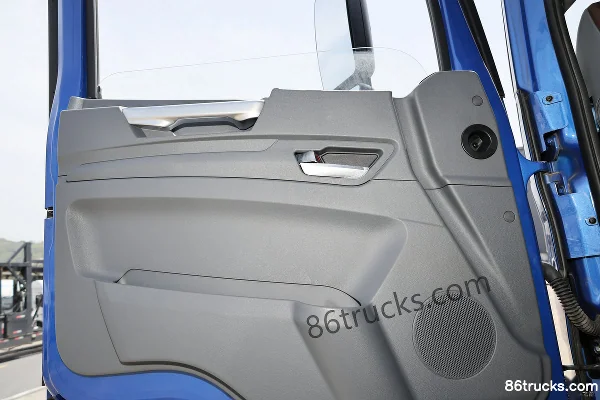

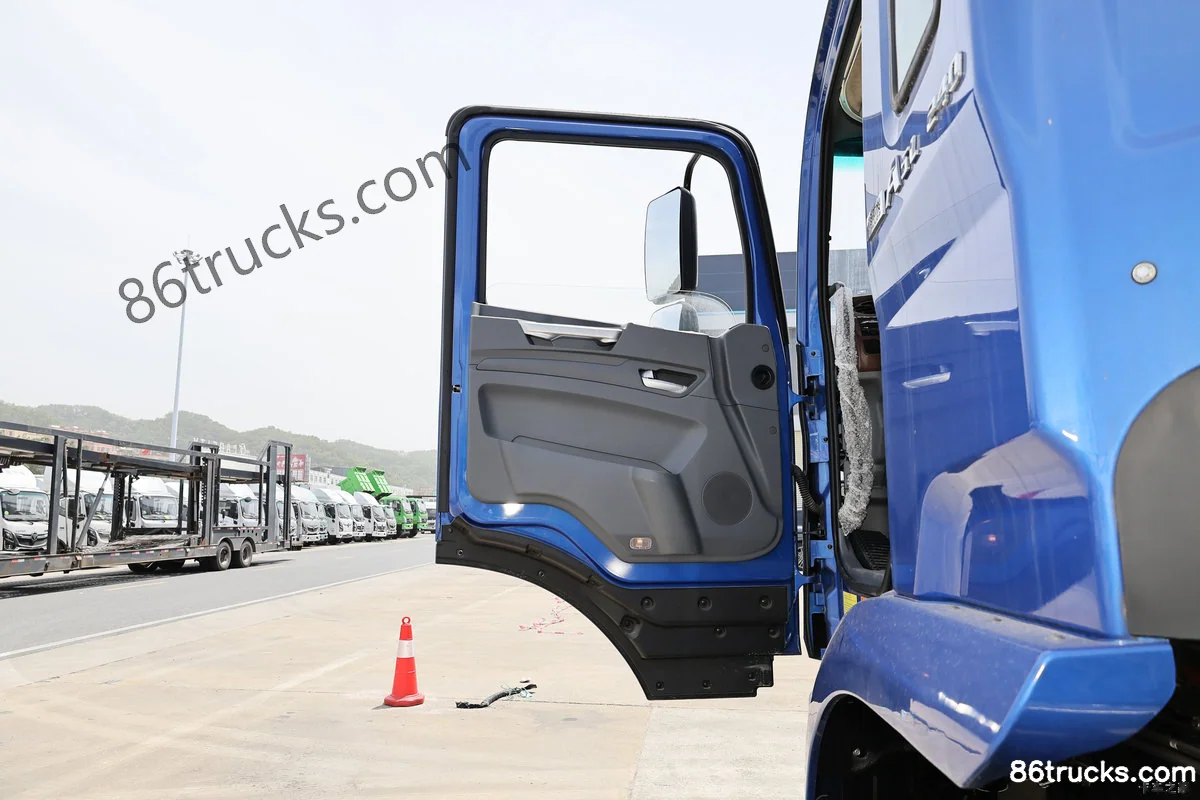

JAC Gallop A5L 5.1L Diesel 240hp 4X2(6 wheels) Fast Gear 8-Speed 6.8m Van Cargo Truck Cab (1) | 86Trucks JAC Gallop A5L 5.1L Diesel 240hp 4X2(6 wheels) Fast Gear 8-Speed 6.8m Van Cargo Truck Cab (2) | 86Trucks JAC Gallop A5L 5.1L Diesel 240hp 4X2(6 wheels) Fast Gear 8-Speed 6.8m Van Cargo Truck Cab (3) | 86Trucks

Chassis3

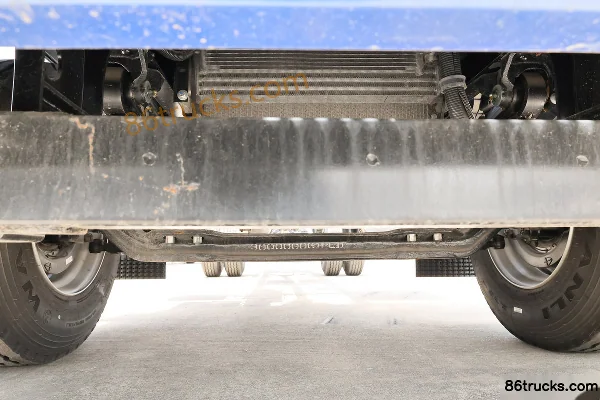

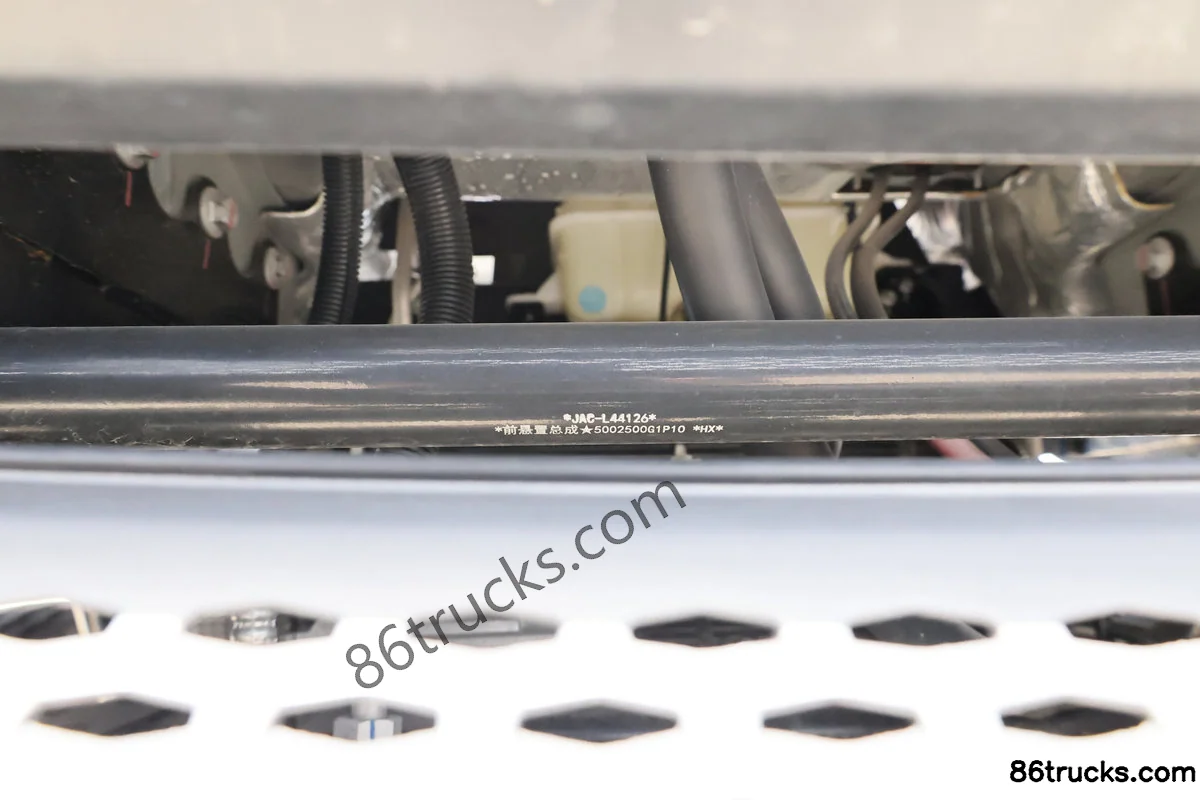

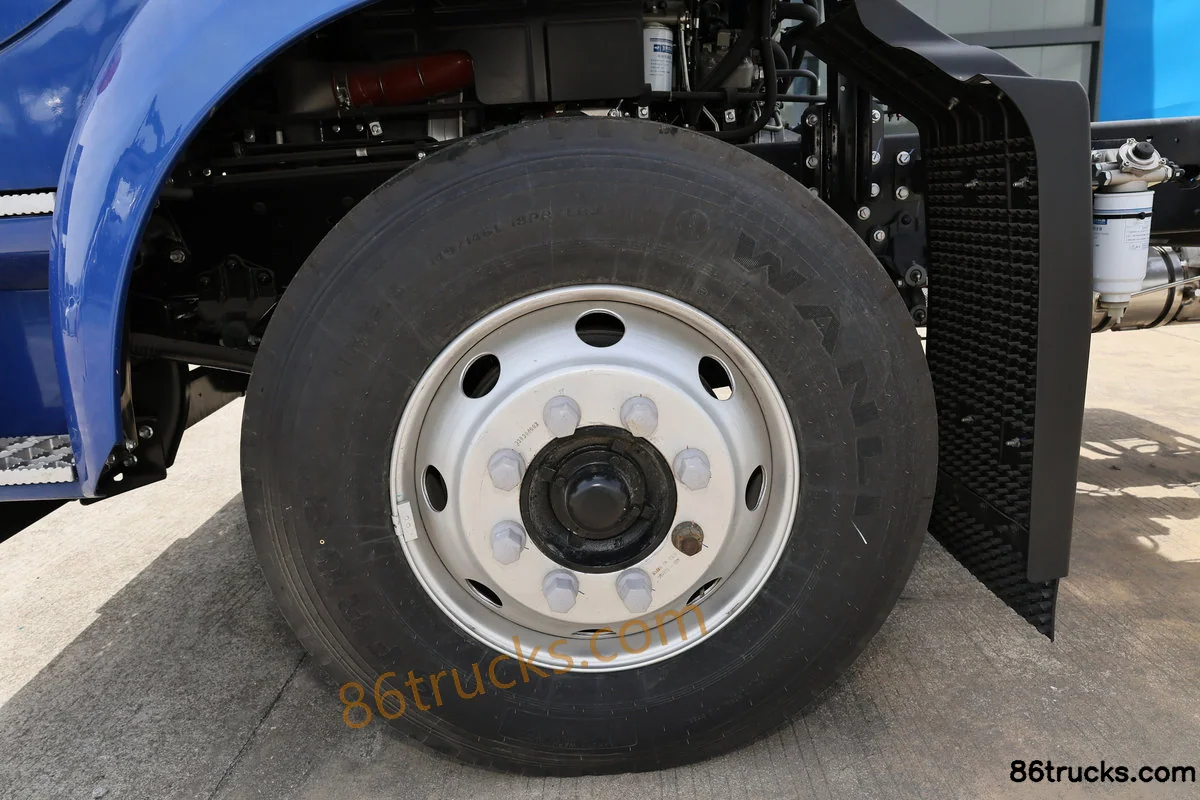

JAC Gallop A5L 5.1L Diesel 240hp 4X2(6 wheels) Fast Gear 8-Speed 6.8m Van Cargo Truck Chassis (1) | 86Trucks JAC Gallop A5L 5.1L Diesel 240hp 4X2(6 wheels) Fast Gear 8-Speed 6.8m Van Cargo Truck Chassis (2) | 86Trucks JAC Gallop A5L 5.1L Diesel 240hp 4X2(6 wheels) Fast Gear 8-Speed 6.8m Van Cargo Truck Chassis (3) | 86Trucks

9 photos

FAQ

What emission standard does JAC Gallop A5L 5.1L Diesel 240hp 4X2(6 wheels) Fast Gear 8-Speed 6.8m Van Cargo Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Gallop A5L 5.1L Diesel 240hp 4X2(6 wheels) Fast Gear 8-Speed 6.8m Van Cargo Truck?

Key specs of JAC Gallop A5L 5.1L Diesel 240hp 4X2(6 wheels) Fast Gear 8-Speed 6.8m Van Cargo Truck: Drive: 4x2; Horsepower: 240 hp; Emission: China VI; Fuel: Diesel; Engine: Yuchai5.1L; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Gallop A5L 5.1L Diesel 240hp 4X2(6 wheels) Fast Gear 8-Speed 6.8m Van Cargo Truck suited for?

JAC Gallop A5L 5.1L Diesel 240hp 4X2(6 wheels) Fast Gear 8-Speed 6.8m Van Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Gallop A5L 5.1L Diesel 240hp 4X2(6 wheels) Fast Gear 8-Speed 6.8m Van Cargo Truck differ from other variants in the same series?

JAC Gallop A5L 5.1L Diesel 240hp 4X2(6 wheels) Fast Gear 8-Speed 6.8m Van Cargo Truck belongs to JAC Gallop A5 Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Gallop A5L 5.1L Diesel 240hp 4X2(6 wheels) Fast Gear 8-Speed 6.8m Van Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Gallop A5L 5.1L Diesel 240hp 4X2(6 wheels) Fast Gear 8-Speed 6.8m Van Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
