Sanhuan Shitong Chuangke 170hp 4X2(6 wheels) 4.15m single-row flatbed light truck

Export reference
From $15,389
MSRP ¥11.08M CNY
Horsepower: 170
Emission: China VI
Fuel: Diesel
Engine: Yuchai2.5L
Transmission: Fast Gear
Curb Weight:: 2.565ton
seating capacity: 3Personnel
Rated payload: 1.735ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Sanhuan Shitong Chuangke 170hp 4X2(6 wheels) 4.15m single-row flatbed light truck is a Light Truck featuring 4.15m cargo length, stake body cargo body, 3Personnel volume and 1.735t payload. On the powertrain side, it comes with a Yuchai2.5L engine, 170 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 170 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): STQ1041L02Y1N6
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
engine: YuchaiYCY25170-66
transmission: Fast Gear 8-speed
Rear Axle Ratio: 5.286
Cab length: 5.995m
Cab width: 2.2m
Cab height: 2.42m
Front track width: 1620mm
rear track: 1595mm
Curb Weight: 2.565ton
Rated payload: 1.735ton
GVWR: 4.495ton
Max. speed: 105km/h
Origin: Shiyan, Hubei
tonnage class: Light Truck
Approach angle: 17°
departure angle: 17°
Front/rear suspension: 1.15/1.485m
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCY25170-66
Engine info: Yuchai2.5L
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.499L
Emission standard: China VI
Max output power: 123kW
Max hp: 170Horsepower
Transmission Parameters
Transmission Model: Fast Gear 8-speed
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: stake body
Cargo box length: 4.15m
Cargo box width: 2.1m
Cargo box height: 0.4m
*Cargo box interior width: 2.1
Cab parameters
Cab width: 1995mm
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1850kg
rear axle allowable load: 2645kg
Axle ratio: 5.286
Leaf spring count: 5/7+5
Tire
Tire Size: 7.00R16LT 8PR,7.00R16LT 10PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Exterior features
Wiper type: Frameless wiper blade
Multimedia features
Center Console Color Screen:
Bluetooth / hands-free calling:
lighting configuration
Front fog lamp:
Headlight height adjustment:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
smart configuration
Cruise control (CCS):

Photos

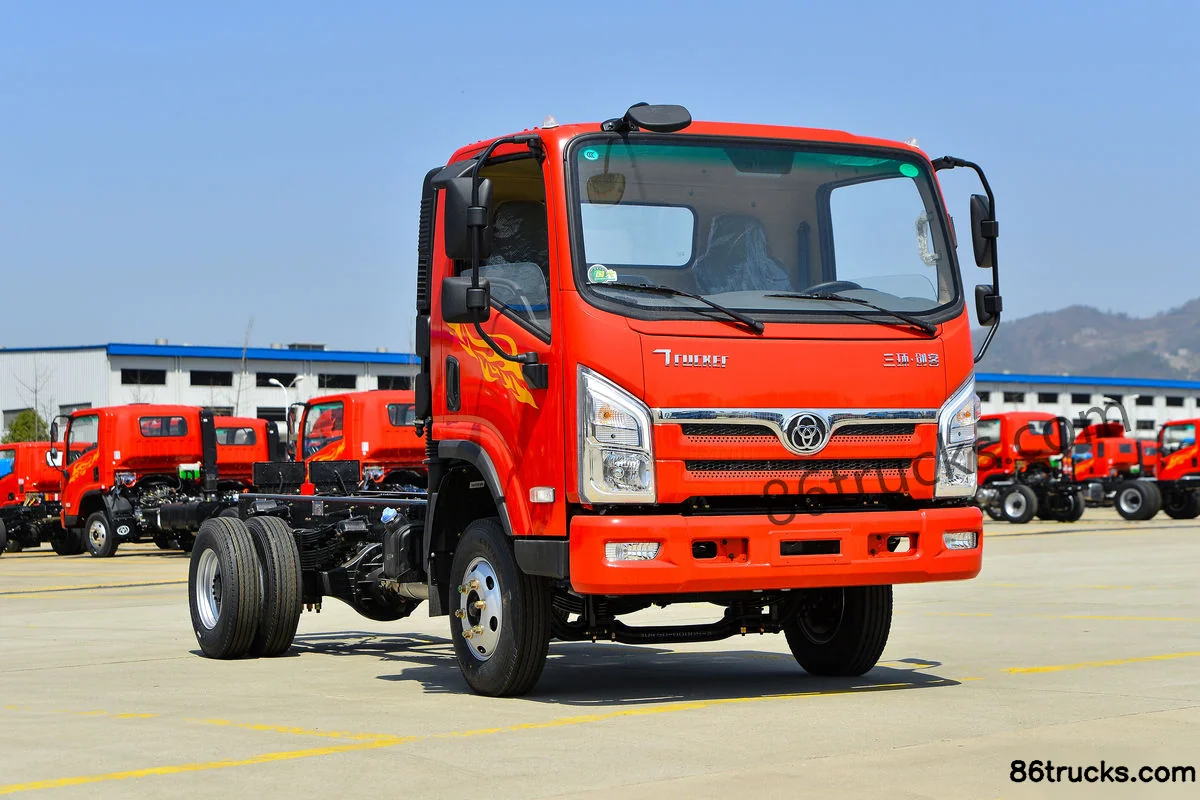

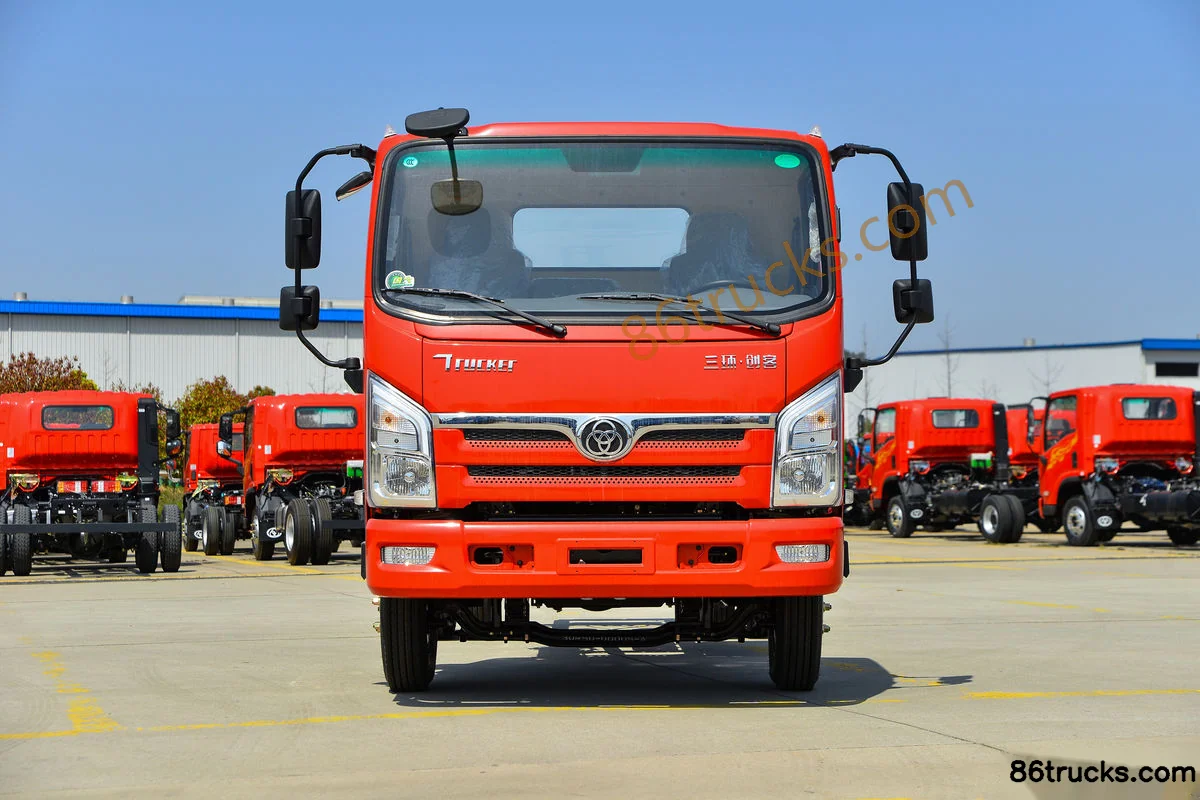

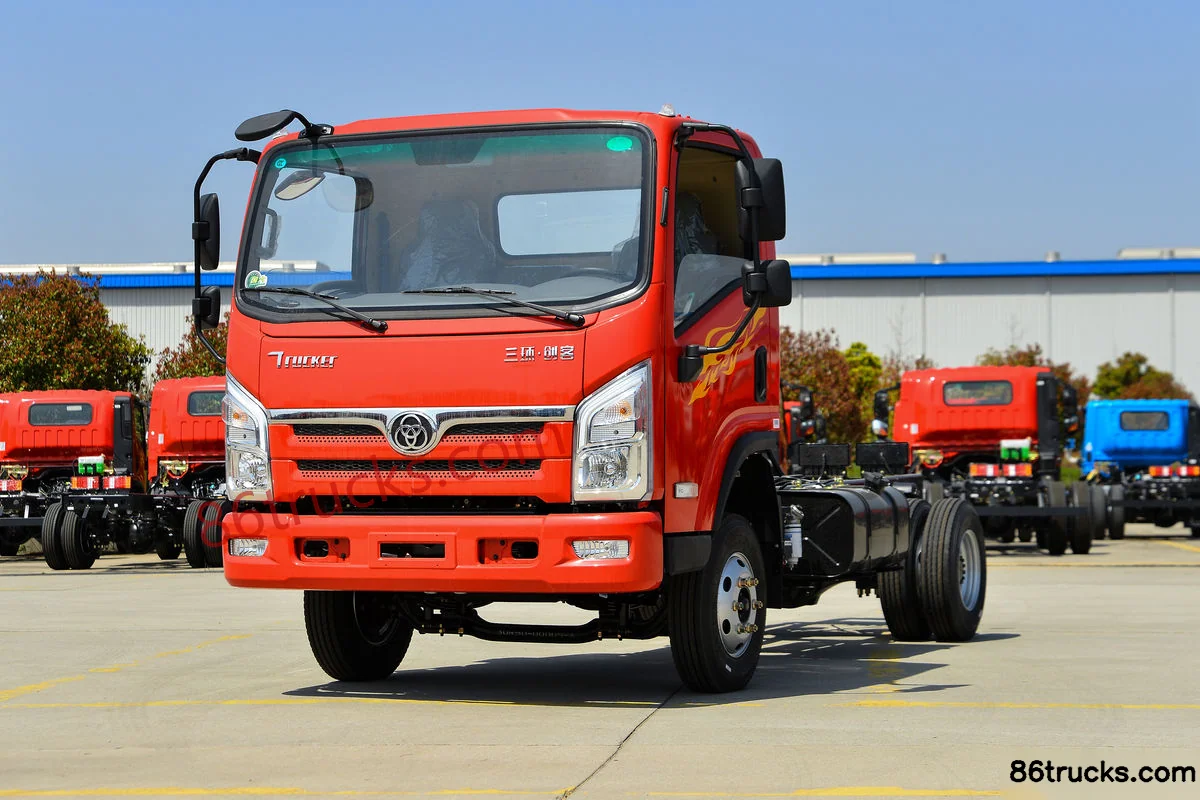

Exterior3

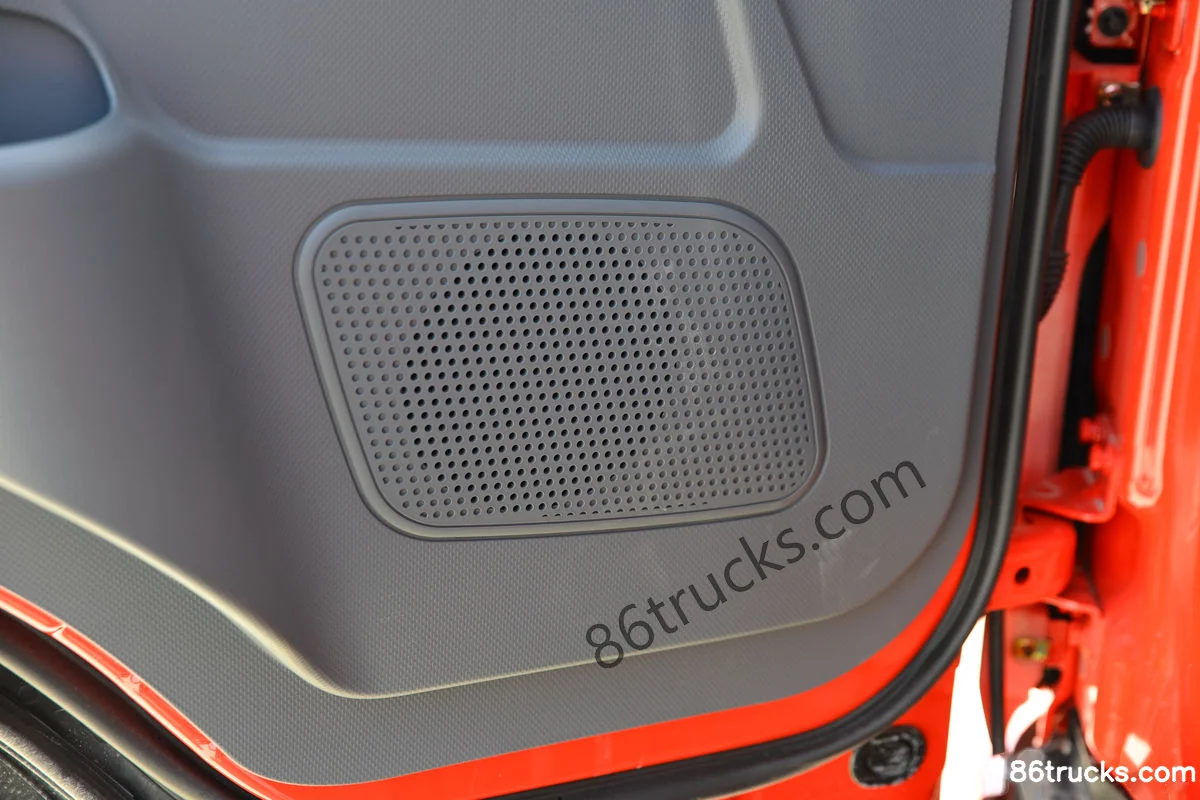

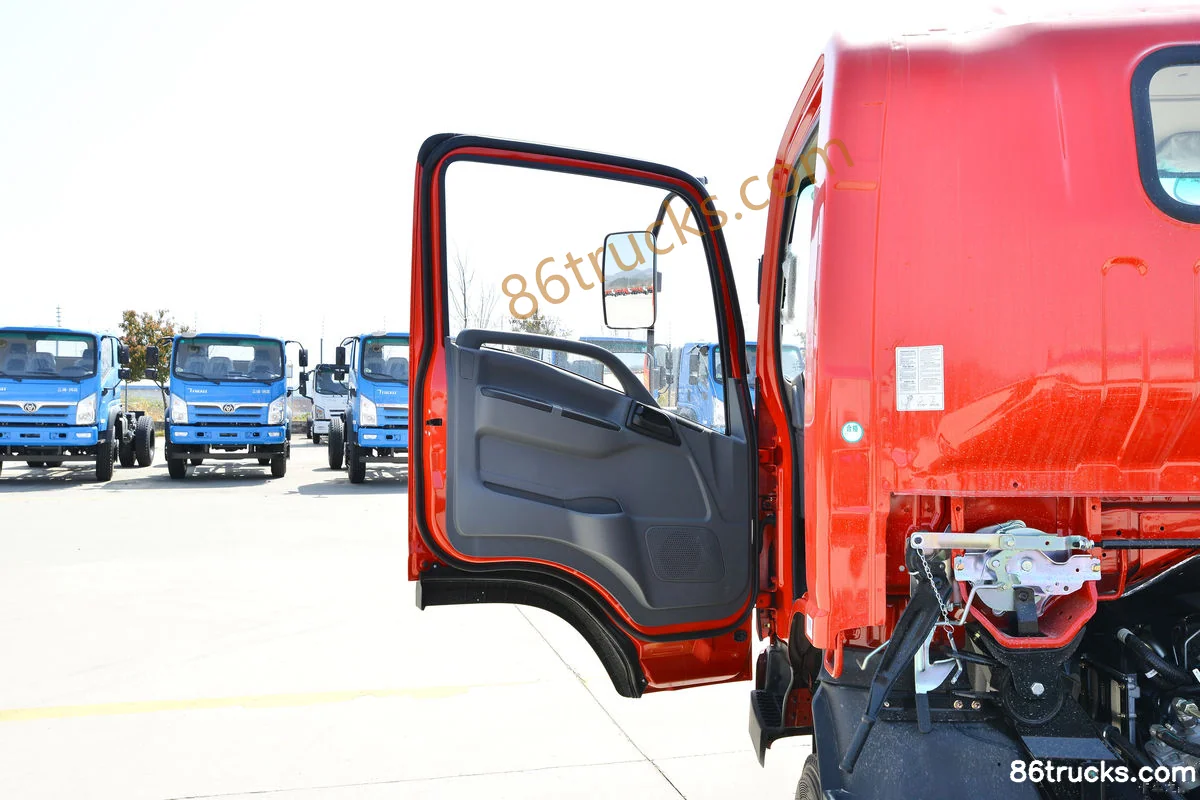

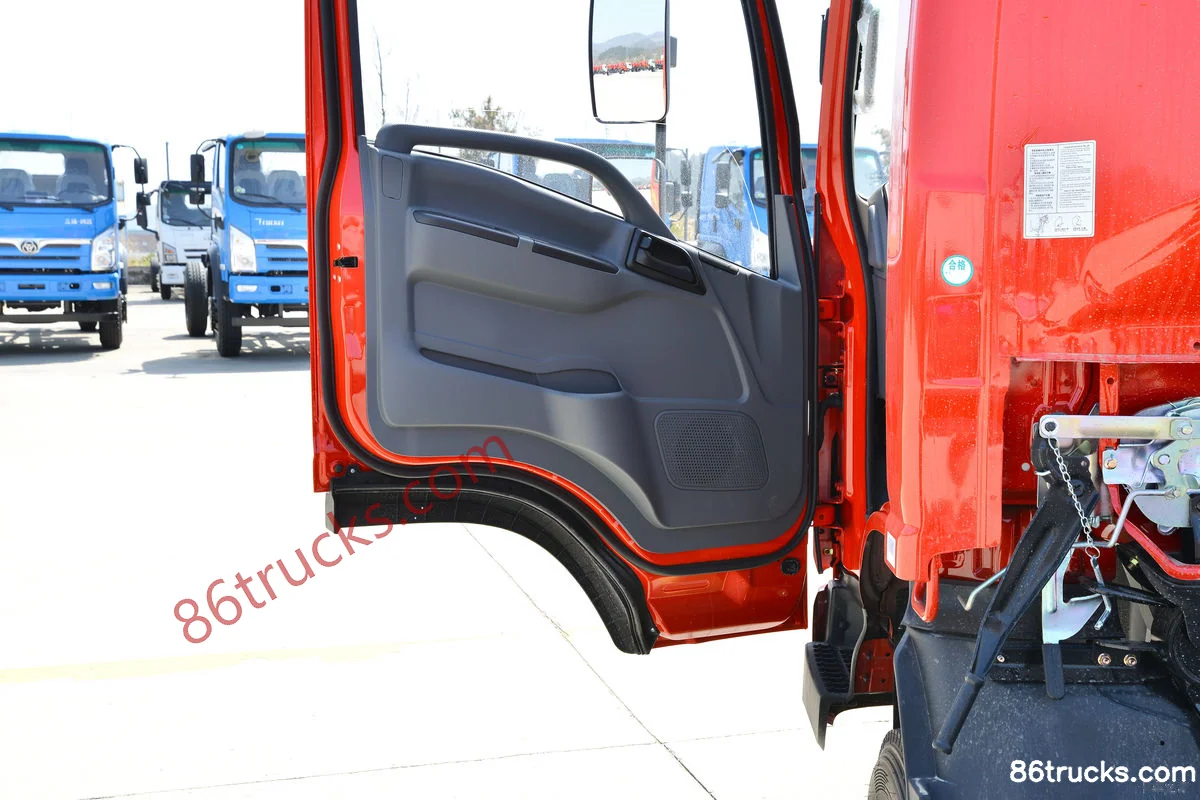

Cab3

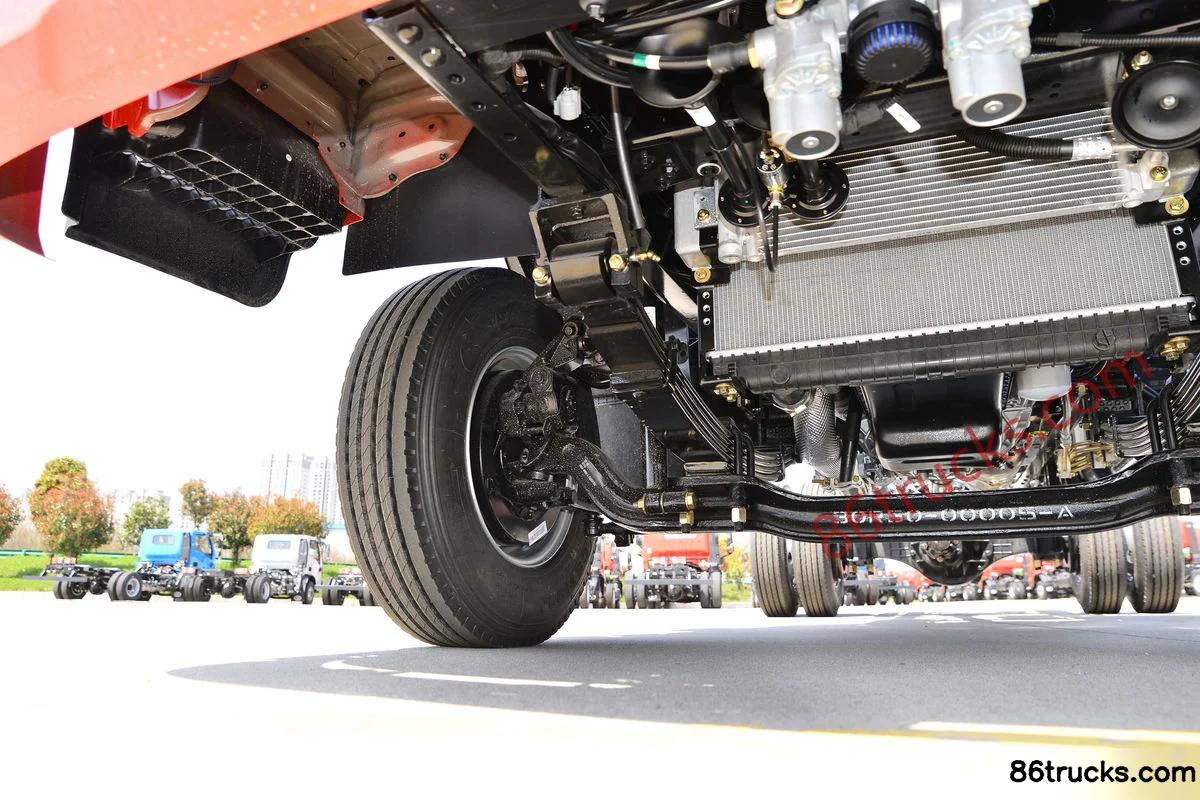

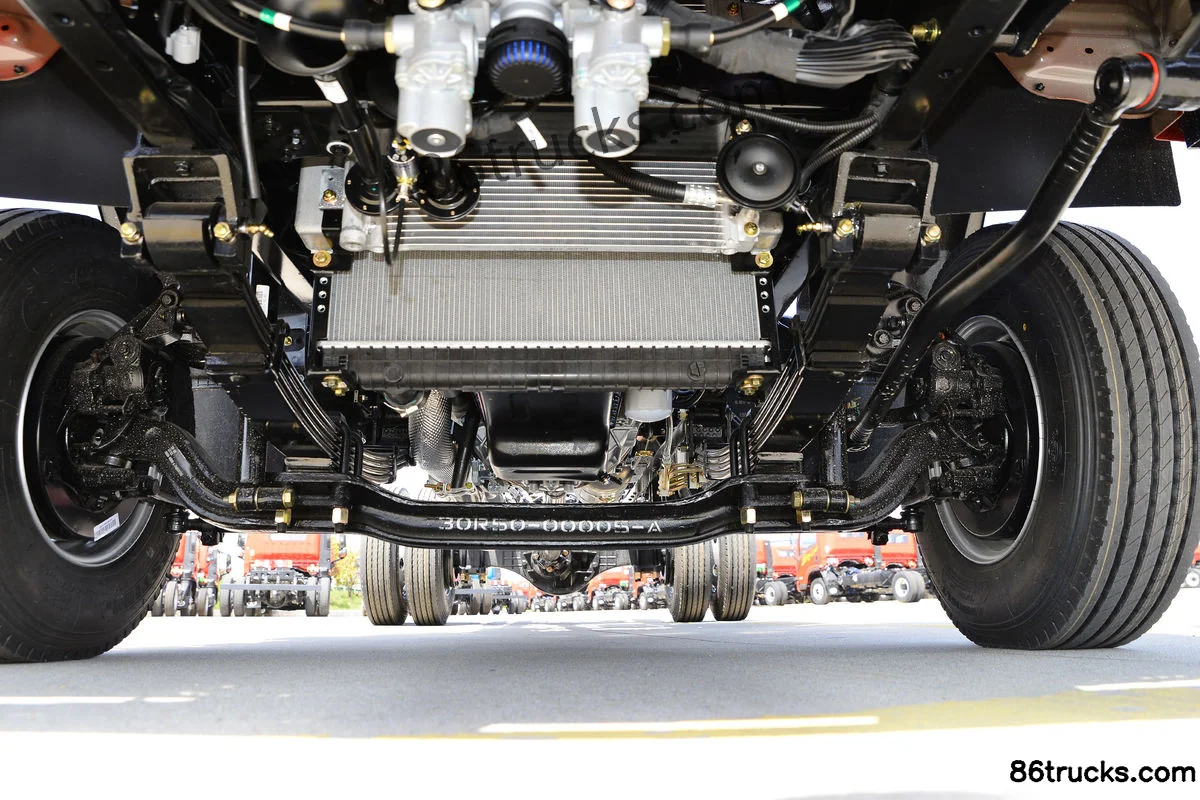

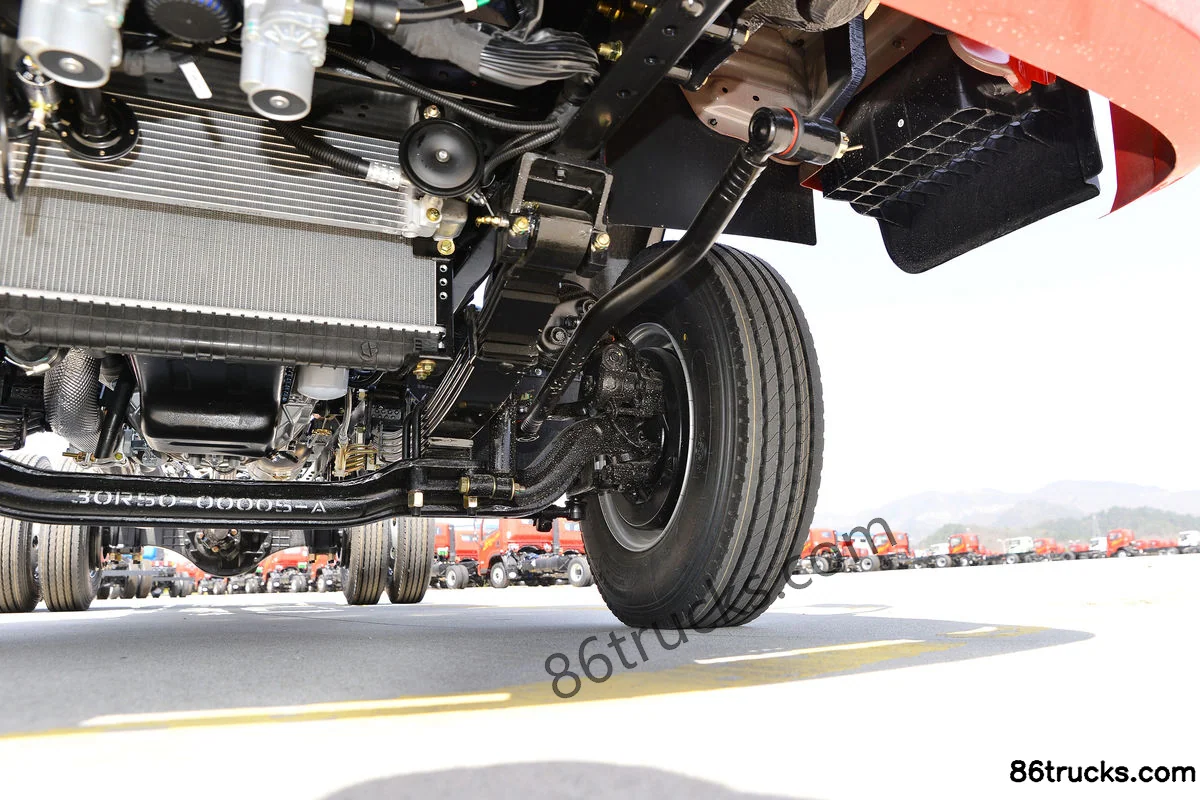

Chassis3

9 photos

FAQ

What is the export price of Sanhuan Shitong Chuangke 170hp 4X2(6 wheels) 4.15m single-row flatbed light truck, and what does it include?

Sanhuan Shitong Chuangke 170hp 4X2(6 wheels) 4.15m single-row flatbed light truck export reference is about From $15,389; MSRP is ¥11.08M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sanhuan Shitong Chuangke 170hp 4X2(6 wheels) 4.15m single-row flatbed light truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sanhuan Shitong Chuangke 170hp 4X2(6 wheels) 4.15m single-row flatbed light truck?

Key specs of Sanhuan Shitong Chuangke 170hp 4X2(6 wheels) 4.15m single-row flatbed light truck: Drive: 4x2; Horsepower: 170 hp; Emission: China VI; Fuel: Diesel; Engine: Yuchai2.5L; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sanhuan Shitong Chuangke 170hp 4X2(6 wheels) 4.15m single-row flatbed light truck suited for?

Sanhuan Shitong Chuangke 170hp 4X2(6 wheels) 4.15m single-row flatbed light truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sanhuan Shitong Chuangke 170hp 4X2(6 wheels) 4.15m single-row flatbed light truck differ from other variants in the same series?

Sanhuan Shitong Chuangke 170hp 4X2(6 wheels) 4.15m single-row flatbed light truck belongs to Sanhuan Shitong Chuanke Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sanhuan Shitong Chuangke 170hp 4X2(6 wheels) 4.15m single-row flatbed light truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sanhuan Shitong Chuangke 170hp 4X2(6 wheels) 4.15m single-row flatbed light truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
