Sinotruk HOWO Hanjiang 160hp 4X2(6 wheels) Green Sprinkler Truck (Luye Brand)

Export reference
MSRP N/A
Curb Weight:: 4.9ton
Emission: China VI
Fuel: Diesel
Cab dimensions:: 7.25×2.33×2.58m
Truck Type:: Water sprinkler truck
Vehicle origin:: Shandong Zhangqiu
Tank Dimensions (L×W×H): 4×1.9×1.3m
Rated payload: 6.9ton
Drive 4X2 (6 wheels)
Horsepower 160

Overview

The Sinotruk HOWO Hanjiang 160hp 4X2(6 wheels) Green Sprinkler Truck (Luye Brand) is a water sprinkler truck featuring 4×1.9×1.3m tank capacity, 6.9t payload, 6.9m³ volume and 4.9ton GVW. On the powertrain side, it comes with 160 hp, 4X2 (6 wheels) drive, China VI emissions and Diesel fuel.

China VI 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 7.25×2.33×2.58m
Truck Type: Water sprinkler truck
Drive type: 4X2
Vehicle origin: Shandong Zhangqiu
Front track width: 1800mm
rear track: 1695mm
Curb Weight: 4.9ton
Rated payload: 6.9ton
Max. speed: 95km/h
Front/rear suspension: 1.18/2.27m
Energy Type: Diesel
Body Parameters
Tank Dimensions (L×W×H): 4×1.9×1.3m
Vehicle certification code: JYJ5127GPSF
Body Brand: Luye Brand
Engine parameters
Engine Model: WeichaiWP3NQ160E61
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.97L
Emission standard: China VI
Max output power: 118kW
Max hp: 160Horsepower
Rated speed: 3000rpm
Engine Type: Inline, direct injection, water-cooled, 4-stroke, turbocharged, intercooled, electronically controlled high-pressure common rail
Cargo box parameters
Box volume: 6.9m³
Chassis Specs
Chassis Brand: Sinotruk
Chassis Series: Hohan
Chassis Model: ZZ1127K4515F1Z
Axle ratio: 4.875
Leaf spring count: 11/9+7
Transmission Parameters
Number of gears: 6Gear
Transmission Model: 6-speed transmission
Cab parameters
Cab: Single Row
Tire
Tire Size: 245/70R19.5 16PR
Number of tires: 6pcs

Photos

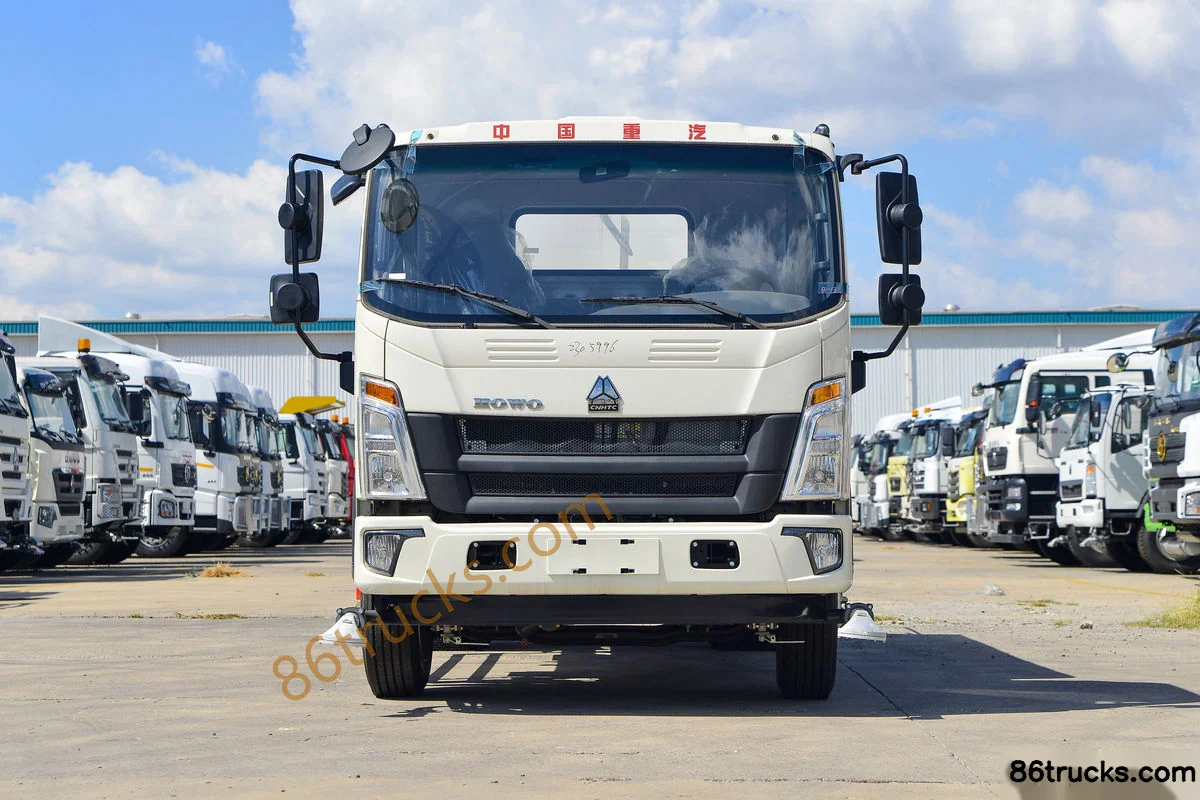

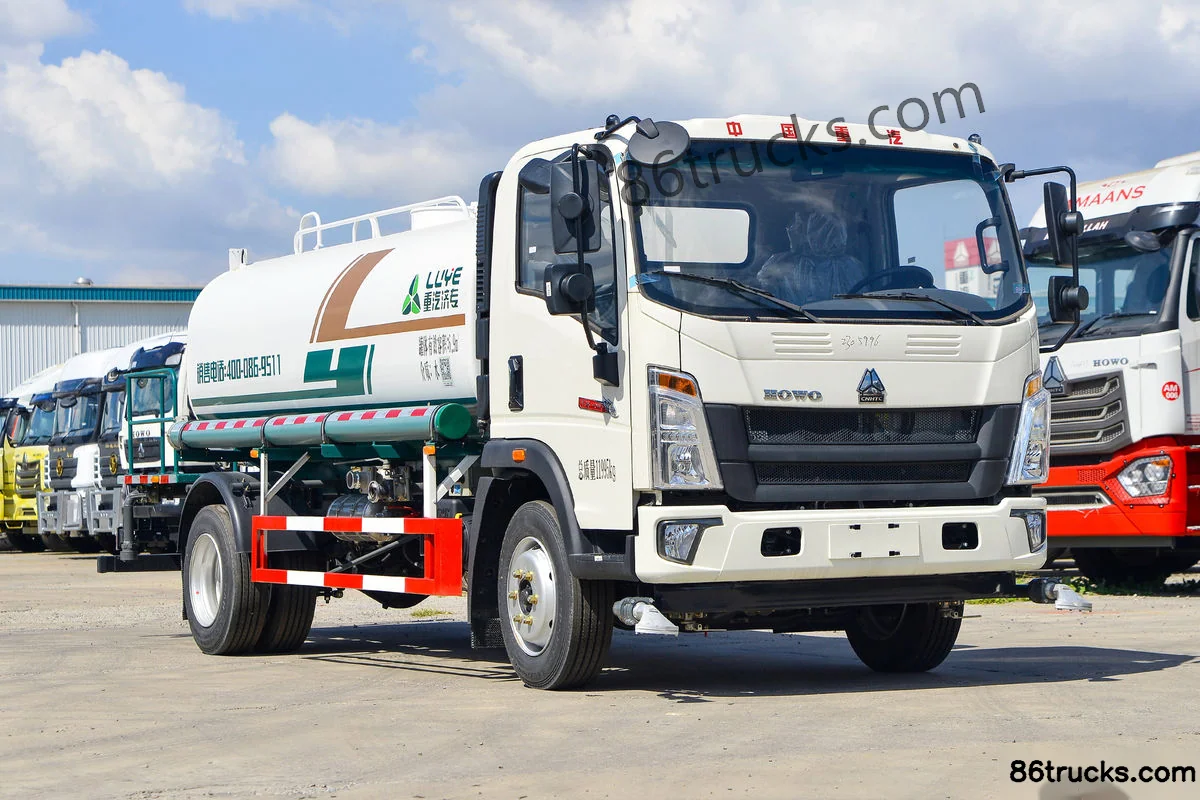

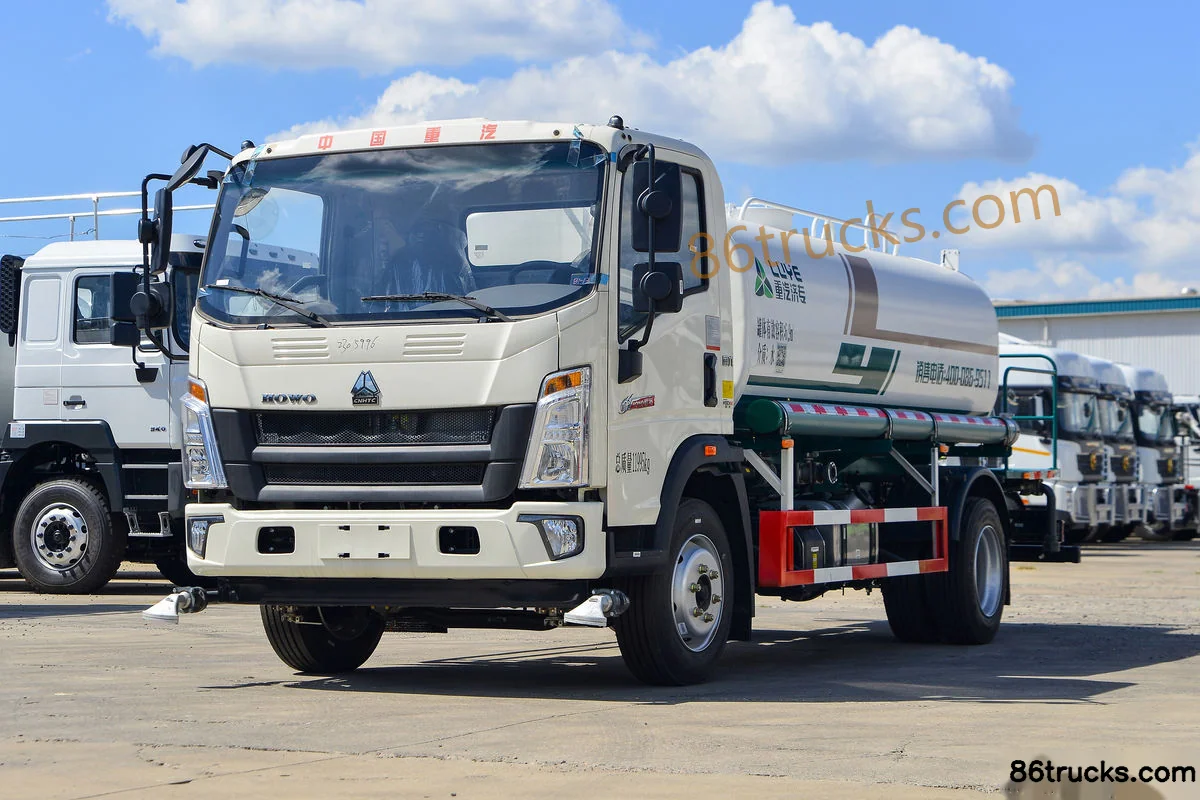

Exterior3

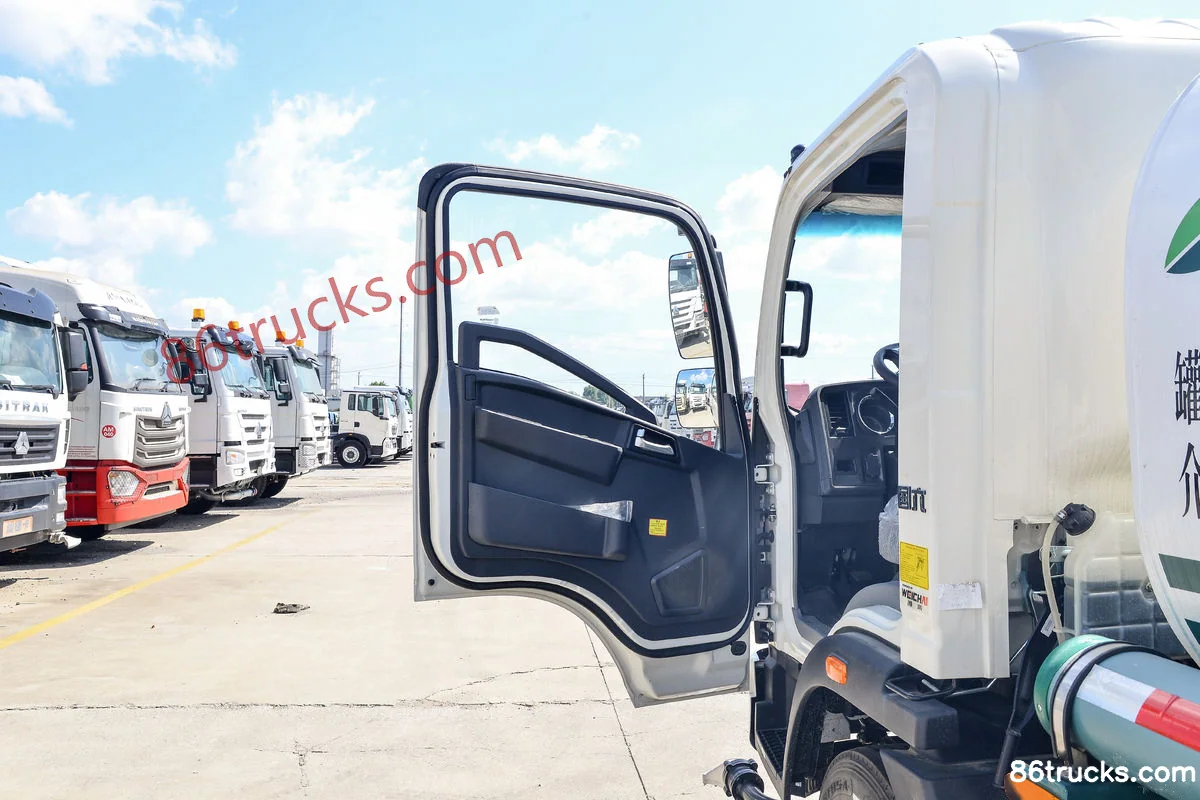

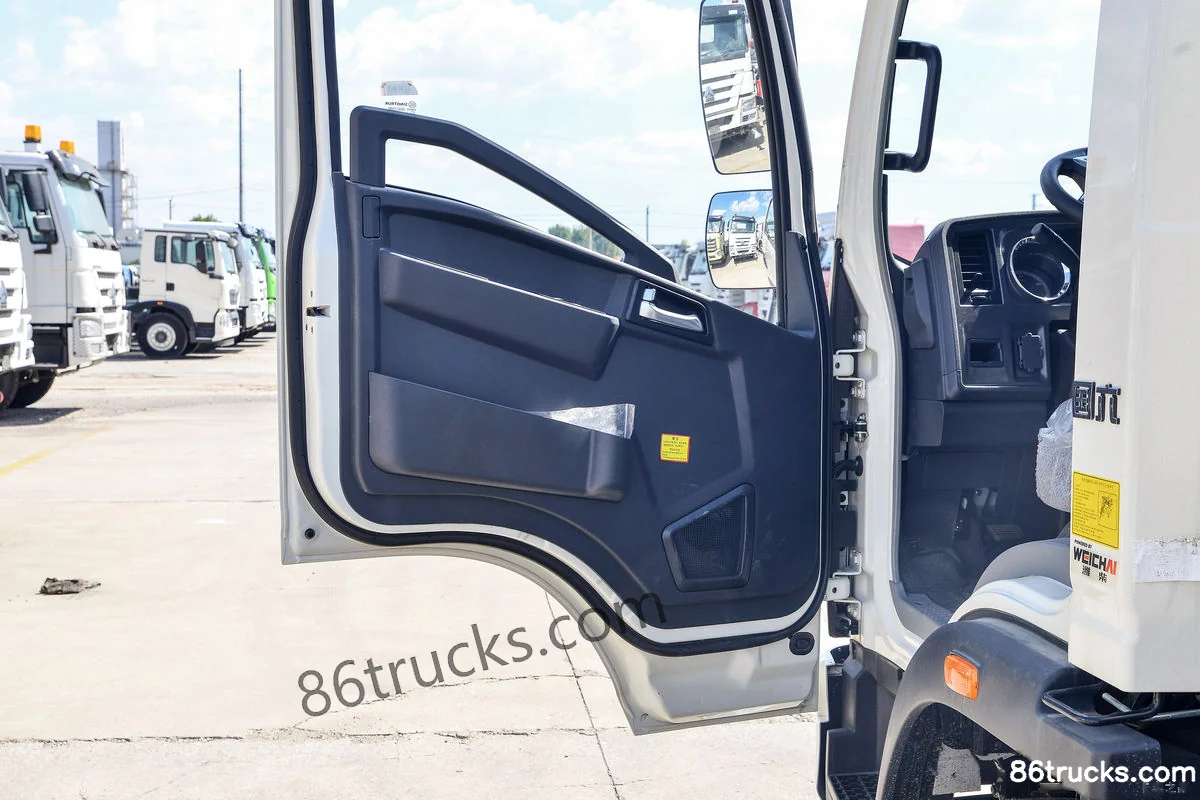

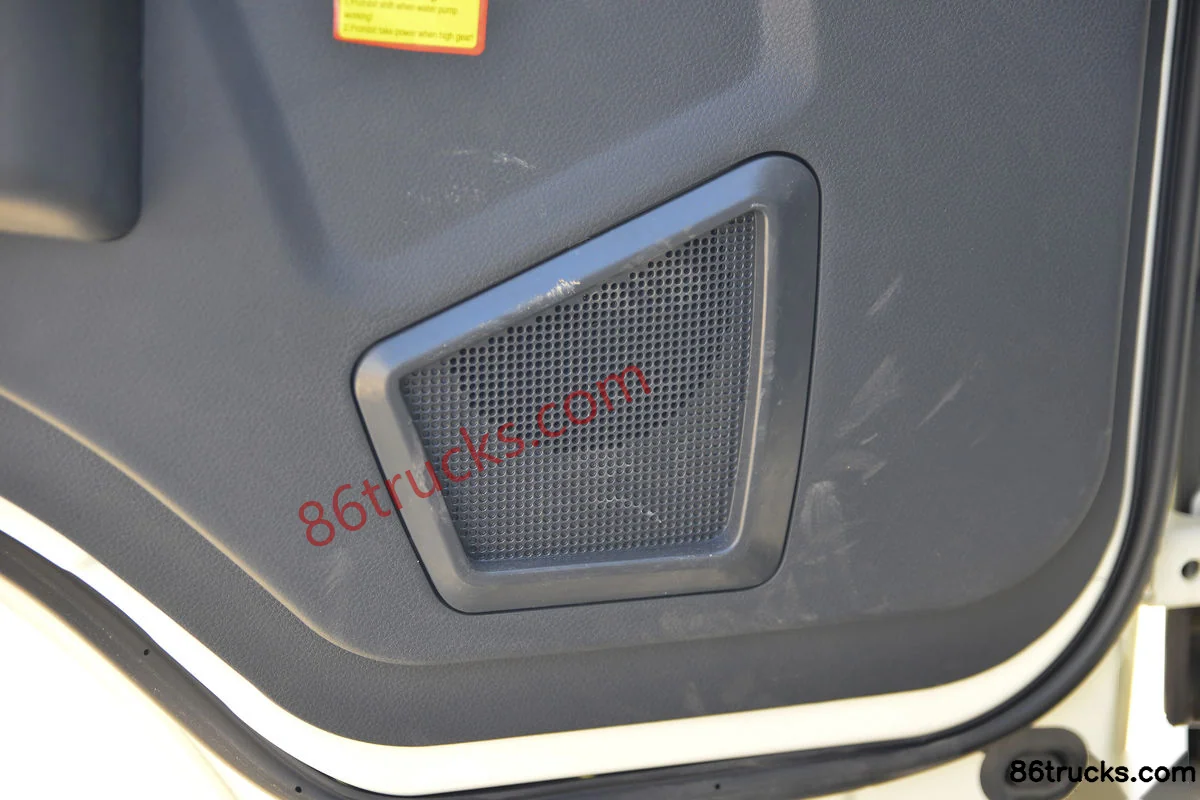

Cab3

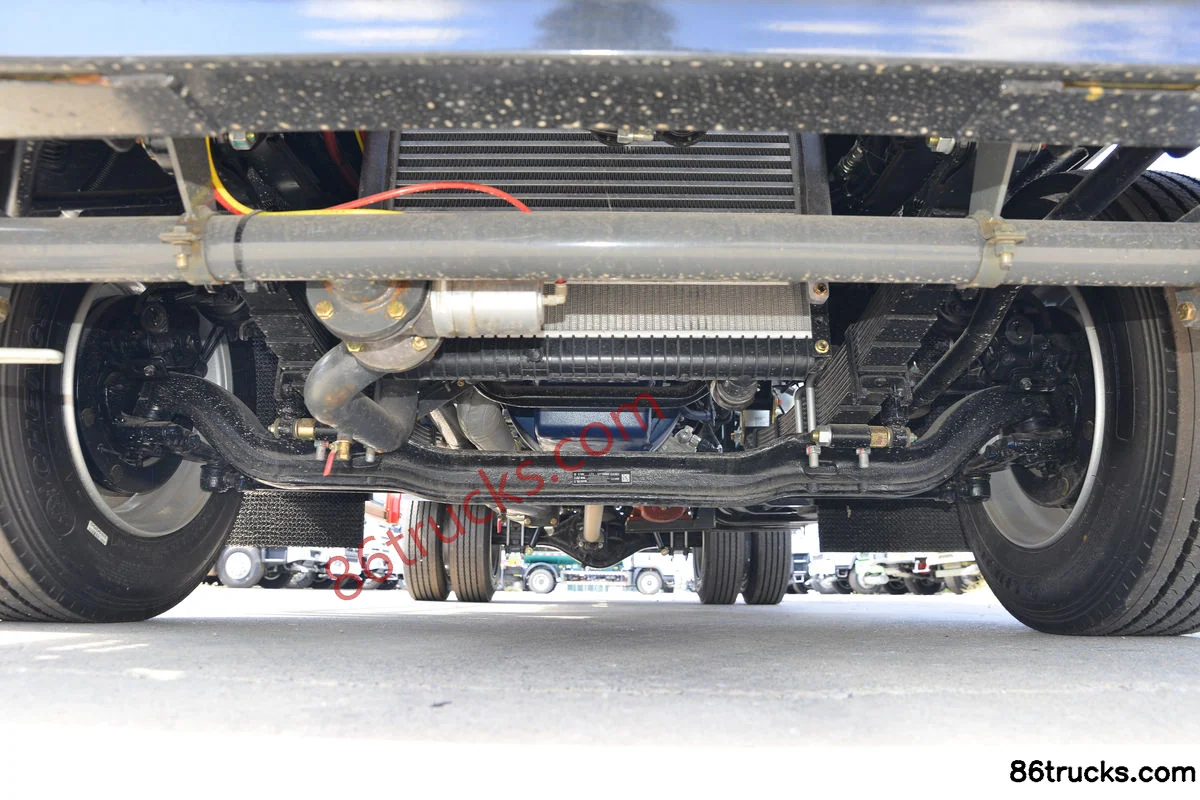

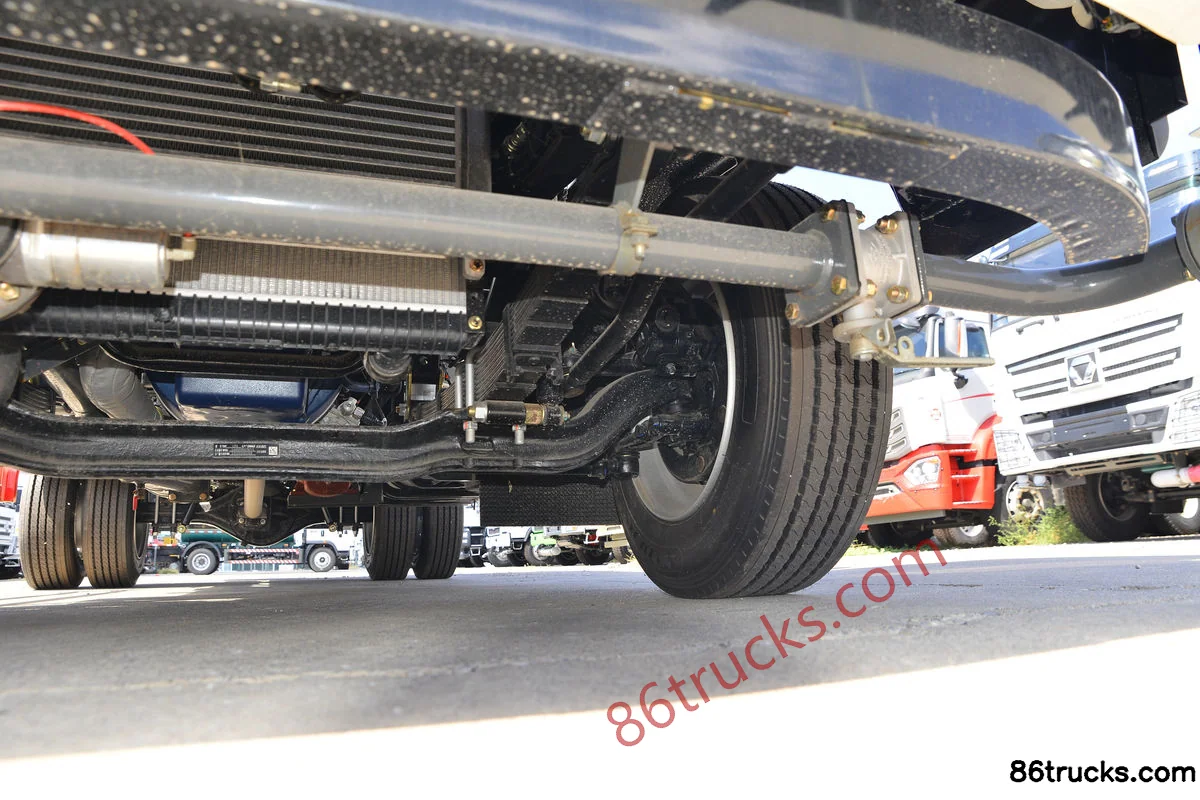

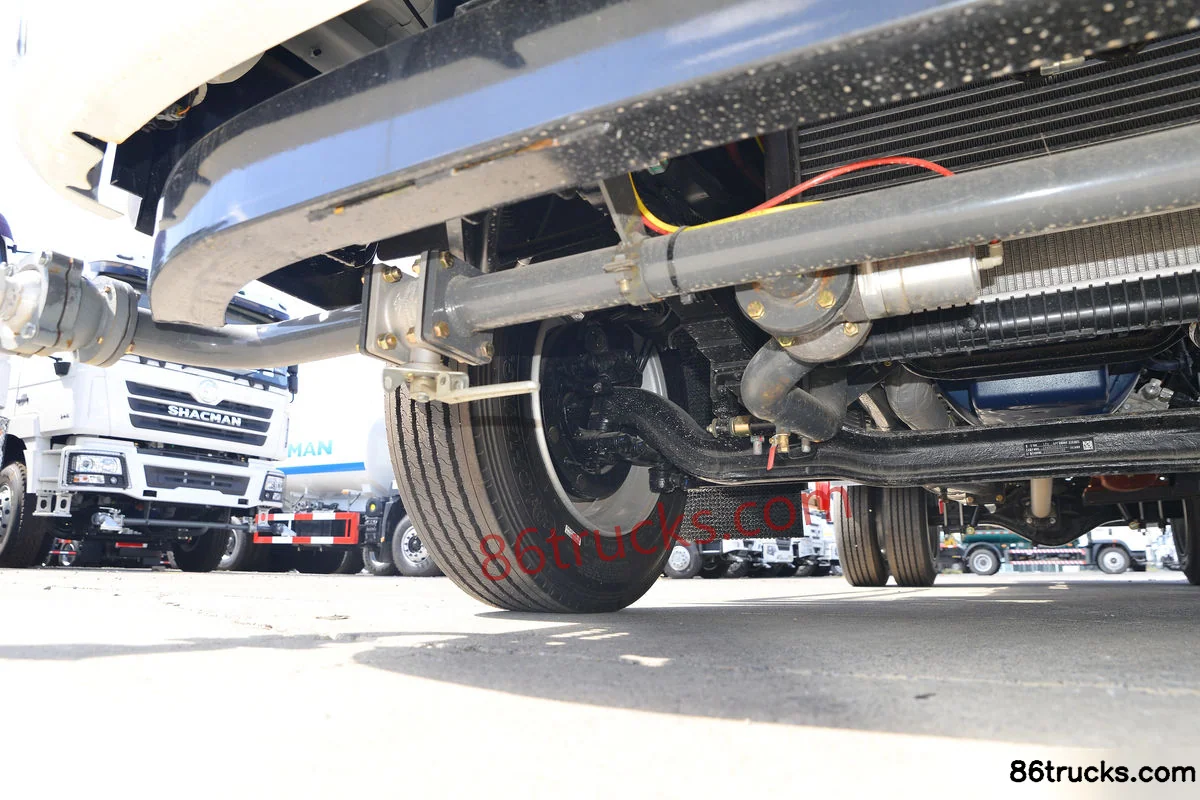

Chassis3

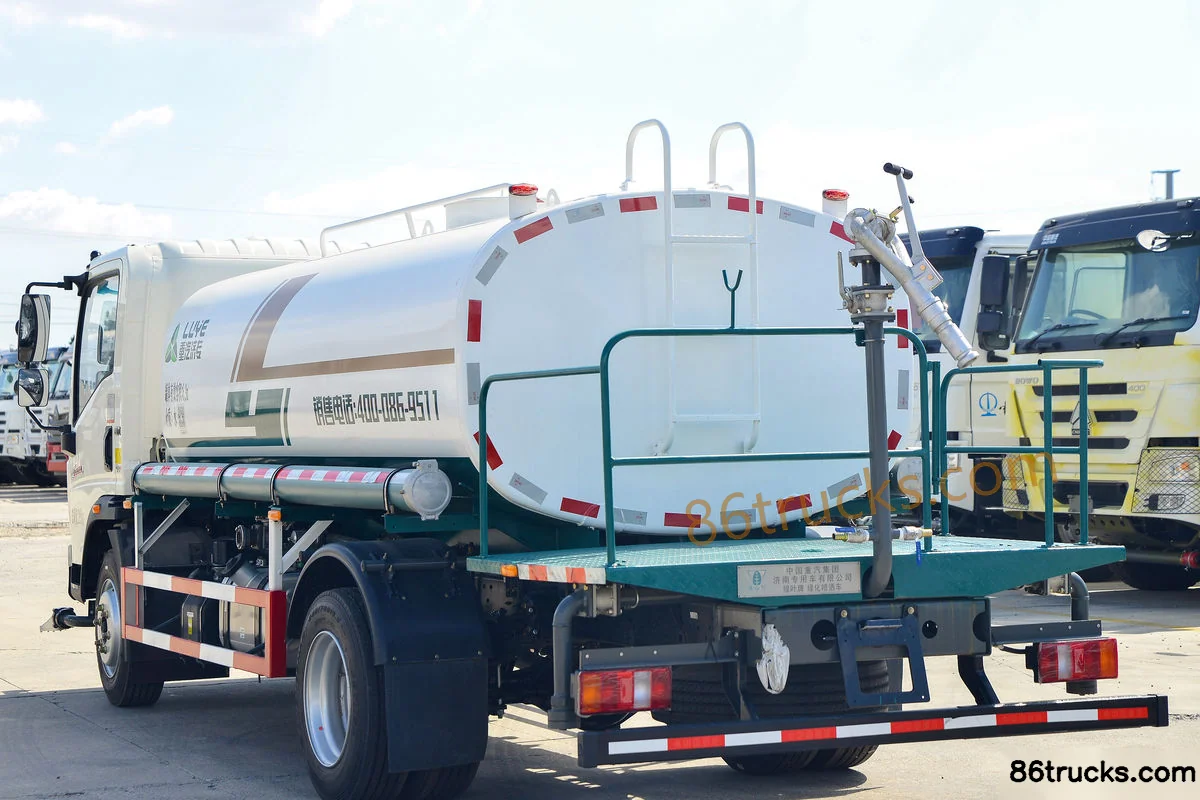

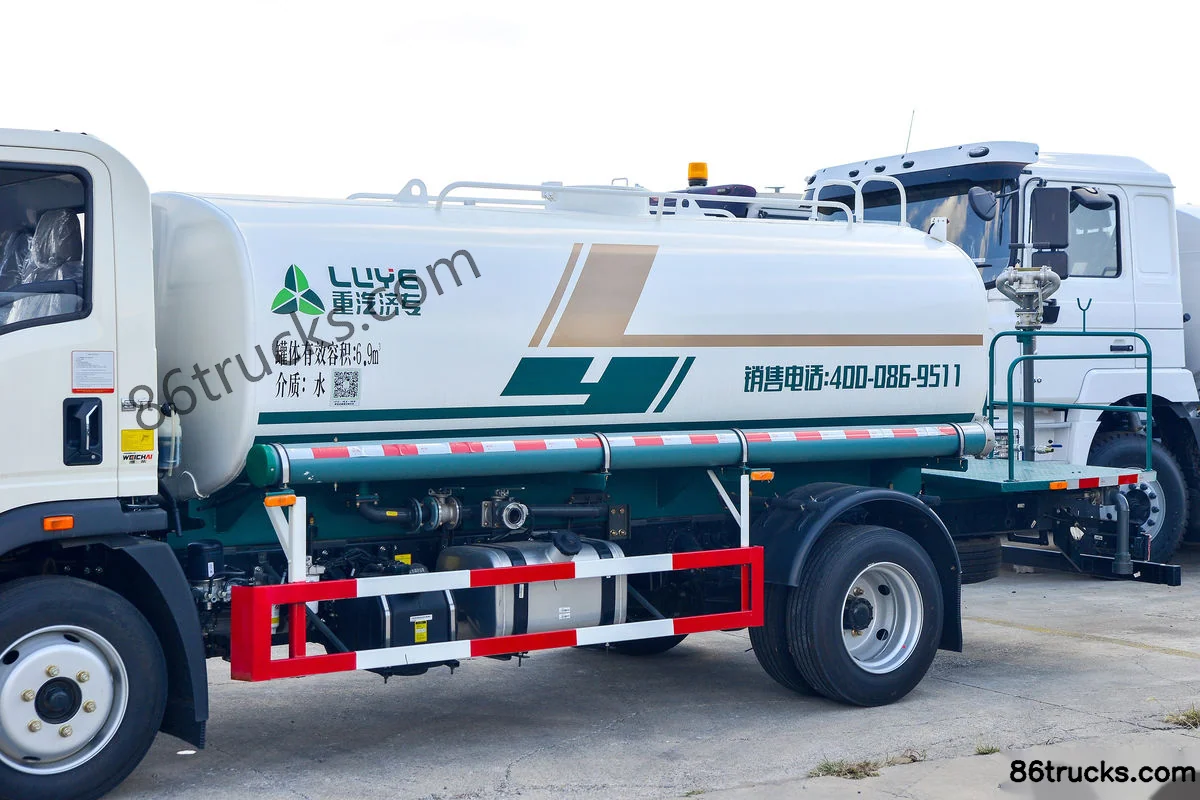

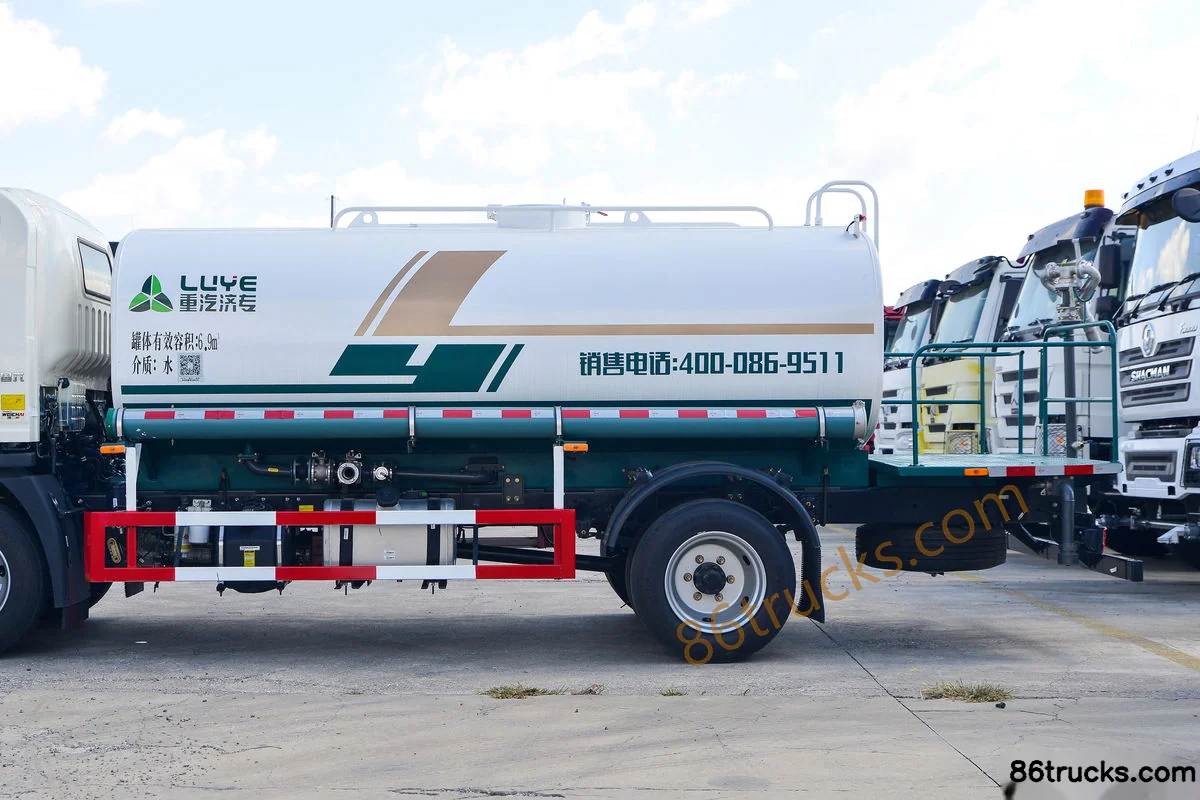

Body3

12 photos

FAQ

What emission standard does Sinotruk HOWO Hanjiang 160hp 4X2(6 wheels) Green Sprinkler Truck (Luye Brand) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO Hanjiang 160hp 4X2(6 wheels) Green Sprinkler Truck (Luye Brand)?

Key specs of Sinotruk HOWO Hanjiang 160hp 4X2(6 wheels) Green Sprinkler Truck (Luye Brand): Drive: 4x2; Horsepower: 160 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO Hanjiang 160hp 4X2(6 wheels) Green Sprinkler Truck (Luye Brand) suited for?

Sinotruk HOWO Hanjiang 160hp 4X2(6 wheels) Green Sprinkler Truck (Luye Brand) is a water sprinkler truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Sinotruk HOWO Hanjiang 160hp 4X2(6 wheels) Green Sprinkler Truck (Luye Brand) differ from other variants in the same series?

Sinotruk HOWO Hanjiang 160hp 4X2(6 wheels) Green Sprinkler Truck (Luye Brand) belongs to Jinan Sinotruk (Lvye Brand) Jinan Sinotruk (Lvye Brand) (water sprinkler truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO Hanjiang 160hp 4X2(6 wheels) Green Sprinkler Truck (Luye Brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO Hanjiang 160hp 4X2(6 wheels) Green Sprinkler Truck (Luye Brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
