JMC New Transit 122hp 3-Seat 2.0T Diesel High Roof Panel Van (China VI)

Export reference
MSRP N/A
Curb Weight:: 2.075ton
Wheelbase:: 3300mm
Front tire specification:: 215/75R16LT
Displacement:: 2L
Model code (announced):: JX5043XXYTF-M6
Truck Type:: Enclosed Van

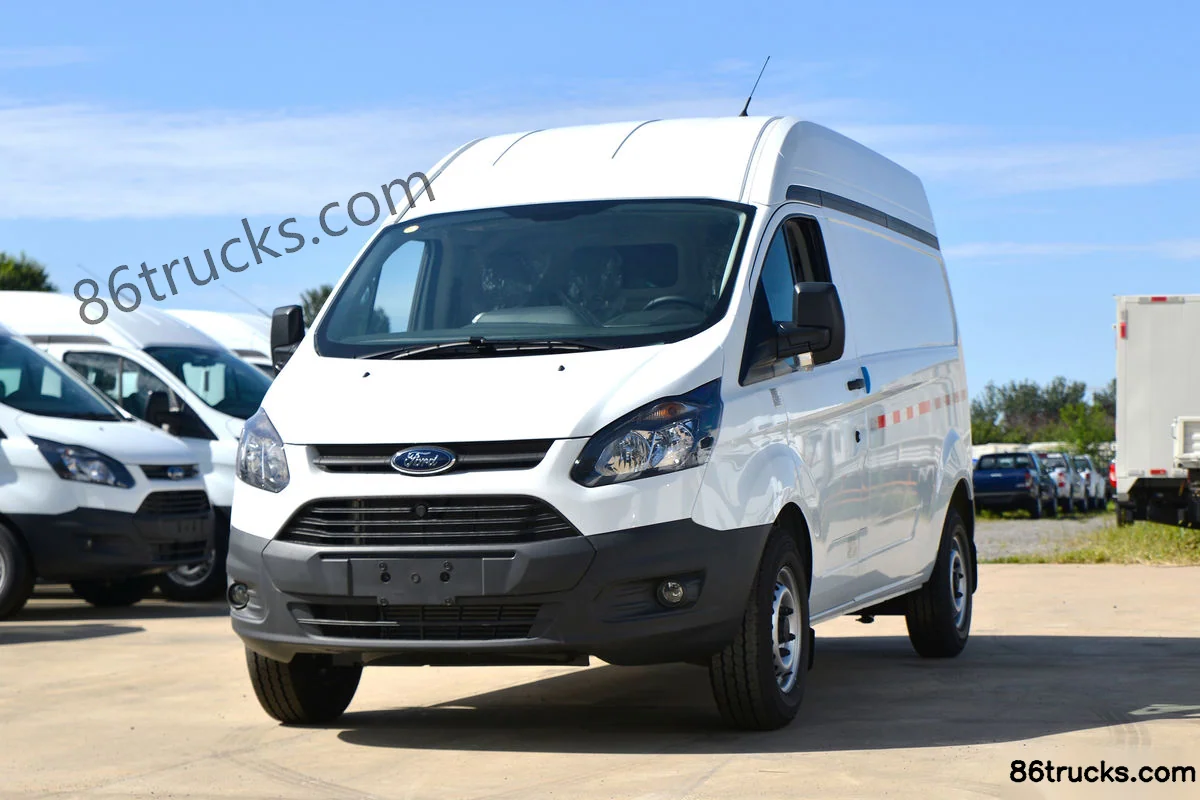

JMC New Transit 122hp 3-Seat 2.0T Diesel High Roof Panel Van (China VI) exterior
View more photos (9)
Drive Front-wheel drive
Horsepower 122
Emission China VI
Fuel Diesel

Overview

The JMC New Transit 122hp 3-Seat 2.0T Diesel High Roof Panel Van (China VI) is a Van/Light Bus featuring Front-wheel drive drive, 122 hp, 3.51t GVW and China VI emissions. On the powertrain side, it comes with Diesel fuel.

China VI 122 Diesel Front-wheel drive

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): JX5043XXYTF-M6
Drive type: Front-wheel drive
Truck Type: Enclosed Van
Vehicle origin: Nanchang, Jiangxi
Wheelbase: 3300mm
Cab length: 5.341m
Cab width: 2.032m
Cab height: 2.412m
Front track width: 1736mm
rear track: 1720mm
Curb Weight: 2.075ton
GVWR: 3.51ton
Max. speed: 156km/h
grade: Large van (light bus)
Driver's license: A1,A2,B1,B2,C1
Front/rear suspension: 1.014/1.027m
Version: Cargo Edition
Energy Type: Diesel
Engine parameters
Engine Brand: JMC
Engine Model: JMCDURATORQ4D206H
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2L
Emission standard: China VI
Max output power: 90kW
Max hp: 122Horsepower
Max torque: 300N·m
Max torque speed: 1500-2500rpm
Rated speed: 3250rpm
Transmission Parameters
Number of gears: 5Gear
shift type: Manual
Transmission Model: 5-speed transmission
shift method: Manual
Forward gears: 5Gear
Chassis Specs
Front suspension type: McPherson independent suspension
rear suspension type: Leaf spring non-independent suspension
Body Parameters
Cab structure: Cargo truck
Seat count: 3Seats
Fuel tank volume: 80L
Door Parameters
Number of Doors: 5
Wheel brake
Front brake type: Disc
rear brake type: Disc
Front tire specification: 215/75R16LT
Rear Wheel Specification: 215/75R16LT
Cab parameters
Seat rows:
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Seat material: Fabric
Multimedia features
External audio input (AUX/USB/iPod etc.):

Photos

Exterior3

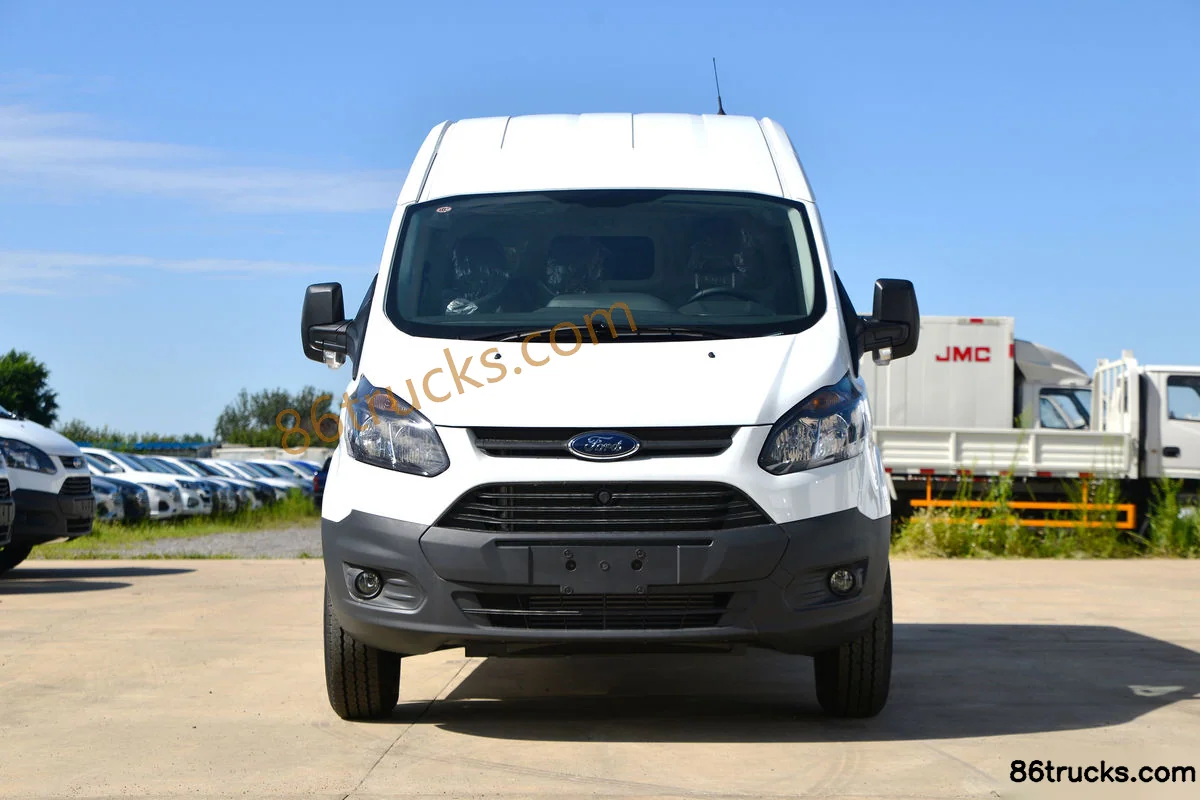

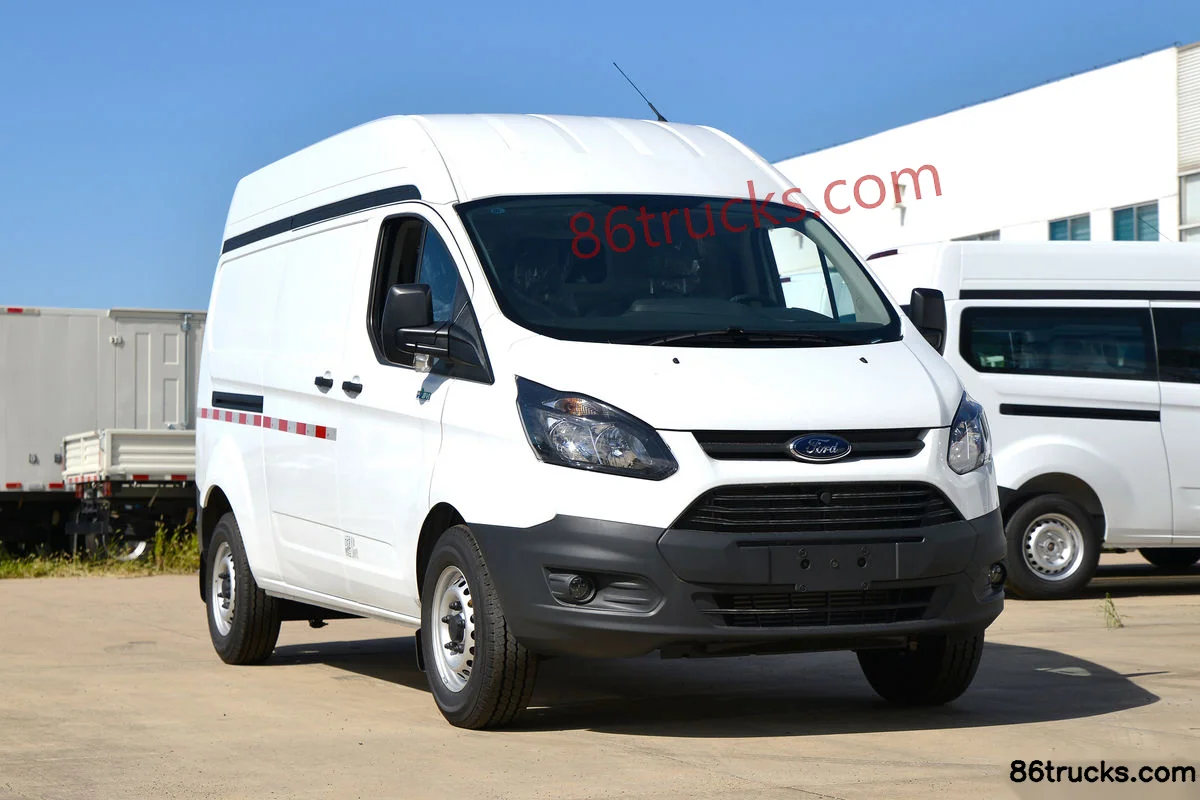

JMC New Transit 122hp 3-Seat 2.0T Diesel High Roof Panel Van (China VI) Exterior (1) | 86Trucks JMC New Transit 122hp 3-Seat 2.0T Diesel High Roof Panel Van (China VI) Exterior (2) | 86Trucks JMC New Transit 122hp 3-Seat 2.0T Diesel High Roof Panel Van (China VI) Exterior (3) | 86Trucks

Cab3

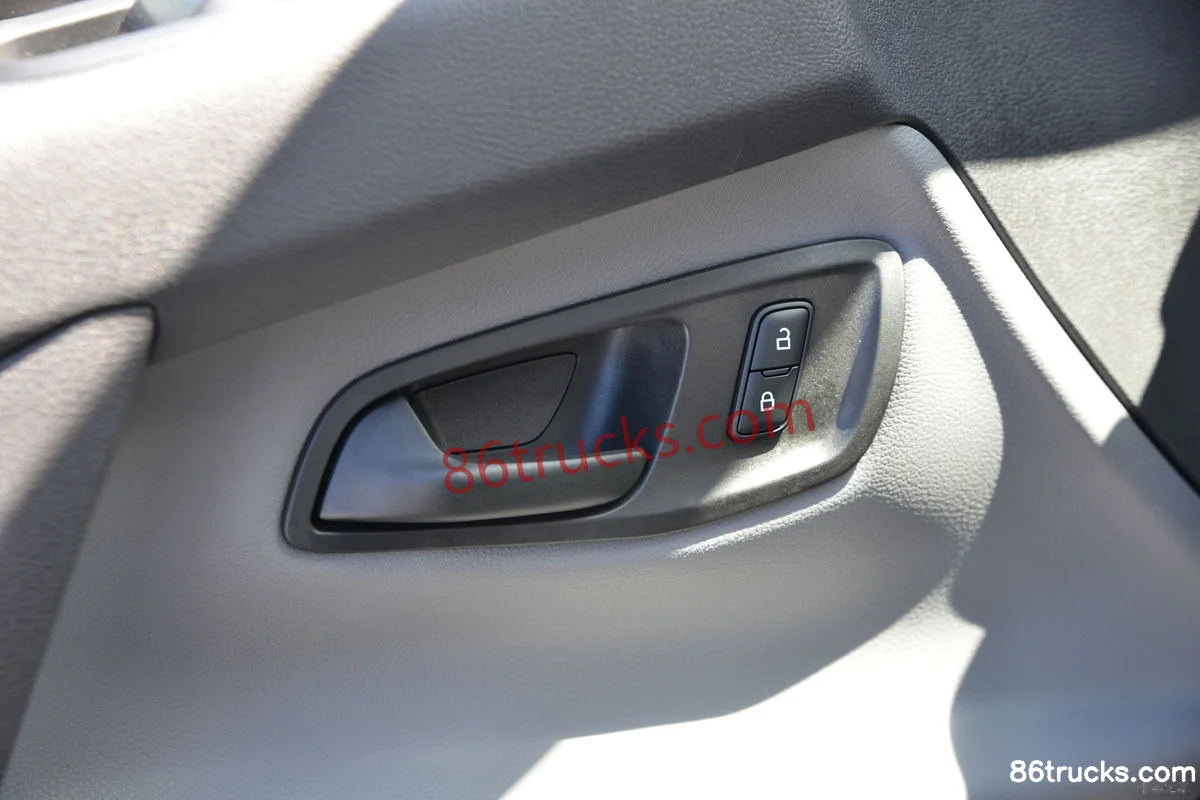

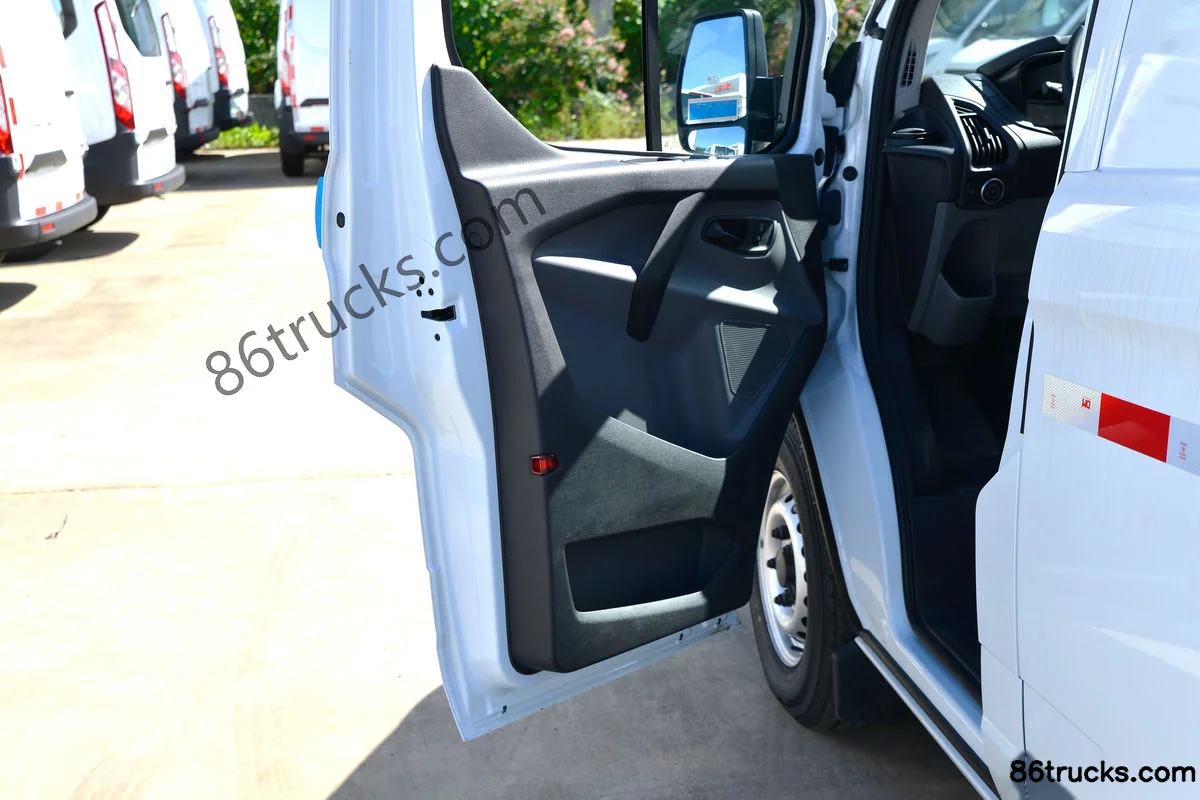

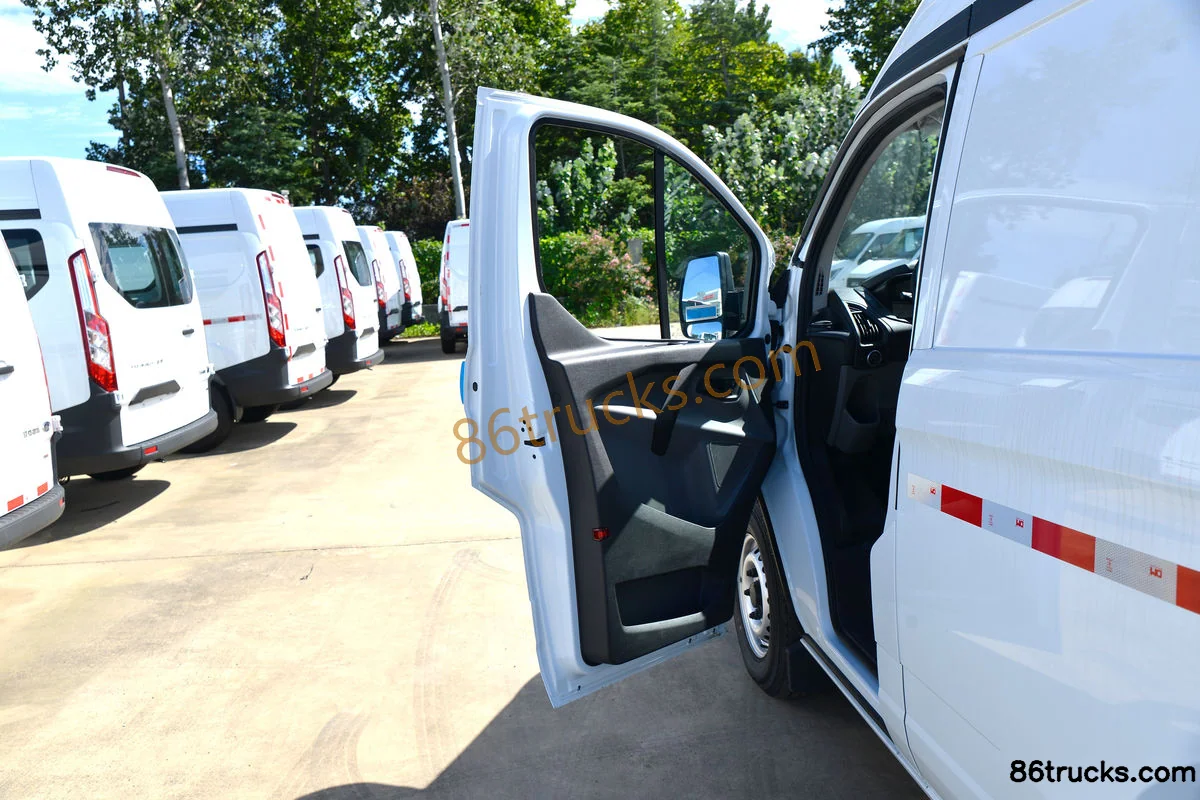

JMC New Transit 122hp 3-Seat 2.0T Diesel High Roof Panel Van (China VI) Cab (1) | 86Trucks JMC New Transit 122hp 3-Seat 2.0T Diesel High Roof Panel Van (China VI) Cab (2) | 86Trucks JMC New Transit 122hp 3-Seat 2.0T Diesel High Roof Panel Van (China VI) Cab (3) | 86Trucks

Chassis3

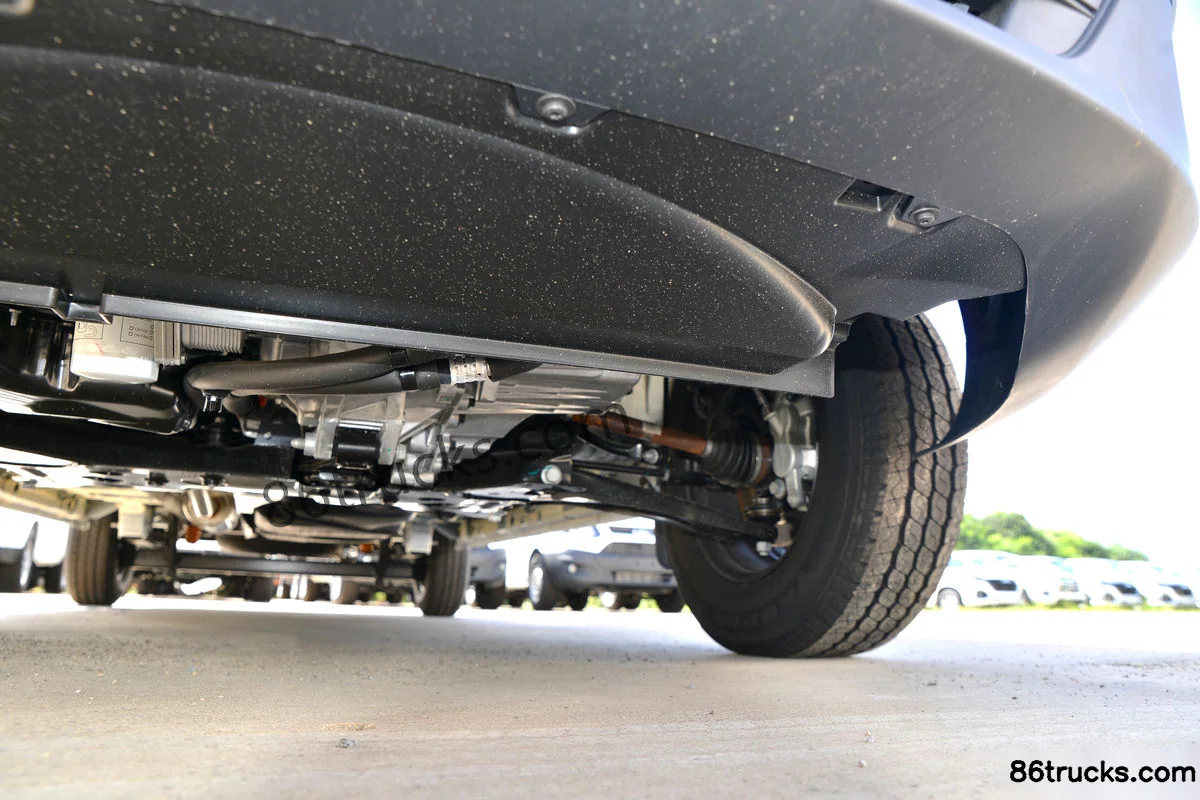

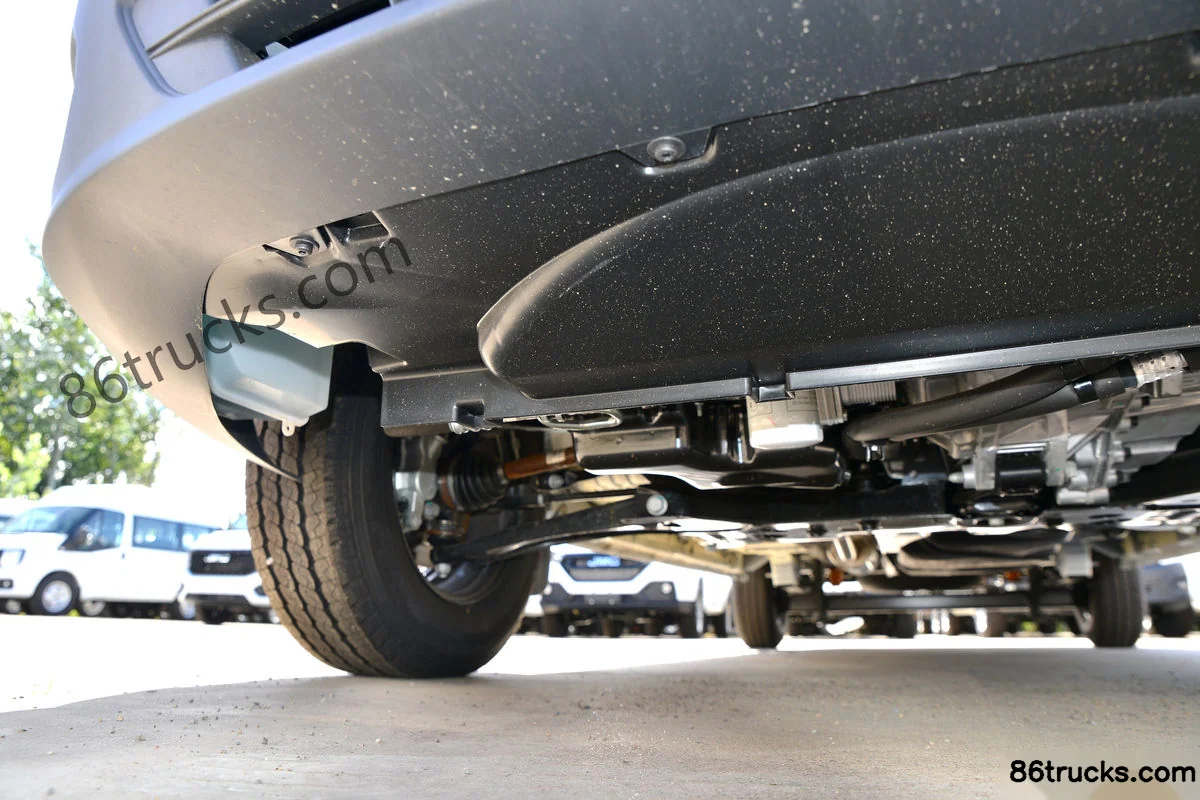

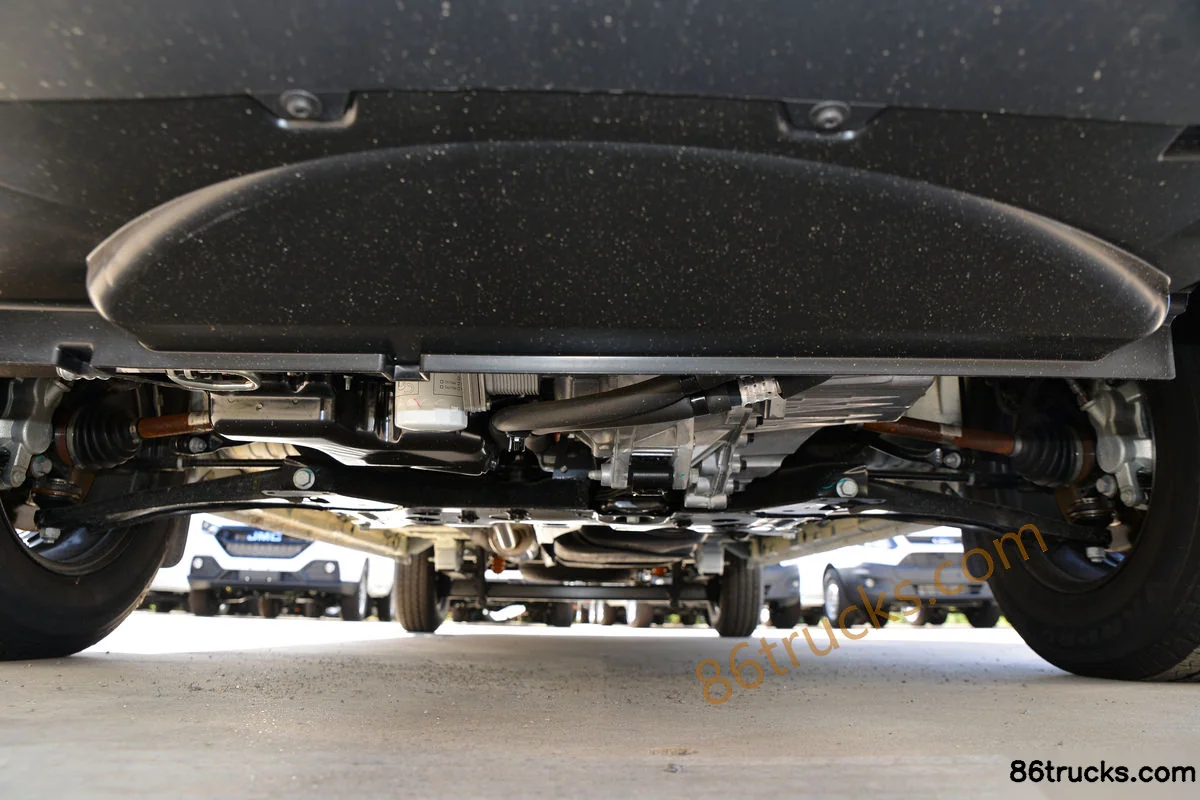

JMC New Transit 122hp 3-Seat 2.0T Diesel High Roof Panel Van (China VI) Chassis (1) | 86Trucks JMC New Transit 122hp 3-Seat 2.0T Diesel High Roof Panel Van (China VI) Chassis (2) | 86Trucks JMC New Transit 122hp 3-Seat 2.0T Diesel High Roof Panel Van (China VI) Chassis (3) | 86Trucks

9 photos

FAQ

What emission standard does JMC New Transit 122hp 3-Seat 2.0T Diesel High Roof Panel Van (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JMC New Transit 122hp 3-Seat 2.0T Diesel High Roof Panel Van (China VI)?

Key specs of JMC New Transit 122hp 3-Seat 2.0T Diesel High Roof Panel Van (China VI): Drive: Front-wheel drive; Horsepower: 122 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JMC New Transit 122hp 3-Seat 2.0T Diesel High Roof Panel Van (China VI) suited for?

Match JMC New Transit 122hp 3-Seat 2.0T Diesel High Roof Panel Van (China VI) to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does JMC New Transit 122hp 3-Seat 2.0T Diesel High Roof Panel Van (China VI) differ from other variants in the same series?

JMC New Transit 122hp 3-Seat 2.0T Diesel High Roof Panel Van (China VI) belongs to JMC New Transit (Van/Light Bus). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JMC New Transit 122hp 3-Seat 2.0T Diesel High Roof Panel Van (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JMC New Transit 122hp 3-Seat 2.0T Diesel High Roof Panel Van (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
