FAW Jiefang Qingdao Lu V Medium Truck 180 hp 4X2(6 wheels) 6.75m stake truck

Export reference
From $24,639
MSRP ¥17.74M CNY
Horsepower: 180
Emission: China IV
Fuel: Diesel
Engine: Dachai 6-cylinder
Transmission: Fast Gear
Curb Weight:: 6.22ton
seating capacity: 3Personnel
Rated payload: 9.45ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The FAW Jiefang Qingdao Lu V Medium Truck 180 hp 4X2(6 wheels) 6.75m stake truck is a Medium-duty truck featuring 6.75m cargo length, Stake type cargo body, 3Personnel volume and 9.45t payload. Its segment focus covers Green Pass, matching those duty cycles. On the powertrain side, it comes with a Dachai 6-cylinder engine, 180 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 180 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA5160CCYP1K2L2E4A80-1
Type: stake truck
Drive type: 4X2
Wheelbase: 5270mm
Box length class: 6.8m
engine: DachaiBF6M2012-18E4
transmission: Shaanxi Gear 8JS75C
Rear Axle Ratio: 4.33
Cab length: 9m
Cab width: 2.499m
Cab height: 3.79m
Front track width: 1900mm
rear track: 1800mm
Curb Weight: 6.22ton
Rated payload: 9.45ton
GVWR: 15.8ton
Max. speed: 90km/h
Origin: Qingdao, Shandong
tonnage class: Medium-duty truck
Approach angle: 23°
departure angle: 13°
market segment: Green Pass
Front/rear suspension: 1.375/2.333m
Energy Type: Diesel
Engine parameters
Engine Brand: Dachai
Engine Model: BF6M2012-18E4
Engine info: Dachai 6-cylinder
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.06L
Emission standard: China IV
Max output power: 139kW
Max hp: 180Horsepower
Max torque: 660N·m
Max torque speed: 1500rpm
Rated speed: 2500rpm
Engine Type: Electronically controlled
Transmission Parameters
Transmission Model: Fast Gear8JS75C
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 6.75m
Cargo box width: 2.4m
Cargo box height: 0.6m
*Cargo box interior width: 2.4000000953674
Cab parameters
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: Iron
Fuel tank capacity: 300L
Chassis Specs
Front axle allowable load: 5800kg
rear axle description: 385 improved cast axle
rear axle allowable load: 10000kg
Axle ratio: 4.33
Leaf spring count: 7/10+3,10/12+8
Tire
Tire Size: 9.00-20 16PR,9.00R20 16PR,10R22.5 16PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

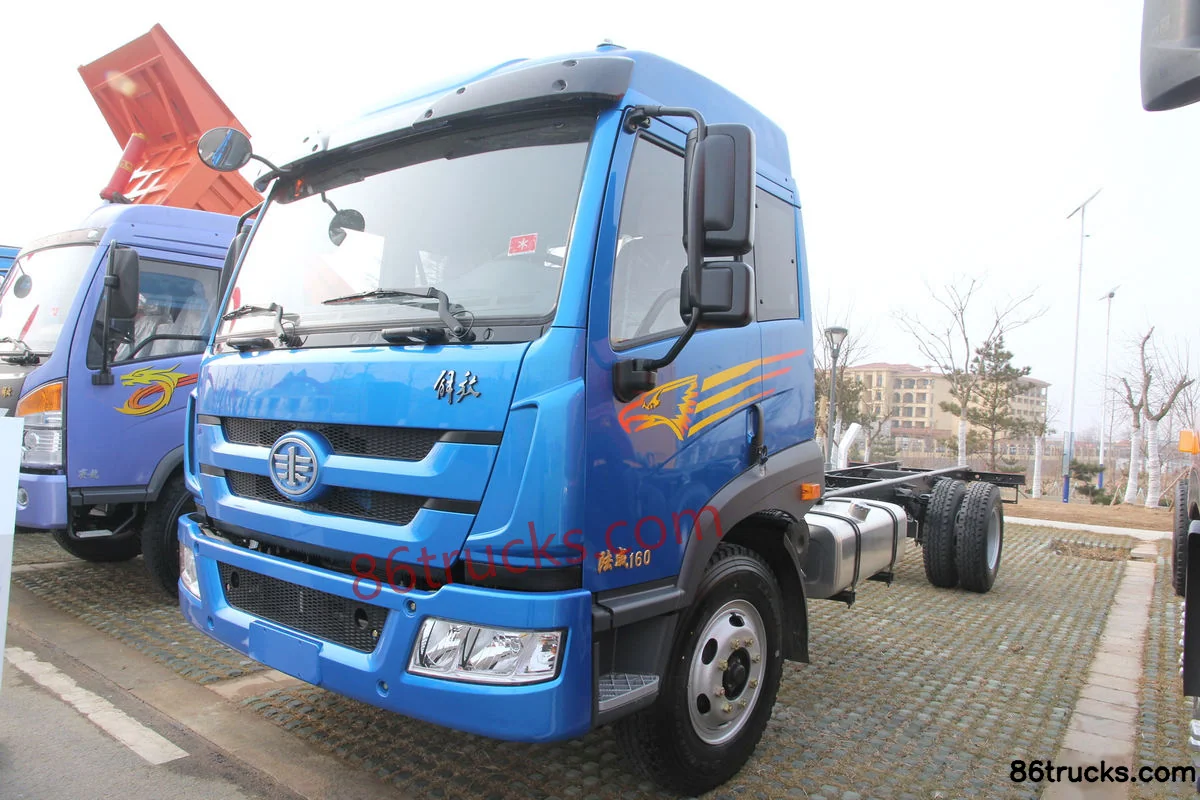

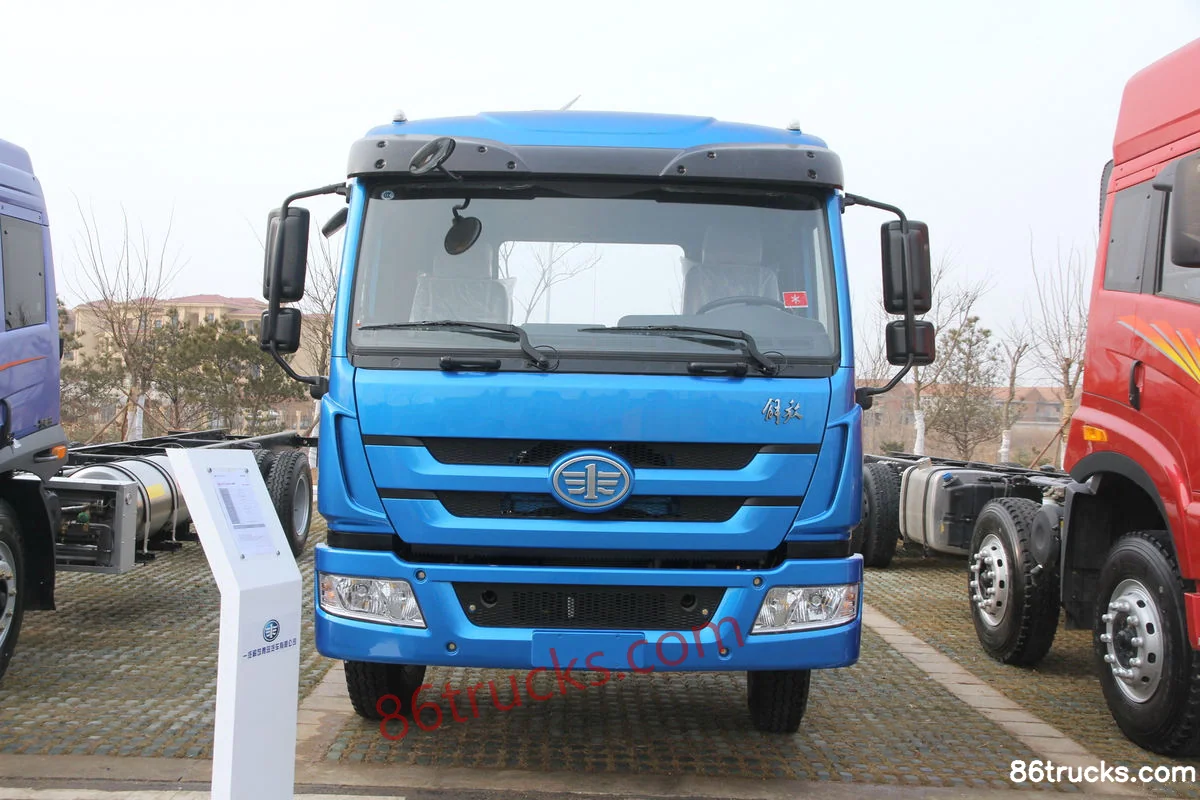

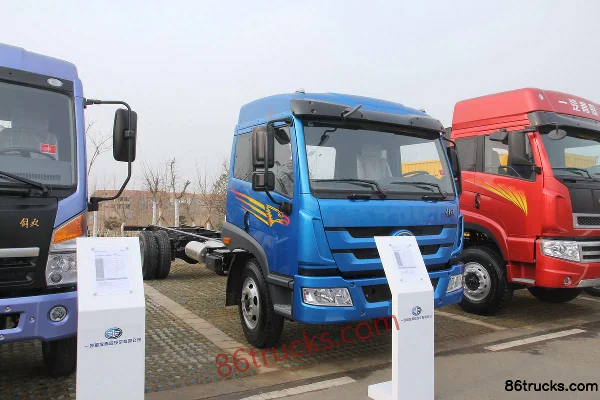

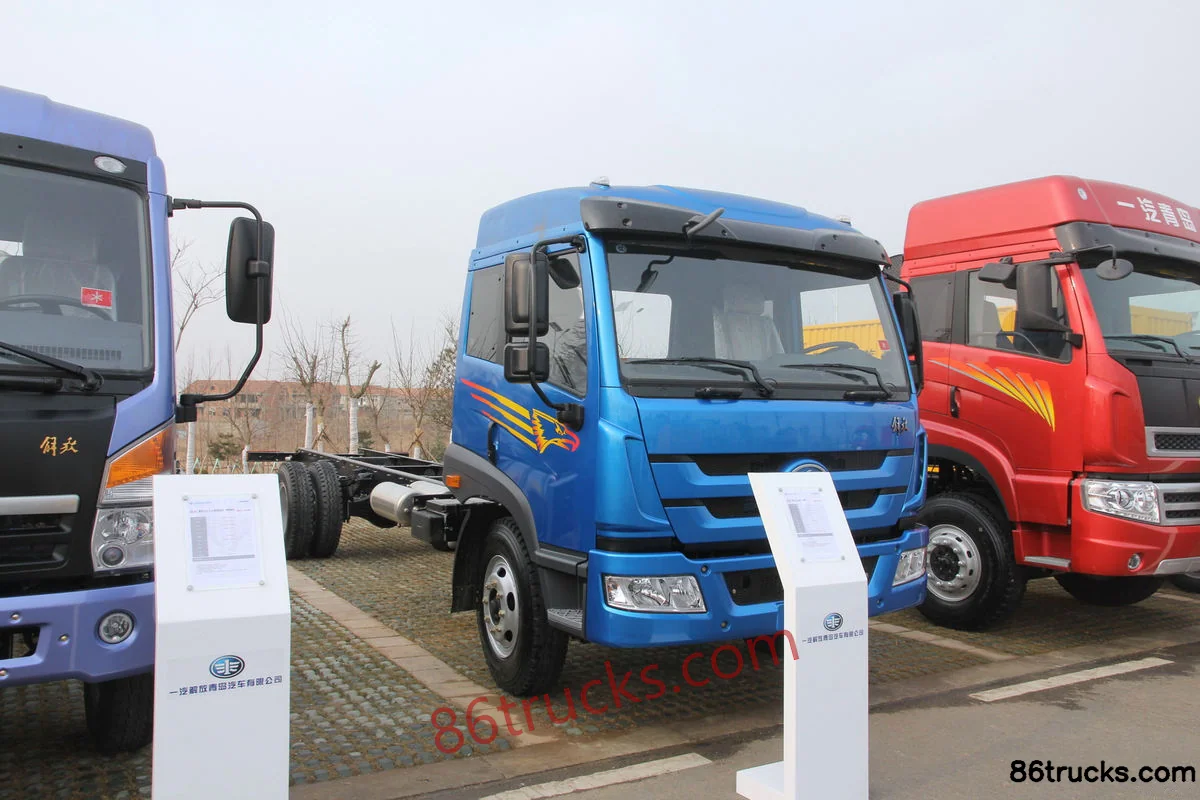

Exterior3

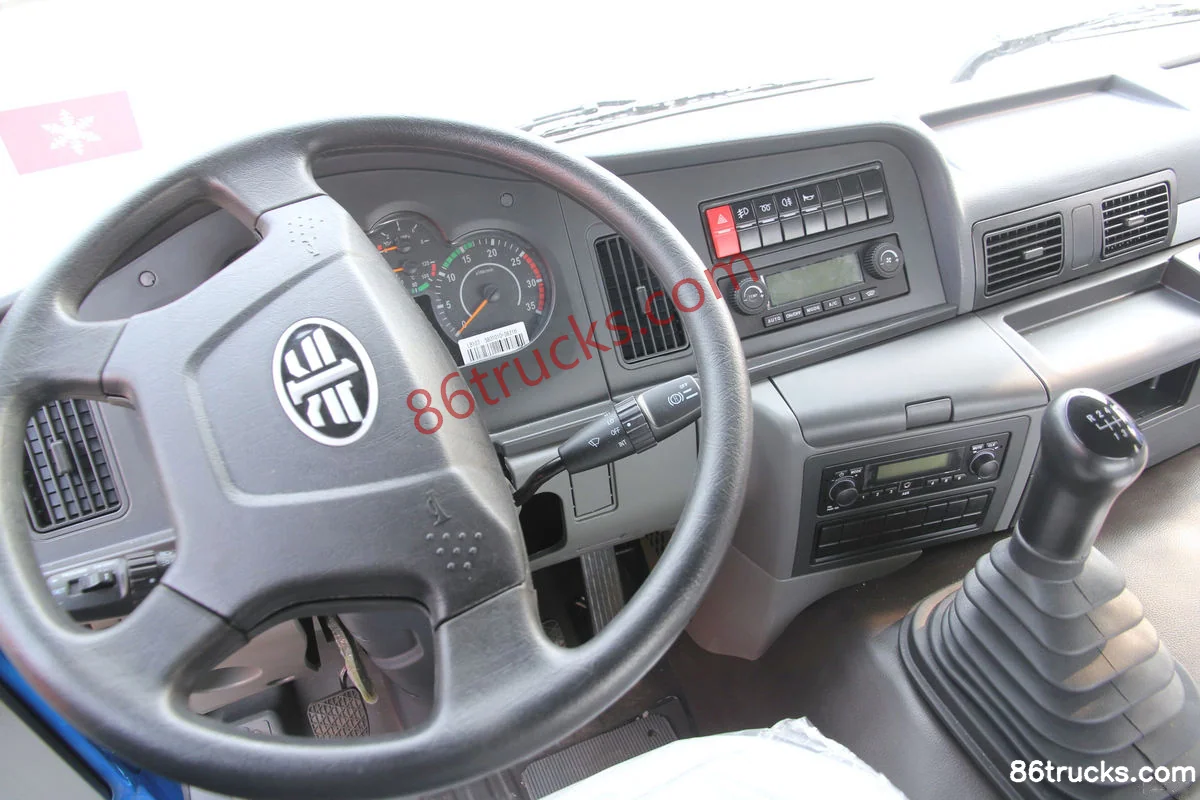

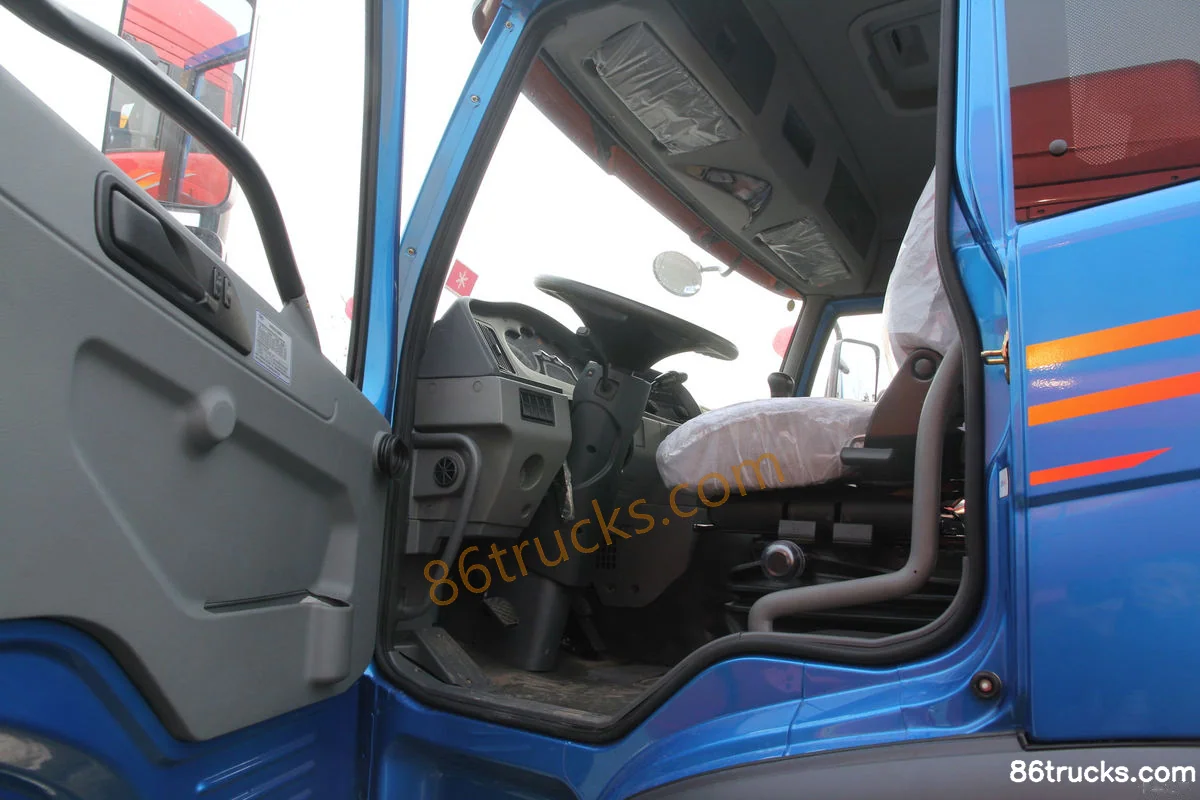

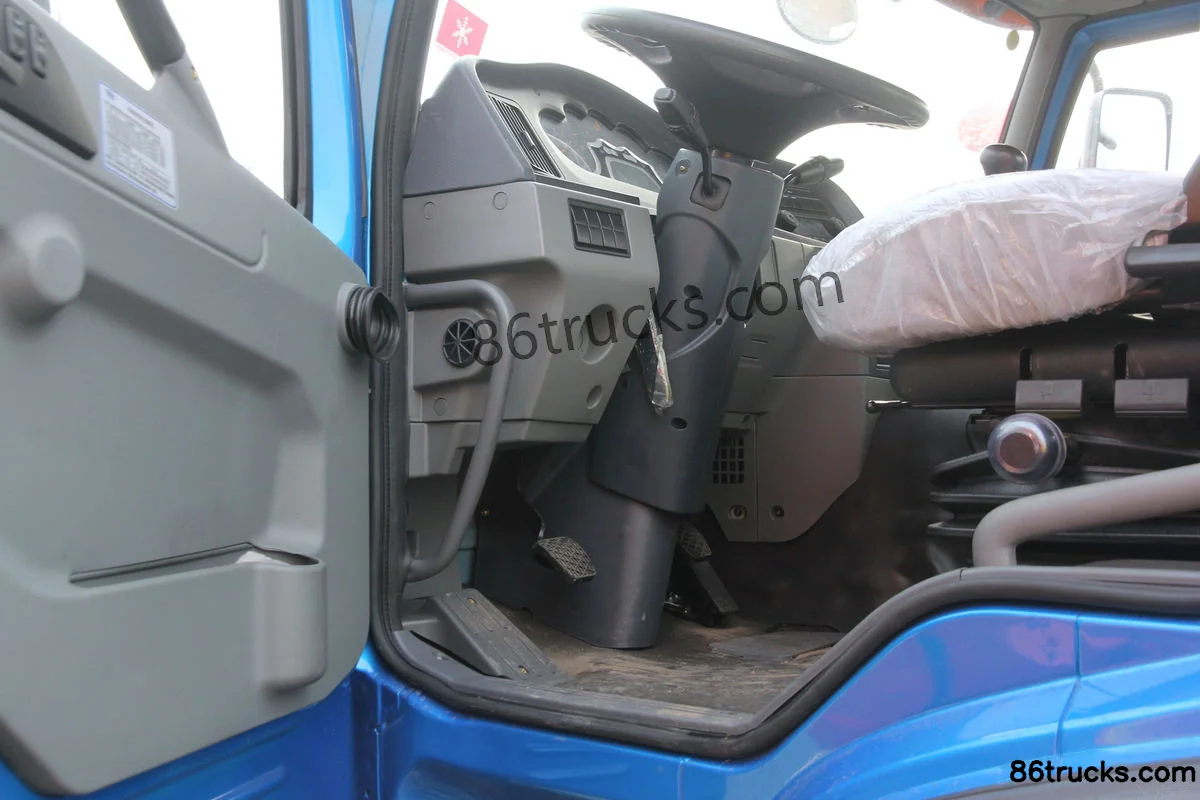

Cab3

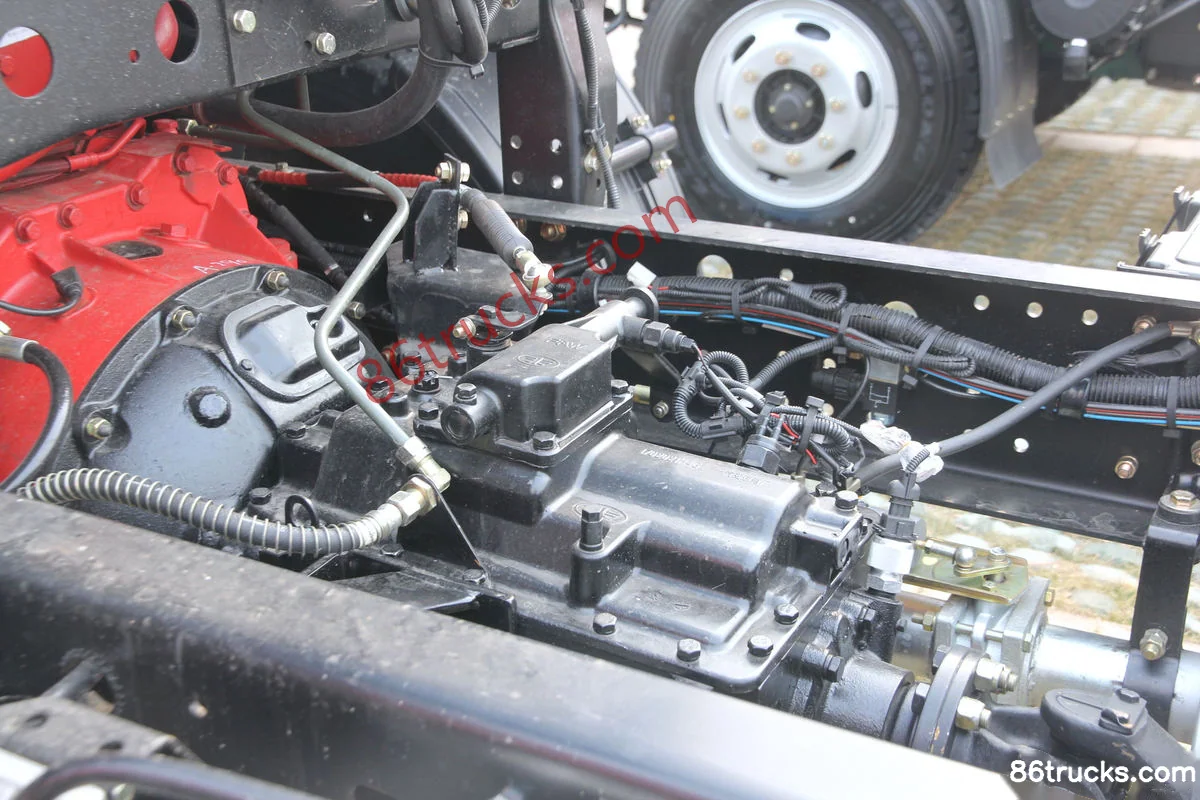

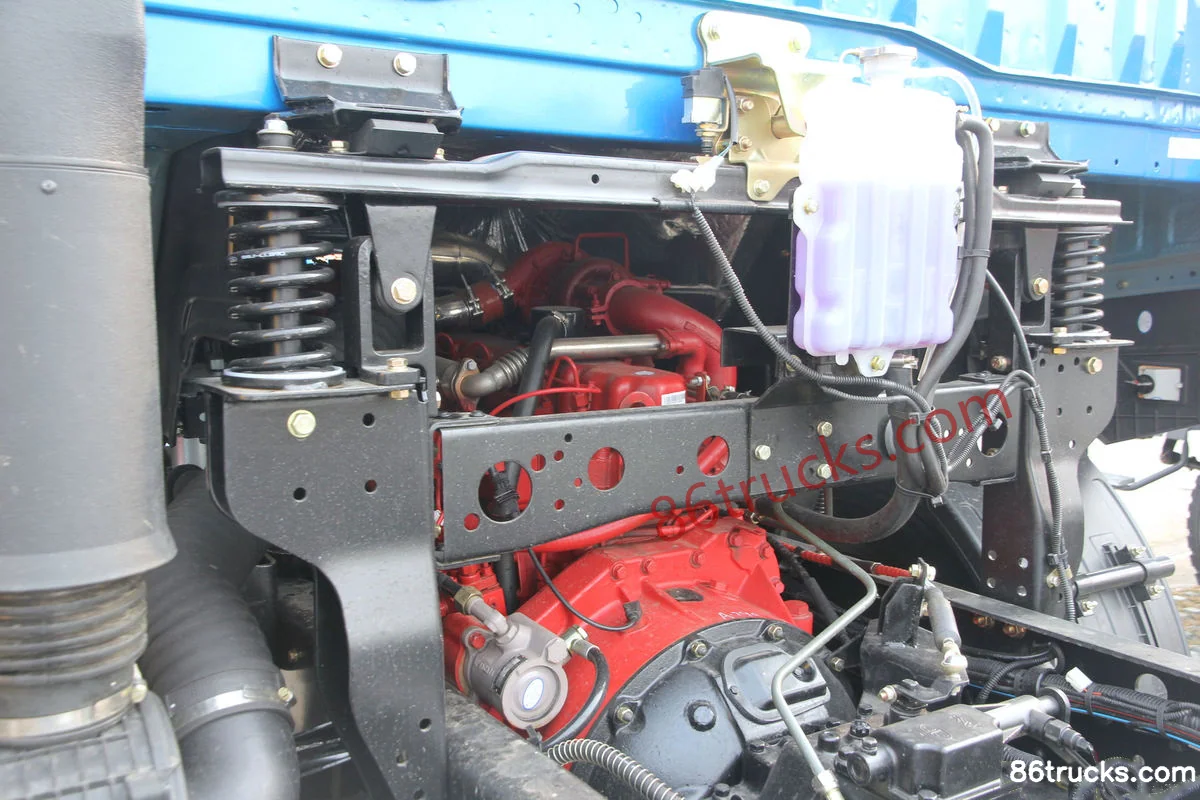

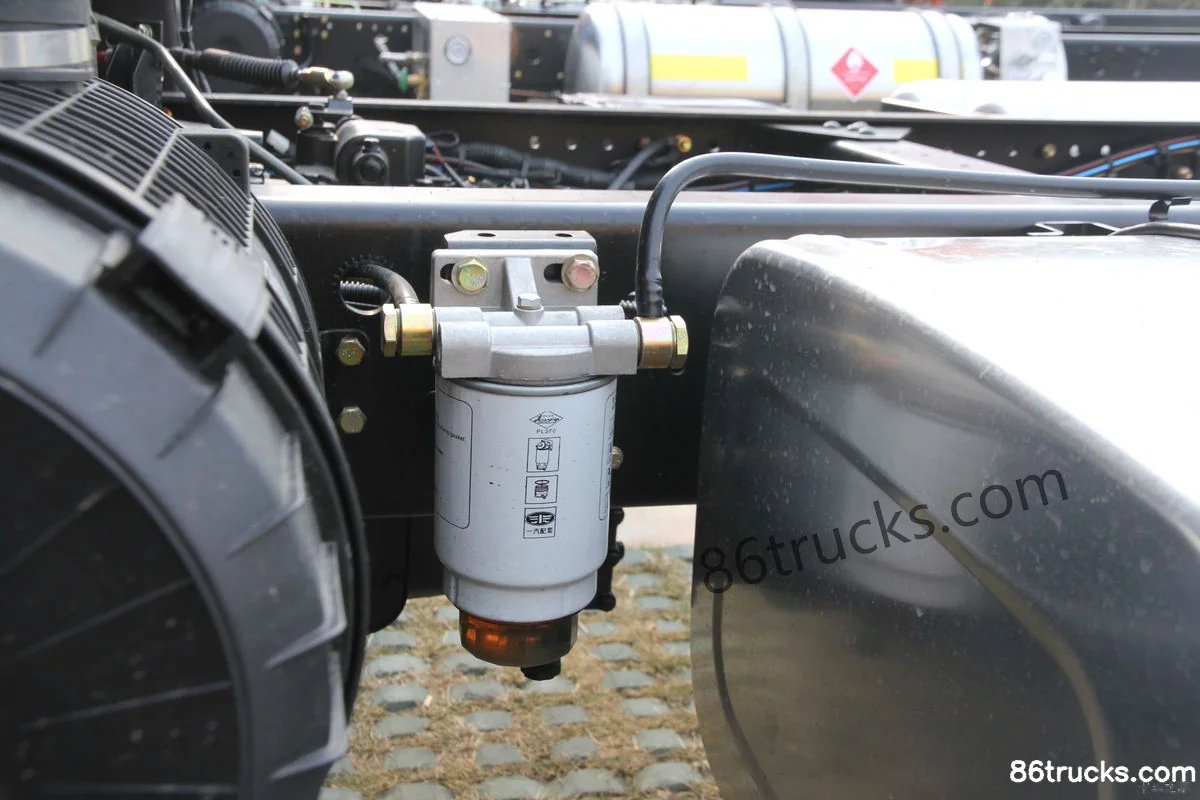

Chassis3

9 photos

FAQ

What is the export price of FAW Jiefang Qingdao Lu V Medium Truck 180 hp 4X2(6 wheels) 6.75m stake truck, and what does it include?

FAW Jiefang Qingdao Lu V Medium Truck 180 hp 4X2(6 wheels) 6.75m stake truck export reference is about From $24,639; MSRP is ¥17.74M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang Qingdao Lu V Medium Truck 180 hp 4X2(6 wheels) 6.75m stake truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Qingdao Lu V Medium Truck 180 hp 4X2(6 wheels) 6.75m stake truck?

Key specs of FAW Jiefang Qingdao Lu V Medium Truck 180 hp 4X2(6 wheels) 6.75m stake truck: Drive: 4x2; Horsepower: 180 hp; Emission: China IV; Fuel: Diesel; Engine: Dachai 6-cylinder; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao Lu V Medium Truck 180 hp 4X2(6 wheels) 6.75m stake truck suited for?

FAW Jiefang Qingdao Lu V Medium Truck 180 hp 4X2(6 wheels) 6.75m stake truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang Qingdao Lu V Medium Truck 180 hp 4X2(6 wheels) 6.75m stake truck differ from other variants in the same series?

FAW Jiefang Qingdao Lu V Medium Truck 180 hp 4X2(6 wheels) 6.75m stake truck belongs to FAW Jiefang Qingdao Lu V Medium Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao Lu V Medium Truck 180 hp 4X2(6 wheels) 6.75m stake truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao Lu V Medium Truck 180 hp 4X2(6 wheels) 6.75m stake truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
