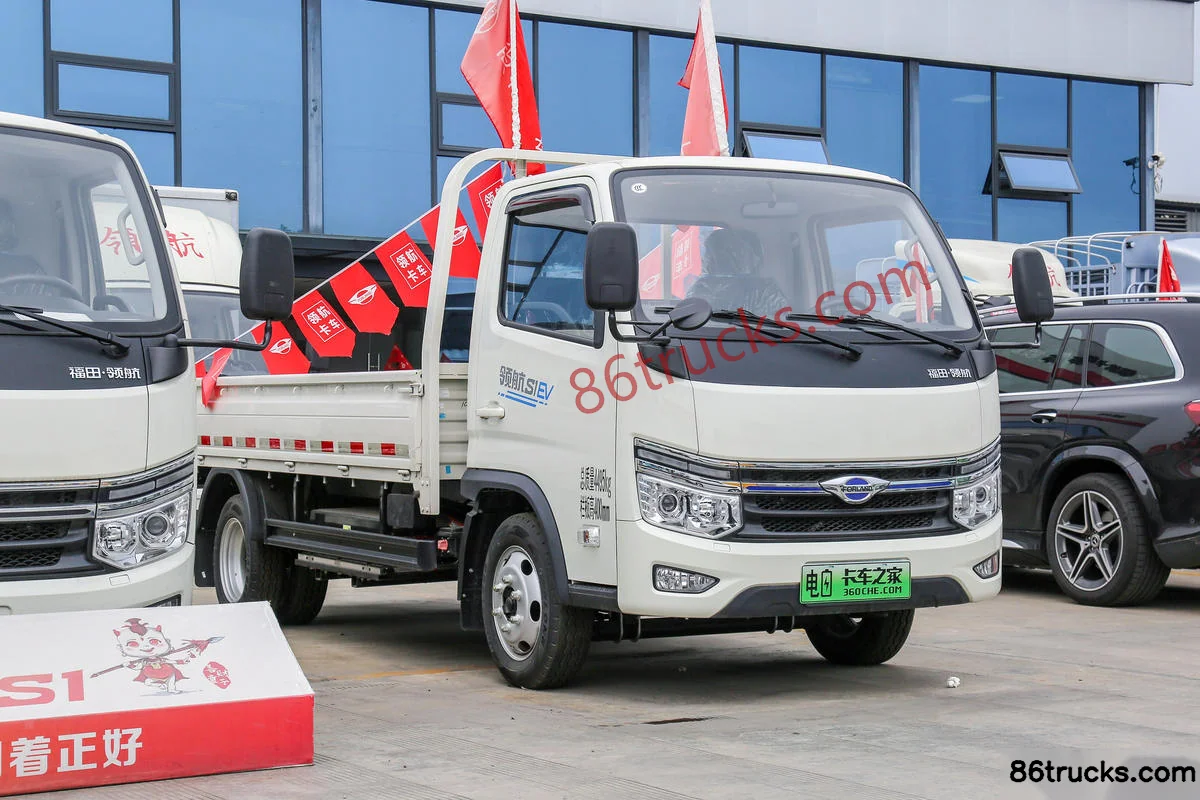

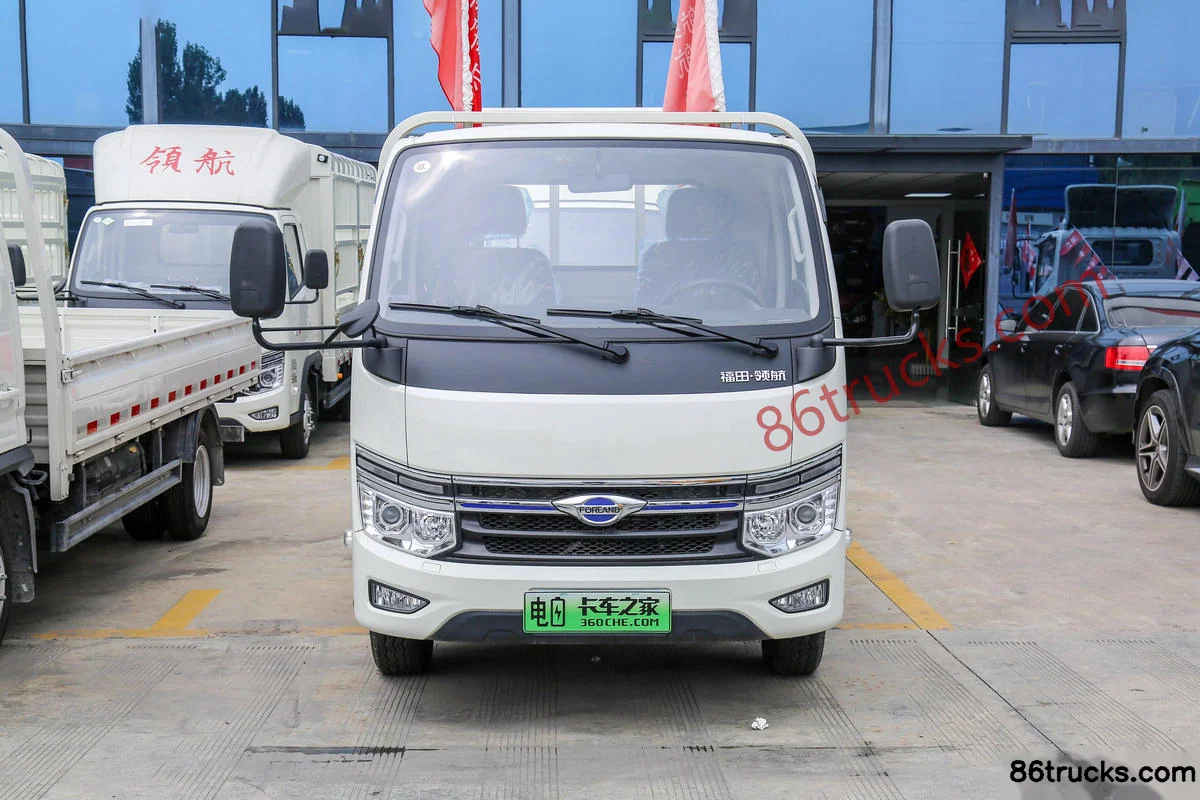

Foton Forland S1 4.5T 3.8m Electric Flatbed Mini Truck 66.84kWh 4X2(6 wheels)

Export reference
From $24,750
MSRP ¥17.82M CNY
Rated payload:: 1.865ton
Wheelbase:: 3200mm
Cargo box type:: stake body
Model code (announced):: BJ1045EVJA52
Type:: Cargo Trucks
Box length class:: 3.8m
Drive 4X2 (6 wheels)
CLTC range: 240km
Motor 1 Brand: Foton
Curb Weight: 2.5ton

Overview

The Foton Forland S1 4.5T 3.8m Electric Flatbed Mini Truck 66.84kWh 4X2(6 wheels) is a Light Truck featuring 240km battery/range, Foton motor, 4X2 (6 wheels) drive and 1.865t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ1045EVJA52
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3200mm
Box length class: 3.8m
Cab length: 5.575m
Cab width: 2m
Cab height: 2.24m
CLTC range: 240km
Curb Weight: 2.5ton
Rated payload: 1.865ton
GVWR: 4.495ton
Max. speed: 90km/h
Origin: Shandong Zhucheng
tonnage class: Light Truck
Remarks: Standard: heated rearview mirrors
Energy Type: Electric
electric motor
Motor 1 Brand: Foton
Motor 1 Model: FTTBP100A
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 50kW
Peak power: 100kW
total rated torque: 300N·m
total peak torque: 625N·m
Battery/Charging
Charging method: Fast/Slow Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 66.84kWh
Battery Model: L173TB1

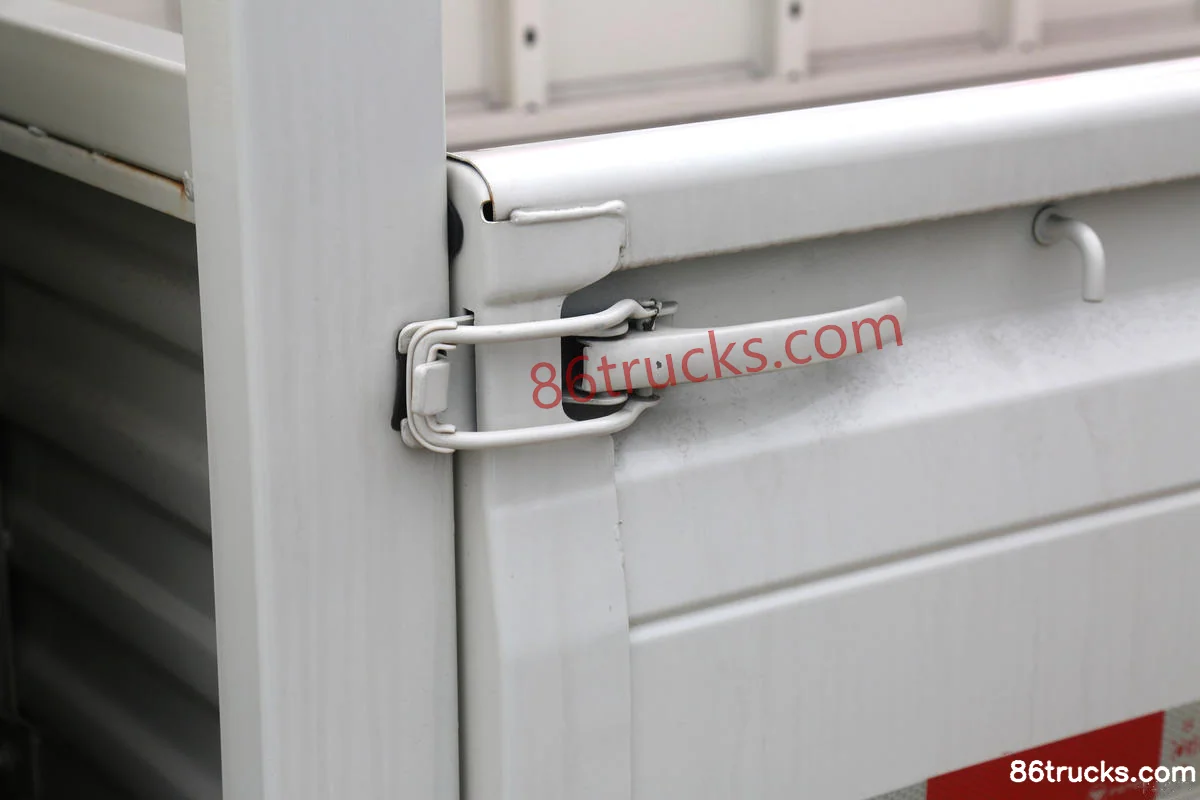

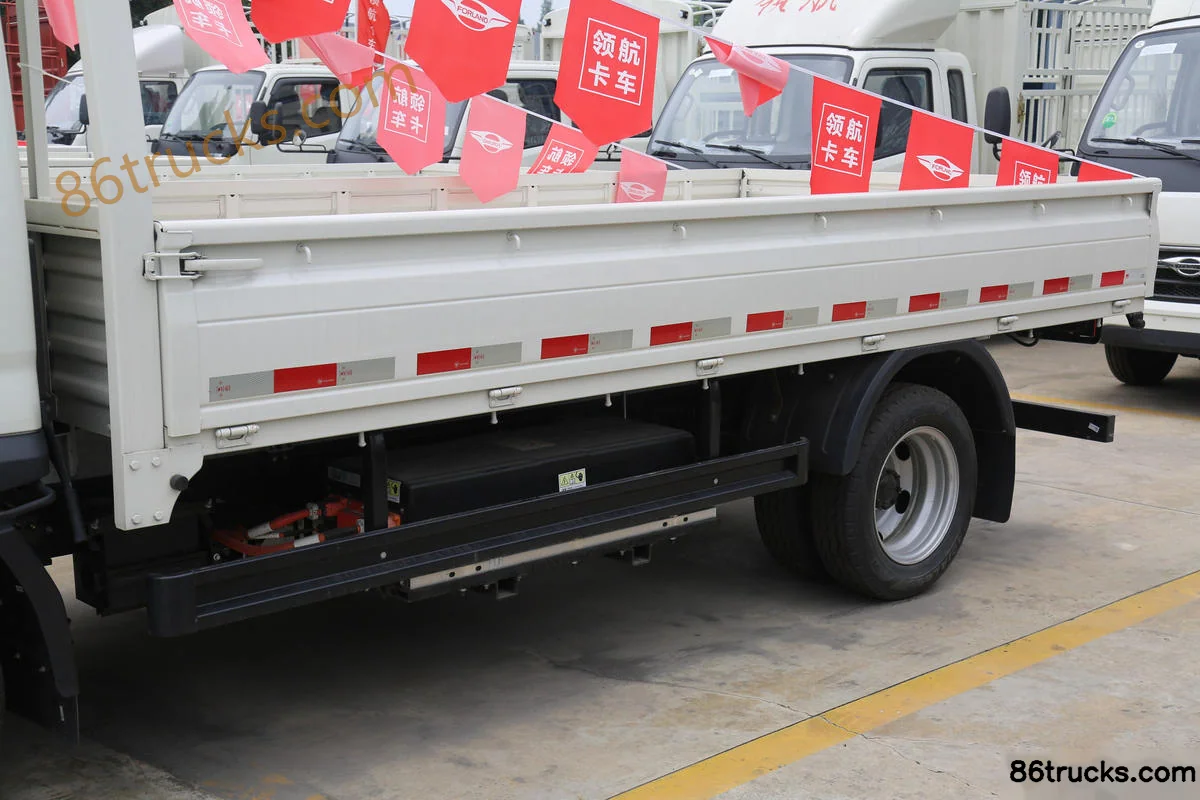

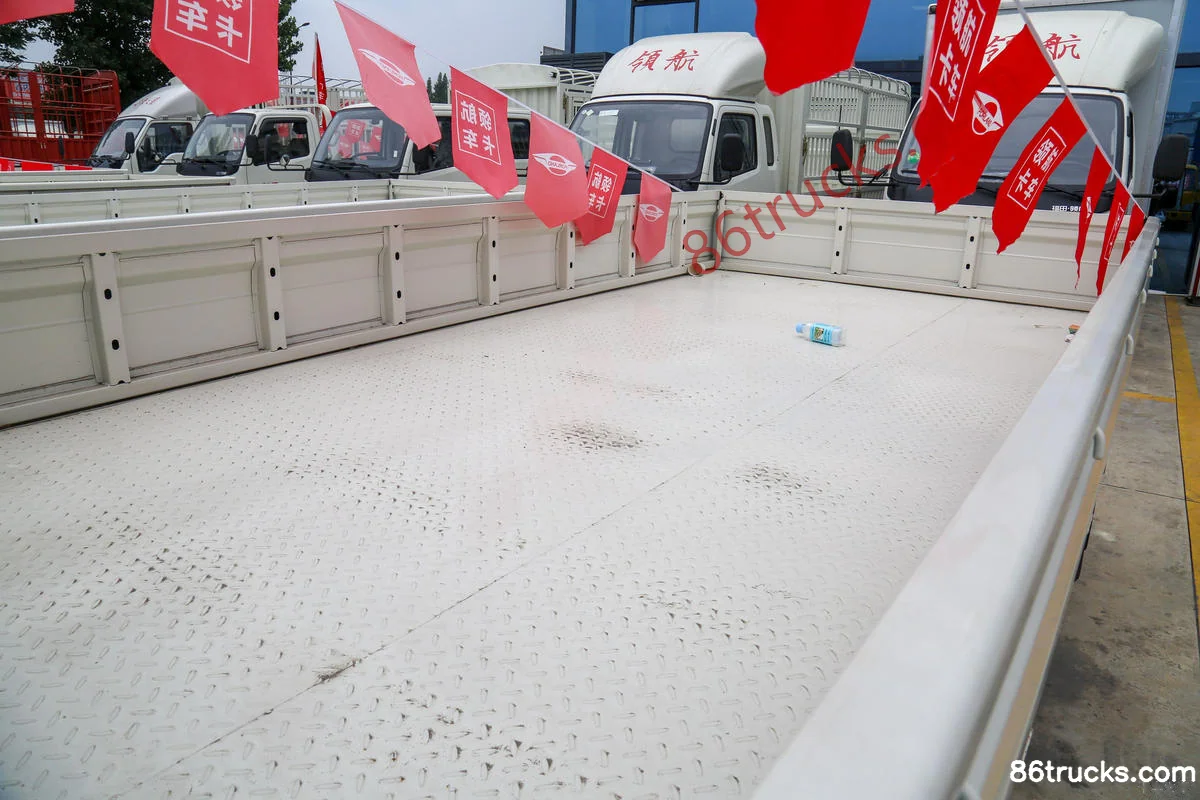

Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.8m
Cargo box width: 1.9m
Cargo box height: 0.4m

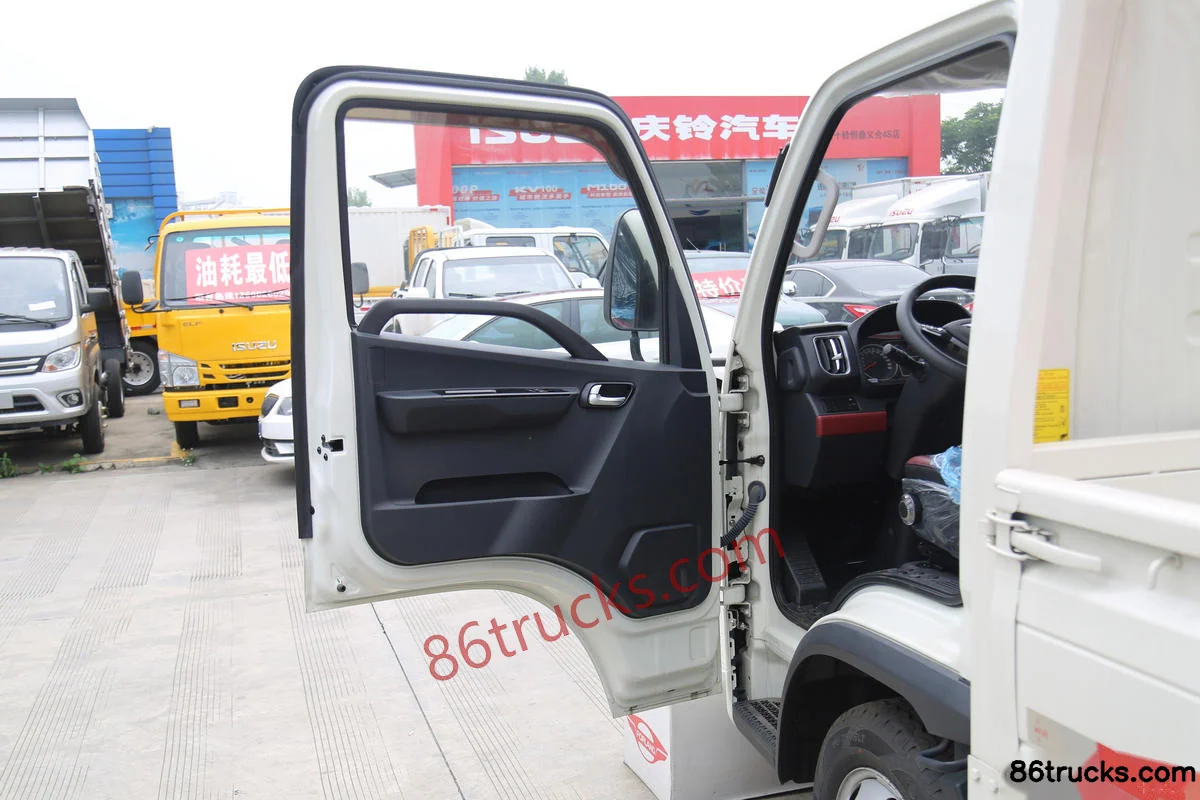

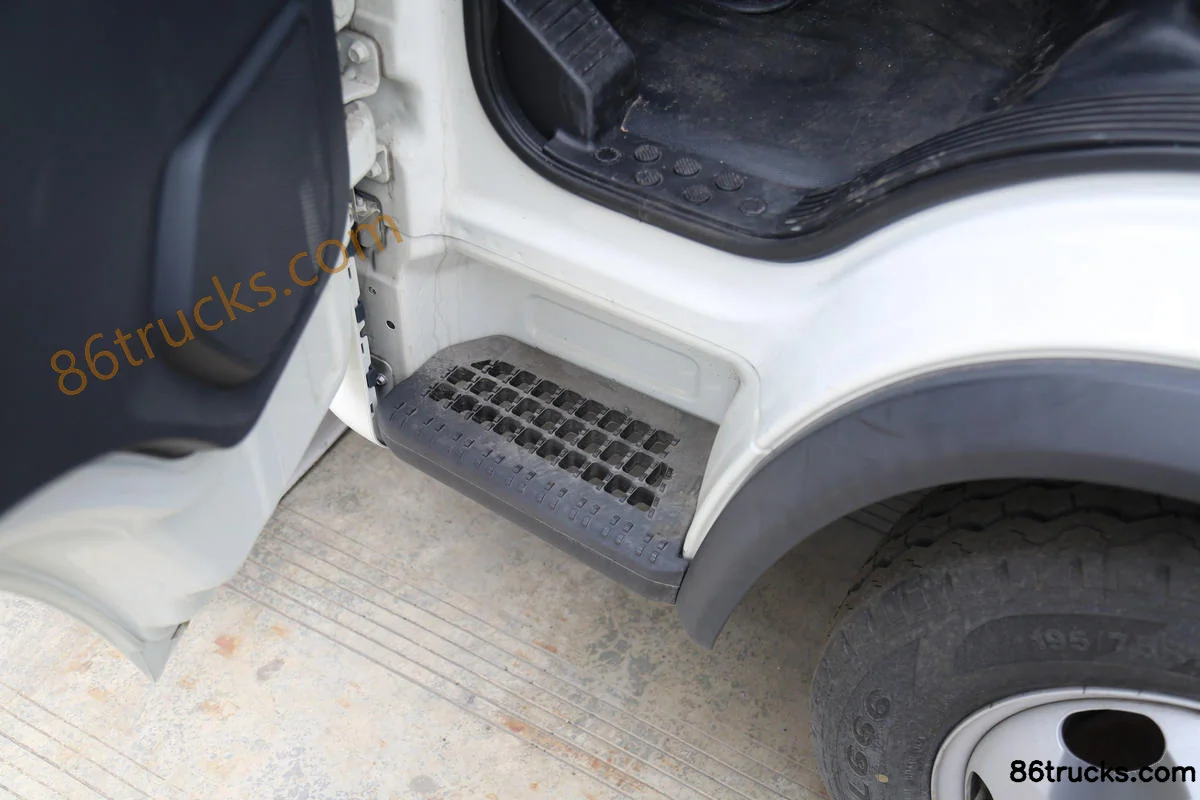

Cab parameters
Cab width: 1730mm
seating capacity: 2Personnel
Seat rows: Single Row

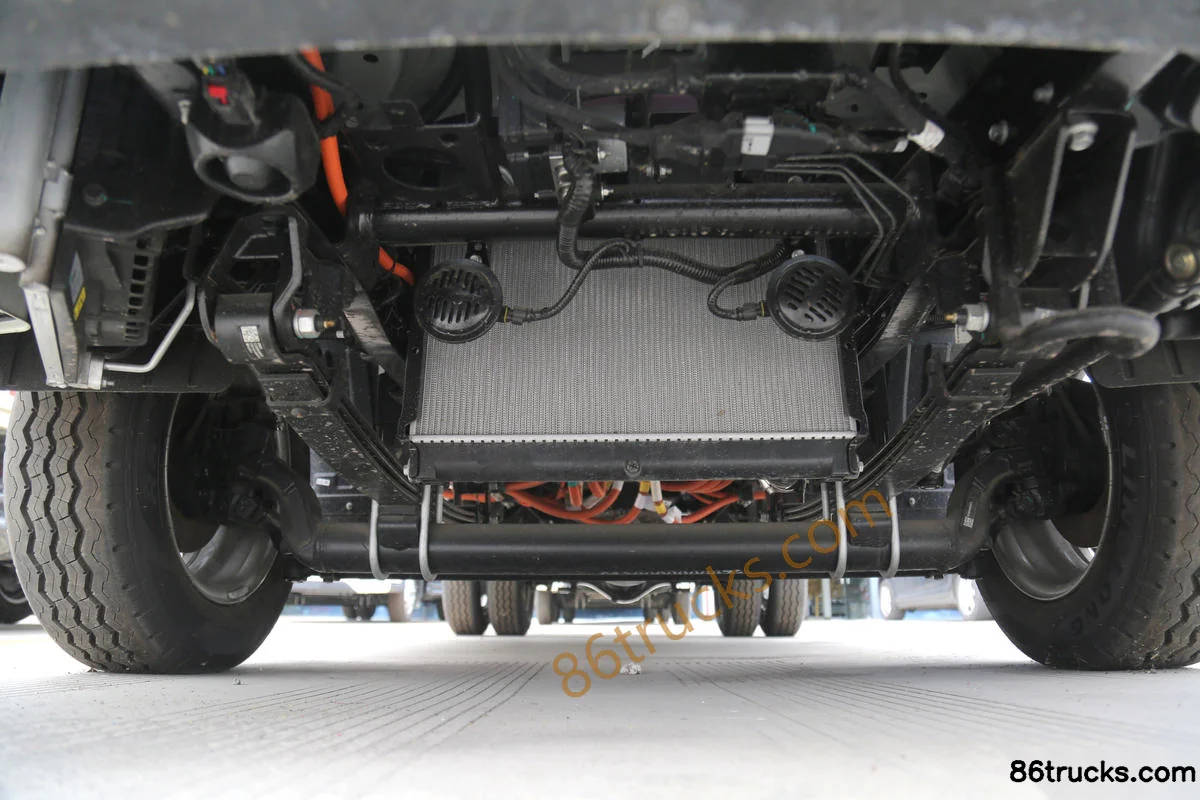

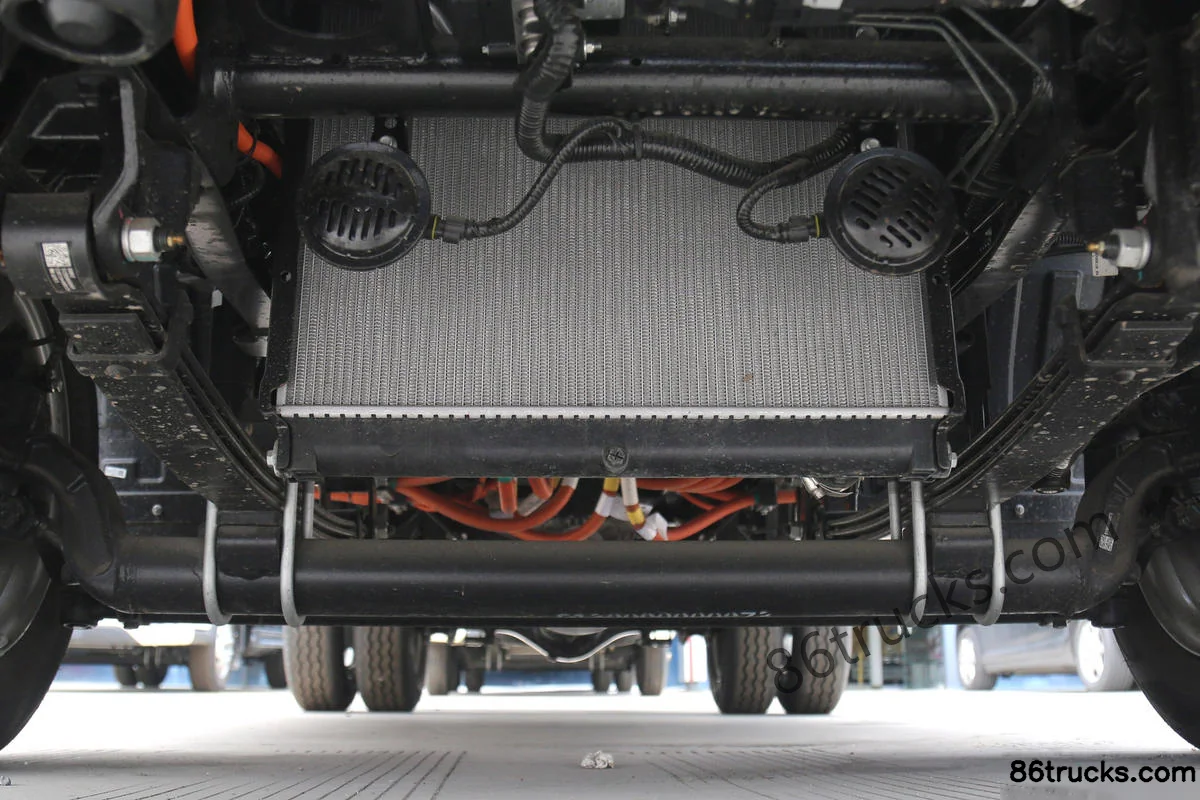

Chassis Specs
Front axle allowable load: 1800kg
rear axle description: BJ130 stamped welded integral axle housing
rear axle allowable load: 2695kg
Tire
Tire Size: 6.50R16LT 10PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering: Electric Power Steering
interior configuration
Multifunction steering wheel:
AC control type: Manual

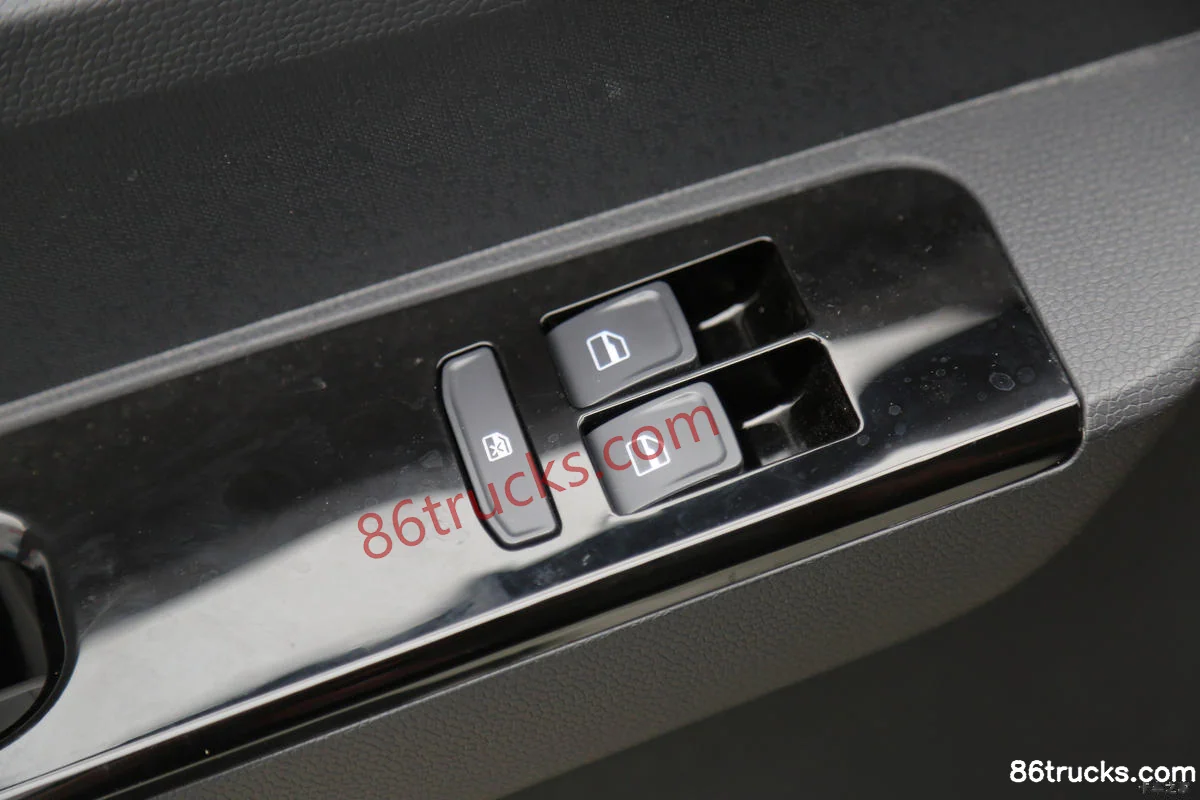

Power Windows:
Reverse Camera:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
lighting configuration
Front fog lamp:
daytime running lights:
Service brake
Brake Type: Hydraulic brake
Front wheel brake: Disc
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):

Photos

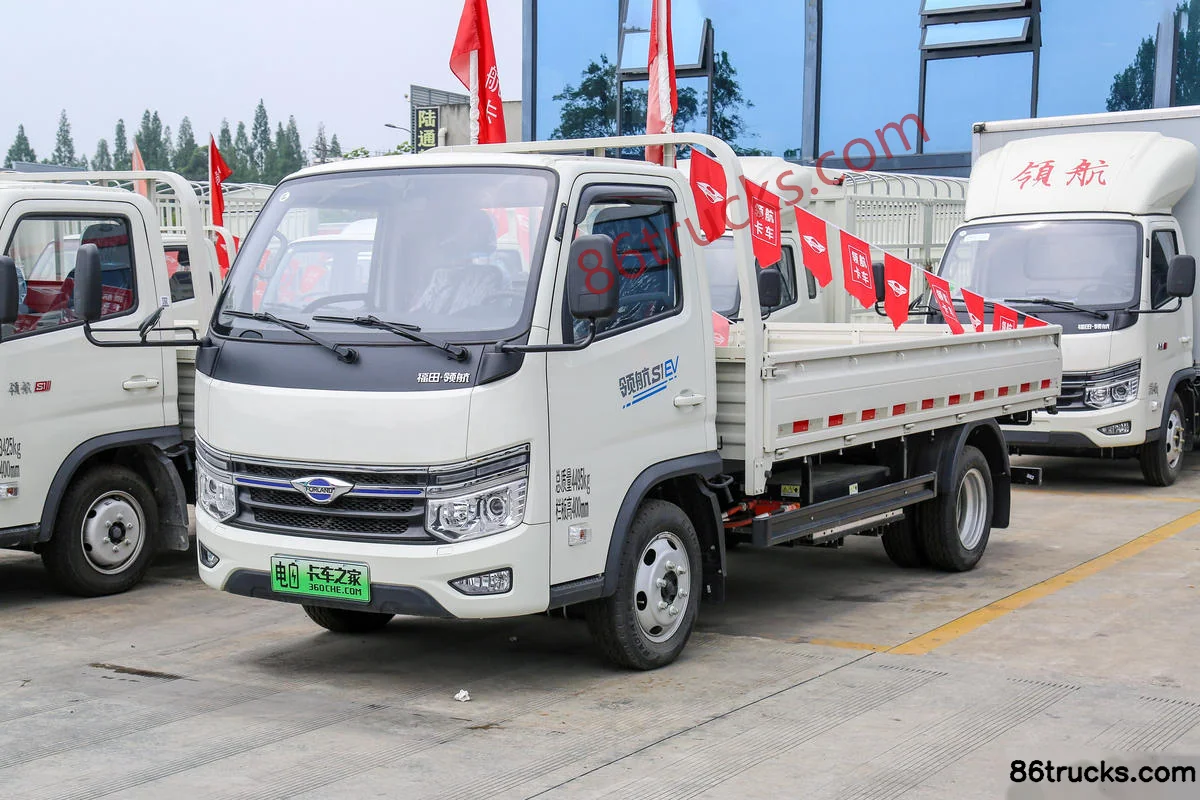

Exterior3

Interior3

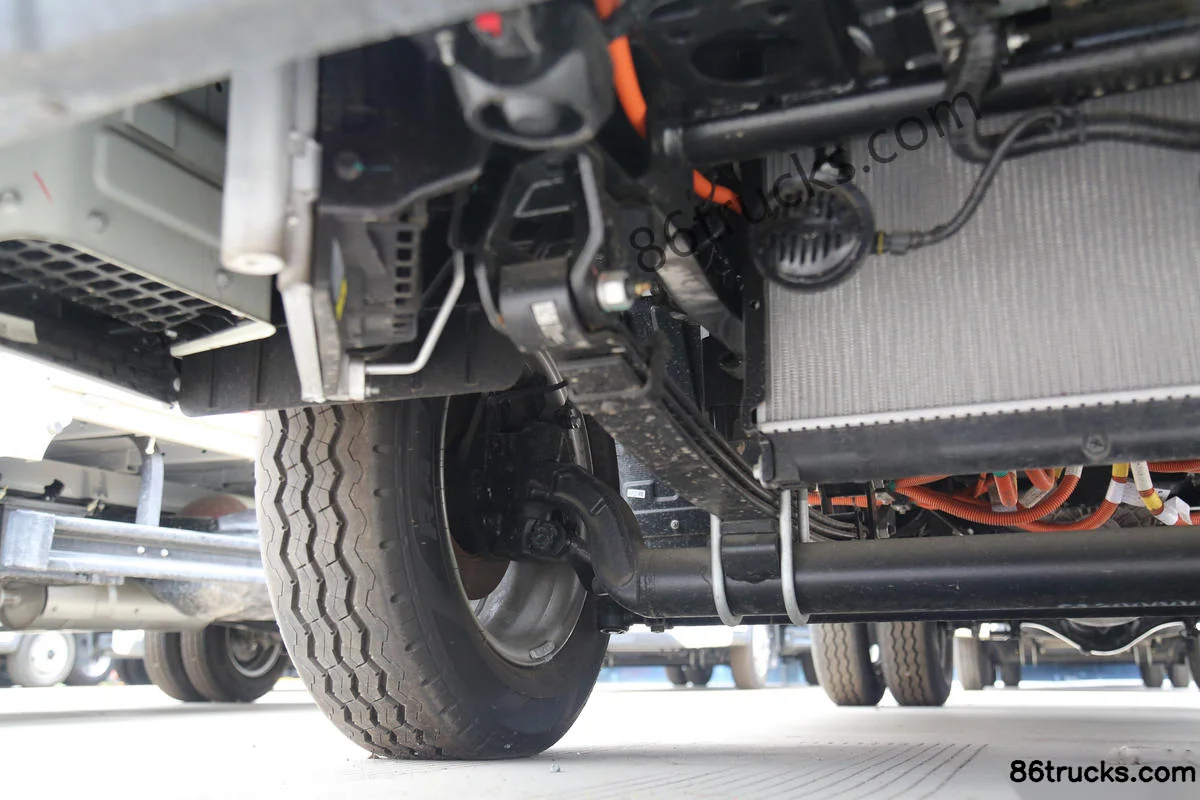

Chassis3

Body3

12 photos

FAQ

What is the export price of Foton Forland S1 4.5T 3.8m Electric Flatbed Mini Truck 66.84kWh 4X2(6 wheels), and what does it include?

Foton Forland S1 4.5T 3.8m Electric Flatbed Mini Truck 66.84kWh 4X2(6 wheels) export reference is about From $24,750; MSRP is ¥17.82M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of Foton Forland S1 4.5T 3.8m Electric Flatbed Mini Truck 66.84kWh 4X2(6 wheels)?

Key specs of Foton Forland S1 4.5T 3.8m Electric Flatbed Mini Truck 66.84kWh 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Forland S1 4.5T 3.8m Electric Flatbed Mini Truck 66.84kWh 4X2(6 wheels) suited for?

Foton Forland S1 4.5T 3.8m Electric Flatbed Mini Truck 66.84kWh 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Foton Forland S1 4.5T 3.8m Electric Flatbed Mini Truck 66.84kWh 4X2(6 wheels) differ from other variants in the same series?

Foton Forland S1 4.5T 3.8m Electric Flatbed Mini Truck 66.84kWh 4X2(6 wheels) belongs to Foton Times Pilot S1 Light Truck (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Forland S1 4.5T 3.8m Electric Flatbed Mini Truck 66.84kWh 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Forland S1 4.5T 3.8m Electric Flatbed Mini Truck 66.84kWh 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
