Auman Galaxy 3 8.5L Diesel 400 hp 6X2(8 wheels) ZF 12-Speed AMT Automatic Air Brake 7m Cab-Chassis Stake Truck

Export reference
From $40,403
MSRP ¥29.09M CNY
Horsepower: 400
Emission: China VI
Fuel: Diesel
Engine: Fukang 8.5L
Transmission: ZF
Curb Weight:: 9.6ton
seating capacity: 2Personnel
Rated payload: 15.205ton
Drive 6X2 (8 wheels)
Cargo box type: Stake type

Overview

The Auman Galaxy 3 8.5L Diesel 400 hp 6X2(8 wheels) ZF 12-Speed AMT Automatic Air Brake 7m Cab-Chassis Stake Truck is a Heavy truck featuring 7m cargo length, Stake type cargo body, 2Personnel volume and 15.205t payload. On the powertrain side, it comes with a Fukang 8.5L engine, 400 hp, 6X2 (8 wheels) drive and China VI emissions.

China VI 400 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ5259CCYY6HPL-08
Type: Cargo Trucks
Drive type: 6X2
Wheelbase: 2000+4300mm
Box length class: 7m
engine: FotonA8.5NS6B400
transmission: ZF12TX2460TD
Rear Axle Ratio: 2.643
Cab length: 9.7m
Cab width: 2.55m
Cab height: 4m
Front track width: 2080/2080mm
rear track: 1880mm
Curb Weight: 9.6ton
Rated payload: 15.205ton
GVWR: 25ton
Max. speed: 89km/h
Origin: Huairou, Beijing
tonnage class: Heavy truck
Approach angle: 17°
departure angle:
Remarks: Ratio optional: 2.533, 2.846
Front/rear suspension: 1.46/2.64m
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: A8.5NS6B400
Engine info: Fukang 8.5L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 8.5L
Emission standard: China VI
Max output power: 294kW
Max hp: 400Horsepower
Max torque: 1500N·m
Rated speed: 1900rpm
Transmission Parameters
Transmission Model: 12TX2460TD
Transmission Brand: ZF
shift method: AMT manual/auto
Forward gears: 12Gear
Number of Reverse Gears: 4pcs
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 7m
Cargo box width: 2.45m
Cab parameters
Cab width: 2200mm
seating capacity: 2Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank capacity: 850L
Chassis Specs
Front axle allowable load: 6750/6750kg
Frame Dimensions: 286×80×7mm
rear axle description: 440 axle
rear axle allowable load: 11500kg
Axle ratio: 2.643
Leaf spring count: 2/2/3+2
Tire
Tire Size: 12R22.5 18PR
Number of tires: 8pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Reverse Radar:
Reverse Camera:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

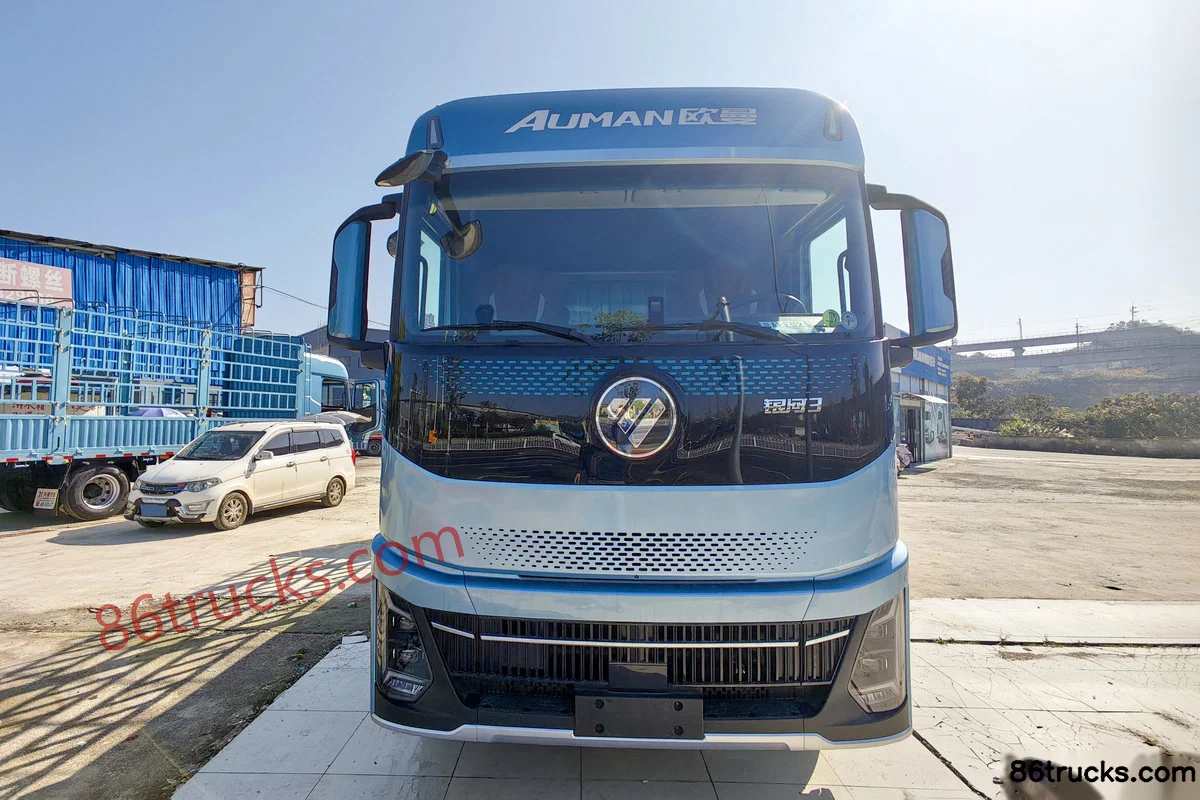

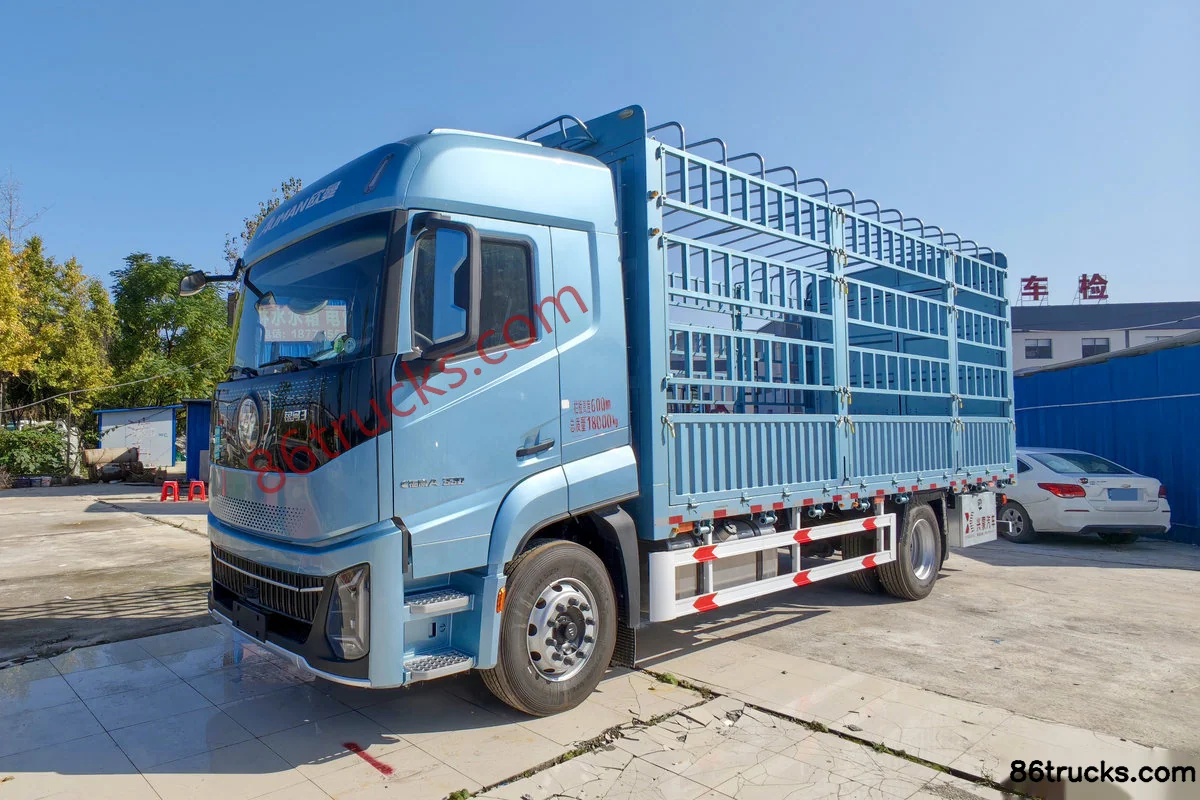

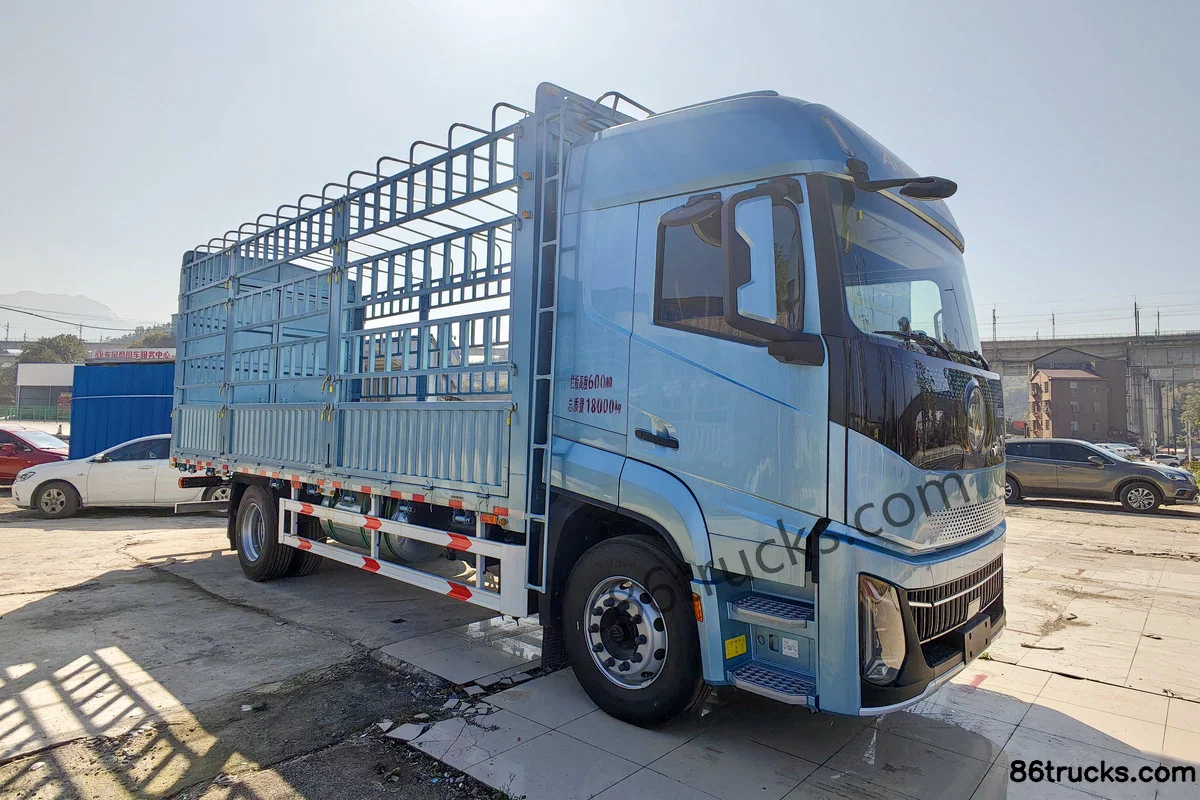

Exterior3

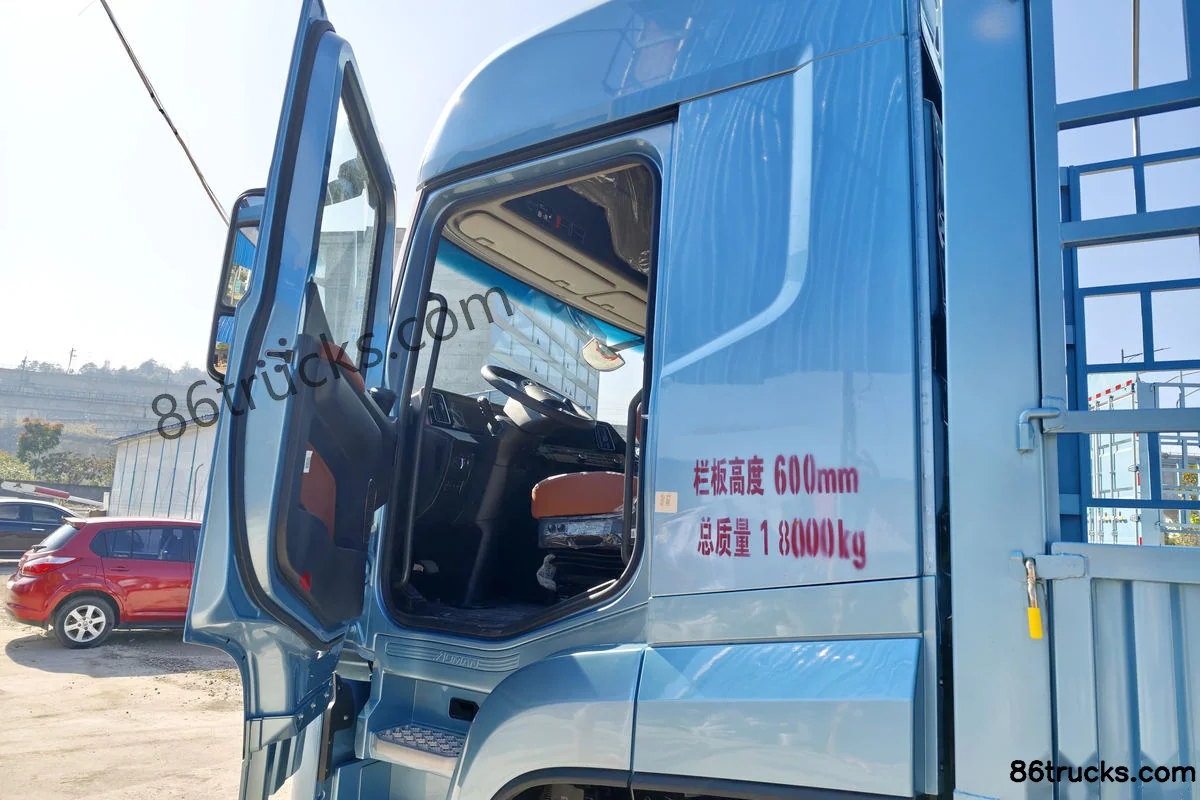

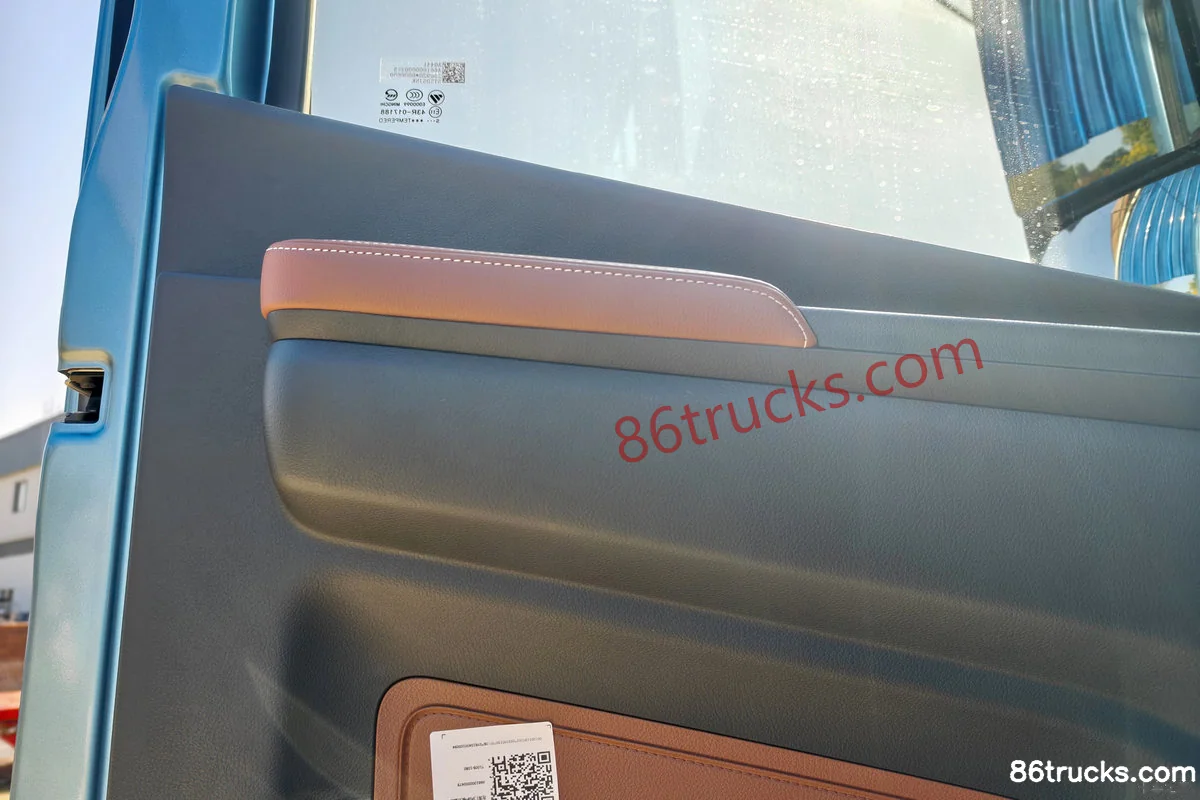

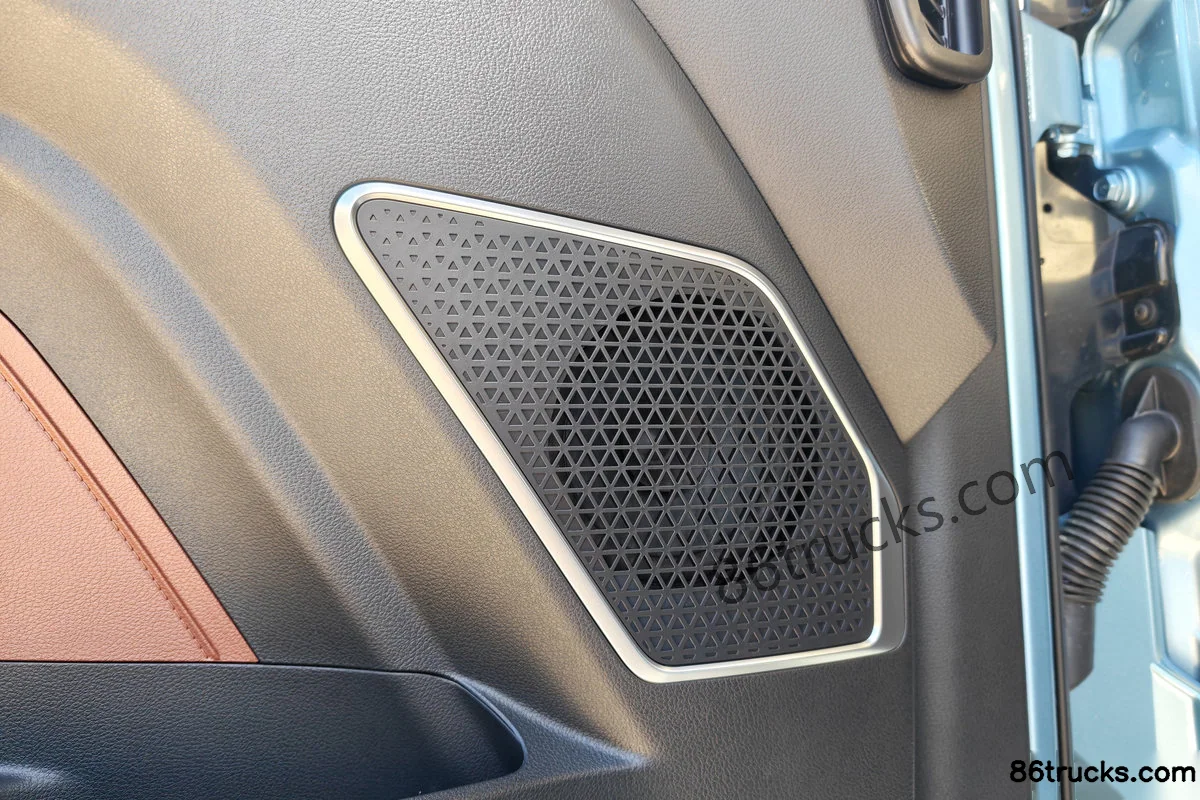

Cab3

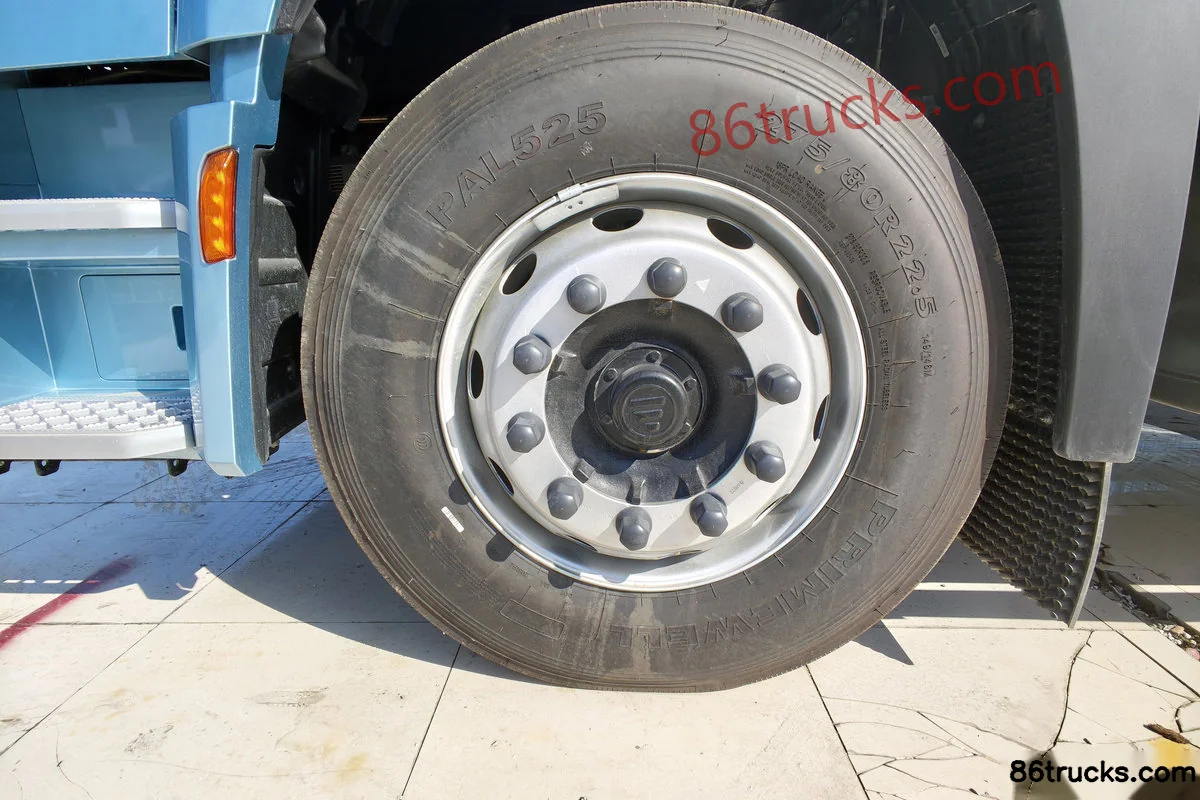

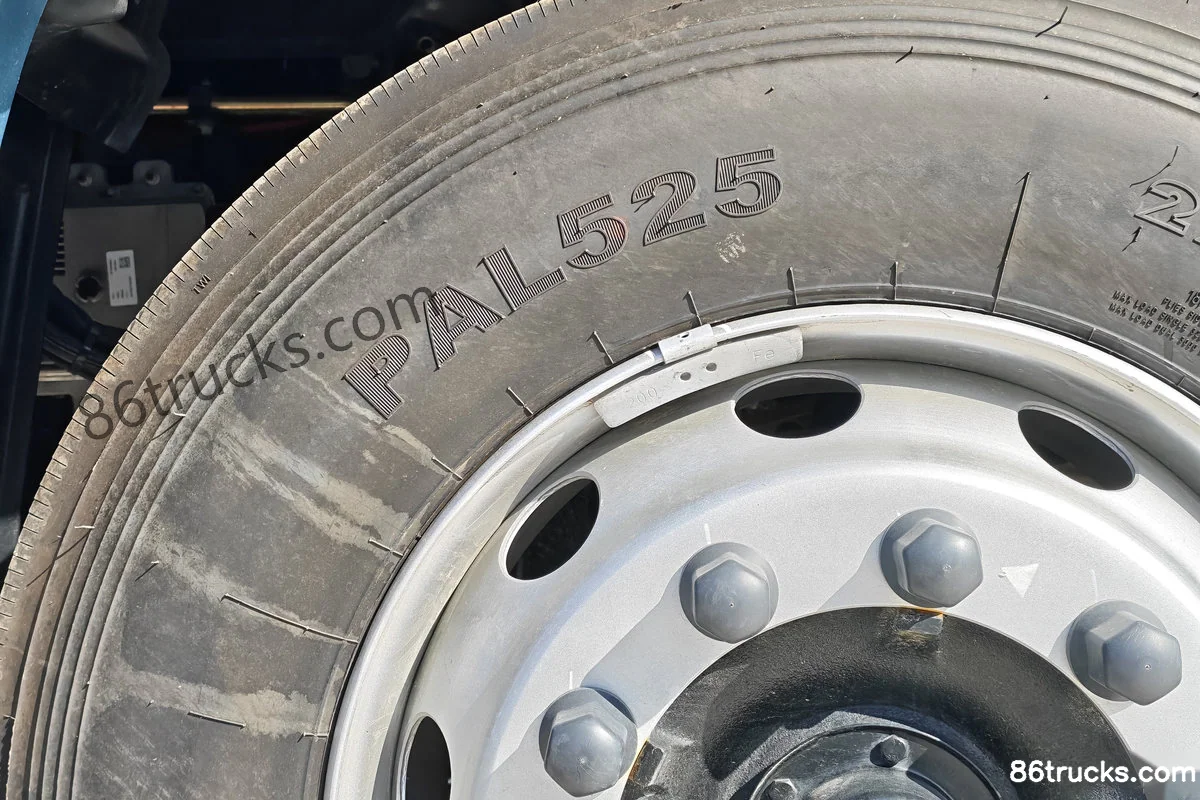

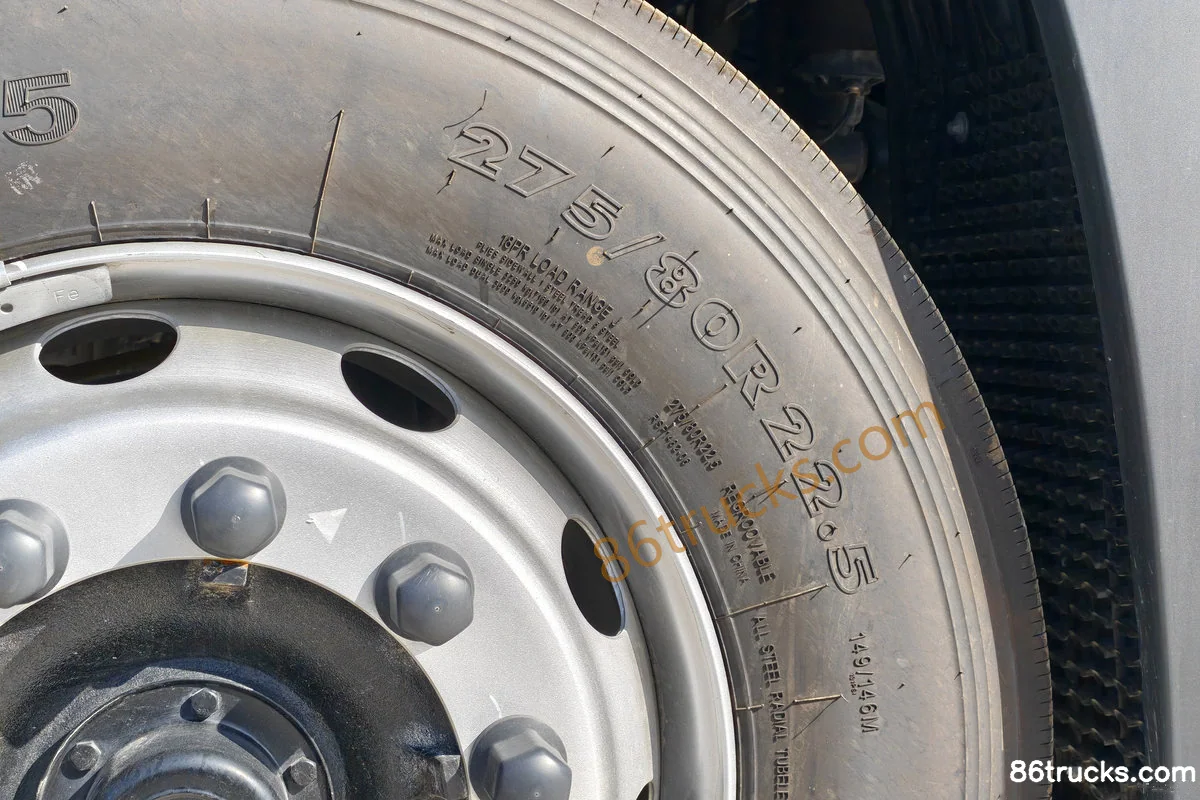

Chassis3

9 photos

FAQ

What is the export price of Auman Galaxy 3 8.5L Diesel 400 hp 6X2(8 wheels) ZF 12-Speed AMT Automatic Air Brake 7m Cab-Chassis Stake Truck, and what does it include?

Auman Galaxy 3 8.5L Diesel 400 hp 6X2(8 wheels) ZF 12-Speed AMT Automatic Air Brake 7m Cab-Chassis Stake Truck export reference is about From $40,403; MSRP is ¥29.09M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Auman Galaxy 3 8.5L Diesel 400 hp 6X2(8 wheels) ZF 12-Speed AMT Automatic Air Brake 7m Cab-Chassis Stake Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Auman Galaxy 3 8.5L Diesel 400 hp 6X2(8 wheels) ZF 12-Speed AMT Automatic Air Brake 7m Cab-Chassis Stake Truck?

Key specs of Auman Galaxy 3 8.5L Diesel 400 hp 6X2(8 wheels) ZF 12-Speed AMT Automatic Air Brake 7m Cab-Chassis Stake Truck: Drive: 6x2; Horsepower: 400 hp; Emission: China VI; Fuel: Diesel; Engine: Fukang 8.5L; Transmission: ZF. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Auman Galaxy 3 8.5L Diesel 400 hp 6X2(8 wheels) ZF 12-Speed AMT Automatic Air Brake 7m Cab-Chassis Stake Truck suited for?

Auman Galaxy 3 8.5L Diesel 400 hp 6X2(8 wheels) ZF 12-Speed AMT Automatic Air Brake 7m Cab-Chassis Stake Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Auman Galaxy 3 8.5L Diesel 400 hp 6X2(8 wheels) ZF 12-Speed AMT Automatic Air Brake 7m Cab-Chassis Stake Truck differ from other variants in the same series?

Auman Galaxy 3 8.5L Diesel 400 hp 6X2(8 wheels) ZF 12-Speed AMT Automatic Air Brake 7m Cab-Chassis Stake Truck belongs to Auman Galaxy 3 medium truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Auman Galaxy 3 8.5L Diesel 400 hp 6X2(8 wheels) ZF 12-Speed AMT Automatic Air Brake 7m Cab-Chassis Stake Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Auman Galaxy 3 8.5L Diesel 400 hp 6X2(8 wheels) ZF 12-Speed AMT Automatic Air Brake 7m Cab-Chassis Stake Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
