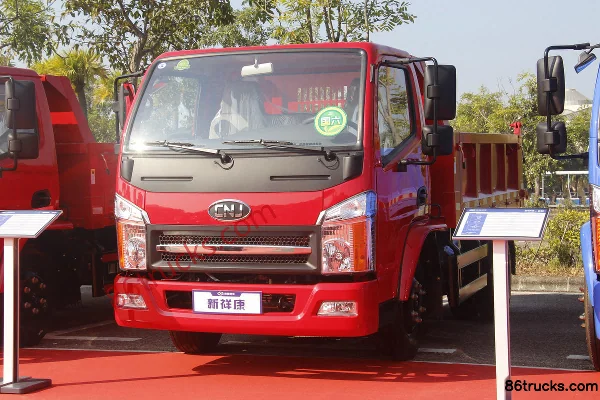

NanJun Xinxiangkang 170hp 4X2(6 wheels) 3.35m Dump Truck

Export reference
From $19,167
MSRP ¥13.8M CNY
Emission: China VI
Fuel: Diesel
Curb Weight:: 4.2ton
Wheelbase:: 3100mm
Tire Size:: 245/70R19.5 16PR
Model code (announced):: NJA3120EDH33A
Rated payload: 7.665ton
Drive 4X2 (6 wheels)
Horsepower 170
Cargo box type: Dump type

Overview

The NanJun Xinxiangkang 170hp 4X2(6 wheels) 3.35m Dump Truck is a Light Truck featuring 7.665t payload, 11.995t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei PowerD30TCIF1 engine, 170 hp, China VI emissions and 8-speed gearbox transmission.

China VI 170 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): NJA3120EDH33A
Drive type: 4X2
Wheelbase: 3100mm
engine: Yunnei PowerD30TCIF1
transmission: 8-speed gearbox
Cab length: 5.265m
Cab width: 2.1m
Cab height: 2.6m
Front track width: 1620mm
rear track: 1540mm
Curb Weight: 4.2ton
Rated payload: 7.665ton
GVWR: 11.995ton
Origin: Ziyang, Sichuan
tonnage class: Light Truck
Approach angle: 16°
departure angle: 15°
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerD30TCIF1
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 3L
Emission standard: China VI
Max output power: 125kW
Max hp: 170Horsepower
Max torque: 500N·m
Max torque speed: 1200-2200rpm
Rated speed: 2800rpm
Engine Type: Electronic control common rail system HEGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: 8-speed gearbox
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.35m
Cargo box width: 2m
Cargo box height: 0.8m
Cab parameters
Cab: Xiangkang
Chassis Specs
Front axle allowable load: 4240kg
rear axle allowable load: 7755kg
Leaf spring count: 3/4+3
Tire
Tire Size: 245/70R19.5 16PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

0 photos

FAQ

What is the export price of NanJun Xinxiangkang 170hp 4X2(6 wheels) 3.35m Dump Truck, and what does it include?

NanJun Xinxiangkang 170hp 4X2(6 wheels) 3.35m Dump Truck export reference is about From $19,167; MSRP is ¥13.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does NanJun Xinxiangkang 170hp 4X2(6 wheels) 3.35m Dump Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of NanJun Xinxiangkang 170hp 4X2(6 wheels) 3.35m Dump Truck?

Key specs of NanJun Xinxiangkang 170hp 4X2(6 wheels) 3.35m Dump Truck: Drive: 4x2; Horsepower: 170 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is NanJun Xinxiangkang 170hp 4X2(6 wheels) 3.35m Dump Truck suited for?

NanJun Xinxiangkang 170hp 4X2(6 wheels) 3.35m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does NanJun Xinxiangkang 170hp 4X2(6 wheels) 3.35m Dump Truck differ from other variants in the same series?

NanJun Xinxiangkang 170hp 4X2(6 wheels) 3.35m Dump Truck belongs to NanJun Xiangkang Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for NanJun Xinxiangkang 170hp 4X2(6 wheels) 3.35m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export NanJun Xinxiangkang 170hp 4X2(6 wheels) 3.35m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
