Dongfeng M3 4X2(6 wheels) 2.95m single-row pure electric refrigerated truck CATL 55.7kWh

Export reference
From $28,611
MSRP ¥20.6M CNY
Rated payload:: 1.195ton
Wheelbase:: 2800mm
Cargo box width:: 1.75m
Model code (announced):: DFD5030XLCLBEV1
Cab length:: 5.3m
GVWR:: 3.495ton
Drive 4X2 (6 wheels)
CLTC range: 248km
Motor 1 Brand: Dongfeng
Curb Weight: 2.17ton

Overview

The Dongfeng M3 4X2(6 wheels) 2.95m single-row pure electric refrigerated truck CATL 55.7kWh is a Electric Refrigerated Truck featuring 248km battery/range, Dongfeng motor, 4X2 (6 wheels) drive and 1.195t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): DFD5030XLCLBEV1
Drive type: 4X2
Wheelbase: 2800mm
Cab length: 5.3m
Cab width: 1.91m
Cab height: 2.72m
CLTC range: 248km
Curb Weight: 2.17ton
Rated payload: 1.195ton
GVWR: 3.495ton
Max. speed: 85km/h
Origin: Shiyan, Hubei
Remarks: MP3, brake energy recovery, vacuum-assisted dual-circuit hydraulic brake
Energy Type: Electric
electric motor
Motor 1 Brand: Dongfeng
Motor 1 Model: TZ180XS-HSM901
Motor Type: Permanent magnet synchronous motor
total rated power: 50kW
Peak power: 90kW
total rated torque: 110N·m
Electronic Control
ECU Brand: Dongfeng
Battery/Charging
Battery Brand: CATL
Charging method: Fast charge + Slow charge
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 55.7kWh
Energy Density: 145
Cargo box parameters
Cargo box width: 1.75m
Cargo box height: 1.7m
Chassis Specs
Leaf spring count: 3/5
Tire
Tire Size: 185R15LT 6PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Reverse Radar:
Exterior features
Air deflector:
Service brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

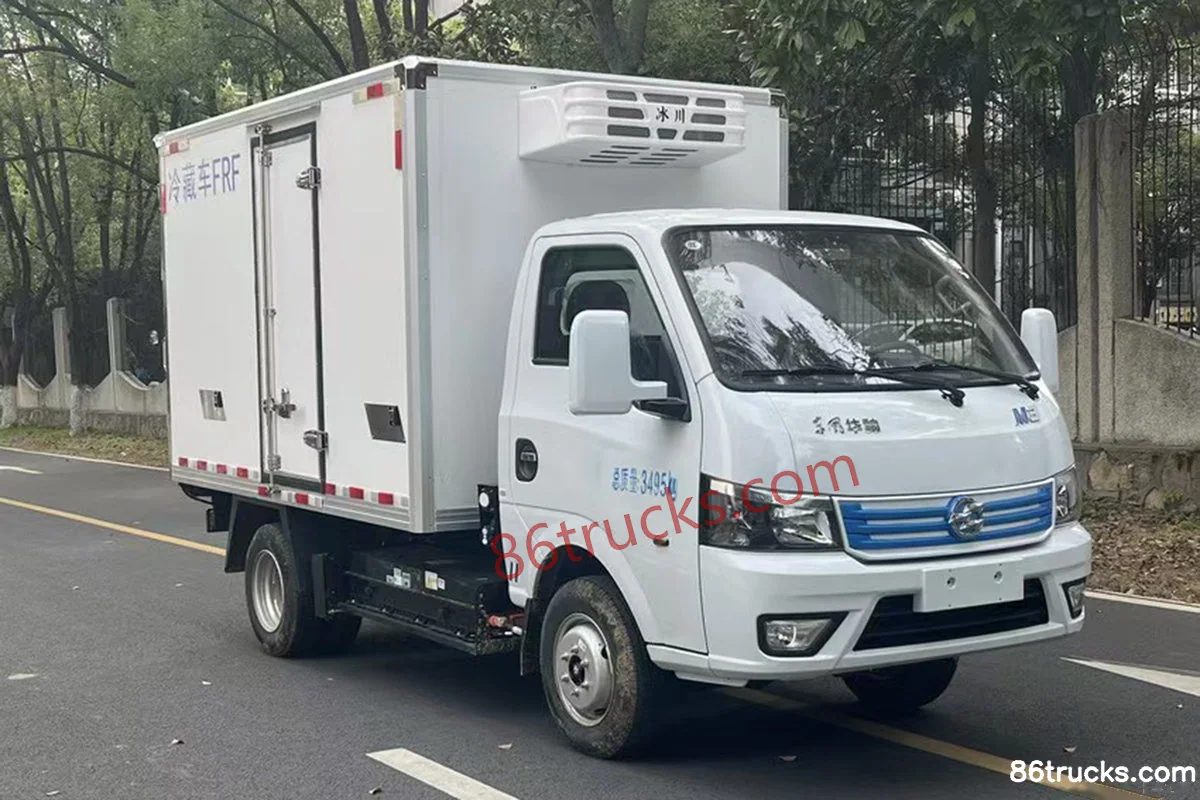

Exterior1

1 photos

FAQ

What is the export price of Dongfeng M3 4X2(6 wheels) 2.95m single-row pure electric refrigerated truck CATL 55.7kWh, and what does it include?

Dongfeng M3 4X2(6 wheels) 2.95m single-row pure electric refrigerated truck CATL 55.7kWh export reference is about From $28,611; MSRP is ¥20.6M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of Dongfeng M3 4X2(6 wheels) 2.95m single-row pure electric refrigerated truck CATL 55.7kWh?

Key specs of Dongfeng M3 4X2(6 wheels) 2.95m single-row pure electric refrigerated truck CATL 55.7kWh: Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng M3 4X2(6 wheels) 2.95m single-row pure electric refrigerated truck CATL 55.7kWh suited for?

Dongfeng M3 4X2(6 wheels) 2.95m single-row pure electric refrigerated truck CATL 55.7kWh is a Electric Refrigerated Truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Dongfeng M3 4X2(6 wheels) 2.95m single-row pure electric refrigerated truck CATL 55.7kWh differ from other variants in the same series?

Dongfeng M3 4X2(6 wheels) 2.95m single-row pure electric refrigerated truck CATL 55.7kWh belongs to DongfengM3 (Electric Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng M3 4X2(6 wheels) 2.95m single-row pure electric refrigerated truck CATL 55.7kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng M3 4X2(6 wheels) 2.95m single-row pure electric refrigerated truck CATL 55.7kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
