Shijun D960 350hp 6X4(10 wheels) 5.8m dump truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 12.37ton
Wheelbase:: 3800+1350mm
Tire Size:: 11.00R20 18PR
Shijun D960 350hp 6X4(10 wheels) 5.8m dump truck exterior
View more photos (12)
Rated payload: 12.5ton
Drive 6X4 (10 wheels)
Horsepower 350
Cargo box type: Dump type

Overview

The Shijun D960 350hp 6X4(10 wheels) 5.8m dump truck is a Medium-duty truck featuring 12.5t payload, 25t GVW, Dump type cargo body and 6X4 (10 wheels) drive. On the powertrain side, it comes with a WeichaiWP10.350E53 engine, 350 hp, China V emissions and Fast Gear transmission.

China V 350 Diesel 6X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): LFJ3251SCG1
Drive type: 6X4
Wheelbase: 3800+1350mm
engine: WeichaiWP10.350E53
transmission: Fast Gear12JS160
Rear Axle Ratio: 5.73
Cab length: 8.6m
Cab width: 2.495m
Cab height: 3.585m
Front track width: 2050mm
rear track: 1860/1860mm
Curb Weight: 12.37ton
Rated payload: 12.5ton
GVWR: 25ton
Origin: Dali, Yunnan
tonnage class: Medium-duty truck
Approach angle: 20°
departure angle: 15°
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP10.350E53
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 9.726L
Emission standard: China V
Max output power: 257kW
Max hp: 350Horsepower
Max torque: 1600N·m
Max torque speed: 1200-1600rpm
Rated speed: 1900rpm
Engine Type: Electronic high-pressure common rail + SCR
Transmission Parameters
Transmission Model: Fast Gear12JS160
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 5.8m
Cargo box width: 2.3m
Cargo box height: 1.1m
Cab parameters
Cab: Sleeper cab
Cab width: 2495mm
fuel tank
Fuel tank capacity: 400L
Chassis Specs
Front axle description: 9.5T with ABS
Front axle allowable load: 7000kg
Frame Dimensions: 300×90mm
rear axle description: 16T/16T with ABS
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 5.73
Leaf spring count: 11\12
clutch: Φ430
Tire
Tire Size: 11.00R20 18PR
Number of tires: 10pcs
Control configuration
ABS:

Photos

Exterior3

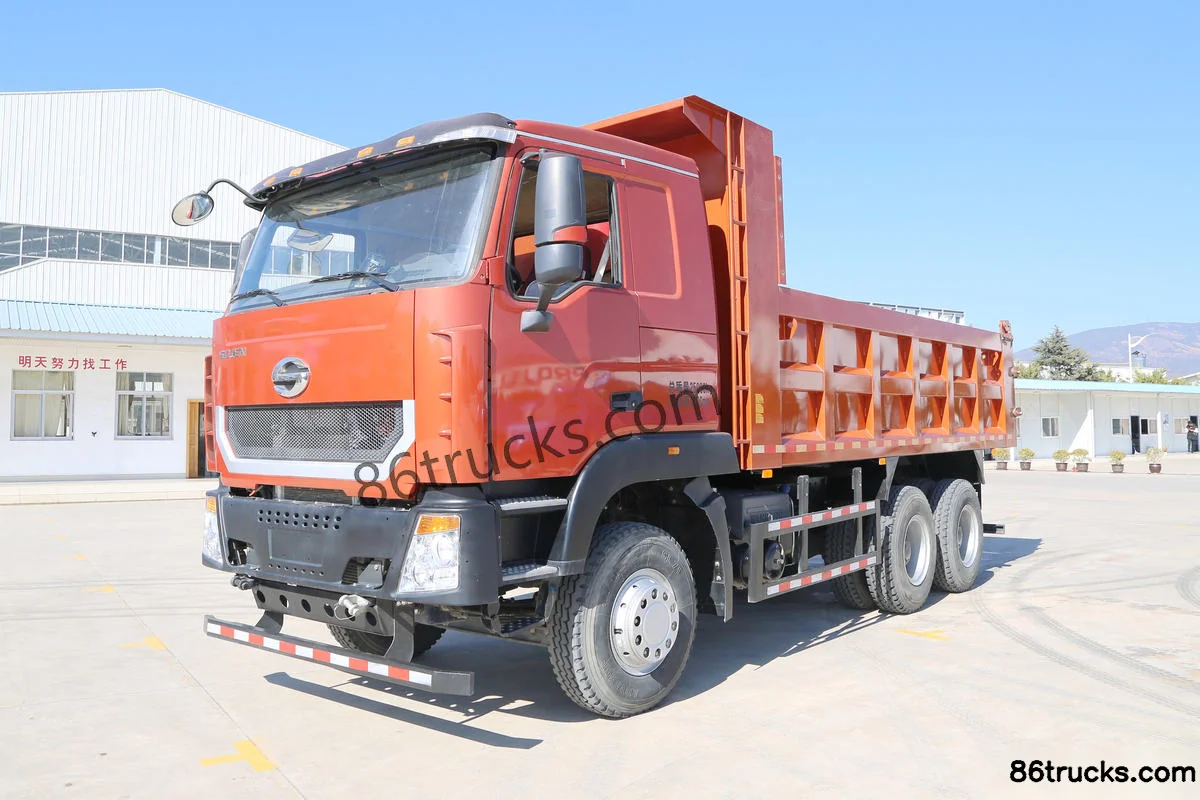

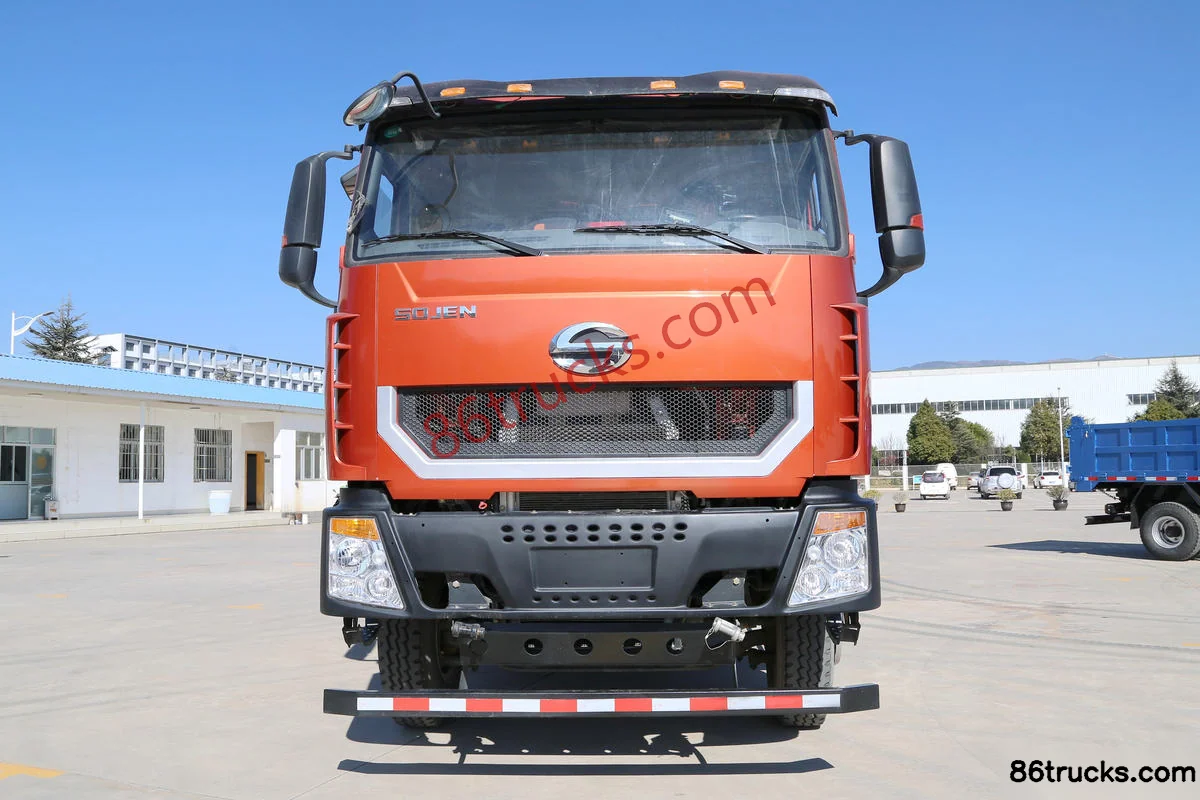

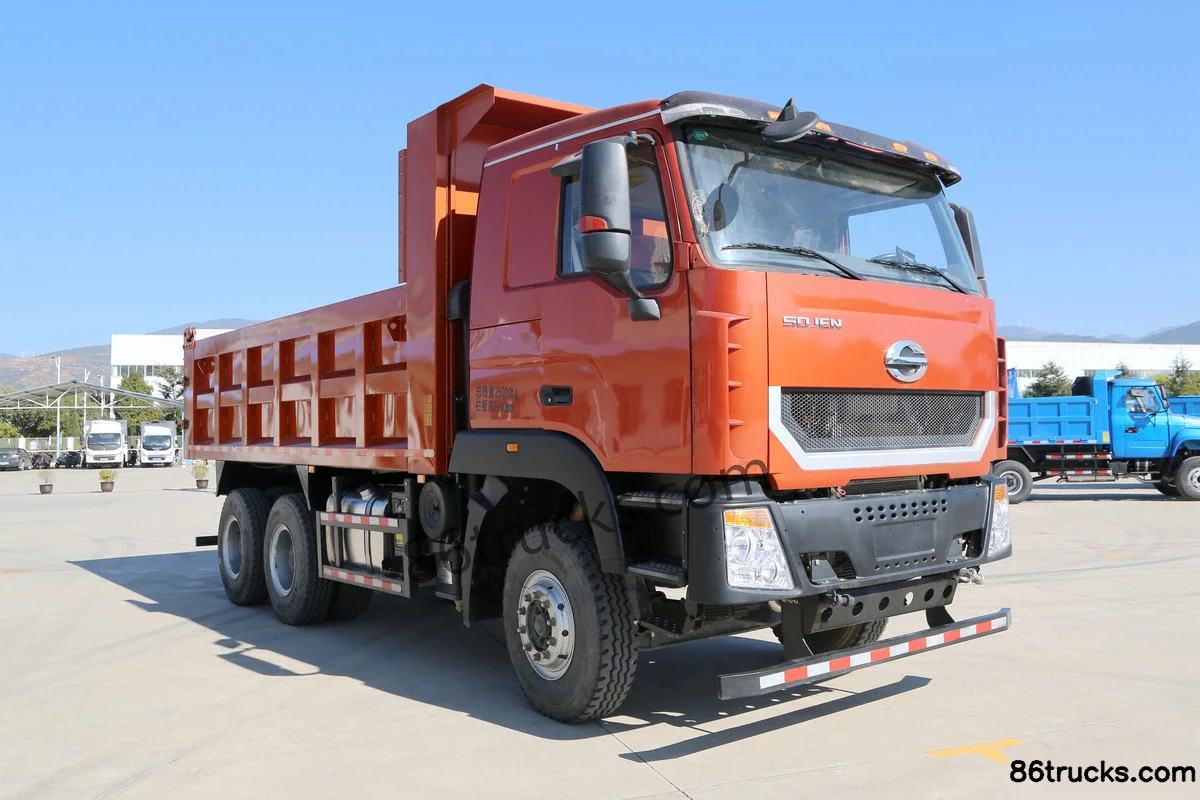

Shijun D960 350hp 6X4(10 wheels) 5.8m dump truck Exterior (1) | 86Trucks Shijun D960 350hp 6X4(10 wheels) 5.8m dump truck Exterior (2) | 86Trucks Shijun D960 350hp 6X4(10 wheels) 5.8m dump truck Exterior (3) | 86Trucks

Cab3

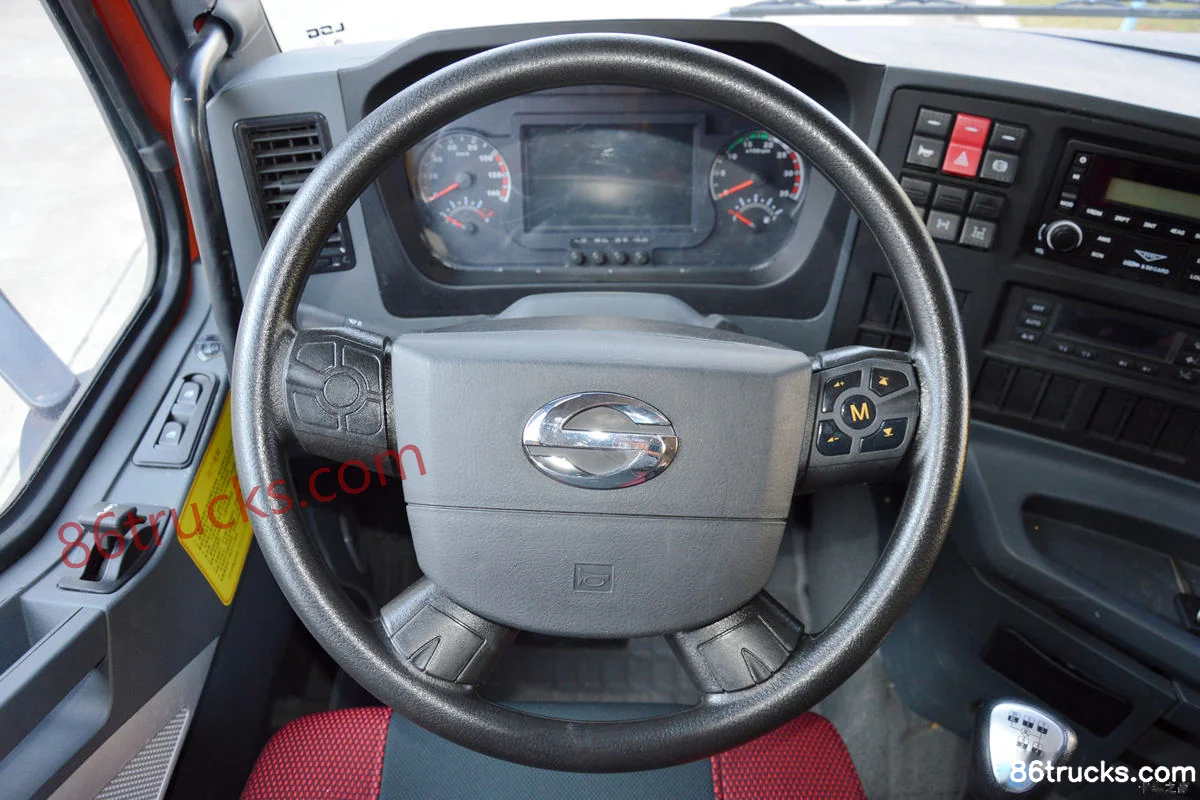

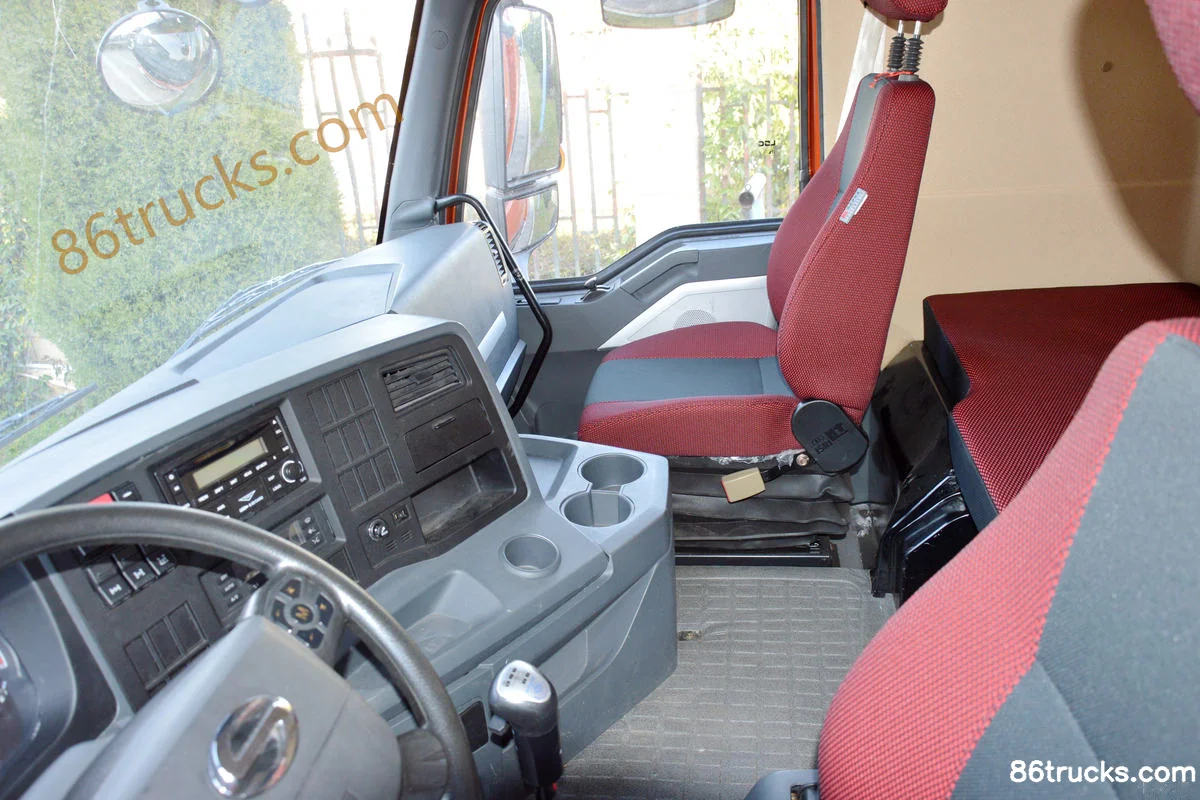

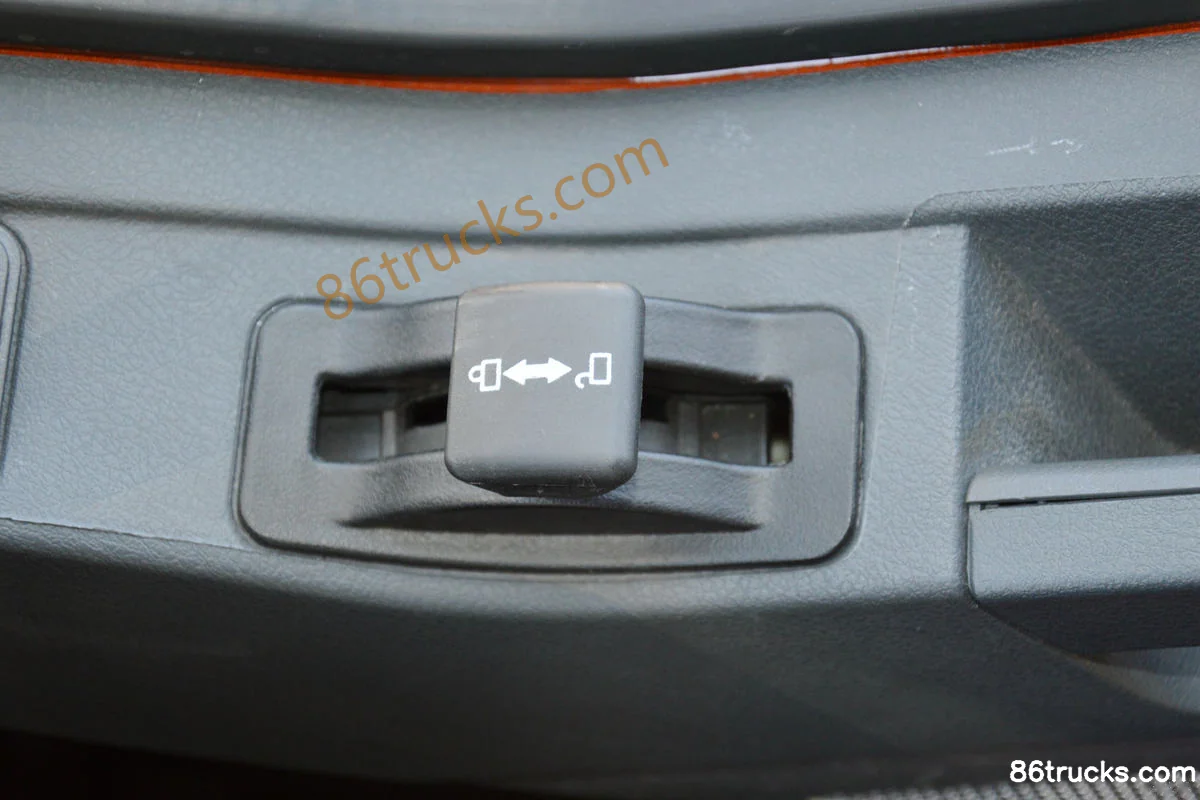

Shijun D960 350hp 6X4(10 wheels) 5.8m dump truck Cab (1) | 86Trucks Shijun D960 350hp 6X4(10 wheels) 5.8m dump truck Cab (2) | 86Trucks Shijun D960 350hp 6X4(10 wheels) 5.8m dump truck Cab (3) | 86Trucks

Chassis3

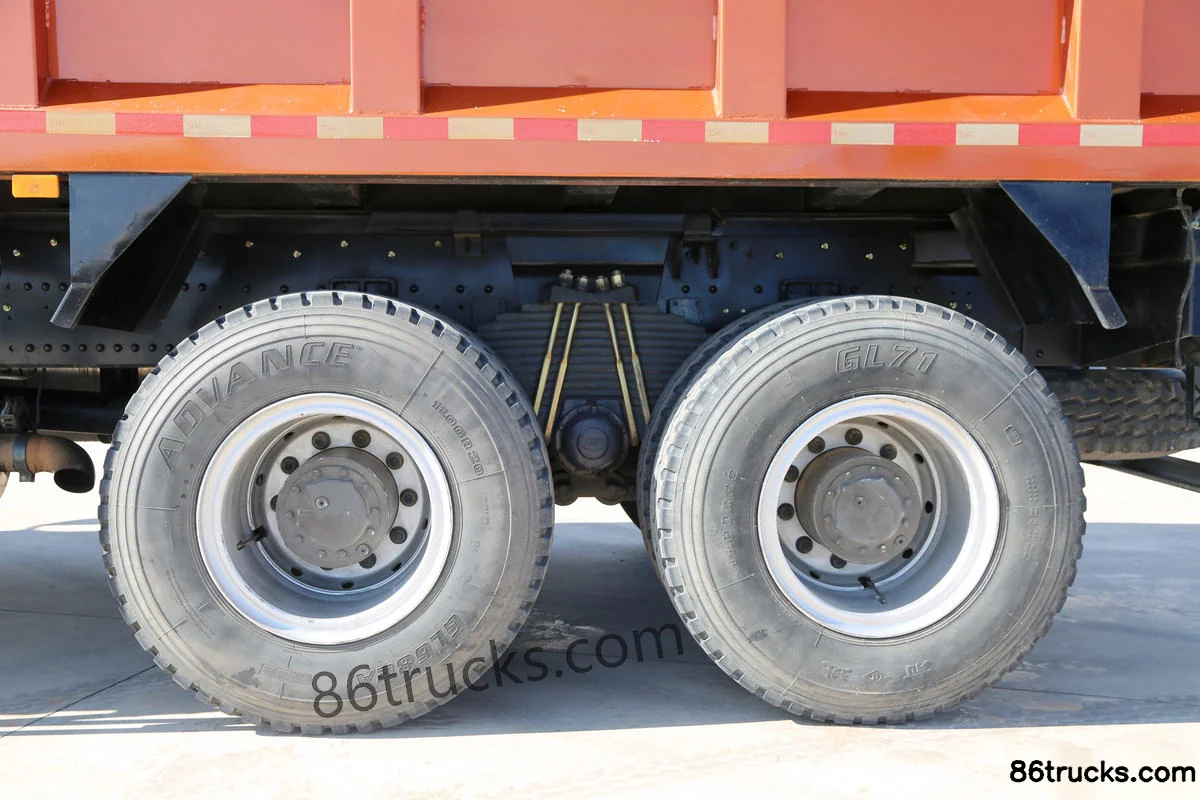

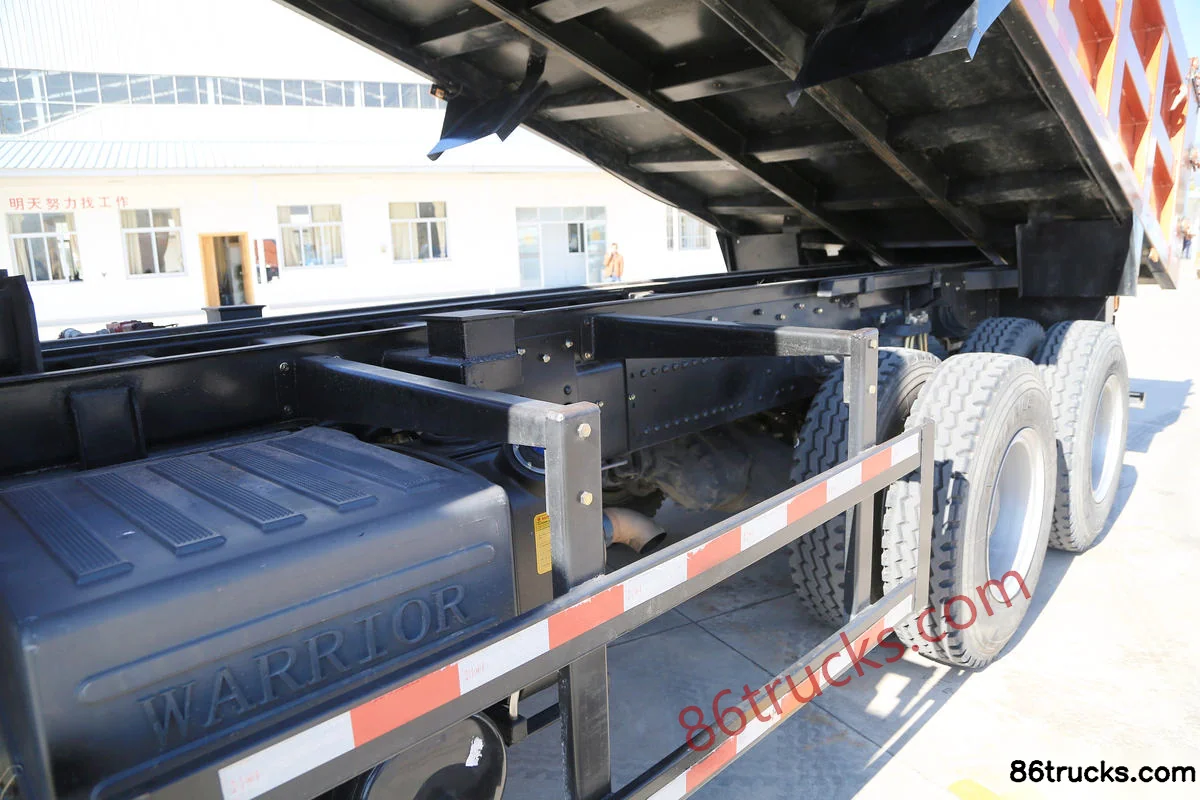

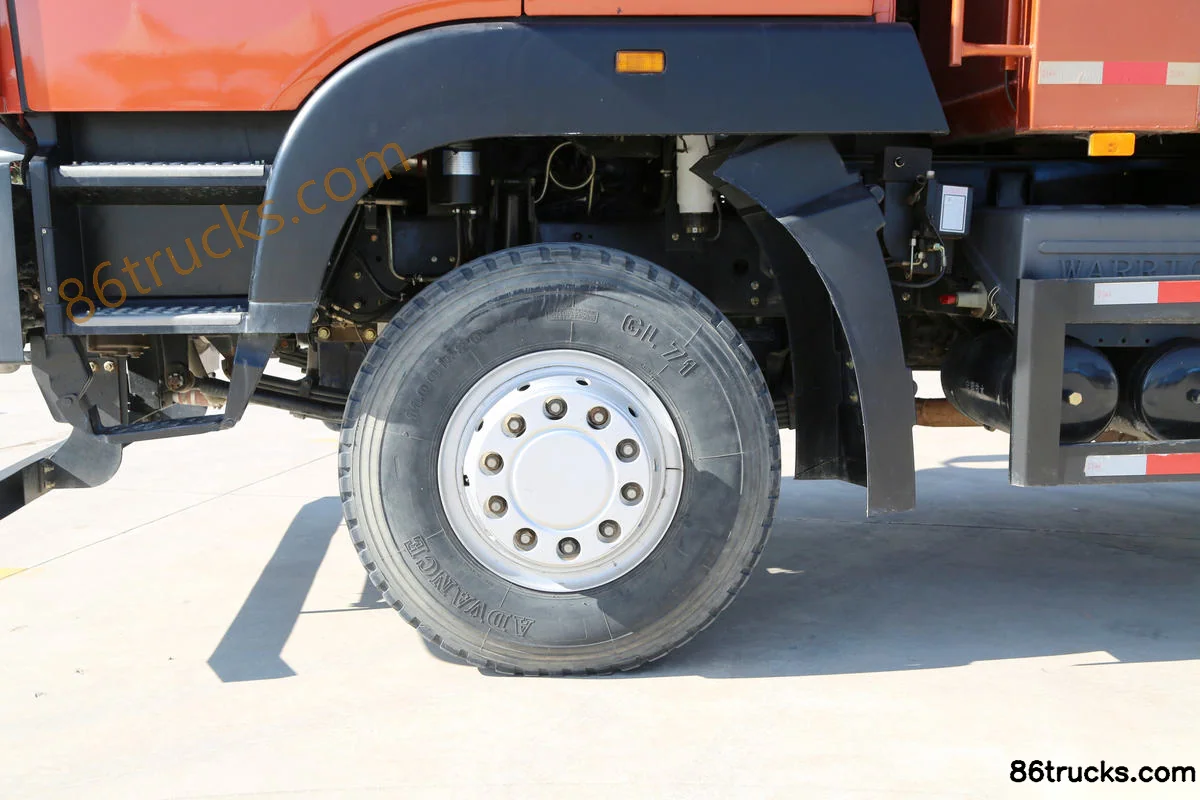

Shijun D960 350hp 6X4(10 wheels) 5.8m dump truck Chassis (1) | 86Trucks Shijun D960 350hp 6X4(10 wheels) 5.8m dump truck Chassis (2) | 86Trucks Shijun D960 350hp 6X4(10 wheels) 5.8m dump truck Chassis (3) | 86Trucks

Body3

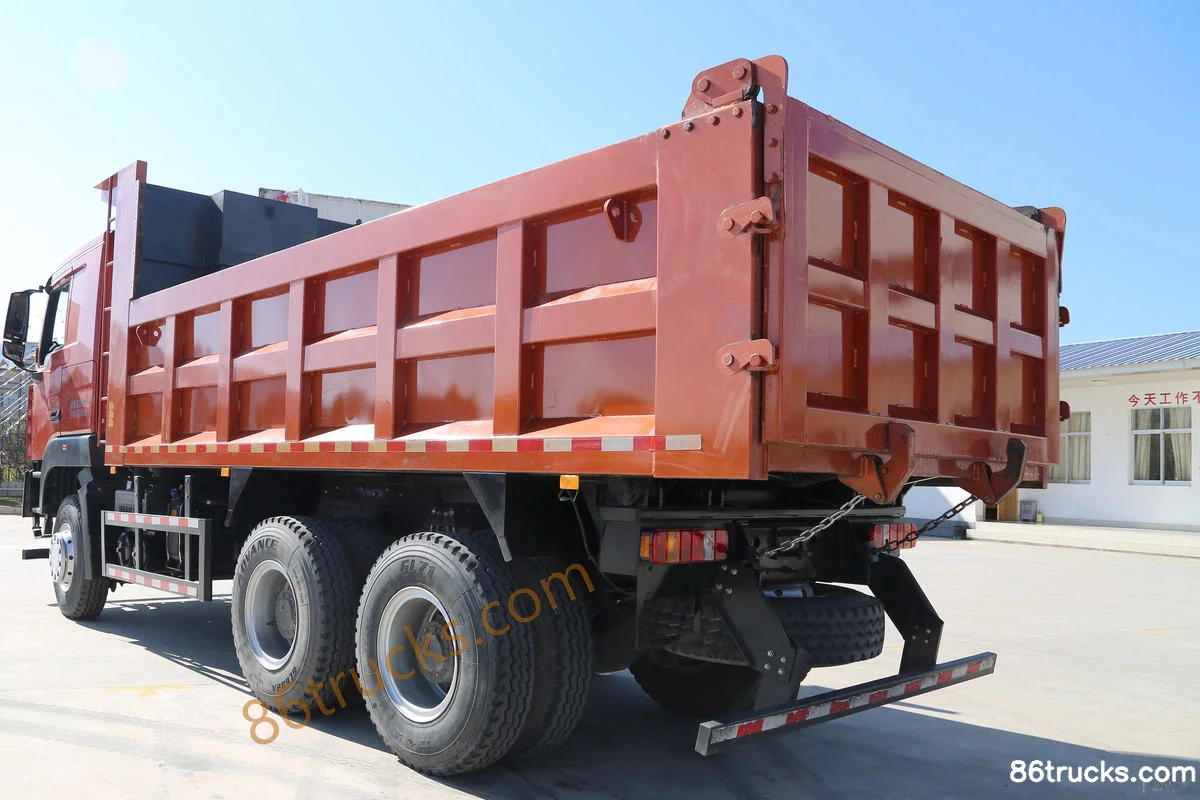

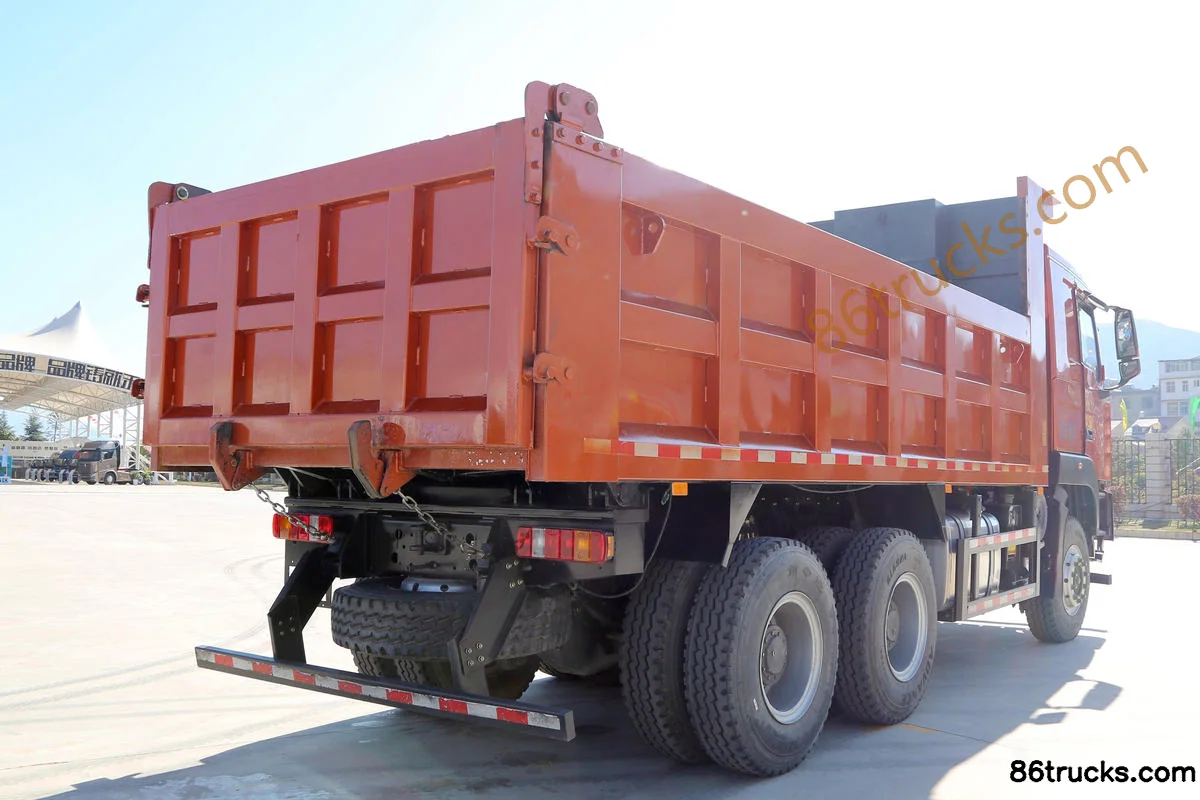

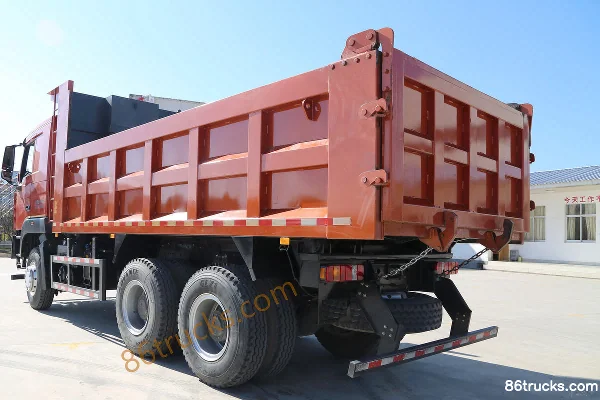

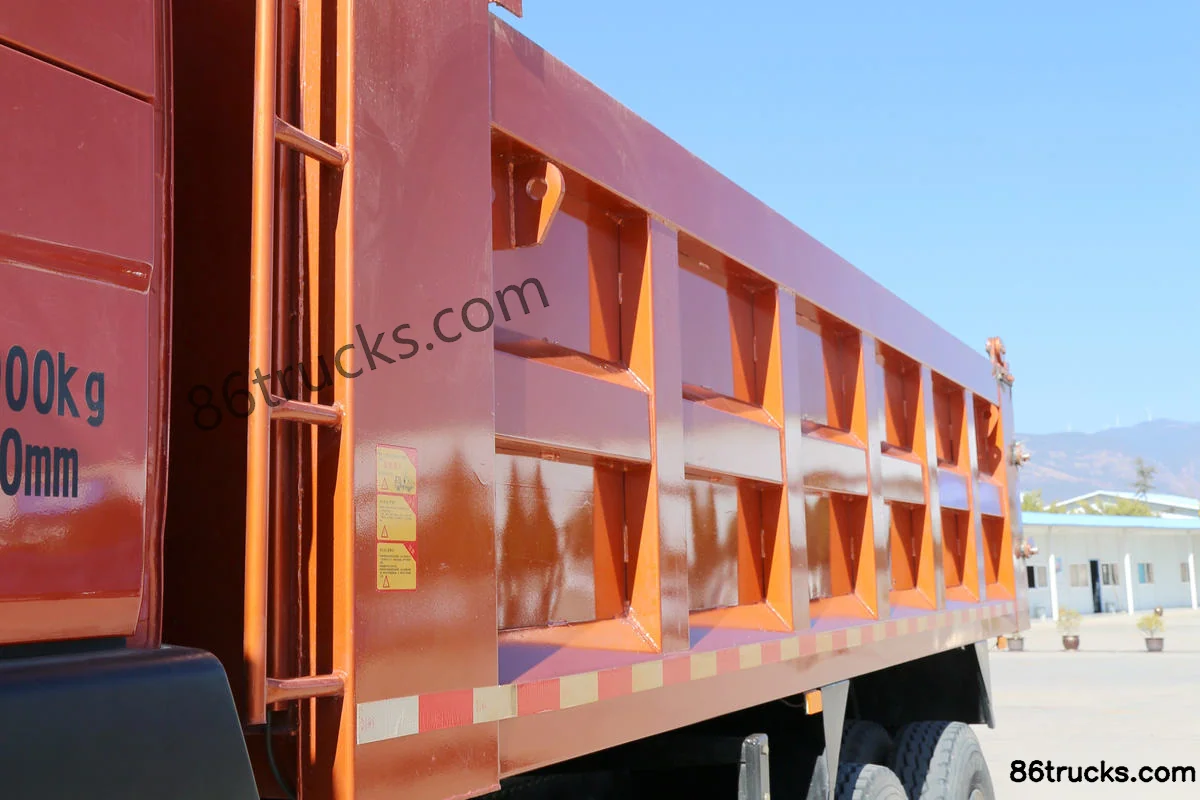

Shijun D960 350hp 6X4(10 wheels) 5.8m dump truck Body (1) | 86Trucks Shijun D960 350hp 6X4(10 wheels) 5.8m dump truck Body (2) | 86Trucks Shijun D960 350hp 6X4(10 wheels) 5.8m dump truck Body (3) | 86Trucks

12 photos

FAQ

What emission standard does Shijun D960 350hp 6X4(10 wheels) 5.8m dump truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Shijun D960 350hp 6X4(10 wheels) 5.8m dump truck?

Key specs of Shijun D960 350hp 6X4(10 wheels) 5.8m dump truck: Drive: 6x4; Horsepower: 350 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Shijun D960 350hp 6X4(10 wheels) 5.8m dump truck suited for?

Shijun D960 350hp 6X4(10 wheels) 5.8m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Shijun D960 350hp 6X4(10 wheels) 5.8m dump truck differ from other variants in the same series?

Shijun D960 350hp 6X4(10 wheels) 5.8m dump truck belongs to ShijunD960 (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Shijun D960 350hp 6X4(10 wheels) 5.8m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Shijun D960 350hp 6X4(10 wheels) 5.8m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
