Dongfeng Tianjin KR PLUS 4X2(6 wheels) 9.75m Pure Electric Van Cargo Truck CATL 348kWh

Export reference
MSRP N/A
Rated payload:: 7.37ton
Wheelbase:: 7150mm
Cargo box type:: Van body
Model code (announced):: DFH5180XXYEEV15
Type:: enclosed cargo truck
Box length class:: 9.8m
Dongfeng Tianjin KR PLUS 4X2(6 wheels) 9.75m Pure Electric Van Cargo Truck CATL 348kWh exterior
View more photos (9)
Drive 4X2 (6 wheels)
CLTC range: 400km
Motor 1 Brand: Suzhou Green Control
Curb Weight: 10.5ton

Overview

The Dongfeng Commercial Vehicle Dongfeng Tianjin KR PLUS 4X2(6 wheels) 9.75m Pure Electric Van Cargo Truck CATL 348kWh is a Medium-duty truck featuring 400km battery/range, Suzhou Green Control motor, 4X2 (6 wheels) drive and 7.37t payload.

4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): DFH5180XXYEEV15
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 7150mm
Box length class: 9.8m
Cab length: 12m
Cab width: 2.55m
Cab height: 3.96m
CLTC range: 400km
Curb Weight: 10.5ton
Rated payload: 7.37ton
GVWR: 18ton
Max. speed: 89km/h
Origin: Shiyan, Hubei
tonnage class: Medium-duty truck
Energy Type: Electric
electric motor
Motor 1 Brand: Suzhou Green Control
Motor 1 Model: TZ270XS-LKM0592
Motor Type: Permanent magnet synchronous motor
total rated power: 150kW
Peak power: 252kW
total peak torque: 550N·m
total rated torque: 260N·m
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 348kWh
Cargo box parameters
Cargo box type: Van body
Cargo box length: 9.75m
Cargo box width: 2.45m
Cargo box height: 2.6m
Cab parameters
Cab: High roof
Cab width: 2200mm
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 6500kg
rear axle description: STEA39000
rear axle allowable load: 11500kg
Tire
Tire Size: 275/80R22.5 18PR
Number of tires: 6pcs
Control configuration
ABS:
EBS electronic braking system:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Mirrors:
Service brake
Brake Type: Air brake

Photos

Exterior3

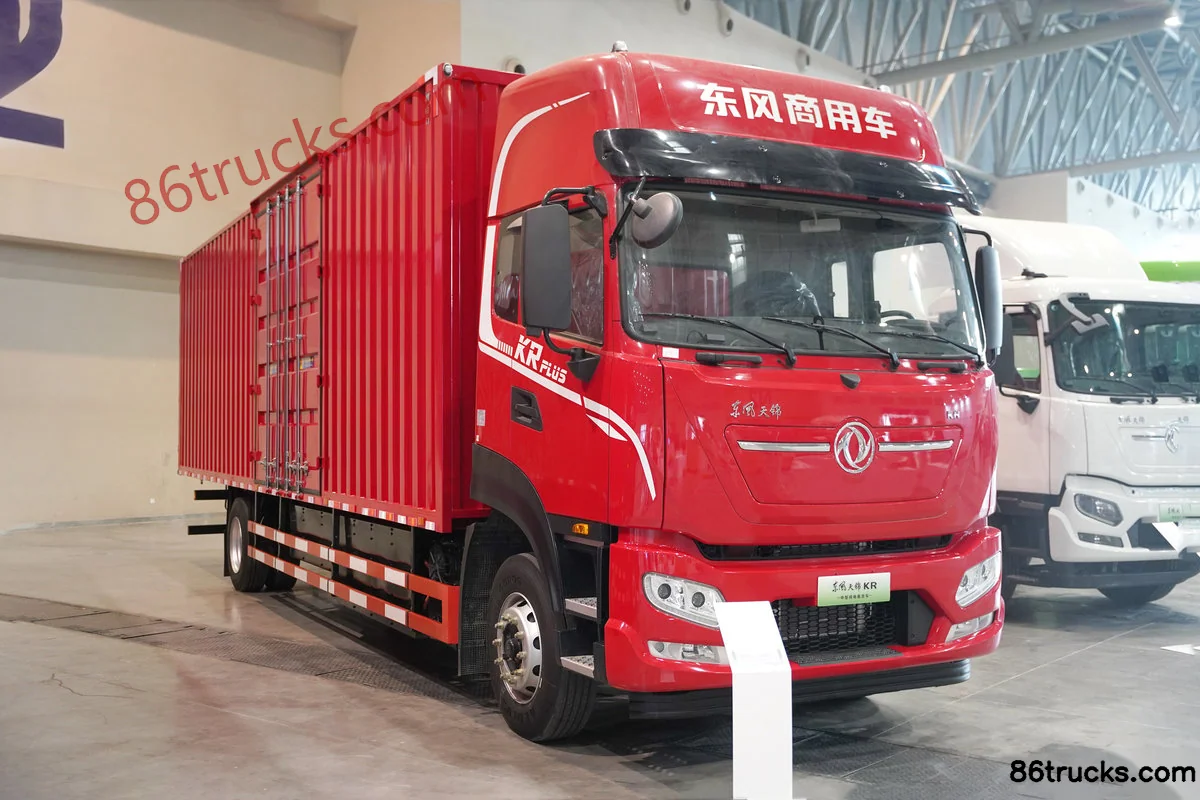

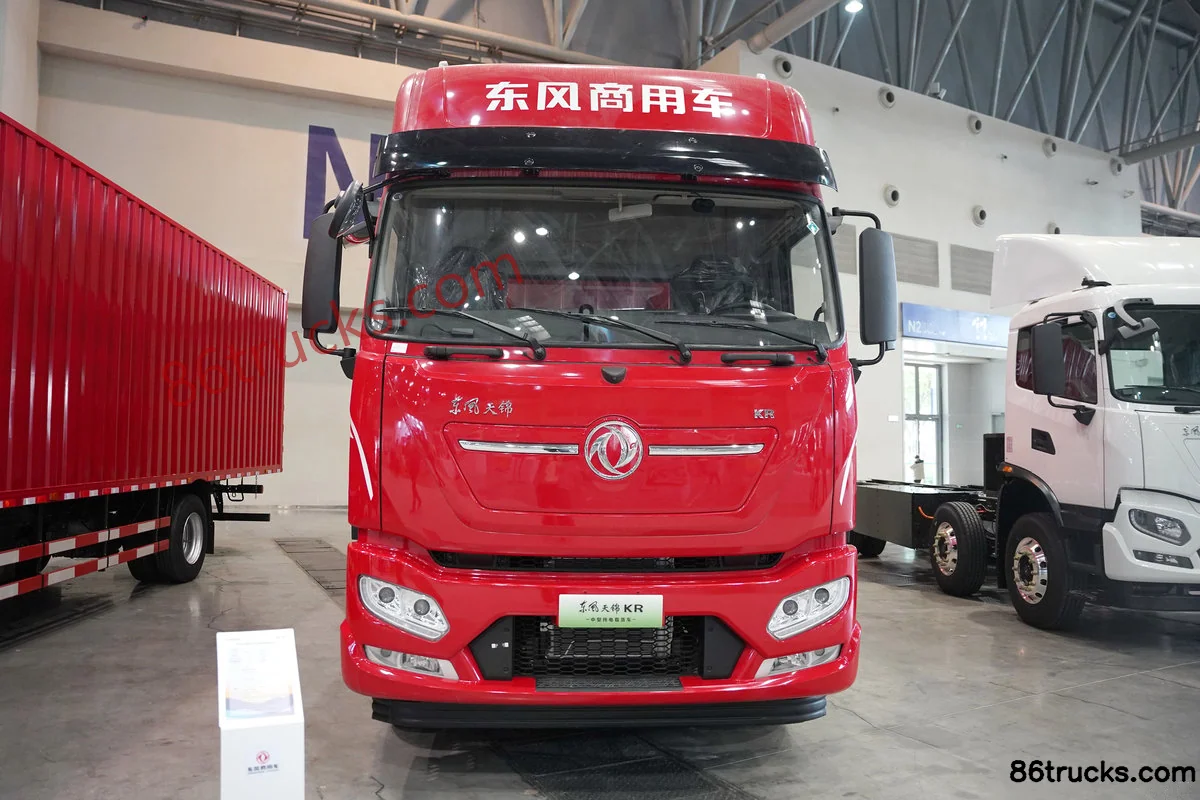

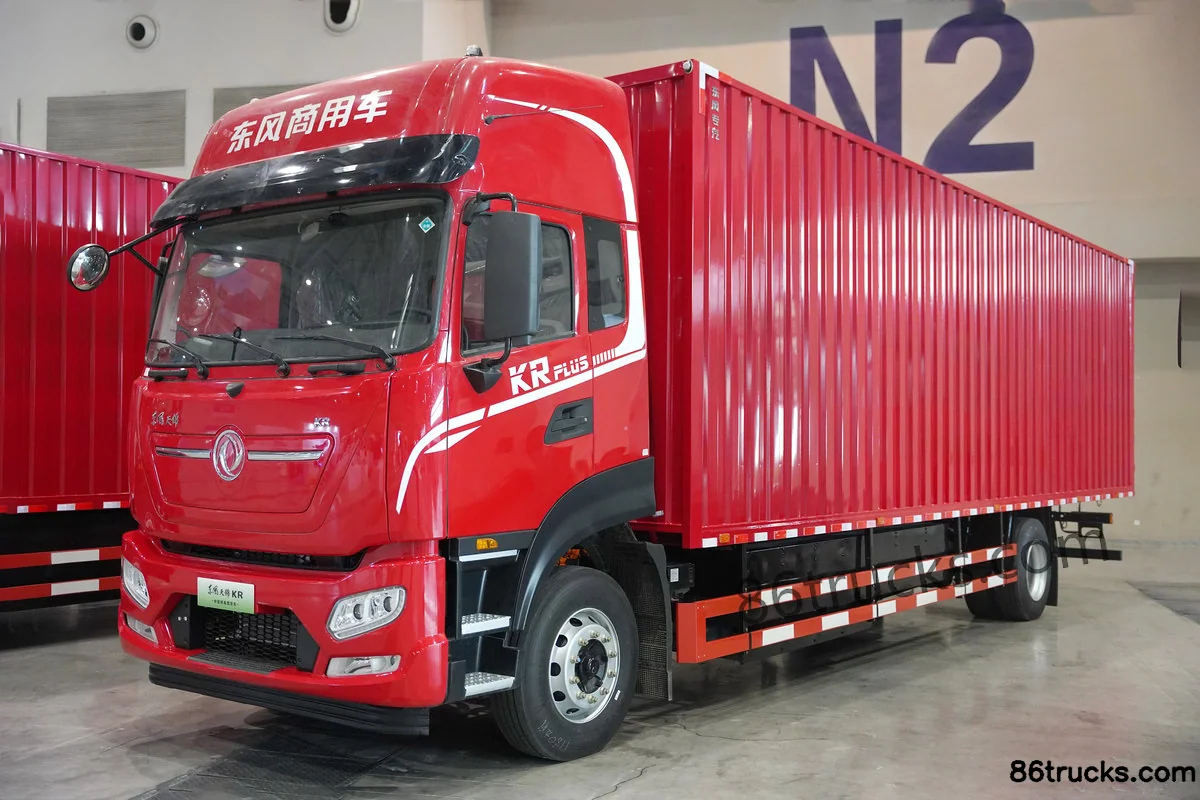

Dongfeng Tianjin KR PLUS 4X2(6 wheels) 9.75m Pure Electric Van Cargo Truck CATL 348kWh Exterior (1) | 86Trucks Dongfeng Tianjin KR PLUS 4X2(6 wheels) 9.75m Pure Electric Van Cargo Truck CATL 348kWh Exterior (2) | 86Trucks Dongfeng Tianjin KR PLUS 4X2(6 wheels) 9.75m Pure Electric Van Cargo Truck CATL 348kWh Exterior (3) | 86Trucks

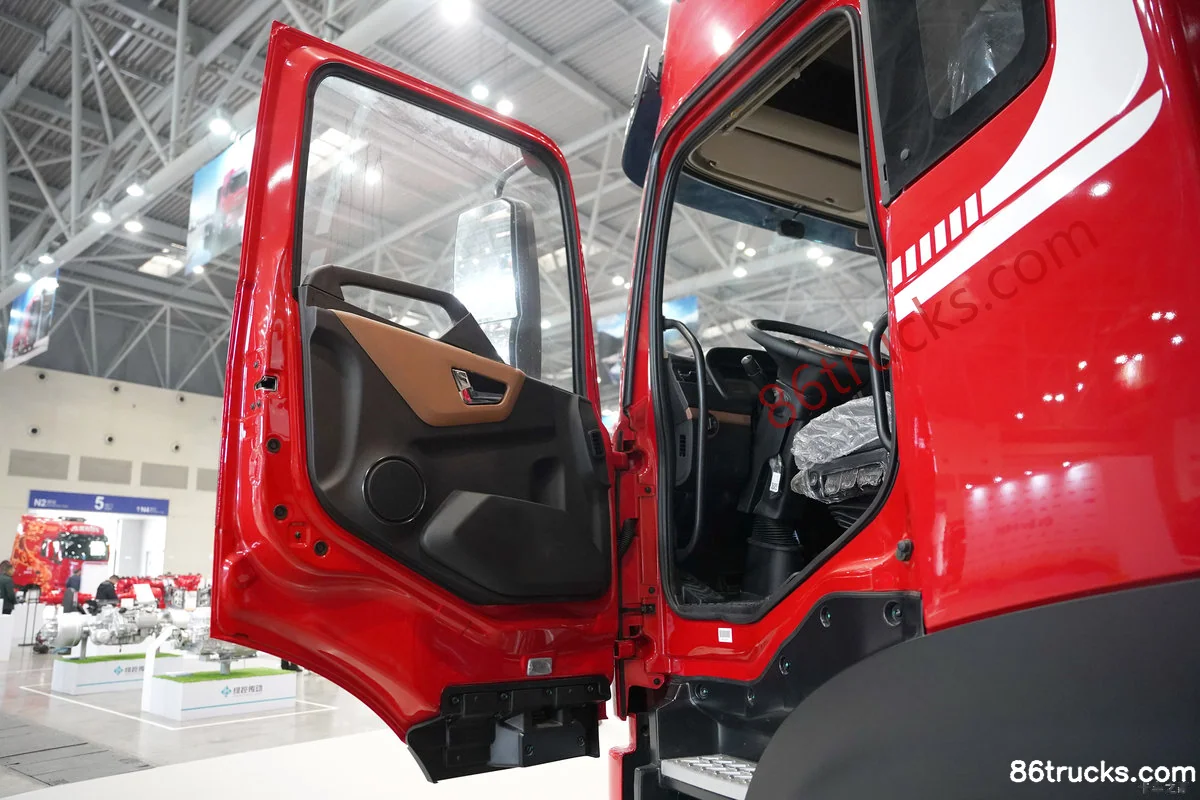

Cab3

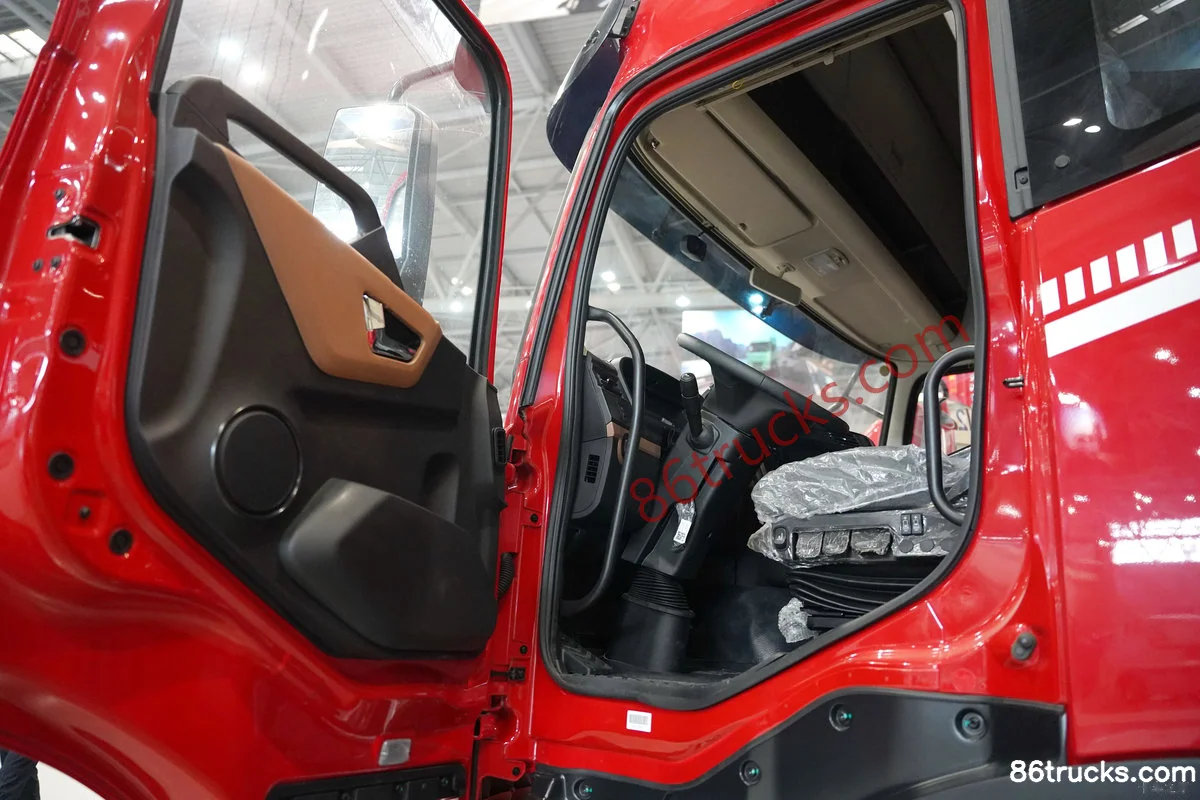

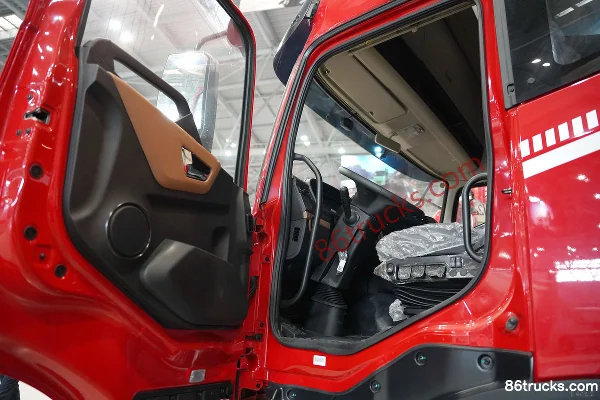

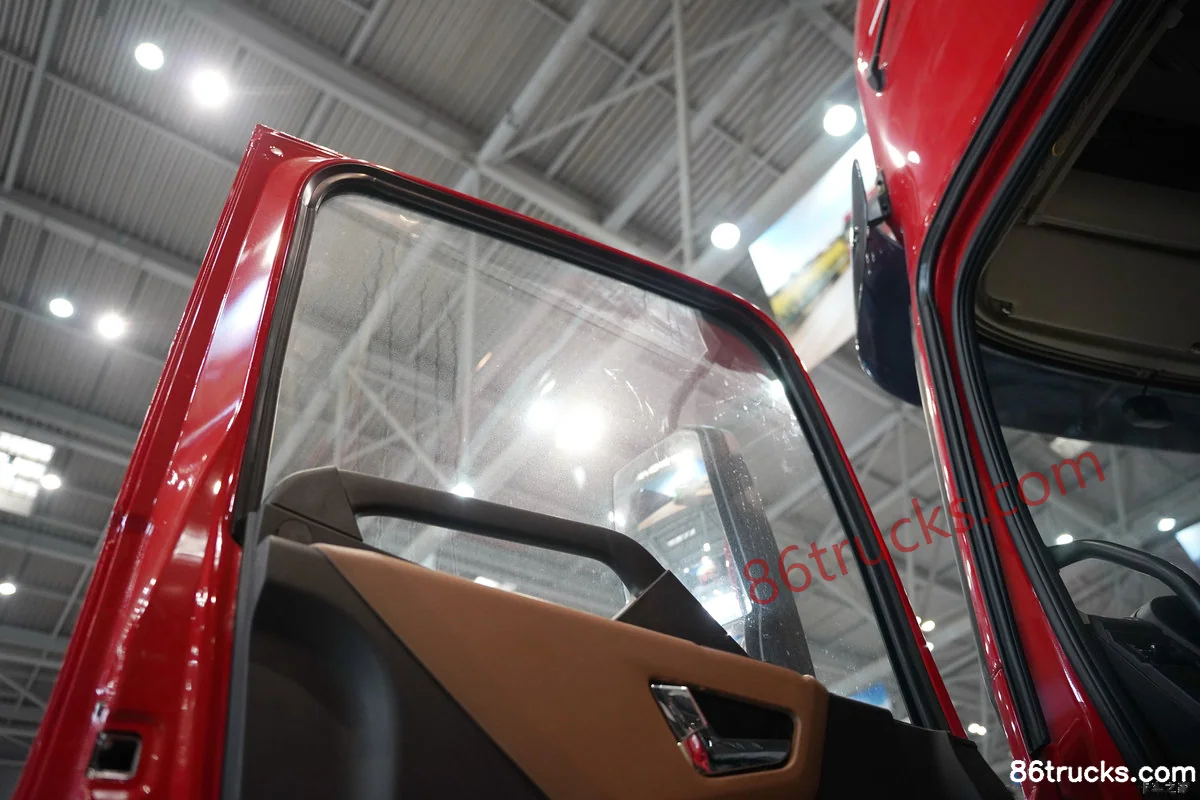

Dongfeng Tianjin KR PLUS 4X2(6 wheels) 9.75m Pure Electric Van Cargo Truck CATL 348kWh Cab (1) | 86Trucks Dongfeng Tianjin KR PLUS 4X2(6 wheels) 9.75m Pure Electric Van Cargo Truck CATL 348kWh Cab (2) | 86Trucks Dongfeng Tianjin KR PLUS 4X2(6 wheels) 9.75m Pure Electric Van Cargo Truck CATL 348kWh Cab (3) | 86Trucks

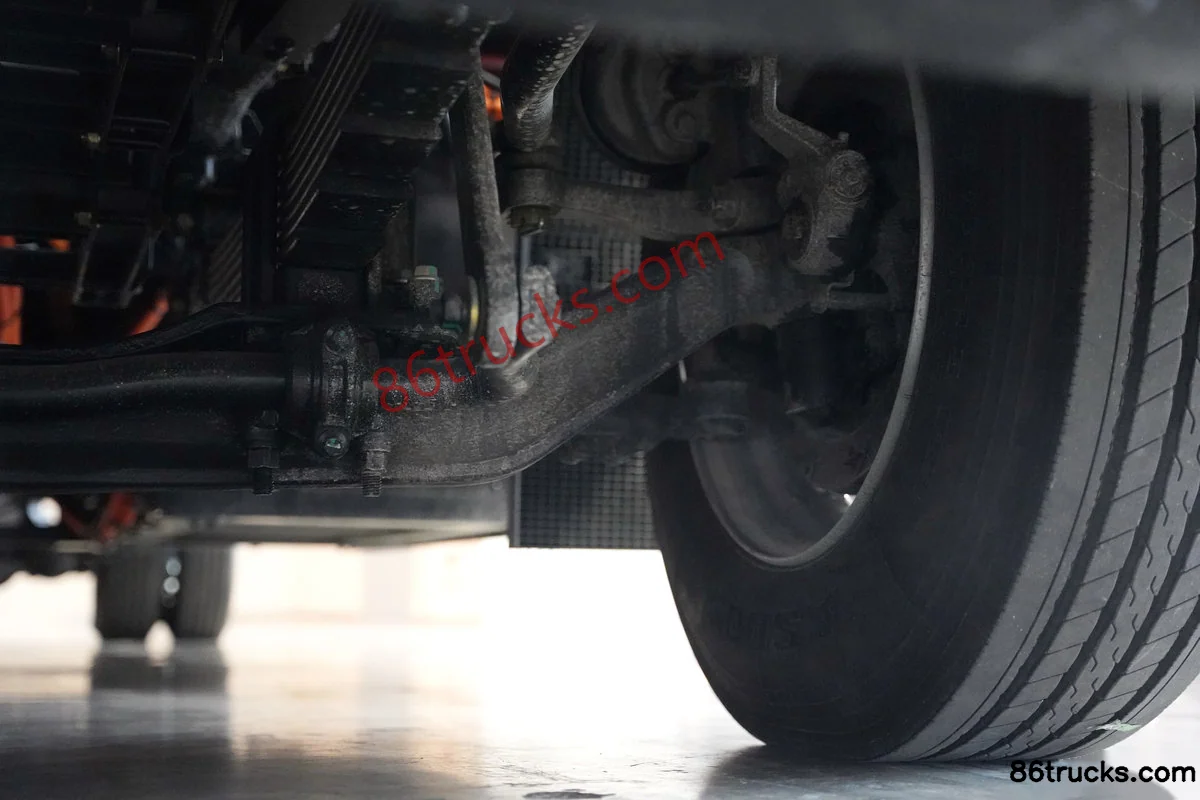

Chassis3

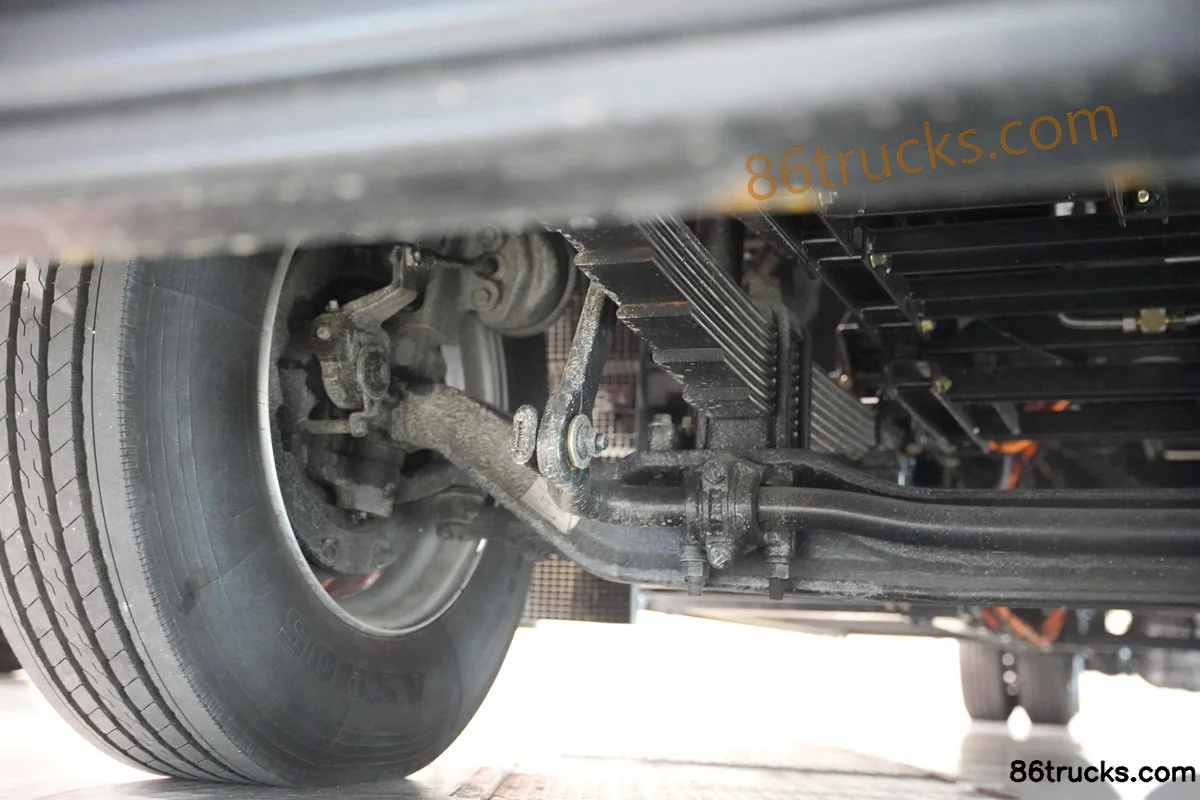

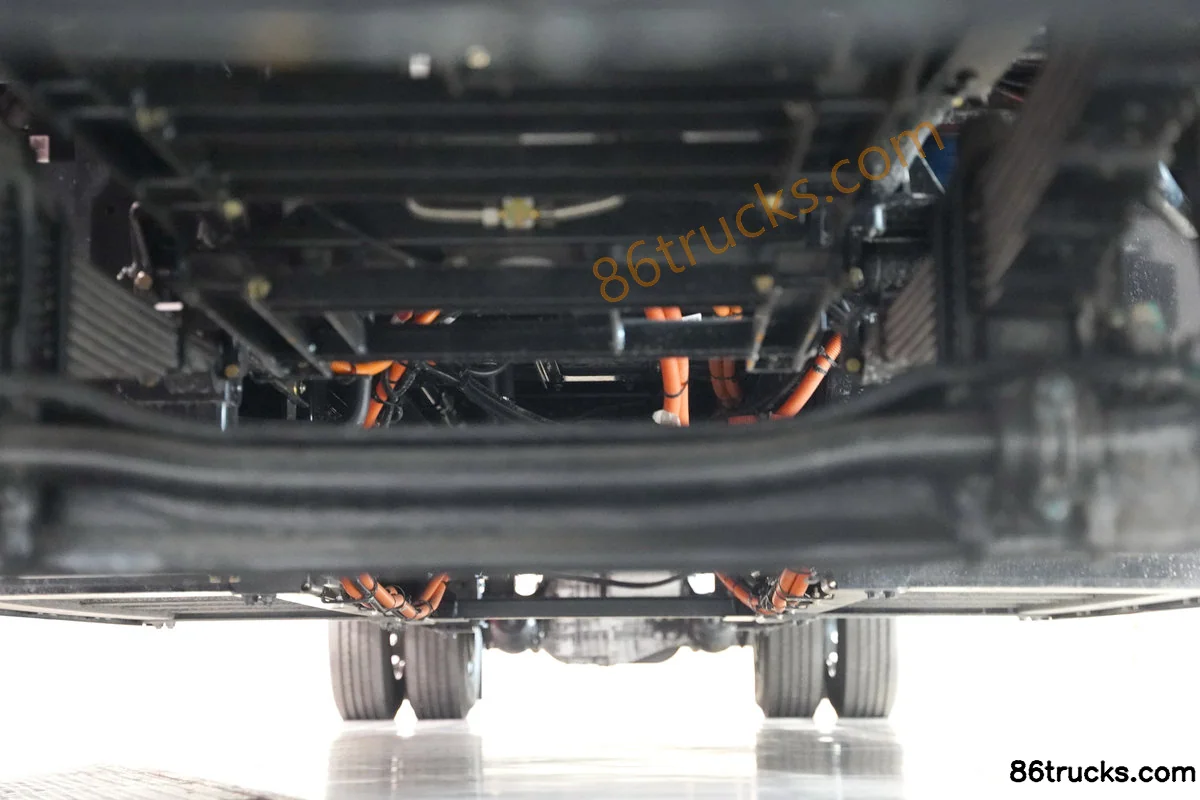

Dongfeng Tianjin KR PLUS 4X2(6 wheels) 9.75m Pure Electric Van Cargo Truck CATL 348kWh Chassis (1) | 86Trucks Dongfeng Tianjin KR PLUS 4X2(6 wheels) 9.75m Pure Electric Van Cargo Truck CATL 348kWh Chassis (2) | 86Trucks Dongfeng Tianjin KR PLUS 4X2(6 wheels) 9.75m Pure Electric Van Cargo Truck CATL 348kWh Chassis (3) | 86Trucks

9 photos

FAQ

What are the key specs of Dongfeng Tianjin KR PLUS 4X2(6 wheels) 9.75m Pure Electric Van Cargo Truck CATL 348kWh?

Key specs of Dongfeng Tianjin KR PLUS 4X2(6 wheels) 9.75m Pure Electric Van Cargo Truck CATL 348kWh: Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Tianjin KR PLUS 4X2(6 wheels) 9.75m Pure Electric Van Cargo Truck CATL 348kWh suited for?

Dongfeng Tianjin KR PLUS 4X2(6 wheels) 9.75m Pure Electric Van Cargo Truck CATL 348kWh is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does Dongfeng Tianjin KR PLUS 4X2(6 wheels) 9.75m Pure Electric Van Cargo Truck CATL 348kWh differ from other variants in the same series?

Dongfeng Tianjin KR PLUS 4X2(6 wheels) 9.75m Pure Electric Van Cargo Truck CATL 348kWh belongs to Dongfeng Tianjin KR PLUS (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Tianjin KR PLUS 4X2(6 wheels) 9.75m Pure Electric Van Cargo Truck CATL 348kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Tianjin KR PLUS 4X2(6 wheels) 9.75m Pure Electric Van Cargo Truck CATL 348kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
