FAW Jiefang Qingdao Han V 2.0 240 hp 6X2(8 wheels) 7.7m Cargo Truck with Grille (China VI)

Export reference
MSRP N/A
Horsepower: 240
Emission: China VI
Fuel: Diesel
Engine: Dachai 6-cylinder
Transmission: FAW Jiefang
Curb Weight:: 9.45ton
seating capacity: 3Personnel
Rated payload: 15.42ton
Drive 6X2 (8 wheels)
Cargo box type: Stake type

Overview

The FAW Jiefang Qingdao Han V 2.0 240 hp 6X2(8 wheels) 7.7m Cargo Truck with Grille (China VI) is a Medium-duty truck featuring 7.7m cargo length, Stake type cargo body, 3Personnel volume and 15.42t payload. Its segment focus covers Agricultural product transport and green channel, matching those duty cycles. On the powertrain side, it comes with a Dachai 6-cylinder engine, 240 hp, 6X2 (8 wheels) drive and China VI emissions.

China VI 240 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA5250CCYPK2L5T3E6A80
Type: stake truck
Drive type: 6X2
Wheelbase: 1900+4700mm
Box length class: 7.7m
engine: DachaiCA6DH1-24E6
transmission: FAW JiefangCA8TAX090M
Rear Axle Ratio: 4.444
Cab length: 10.15m
Cab width: 2.55m
Cab height: 3.995m
Front track width: 1922/1922mm
rear track: 1800mm
Curb Weight: 9.45ton
Rated payload: 15.42ton
GVWR: 25ton
Max. speed: 98km/h
Origin: Qingdao
tonnage class: Medium-duty truck
Approach angle: 20°
departure angle:
market segment: Agricultural product transport, green channel
Front/rear suspension: 1.332/2.218m
Energy Type: Diesel
Engine parameters
Engine Brand: Dachai
Engine Model: DachaiCA6DH1-24E6
Engine info: Dachai 6-cylinder
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 5.7L
Emission standard: China VI
Max output power: 179kW
Max hp: 240Horsepower
Max torque: 900N·m
Max torque speed: 1300-1800rpm
Rated speed: 2500rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: FAW JiefangCA8TAX090M
Transmission Brand: FAW Jiefang
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 7.7m
Cargo box width: 2.4m
*Cargo box interior width: 2.4000000953674
Cab parameters
seating capacity: 3Personnel
Seat rows: Single Row
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 300L
Chassis Specs
Front axle description: G116
Front axle allowable load: 6500/6500kg
Frame Dimensions: 280×80×(8+5)mm
rear axle description: 435 upgraded stamped-welded axle
rear axle allowable load: 11500kg
Axle ratio: 4.444
Leaf spring count: 12/12/10+9
clutch: Φ395
Tire
Tire Size: 295/80R22.5 18PR
Number of tires: 8pcs
Control configuration
ABS:

Photos

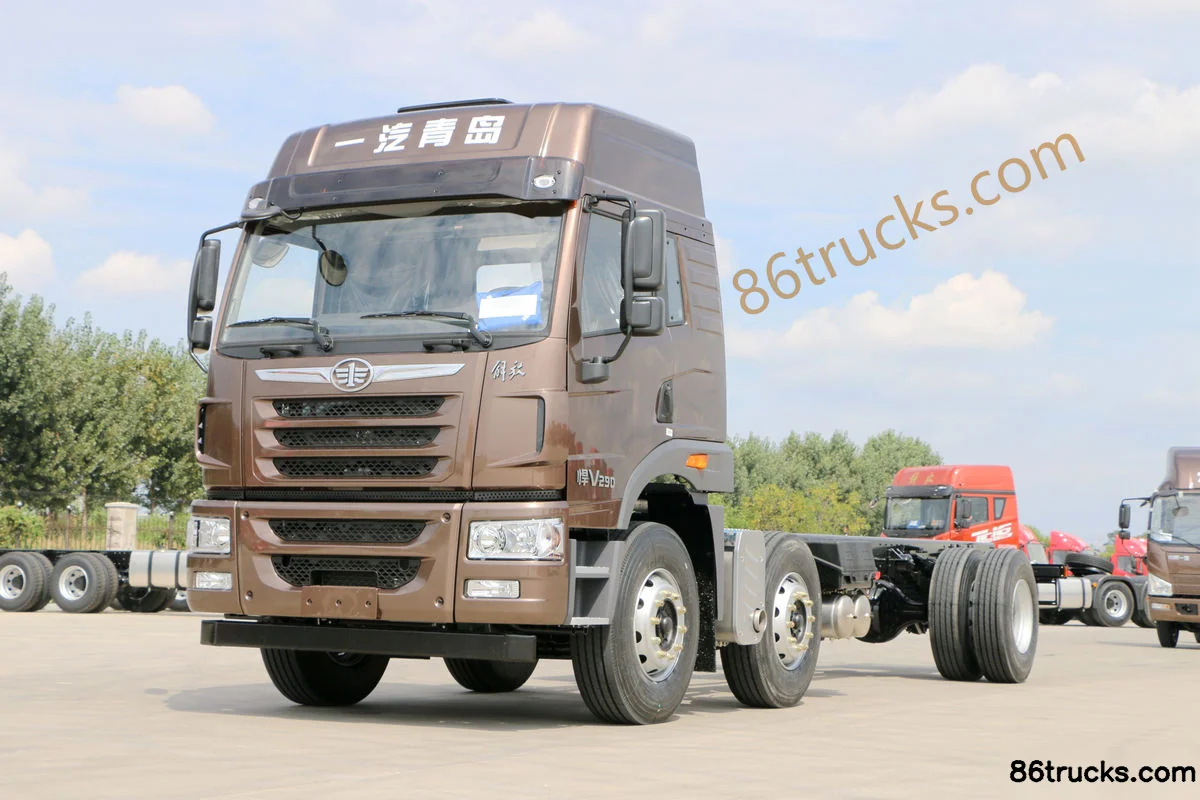

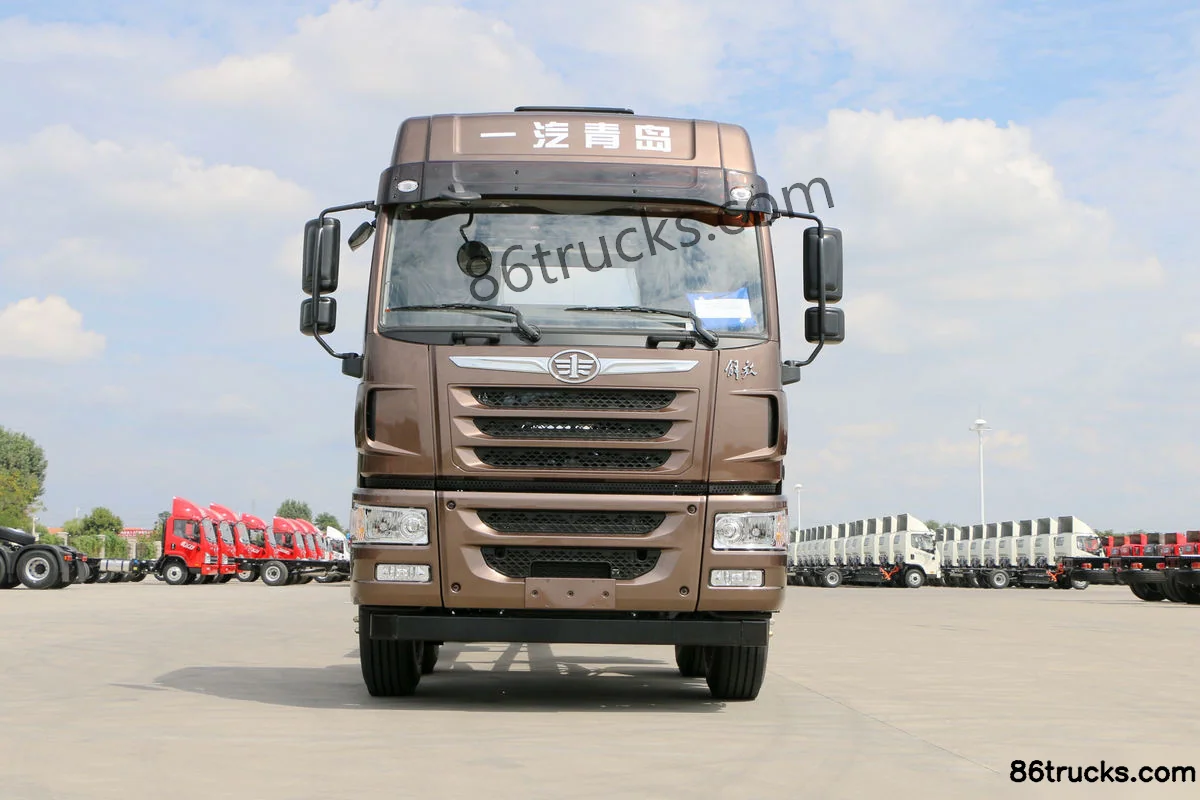

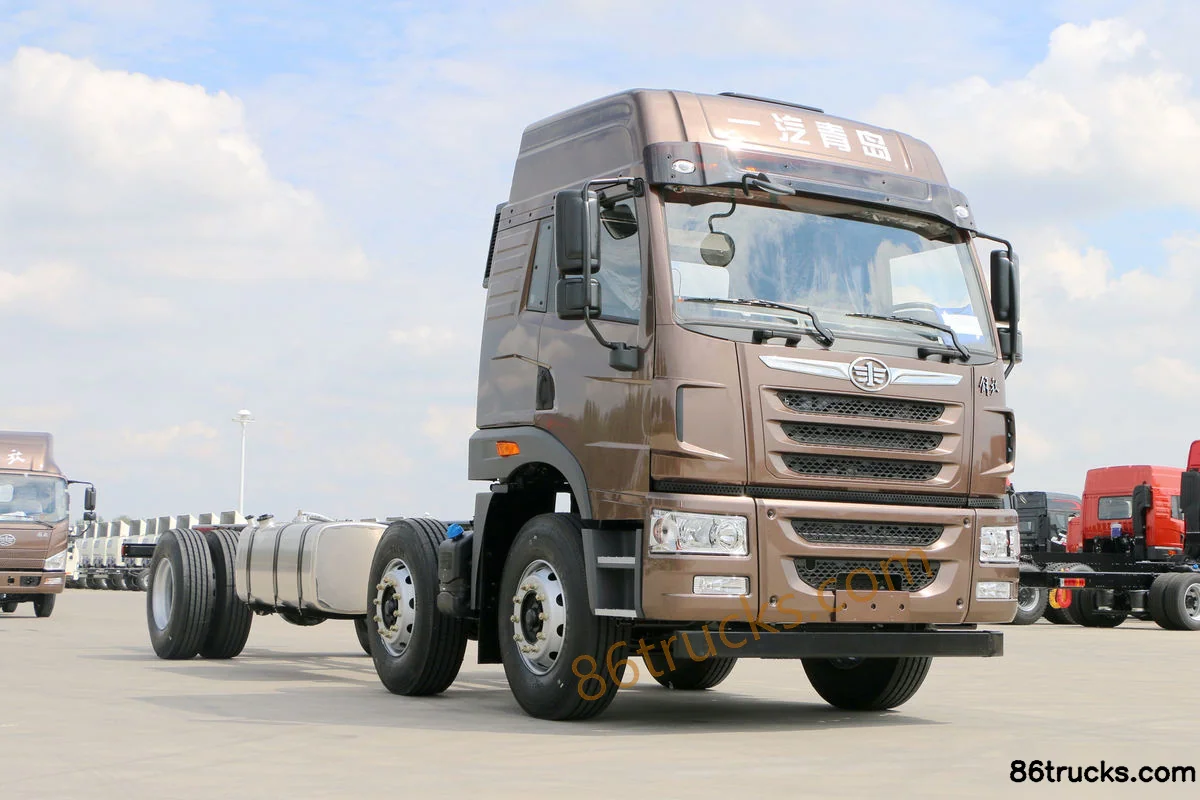

Exterior3

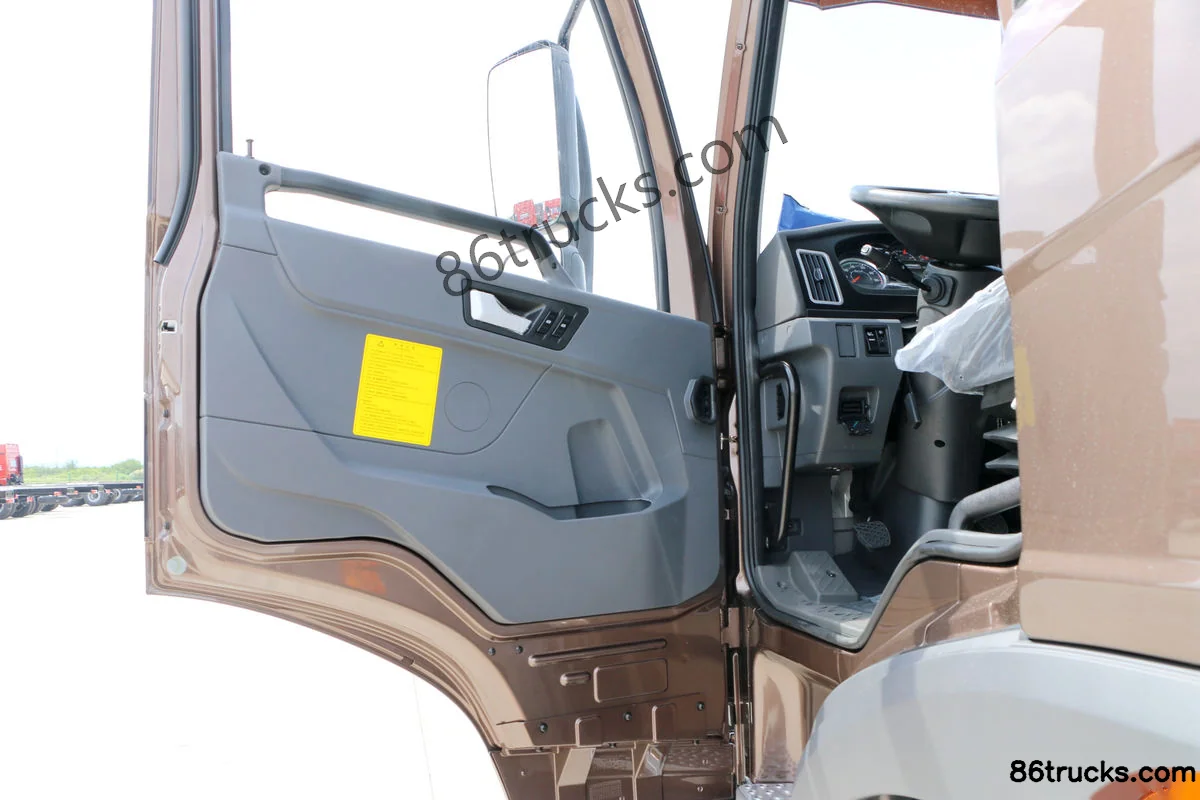

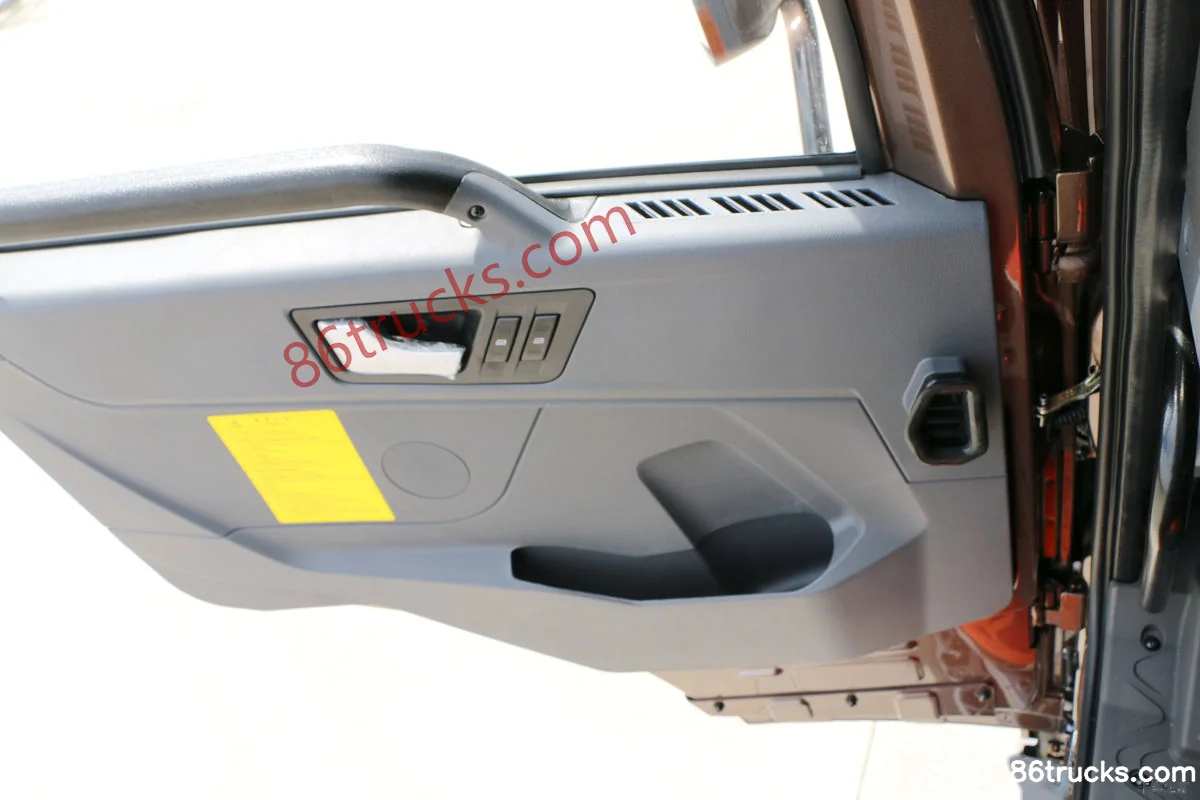

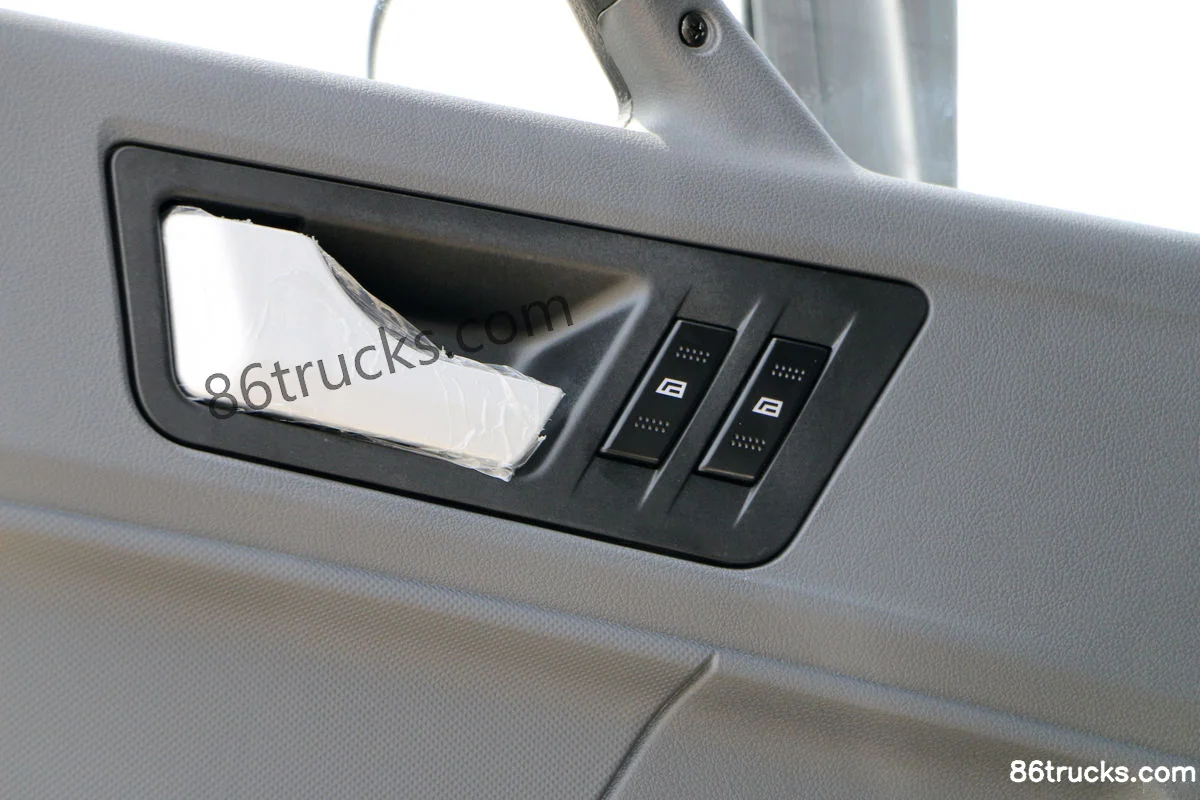

Cab3

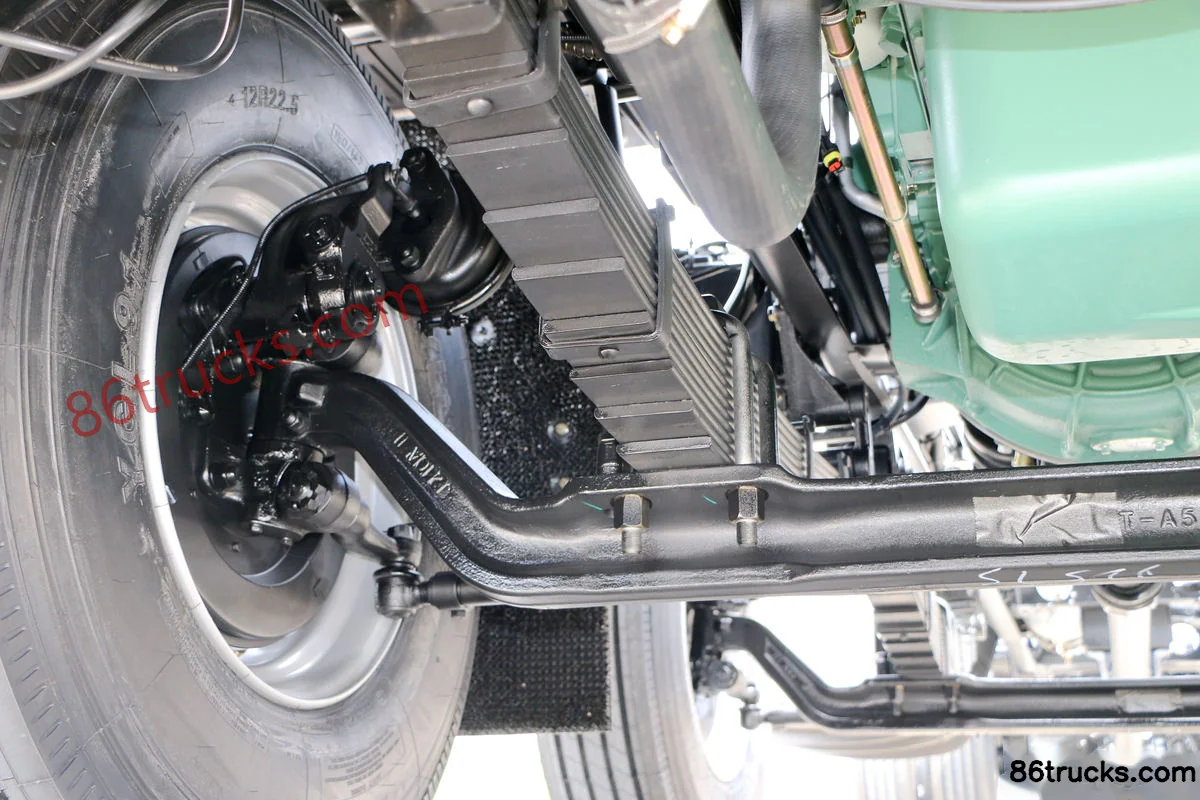

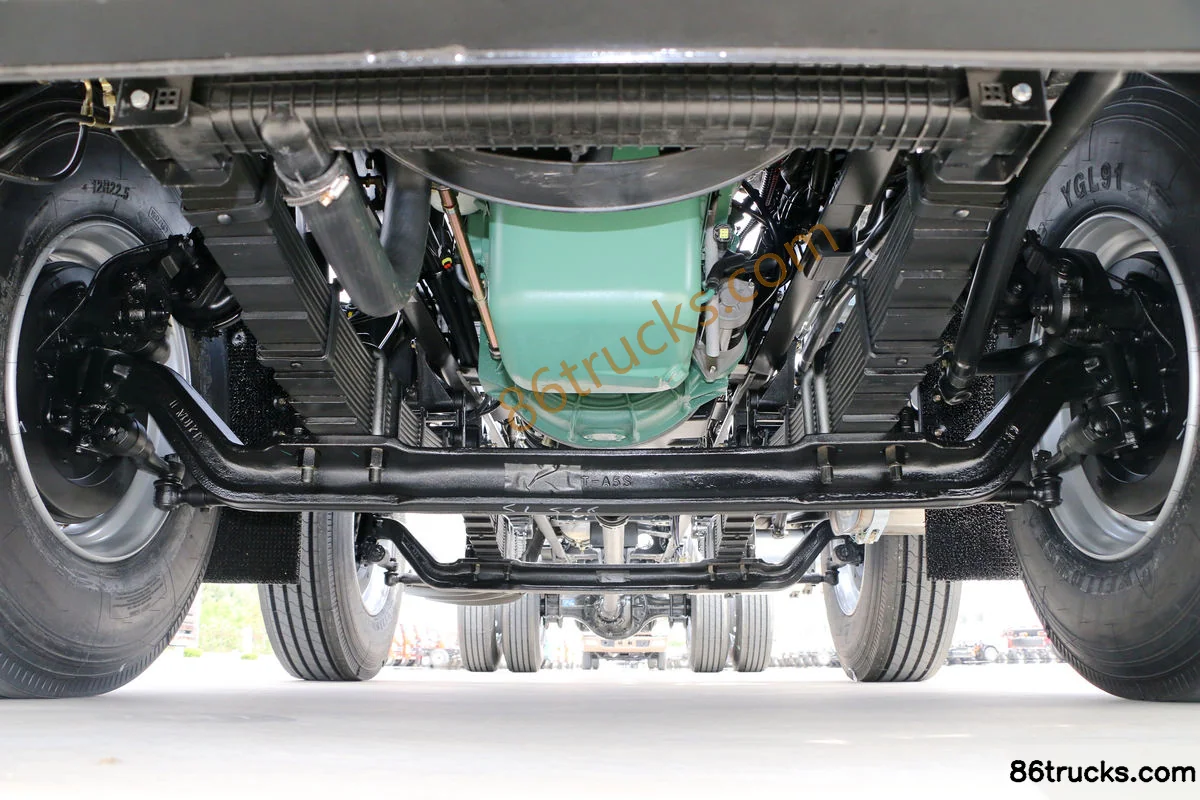

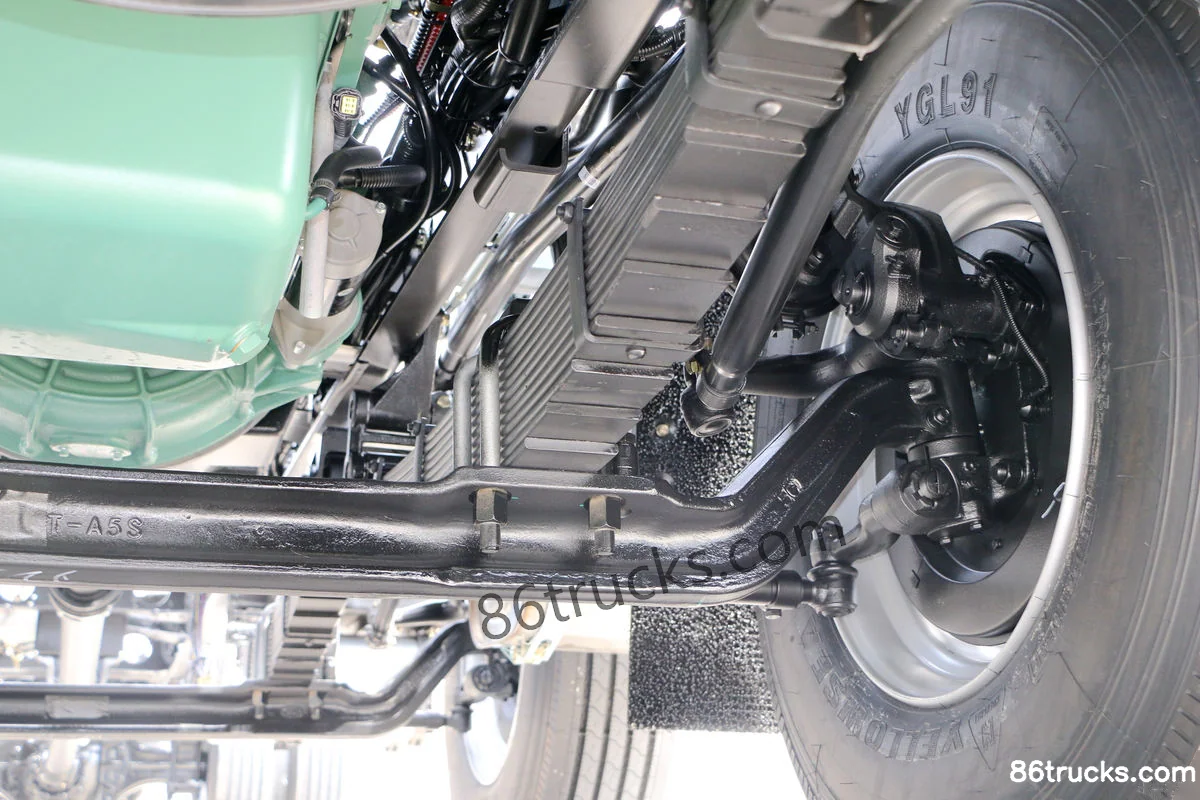

Chassis3

9 photos

FAQ

What emission standard does FAW Jiefang Qingdao Han V 2.0 240 hp 6X2(8 wheels) 7.7m Cargo Truck with Grille (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Qingdao Han V 2.0 240 hp 6X2(8 wheels) 7.7m Cargo Truck with Grille (China VI)?

Key specs of FAW Jiefang Qingdao Han V 2.0 240 hp 6X2(8 wheels) 7.7m Cargo Truck with Grille (China VI): Drive: 6x2; Horsepower: 240 hp; Emission: China VI; Fuel: Diesel; Engine: Dachai 6-cylinder; Transmission: FAW Jiefang. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao Han V 2.0 240 hp 6X2(8 wheels) 7.7m Cargo Truck with Grille (China VI) suited for?

FAW Jiefang Qingdao Han V 2.0 240 hp 6X2(8 wheels) 7.7m Cargo Truck with Grille (China VI) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang Qingdao Han V 2.0 240 hp 6X2(8 wheels) 7.7m Cargo Truck with Grille (China VI) differ from other variants in the same series?

FAW Jiefang Qingdao Han V 2.0 240 hp 6X2(8 wheels) 7.7m Cargo Truck with Grille (China VI) belongs to FAW Jiefang Qingdao HanV heavy truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao Han V 2.0 240 hp 6X2(8 wheels) 7.7m Cargo Truck with Grille (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao Han V 2.0 240 hp 6X2(8 wheels) 7.7m Cargo Truck with Grille (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
