FAW Jiefang Qingdao HanV Heavy Truck 350 hp 6X2(8 wheels) Tractor Truck

Export reference
From $36,736
MSRP ¥26.45M CNY
Fuel: Diesel
Gross Trailer Weight:: 38.355ton
Wheelbase:: 1900+2450mm
Tire Size:: 12R22.5-16PR
Front axle allowable load:: 6750/6750kg
Displacement:: 9.726L
Drive 6X2 (8 wheels)
Horsepower 350
Emission China V
Transmission Fast Gear

Overview

The FAW Jiefang Qingdao HanV Heavy Truck 350 hp 6X2(8 wheels) Tractor Truck is a Heavy truck featuring 6X2 (8 wheels) drive, 350 hp, 25t GVW and China V emissions. Its segment focus covers Coal transport and bulk material transport, matching those duty cycles. On the powertrain side, it comes with a WeichaiWP10.350E53 engine, Fast Gear transmission and Diesel fuel.

China V 350 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA4252P1K15T3E5A80
Drive type: 6X2
Wheelbase: 1900+2450mm
engine: WeichaiWP10.350E53
transmission: Fast Gear12JSD160TA
Rear Axle Ratio: 4.111
Cab length: 6.675m
Cab width: 2.495m
Cab height: 3.5m
Front track width: 1964/1964mm
Gross Trailer Weight: 38.355ton
rear track: 1847mm
Curb Weight: 7.45ton
GVWR: 25ton
Max. speed: 102km/h
Origin: Qingdao/Chengdu
tonnage class: Heavy truck
market segment: Coal transport, bulk material transport
Remarks: HanV flat floor high roof cab extended 150 full floating sunroof, with coolant heater; optional cold region package, FAG.
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP10.350E53
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 9.726L
Emission standard: China V
Max output power: 257kW
Max hp: 350Horsepower
Max torque: 1600N·m
Max torque speed: 1200-1600rpm
Rated speed: 1900rpm
Technology route: Common Rail SCR
Transmission Parameters
Transmission Model: Fast Gear12JSD160TA
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cab parameters
Cab: High roof
Cab suspension: Four-point air suspension
seating capacity: 2Personnel
Cab tilting: Electric
Seat rows: Sleeper cab
Driver seat type: air suspension seat
upper bunk width: 450mm
Lower Bunk Width: 600mm
Sunroof: Manual sunroof
fuel tank
Fuel tank capacity: 425L
Chassis Specs
Fifth wheel: 90 fifth wheel plate
Front axle allowable load: 6750/6750kg
Frame Dimensions: 280*90*(8+5)mm
rear axle description: 485 stamped-welded axle (with diff lock)
rear axle allowable load: 11500kg
Axle ratio: 4.111
Leaf spring count: 3/3/4+3
Aluminum wheels:
Tire
Tire Size: 12R22.5-16PR
Number of tires: 8pcs
Control configuration
ABS:
Stability control system:
Brake assist (EBA/BAS/BA etc.):
Traction Control (ASR/TCS/TRC etc.):
EBS electronic braking system:
ASR traction control:
Inter-axle Differential Lock:
Inter-axle Differential Lock:
automatic slack adjuster:
Exterior features
integrated mudguard:
Air deflector:
side skirt:
Aluminum air tank:
Diesel primary filter heating:
interior configuration
Steering Wheel Material: Plastic
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Automatic
Onboard Refrigerator:
Independent Heater:
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Power interface:
Reverse Radar:
Reverse Camera:
Remote key:
Electronic Central Lock:
Independent AC:
smart configuration
Trailer stability system:
Telematics System:
Cruise control (CCS):
Forward Collision Warning (FCW):
Emergency Brake Assist (EBA):
adaptive cruise control (ACC):
Tire Pressure Monitoring System (TPMS):
Lane change assist (ALC):
Fatigue driving monitoring:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Radio:
lighting configuration
Headlight brand: none
Front fog lamp:
daytime running lights:
Headlight height adjustment:
LED taillight:
Halogen Headlights:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

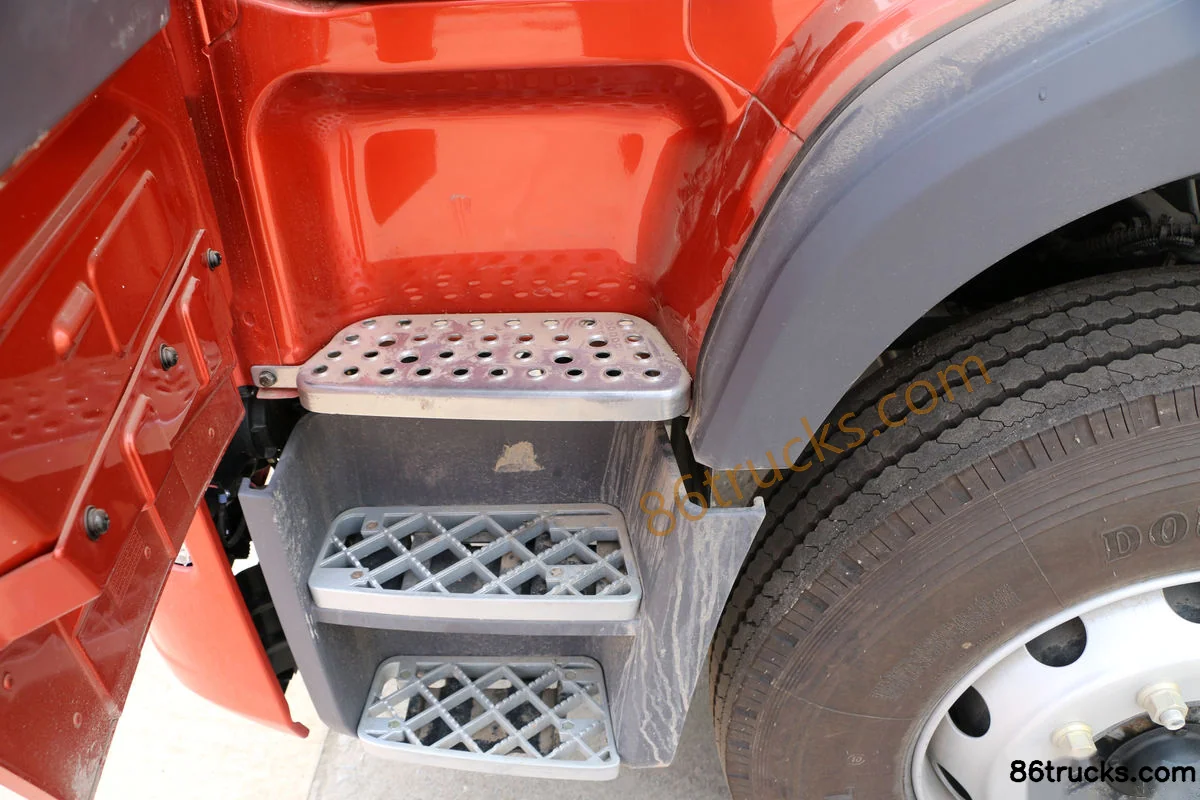

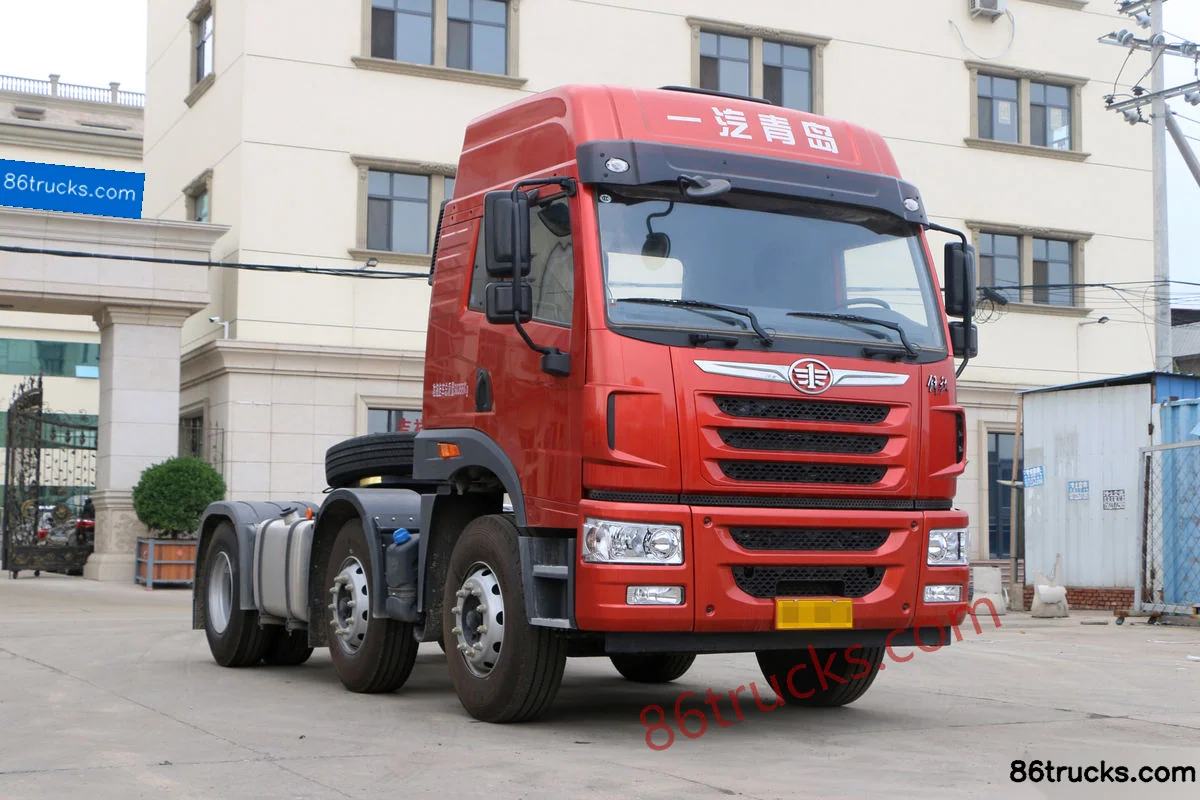

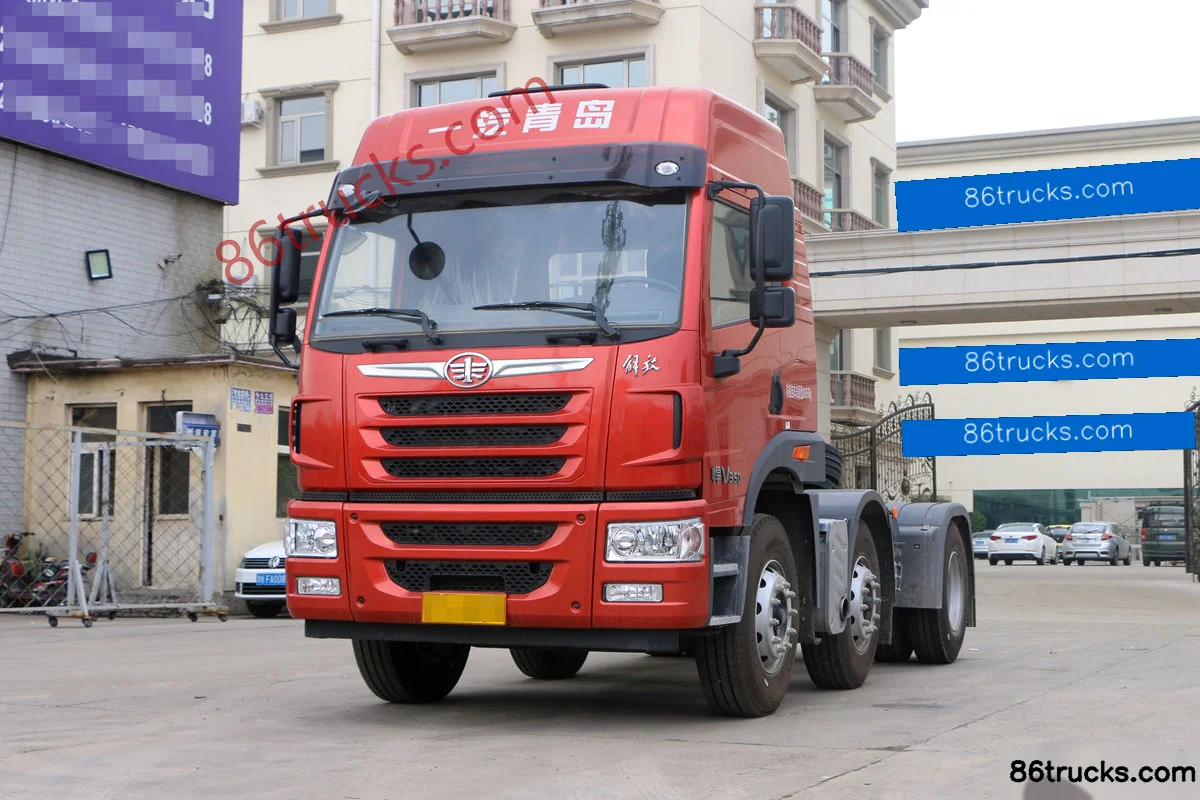

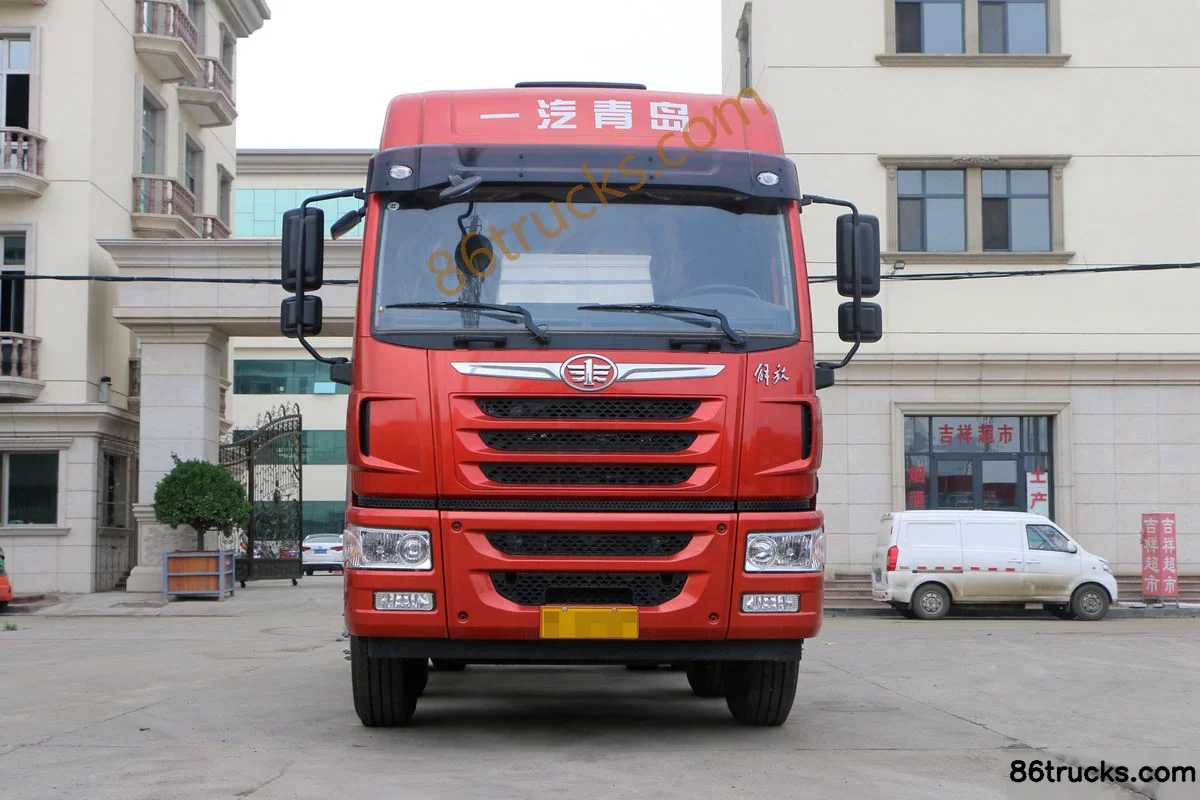

Exterior3

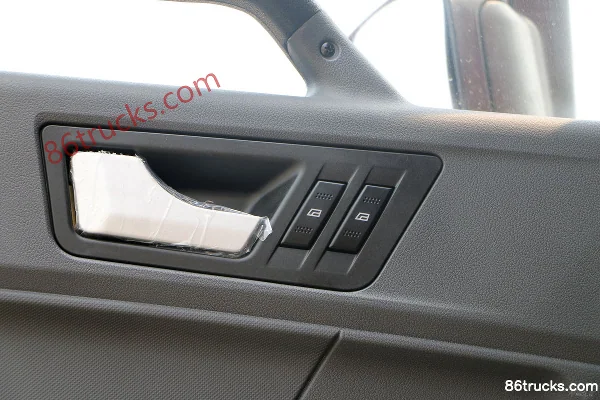

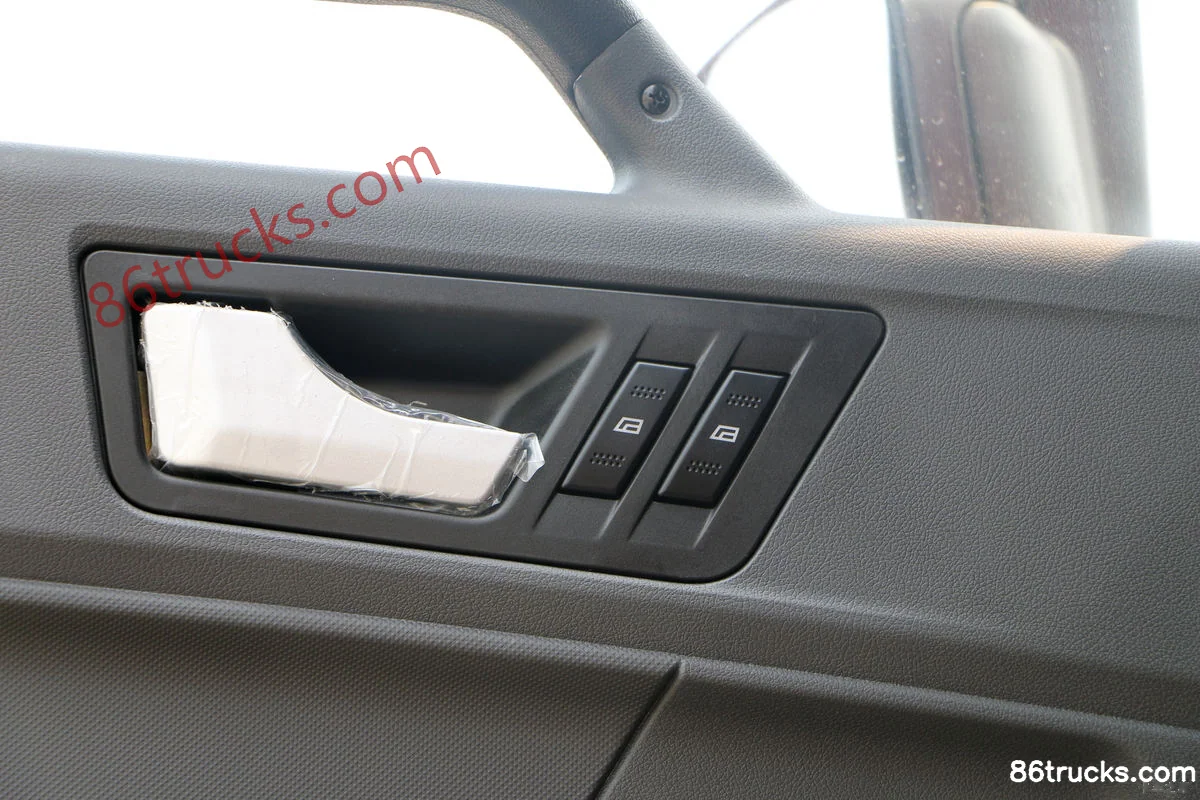

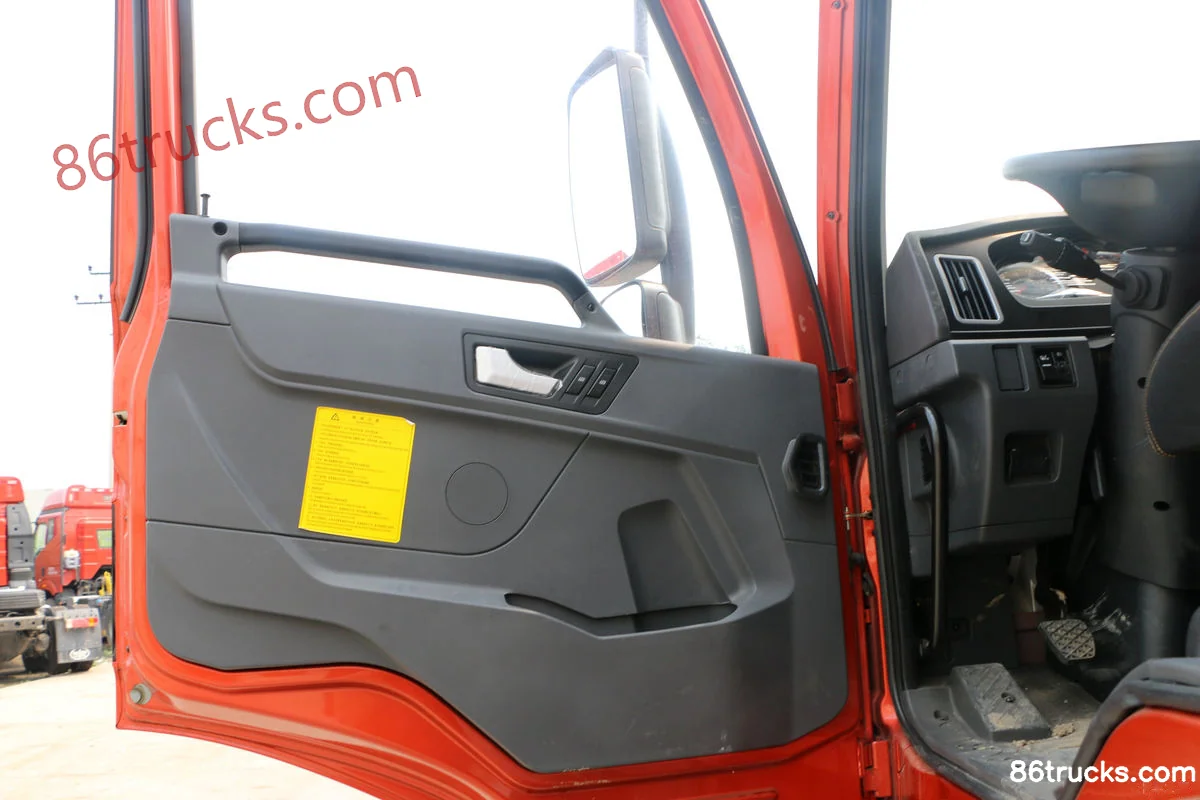

Cab3

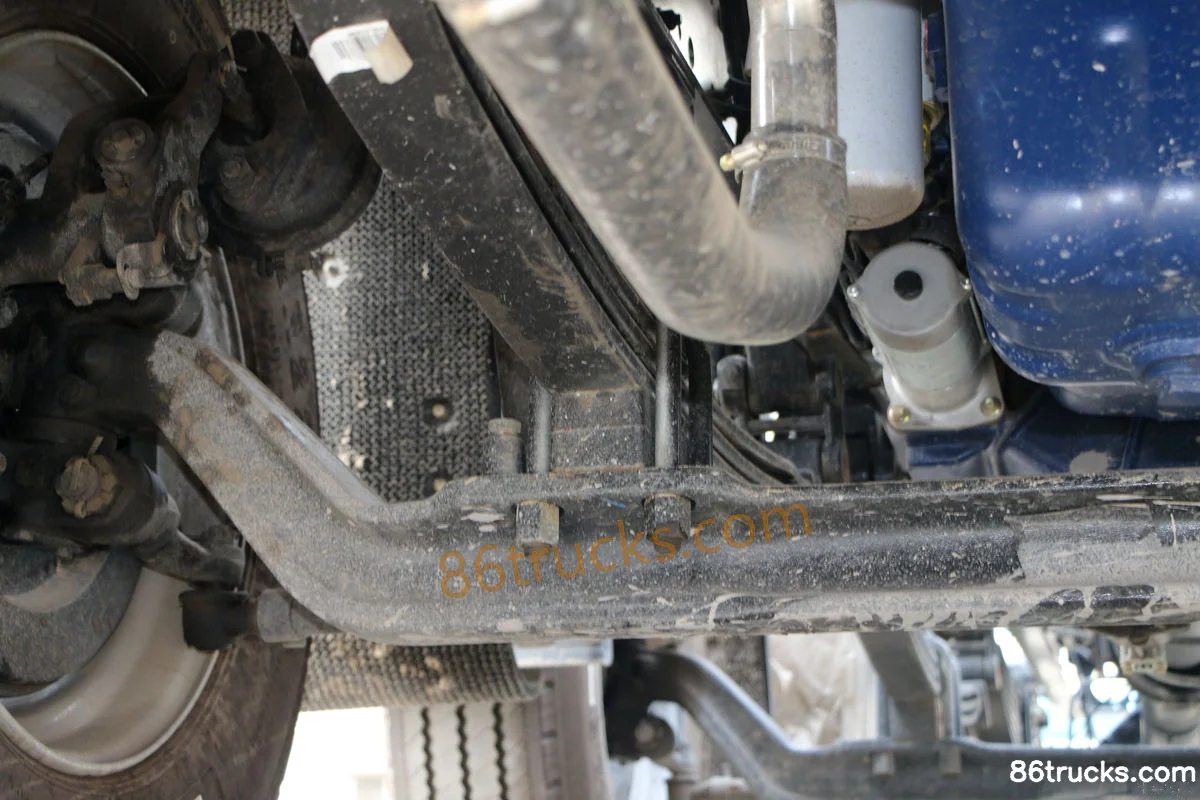

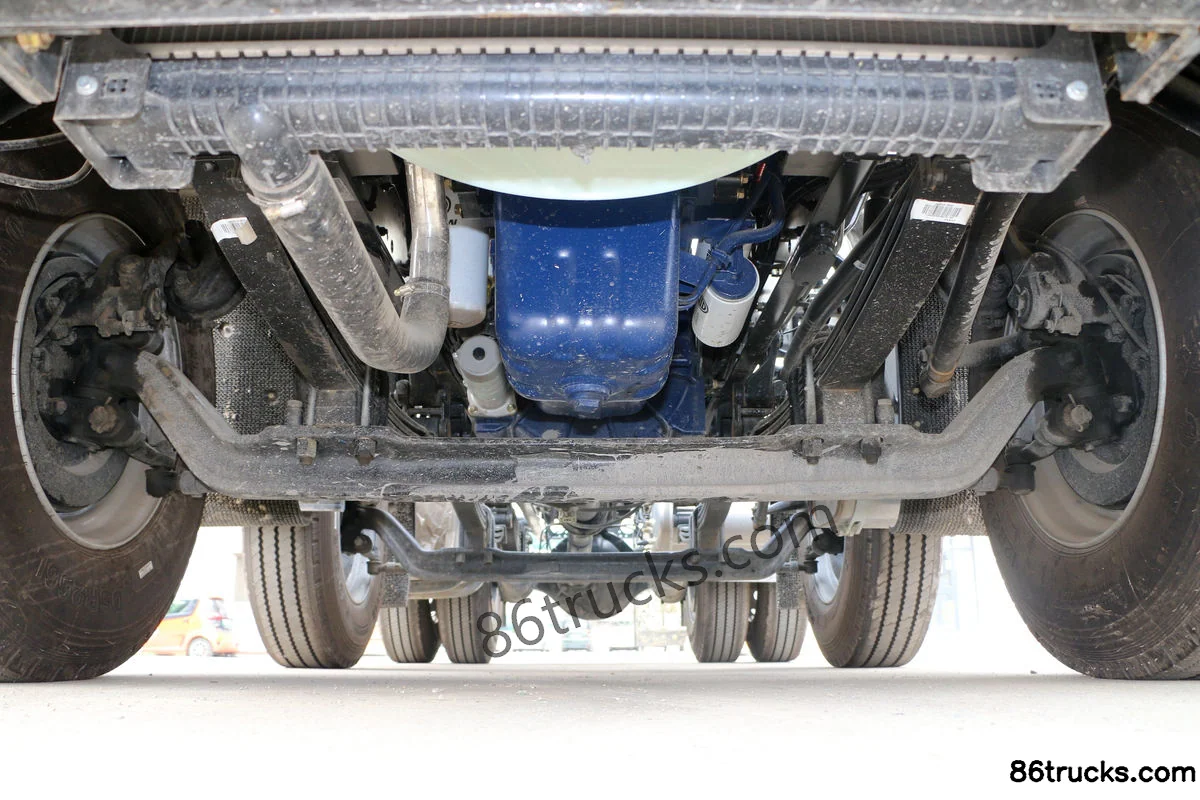

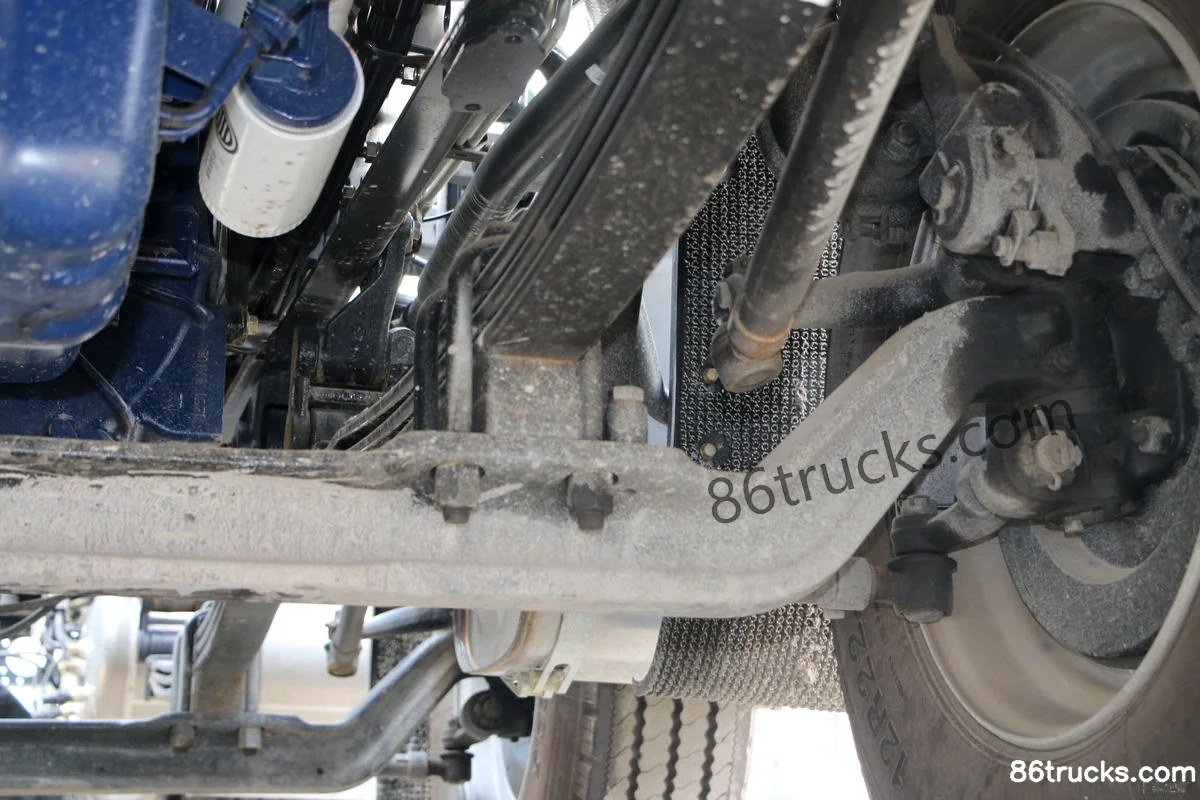

Chassis3

9 photos

FAQ

What is the export price of FAW Jiefang Qingdao HanV Heavy Truck 350 hp 6X2(8 wheels) Tractor Truck, and what does it include?

FAW Jiefang Qingdao HanV Heavy Truck 350 hp 6X2(8 wheels) Tractor Truck export reference is about From $36,736; MSRP is ¥26.45M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang Qingdao HanV Heavy Truck 350 hp 6X2(8 wheels) Tractor Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Qingdao HanV Heavy Truck 350 hp 6X2(8 wheels) Tractor Truck?

Key specs of FAW Jiefang Qingdao HanV Heavy Truck 350 hp 6X2(8 wheels) Tractor Truck: Drive: 6x2; Horsepower: 350 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao HanV Heavy Truck 350 hp 6X2(8 wheels) Tractor Truck suited for?

FAW Jiefang Qingdao HanV Heavy Truck 350 hp 6X2(8 wheels) Tractor Truck is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does FAW Jiefang Qingdao HanV Heavy Truck 350 hp 6X2(8 wheels) Tractor Truck differ from other variants in the same series?

FAW Jiefang Qingdao HanV Heavy Truck 350 hp 6X2(8 wheels) Tractor Truck belongs to FAW Jiefang Qingdao HanV heavy truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao HanV Heavy Truck 350 hp 6X2(8 wheels) Tractor Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao HanV Heavy Truck 350 hp 6X2(8 wheels) Tractor Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
