FAW Jiefang J6L medium truck Jingying Edition 240 hp 4X2(6 wheels) 6.75m stake truck

Export reference
MSRP N/A
Horsepower: 240
Emission: China V
Fuel: Diesel
Engine: Dachai 6-cylinder
Transmission: FAW Jiefang
Curb Weight:: 7.905ton
seating capacity: 3Personnel
Rated payload: 9.9ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The FAW Jiefang J6L medium truck Jingying Edition 240 hp 4X2(6 wheels) 6.75m stake truck is a Medium-duty truck featuring 6.75m cargo length, Stake type cargo body, 3Personnel volume and 9.9t payload. Its segment focus covers Agricultural and sideline product transport, matching those duty cycles. On the powertrain side, it comes with a Dachai 6-cylinder engine, 240 hp, 4X2 (6 wheels) drive and China V emissions.

China V 240 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA5180CCYP62K1L4A1E5
Type: stake truck
Drive type: 4X2
Wheelbase: 5300mm
Box length class: 6.8m
engine: DachaiCA6DH1-24E5
transmission: FAW JiefangCA8TAX090M
Rear Axle Ratio: 4.333
Cab length: 9m
Cab width: 2.55m
Cab height: 3.9m
Front track width: 1827mm
rear track: 1860mm
Curb Weight: 7.905ton
Rated payload: 9.9ton
GVWR: 18ton
Max. speed: 96km/h
Origin: Changchun/Qingdao/Chengdu
tonnage class: Medium-duty truck
Approach angle: 18°
departure angle: 10°
market segment: Agricultural and sideline product transport
Front/rear suspension: 1.4/2.3m
Version: Elite Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Dachai
Engine Model: DachaiCA6DH1-24E5
Engine info: Dachai 6-cylinder
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 5.7L
Emission standard: China V
Max output power: 179kW
Max hp: 240Horsepower
Max torque: 900N·m
Max torque speed: 1200-1800rpm
Rated speed: 2500rpm
Engine Type: SCR
Transmission Parameters
Transmission Model: FAW JiefangCA8TAX090M
Transmission Brand: FAW Jiefang
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 6.75m
Cargo box width: 2.46m
*Cargo box interior width: 2.460000038147
Cab parameters
Cab: J6L flat roof with half sleeper
Cab width: 2250mm
seating capacity: 3Personnel
Cab tilting: Electric
Seat rows: Sleeper cab
Driver seat type: air suspension seat
fuel tank
Fuel tank material: Steel
Fuel tank capacity: 300L
Chassis Specs
Front axle allowable load: 6500kg
Frame Dimensions: 237×75×7mm
rear axle description: 378 cast axle
rear axle allowable load: 11500kg
Axle ratio: 4.333
Leaf spring count: 7/7+6
Tire
Tire Size: 10.00R20 18PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Power Mirrors:
Exterior features
Aluminum air tank:
Multimedia features
GPS/Beidou driving recorder:
smart configuration
Cruise control (CCS):

Photos

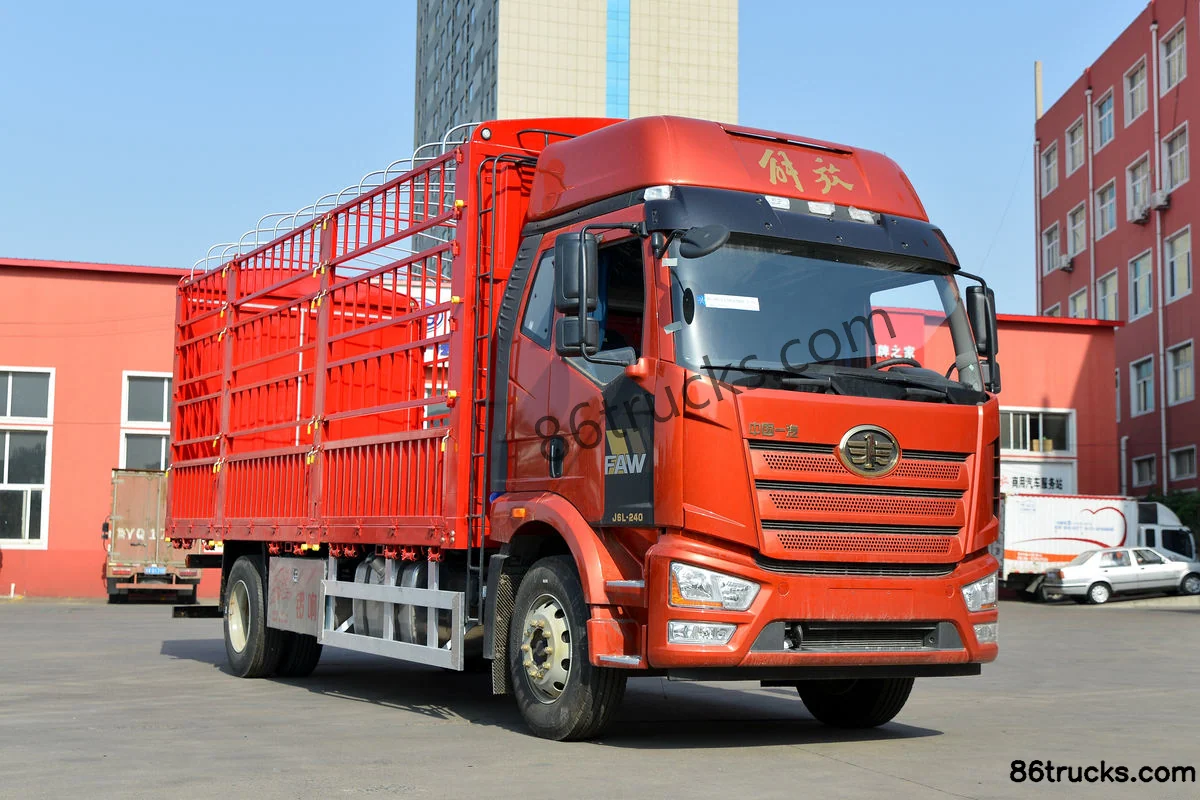

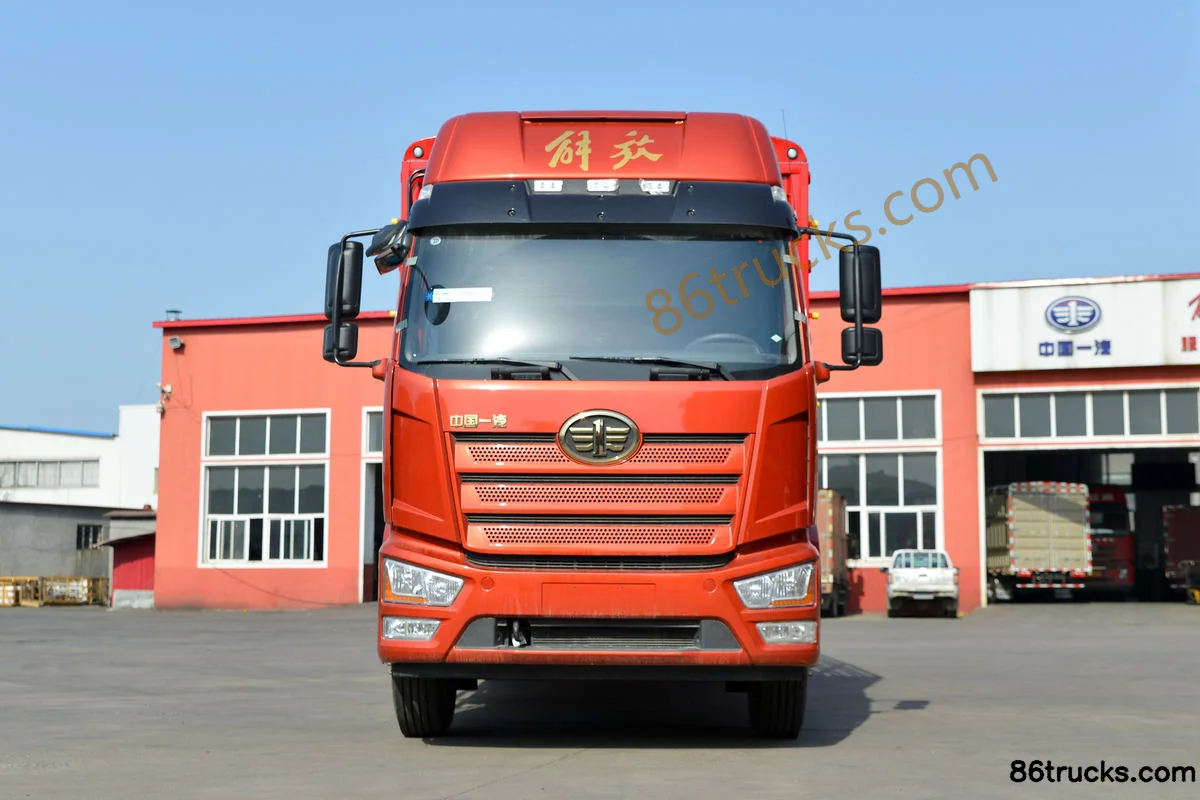

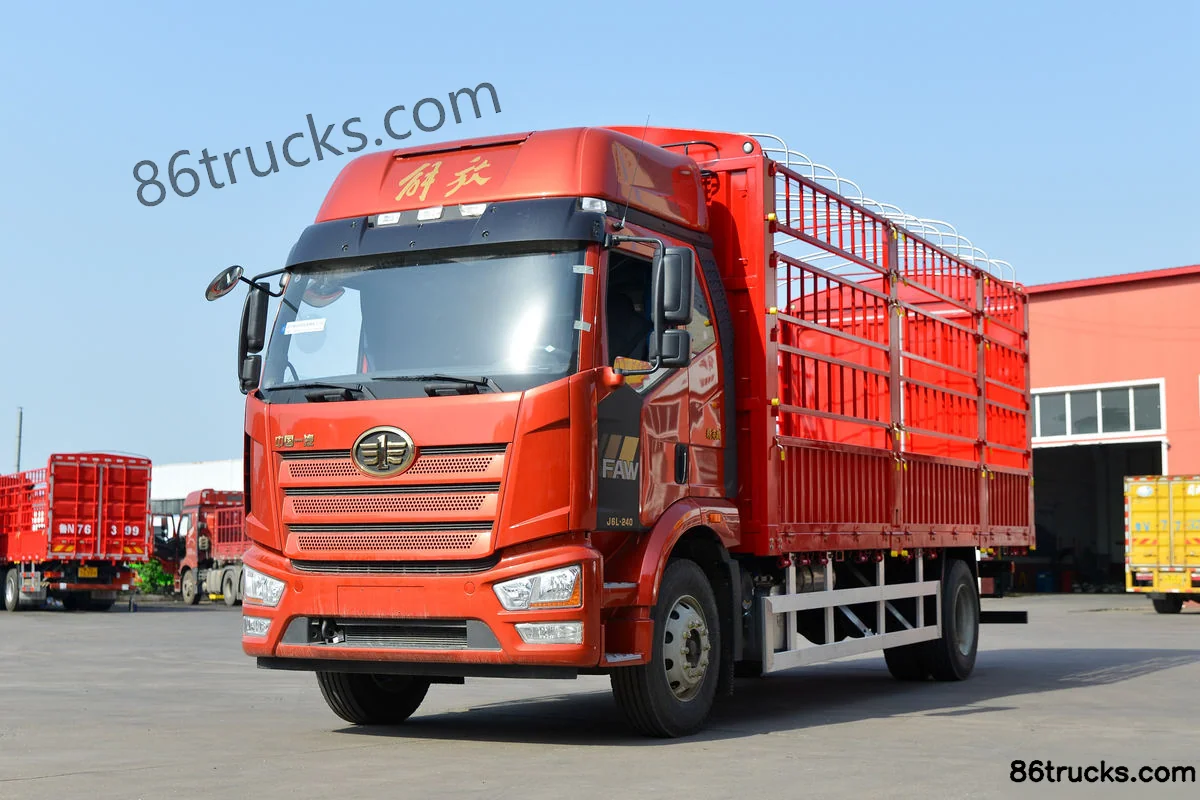

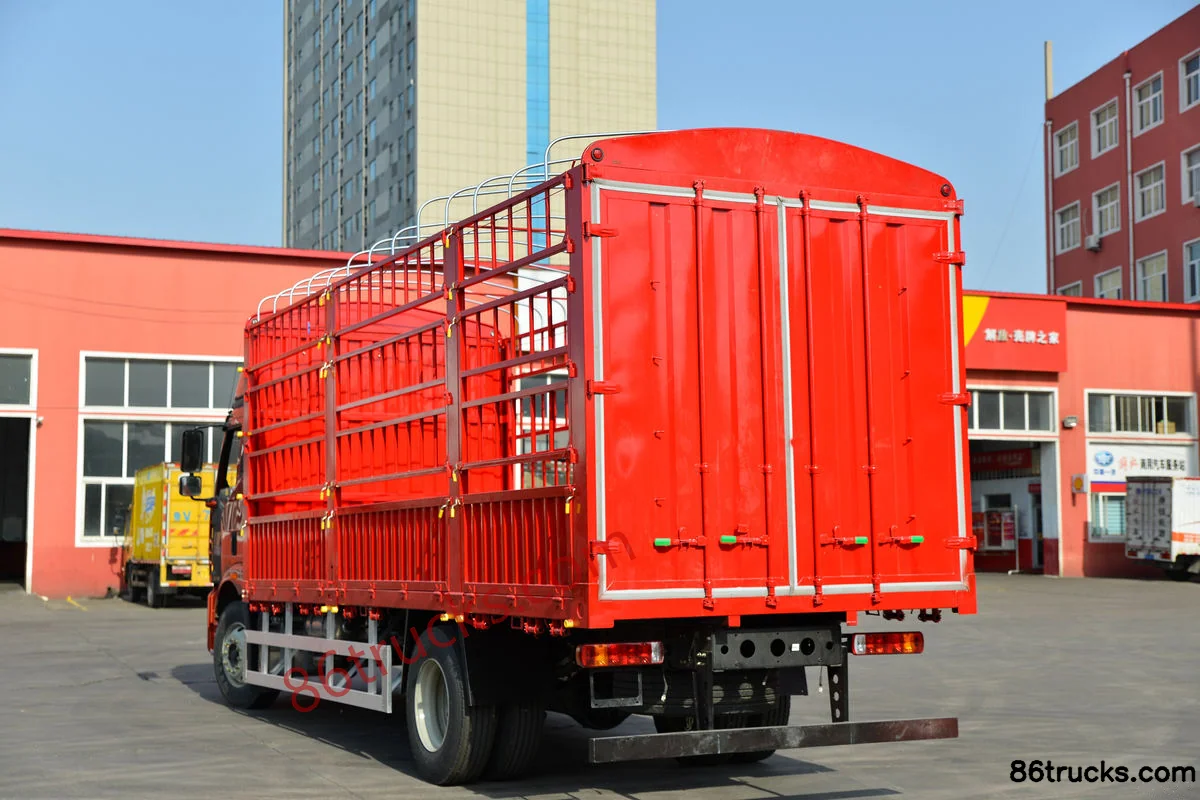

Exterior3

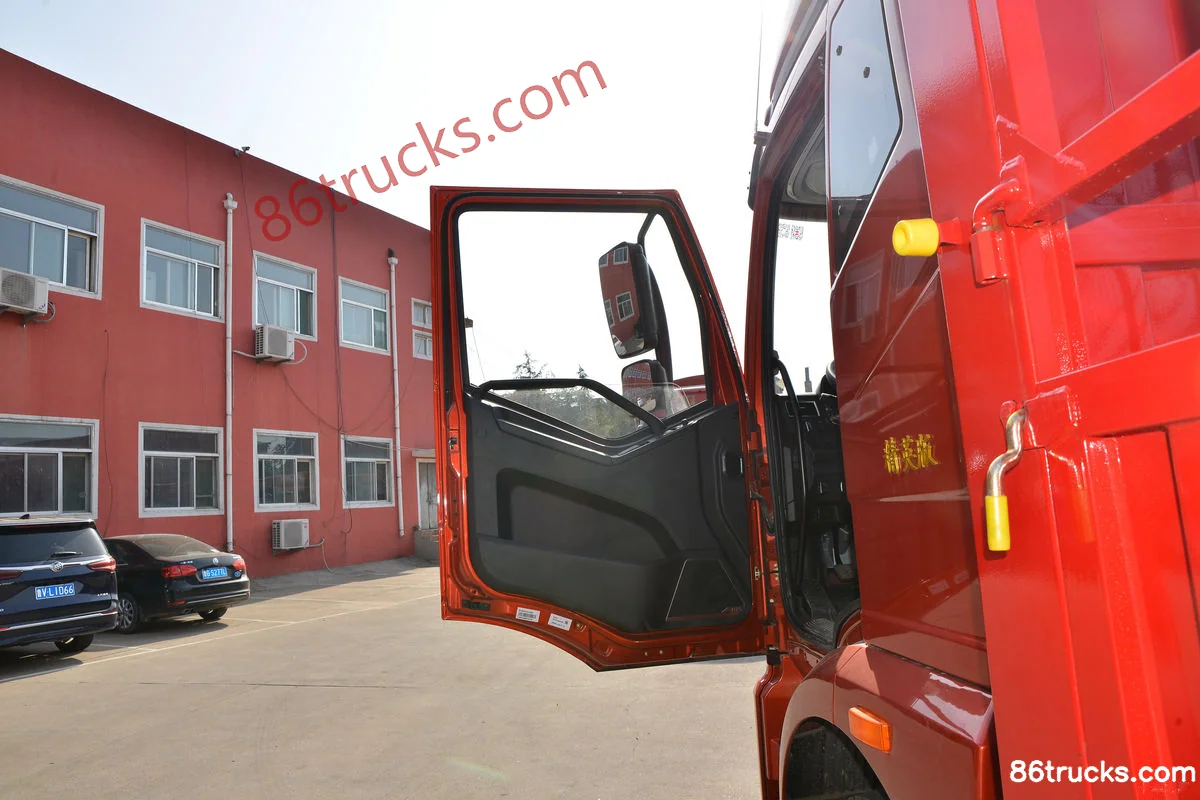

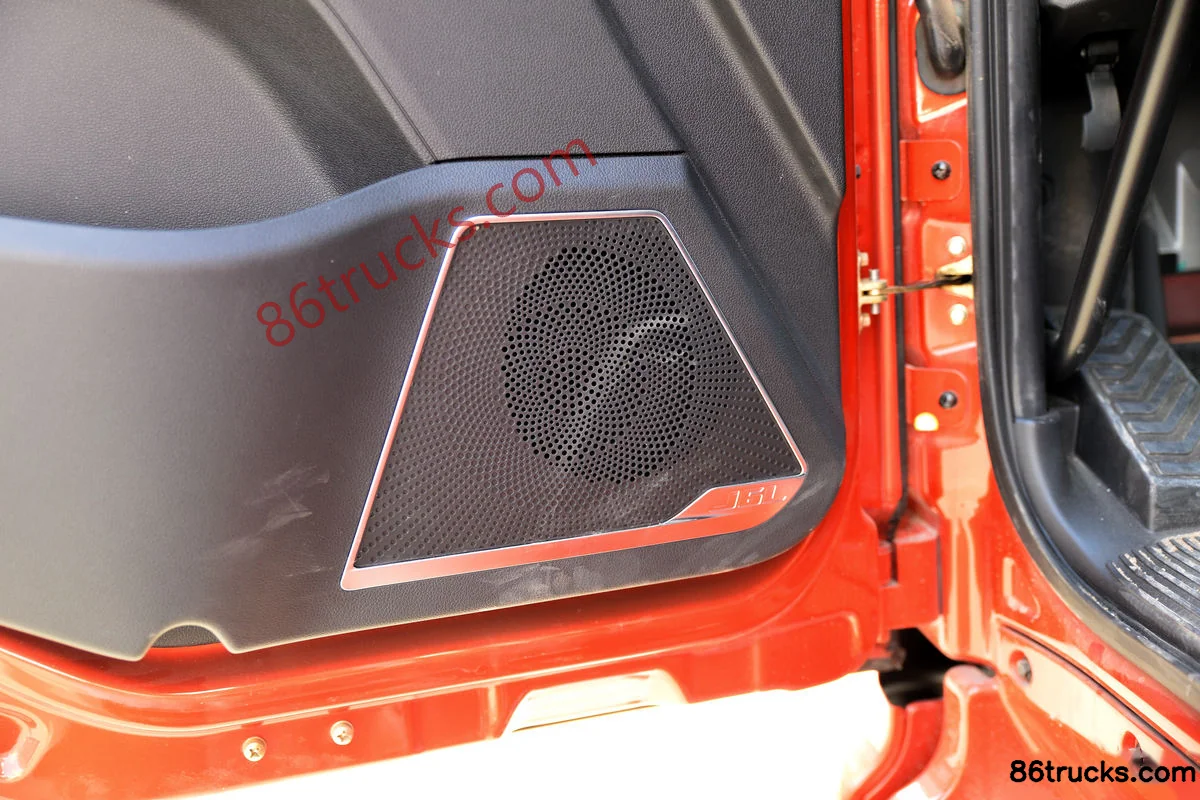

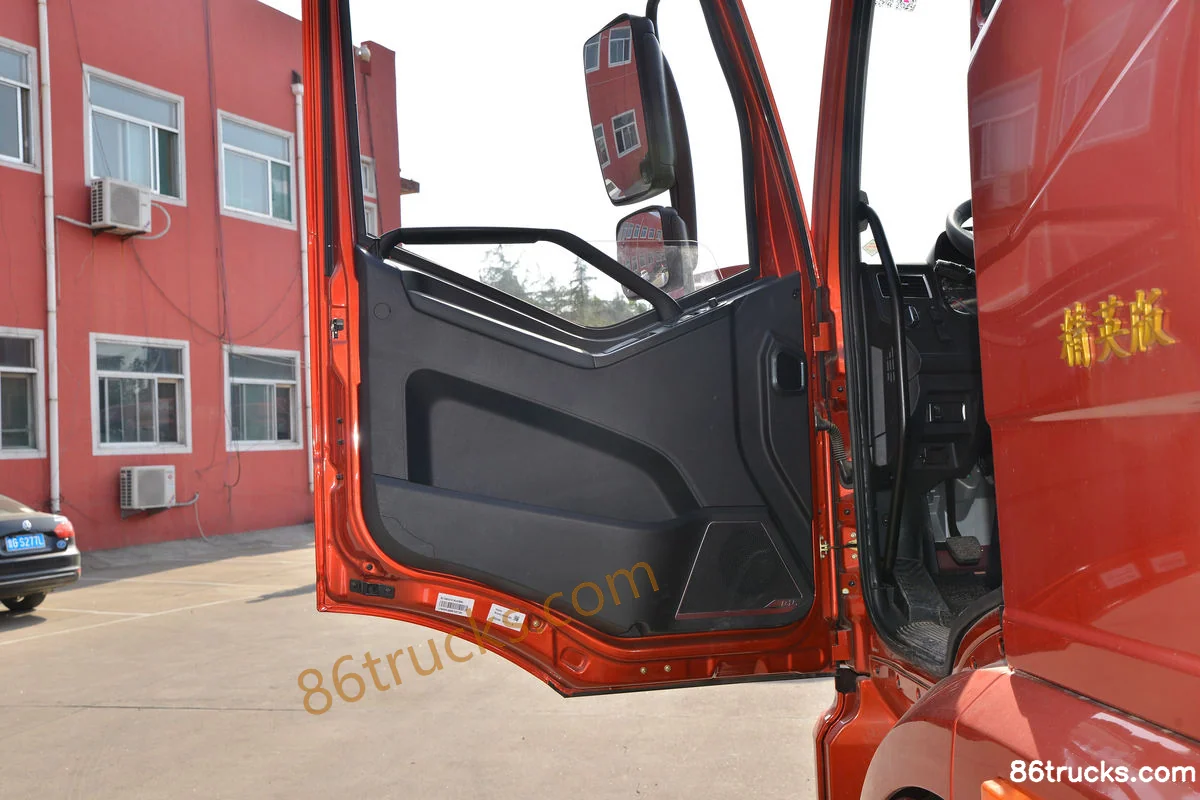

Cab3

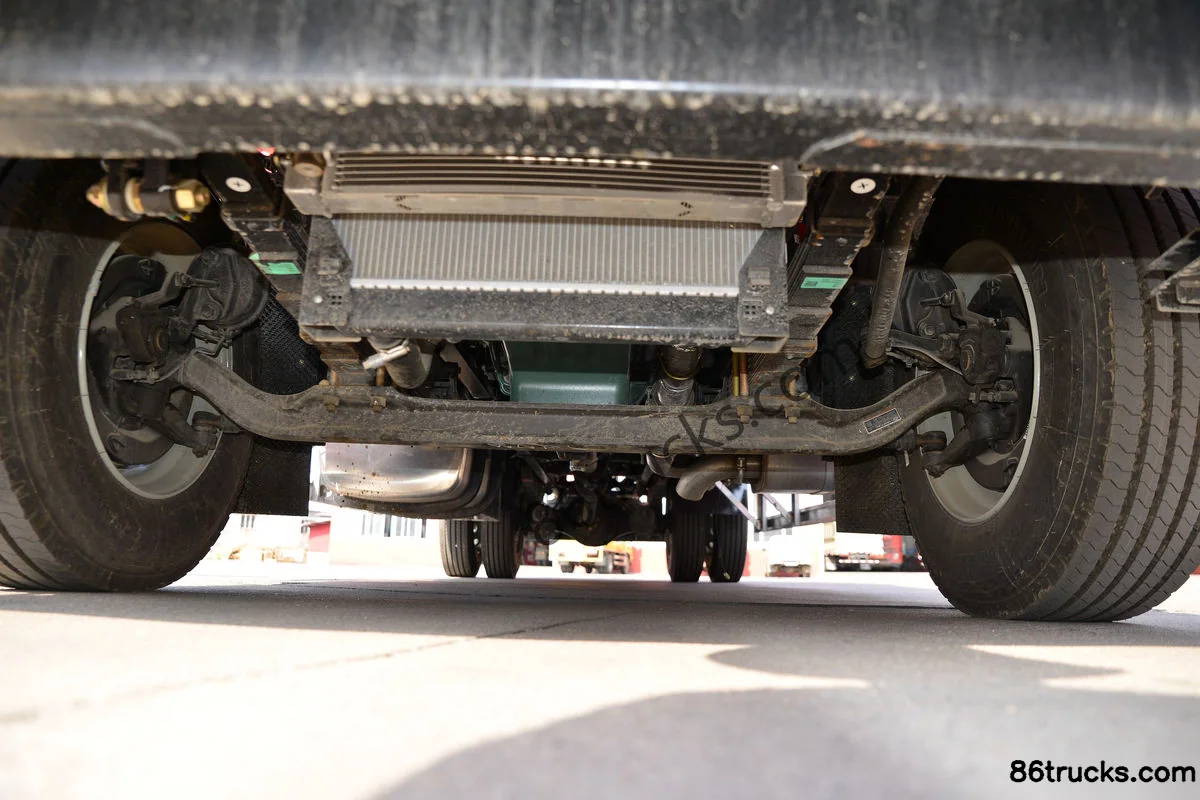

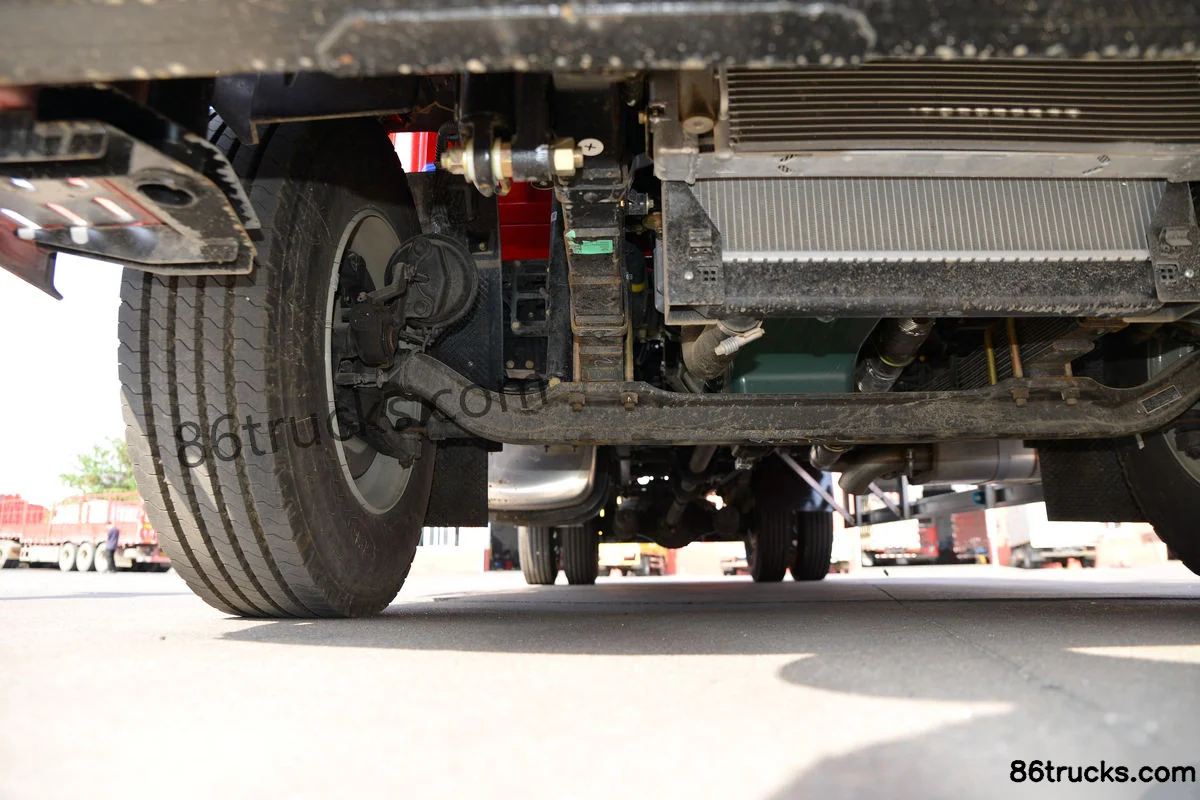

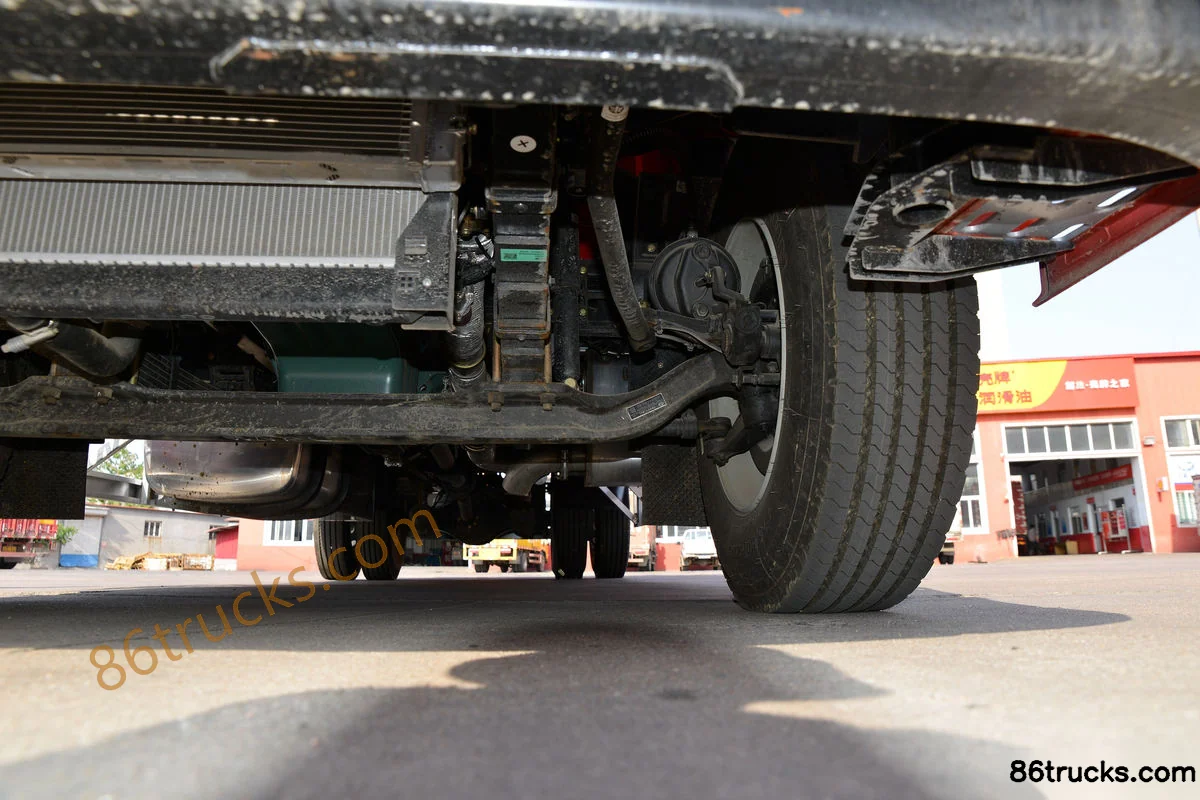

Chassis3

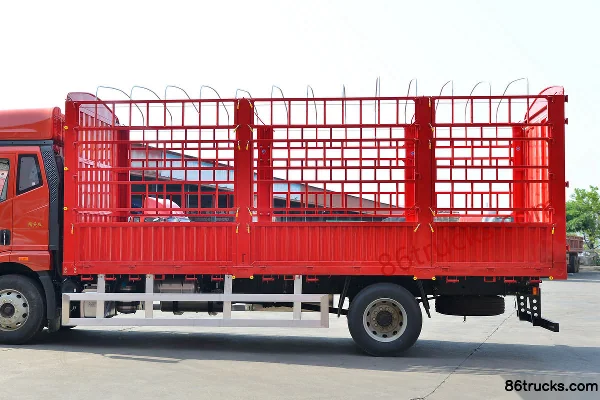

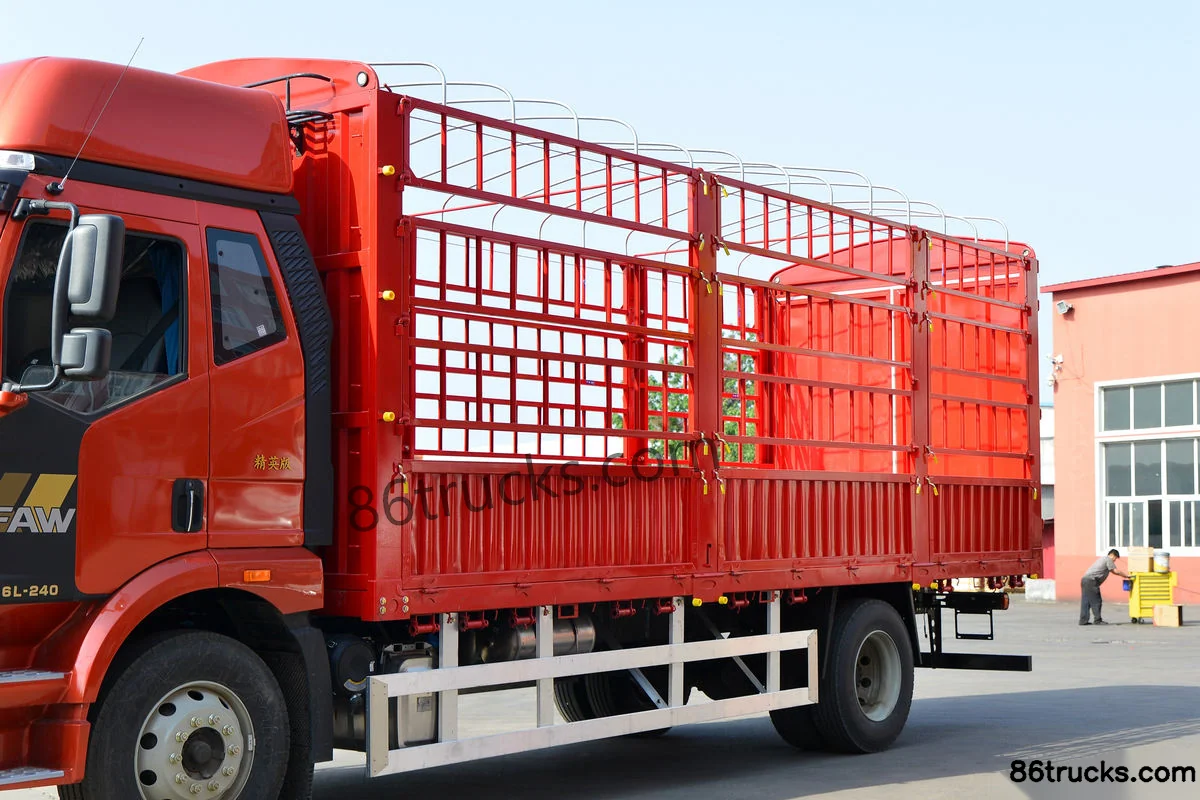

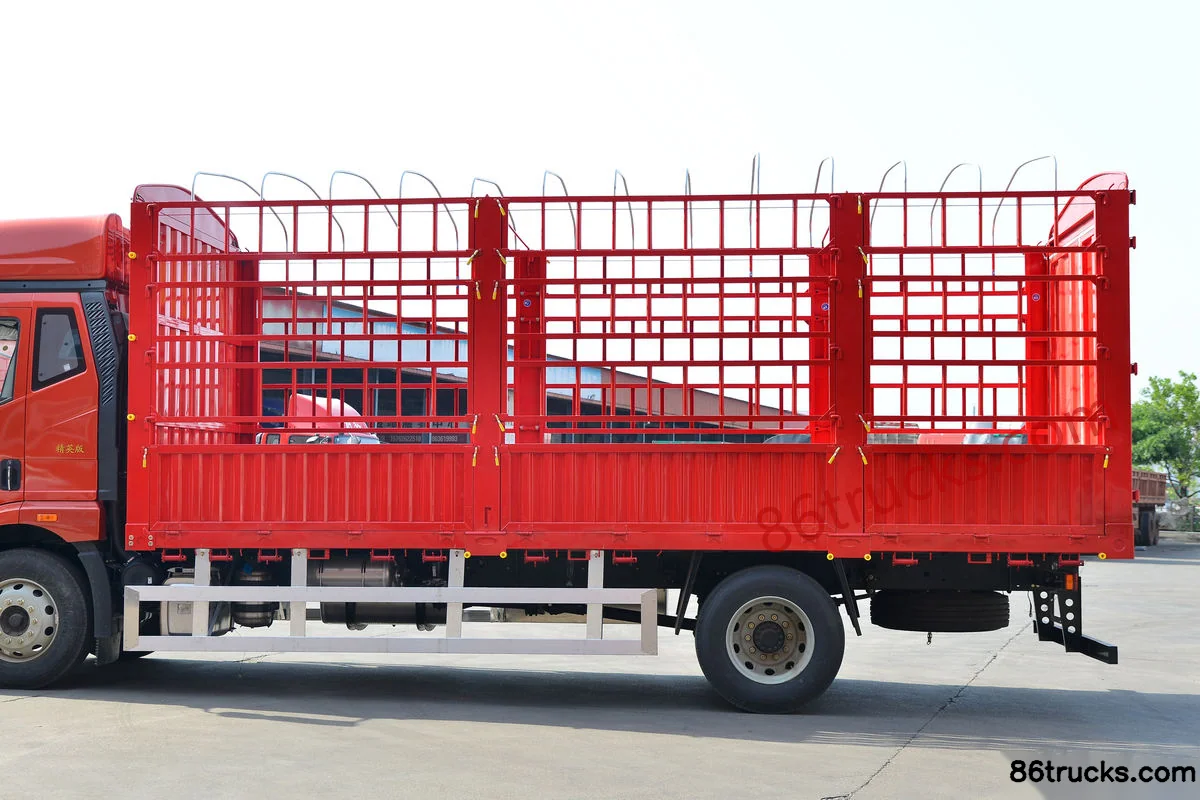

Body3

12 photos

FAQ

What emission standard does FAW Jiefang J6L medium truck Jingying Edition 240 hp 4X2(6 wheels) 6.75m stake truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang J6L medium truck Jingying Edition 240 hp 4X2(6 wheels) 6.75m stake truck?

Key specs of FAW Jiefang J6L medium truck Jingying Edition 240 hp 4X2(6 wheels) 6.75m stake truck: Drive: 4x2; Horsepower: 240 hp; Emission: China V; Fuel: Diesel; Engine: Dachai 6-cylinder; Transmission: FAW Jiefang. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang J6L medium truck Jingying Edition 240 hp 4X2(6 wheels) 6.75m stake truck suited for?

FAW Jiefang J6L medium truck Jingying Edition 240 hp 4X2(6 wheels) 6.75m stake truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang J6L medium truck Jingying Edition 240 hp 4X2(6 wheels) 6.75m stake truck differ from other variants in the same series?

FAW Jiefang J6L medium truck Jingying Edition 240 hp 4X2(6 wheels) 6.75m stake truck belongs to FAW Jiefang J6L Medium Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang J6L medium truck Jingying Edition 240 hp 4X2(6 wheels) 6.75m stake truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang J6L medium truck Jingying Edition 240 hp 4X2(6 wheels) 6.75m stake truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
