FAW Jiefang Qingdao HanV Heavy Truck 290 hp 4X2(6 wheels) Tractor Truck

Export reference
From $32,639
MSRP ¥23.5M CNY
Fuel: Diesel
Gross Trailer Weight:: 35.375ton
Wheelbase:: 3600mm
Tire Size:: 12R22.5 16PR
Front axle allowable load:: 6500kg
Displacement:: 7.7L
Drive 4X2 (6 wheels)
Horsepower 290
Emission China V
Transmission FAW Jiefang

Overview

The FAW Jiefang Qingdao HanV Heavy Truck 290 hp 4X2(6 wheels) Tractor Truck is a Heavy truck featuring 4X2 (6 wheels) drive, 290 hp, 18t GVW and China V emissions. Its segment focus covers Port transport, matching those duty cycles. On the powertrain side, it comes with a XichaiCA6DL1-29E5 engine, FAW Jiefang transmission and Diesel fuel.

China V 290 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA4186P1K2E5A80
Drive type: 4X2
Wheelbase: 3600mm
engine: XichaiCA6DL1-29E5
transmission: FAW JiefangCA10TAX130M
Rear Axle Ratio: 4.111
Cab length: 5.905m
Cab width: 2.495m
Cab height: 3.29m
Front track width: 1964mm
Gross Trailer Weight: 35.375ton
rear track: 1847mm
Curb Weight: 6.43ton
GVWR: 18ton
Max. speed: 110km/h
Origin: Qingdao/Chengdu
tonnage class: Heavy truck
market segment: Port transport
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: XichaiCA6DL1-29E5
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 7.7L
Emission standard: China V
Max output power: 216kW
Max hp: 290Horsepower
Max torque: 1150N·m
Max torque speed: 1300-1700rpm
Rated speed: 2300rpm
Transmission Parameters
Transmission Model: FAW JiefangCA10TAX130M
Transmission Brand: FAW Jiefang
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cab parameters
Cab: High-roof flat floor
Cab suspension: Four-point air suspension
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 6500kg
rear axle description: 457 stamped-welded axle
rear axle allowable load: 11500kg
Axle ratio: 4.111
Leaf spring count: 3/5,3/4+3
clutch: Φ430
Tire
Tire Size: 12R22.5 16PR
Number of tires: 6pcs
Control configuration
ABS:
Stability control system:
Brake assist (EBA/BAS/BA etc.):
Traction Control (ASR/TCS/TRC etc.):
EBS electronic braking system:
ASR traction control:
Inter-axle Differential Lock:
Inter-axle Differential Lock:
automatic slack adjuster:
Exterior features
integrated mudguard:
Air deflector:
side skirt:
Aluminum air tank:
Diesel primary filter heating:
interior configuration
Steering Wheel Material: Plastic
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Automatic
Onboard Refrigerator:
Independent Heater:
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Power interface:
Reverse Radar:
Reverse Camera:
Remote key:
Electronic Central Lock:
Independent AC:
smart configuration
Trailer stability system:
Telematics System:
Cruise control (CCS):
Forward Collision Warning (FCW):
Emergency Brake Assist (EBA):
adaptive cruise control (ACC):
Tire Pressure Monitoring System (TPMS):
Lane change assist (ALC):
Fatigue driving monitoring:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Radio:
lighting configuration
Headlight brand: none
Front fog lamp:
daytime running lights:
Headlight height adjustment:
LED taillight:
Halogen Headlights:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

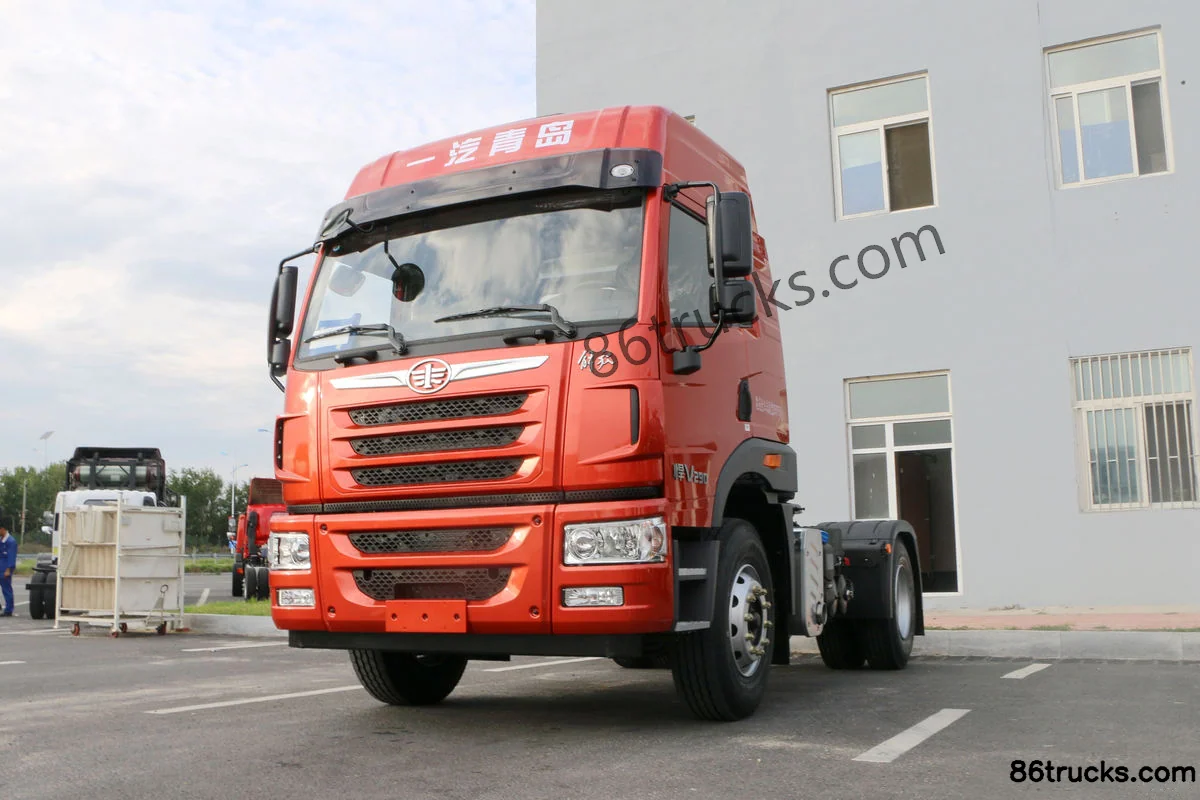

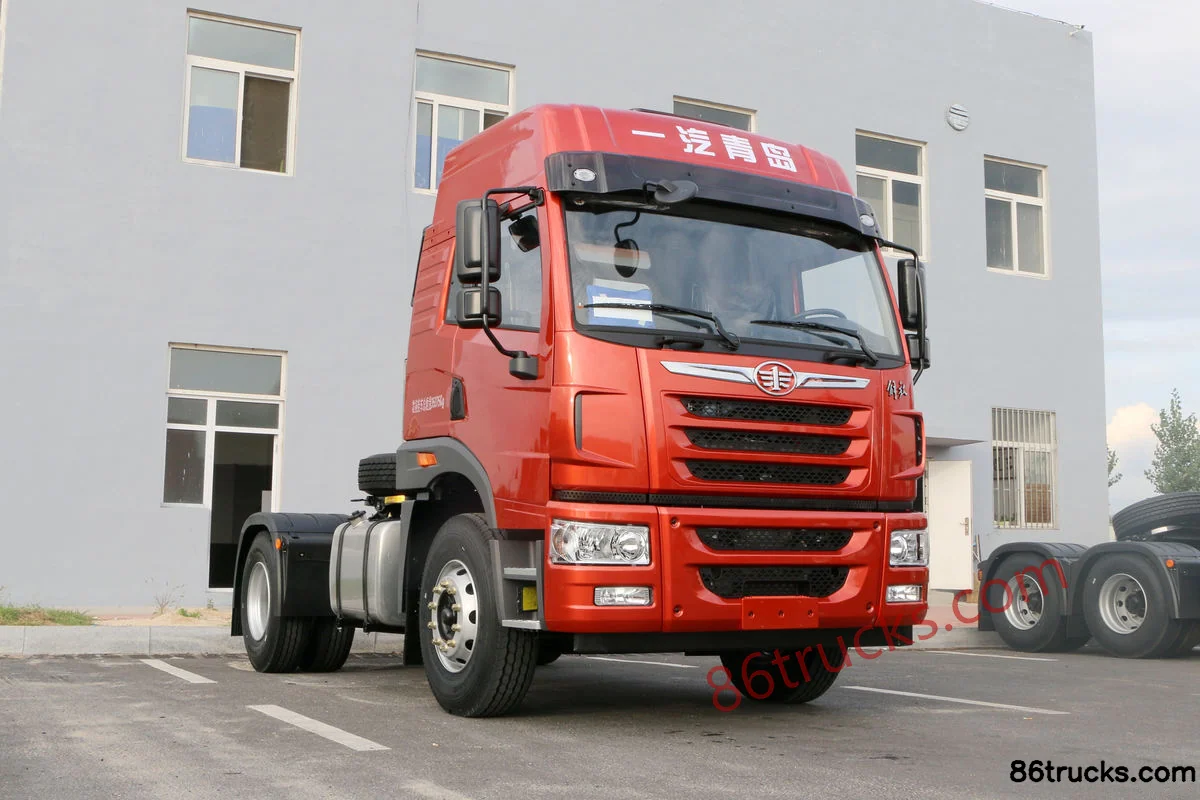

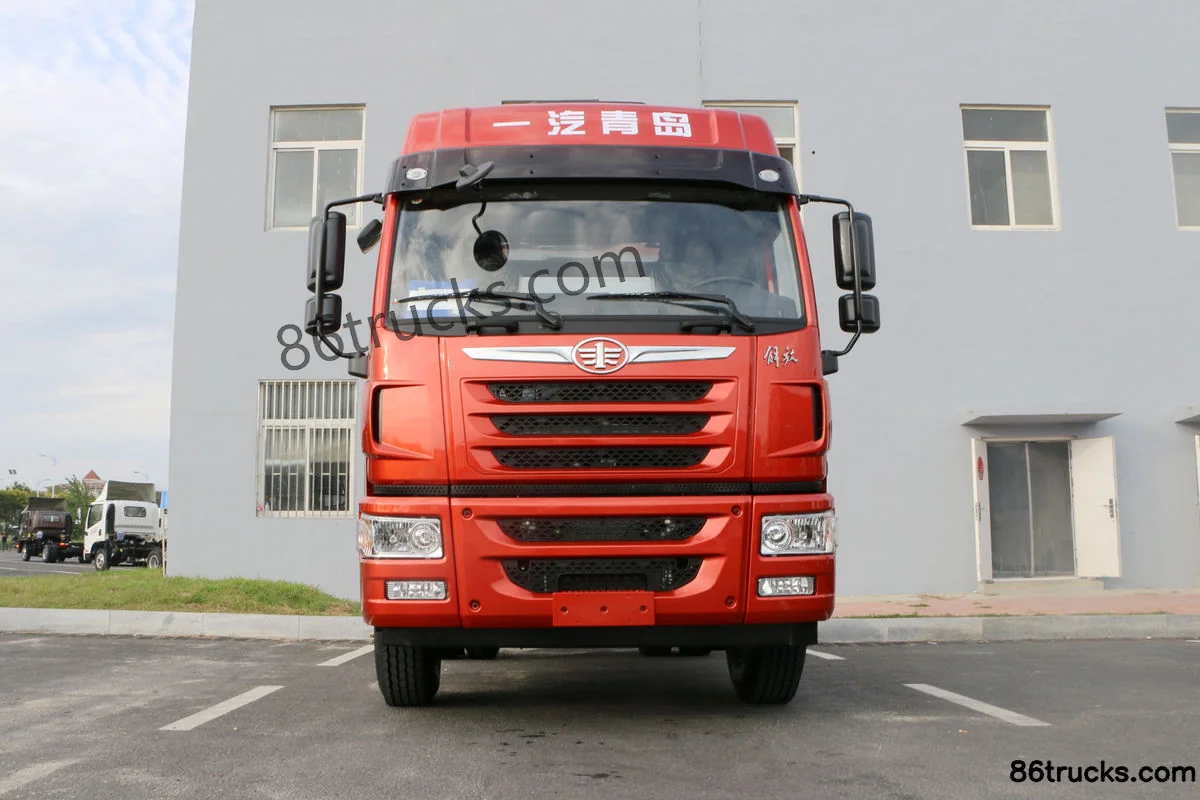

Exterior3

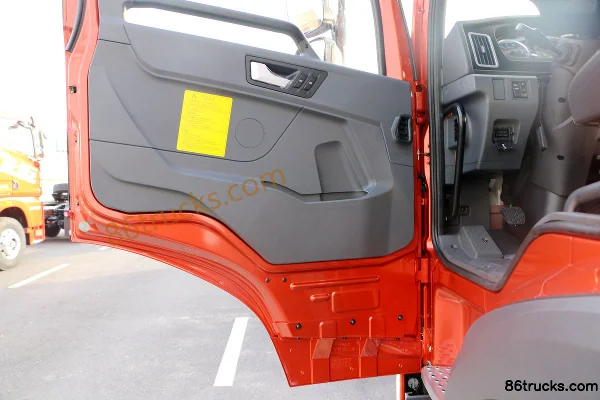

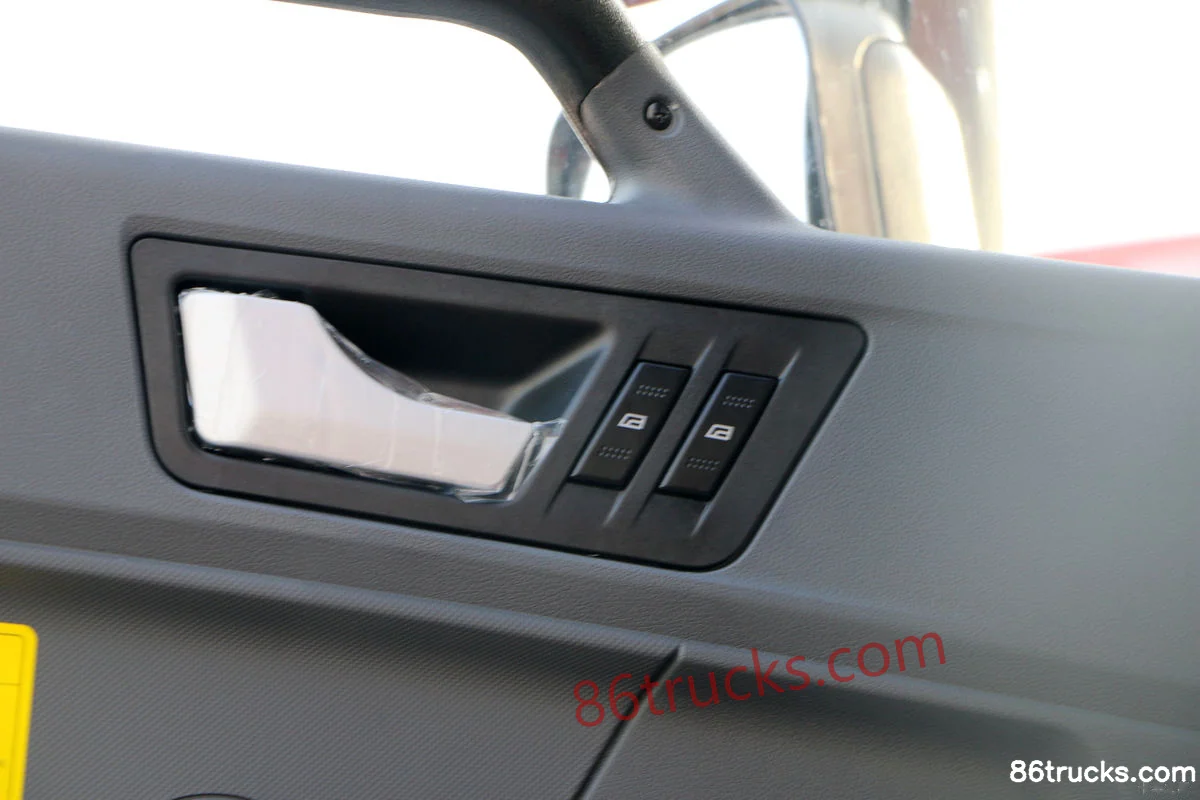

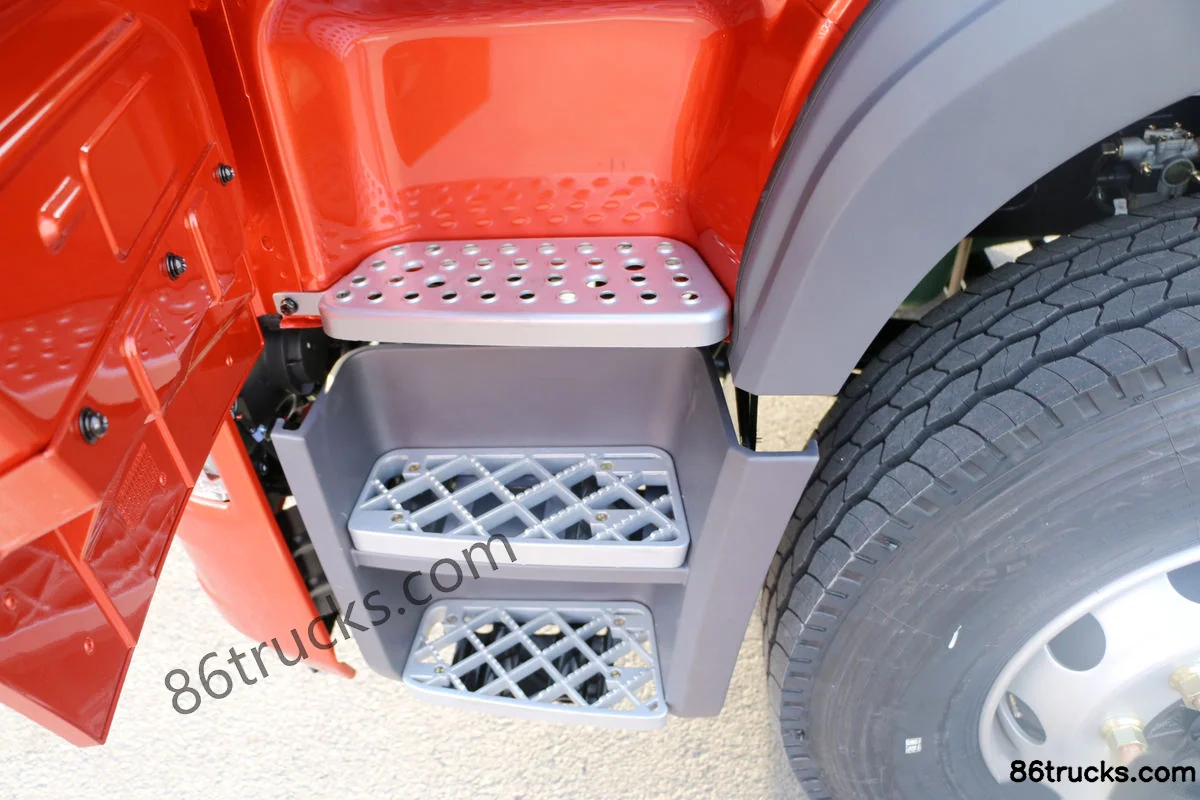

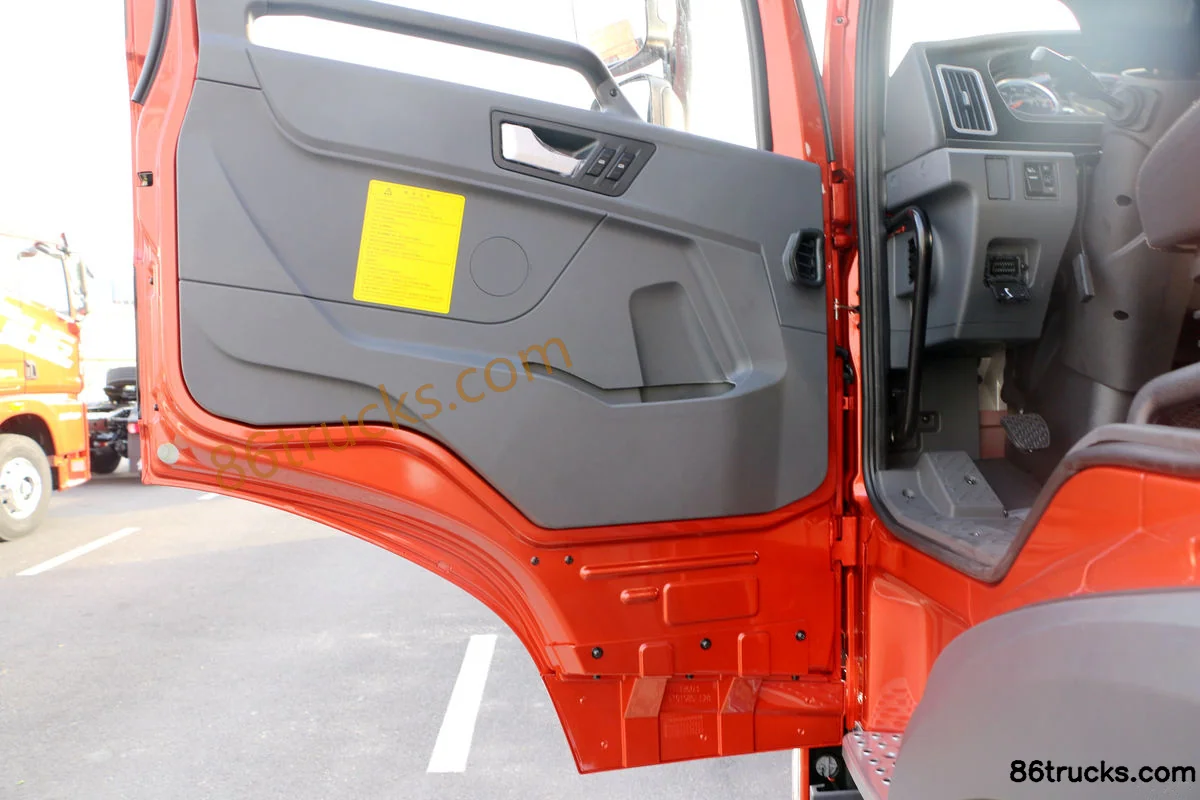

Cab3

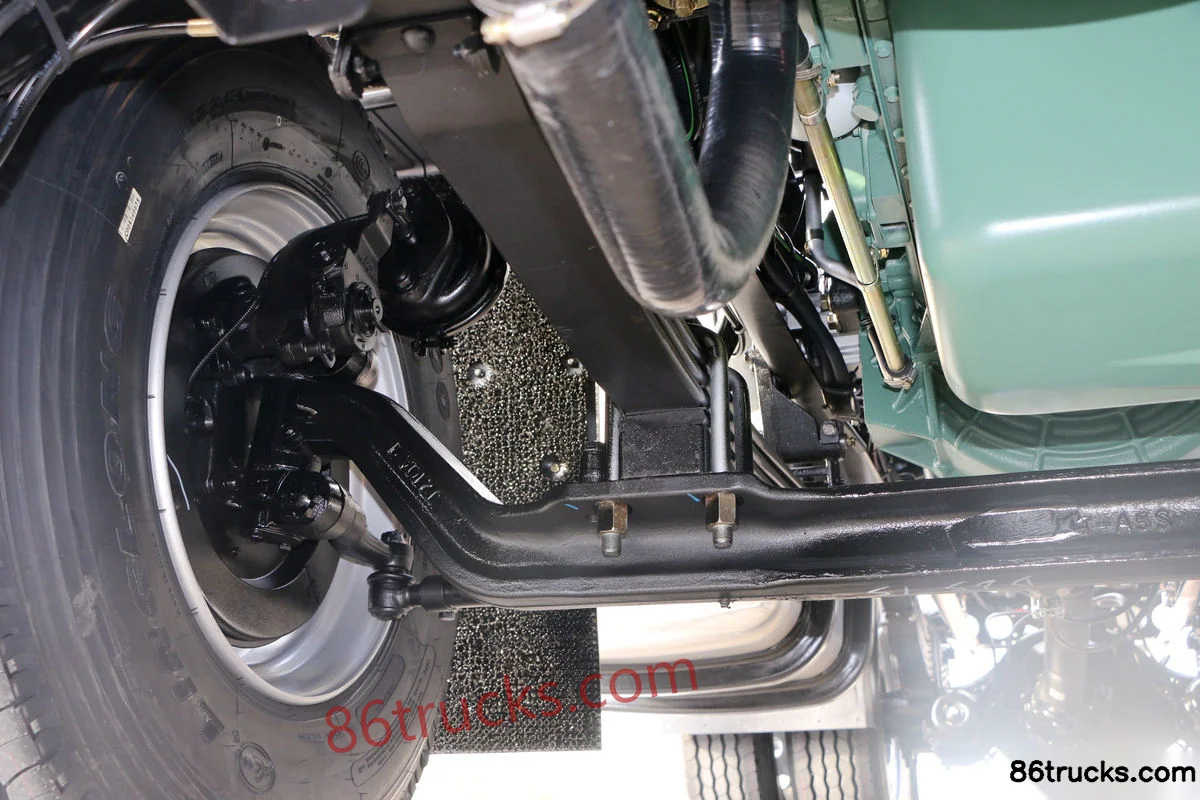

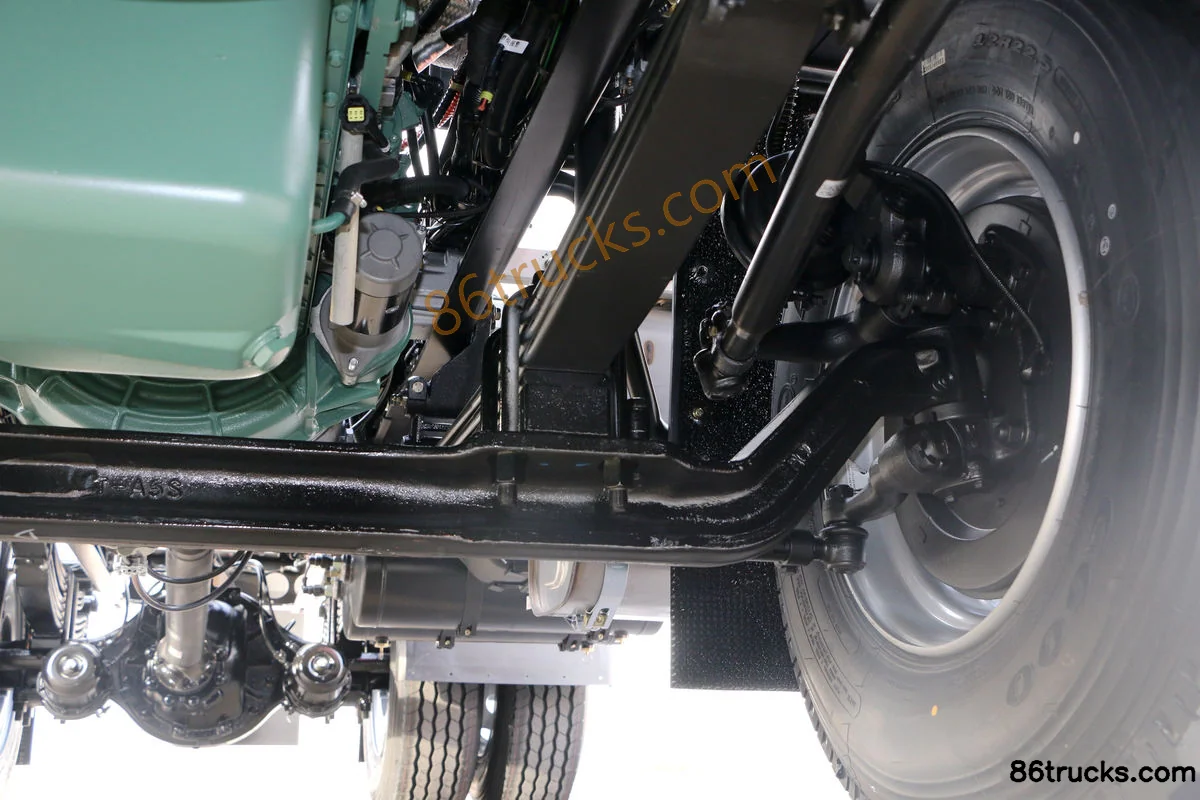

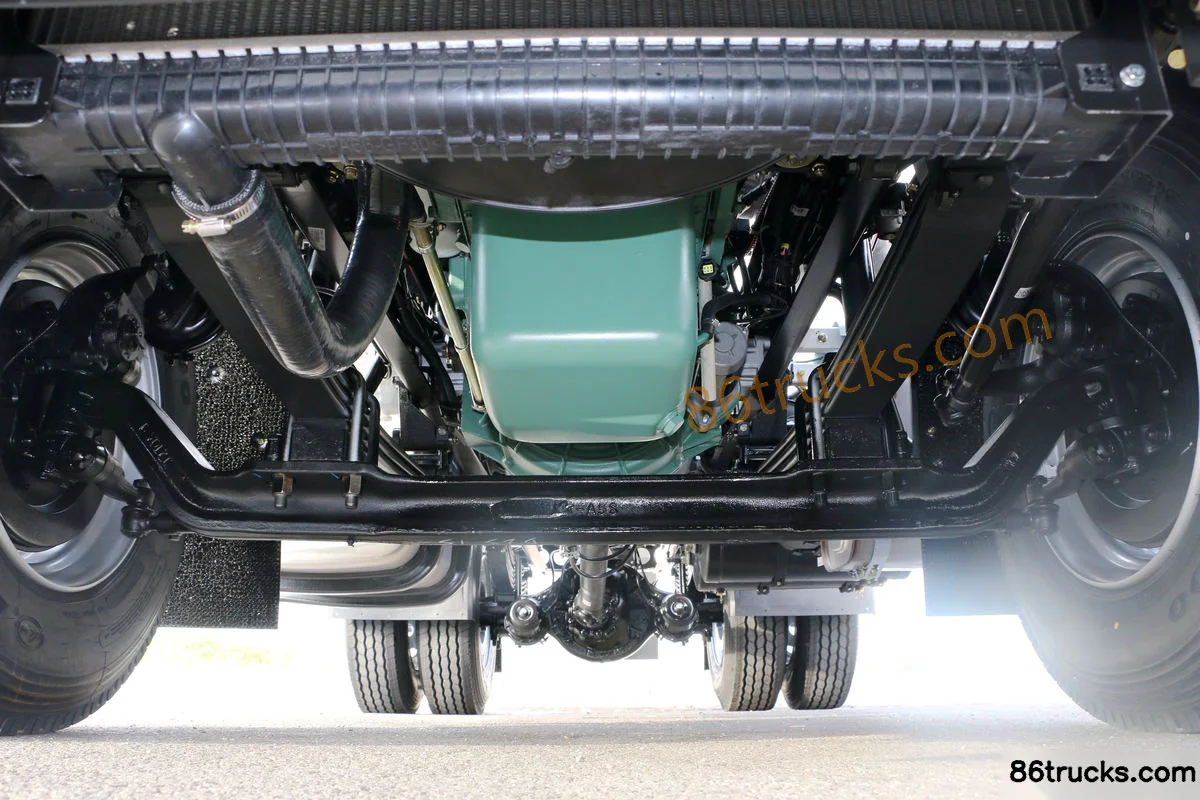

Chassis3

9 photos

FAQ

What is the export price of FAW Jiefang Qingdao HanV Heavy Truck 290 hp 4X2(6 wheels) Tractor Truck, and what does it include?

FAW Jiefang Qingdao HanV Heavy Truck 290 hp 4X2(6 wheels) Tractor Truck export reference is about From $32,639; MSRP is ¥23.5M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang Qingdao HanV Heavy Truck 290 hp 4X2(6 wheels) Tractor Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Qingdao HanV Heavy Truck 290 hp 4X2(6 wheels) Tractor Truck?

Key specs of FAW Jiefang Qingdao HanV Heavy Truck 290 hp 4X2(6 wheels) Tractor Truck: Drive: 4x2; Horsepower: 290 hp; Emission: China V; Fuel: Diesel; Transmission: FAW Jiefang. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao HanV Heavy Truck 290 hp 4X2(6 wheels) Tractor Truck suited for?

FAW Jiefang Qingdao HanV Heavy Truck 290 hp 4X2(6 wheels) Tractor Truck is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does FAW Jiefang Qingdao HanV Heavy Truck 290 hp 4X2(6 wheels) Tractor Truck differ from other variants in the same series?

FAW Jiefang Qingdao HanV Heavy Truck 290 hp 4X2(6 wheels) Tractor Truck belongs to FAW Jiefang Qingdao HanV heavy truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao HanV Heavy Truck 290 hp 4X2(6 wheels) Tractor Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao HanV Heavy Truck 290 hp 4X2(6 wheels) Tractor Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
