Times Linghang S1 2.3L diesel 122hp 4X2(6 wheels) WLY 5-speed 4.22m single-row stake truck micro truck

Export reference
From $10,931
MSRP ¥7.87M CNY
Horsepower: 122
Emission: China VI
Fuel: Diesel
Engine: Quanchai2.3L
Transmission: WLY
Curb Weight:: 2.37ton
seating capacity: 2Personnel
Rated payload: 1.995ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The Foton Forland Times Linghang S1 2.3L diesel 122hp 4X2(6 wheels) WLY 5-speed 4.22m single-row stake truck micro truck is a mini truck featuring 4.22m cargo length, Stake type cargo body, 2Personnel volume and 1.995t payload. On the powertrain side, it comes with a Quanchai2.3L engine, 122 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 122 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ5045CCYAJB6-28
Type: stake truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
engine: QuanchaiQ23A-130C60
transmission: WLYWLY5G28
Rear Axle Ratio: 4.875
Cab length: 5.995m
Cab width: 2.06m
Cab height: 2.685m
Front track width: 1505mm
rear track: 1420mm
Curb Weight: 2.37ton
Rated payload: 1.995ton
GVWR: 4.495ton
Max. speed: 120km/h
Origin: Shandong Zhucheng
tonnage class: mini truck
Approach angle: 16°
departure angle: 15°
Front/rear suspension: 1.11/1.525m
Energy Type: Diesel
Engine parameters
Engine Brand: Quanchai
Engine Model: Q23A-130C60
Engine info: Quanchai2.3L
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.3L
Emission standard: China VI
Max output power: 90kW
Max hp: 122Horsepower
Transmission Parameters
Transmission Model: WLY5G28
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 4.22m
Cargo box width: 1.96m
Cab parameters
Cab width: 1730mm
seating capacity: 2Personnel
Seat rows: Single Row
fuel tank
Fuel tank capacity: 70L
Chassis Specs
Front axle allowable load: 1700kg
rear axle allowable load: 2795kg
Axle ratio: 4.875
Leaf spring count: 3/3+3
Tire
Tire Size: 6.50R16LT 10PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Remote key:
Electronic Central Lock:
Multimedia features
External audio input (AUX/USB/iPod etc.):
Service brake
Brake Type: Hydraulic brake
Parking brake: parking brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

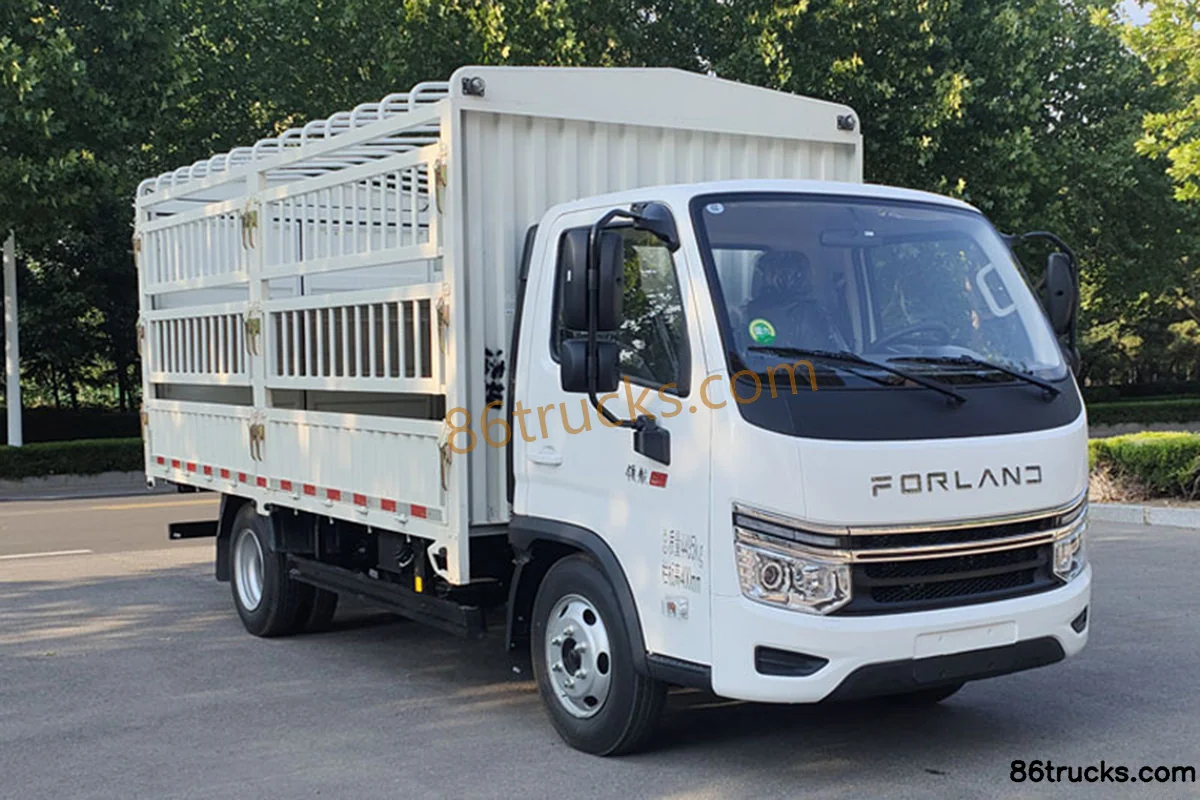

Exterior1
