SHACMAN Commercial Vehicle Xuande Wing 3 Composite Edition 480hp 6X4(10 wheels) Tractor Truck (with PTO)

Export reference
From $50,861
MSRP ¥36.62M CNY
Fuel: Diesel
Gross Trailer Weight:: 40ton
Wheelbase:: 3175+1350mm
Tire Size:: 12R22.5 18PR
Front axle allowable load:: 7000kg
Displacement:: 12.155L
Drive 6X4 (10 wheels)
Horsepower 480
Emission China V
Transmission Fast Gear

Overview

The SHACMAN Commercial Vehicle Xuande Wing 3 Composite Edition 480hp 6X4(10 wheels) Tractor Truck (with PTO) is a Heavy truck featuring 6X4 (10 wheels) drive, 480 hp, 25t GVW and China V emissions. Its segment focus covers Gravel Transport, matching those duty cycles. On the powertrain side, it comes with a United PowerYC6K1248-50 engine, Fast Gear transmission and Diesel fuel.

China V 480 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SX4250X3L
Drive type: 6X4
Wheelbase: 3175+1350mm
engine: United PowerYC6K1248-50
transmission: Fast Gear12JSDX220TA-B
Rear Axle Ratio: 4.111
Cab length: 6.775m
Cab width: 2.55m
Cab height: 3.9m
Front track width: 2011mm
Gross Trailer Weight: 40ton
rear track: 1860/1860mm
Curb Weight: 8.2ton
GVWR: 25ton
Max. speed: 105km/h
Origin: Baoji, Shaanxi
tonnage class: Heavy truck
market segment: Gravel Transport
Remarks: QH70 splined PTO, options: electric tilt, top/side deflector, halogen headlights, power-adjustable heated rearview mirror, Tianxingjian Zhixing version, 400L fuel tank, 700L+300L fuel tank, electric tilt, top/side deflector, halogen headlights, power-adjustable heated rearview mirror, Tianxingjian Zhixing version, 400L fuel tank
Version: composite version
Energy Type: Diesel
Engine parameters
Engine Brand: United Power
Engine Model: United PowerYC6K1248-50
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 12.155L
Emission standard: China V
Max output power: 353kW
Max hp: 480Horsepower
Max torque: 2250N·m
Max torque speed: 1000-1500rpm
Rated speed: 1900rpm
Transmission Parameters
Transmission Model: Fast Gear12JSDX220TA-B
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Housing Material: aluminum alloy
fuel tank
Fuel tank/air tank material: aluminum alloy
Fuel tank capacity: 700L
Cab parameters
Cab: High roof
Cab width: 2240mm
Cab tilting: Electric
seating capacity: 3Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
Chassis Specs
Front axle description: MAN 5.5T maintenance-free
Front axle allowable load: 7000kg
Fifth wheel: 90#
Frame Dimensions: 270/8+4 double-layermm
rear axle description: 13T MAN single reduction
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 4.111
Leaf spring count: 2/4,3/4,3/5,4/5,4/12,10/12,2/2+-/2+-,3/2+-/2+-,2/3
Tire
Tire Size: 12R22.5 18PR
Number of tires: 10pcs
Control configuration
ABS:
interior configuration
AC control type: Automatic
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Aluminum air tank:

Photos

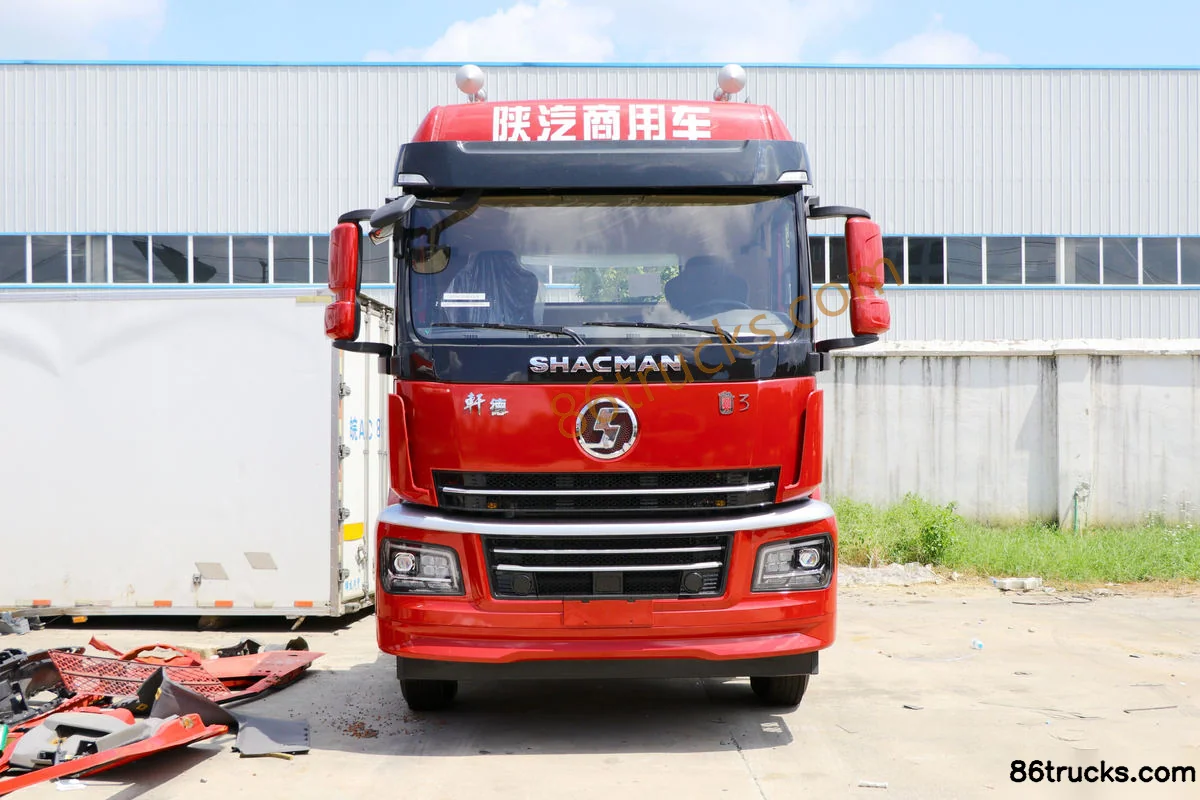

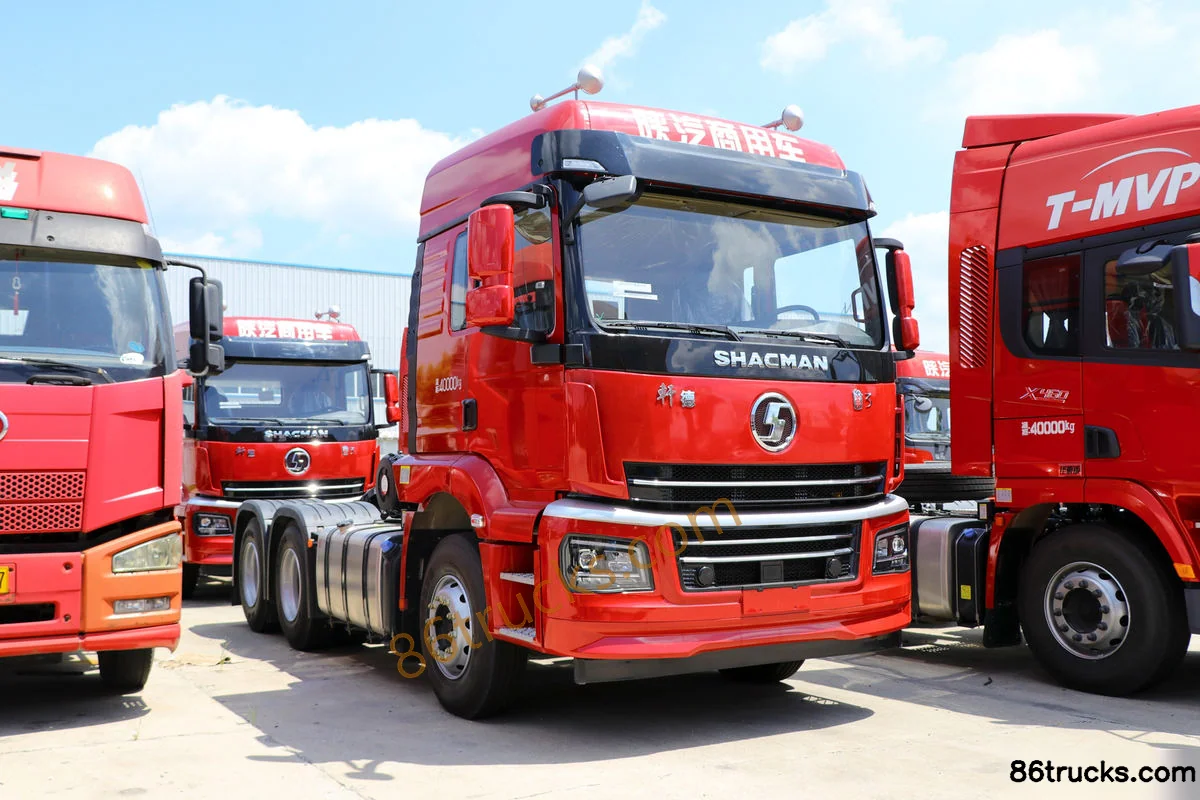

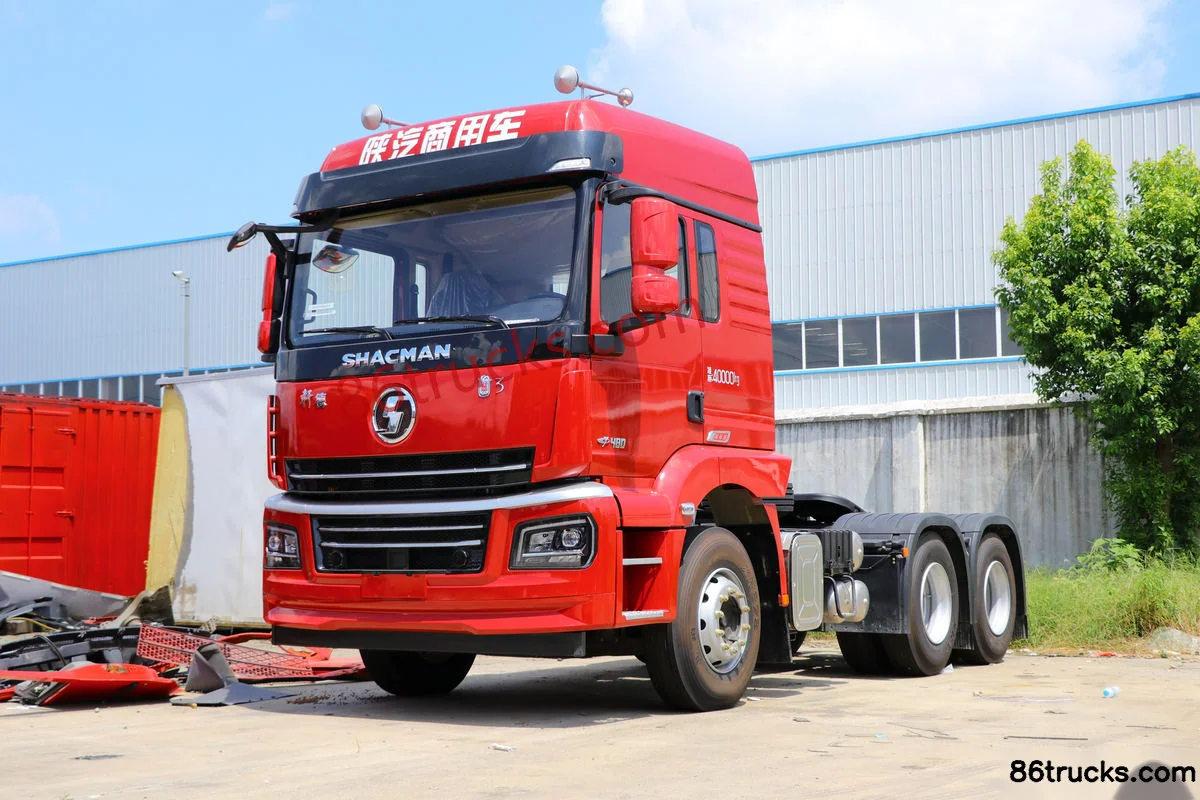

Exterior3

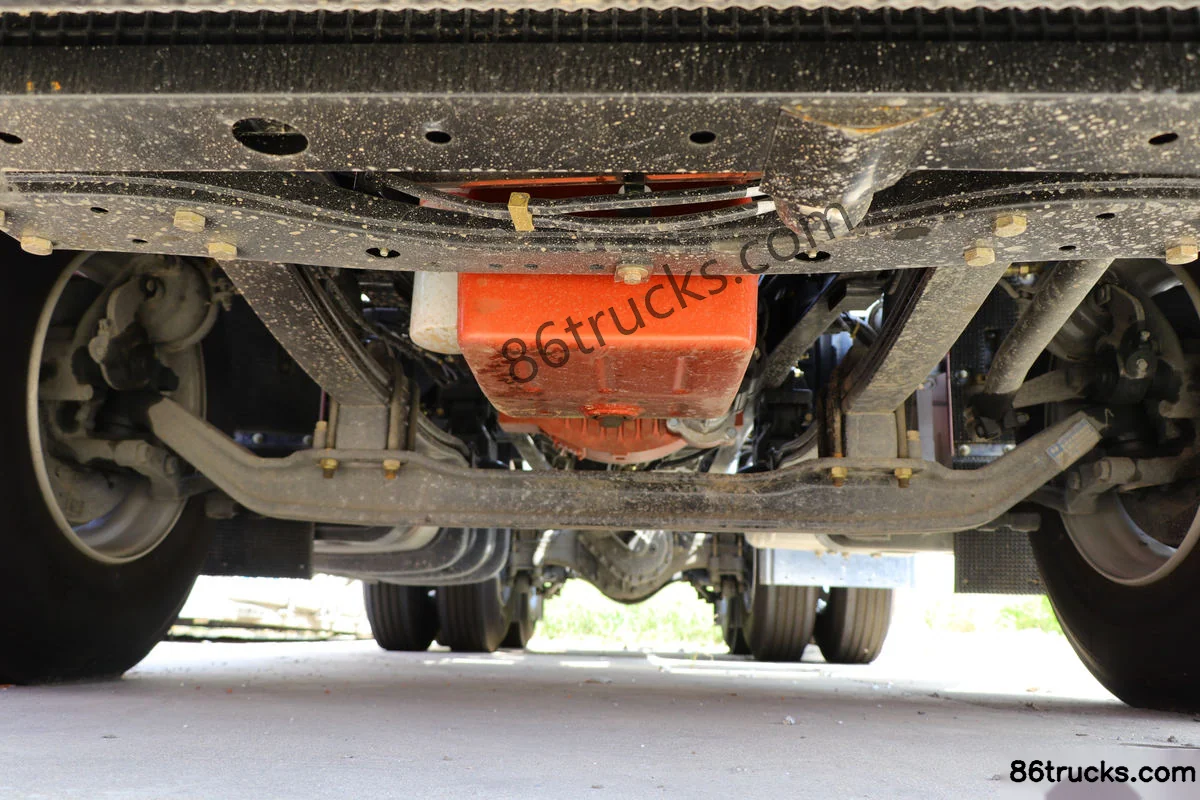

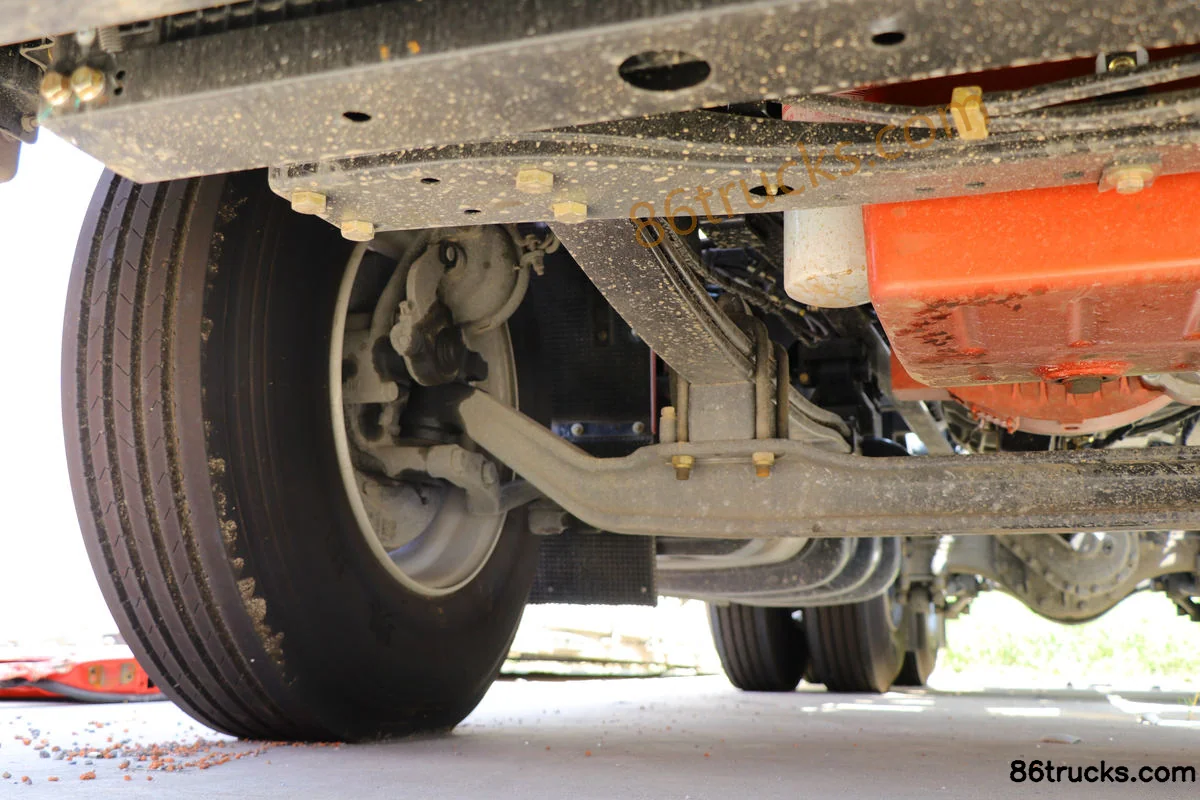

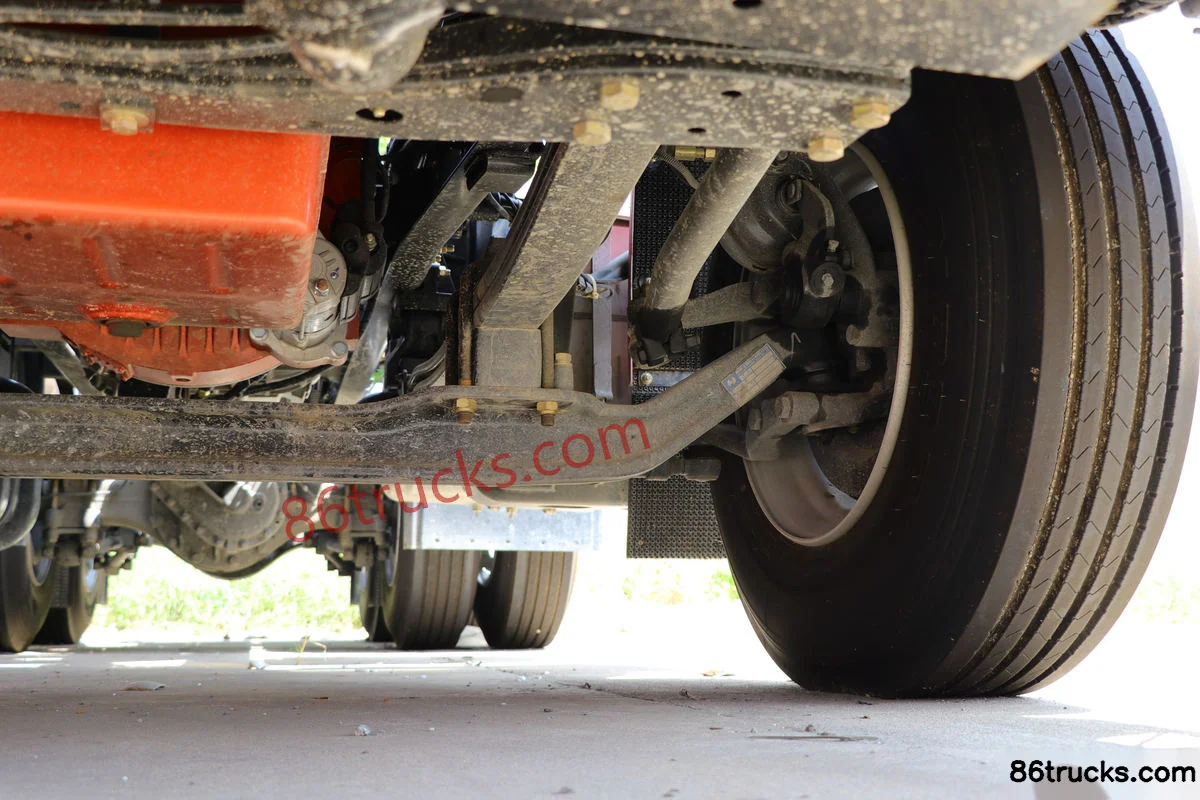

Chassis3

6 photos

FAQ

What is the export price of SHACMAN Commercial Vehicle Xuande Wing 3 Composite Edition 480hp 6X4(10 wheels) Tractor Truck (with PTO), and what does it include?

SHACMAN Commercial Vehicle Xuande Wing 3 Composite Edition 480hp 6X4(10 wheels) Tractor Truck (with PTO) export reference is about From $50,861; MSRP is ¥36.62M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does SHACMAN Commercial Vehicle Xuande Wing 3 Composite Edition 480hp 6X4(10 wheels) Tractor Truck (with PTO) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Commercial Vehicle Xuande Wing 3 Composite Edition 480hp 6X4(10 wheels) Tractor Truck (with PTO)?

Key specs of SHACMAN Commercial Vehicle Xuande Wing 3 Composite Edition 480hp 6X4(10 wheels) Tractor Truck (with PTO): Drive: 6x4; Horsepower: 480 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Commercial Vehicle Xuande Wing 3 Composite Edition 480hp 6X4(10 wheels) Tractor Truck (with PTO) suited for?

SHACMAN Commercial Vehicle Xuande Wing 3 Composite Edition 480hp 6X4(10 wheels) Tractor Truck (with PTO) is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does SHACMAN Commercial Vehicle Xuande Wing 3 Composite Edition 480hp 6X4(10 wheels) Tractor Truck (with PTO) differ from other variants in the same series?

SHACMAN Commercial Vehicle Xuande Wing 3 Composite Edition 480hp 6X4(10 wheels) Tractor Truck (with PTO) belongs to SHACMAN Commercial Vehicle Xuande Yi 3 Heavy Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Commercial Vehicle Xuande Wing 3 Composite Edition 480hp 6X4(10 wheels) Tractor Truck (with PTO)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Commercial Vehicle Xuande Wing 3 Composite Edition 480hp 6X4(10 wheels) Tractor Truck (with PTO)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
