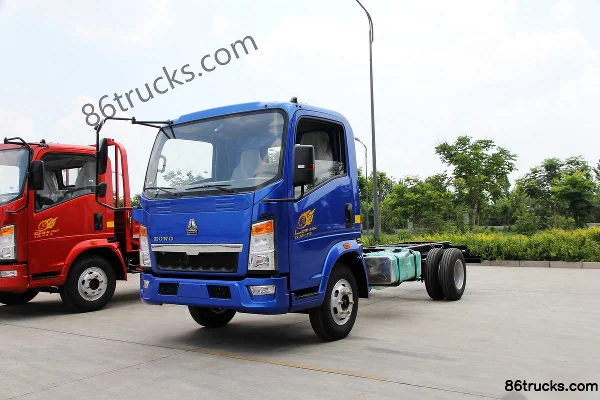

Sinotruk HOWO Hanvo 108 hp 4X2(6 wheels) 3360 mm wheelbase single-row light truck chassis

Export reference
From $11,042
MSRP ¥7.95M CNY
Horsepower: 108
Emission: China IV
Fuel: Diesel
Engine: Dachai498
Transmission: WLY
Curb Weight:: 2.315ton
seating capacity: 3Personnel
Rated payload: 1.985ton
Drive 4X2 (6 wheels)
Cargo box type: Chassis

Overview

The Sinotruk HOWO Hanvo 108 hp 4X2(6 wheels) 3360 mm wheelbase single-row light truck chassis is a Light Truck featuring 4.2m cargo length, Chassis cargo body, 3Personnel volume and 1.985t payload. On the powertrain side, it comes with a Dachai498 engine, 108 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 108 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ1047D3414D145
Type: Chassis
Drive type: 4X2
Wheelbase: 3360mm
engine: DachaiCA4DC2-10E4
transmission: WLYWLY6T100
Cab length: 5.995m
Cab width: 2.15m
Cab height: 2.45m
Front track width: 1605mm
rear track: 1520,1540mm
Curb Weight: 2.315ton
Rated payload: 1.985ton
GVWR: 4.495ton
Max. speed: 90km/h
Origin: Jinan, Shandong
tonnage class: Light Truck
Approach angle: 20°
departure angle: 18°
Remarks: 2T front axle / 3.5T rear axle
Front/rear suspension: 1.16/1.475m
Energy Type: Diesel
Engine parameters
Engine Brand: Dachai
Engine Model: DachaiCA4DC2-10E4
Engine info: Dachai498
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.168L
Emission standard: China IV
Max output power: 79kW
Max hp: 108Horsepower
Max torque: 320N·m
Max torque speed: 2000rpm
Rated speed: 3200rpm
Engine Type: 4-cylinder inline, electronic common rail
Transmission Parameters
Transmission Model: WLYWLY6T100
Transmission Brand: WLY
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Chassis
Cargo box length: 4.2m
Cargo box width: 2.05m
Cargo box height: 0.45m
*Cargo box interior width: 2.0499999523163
Cab parameters
seating capacity: 3Personnel
Seat rows: Single Row
fuel tank
Fuel tank capacity: 120L
Chassis Specs
Front axle allowable load: 1790kg
rear axle allowable load: 2705kg
Leaf spring count: 11/9+7
Tire
Tire Size: 7.00R16
Number of tires: 6pcs
Control configuration
ABS:

Photos

0 photos

FAQ

What is the export price of Sinotruk HOWO Hanvo 108 hp 4X2(6 wheels) 3360 mm wheelbase single-row light truck chassis, and what does it include?

Sinotruk HOWO Hanvo 108 hp 4X2(6 wheels) 3360 mm wheelbase single-row light truck chassis export reference is about From $11,042; MSRP is ¥7.95M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk HOWO Hanvo 108 hp 4X2(6 wheels) 3360 mm wheelbase single-row light truck chassis use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO Hanvo 108 hp 4X2(6 wheels) 3360 mm wheelbase single-row light truck chassis?

Key specs of Sinotruk HOWO Hanvo 108 hp 4X2(6 wheels) 3360 mm wheelbase single-row light truck chassis: Drive: 4x2; Horsepower: 108 hp; Emission: China IV; Fuel: Diesel; Engine: Dachai498; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO Hanvo 108 hp 4X2(6 wheels) 3360 mm wheelbase single-row light truck chassis suited for?

Sinotruk HOWO Hanvo 108 hp 4X2(6 wheels) 3360 mm wheelbase single-row light truck chassis is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk HOWO Hanvo 108 hp 4X2(6 wheels) 3360 mm wheelbase single-row light truck chassis differ from other variants in the same series?

Sinotruk HOWO Hanvo 108 hp 4X2(6 wheels) 3360 mm wheelbase single-row light truck chassis belongs to Sinotruk Hanjiang Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO Hanvo 108 hp 4X2(6 wheels) 3360 mm wheelbase single-row light truck chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO Hanvo 108 hp 4X2(6 wheels) 3360 mm wheelbase single-row light truck chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
