SHACMAN Cummins Delong New M3000 Lightweight Version 345 hp 6X4(10 wheels) Tractor Truck

Export reference
MSRP N/A
Fuel: Diesel
Gross Trailer Weight:: 40ton
Wheelbase:: 3175+1350mm
Tire Size:: 12R22.5 16PR
Front axle allowable load:: 7000kg
Displacement:: 10.8L
Drive 6X4 (10 wheels)
Horsepower 345
Emission China V
Transmission Fast Gear

Overview

The SHACMAN Cummins Delong New M3000 Lightweight Version 345 hp 6X4(10 wheels) Tractor Truck is a Heavy truck featuring 6X4 (10 wheels) drive, 345 hp, 25t GVW and China V emissions. On the powertrain side, it comes with a Xi’an CumminsISM11E5 345 engine, Fast Gear transmission and Diesel fuel.

China V 345 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SX4250MC4
Drive type: 6X4
Wheelbase: 3175+1350mm
engine: Xi’an CumminsISM11E5 345
transmission: Fast Gear12JSD160TA
Rear Axle Ratio: 4.111
Cab length: 6.775m
Cab width: 2.55m
Cab height: 3.56m
Front track width: 2036mm
rear track: 1860/1860mm
Gross Trailer Weight: 40ton
Curb Weight: 8.6ton
GVWR: 25ton
Max. speed: 105km/h
Origin: Xi'an, Shaanxi
tonnage class: Heavy truck
Remarks: Standard: Jacob brake, dual-cylinder air compressor, front underrun protection, lightweight rims, QH50 PTO.
Version: Lightweight version
Energy Type: Diesel
Engine parameters
Engine Brand: Xi’an Cummins
Engine Model: Xi’an CumminsISM11E5 345
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 10.8L
Emission standard: China V
Max output power: 254kW
Max hp: 345Horsepower
Max torque: 1800N·m
Max torque speed: 1100-1300rpm
Rated speed: 1900rpm
Technology route: Common Rail SCR
Transmission Parameters
Transmission Model: Fast Gear12JSD160TA
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Housing Material: aluminum alloy
fuel tank
Fuel tank/air tank material: aluminum alloy
Fuel tank capacity: 400L
Cab parameters
Cab: High roof
Cab suspension: Four-point air suspension
Cab tilting: Manual
seating capacity: 3Personnel
Seat rows: Sleeper cab
Lower Bunk Width: 840mm
Chassis Specs
Suspension type: Front and rear leaf springs (few)
Front axle description: MAN 5.5T
Fifth wheel: 90#
Front axle allowable load: 7000kg
Frame Dimensions: 850×270(8+4)mm
rear axle description: 11.5T MAN single reduction
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 4.111
Leaf spring count: 4/5,3/5
Suspension (front/rear): Leaf spring
Tire
Tire Size: 12R22.5 16PR
Number of tires: 10pcs
Control configuration
ABS:
interior configuration

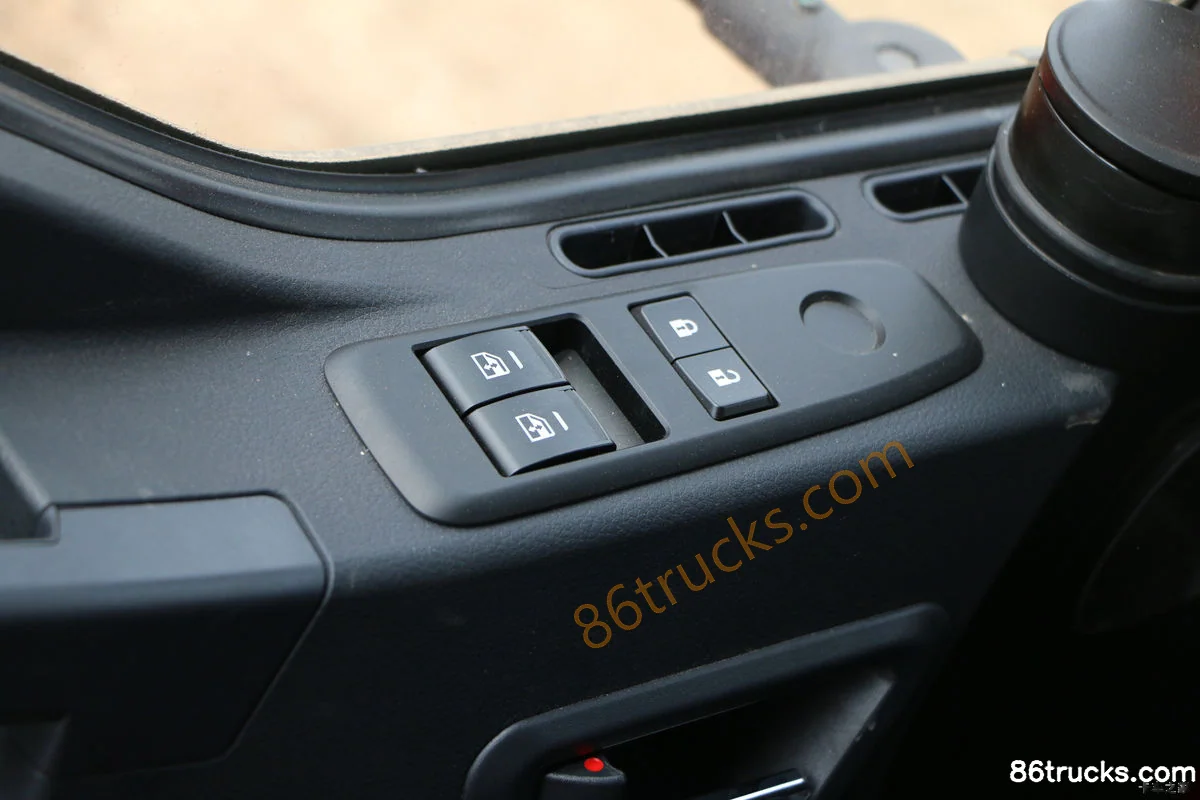

Power Windows:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Aluminum air tank:
Multimedia features
GPS/Beidou driving recorder:

Photos

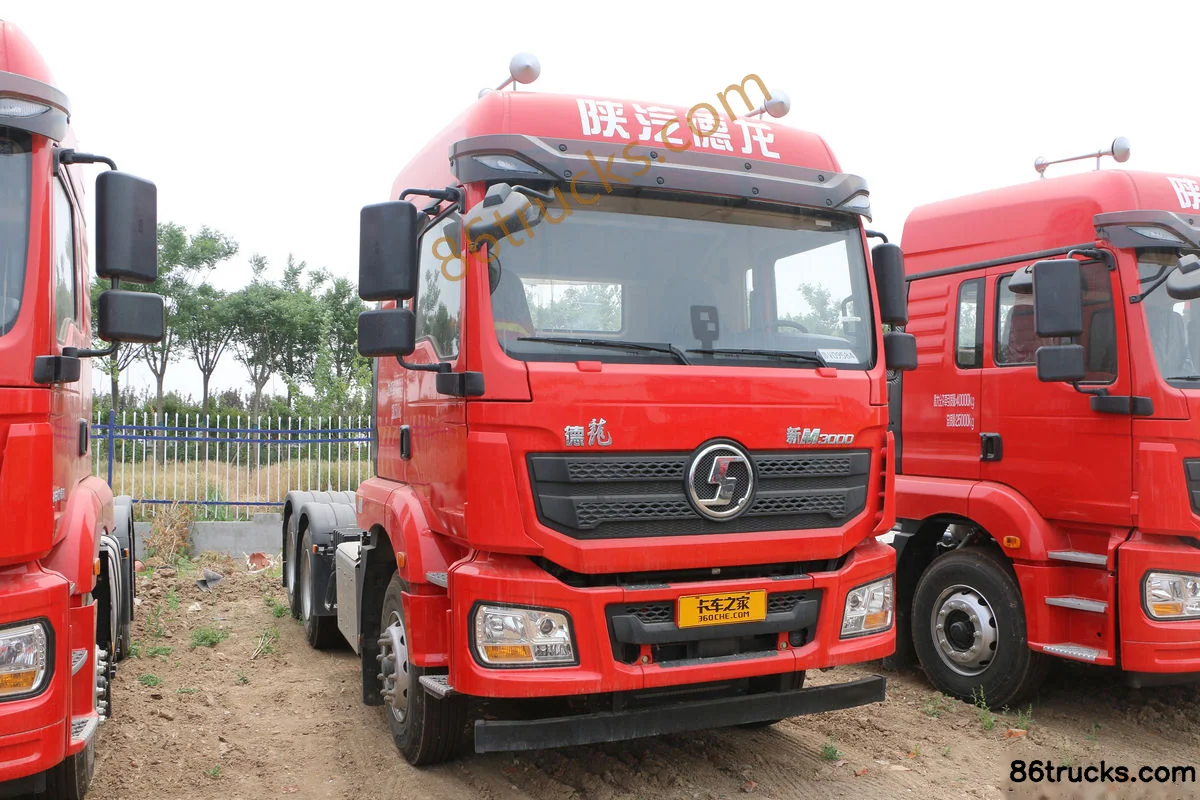

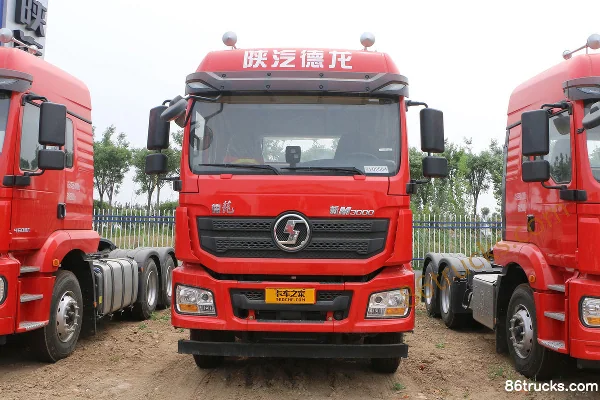

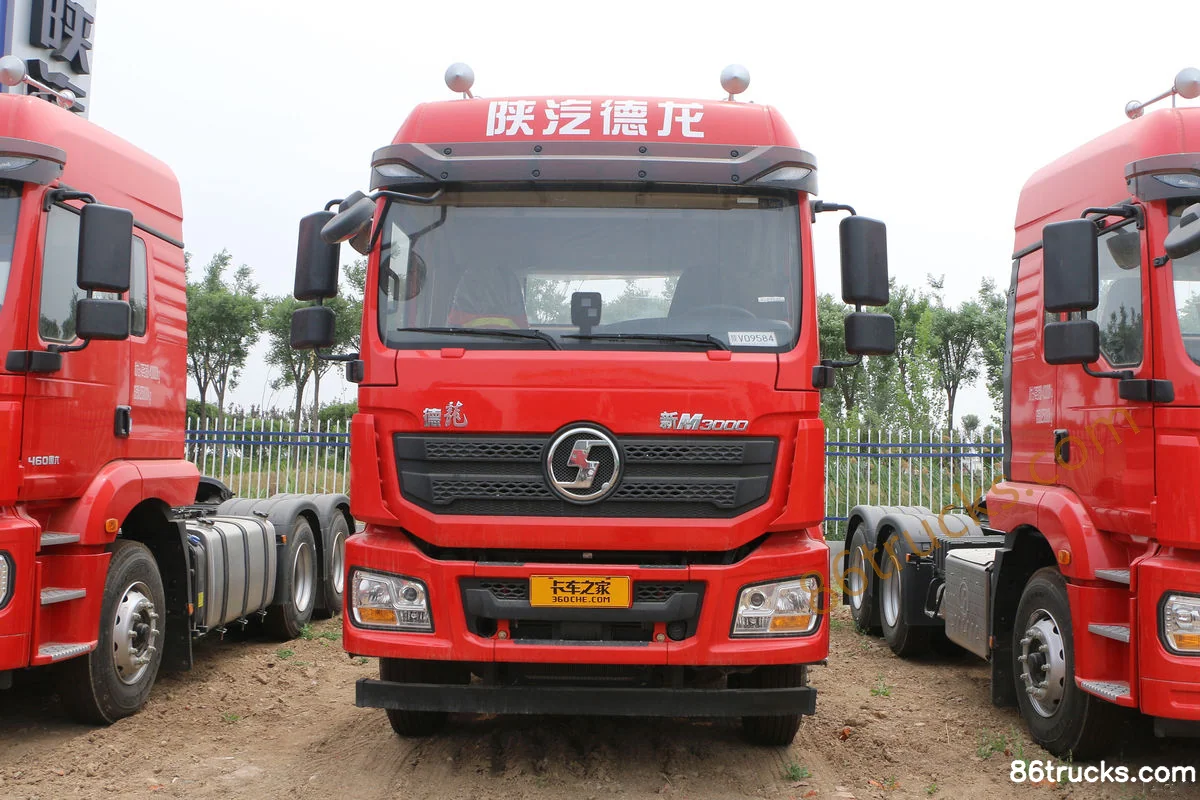

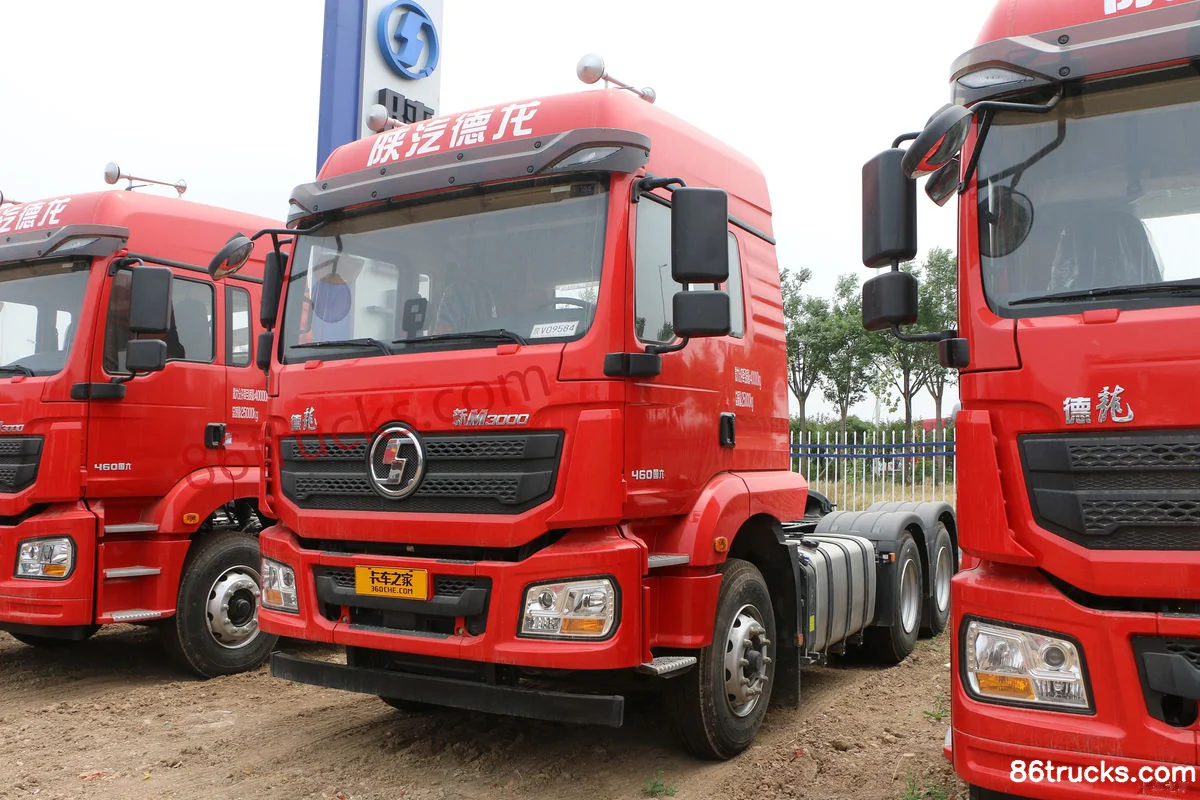

Exterior3

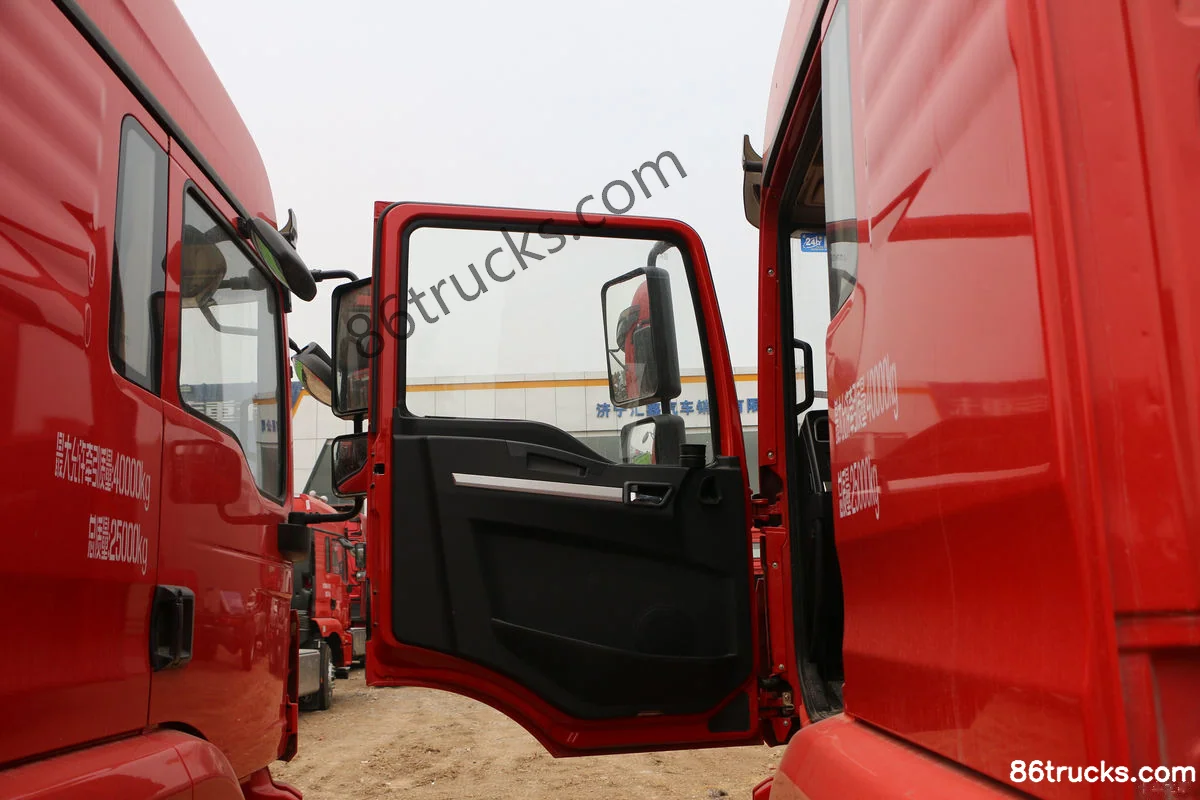

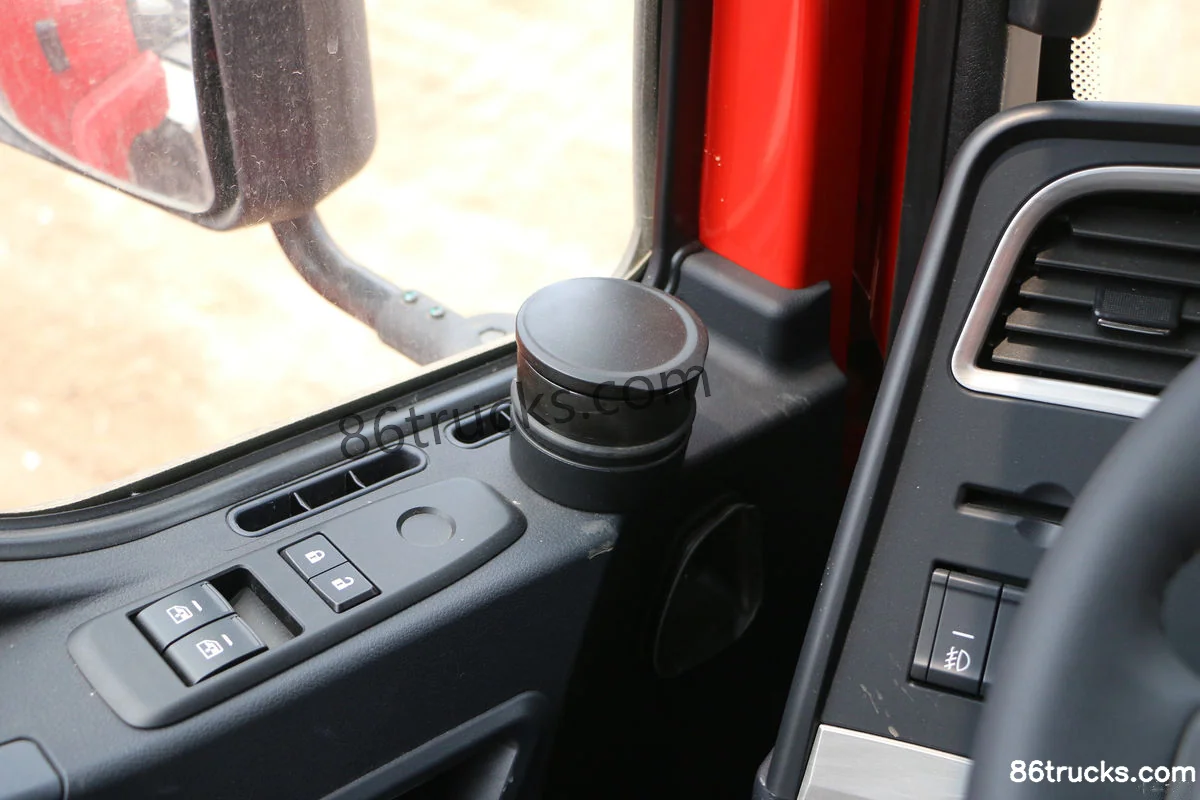

Cab3

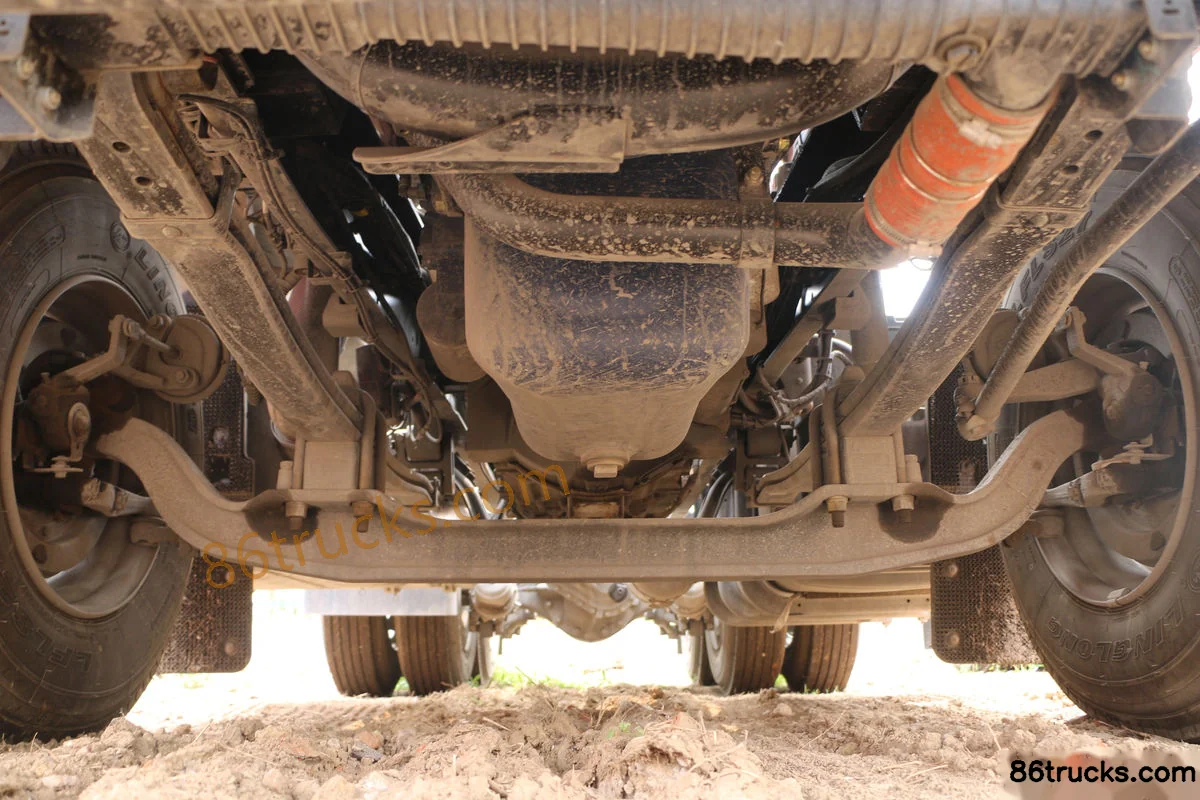

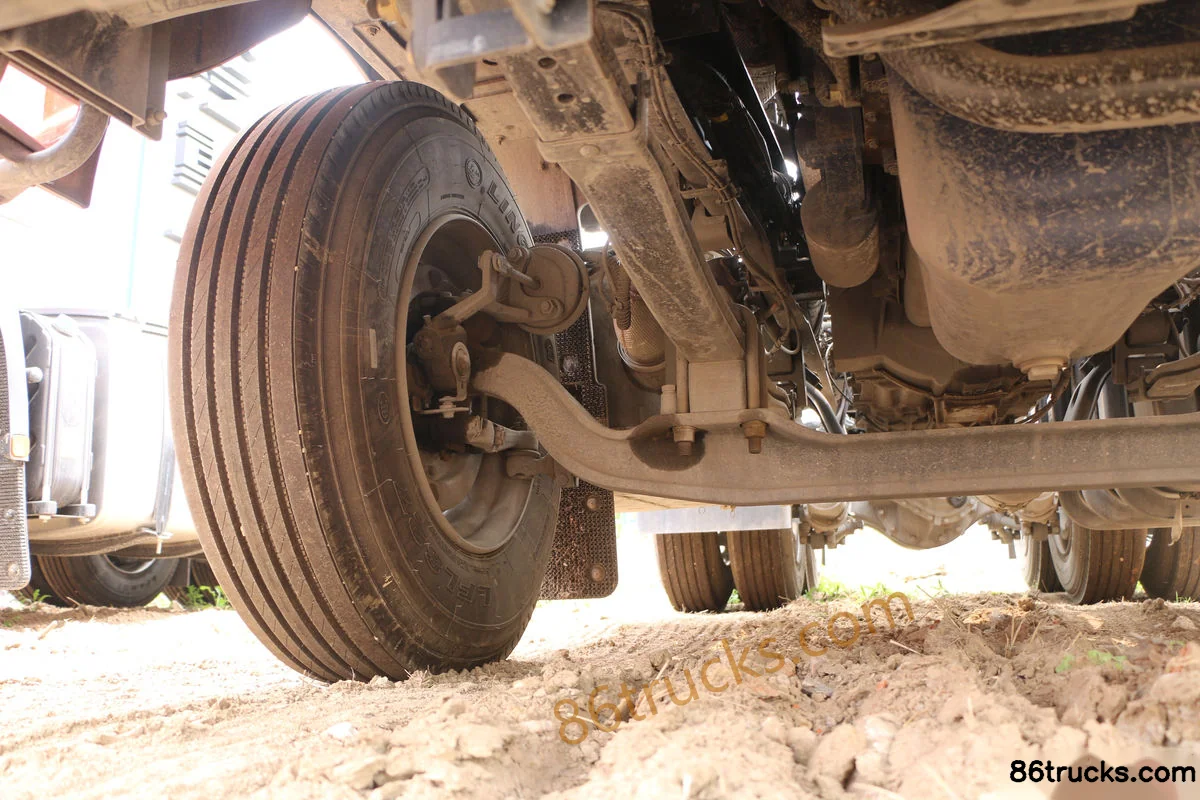

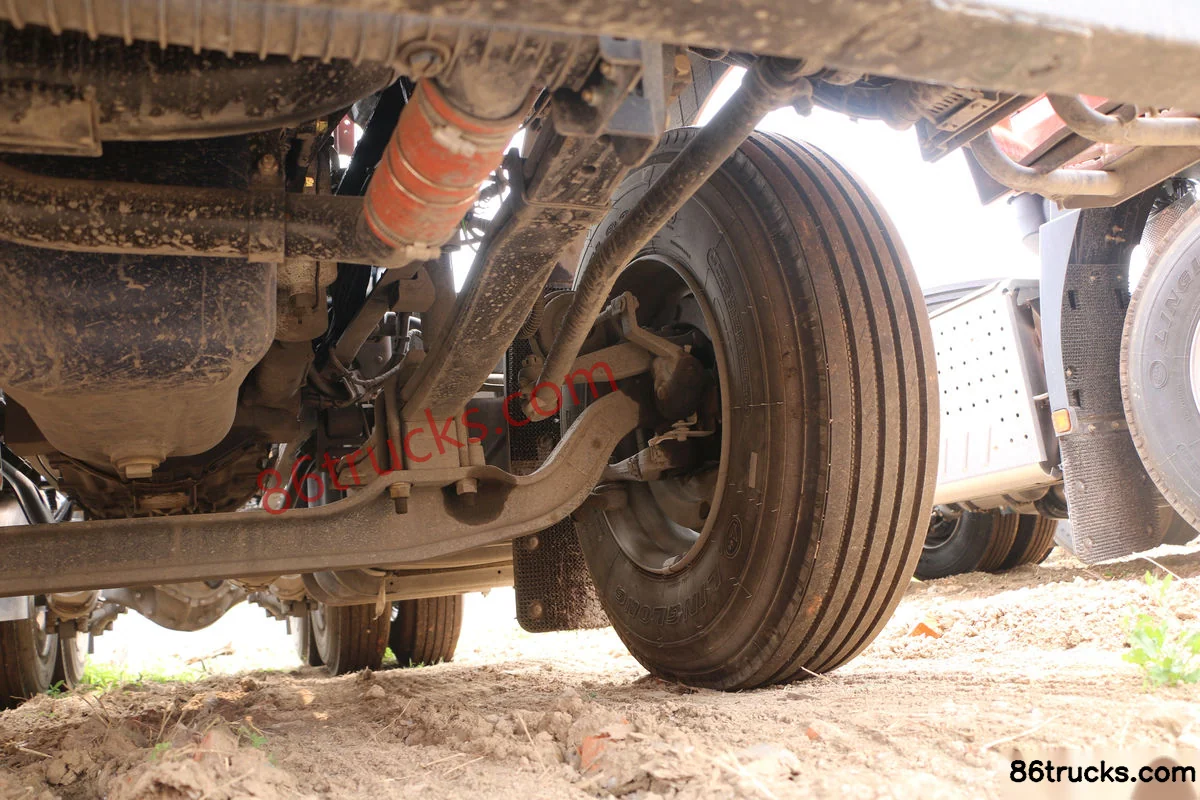

Chassis3

9 photos

FAQ

What emission standard does SHACMAN Cummins Delong New M3000 Lightweight Version 345 hp 6X4(10 wheels) Tractor Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Cummins Delong New M3000 Lightweight Version 345 hp 6X4(10 wheels) Tractor Truck?

Key specs of SHACMAN Cummins Delong New M3000 Lightweight Version 345 hp 6X4(10 wheels) Tractor Truck: Drive: 6x4; Horsepower: 345 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Cummins Delong New M3000 Lightweight Version 345 hp 6X4(10 wheels) Tractor Truck suited for?

SHACMAN Cummins Delong New M3000 Lightweight Version 345 hp 6X4(10 wheels) Tractor Truck is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does SHACMAN Cummins Delong New M3000 Lightweight Version 345 hp 6X4(10 wheels) Tractor Truck differ from other variants in the same series?

SHACMAN Cummins Delong New M3000 Lightweight Version 345 hp 6X4(10 wheels) Tractor Truck belongs to SHACMAN Delong New M3000 Heavy Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Cummins Delong New M3000 Lightweight Version 345 hp 6X4(10 wheels) Tractor Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Cummins Delong New M3000 Lightweight Version 345 hp 6X4(10 wheels) Tractor Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
