Kama Kaijie 115hp 4X2(6 wheels) 5.3m Double-Row Stake Truck

Export reference
From $13,889
MSRP ¥10M CNY
Horsepower: 115
Emission: China IV
Fuel: Diesel
Engine: Yunnei 4102
Transmission: Lu'an
Curb Weight:: 4.21ton
seating capacity: 3Personnel
Rated payload: 9.175ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The Kama Kaijie 115hp 4X2(6 wheels) 5.3m Double-Row Stake Truck is a Light Truck featuring 5.33m cargo length, Stake type cargo body, 3Personnel volume and 9.175t payload. Its segment focus covers Agricultural product transport, green channel and industrial product transport, matching those duty cycles. On the powertrain side, it comes with a Yunnei 4102 engine, 115 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 115 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): KMC5142CCYA42P4
Type: stake truck
Drive type: 4X2
Wheelbase: 4200mm
Box length class: 5.3m
engine: Yunnei PowerYN38CRD2
transmission: Lu'an LC6T46
Rear Axle Ratio: 7.37
Cab length: 7.58m
Cab width: 2.18m
Cab height: 3.52m
Front track width: 1760mm
rear track: 1650mm
Curb Weight: 4.21ton
Rated payload: 9.175ton
GVWR: 13.58ton
Max. speed: 88km/h
Origin: Shouguang, Shandong
tonnage class: Light Truck
Approach angle: 25°
departure angle: 14°
market segment: Agricultural product transport, green channel, industrial product transport
Front/rear suspension: 1.2/2.18m
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerYN38CRD2
Engine info: Yunnei 4102
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.76L
Emission standard: China IV
Max output power: 85kW
Max hp: 115Horsepower
Max torque: 325N·m
Max torque speed: 1600-2400rpm
Rated speed: 3000rpm
Engine Type: Electronic control, water-cooled EGR technology, electronic high-pressure common rail fuel injection technology, aftertreatment DOC+POC
Transmission Parameters
Transmission Model: Lu'an LC6T46
Transmission Brand: Lu'an
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 5.33m
Cargo box width: 2m
Cargo box height: 0.55m
*Cargo box interior width: 2
Cab parameters
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 4860kg
rear axle allowable load: 8720kg
Axle ratio: 7.37
Leaf spring count: 9/11+8
Tire
Tire Size: 8.25-20 16PR,8.25R20 16PR
Number of tires: 6pcs

Photos

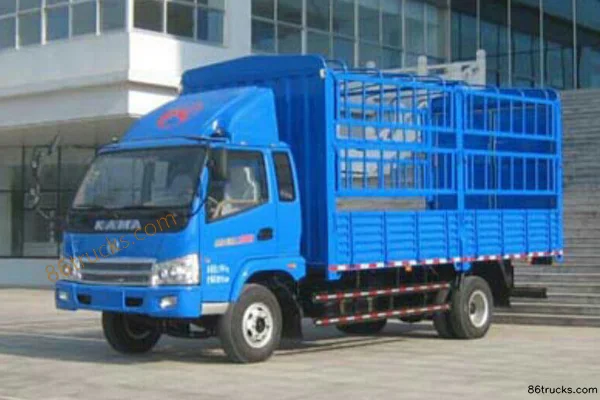

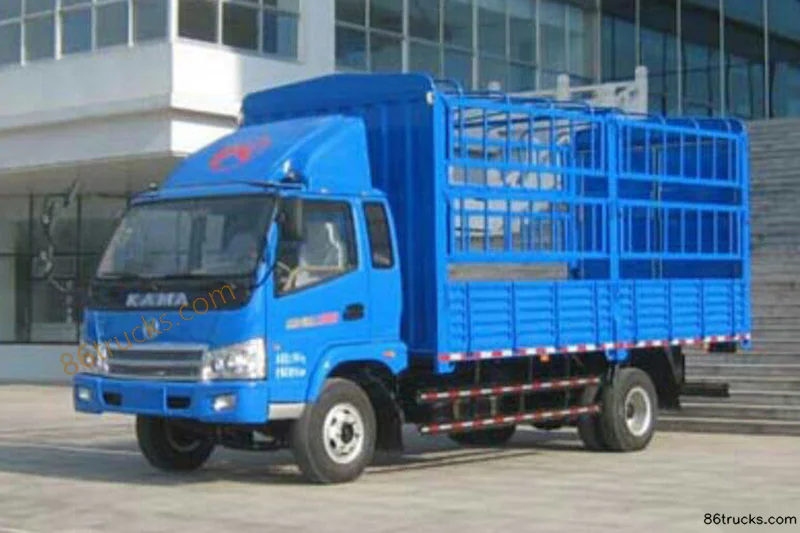

Exterior1

1 photos

FAQ

What is the export price of Kama Kaijie 115hp 4X2(6 wheels) 5.3m Double-Row Stake Truck, and what does it include?

Kama Kaijie 115hp 4X2(6 wheels) 5.3m Double-Row Stake Truck export reference is about From $13,889; MSRP is ¥10M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Kama Kaijie 115hp 4X2(6 wheels) 5.3m Double-Row Stake Truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Kama Kaijie 115hp 4X2(6 wheels) 5.3m Double-Row Stake Truck?

Key specs of Kama Kaijie 115hp 4X2(6 wheels) 5.3m Double-Row Stake Truck: Drive: 4x2; Horsepower: 115 hp; Emission: China IV; Fuel: Diesel; Engine: Yunnei 4102; Transmission: Lu'an. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Kama Kaijie 115hp 4X2(6 wheels) 5.3m Double-Row Stake Truck suited for?

Kama Kaijie 115hp 4X2(6 wheels) 5.3m Double-Row Stake Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Kama Kaijie 115hp 4X2(6 wheels) 5.3m Double-Row Stake Truck differ from other variants in the same series?

Kama Kaijie 115hp 4X2(6 wheels) 5.3m Double-Row Stake Truck belongs to Kama Kaijie M1 light truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Kama Kaijie 115hp 4X2(6 wheels) 5.3m Double-Row Stake Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Kama Kaijie 115hp 4X2(6 wheels) 5.3m Double-Row Stake Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
