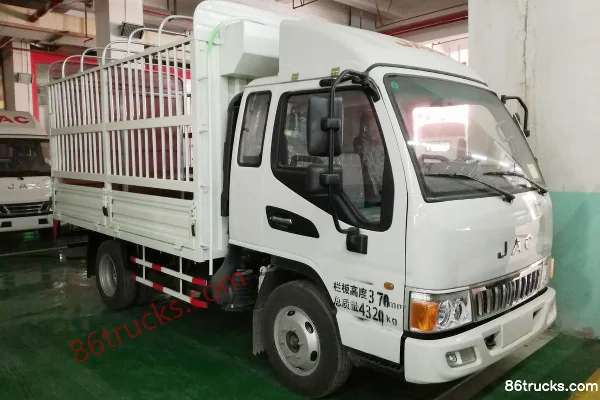

JAC Junling E3 109 hp 4X2(6 wheels) 3.85m semi-row stake truck

Export reference
From $11,264
MSRP ¥8.11M CNY
Horsepower: 109
Emission: China V
Fuel: Diesel
Engine: Yunnei Dewei D20
Transmission: Lu'an
Curb Weight:: 2.72ton
seating capacity: 2Personnel
Rated payload: 1.645ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The JAC Junling E3 109 hp 4X2(6 wheels) 3.85m semi-row stake truck is a Light Truck featuring 3.85m cargo length, Stake type cargo body, 2Personnel volume and 1.645t payload. Its segment focus covers LTL transport, matching those duty cycles. On the powertrain side, it comes with a Yunnei Dewei D20 engine, 109 hp, 4X2 (6 wheels) drive and China V emissions.

China V 109 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5041CCYP93K4C2V
Type: stake truck
Drive type: 4X2
Wheelbase: 3308mm
Box length class: 3.9m
engine: Yunnei PowerD19TCIE11
transmission: Lu'an LC5T28
Cab length: 5.995m
Cab width: 2m
Cab height: 3.03m
Front track width: 1440mm
rear track: 1395mm
Curb Weight: 2.72ton
Rated payload: 1.645ton
GVWR: 4.495ton
Max. speed: 90km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
Approach angle: 23°
departure angle: 14°
market segment: LTL transport
Remarks: Optional: anti-slip cargo box
Front/rear suspension: 1.09/1.597m
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerD19TCIE11
Engine info: Yunnei Dewei D20
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 1.91L
Emission standard: China V
Max output power: 80kW
Max hp: 109Horsepower
Max torque: 285N·m
Max torque speed: 1600-2600rpm
Rated speed: 3200rpm
Engine Type: 4-cylinder inline, 16-valve, DOHC, turbocharged intercooled, high-pressure common rail fuel injection
Transmission Parameters
Transmission Model: Xingrui LC5T28
Transmission Brand: Lu'an
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 3.85m
Cargo box width: 1.9m
*Cargo box interior width: 1.8999999761581
Cab parameters
Cab width: 1695mm
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 1365kg
rear axle allowable load: 2465kg
Leaf spring count: 3/3+4
Tire
Tire Size: 6.50R16/7.00R16
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
interior configuration
AC control type: Optional manual.

Photos

0 photos

FAQ

What is the export price of JAC Junling E3 109 hp 4X2(6 wheels) 3.85m semi-row stake truck, and what does it include?

JAC Junling E3 109 hp 4X2(6 wheels) 3.85m semi-row stake truck export reference is about From $11,264; MSRP is ¥8.11M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Junling E3 109 hp 4X2(6 wheels) 3.85m semi-row stake truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Junling E3 109 hp 4X2(6 wheels) 3.85m semi-row stake truck?

Key specs of JAC Junling E3 109 hp 4X2(6 wheels) 3.85m semi-row stake truck: Drive: 4x2; Horsepower: 109 hp; Emission: China V; Fuel: Diesel; Engine: Yunnei Dewei D20; Transmission: Lu'an. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Junling E3 109 hp 4X2(6 wheels) 3.85m semi-row stake truck suited for?

JAC Junling E3 109 hp 4X2(6 wheels) 3.85m semi-row stake truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Junling E3 109 hp 4X2(6 wheels) 3.85m semi-row stake truck differ from other variants in the same series?

JAC Junling E3 109 hp 4X2(6 wheels) 3.85m semi-row stake truck belongs to JAC E3 Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Junling E3 109 hp 4X2(6 wheels) 3.85m semi-row stake truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Junling E3 109 hp 4X2(6 wheels) 3.85m semi-row stake truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
