FAW Jiefang Hu VH 68hp 4X2(6 wheels) Electric Barrel Garbage Truck (Yuanda Brand)

Export reference
MSRP N/A
Wheelbase:: 3560mm
Cab dimensions:: 6.885x2.19x2.35m
Type:: electric garbage truck
Front/rear track width:: Front track: 1635; Rear track: 1540mm
GVWR:: 8.28ton
Front/rear suspension:: 1.155/2.17m
FAW Jiefang Hu VH 68hp 4X2(6 wheels) Electric Barrel Garbage Truck (Yuanda Brand) exterior
View more photos (12)
Box volume: 3.3m³
Drive 4X2 (6 wheels)
Rated mass: 2.545ton
Fuel Electric

Overview

The FAW Jiefang Hu VH 68hp 4X2(6 wheels) Electric Barrel Garbage Truck (Yuanda Brand) is a garbage truck featuring 3.3m³ tank capacity, 3.3m³ volume, 8.28t GVW and 4X2 (6 wheels) drive. On the powertrain side, it comes with Electric fuel.

Electric 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Cab dimensions: 6.885x2.19x2.35m
Type: electric garbage truck
Drive type: 4X2
Front/rear track width: Front track: 1635; Rear track: 1540mm
Wheelbase: 3560mm
Rated mass: 2.545ton
GVWR: 8.28ton
Front/rear suspension: 1.155/2.17m
Energy Type: Electric
Body Parameters
Special Function Description: Battery optional: Shanghai Guanyu Energy, model 27190272, LiFePO4 power battery, rated voltage 3.3V
Vehicle certification code: SCZ5080CTYBEV
Body Brand: Yuanda brand
Cargo box parameters
Box volume: 3.3m³
Engine parameters
fuel type: Electric
Chassis Specs
Chassis Brand: FAW Jiefang
Chassis Series: FAW Jiefang Hu V
Chassis Model: CA1080P40L2BEVA84
Frame Dimensions: 200x65x5mm
rear axle description: 1058 stamped axle
Axle ratio: 5.571
Leaf spring count: 7/10+3
Transmission Parameters
Number of gears: 2Gear
Transmission Model: 2-speed AMT
Cab parameters
Cab: Flat roof
Tire
Tire Size: 7.50R16
Number of tires: 6pcs

Photos

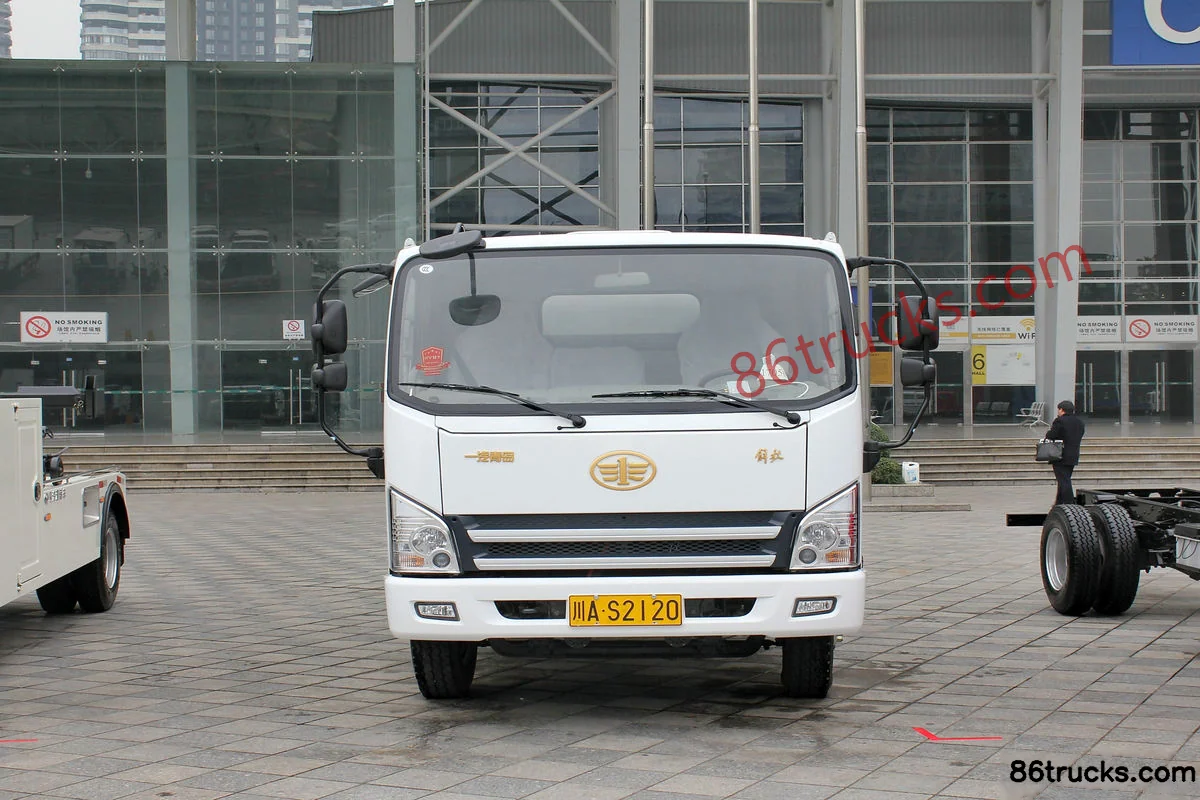

Exterior3

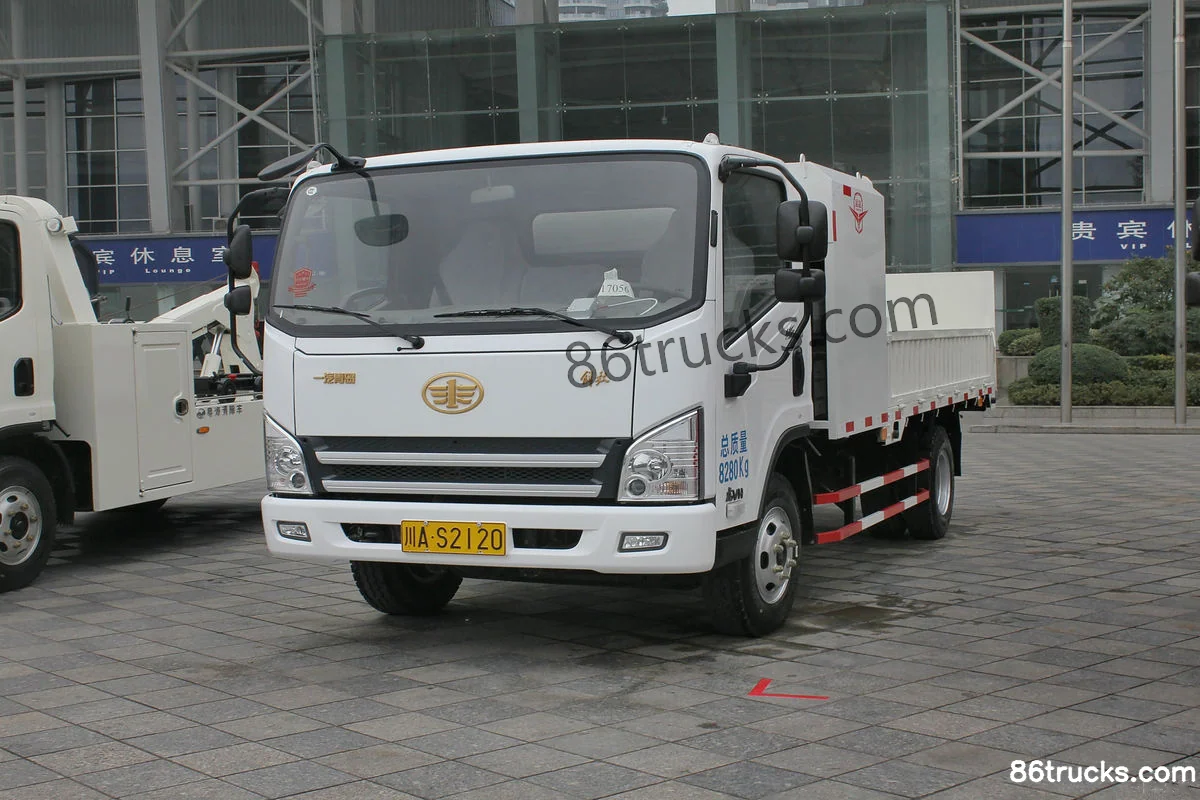

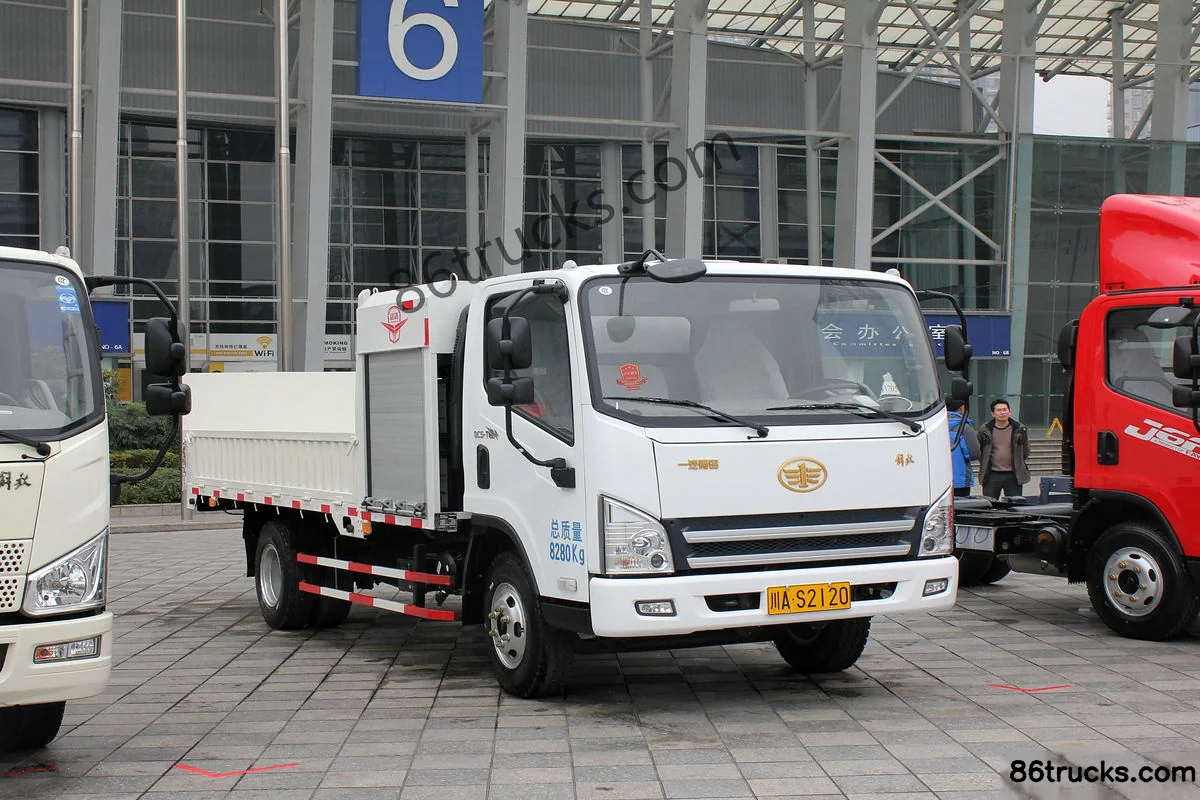

FAW Jiefang Hu VH 68hp 4X2(6 wheels) Electric Barrel Garbage Truck (Yuanda Brand) Exterior (1) | 86Trucks FAW Jiefang Hu VH 68hp 4X2(6 wheels) Electric Barrel Garbage Truck (Yuanda Brand) Exterior (2) | 86Trucks FAW Jiefang Hu VH 68hp 4X2(6 wheels) Electric Barrel Garbage Truck (Yuanda Brand) Exterior (3) | 86Trucks

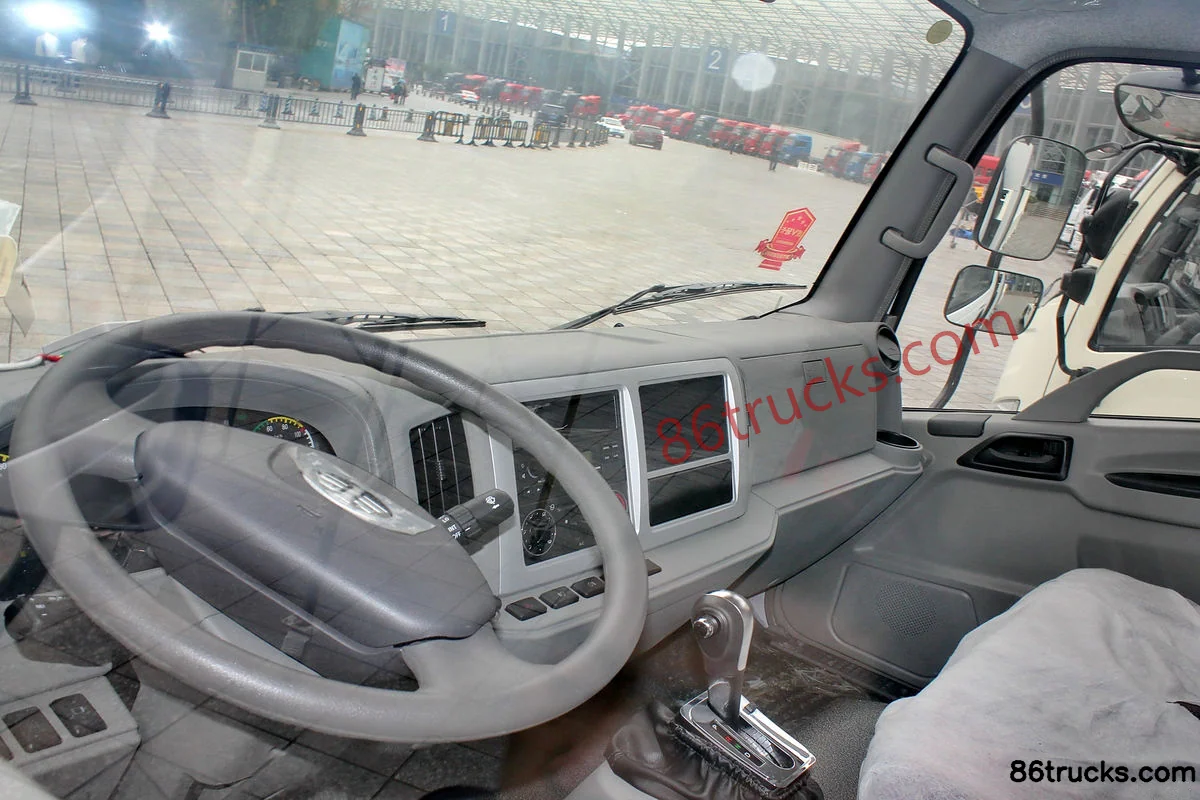

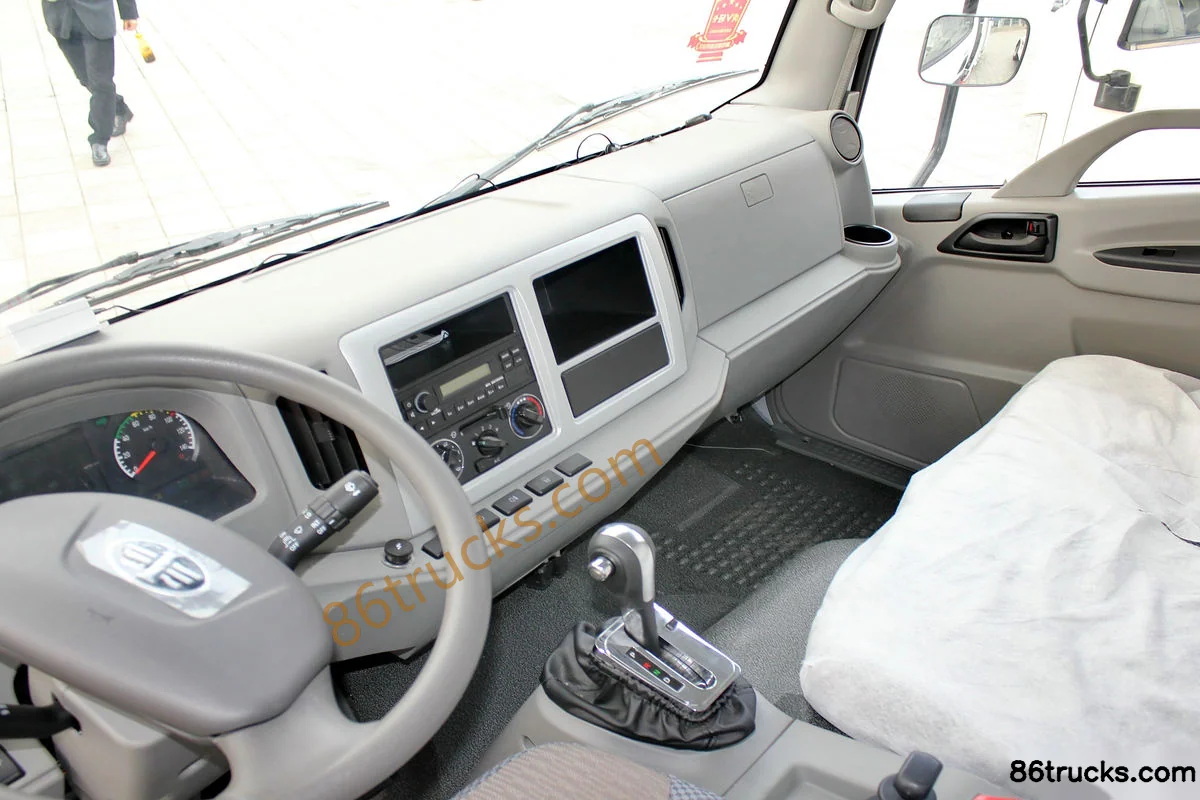

Cab3

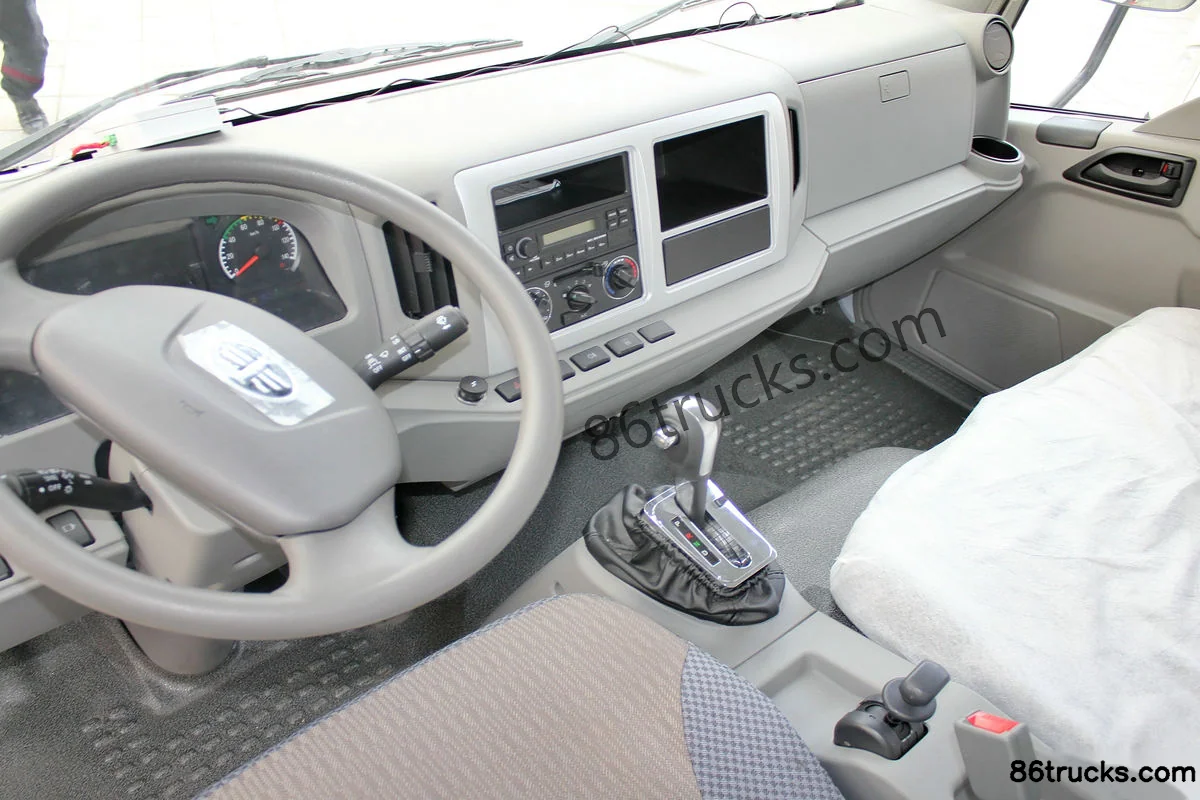

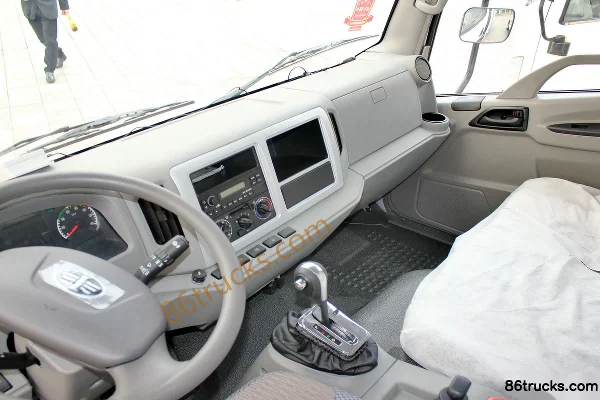

FAW Jiefang Hu VH 68hp 4X2(6 wheels) Electric Barrel Garbage Truck (Yuanda Brand) Cab (1) | 86Trucks FAW Jiefang Hu VH 68hp 4X2(6 wheels) Electric Barrel Garbage Truck (Yuanda Brand) Cab (2) | 86Trucks FAW Jiefang Hu VH 68hp 4X2(6 wheels) Electric Barrel Garbage Truck (Yuanda Brand) Cab (3) | 86Trucks

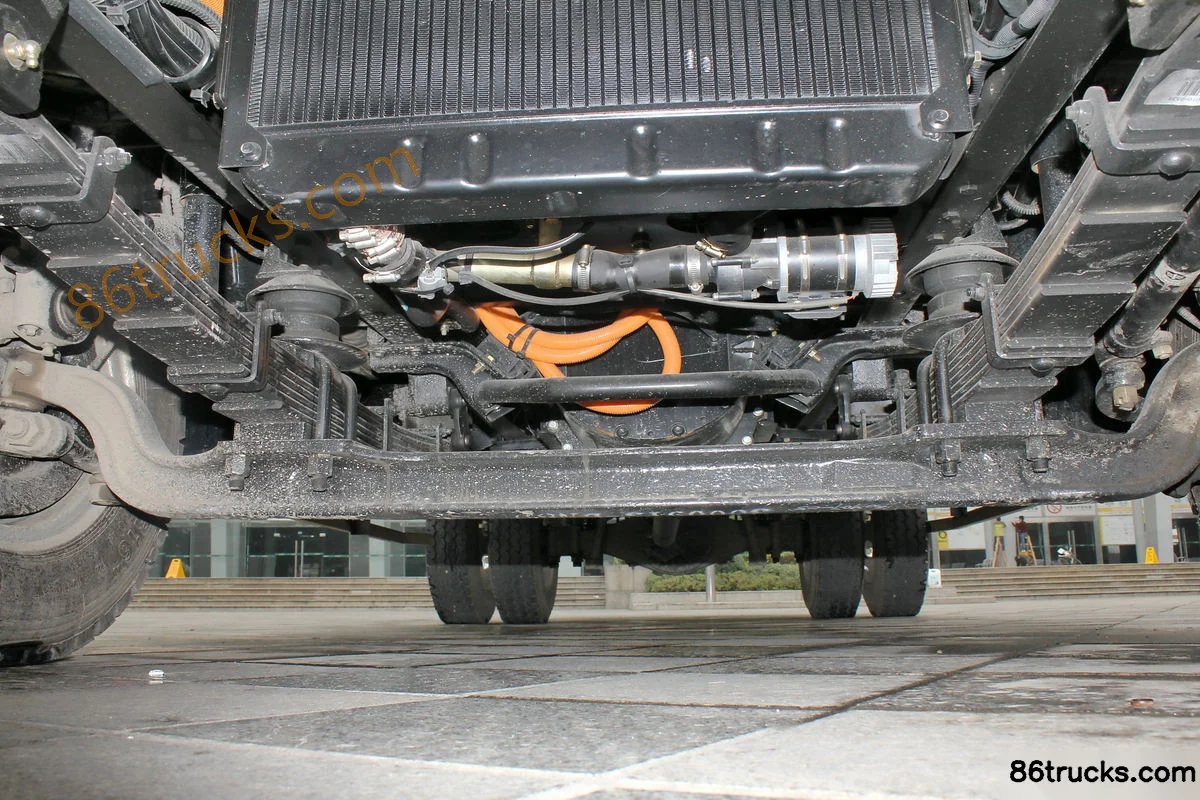

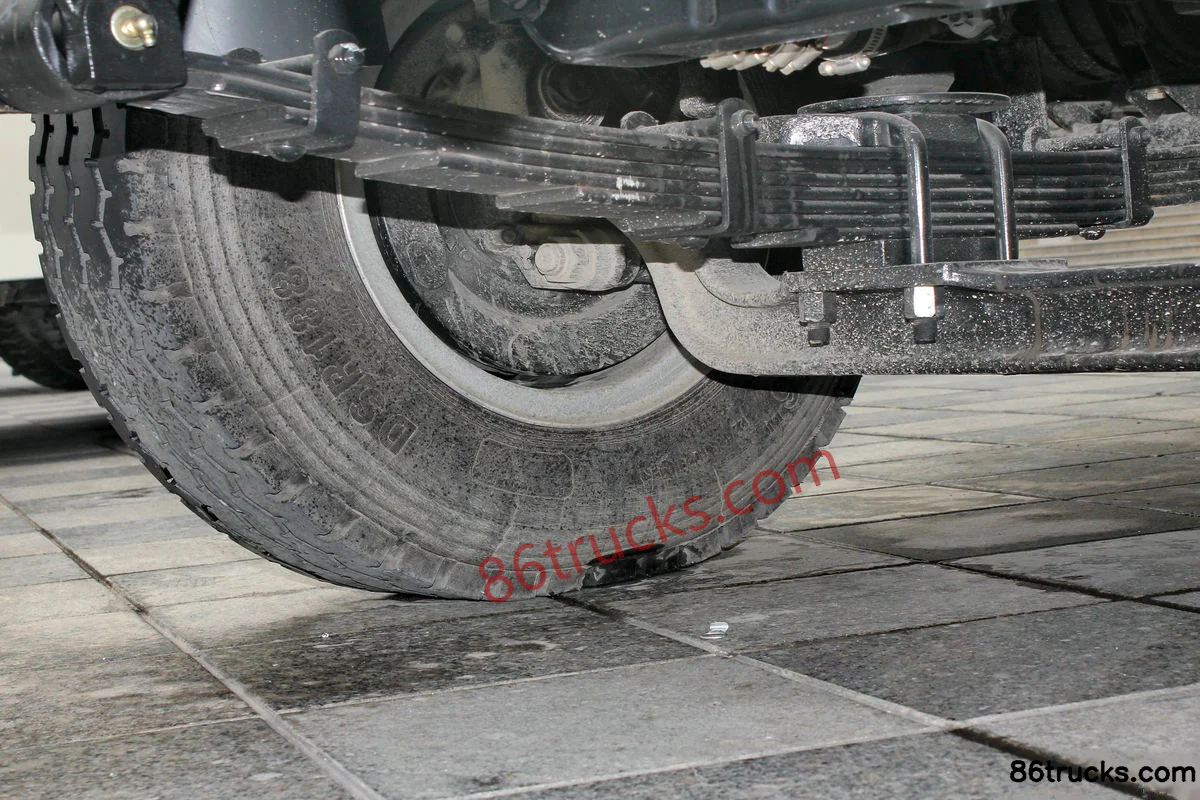

Chassis3

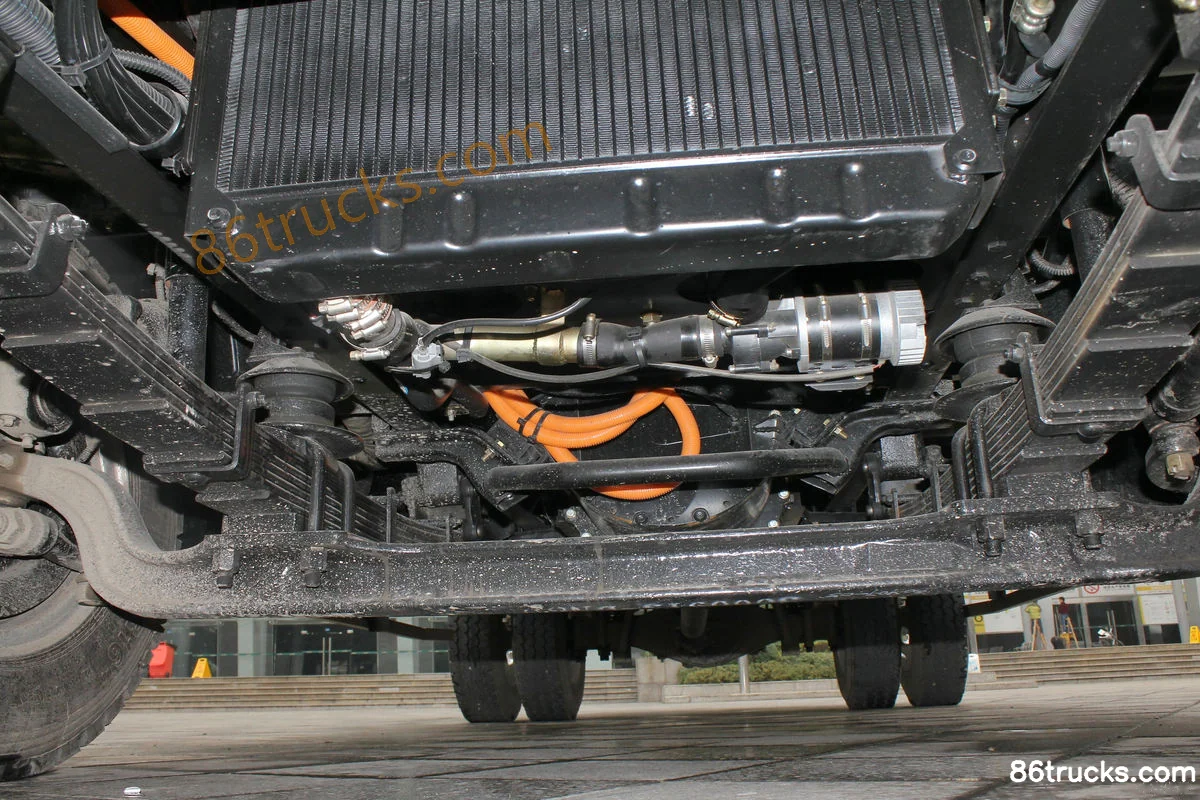

FAW Jiefang Hu VH 68hp 4X2(6 wheels) Electric Barrel Garbage Truck (Yuanda Brand) Chassis (1) | 86Trucks FAW Jiefang Hu VH 68hp 4X2(6 wheels) Electric Barrel Garbage Truck (Yuanda Brand) Chassis (2) | 86Trucks FAW Jiefang Hu VH 68hp 4X2(6 wheels) Electric Barrel Garbage Truck (Yuanda Brand) Chassis (3) | 86Trucks

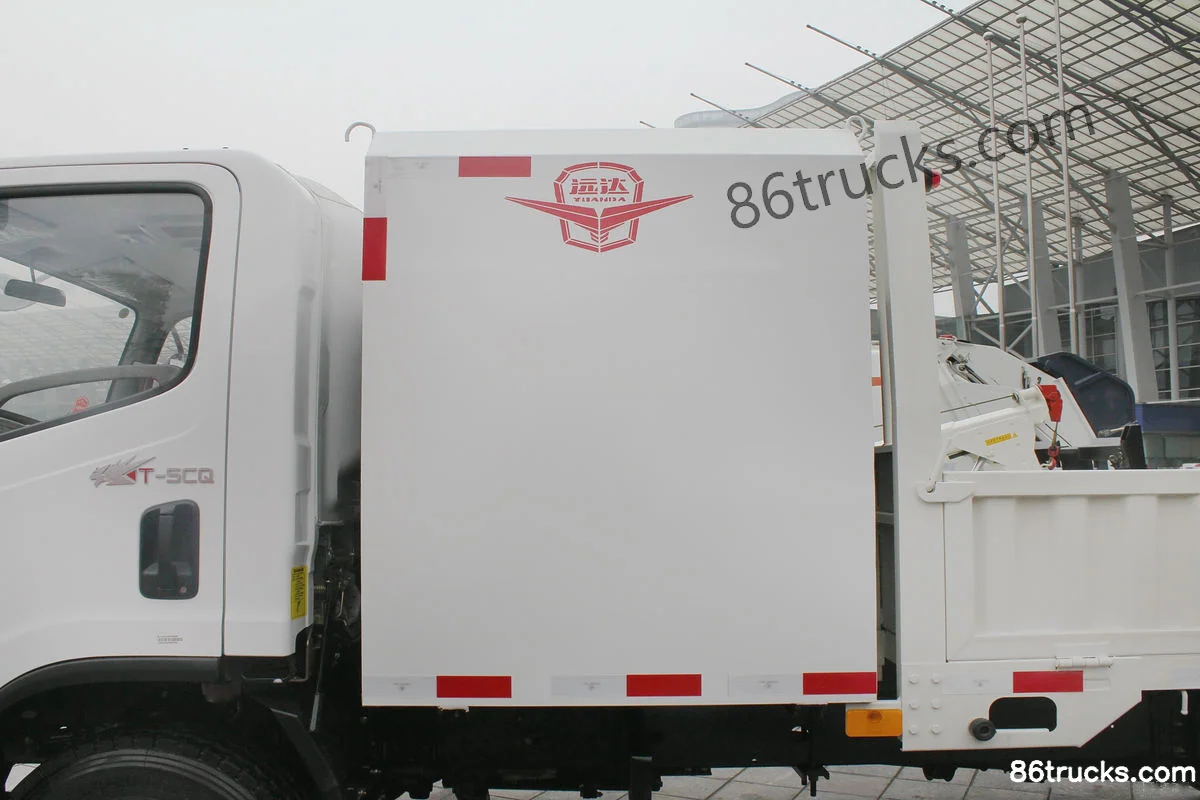

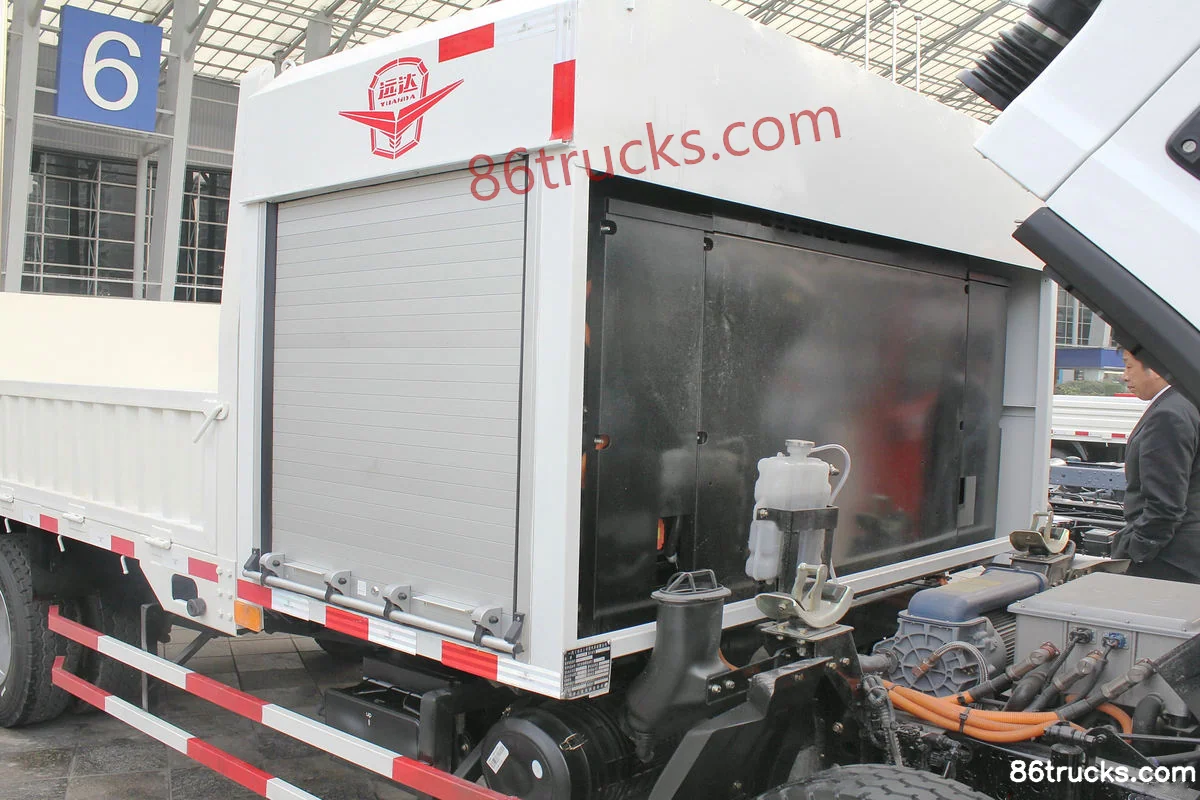

Body3

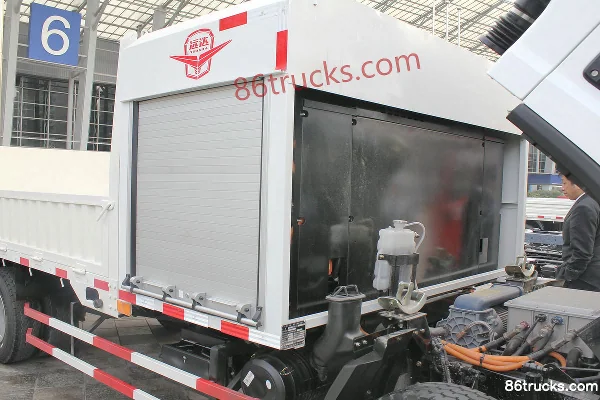

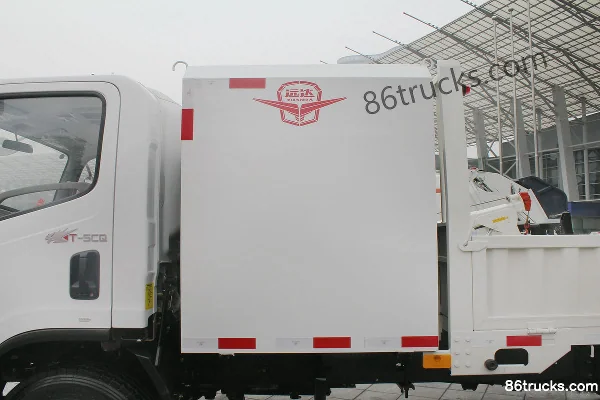

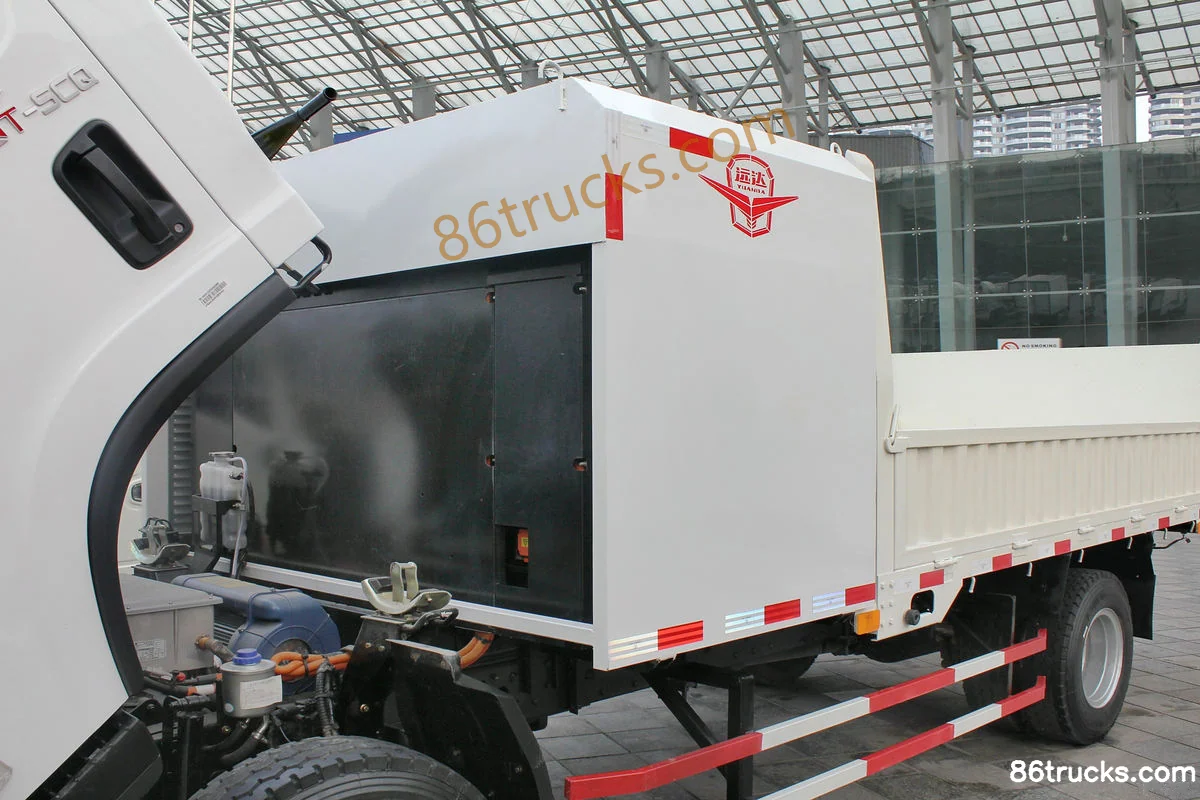

FAW Jiefang Hu VH 68hp 4X2(6 wheels) Electric Barrel Garbage Truck (Yuanda Brand) Body (1) | 86Trucks FAW Jiefang Hu VH 68hp 4X2(6 wheels) Electric Barrel Garbage Truck (Yuanda Brand) Body (2) | 86Trucks FAW Jiefang Hu VH 68hp 4X2(6 wheels) Electric Barrel Garbage Truck (Yuanda Brand) Body (3) | 86Trucks

12 photos

FAQ

What are the key specs of FAW Jiefang Hu VH 68hp 4X2(6 wheels) Electric Barrel Garbage Truck (Yuanda Brand)?

Key specs of FAW Jiefang Hu VH 68hp 4X2(6 wheels) Electric Barrel Garbage Truck (Yuanda Brand): Drive: 4x2; Fuel: Electric. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Hu VH 68hp 4X2(6 wheels) Electric Barrel Garbage Truck (Yuanda Brand) suited for?

FAW Jiefang Hu VH 68hp 4X2(6 wheels) Electric Barrel Garbage Truck (Yuanda Brand) is a garbage truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does FAW Jiefang Hu VH 68hp 4X2(6 wheels) Electric Barrel Garbage Truck (Yuanda Brand) differ from other variants in the same series?

FAW Jiefang Hu VH 68hp 4X2(6 wheels) Electric Barrel Garbage Truck (Yuanda Brand) belongs to FAW Jiefang Hu V Light-duty Truck (garbage truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Hu VH 68hp 4X2(6 wheels) Electric Barrel Garbage Truck (Yuanda Brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Hu VH 68hp 4X2(6 wheels) Electric Barrel Garbage Truck (Yuanda Brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
