Kama Kaijie M1 110hp 4X2(6 wheels) 3.6m Single Row Stake Truck

Export reference
MSRP N/A
Horsepower: 110
Emission: China V
Fuel: Diesel
Curb Weight:: 2.5ton
Wheelbase:: 2800mm
Tire Size:: 6.50-16LT 10PR
Kama Kaijie M1 110hp 4X2(6 wheels) 3.6m Single Row Stake Truck exterior
View more photos (12)
seating capacity: 2Personnel
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The Kama Kaijie M1 110hp 4X2(6 wheels) 3.6m Single Row Stake Truck is a Light Truck featuring 3.6m cargo length, Stake type cargo body, 2Personnel volume and 1.495t payload. Its segment focus covers Agricultural and sideline product transport, matching those duty cycles. On the powertrain side, it comes with 110 hp, 4X2 (6 wheels) drive, China V emissions and Diesel fuel.

China V 110 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): KMC5041CCYA28D5
Type: stake truck
Drive type: 4X2
Wheelbase: 2800mm
Box length class: 3.6m
engine: WeichaiWP2.3Q110E50
transmission: 5-speed transmission
Rear Axle Ratio: 4.875
Cab length: 5.44m
Cab width: 1.92m
Cab height: 2.89m
Front track width: 1495mm
rear track: 1490mm
Curb Weight: 2.5ton
Rated payload: 1.495ton
GVWR: 4.125ton
Max. speed: 95km/h
Origin: Shouguang, Shandong
tonnage class: Light Truck
Approach angle: 20°
departure angle: 18°
market segment: Agricultural and sideline product transport
Front/rear suspension: 1.13/1.15m
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP2.3Q110E50
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.29L
Emission standard: China V
Max output power: 81kW
Max hp: 110Horsepower
Max torque: 280N·m
Max torque speed: 1700-2300rpm
Rated speed: 3200rpm
Engine Type: Common Rail+SCR
Transmission Parameters
Transmission Model: 5-speed transmission
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 3.6m
Cargo box width: 1.85m
*Cargo box interior width: 1.8500000238419
Cab parameters
seating capacity: 2Personnel
Seat rows: Single Row
fuel tank
Fuel tank material: Plastic
Chassis Specs
Front axle allowable load: 1475kg
rear axle description: 130AQDSM
rear axle allowable load: 2650kg
Axle ratio: 4.875
Leaf spring count: 3/5+3
Tire
Tire Size: 6.50-16LT 10PR
Number of tires: 6pcs
Control configuration
ABS:
Exterior features
Air deflector:

Photos

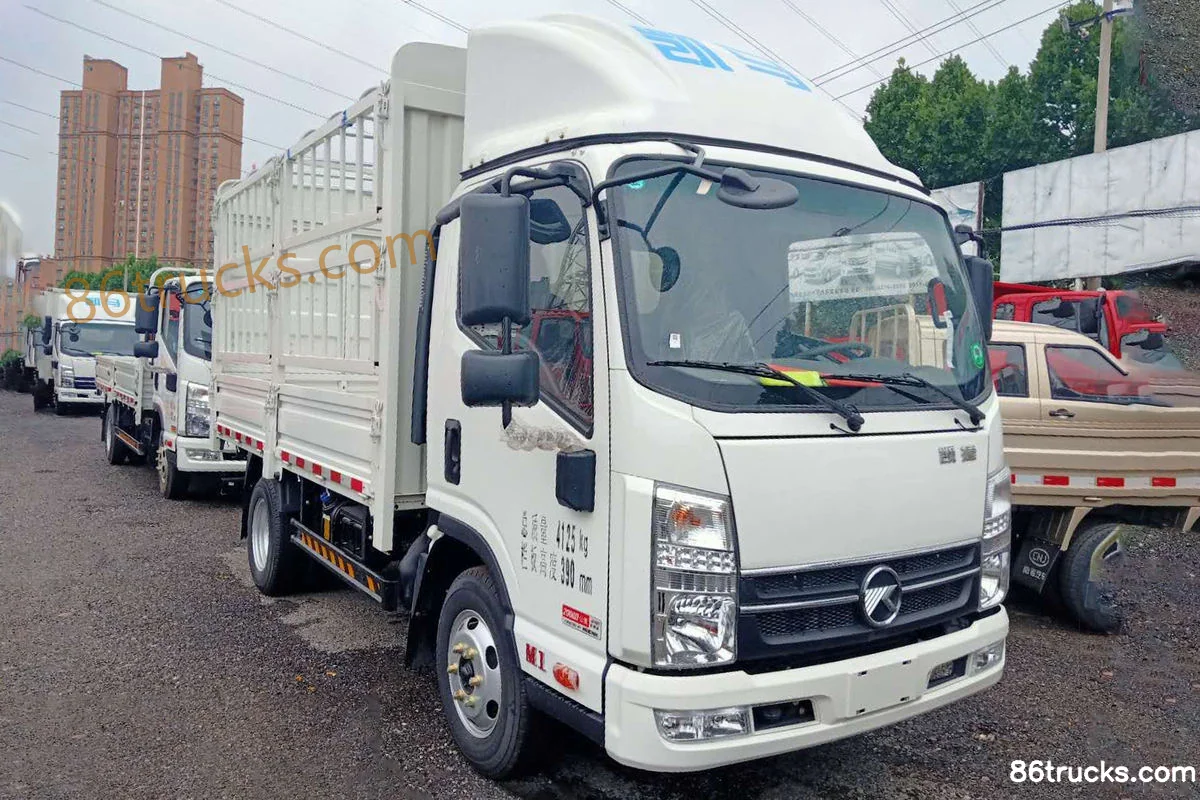

Exterior3

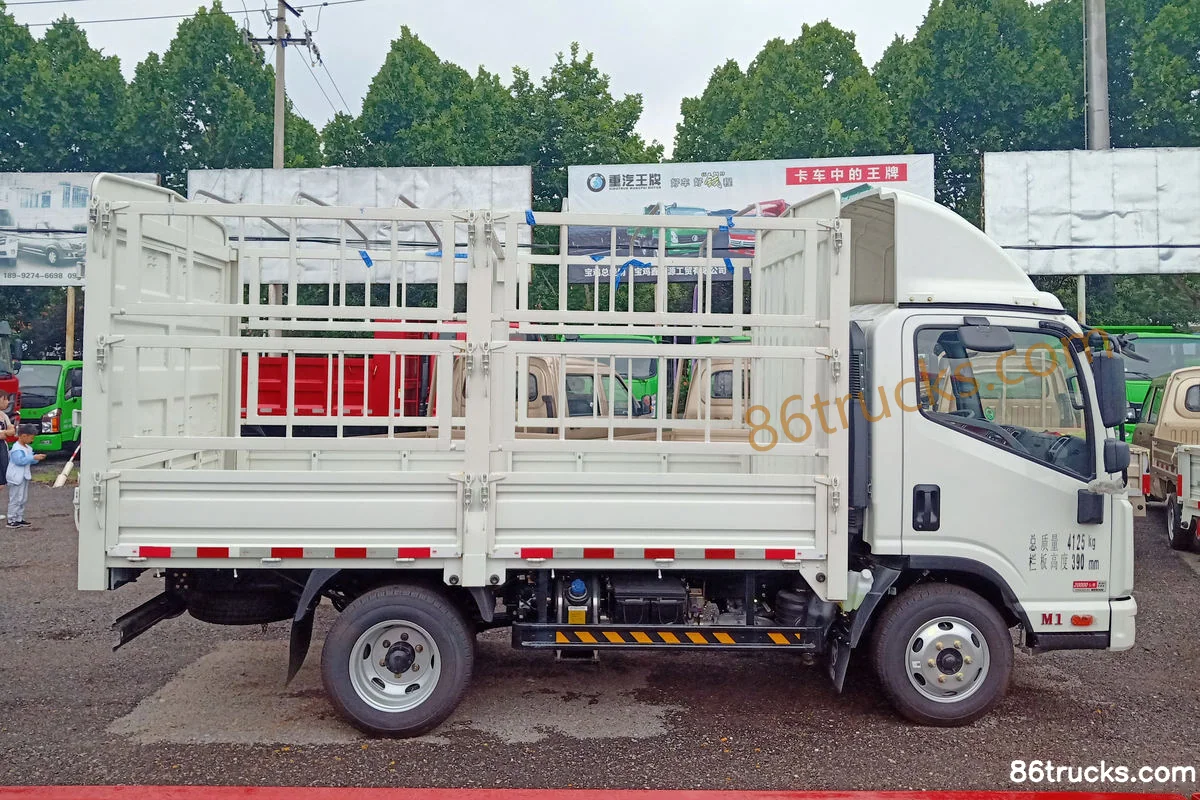

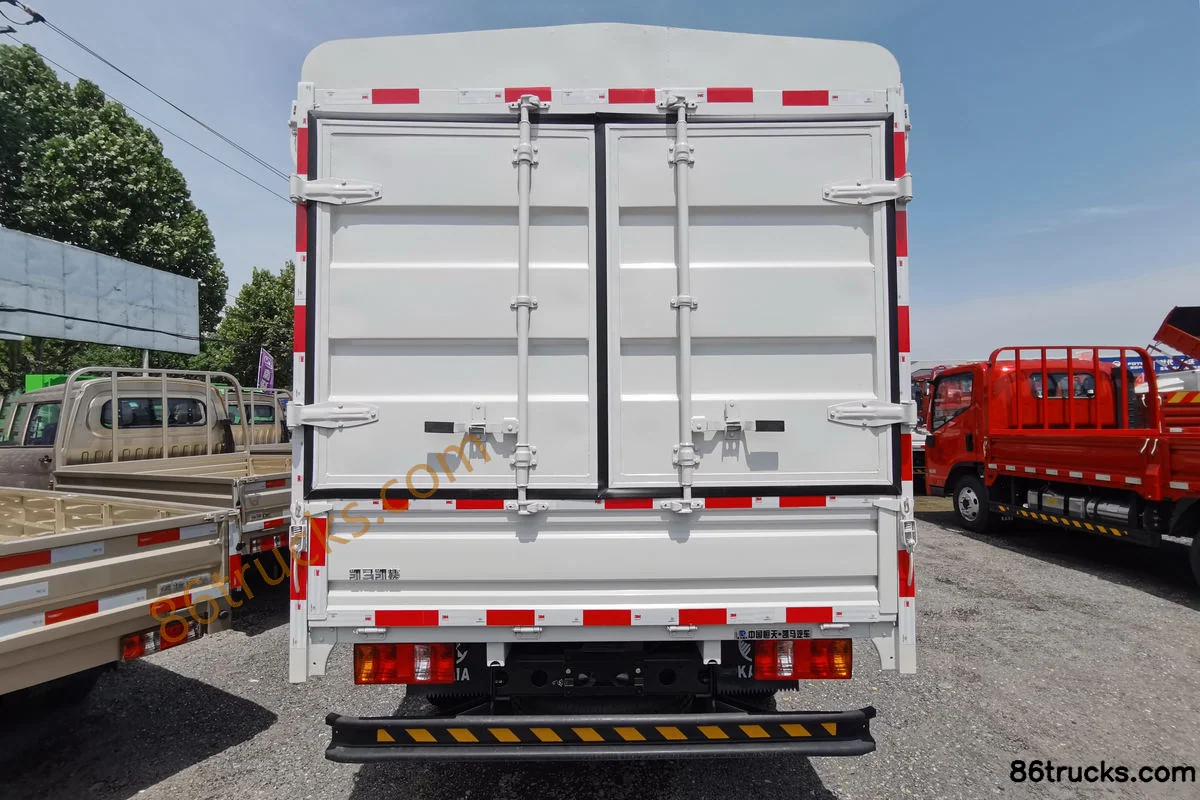

Kama Kaijie M1 110hp 4X2(6 wheels) 3.6m Single Row Stake Truck Exterior (1) | 86Trucks Kama Kaijie M1 110hp 4X2(6 wheels) 3.6m Single Row Stake Truck Exterior (2) | 86Trucks Kama Kaijie M1 110hp 4X2(6 wheels) 3.6m Single Row Stake Truck Exterior (3) | 86Trucks

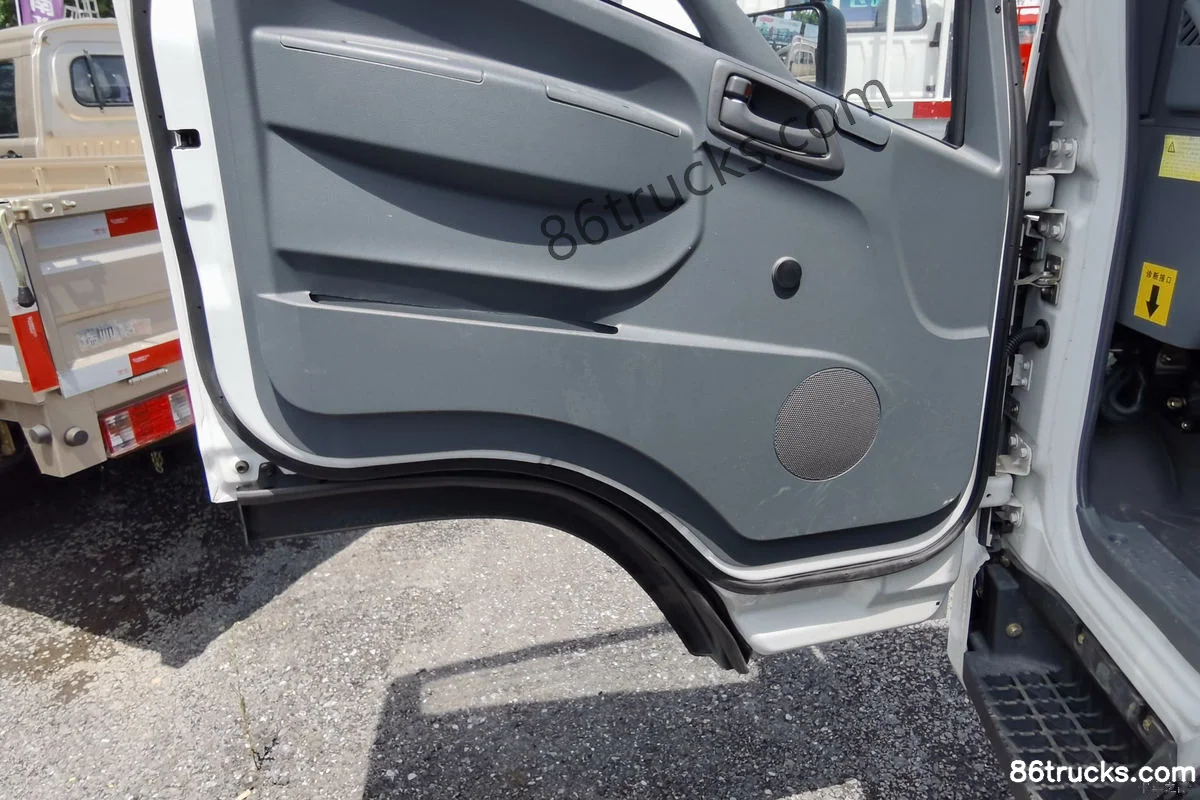

Cab3

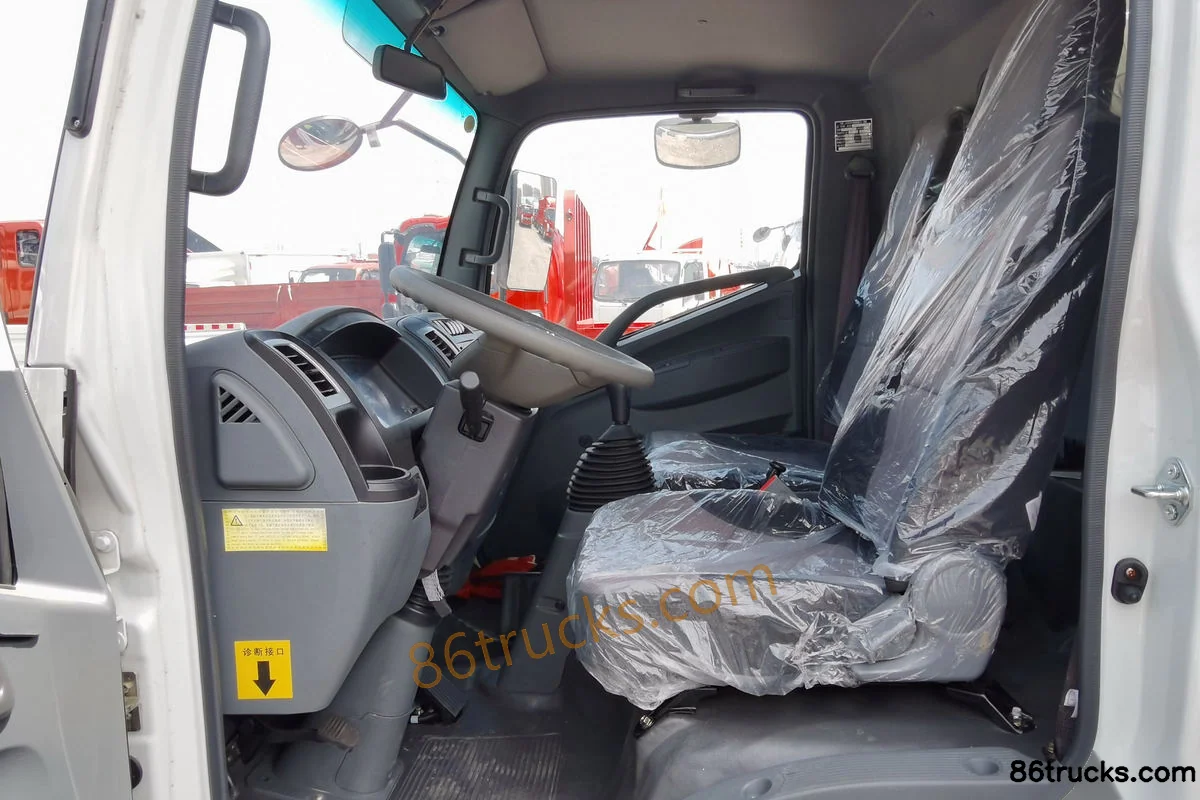

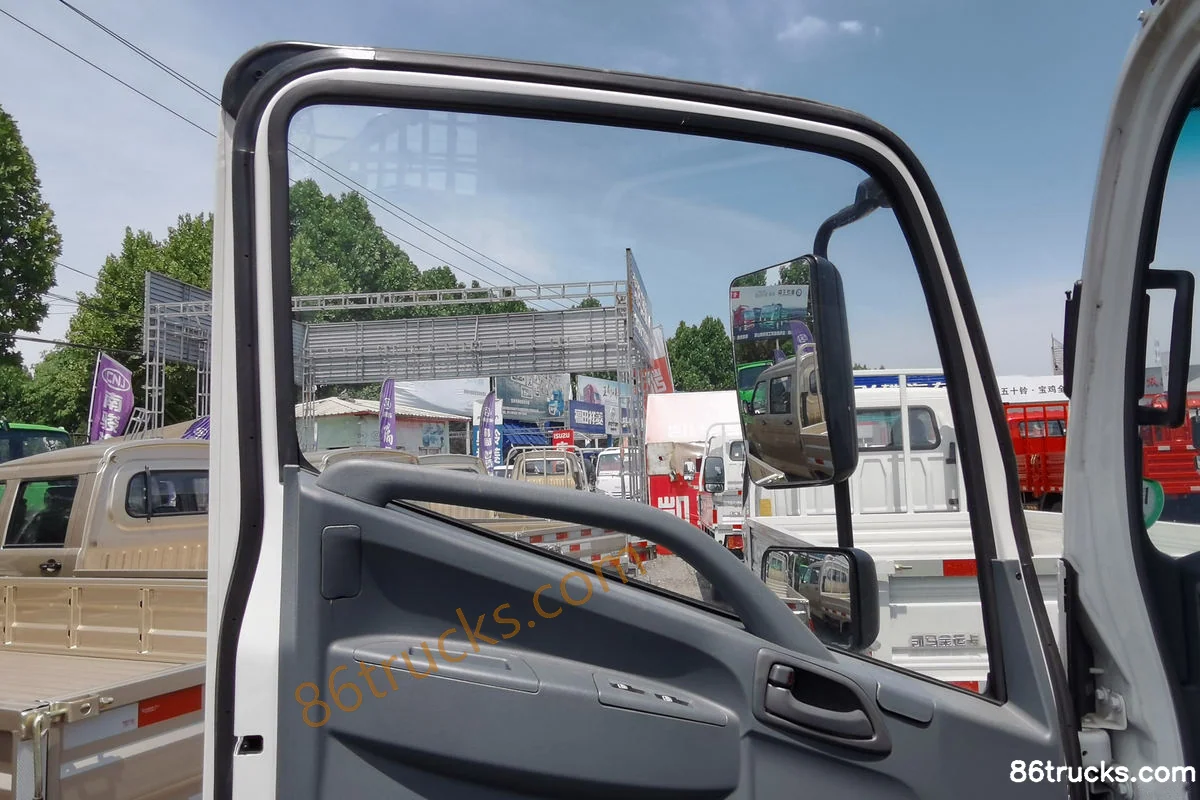

Kama Kaijie M1 110hp 4X2(6 wheels) 3.6m Single Row Stake Truck Cab (1) | 86Trucks Kama Kaijie M1 110hp 4X2(6 wheels) 3.6m Single Row Stake Truck Cab (2) | 86Trucks Kama Kaijie M1 110hp 4X2(6 wheels) 3.6m Single Row Stake Truck Cab (3) | 86Trucks

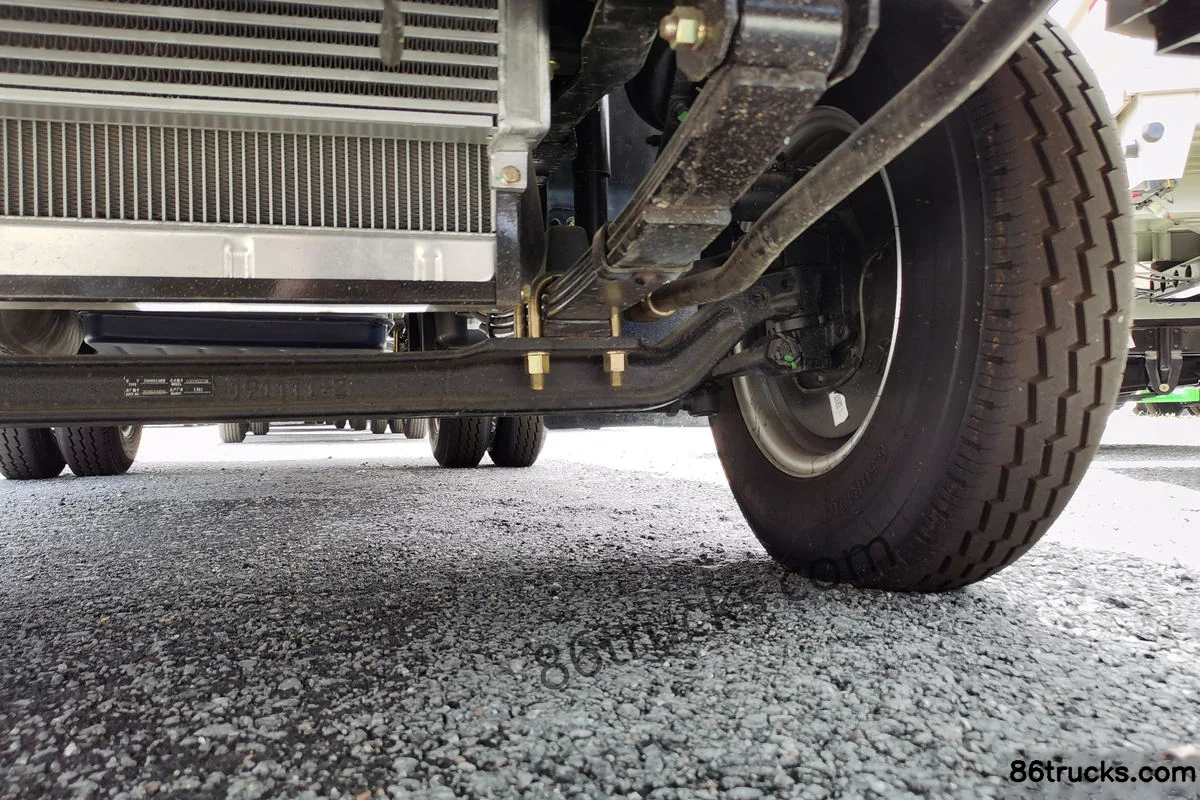

Chassis3

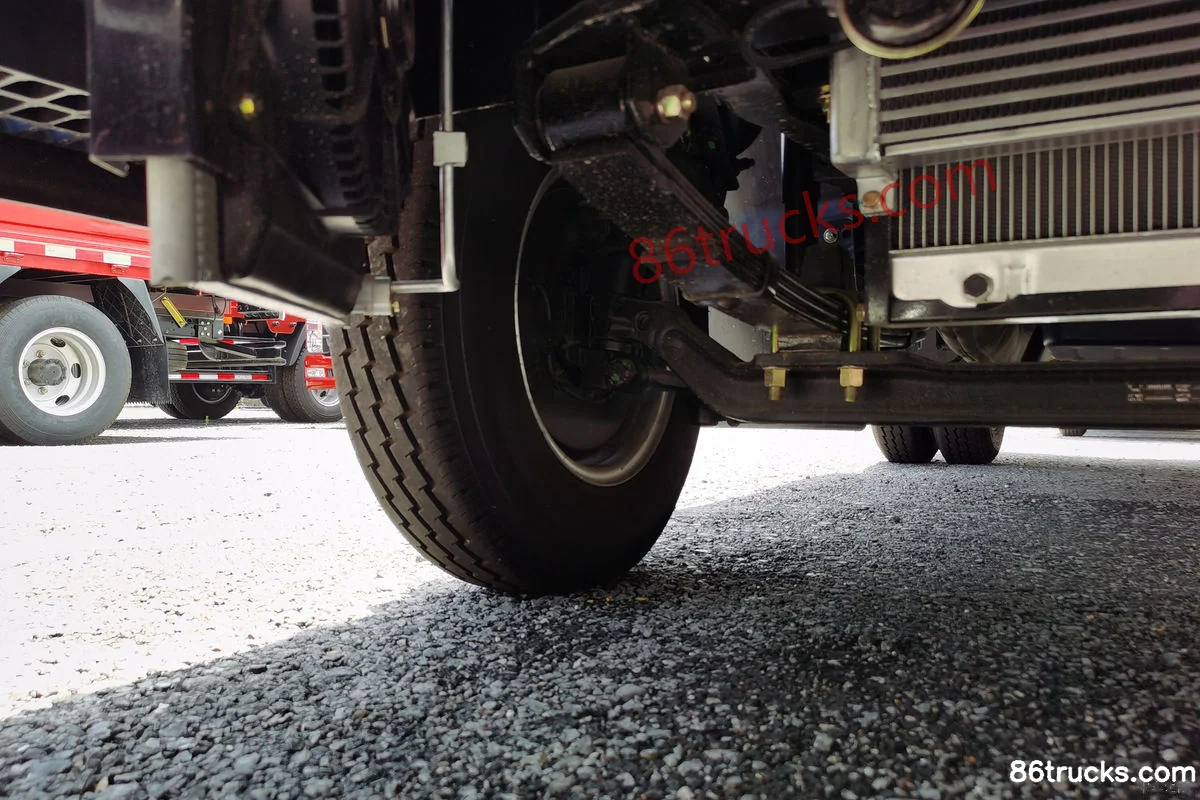

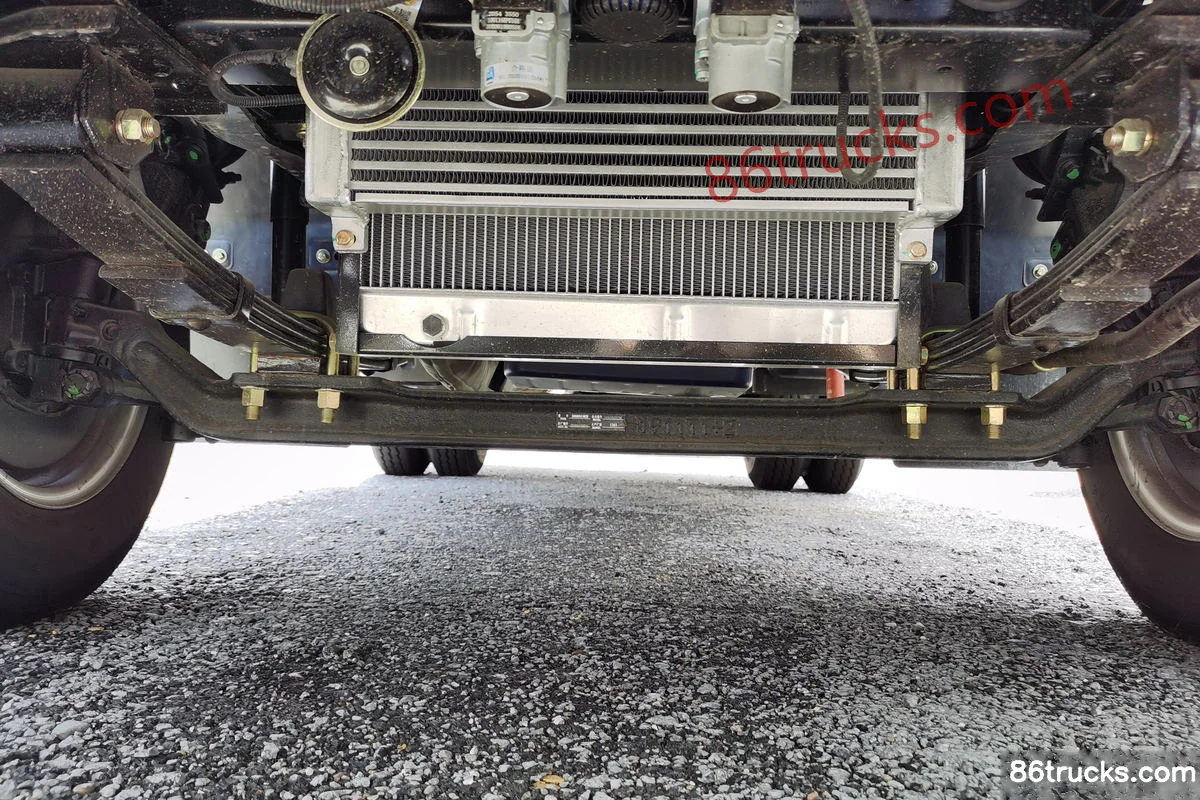

Kama Kaijie M1 110hp 4X2(6 wheels) 3.6m Single Row Stake Truck Chassis (1) | 86Trucks Kama Kaijie M1 110hp 4X2(6 wheels) 3.6m Single Row Stake Truck Chassis (2) | 86Trucks Kama Kaijie M1 110hp 4X2(6 wheels) 3.6m Single Row Stake Truck Chassis (3) | 86Trucks

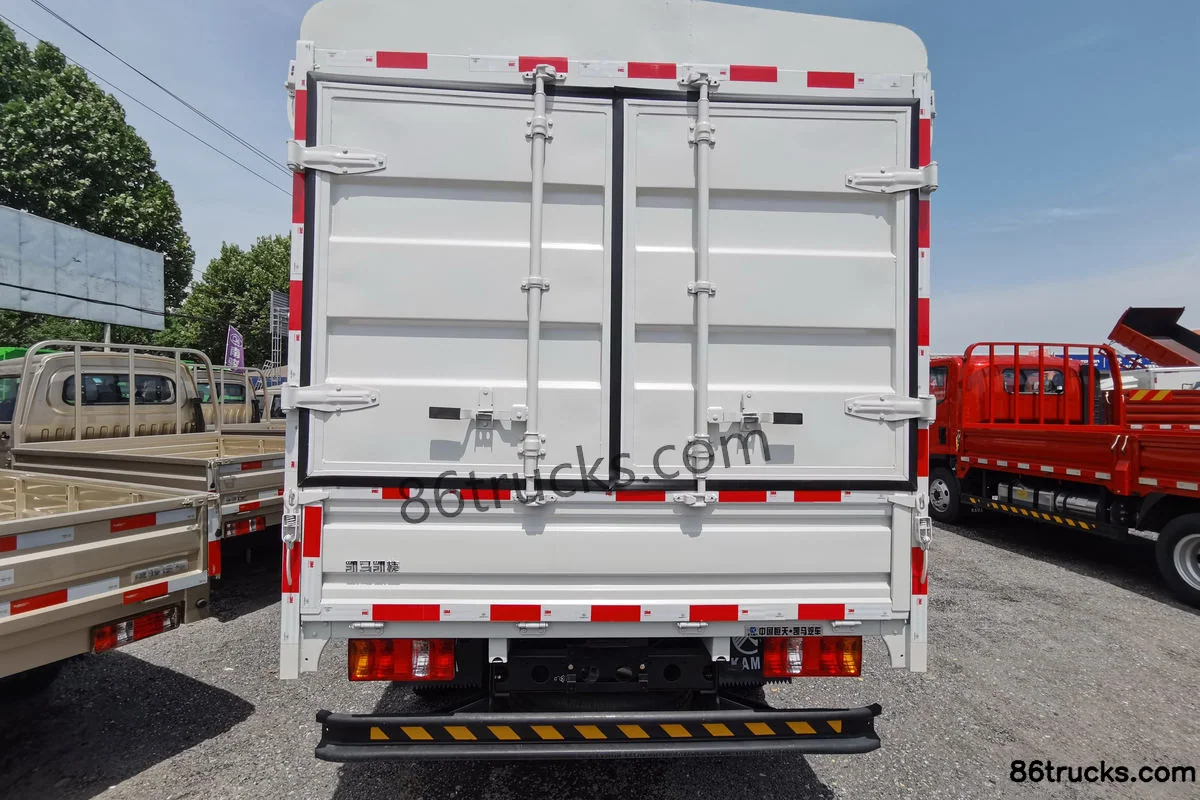

Body3

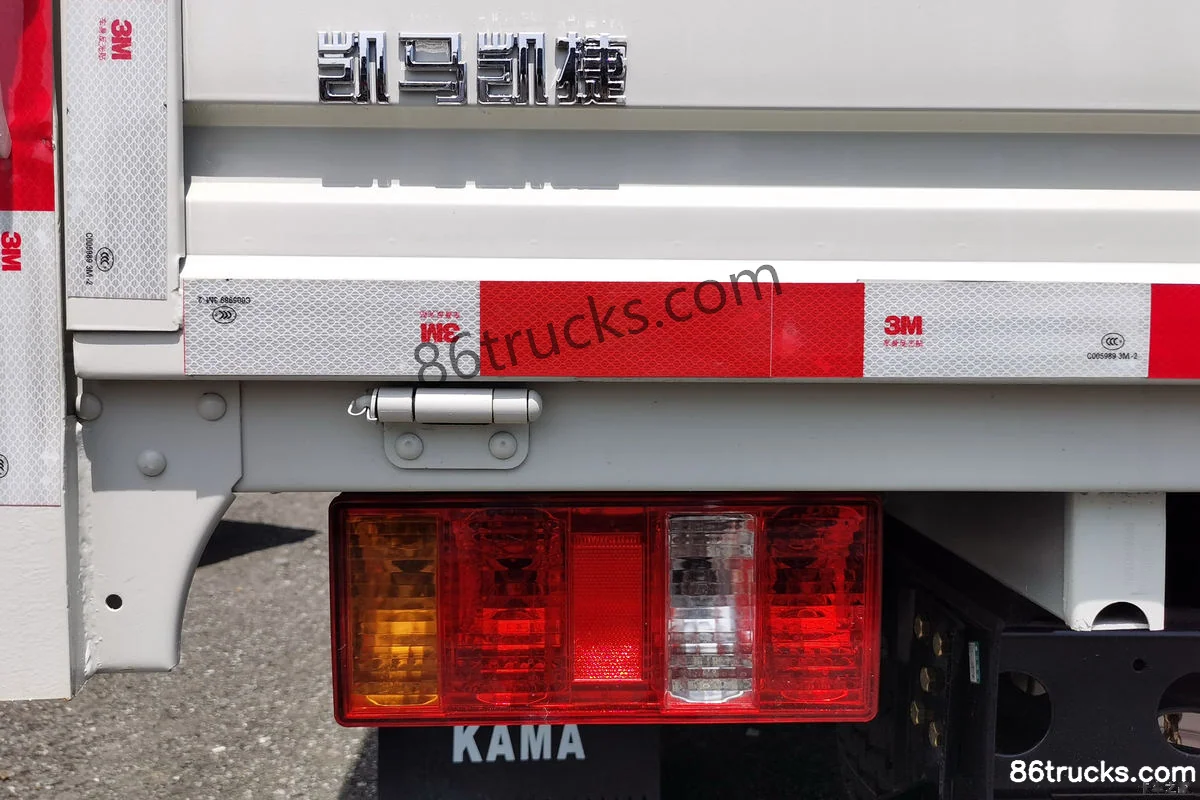

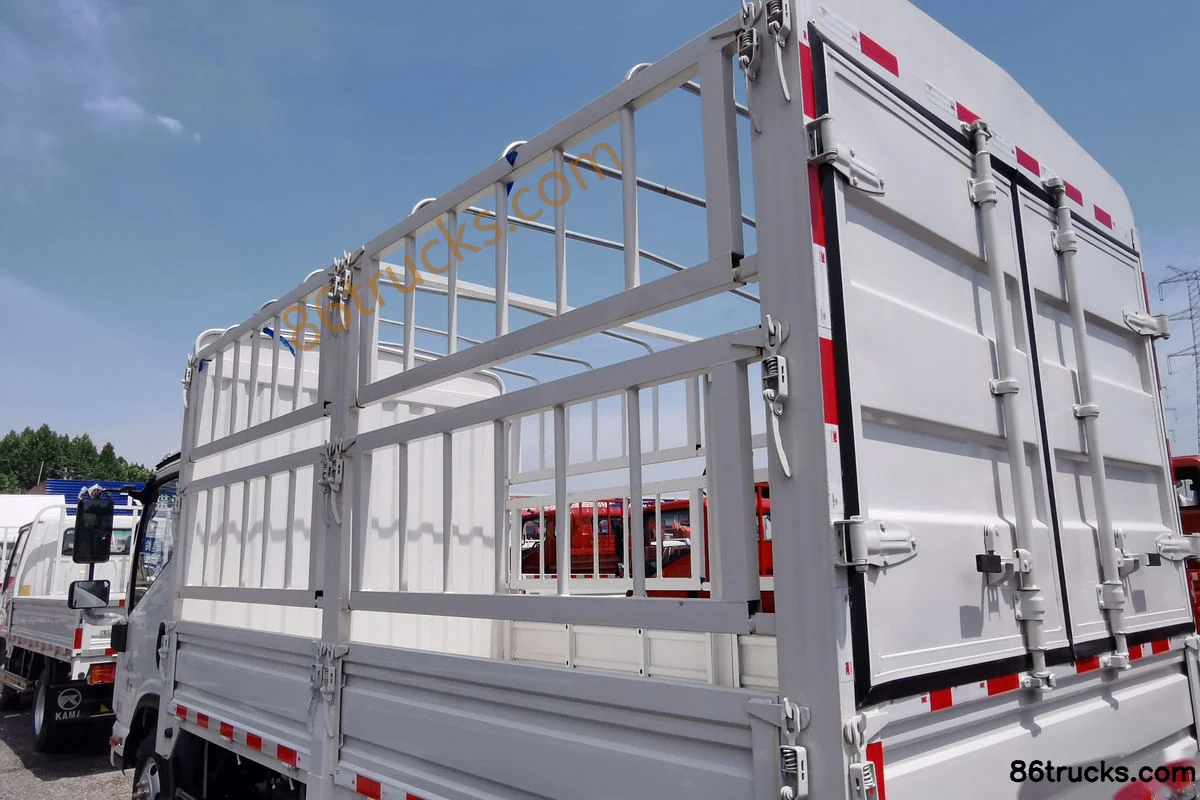

Kama Kaijie M1 110hp 4X2(6 wheels) 3.6m Single Row Stake Truck Body (1) | 86Trucks Kama Kaijie M1 110hp 4X2(6 wheels) 3.6m Single Row Stake Truck Body (2) | 86Trucks Kama Kaijie M1 110hp 4X2(6 wheels) 3.6m Single Row Stake Truck Body (3) | 86Trucks

12 photos

FAQ

What emission standard does Kama Kaijie M1 110hp 4X2(6 wheels) 3.6m Single Row Stake Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Kama Kaijie M1 110hp 4X2(6 wheels) 3.6m Single Row Stake Truck?

Key specs of Kama Kaijie M1 110hp 4X2(6 wheels) 3.6m Single Row Stake Truck: Drive: 4x2; Horsepower: 110 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Kama Kaijie M1 110hp 4X2(6 wheels) 3.6m Single Row Stake Truck suited for?

Kama Kaijie M1 110hp 4X2(6 wheels) 3.6m Single Row Stake Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Kama Kaijie M1 110hp 4X2(6 wheels) 3.6m Single Row Stake Truck differ from other variants in the same series?

Kama Kaijie M1 110hp 4X2(6 wheels) 3.6m Single Row Stake Truck belongs to Kama Kaijie M1 light truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Kama Kaijie M1 110hp 4X2(6 wheels) 3.6m Single Row Stake Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Kama Kaijie M1 110hp 4X2(6 wheels) 3.6m Single Row Stake Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
