NanJun Ruiyi F-series 1.3L 87 hp 4X2(6 wheels) gasoline 2.05m double-row flatbed mini truck

Export reference
MSRP N/A
Horsepower: 87
Emission: China V
Fuel: gasoline
Engine: Liuji gasoline 1.3L
Transmission: Qingshan
Curb Weight:: 1.26ton
seating capacity: 5Personnel
Rated payload: 0.495ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The NanJun Ruiyi F-series 1.3L 87 hp 4X2(6 wheels) gasoline 2.05m double-row flatbed mini truck is a mini truck featuring 2.05m cargo length, stake body cargo body, 5Personnel volume and 0.495t payload. On the powertrain side, it comes with a Liuji gasoline 1.3L engine, 87 hp, 4X2 (6 wheels) drive and China V emissions.

China V 87 gasoline 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): NJA1023SSB34V
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3000mm
Box length class: 2.1m
engine: Wuling LiujiLJ469Q-1AEB
transmission: QingshanMR510D
Cab length: 4.845m
Cab width: 1.66m
Cab height: 2.02m
Front track width: 1410mm
rear track: 1280mm
Curb Weight: 1.26ton
Rated payload: 0.495ton
GVWR: 2.08ton
Max. speed: 120km/h
Origin: Ziyang, Sichuan
tonnage class: mini truck
Approach angle: 35°
departure angle: 23°
Front/rear suspension: 0.61/1.235m
Energy Type: gasoline
Engine parameters
Engine Brand: Wuling Liuji
Engine Model: Wuling LiujiLJ469Q-1AEB
Engine info: Liuji gasoline 1.3L
Number of cylinders: 4cylinder
fuel type: gasoline
Cylinder arrangement: Inline
Displacement: 1.249L
Emission standard: China V
Max output power: 64kW
Max hp: 87Horsepower
Max torque: 105N·m
Max torque speed: 4000rpm
Rated speed: 6000rpm
Engine Type: Naturally aspirated, liquid-cooled, electronic injection, inline
Transmission Parameters
Transmission Model: QingshanMR510D
Transmission Brand: Qingshan
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 2.05m
Cargo box width: 1.53m
Cargo box height: 0.36m
*Cargo box interior width: 1.5299999713898
Cab parameters
seating capacity: 5Personnel
Seat rows: Double cab
Chassis Specs
Front axle allowable load: 1000kg
rear axle allowable load: 1080kg
Leaf spring count: -/5,5/7,5/7+4,5/6,5/5+4,5/6+5
Tire
Tire Size: 175/70R14LT
Tire Type: Radial tire
Number of tires: 4pcs
Control configuration
ABS:

Photos

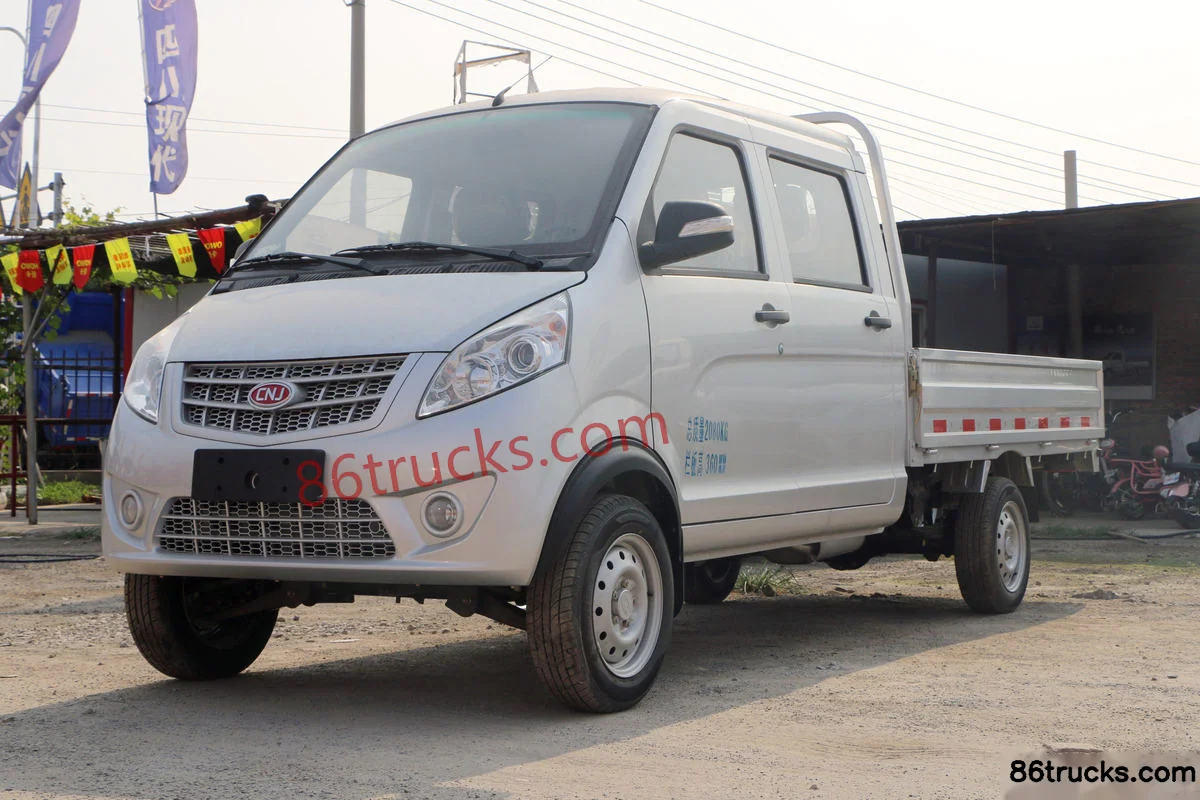

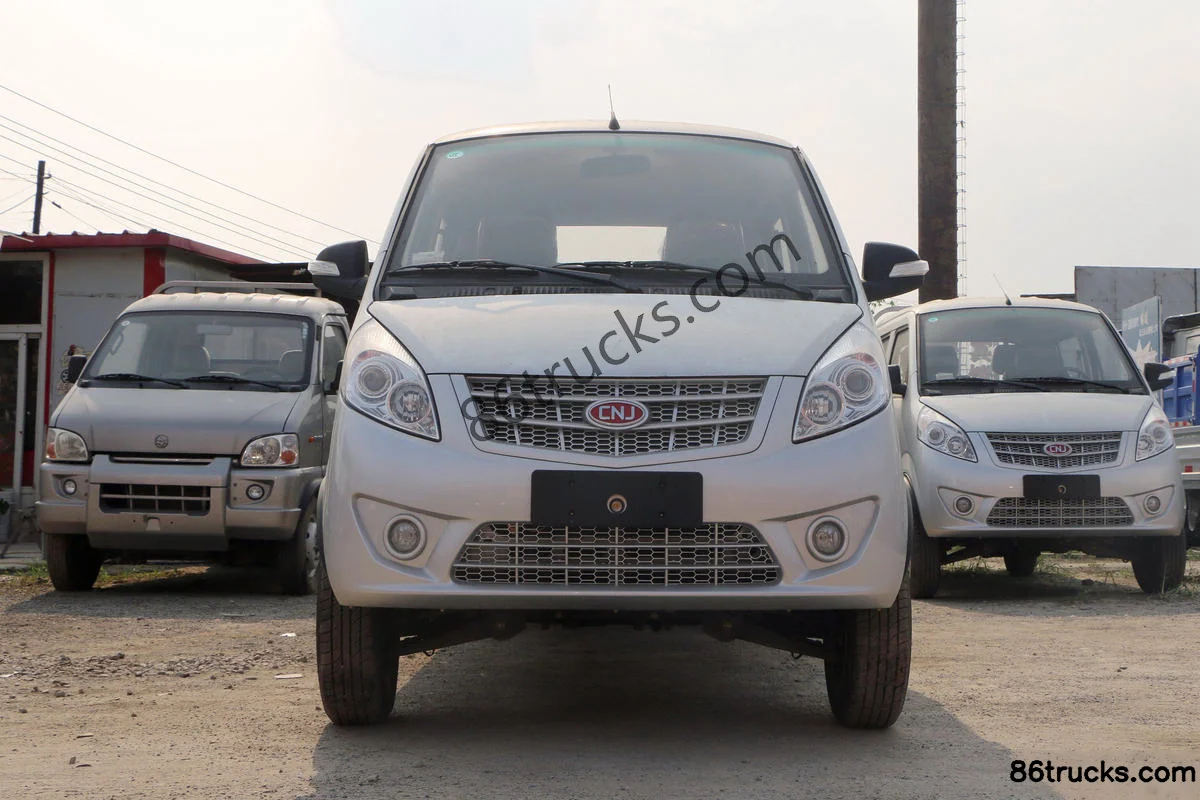

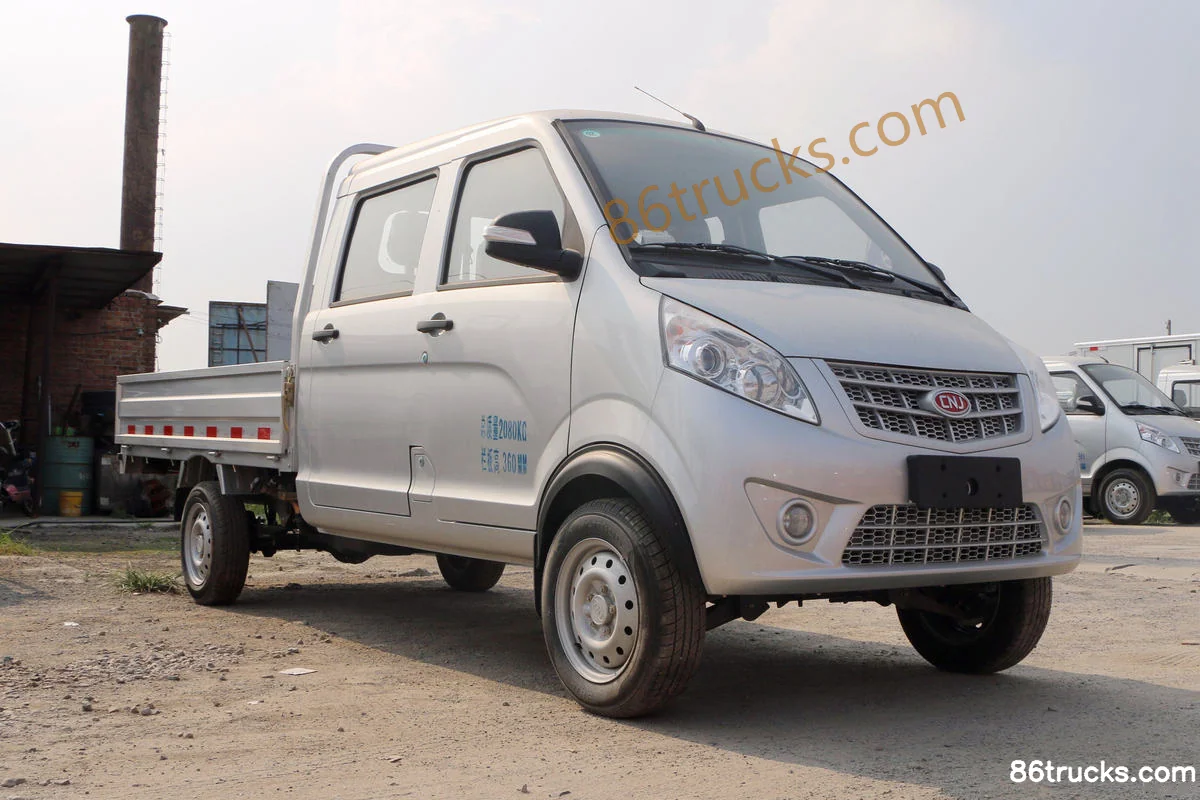

Exterior3

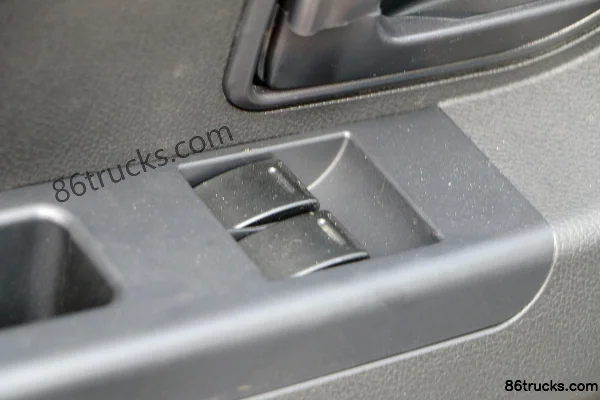

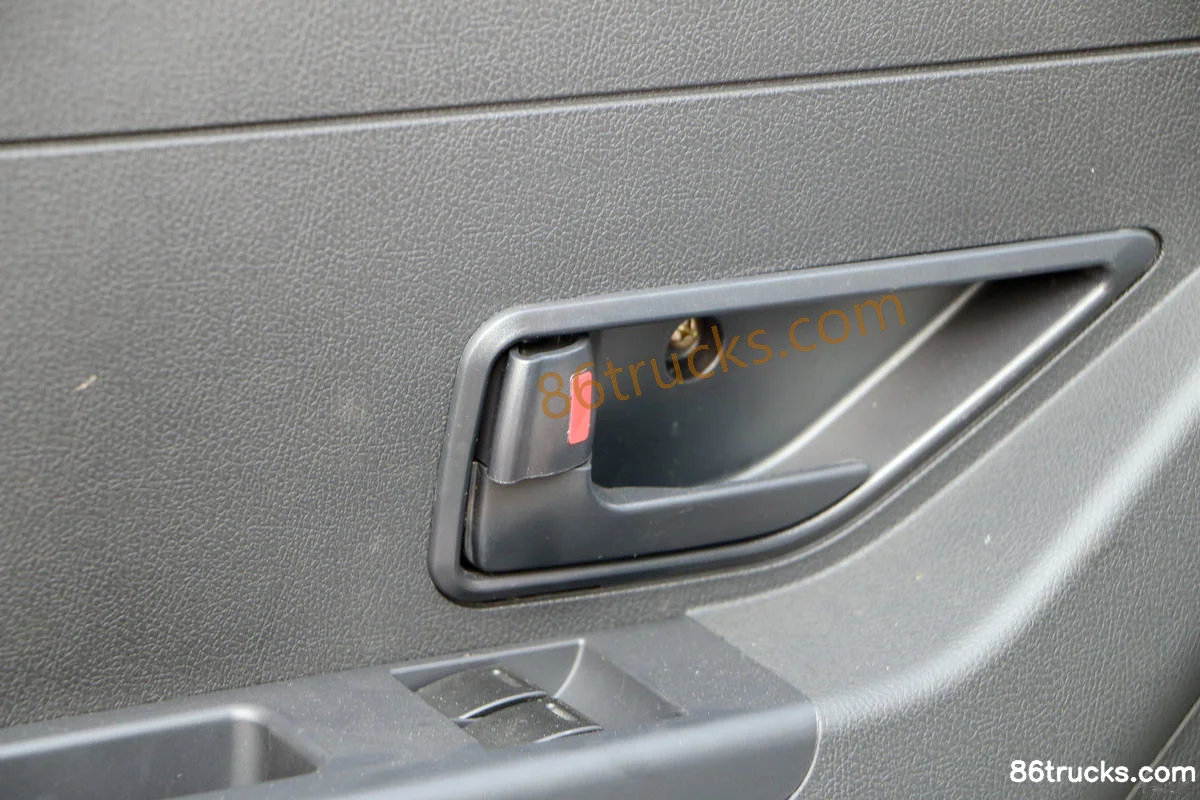

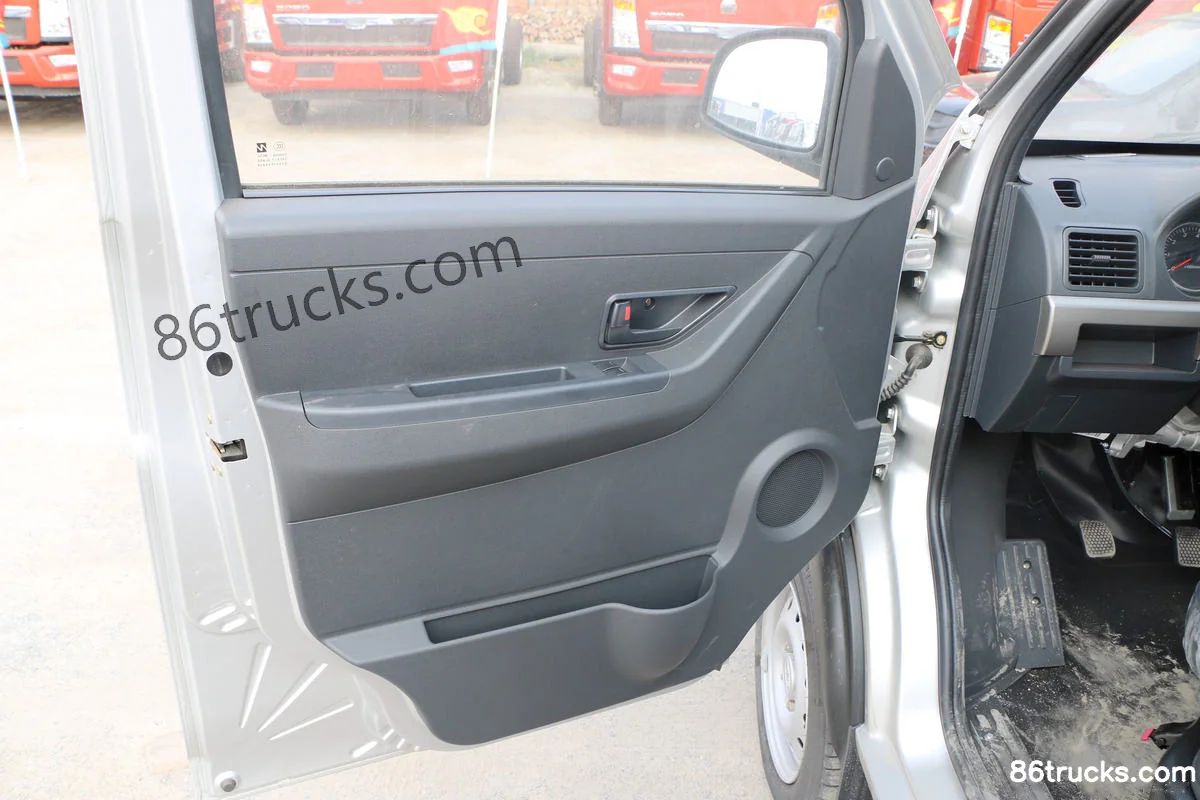

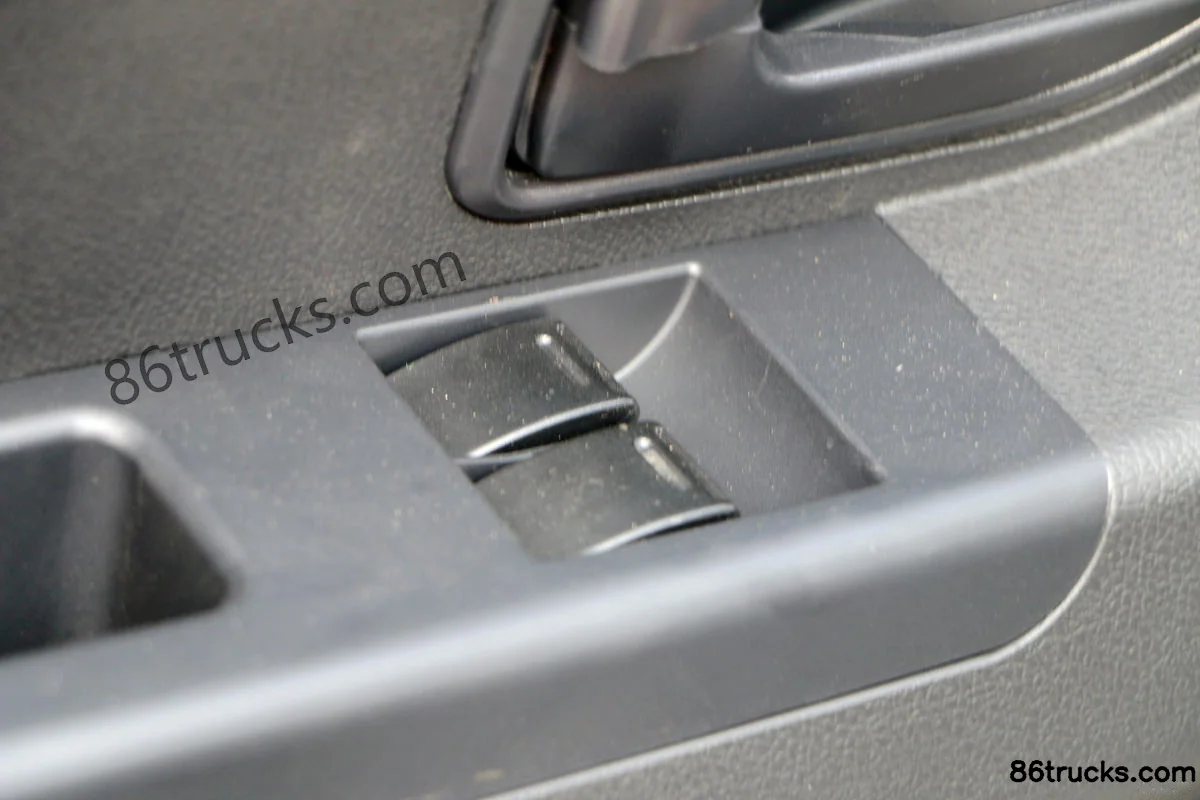

Cab3

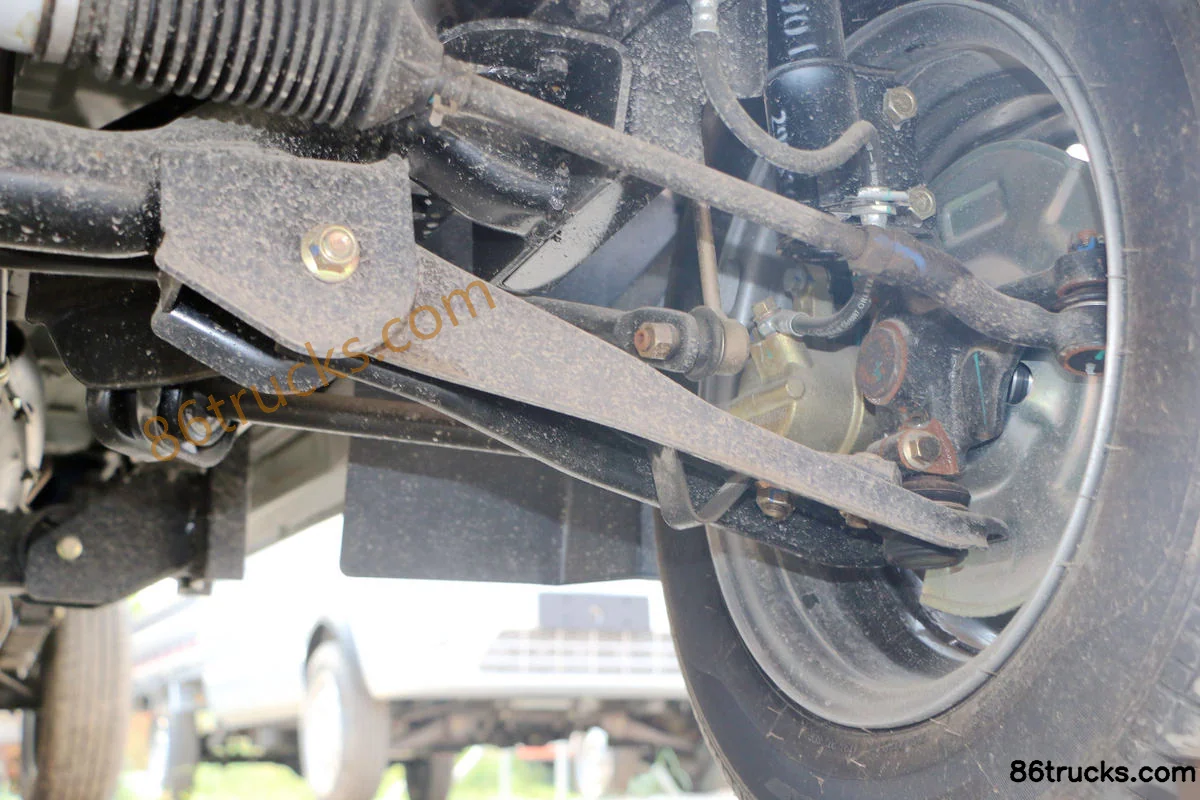

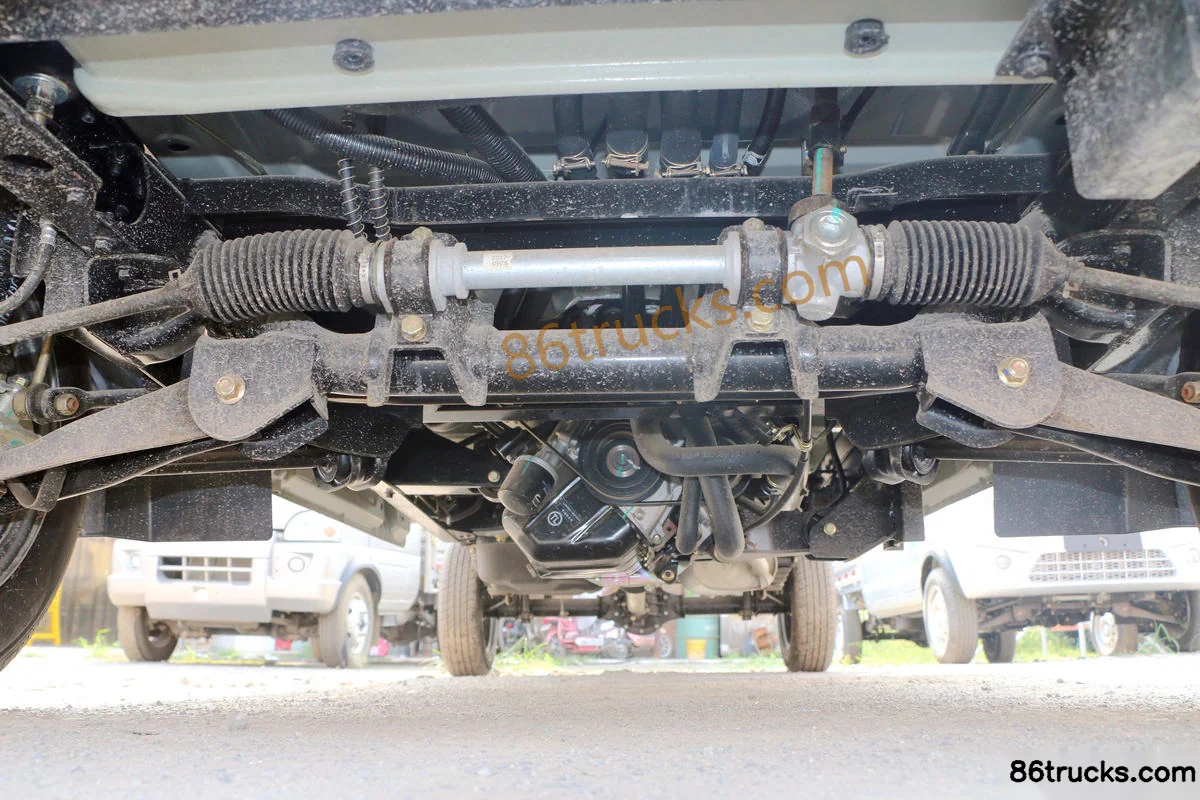

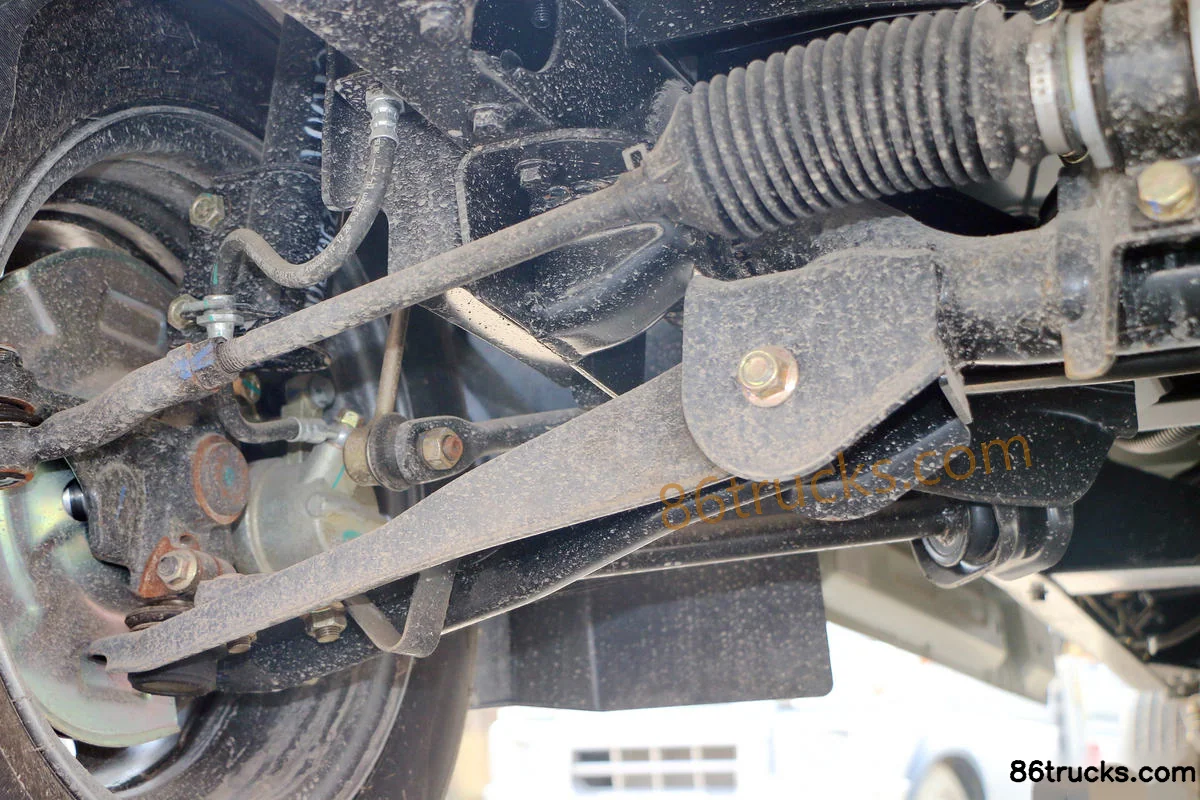

Chassis3

9 photos

FAQ

What emission standard does NanJun Ruiyi F-series 1.3L 87 hp 4X2(6 wheels) gasoline 2.05m double-row flatbed mini truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of NanJun Ruiyi F-series 1.3L 87 hp 4X2(6 wheels) gasoline 2.05m double-row flatbed mini truck?

Key specs of NanJun Ruiyi F-series 1.3L 87 hp 4X2(6 wheels) gasoline 2.05m double-row flatbed mini truck: Drive: 4x2; Horsepower: 87 hp; Emission: China V; Fuel: gasoline; Engine: Liuji gasoline 1.3L; Transmission: Qingshan. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is NanJun Ruiyi F-series 1.3L 87 hp 4X2(6 wheels) gasoline 2.05m double-row flatbed mini truck suited for?

NanJun Ruiyi F-series 1.3L 87 hp 4X2(6 wheels) gasoline 2.05m double-row flatbed mini truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does NanJun Ruiyi F-series 1.3L 87 hp 4X2(6 wheels) gasoline 2.05m double-row flatbed mini truck differ from other variants in the same series?

NanJun Ruiyi F-series 1.3L 87 hp 4X2(6 wheels) gasoline 2.05m double-row flatbed mini truck belongs to NanJun Ruiyi F-Series Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for NanJun Ruiyi F-series 1.3L 87 hp 4X2(6 wheels) gasoline 2.05m double-row flatbed mini truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export NanJun Ruiyi F-series 1.3L 87 hp 4X2(6 wheels) gasoline 2.05m double-row flatbed mini truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
