SHACMAN Cummins Delong X3000 345 hp 8X4(12 wheels) 9.5m Stake Cargo Truck

Export reference
MSRP N/A
Horsepower: 345
Emission: China IV
Fuel: Diesel
Engine: Xikang 11L
Transmission: Fast Gear
Curb Weight:: 12.8ton
seating capacity: 2Personnel
Rated payload: 18.07ton
Drive 8X4 (12 wheels)
Cargo box type: Stake type

Overview

The SHACMAN Cummins Delong X3000 345 hp 8X4(12 wheels) 9.5m Stake Cargo Truck is a Heavy-duty cargo trucks featuring 9.5m cargo length, Stake type cargo body, 2Personnel volume and 18.07t payload. Its segment focus covers Construction material transport, agricultural byproduct transport and energy minerals, matching those duty cycles. On the powertrain side, it comes with a Xikang 11L engine, 345 hp, 8X4 (12 wheels) drive and China IV emissions.

China IV 345 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info

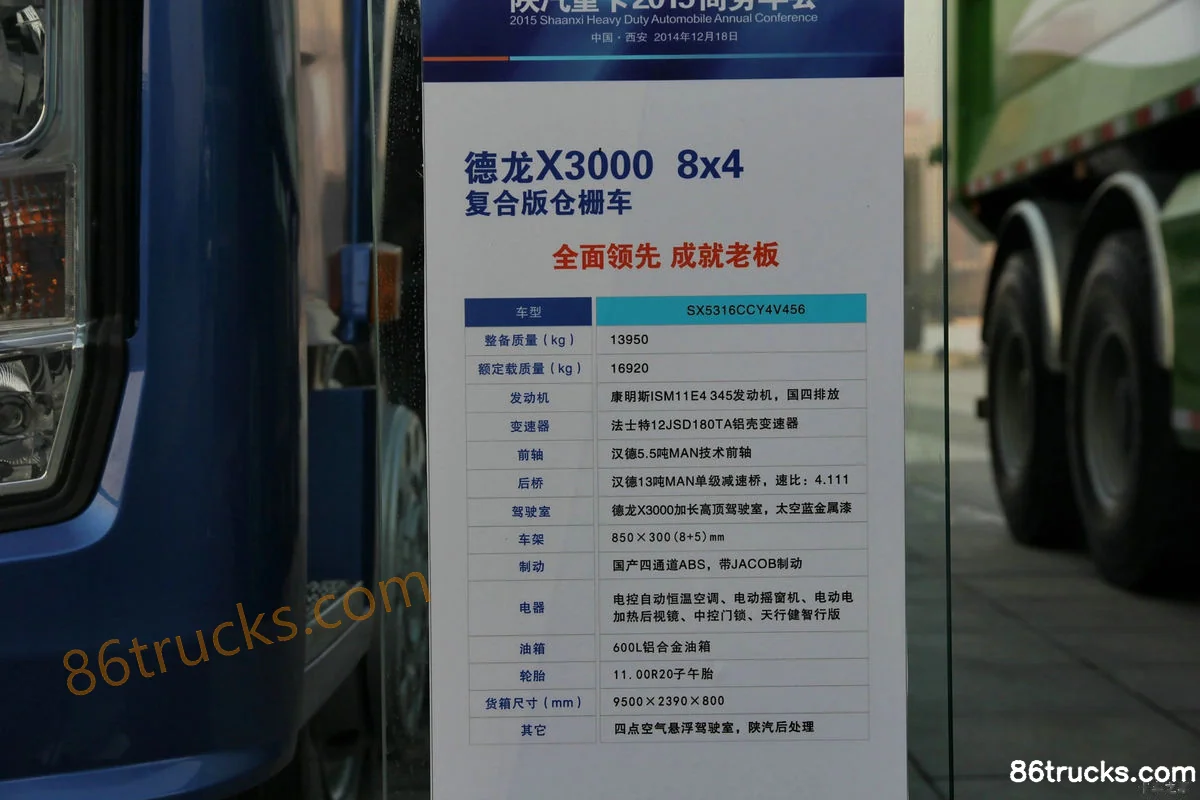

Model code (announced): SX5316CCY4V456
Type: stake truck
Drive type: 8X4
Wheelbase: 1800+4575+1400mm
Box length class: 9.5m
engine: Xi’an CumminsISM11E4 345
transmission: Fast Gear12JSD180TA
Rear Axle Ratio: 4.111
Cab length: 12m
Cab width: 2.49m
Cab height: 3.65m
Front track width: 2011/2011mm
rear track: 1860/1860mm
Curb Weight: 12.8ton
Rated payload: 18.07ton
GVWR: 31ton
Max. speed: 91km/h
Origin: Xi'an, Shaanxi
tonnage class: Heavy-duty cargo trucks
Approach angle: 18°
departure angle: 12°
market segment: Construction material transport, agricultural byproduct transport, energy minerals
Remarks: Frame (mm): 850x300 (8+5)
Front/rear suspension: 1.525/2.7m
Energy Type: Diesel
Engine parameters
Engine Brand: Xi’an Cummins
Engine Model: Xi’an CumminsISM11E4 345
Engine info: Xikang 11L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 10.8L
Emission standard: China IV
Max output power: 254kW
Max hp: 345Horsepower
Max torque: 1699N·m
Max torque speed: 1200rpm
Rated speed: 1900rpm
Engine Type: Turbocharged Intercooled (Turbo), Direct Injection, Electronic Control
Transmission Parameters
Transmission Model: Fast Gear12JSD180TA
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs

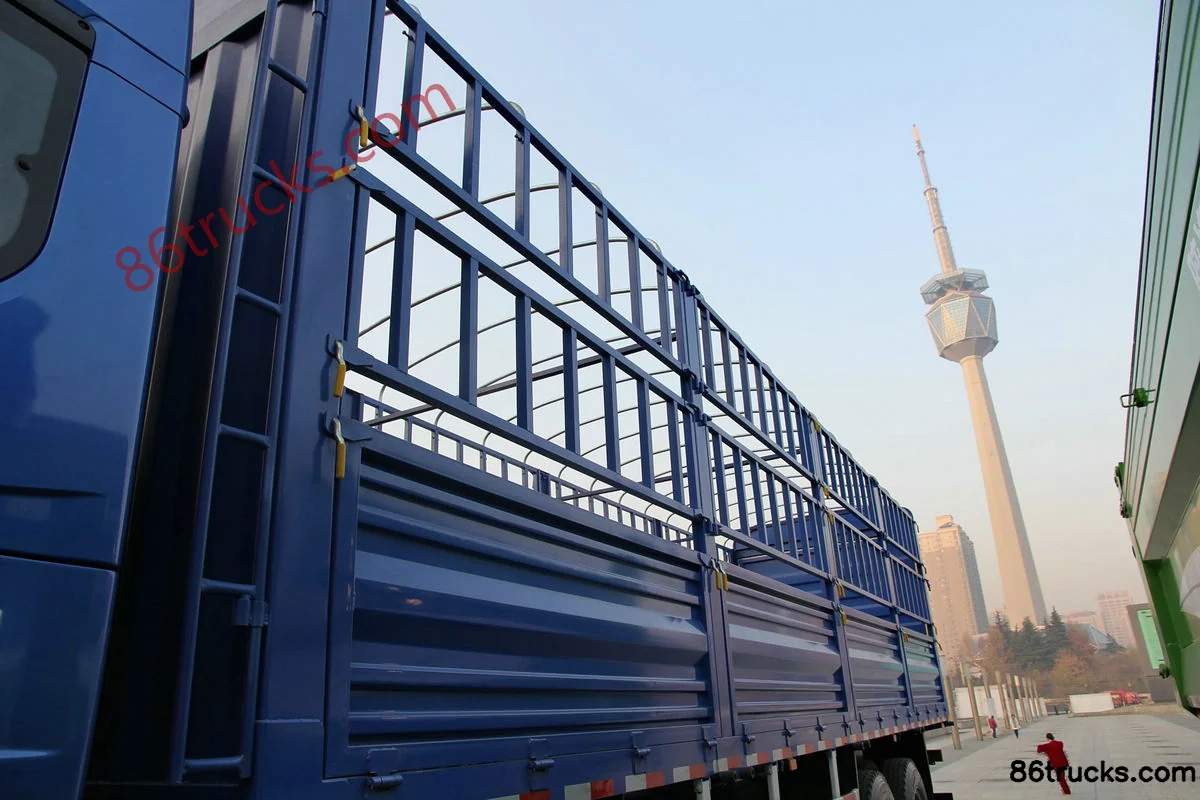

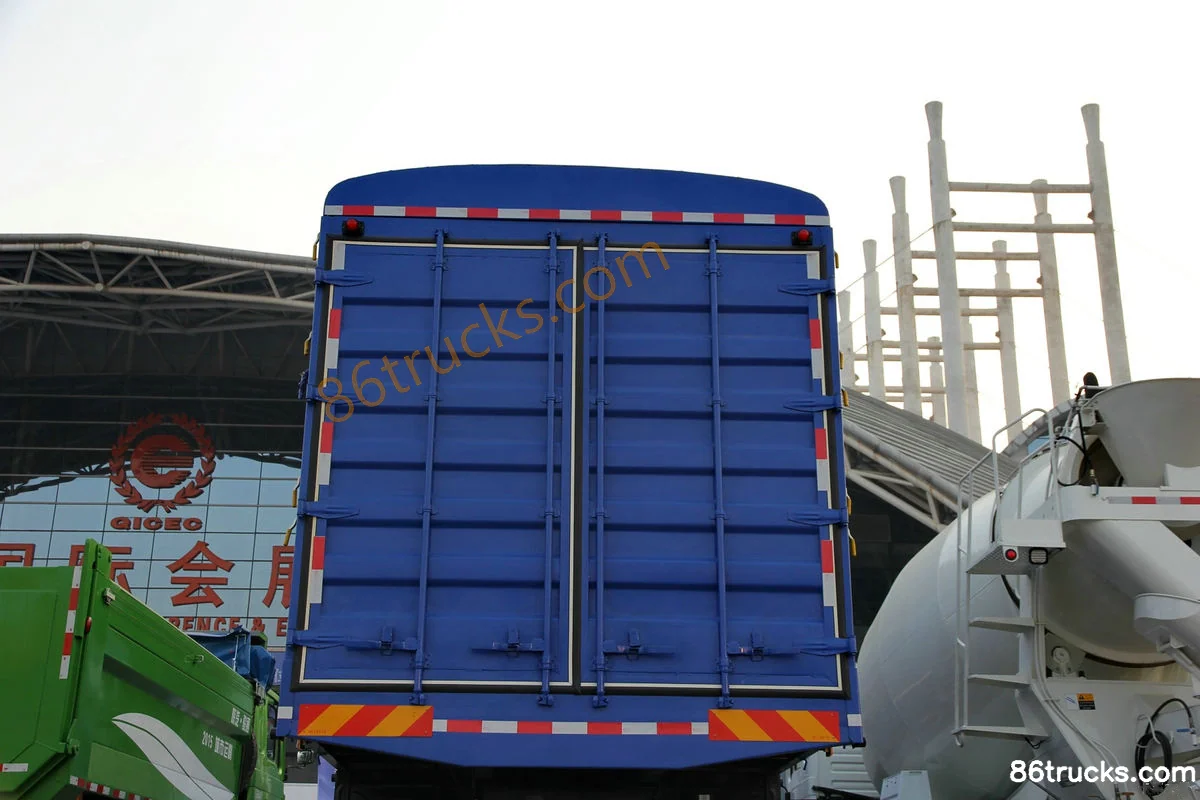

Cargo box parameters
Cargo box type: Stake type
Cargo box length: 9.5m
Cargo box width: 2.39m
Cargo box height: 0.8m
*Cargo box interior width: 2.3900001049042
Cab parameters
Cab: High roof
seating capacity: 2Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 600L
Chassis Specs
Front axle description: Hande 5.5t MAN technology front axle
Front axle allowable load: 6500/6500kg
rear axle description: Hande 13-ton MAN single reduction axle
rear axle allowable load: 18000 (twin axle)kg
Axle ratio: 4.111
Leaf spring count: Left 14 Right 13/Left 14 Right 13/12
Tire
Tire Size: 11.00R20
Number of tires: 12pcs
Control configuration
ABS:

Photos

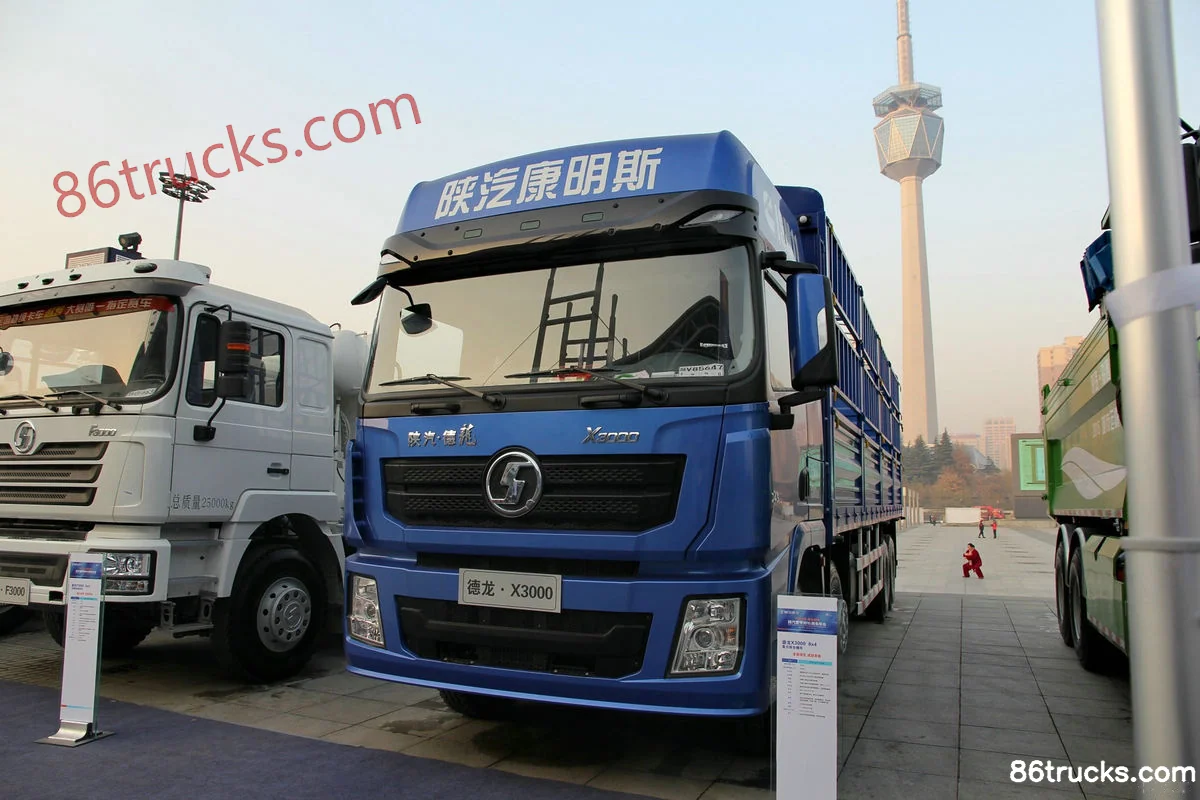

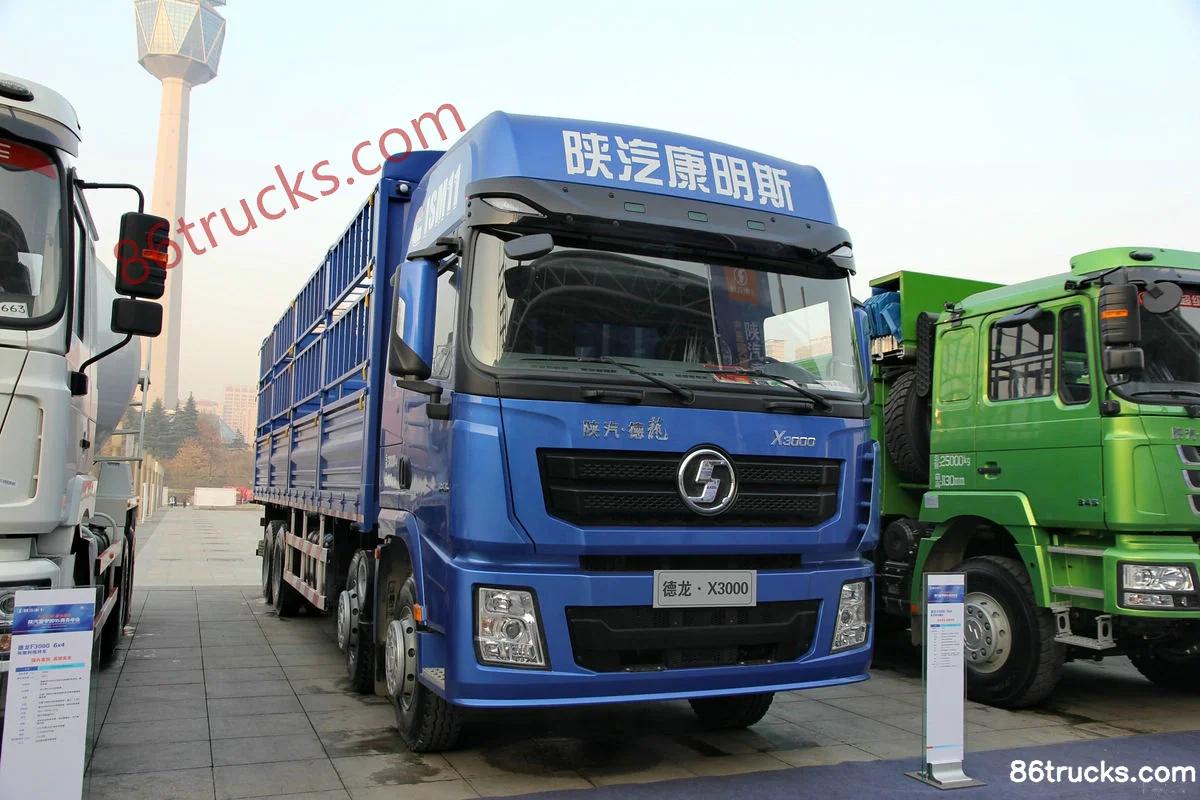

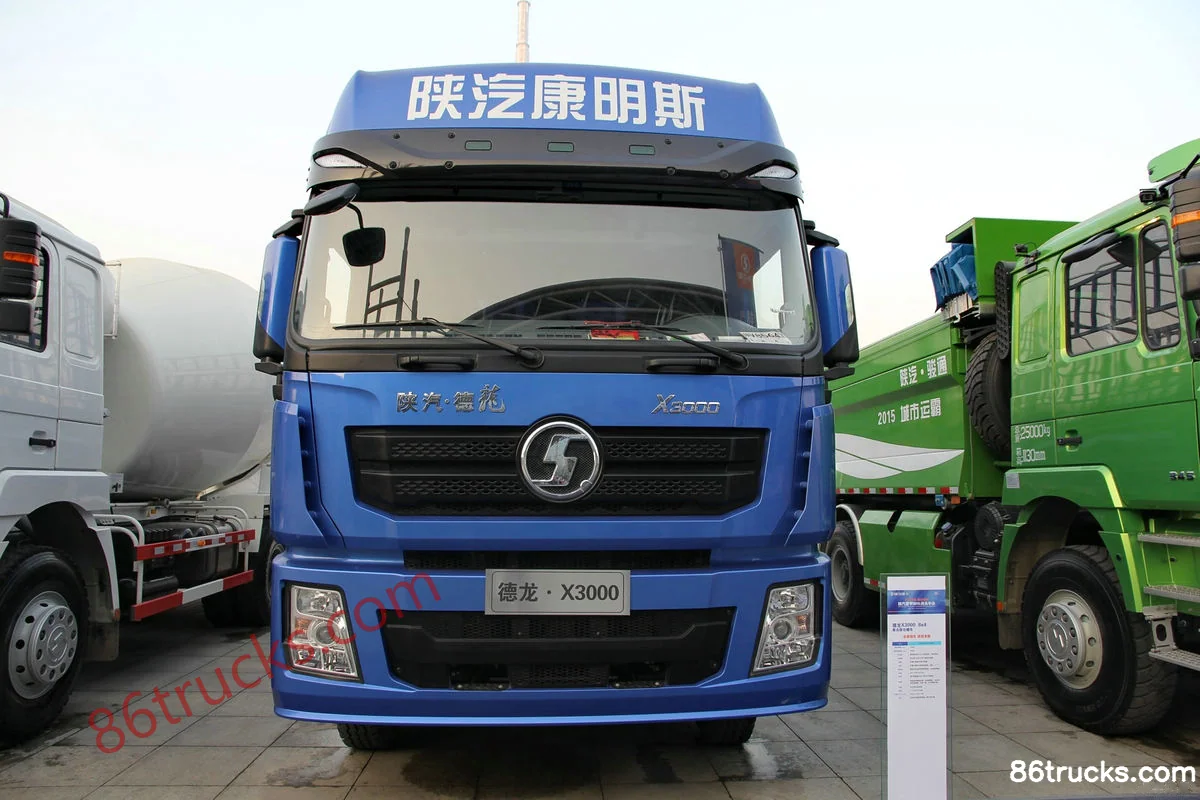

Exterior3

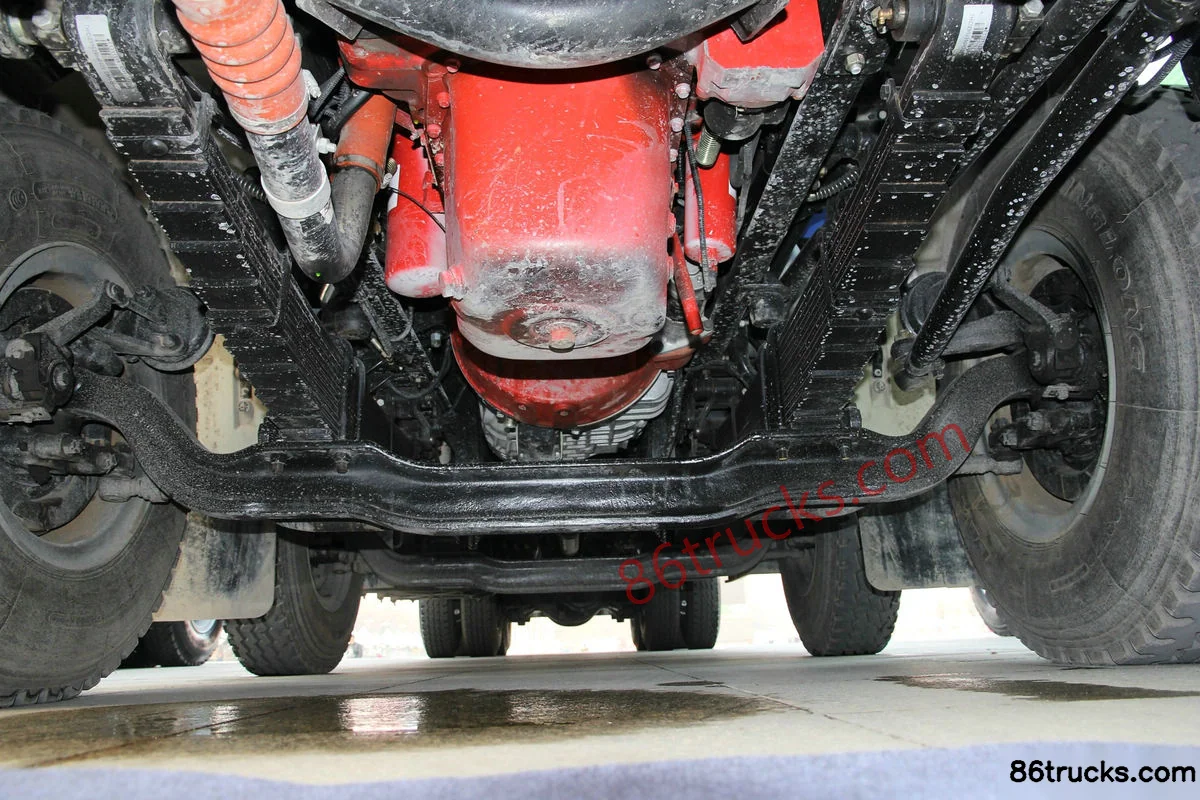

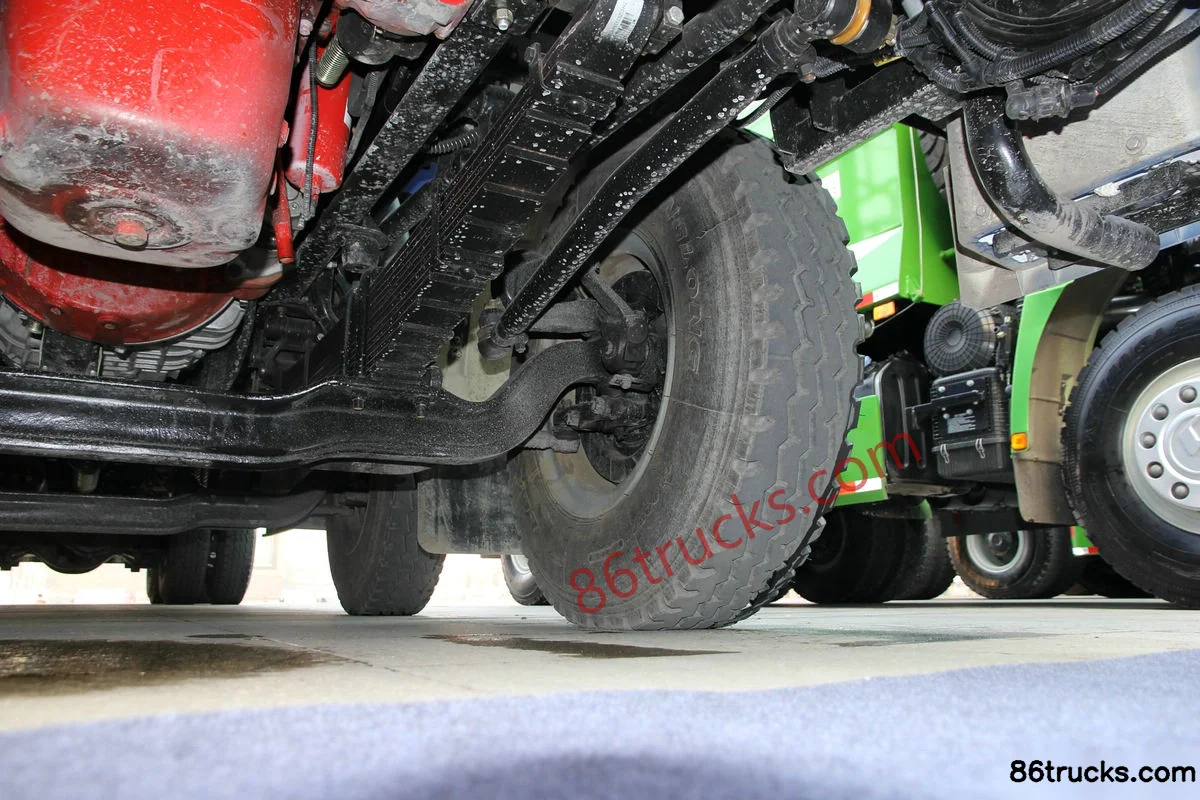

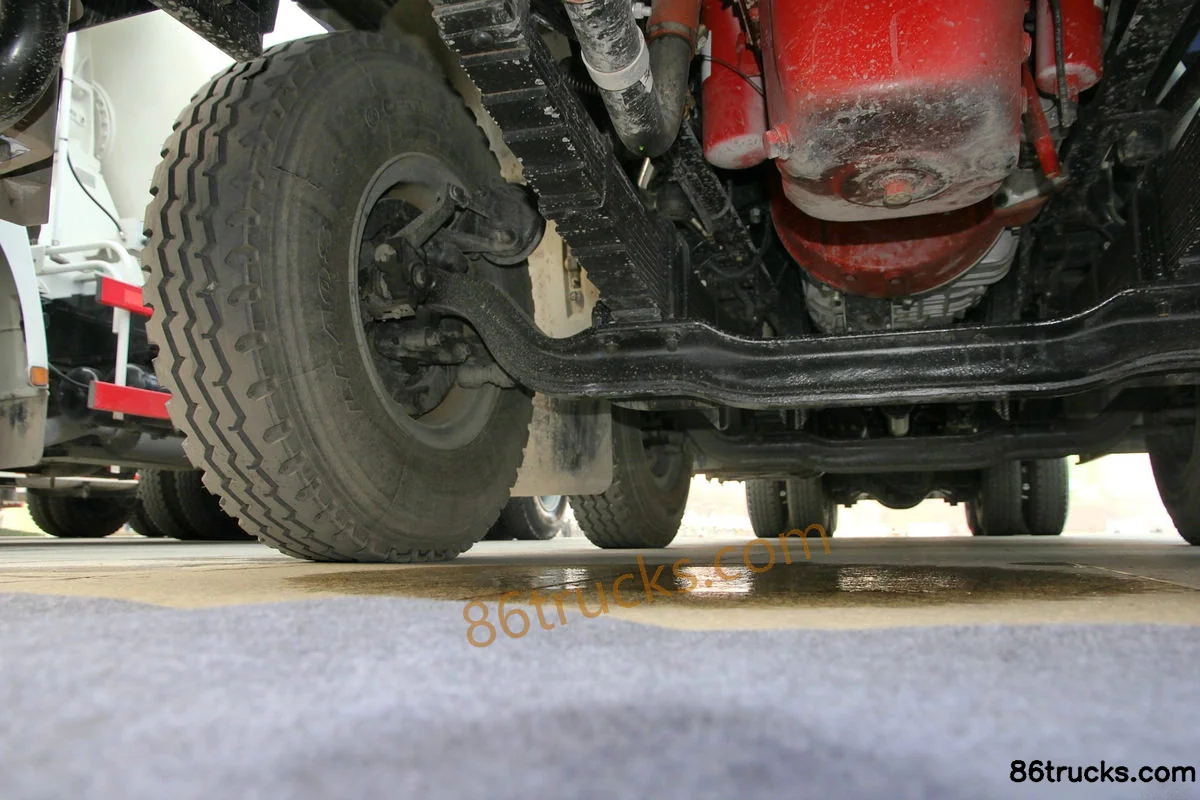

Chassis3

Chassis3

9 photos
