Forland Leader S1 1.6L Gasoline 122hp 4X2(6 wheels) Dongan 5-Speed 3.8m Single Row Stake Truck

Export reference
From $10,528
MSRP ¥7.58M CNY
Horsepower: 122
Emission: China VI
Fuel: gasoline
Engine: Dongan1.6L
Transmission: Dongan
Curb Weight:: 1.92ton
seating capacity: 2Personnel
Rated payload: 1.445ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

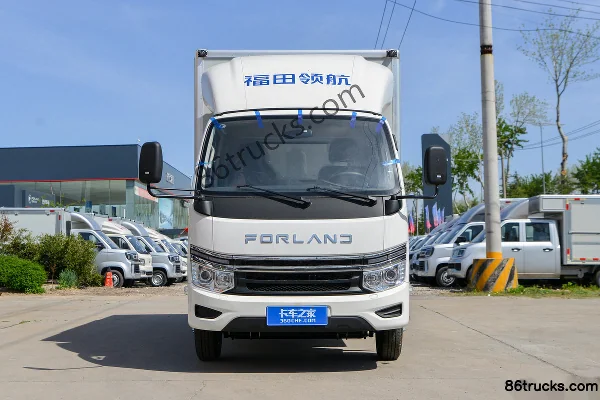

The Foton Forland Forland Leader S1 1.6L Gasoline 122hp 4X2(6 wheels) Dongan 5-Speed 3.8m Single Row Stake Truck is a mini truck featuring 3.8m cargo length, Stake type cargo body, 2Personnel volume and 1.445t payload. On the powertrain side, it comes with a Dongan1.6L engine, 122 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 122 gasoline 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ5035CCY5JV6-30
Type: stake truck
Drive type: 4X2
Wheelbase: 3000mm
Box length class: 3.8m
engine: DonganDAM16KL
transmission: DonganDAT18R
Rear Axle Ratio: 5.375
Cab length: 5.575m
Cab width: 1.905m
Cab height: 2.815m
Front track width: 1515mm
rear track: 1440mm
Curb Weight: 1.92ton
Rated payload: 1.445ton
GVWR: 3.495ton
Max. speed: 102km/h
Origin: Shandong Zhucheng
tonnage class: mini truck
Approach angle: 17°
departure angle: 19°
Front/rear suspension: 1.11/1.475m
Energy Type: gasoline
Engine parameters
Engine Brand: Dongan
Engine Model: DAM16KL
Engine info: Dongan1.6L
Number of cylinders: 4cylinder
fuel type: gasoline
Cylinder arrangement: Inline
Displacement: 1.597L
Emission standard: China VI
Max output power: 90kW
Max hp: 122Horsepower
Max torque: 158N·m
Rated speed: 6000rpm
Transmission Parameters
Transmission Model: DAT18R
Transmission Brand: Dongan
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 3.8m
Cargo box width: 1.82m
Cab parameters
Cab width: 1730mm
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1300kg
rear axle allowable load: 2195kg
Axle ratio: 5.375
Leaf spring count: 3/5+2
Tire
Tire Size: 185R14LT 6PR
Number of tires: 6pcs
Control configuration
ABS:
Service brake
Brake Type: Hydraulic brake
Parking brake: parking brake

Photos

0 photos

FAQ

What is the export price of Forland Leader S1 1.6L Gasoline 122hp 4X2(6 wheels) Dongan 5-Speed 3.8m Single Row Stake Truck, and what does it include?

Forland Leader S1 1.6L Gasoline 122hp 4X2(6 wheels) Dongan 5-Speed 3.8m Single Row Stake Truck export reference is about From $10,528; MSRP is ¥7.58M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Forland Leader S1 1.6L Gasoline 122hp 4X2(6 wheels) Dongan 5-Speed 3.8m Single Row Stake Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Forland Leader S1 1.6L Gasoline 122hp 4X2(6 wheels) Dongan 5-Speed 3.8m Single Row Stake Truck?

Key specs of Forland Leader S1 1.6L Gasoline 122hp 4X2(6 wheels) Dongan 5-Speed 3.8m Single Row Stake Truck: Drive: 4x2; Horsepower: 122 hp; Emission: China VI; Fuel: gasoline; Engine: Dongan1.6L; Transmission: Dongan. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Forland Leader S1 1.6L Gasoline 122hp 4X2(6 wheels) Dongan 5-Speed 3.8m Single Row Stake Truck suited for?

Forland Leader S1 1.6L Gasoline 122hp 4X2(6 wheels) Dongan 5-Speed 3.8m Single Row Stake Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Forland Leader S1 1.6L Gasoline 122hp 4X2(6 wheels) Dongan 5-Speed 3.8m Single Row Stake Truck differ from other variants in the same series?

Forland Leader S1 1.6L Gasoline 122hp 4X2(6 wheels) Dongan 5-Speed 3.8m Single Row Stake Truck belongs to Foton Times Pilot S1 Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Forland Leader S1 1.6L Gasoline 122hp 4X2(6 wheels) Dongan 5-Speed 3.8m Single Row Stake Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Forland Leader S1 1.6L Gasoline 122hp 4X2(6 wheels) Dongan 5-Speed 3.8m Single Row Stake Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
