FAW Jiefang Lingtu 148hp 4X2(6 wheels) 3.77m refrigerated truck (wide body)

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Curb Weight:: 3.2ton
Wheelbase:: 3300mm
Tire Size:: 7.50R16 6PR
Cab dimensions:: 5.995×2.31×3.1m
Rated payload: 1.1ton
Drive 4X2 (6 wheels)
Cargo box dimensions: 3.77×2.1×2.1m
Horsepower 148

Overview

The FAW Jiefang Lingtu 148hp 4X2(6 wheels) 3.77m refrigerated truck (wide body) is a Refrigerated Truck featuring 3.77×2.1×2.1m cargo body, 1.1t payload, 5.995×2.31×3.1m cab and 3300mm wheelbase. On the powertrain side, it comes with 148 hp, 4X2 (6 wheels) drive, China V emissions and Diesel fuel.

China V 148 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 5.995×2.31×3.1m
Truck Type: Refrigerated Truck
Drive type: 4X2
Vehicle origin: Qingdao, Chengdu
Wheelbase: 3300mm
Front track width: 1706mm
rear track: 1740mm
Curb Weight: 3.2ton
Rated payload: 1.1ton
Max. speed: 115km/h
Front/rear suspension: 1.115/1.58m
Energy Type: Diesel
Engine parameters
Engine Model: FotonISF2.8s5148T
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.78L
Emission standard: China V
Max output power: 110kW
Max hp: 148Horsepower
Max torque: 360N·m
Rated speed: 2900rpm
Engine Type: Turbocharged Air-to-Air Intercooling Bosch High-Pressure Common Rail Direct Injection SCR
Cargo box parameters
Cargo box dimensions: 3.77×2.1×2.1m
Cargo box width: 2.1m
Cargo box height: 2.1m
Body Parameters
Vehicle certification code: CA5047XLCP40K2L1E5A84
Body Brand: FAW Jiefang
Chassis Specs
Chassis Brand: FAW Jiefang
Chassis Series: Lingtu
Chassis Model: CA1046P40K2L1BE5A84
Front axle description: 5T
Frame Dimensions: 865*180*65*5mm
rear axle description: 295H rear axle
Axle ratio: 4.875
Leaf spring count: 3/7+9
Aluminum wheels:
Transmission Parameters
Number of gears: 6Gear
Transmission Model: WLYWLY6G40
Tire
Tire Size: 7.50R16 6PR
Number of tires: 6pcs
Control configuration
ABS:
Stability control system:
Power steering:
EBS electronic braking system:
clutch booster:
automatic slack adjuster:
interior configuration
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Manual
Independent Heater:
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Power interface:
Reverse Radar:
Seat material: Fabric
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Aluminum air tank:
Diesel primary filter heating:
Wiper type: flat wiper blades
Service brake
Engine brake:
Brake Type: Air brake
Exhaust brake:
Front wheel brake: Disc
Rear Wheel Brake: Drum Type
Multimedia features
Center Console Color Screen:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Radio:
lighting configuration
Front fog lamp:
daytime running lights:
Headlight height adjustment:
Halogen Headlights:
smart configuration
Telematics System:
Cruise control (CCS):
maintenance service
Rescue service:

Photos

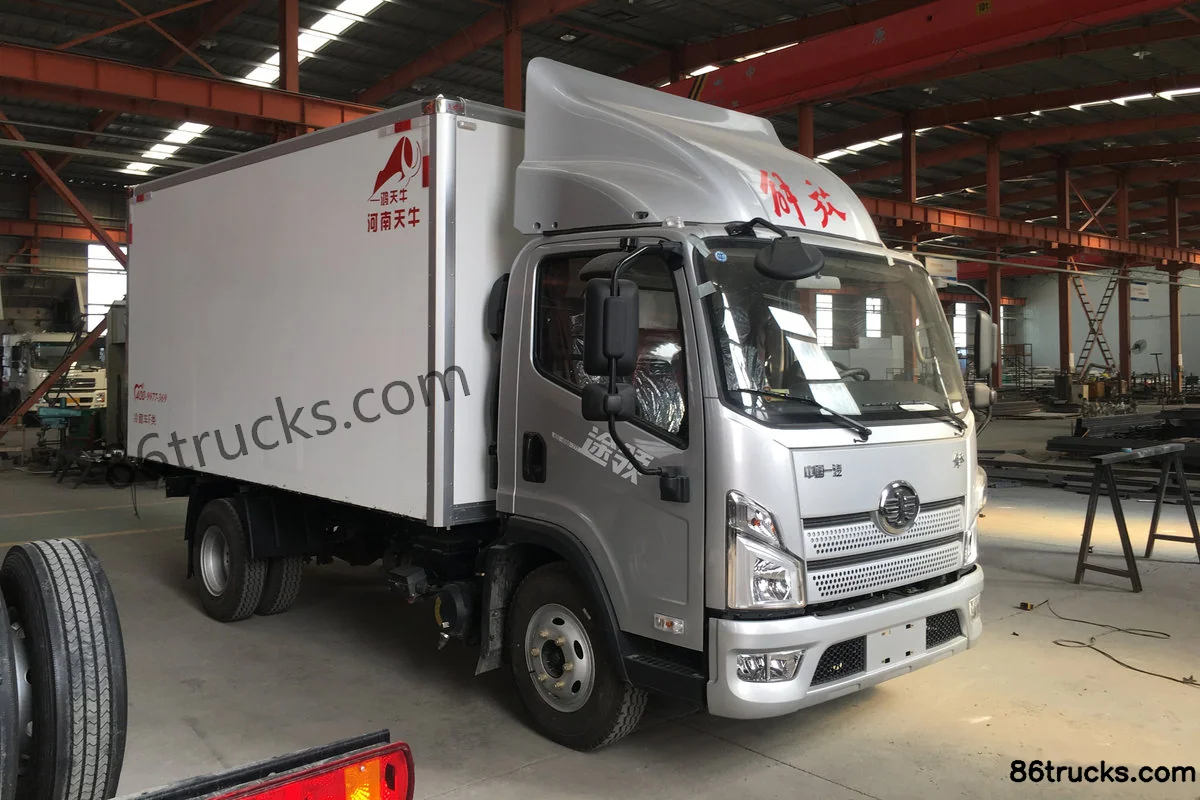

Exterior1

1 photos

FAQ

What emission standard does FAW Jiefang Lingtu 148hp 4X2(6 wheels) 3.77m refrigerated truck (wide body) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Lingtu 148hp 4X2(6 wheels) 3.77m refrigerated truck (wide body)?

Key specs of FAW Jiefang Lingtu 148hp 4X2(6 wheels) 3.77m refrigerated truck (wide body): Drive: 4x2; Horsepower: 148 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Lingtu 148hp 4X2(6 wheels) 3.77m refrigerated truck (wide body) suited for?

FAW Jiefang Lingtu 148hp 4X2(6 wheels) 3.77m refrigerated truck (wide body) is a Refrigerated Truck model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang Lingtu 148hp 4X2(6 wheels) 3.77m refrigerated truck (wide body) differ from other variants in the same series?

FAW Jiefang Lingtu 148hp 4X2(6 wheels) 3.77m refrigerated truck (wide body) belongs to FAW Jiefang Lingtu Light-duty Truck (Refrigerated Truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Lingtu 148hp 4X2(6 wheels) 3.77m refrigerated truck (wide body)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Lingtu 148hp 4X2(6 wheels) 3.77m refrigerated truck (wide body)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
