BAIC Ruixiang Boteng M3 1.6L 122 hp 4X2(6 wheels) Gasoline 2.7m Double Row Stake Micro Truck

Export reference
MSRP N/A
Horsepower: 122
Emission: China VI
Fuel: gasoline
Engine: Dongan gasoline 1.6L
Curb Weight:: 1.545ton
Wheelbase:: 2850mm

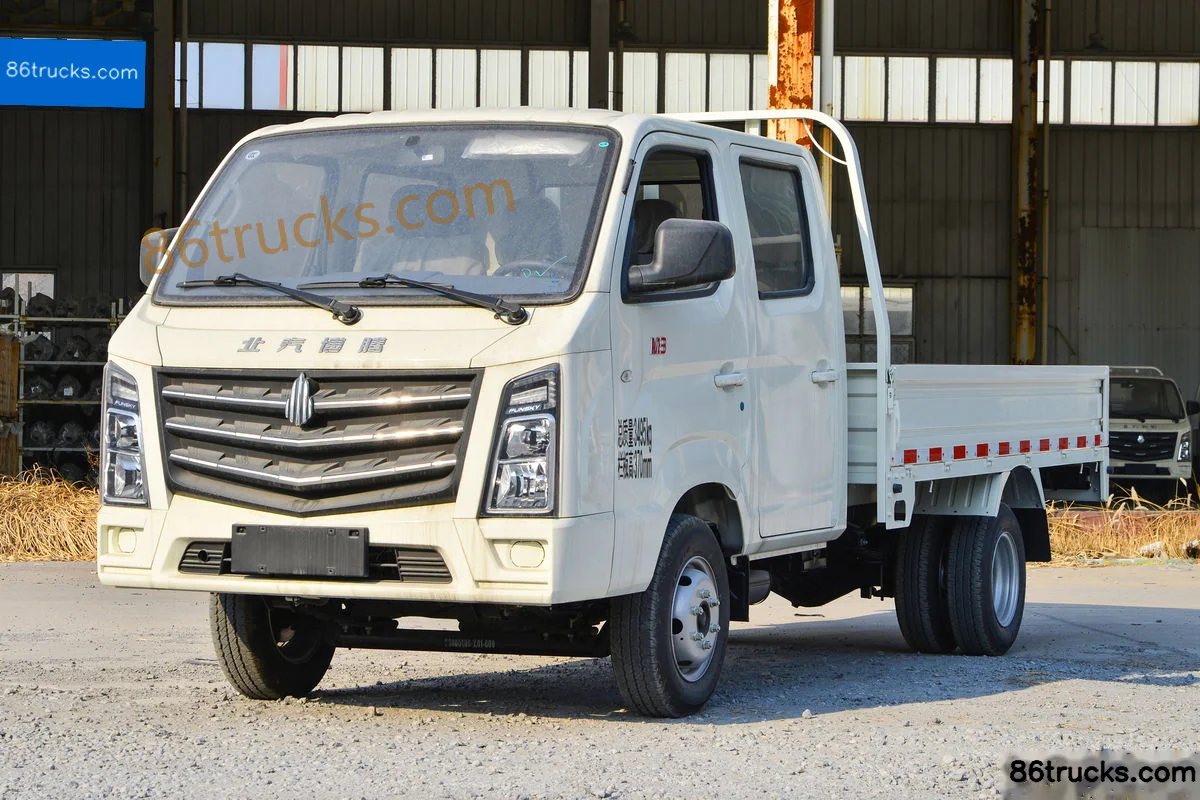

BAIC Ruixiang Boteng M3 1.6L 122 hp 4X2(6 wheels) Gasoline 2.7m Double Row Stake Micro Truck exterior
View more photos (12)
seating capacity: 5Personnel
Rated payload: 1.625ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The BAIC Ruixiang Boteng M3 1.6L 122 hp 4X2(6 wheels) Gasoline 2.7m Double Row Stake Micro Truck is a mini truck featuring 2.7m cargo length, stake body cargo body, 5Personnel volume and 1.625t payload. On the powertrain side, it comes with a Dongan gasoline 1.6L engine, 122 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 122 gasoline 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): BJ1030XMV1T1
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 2850mm
Box length class: 2.7m
engine: DonganDAM16KL
transmission: 5-speed gearbox
Rear Axle Ratio: 5.375
Cab length: 5.755m
Cab width: 1.85m
Cab height: 2.07m
Front track width: 1410mm
rear track: 1320mm
Curb Weight: 1.545ton
Rated payload: 1.625ton
GVWR: 3.495ton
Max. speed: 110km/h
Origin: Chongqing Hechuan
tonnage class: mini truck
Approach angle: 24°
departure angle: 17°
Front/rear suspension: 1.105/1.4m
Energy Type: gasoline
Engine parameters
Engine Brand: Dongan
Engine Model: DonganDAM16KL
Engine info: Dongan gasoline 1.6L
Number of cylinders: 4cylinder
fuel type: gasoline
Cylinder arrangement: Inline
Displacement: 1.597L
Emission standard: China VI
Max output power: 90kW
Max hp: 122Horsepower
Max torque: 158N·m
Max torque speed: 4400rpm
Rated speed: 6000rpm
Transmission Parameters
Transmission Model: 5-speed gearbox
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 2.7m
Cargo box width: 1.75m
Cargo box height: 0.37m
*Cargo box interior width: 1.75
Cab parameters
seating capacity: 5Personnel
Seat rows: Double cab
Chassis Specs
Front axle allowable load: 1268kg
rear axle allowable load: 2227kg
Axle ratio: 5.375
Leaf spring count: 6/5
Tire
Tire Size: 185R14LT 6PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Seat material: Fabric
Electronic Central Lock:
Multimedia features
External audio input (AUX/USB/iPod etc.):
Radio:

Photos

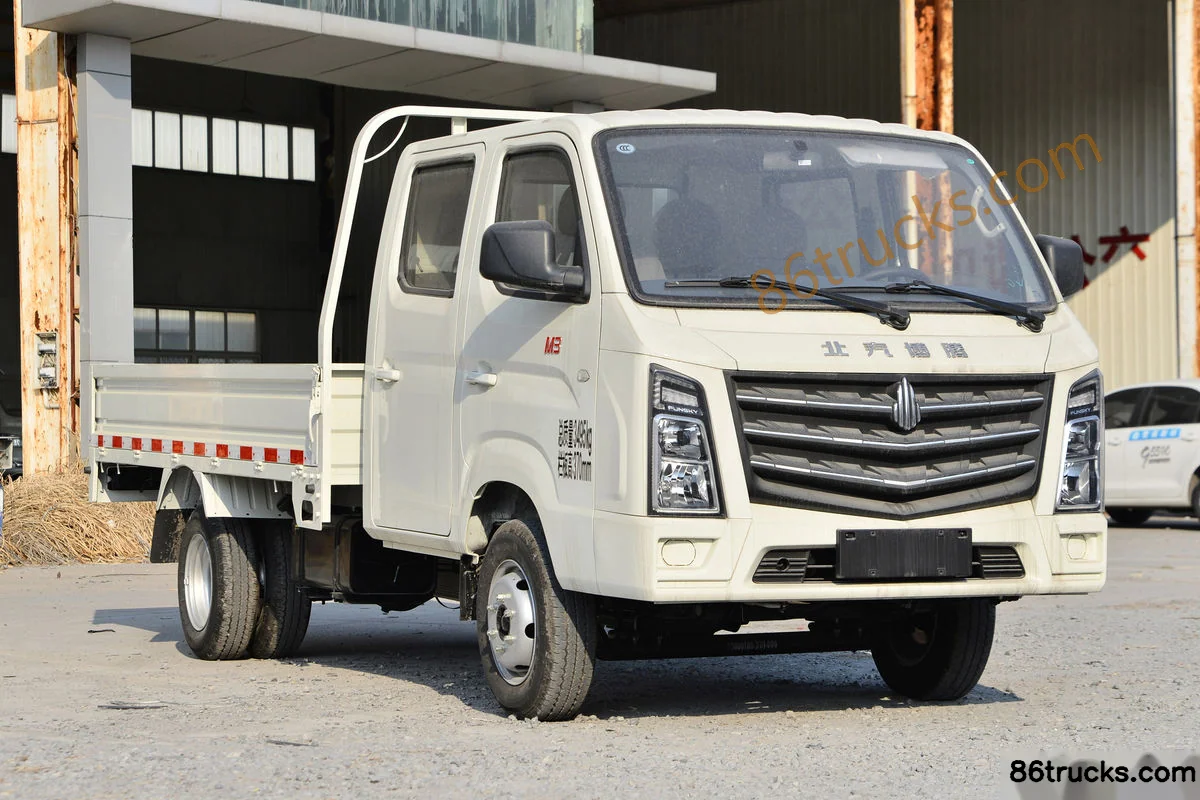

Exterior3

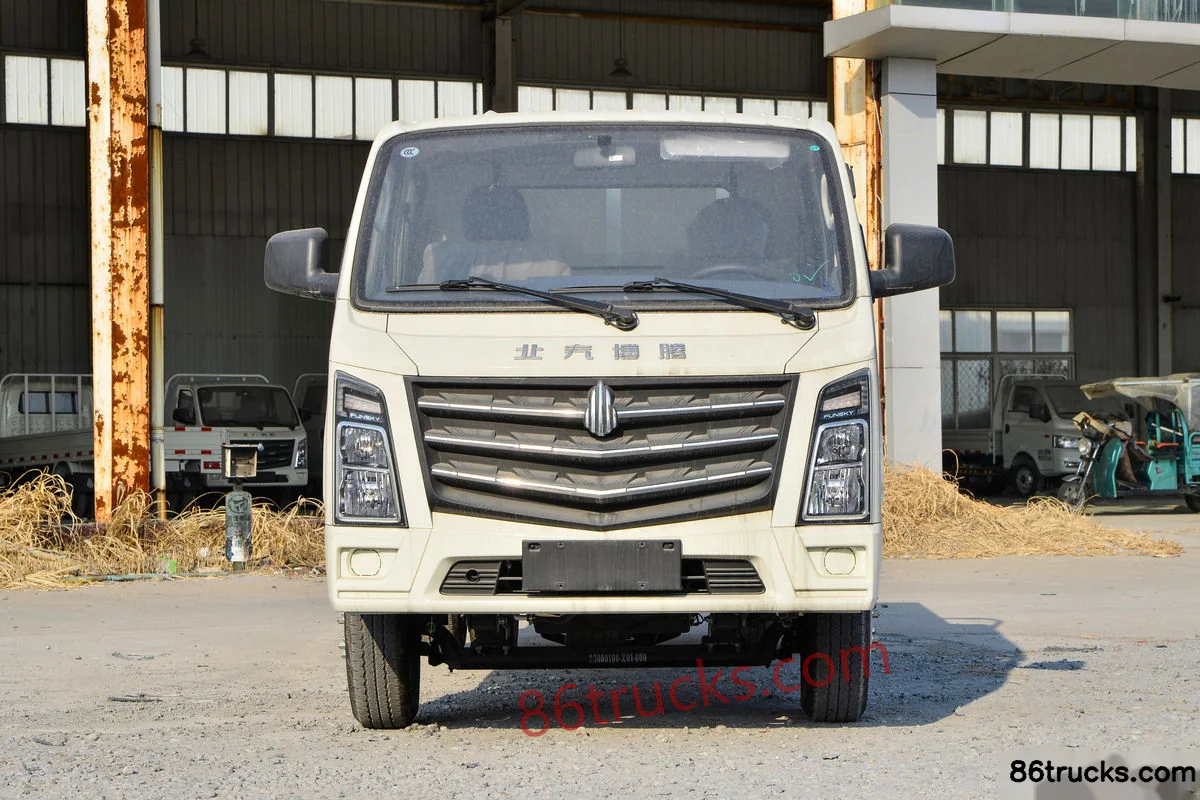

BAIC Ruixiang Boteng M3 1.6L 122 hp 4X2(6 wheels) Gasoline 2.7m Double Row Stake Micro Truck Exterior (1) | 86Trucks BAIC Ruixiang Boteng M3 1.6L 122 hp 4X2(6 wheels) Gasoline 2.7m Double Row Stake Micro Truck Exterior (2) | 86Trucks BAIC Ruixiang Boteng M3 1.6L 122 hp 4X2(6 wheels) Gasoline 2.7m Double Row Stake Micro Truck Exterior (3) | 86Trucks

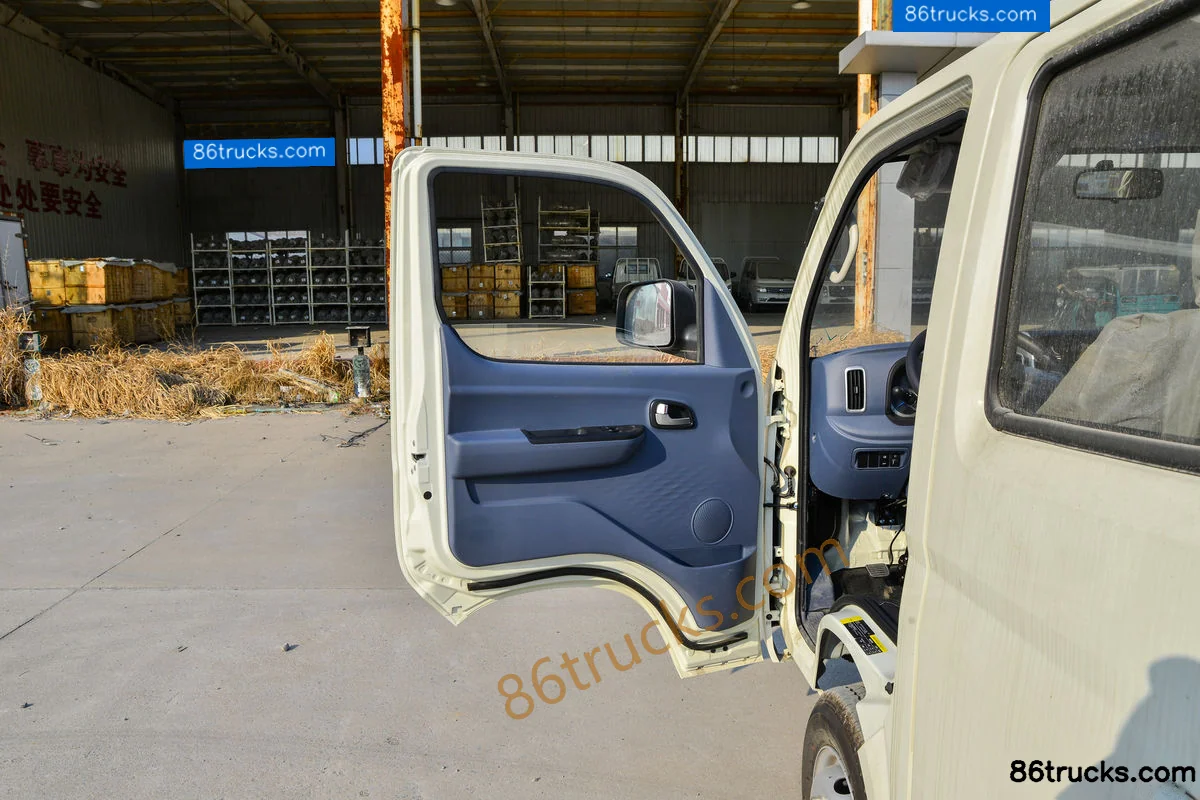

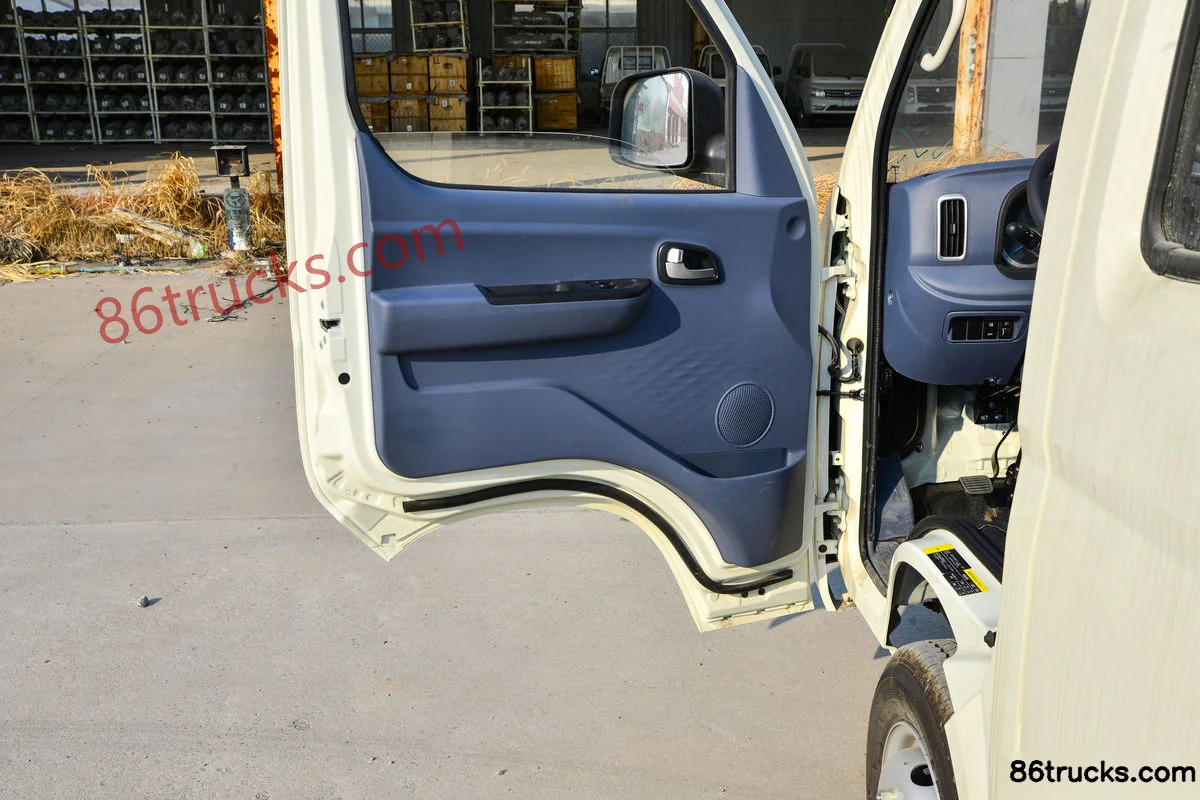

Cab3

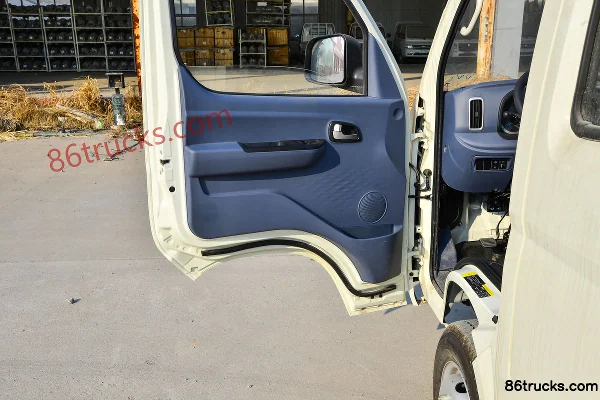

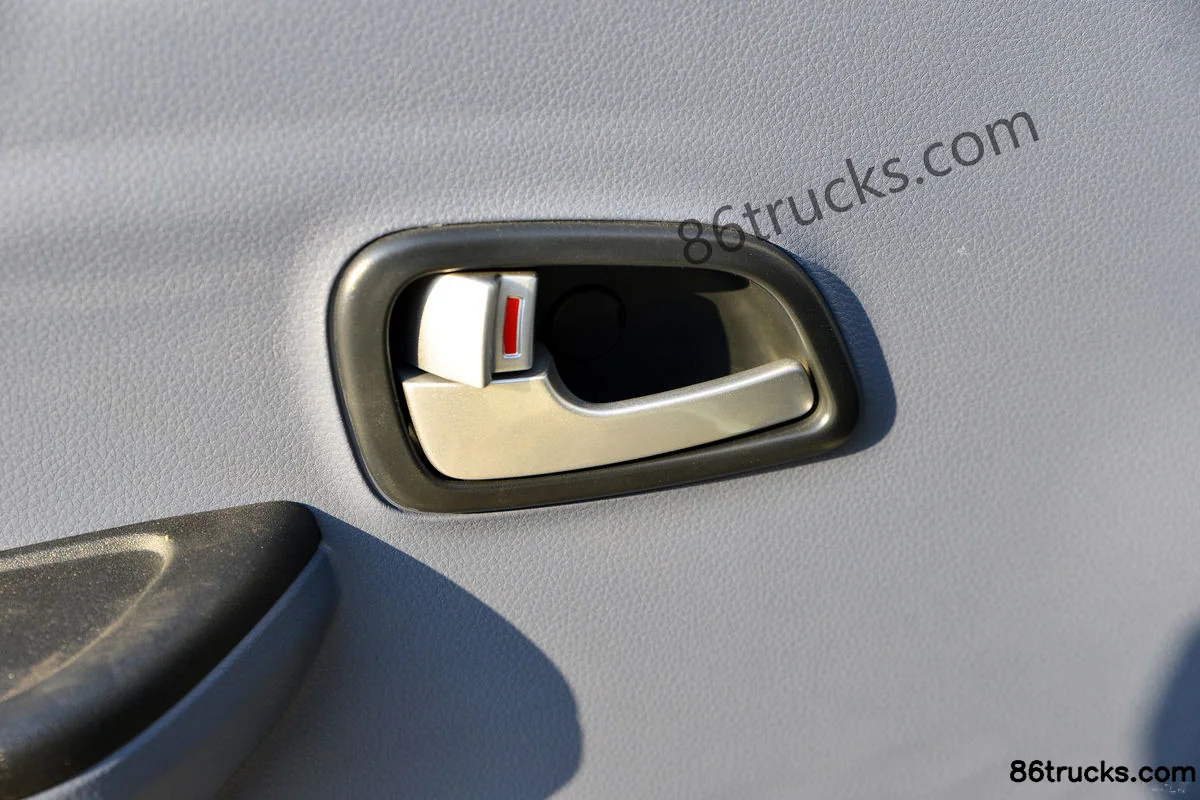

BAIC Ruixiang Boteng M3 1.6L 122 hp 4X2(6 wheels) Gasoline 2.7m Double Row Stake Micro Truck Cab (1) | 86Trucks BAIC Ruixiang Boteng M3 1.6L 122 hp 4X2(6 wheels) Gasoline 2.7m Double Row Stake Micro Truck Cab (2) | 86Trucks BAIC Ruixiang Boteng M3 1.6L 122 hp 4X2(6 wheels) Gasoline 2.7m Double Row Stake Micro Truck Cab (3) | 86Trucks

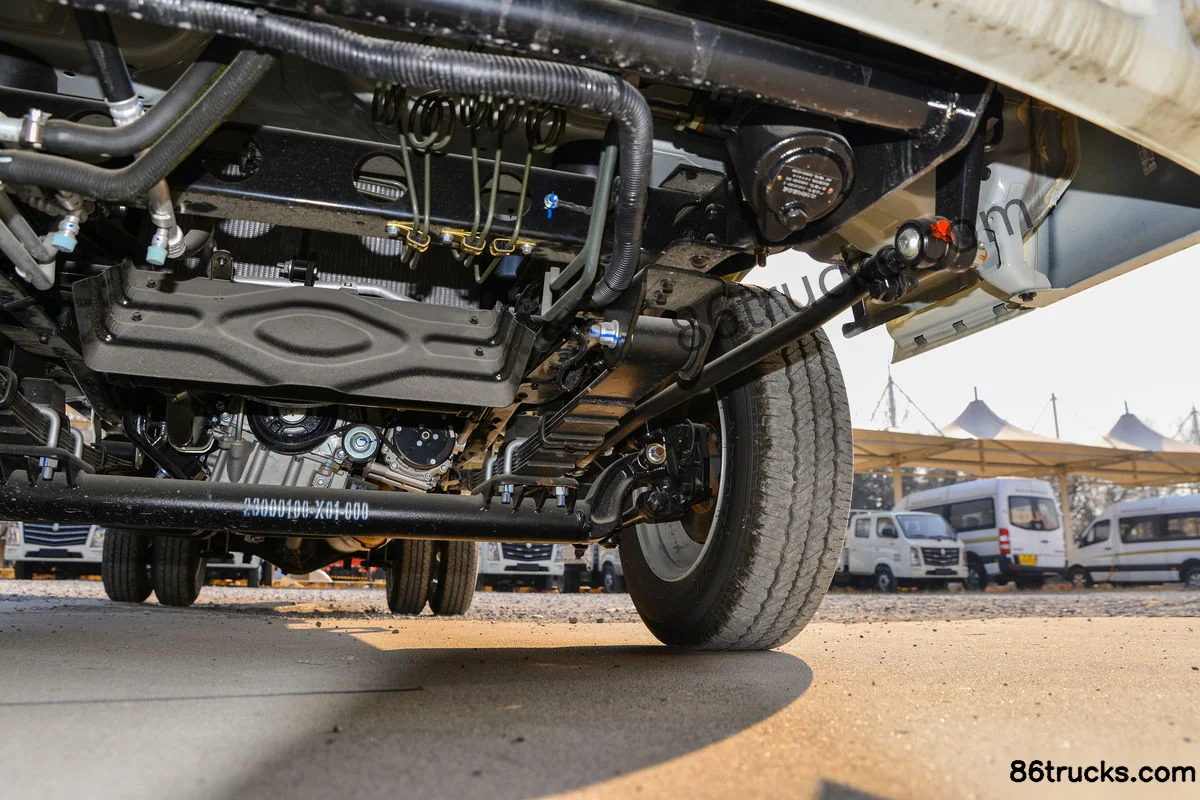

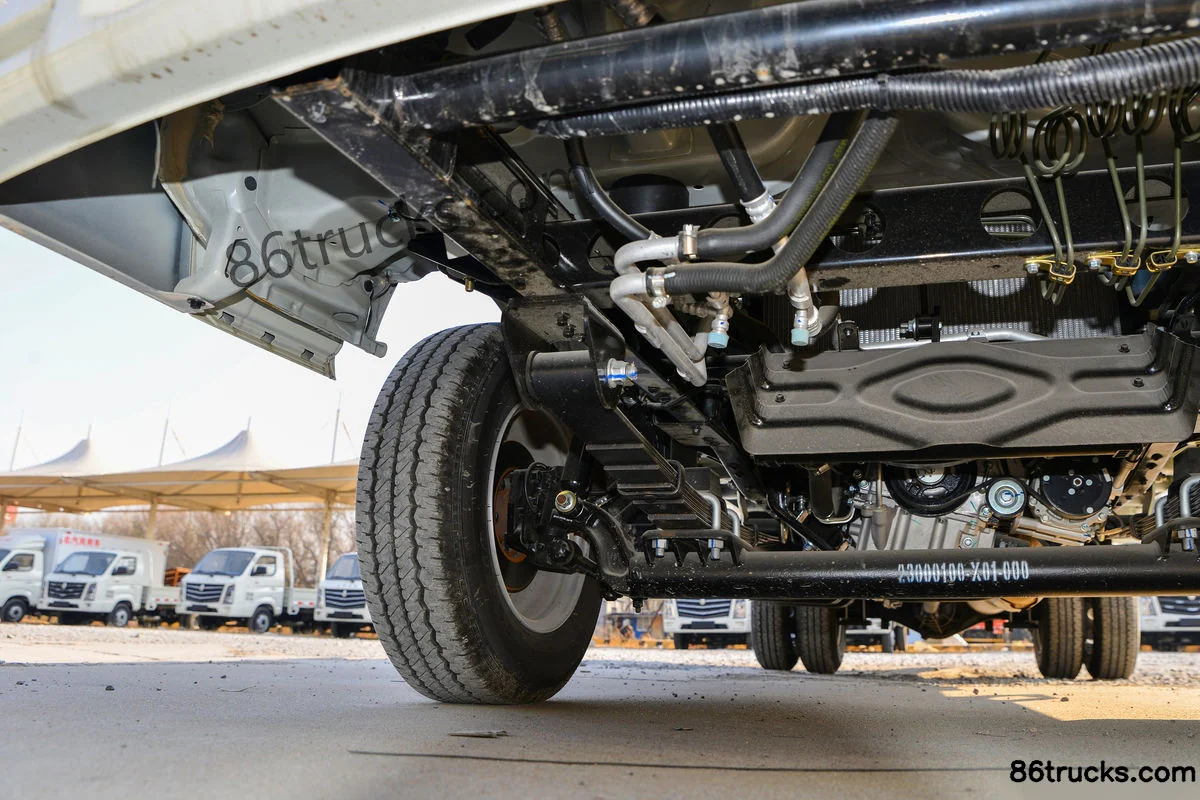

Chassis3

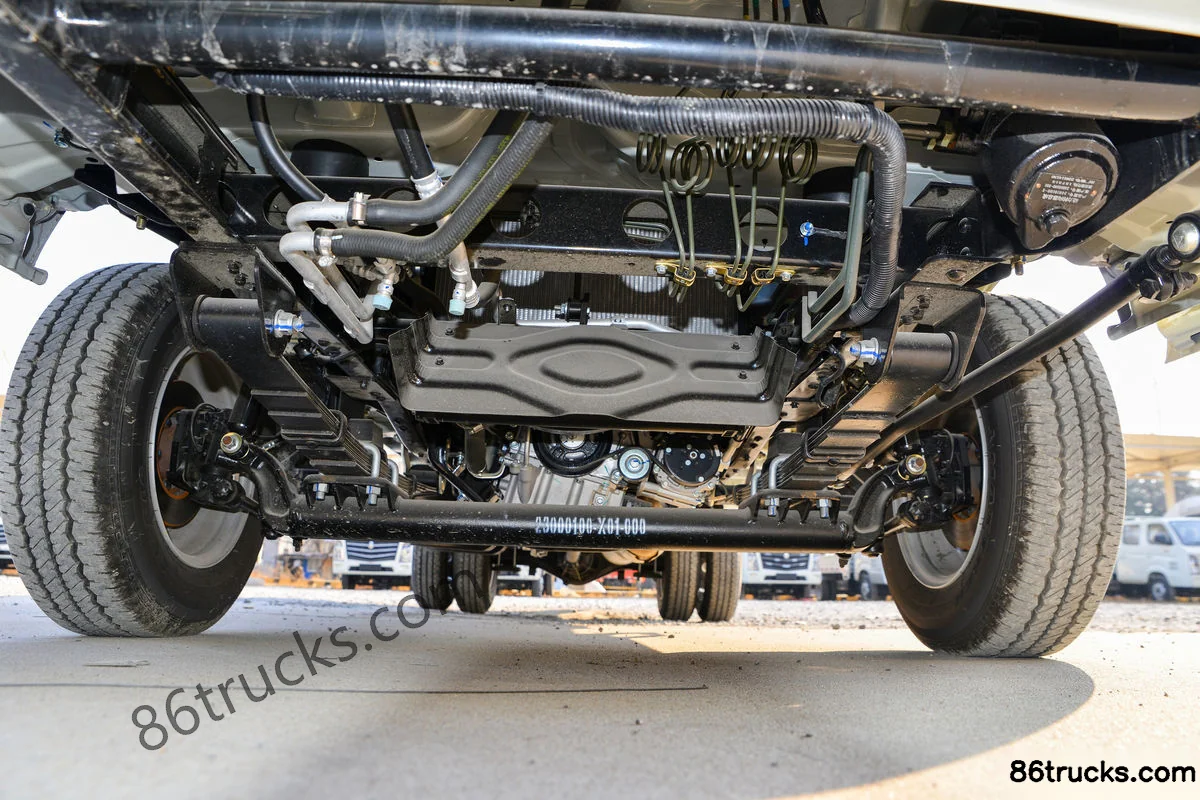

BAIC Ruixiang Boteng M3 1.6L 122 hp 4X2(6 wheels) Gasoline 2.7m Double Row Stake Micro Truck Chassis (1) | 86Trucks BAIC Ruixiang Boteng M3 1.6L 122 hp 4X2(6 wheels) Gasoline 2.7m Double Row Stake Micro Truck Chassis (2) | 86Trucks BAIC Ruixiang Boteng M3 1.6L 122 hp 4X2(6 wheels) Gasoline 2.7m Double Row Stake Micro Truck Chassis (3) | 86Trucks

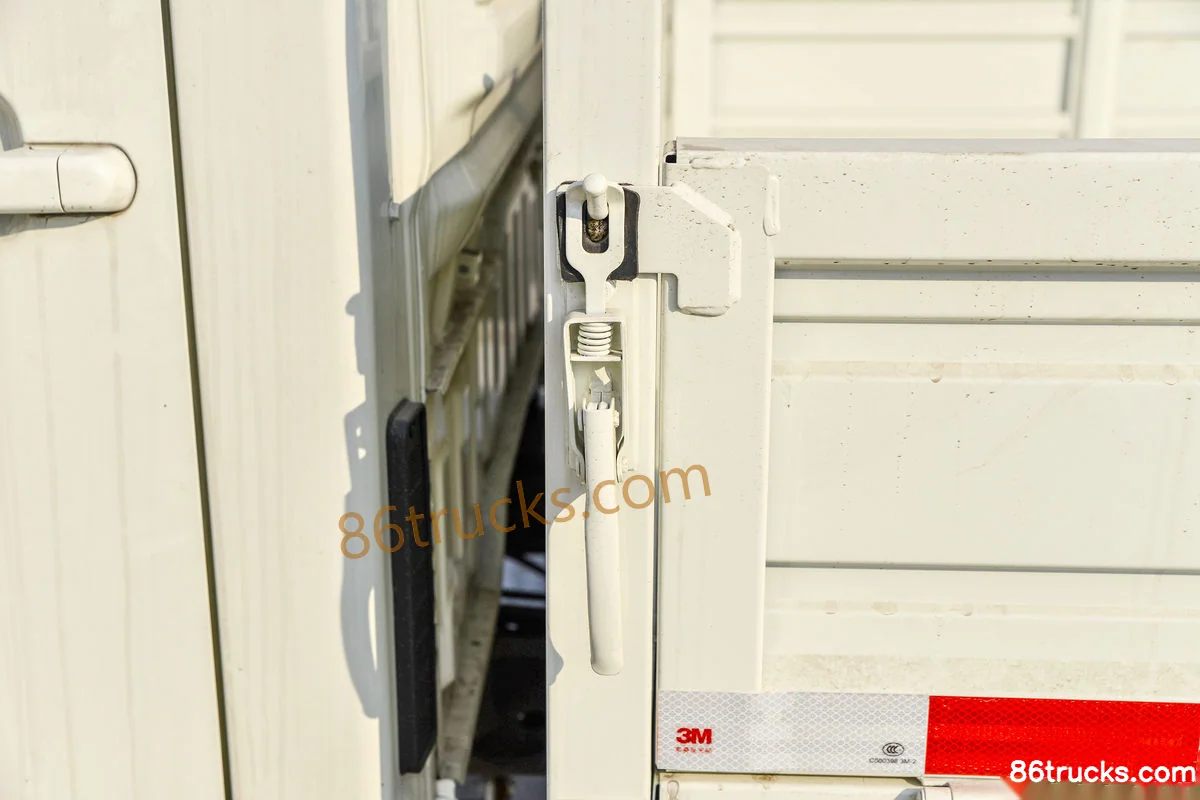

Body3

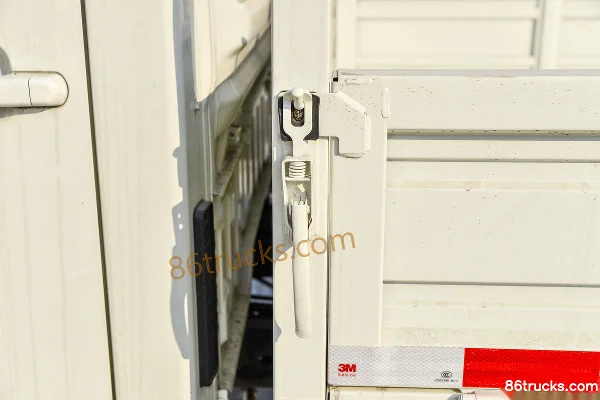

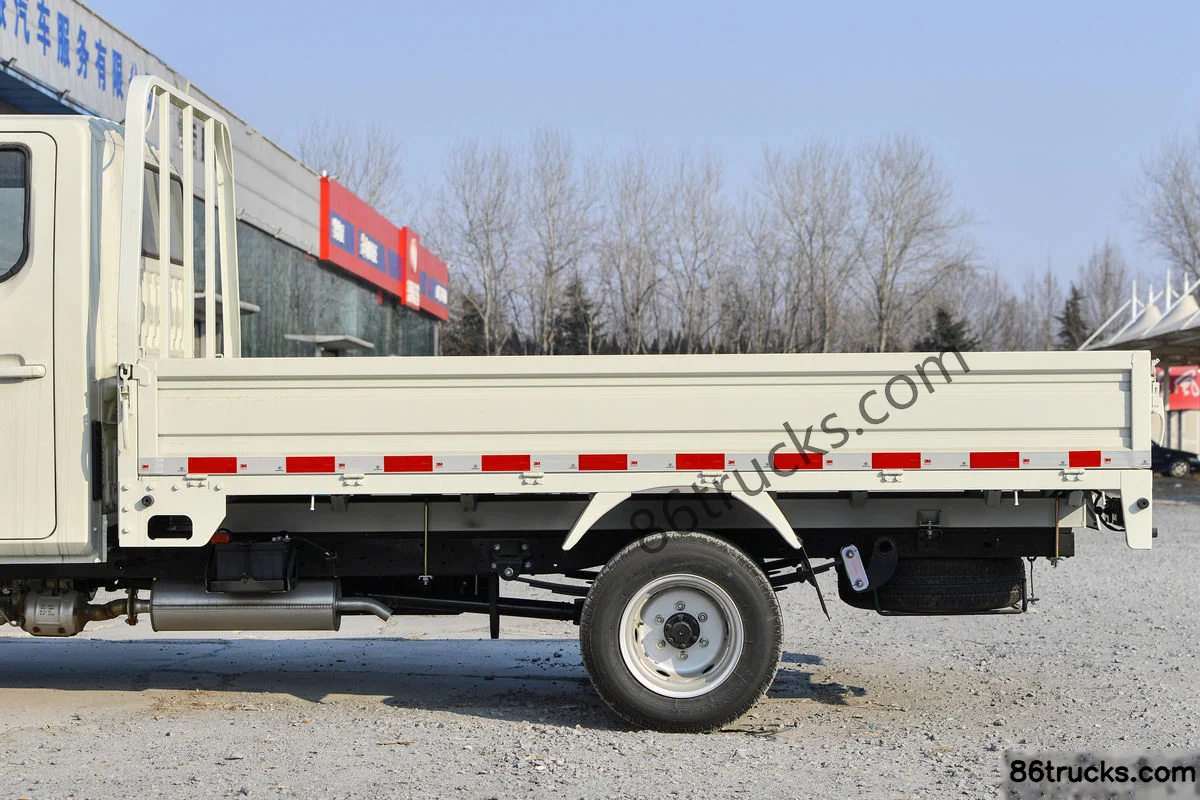

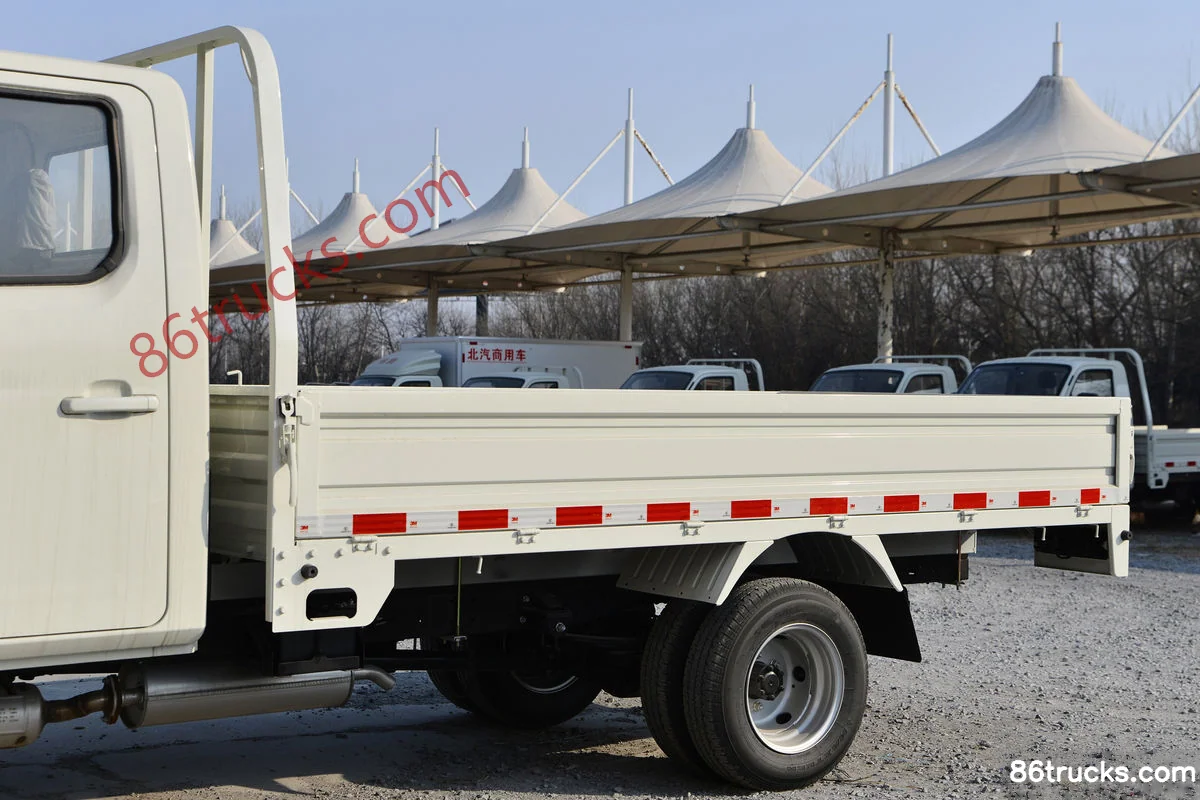

BAIC Ruixiang Boteng M3 1.6L 122 hp 4X2(6 wheels) Gasoline 2.7m Double Row Stake Micro Truck Body (1) | 86Trucks BAIC Ruixiang Boteng M3 1.6L 122 hp 4X2(6 wheels) Gasoline 2.7m Double Row Stake Micro Truck Body (2) | 86Trucks BAIC Ruixiang Boteng M3 1.6L 122 hp 4X2(6 wheels) Gasoline 2.7m Double Row Stake Micro Truck Body (3) | 86Trucks

12 photos

FAQ

What emission standard does BAIC Ruixiang Boteng M3 1.6L 122 hp 4X2(6 wheels) Gasoline 2.7m Double Row Stake Micro Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of BAIC Ruixiang Boteng M3 1.6L 122 hp 4X2(6 wheels) Gasoline 2.7m Double Row Stake Micro Truck?

Key specs of BAIC Ruixiang Boteng M3 1.6L 122 hp 4X2(6 wheels) Gasoline 2.7m Double Row Stake Micro Truck: Drive: 4x2; Horsepower: 122 hp; Emission: China VI; Fuel: gasoline; Engine: Dongan gasoline 1.6L. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is BAIC Ruixiang Boteng M3 1.6L 122 hp 4X2(6 wheels) Gasoline 2.7m Double Row Stake Micro Truck suited for?

BAIC Ruixiang Boteng M3 1.6L 122 hp 4X2(6 wheels) Gasoline 2.7m Double Row Stake Micro Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does BAIC Ruixiang Boteng M3 1.6L 122 hp 4X2(6 wheels) Gasoline 2.7m Double Row Stake Micro Truck differ from other variants in the same series?

BAIC Ruixiang Boteng M3 1.6L 122 hp 4X2(6 wheels) Gasoline 2.7m Double Row Stake Micro Truck belongs to BAIC Ruixiang Boteng M3 (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for BAIC Ruixiang Boteng M3 1.6L 122 hp 4X2(6 wheels) Gasoline 2.7m Double Row Stake Micro Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export BAIC Ruixiang Boteng M3 1.6L 122 hp 4X2(6 wheels) Gasoline 2.7m Double Row Stake Micro Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
