Tangjun Ouling T3 Series 113 hp 4X2(6 wheels) 4.15m Single Row Box Truck

Export reference
From $12,333
MSRP ¥8.88M CNY
Horsepower: 113
Emission: China V
Fuel: Diesel
Engine: Sida 493
Transmission: Lu'an
Curb Weight:: 2.805ton
seating capacity: 3Personnel
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The Tangjun Ouling T3 Series 113 hp 4X2(6 wheels) 4.15m Single Row Box Truck is a Light Truck featuring 4.15m cargo length, Van body cargo body, 3Personnel volume and 1.495t payload. Its segment focus covers Urban Distribution, matching those duty cycles. On the powertrain side, it comes with a Sida 493 engine, 113 hp, 4X2 (6 wheels) drive and China V emissions.

China V 113 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZB5041XXYJDD6V
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 3360mm
Box length class: 4.2m
engine: Sida PowerSD4D28R-83
transmission: Lu'an LC5T28
Rear Axle Ratio: 5.28
Cab length: 5.995m
Cab width: 2.21m
Cab height: 3.06m
Front track width: 1650mm
rear track: 1600mm
Curb Weight: 2.805ton
Rated payload: 1.495ton
GVWR: 4.495ton
Max. speed: 95km/h
Origin: Zibo, Shandong
tonnage class: Light Truck
Approach angle: 19°
departure angle: 15°
market segment: Urban Distribution
Front/rear suspension: 1.14/1.495m
Energy Type: Diesel
Engine parameters
Engine Brand: Sida Power
Engine Model: Sida PowerSD4D28R-83
Engine info: Sida 493
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.772L
Emission standard: China V
Max output power: 83kW
Max hp: 113Horsepower
Max torque: 280N·m
Max torque speed: 2000rpm
Rated speed: 3600rpm
Engine Type: Vertical, inline, water-cooled, four-stroke, direct injection
Transmission Parameters
Transmission Model: Xingrui LC5T28
Transmission Brand: Lu'an
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 4.15m
Cargo box width: 2.05m
Cargo box height: 2m
*Cargo box interior width: 2.0499999523163
Cab parameters
Cab: T3 Cab
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1500kg
rear axle allowable load: 2995kg
Axle ratio: 5.28
Leaf spring count: 6/9+5
Tire
Tire Size: 7.00R16LT 8PR,7.50R16LT 6PR
Number of tires: 6pcs
Control configuration
ABS:

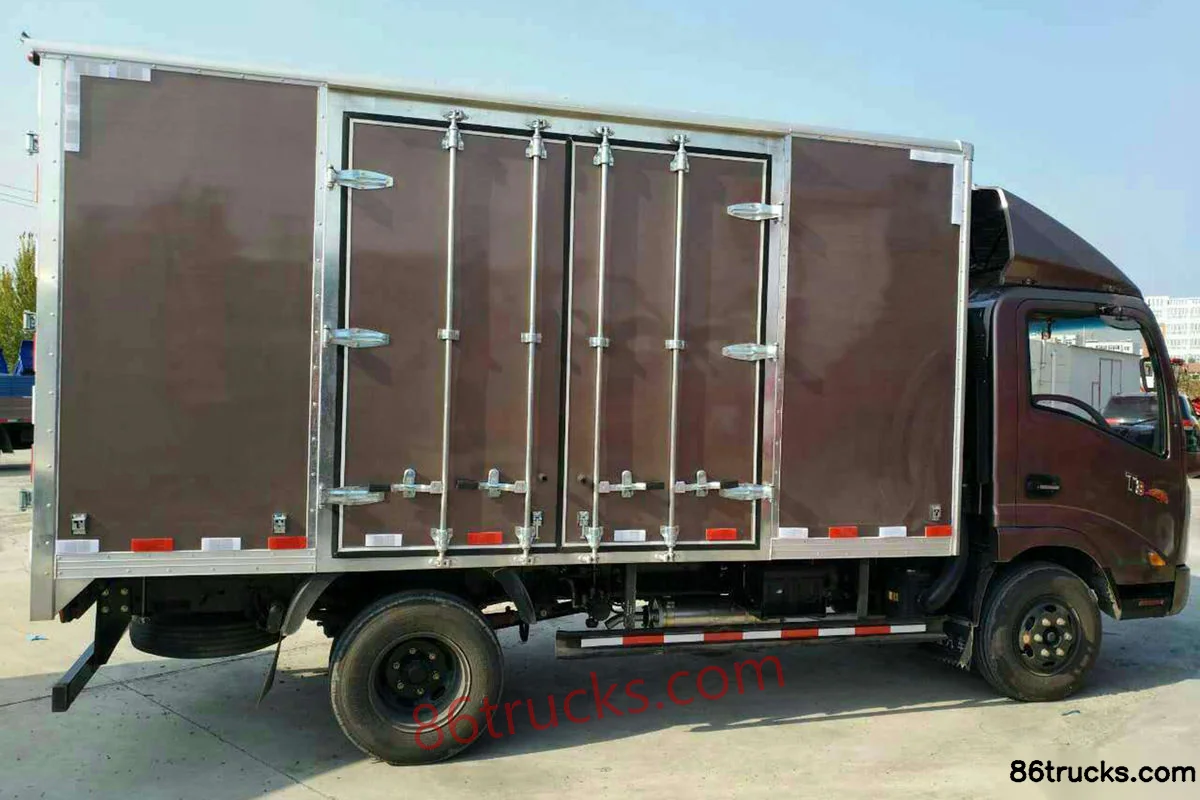

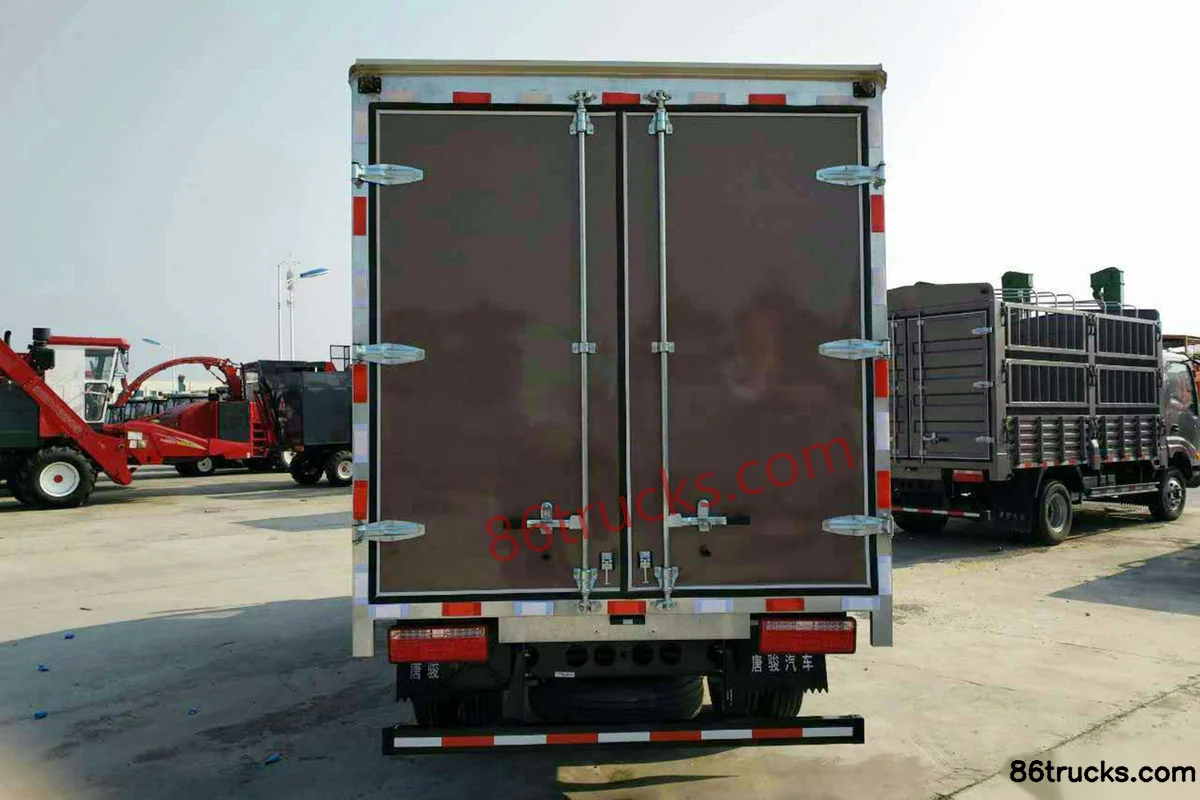

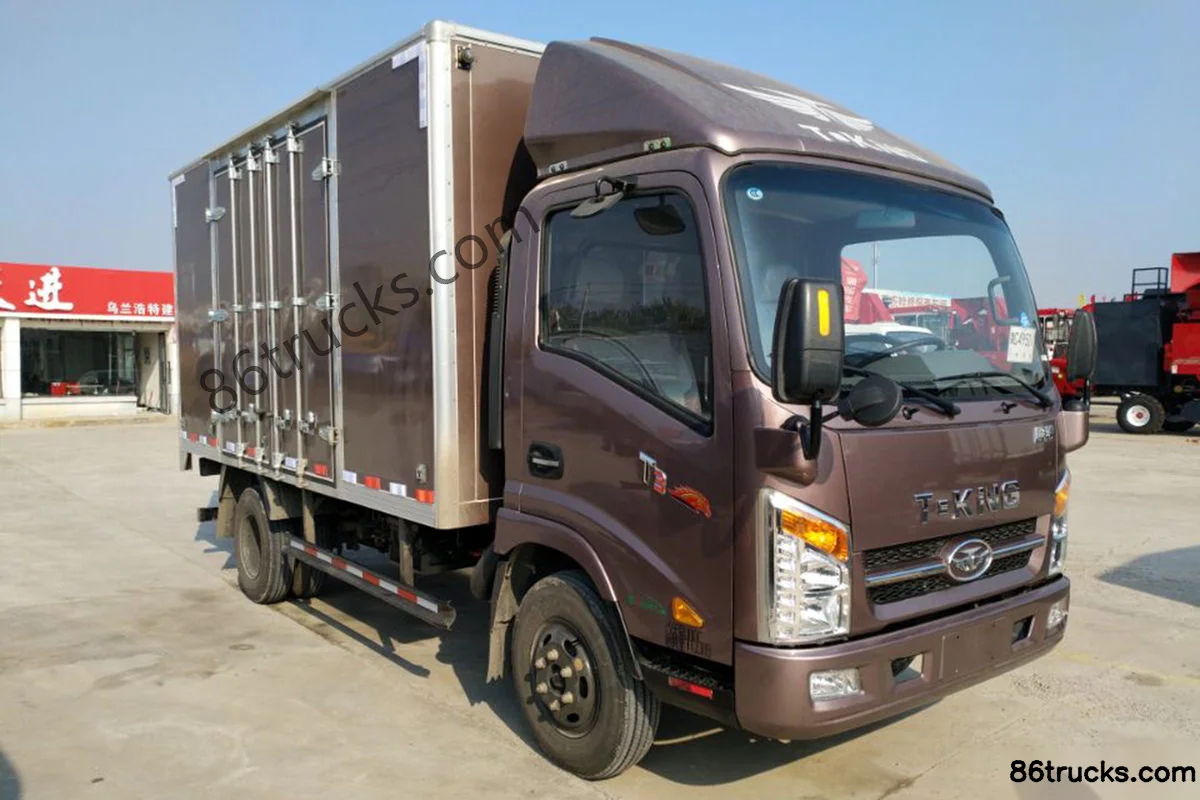

Photos

Exterior3

3 photos

FAQ

What is the export price of Tangjun Ouling T3 Series 113 hp 4X2(6 wheels) 4.15m Single Row Box Truck, and what does it include?

Tangjun Ouling T3 Series 113 hp 4X2(6 wheels) 4.15m Single Row Box Truck export reference is about From $12,333; MSRP is ¥8.88M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Tangjun Ouling T3 Series 113 hp 4X2(6 wheels) 4.15m Single Row Box Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Tangjun Ouling T3 Series 113 hp 4X2(6 wheels) 4.15m Single Row Box Truck?

Key specs of Tangjun Ouling T3 Series 113 hp 4X2(6 wheels) 4.15m Single Row Box Truck: Drive: 4x2; Horsepower: 113 hp; Emission: China V; Fuel: Diesel; Engine: Sida 493; Transmission: Lu'an. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Tangjun Ouling T3 Series 113 hp 4X2(6 wheels) 4.15m Single Row Box Truck suited for?

Tangjun Ouling T3 Series 113 hp 4X2(6 wheels) 4.15m Single Row Box Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Tangjun Ouling T3 Series 113 hp 4X2(6 wheels) 4.15m Single Row Box Truck differ from other variants in the same series?

Tangjun Ouling T3 Series 113 hp 4X2(6 wheels) 4.15m Single Row Box Truck belongs to T3 Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Tangjun Ouling T3 Series 113 hp 4X2(6 wheels) 4.15m Single Row Box Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Tangjun Ouling T3 Series 113 hp 4X2(6 wheels) 4.15m Single Row Box Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
