SHACMAN Delong New M3000 336 hp 4X2(6 wheels) Tractor Truck (12-speed)

Export reference
MSRP N/A
Fuel: Diesel
Gross Trailer Weight:: 35.805ton
Wheelbase:: 3600mm
Tire Size:: 12R22.5 18PR,12.00R20 18PR
Front axle allowable load:: 6500kg
Displacement:: 9.726L
Drive 4X2 (6 wheels)
Horsepower 336
Emission China V
Transmission Fast Gear

Overview

The SHACMAN Delong New M3000 336 hp 4X2(6 wheels) Tractor Truck (12-speed) is a Heavy truck featuring 4X2 (6 wheels) drive, 336 hp, 18t GVW and China V emissions. Its segment focus covers Port transport, matching those duty cycles. On the powertrain side, it comes with a WeichaiWP10.336E53 engine, Fast Gear transmission and Diesel fuel.

China V 336 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SX4180MB1
Drive type: 4X2
Wheelbase: 3600mm
engine: WeichaiWP10.336E53
transmission: Fast Gear12JSD160TA
Rear Axle Ratio: 4.111
Cab length: 6.08m
Cab width: 2.49m
Cab height: 3.91m
Front track width: 2011mm
Gross Trailer Weight: 35.805ton
rear track: 1860mm
Curb Weight: 7ton
GVWR: 18ton
Max. speed: 105km/h
Origin: Xi'an, Shaanxi
tonnage class: Heavy truck
market segment: Port transport
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP10.336E53
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 9.726L
Emission standard: China V
Max output power: 247kW
Max hp: 336Horsepower
Max torque: 1550N·m
Max torque speed: 1200-1500rpm
Rated speed: 1900rpm
Transmission Parameters
Transmission Model: Fast Gear12JSD160TA
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Housing Material: aluminum alloy
fuel tank
Fuel tank/air tank material: Steel
Fuel tank capacity: 400L
Cab parameters
Cab: High roof
Cab suspension: Four-point air suspension
seating capacity: 3Personnel
Cab tilting: Manual
Seat rows: Sleeper cab

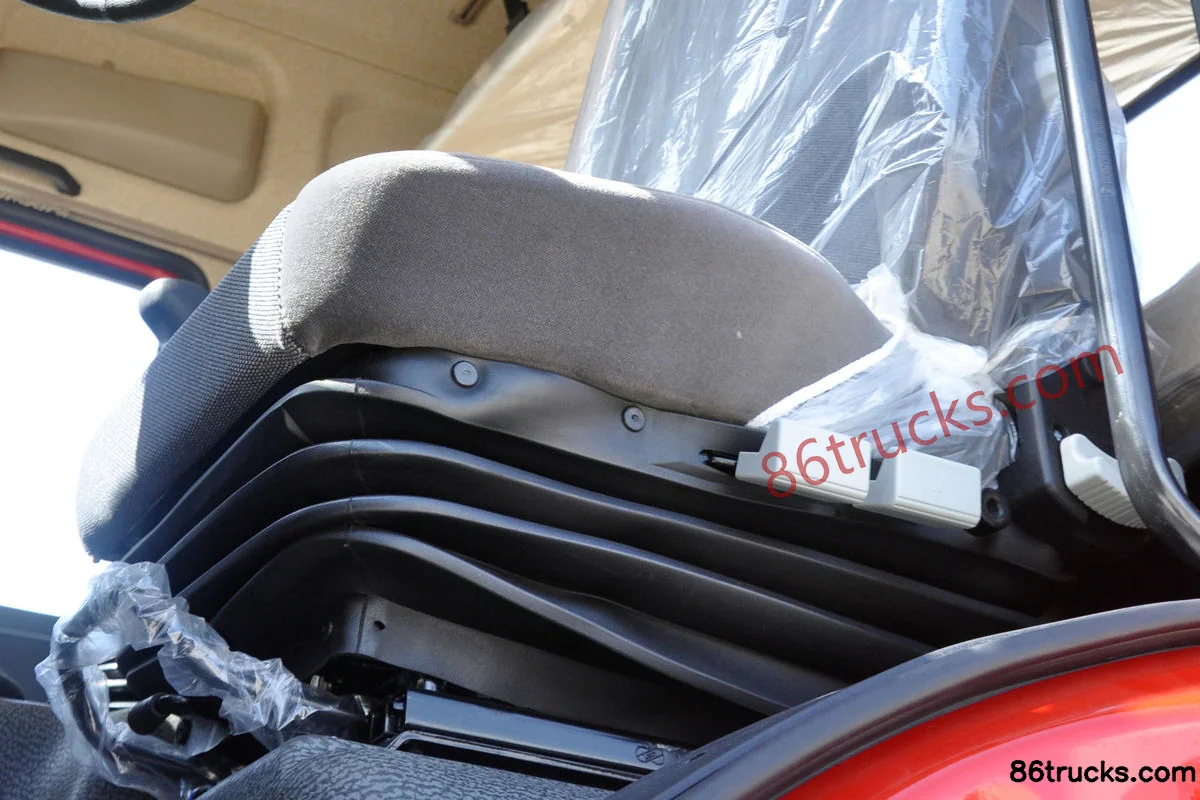

Driver seat type: air suspension seat
upper bunk width: 640mm
Lower Bunk Width: 840mm
Sunroof: Manual sunroof
Chassis Specs
Front axle allowable load: 6500kg
Fifth wheel: Low-position 50 fifth wheel
rear axle description: 13T MAN single reduction axle
rear axle allowable load: 11500kg
Axle ratio: 4.111

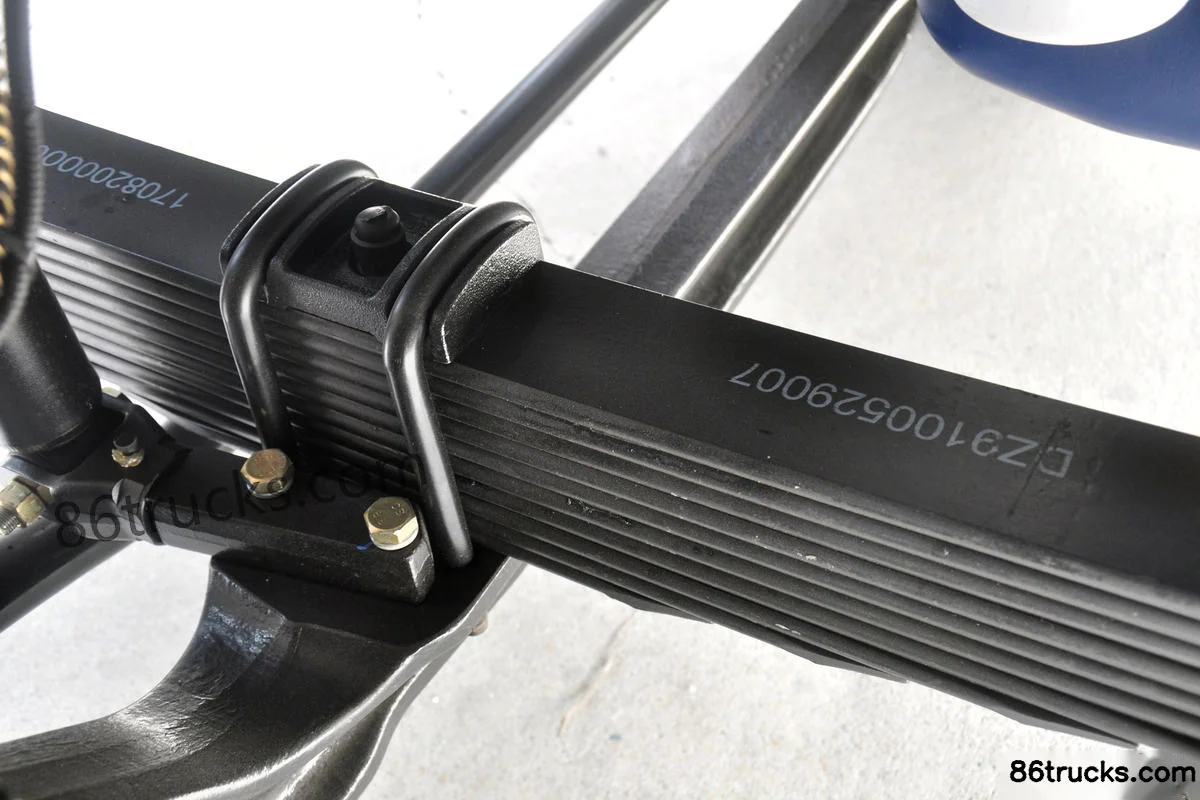

Leaf spring count: 3/4+3,10/9+6,3/-,2/2+-,2/-,3/3,3/3+2,2/3+2

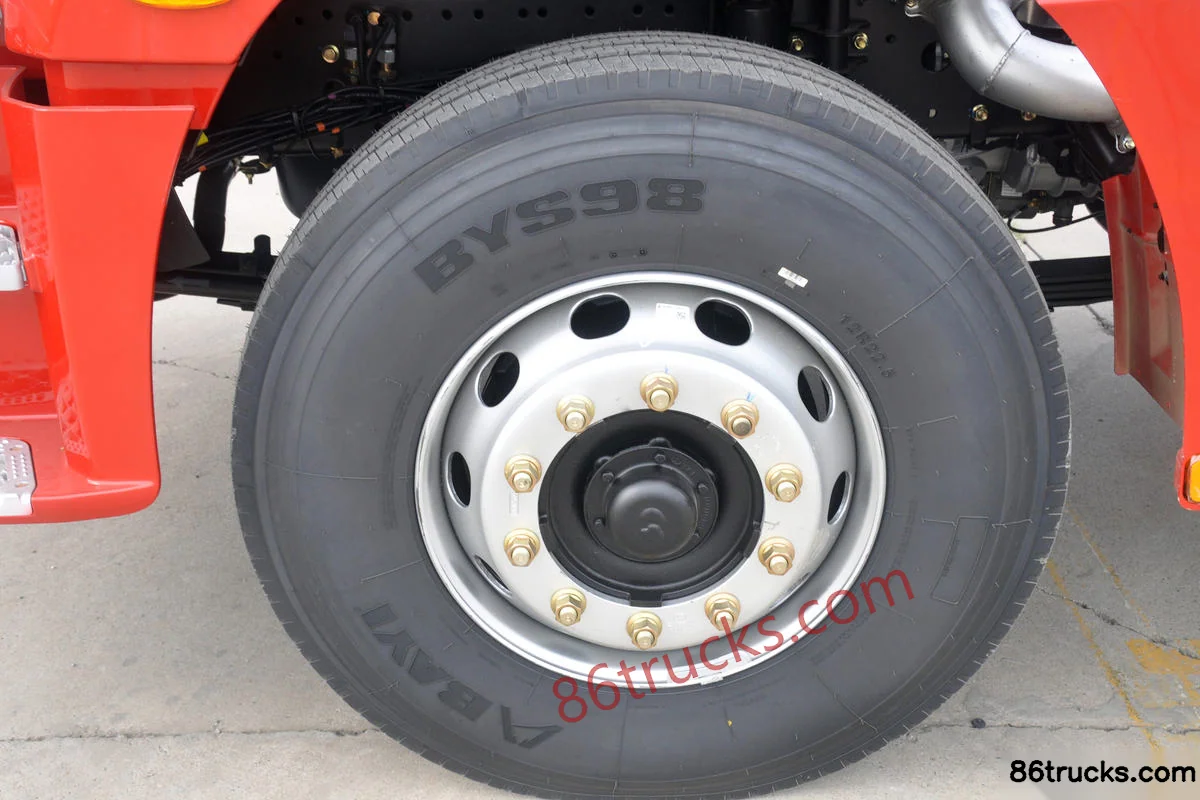

Tire
Tire Size: 12R22.5 18PR,12.00R20 18PR
Number of tires: 6pcs
Control configuration
ABS:
Inter-axle Differential Lock:
Inter-axle Differential Lock:
interior configuration
AC control type: Manual
Power Windows:
Electronic Central Lock:
Exterior features
Air deflector:
Service brake
Engine brake: WEVB
Parking brake: parking brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
Multimedia features
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Radio:
lighting configuration
daytime running lights:
LED taillight:
smart configuration
Telematics System:

Photos

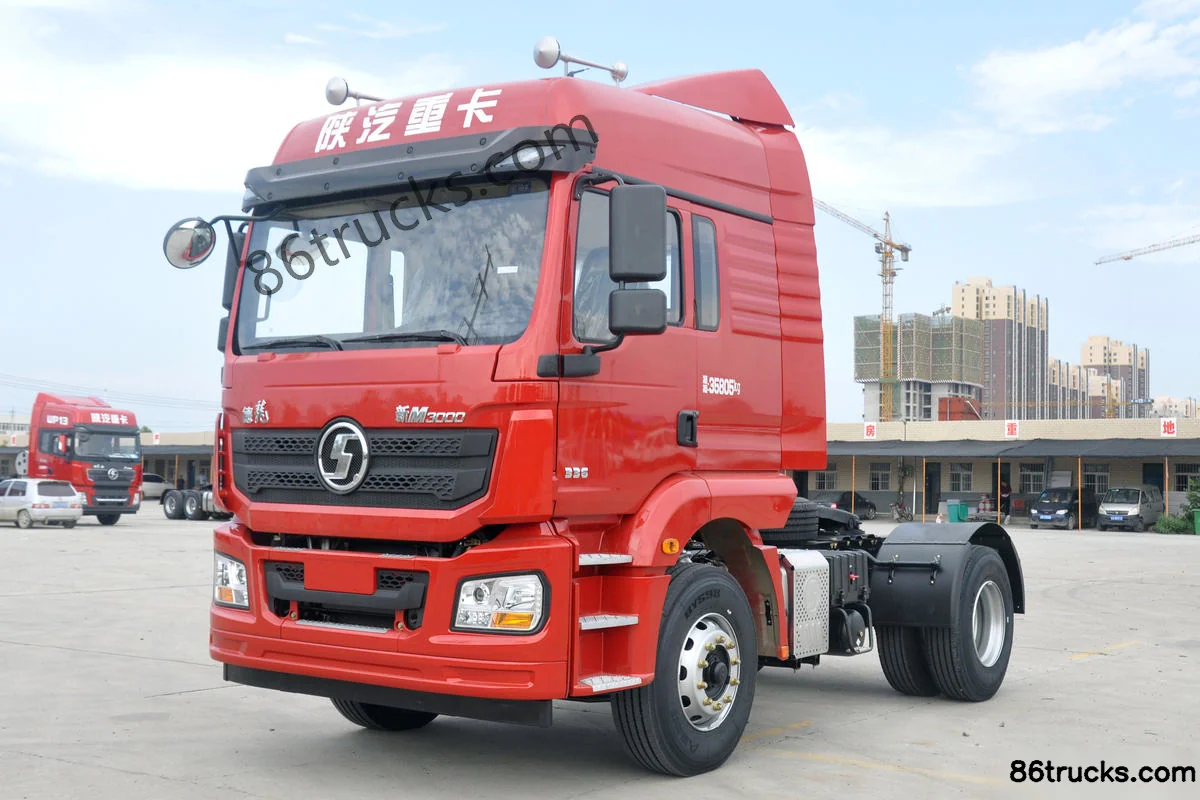

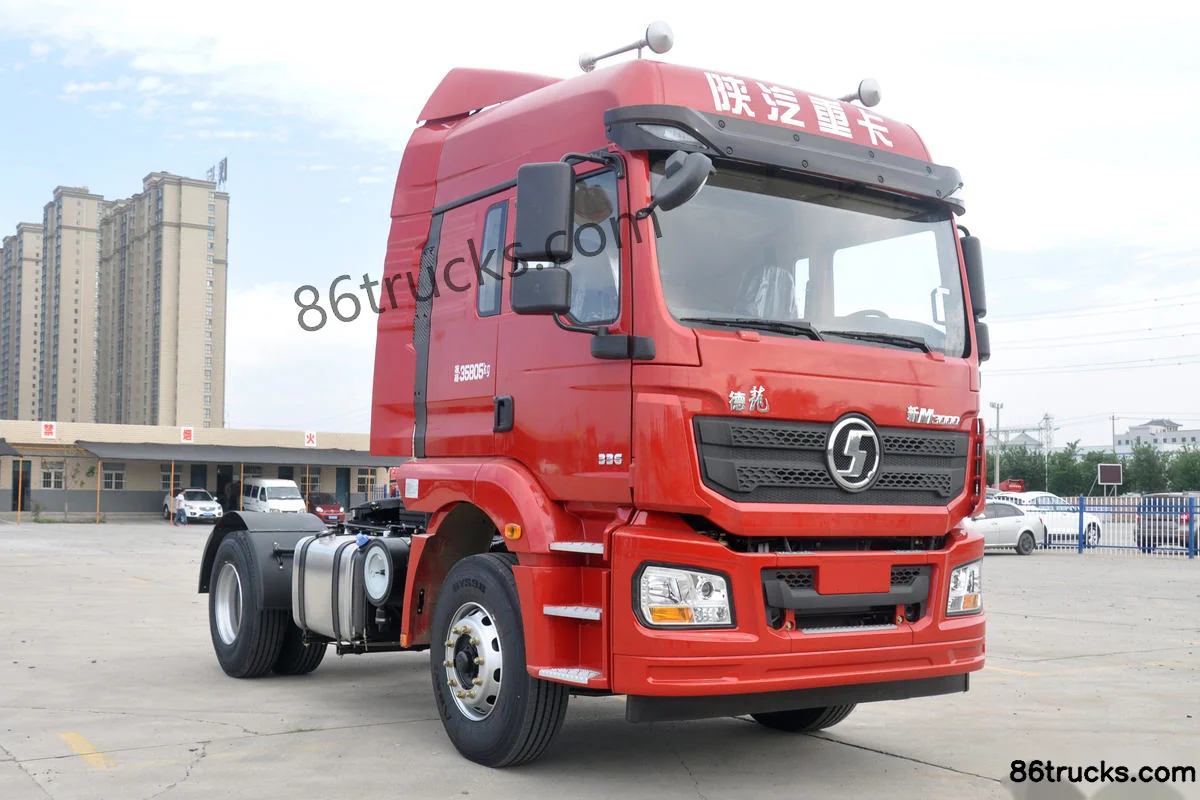

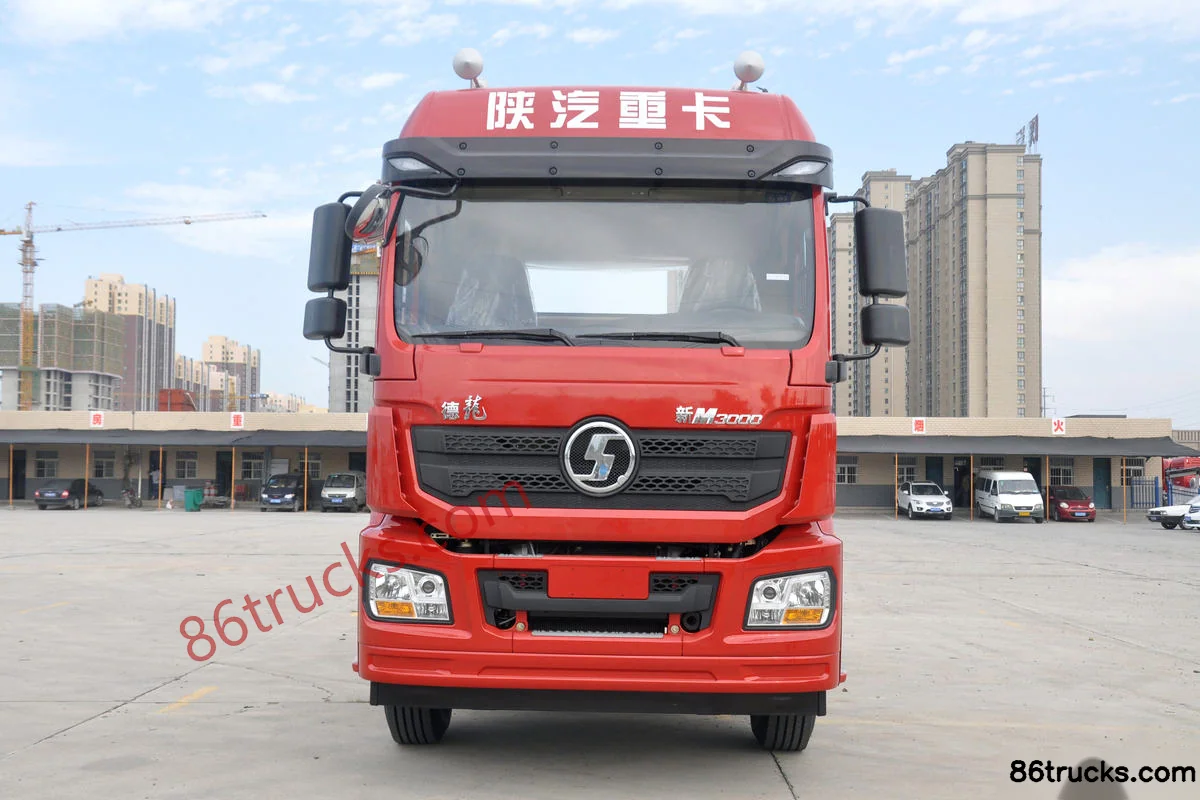

Exterior3

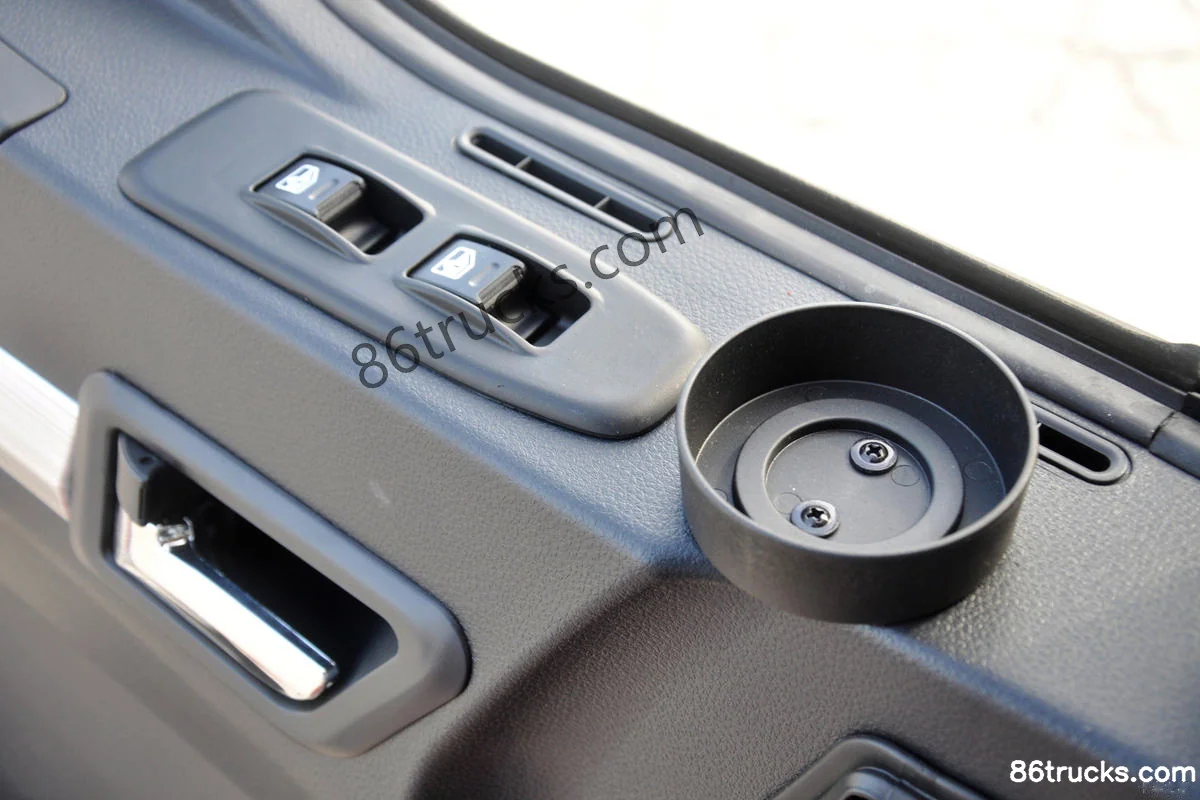

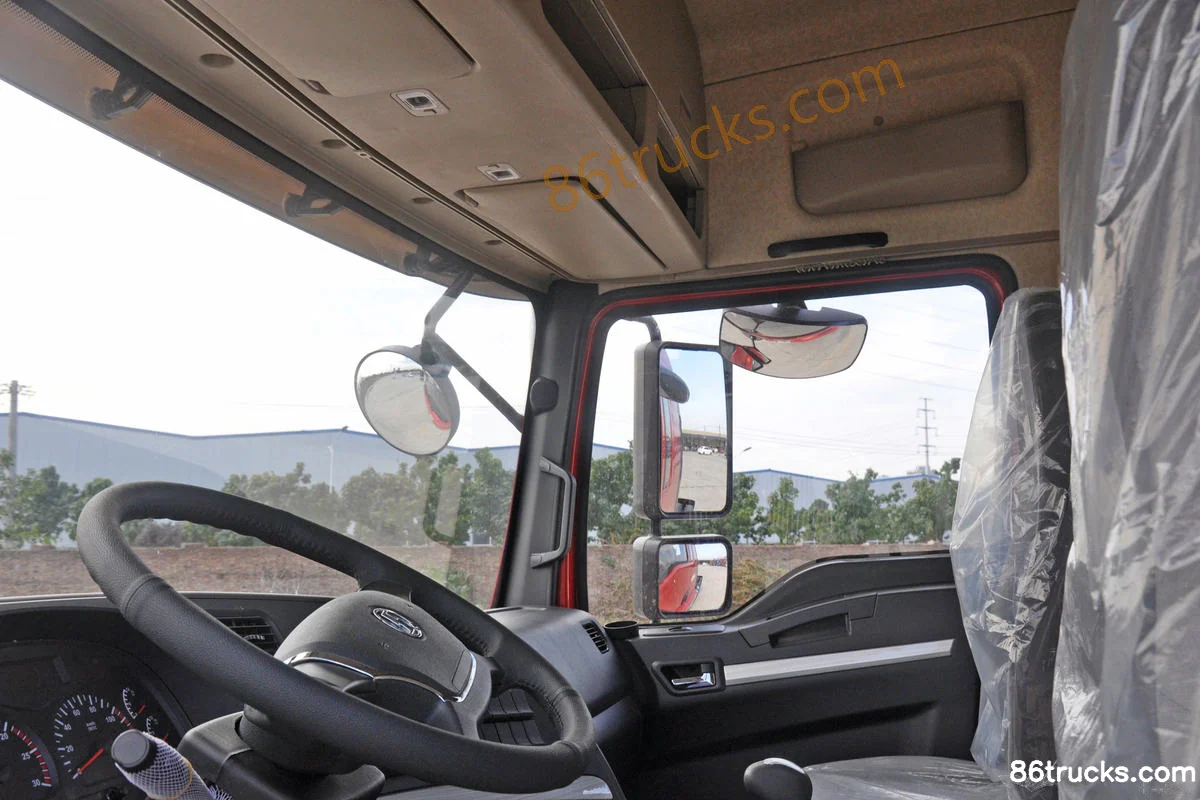

Cab3

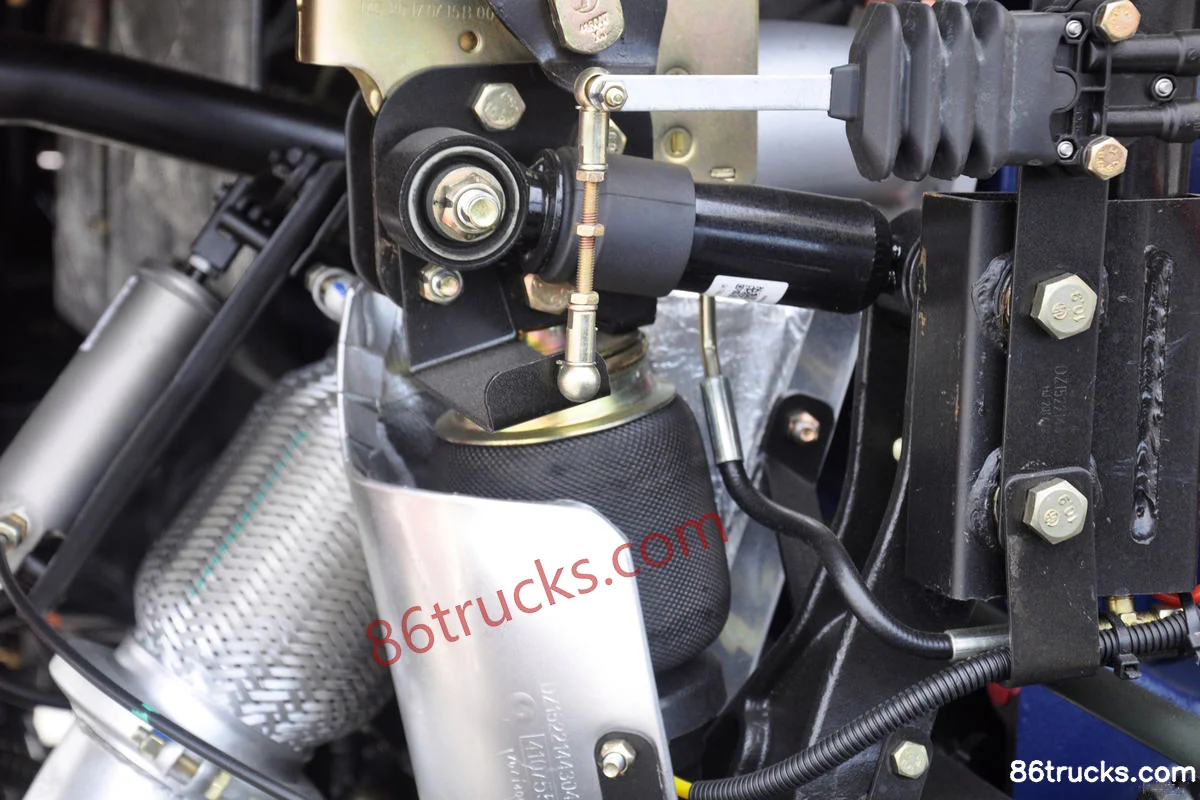

Chassis3

9 photos

FAQ

What emission standard does SHACMAN Delong New M3000 336 hp 4X2(6 wheels) Tractor Truck (12-speed) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Delong New M3000 336 hp 4X2(6 wheels) Tractor Truck (12-speed)?

Key specs of SHACMAN Delong New M3000 336 hp 4X2(6 wheels) Tractor Truck (12-speed): Drive: 4x2; Horsepower: 336 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Delong New M3000 336 hp 4X2(6 wheels) Tractor Truck (12-speed) suited for?

SHACMAN Delong New M3000 336 hp 4X2(6 wheels) Tractor Truck (12-speed) is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does SHACMAN Delong New M3000 336 hp 4X2(6 wheels) Tractor Truck (12-speed) differ from other variants in the same series?

SHACMAN Delong New M3000 336 hp 4X2(6 wheels) Tractor Truck (12-speed) belongs to SHACMAN Delong New M3000 Heavy Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Delong New M3000 336 hp 4X2(6 wheels) Tractor Truck (12-speed)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Delong New M3000 336 hp 4X2(6 wheels) Tractor Truck (12-speed)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
