Dongfeng Commercial Vehicle Tianlong Heavy Truck 315hp 8X4(12 wheels) 9.6m Stake Truck (High Roof)

Export reference
MSRP N/A
Horsepower: 315
Emission: China IV
Fuel: Diesel
Engine: Dongkang 9L
Transmission: Fast Gear
Curb Weight:: 14.1ton
seating capacity: 3Personnel
Rated payload: 17.925ton
Drive 8X4 (12 wheels)
Cargo box type: Stake type

Overview

The Dongfeng Commercial Vehicle Tianlong Heavy Truck 315hp 8X4(12 wheels) 9.6m Stake Truck (High Roof) is a Heavy-duty cargo trucks featuring 9.6m cargo length, Stake type cargo body, 3Personnel volume and 17.925t payload. Its segment focus covers Construction material transport, agricultural byproduct transport and energy minerals, matching those duty cycles. On the powertrain side, it comes with a Dongkang 9L engine, 315 hp, 8X4 (12 wheels) drive and China IV emissions.

China IV 315 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): DFL5311CCQA10
Type: stake truck
Drive type: 8X4
Wheelbase: 1850+4600+1350mm
Box length class: 9.6m
engine: DongfengISLe315 40
transmission: Fast Gear9JS135TB
Rear Axle Ratio: 4.44
Cab length: 11.98m
Cab width: 2.5m
Cab height: 3.99m
Front track width: 2040/2040mm
rear track: 1860/1860mm
Curb Weight: 14.1ton
Rated payload: 17.925ton
GVWR: 31ton
Max. speed: 90km/h
Origin: Shiyan, Hubei
tonnage class: Heavy-duty cargo trucks
Approach angle: 22°
departure angle: 10°
market segment: Construction material transport, agricultural byproduct transport, energy minerals
Front/rear suspension: 1.5/2.93m
Energy Type: Diesel
Engine parameters
Engine Brand: Dongfeng
Engine Model: DongfengISLe315 40
Engine info: Dongkang 9L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 8.9L
Emission standard: China IV
Max output power: 231kW
Max hp: 315Horsepower
Max torque: 1200N·m
Max torque speed: 1400rpm
Rated speed: 2100rpm
Engine Type: Electronically controlled
Transmission Parameters
Transmission Model: Fast Gear9JS135TB
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 9Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 9.6m
Cargo box width: 2.4m
Cargo box height: 0.8m
*Cargo box interior width: 2.4000000953674
Cab parameters
Cab: New Tianlong High Roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 350L
Chassis Specs
Front axle description: 5T
Front axle allowable load: 6500/6500kg
Frame Dimensions: 300x90x[8+5]mm
rear axle description: 10T
rear axle allowable load: 18000 (twin axle)kg
Axle ratio: 4.44
Leaf spring count: 9/9/10
clutch: Φ430
Tire
Tire Size: 11.00R20
Number of tires: 12pcs
Control configuration
ABS:
interior configuration
AC control type: Manual

Photos

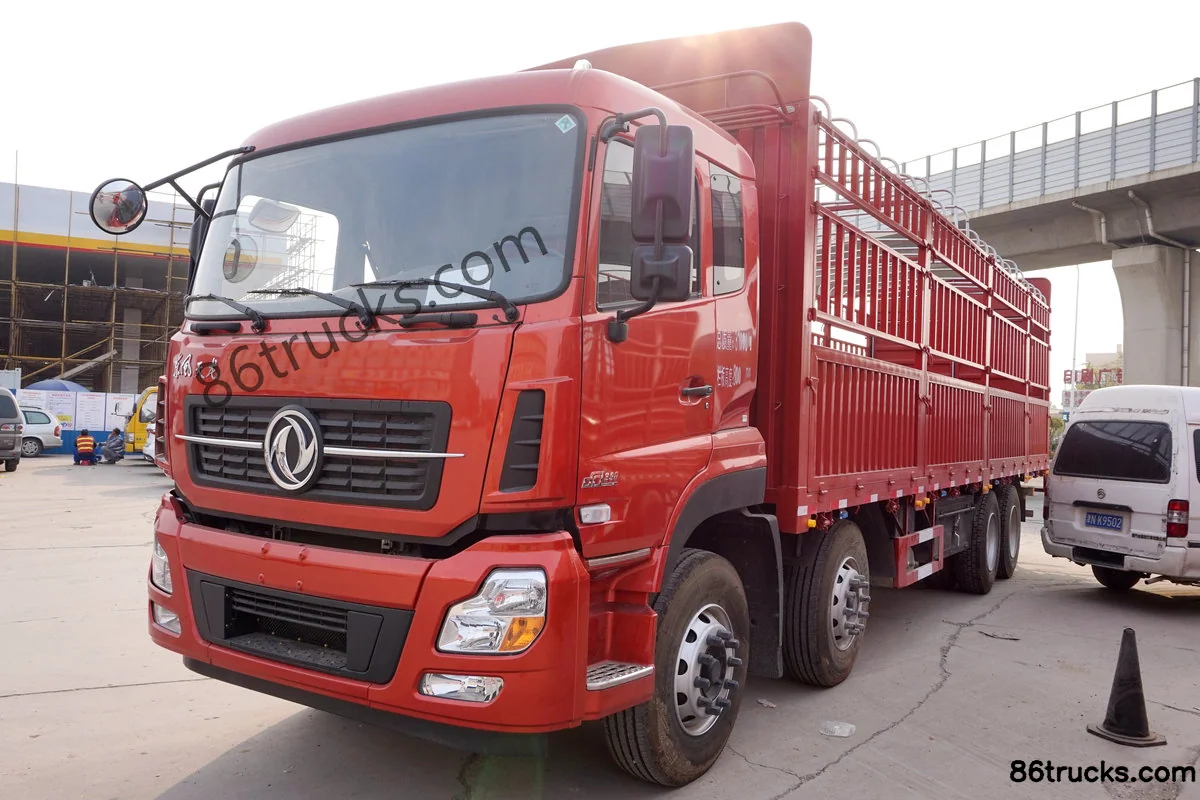

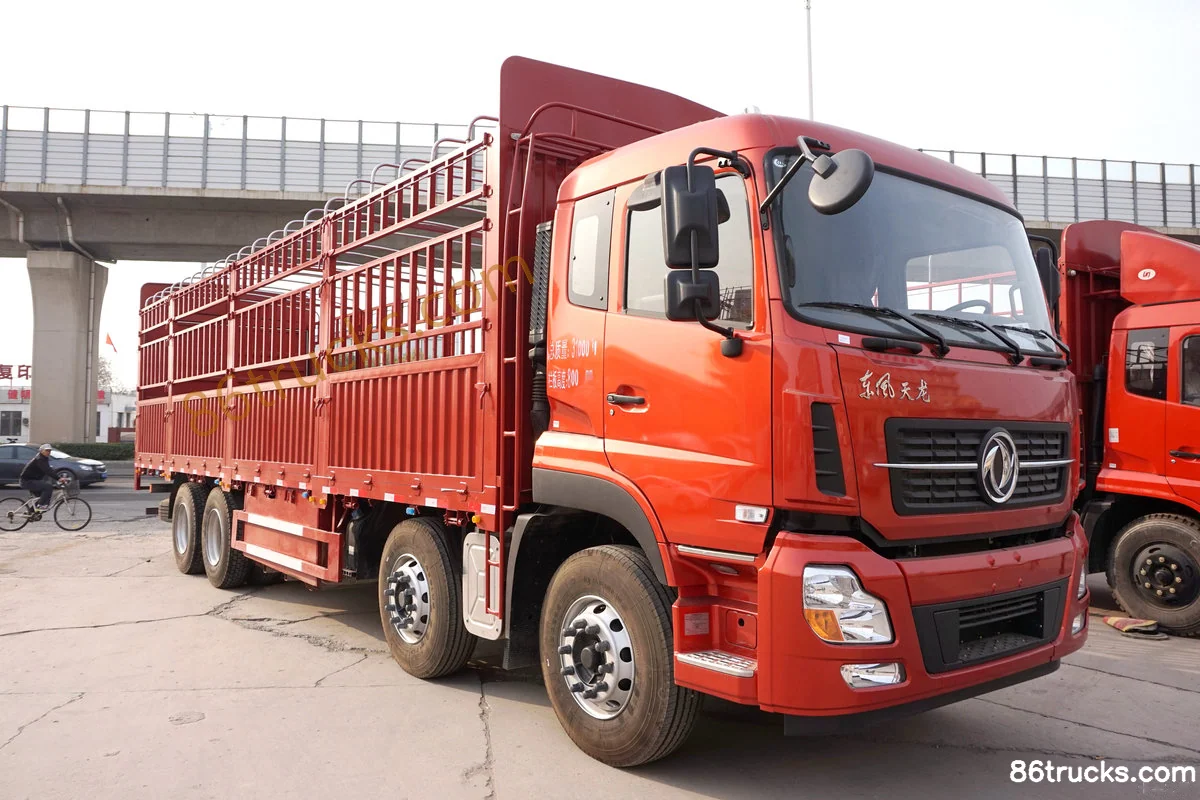

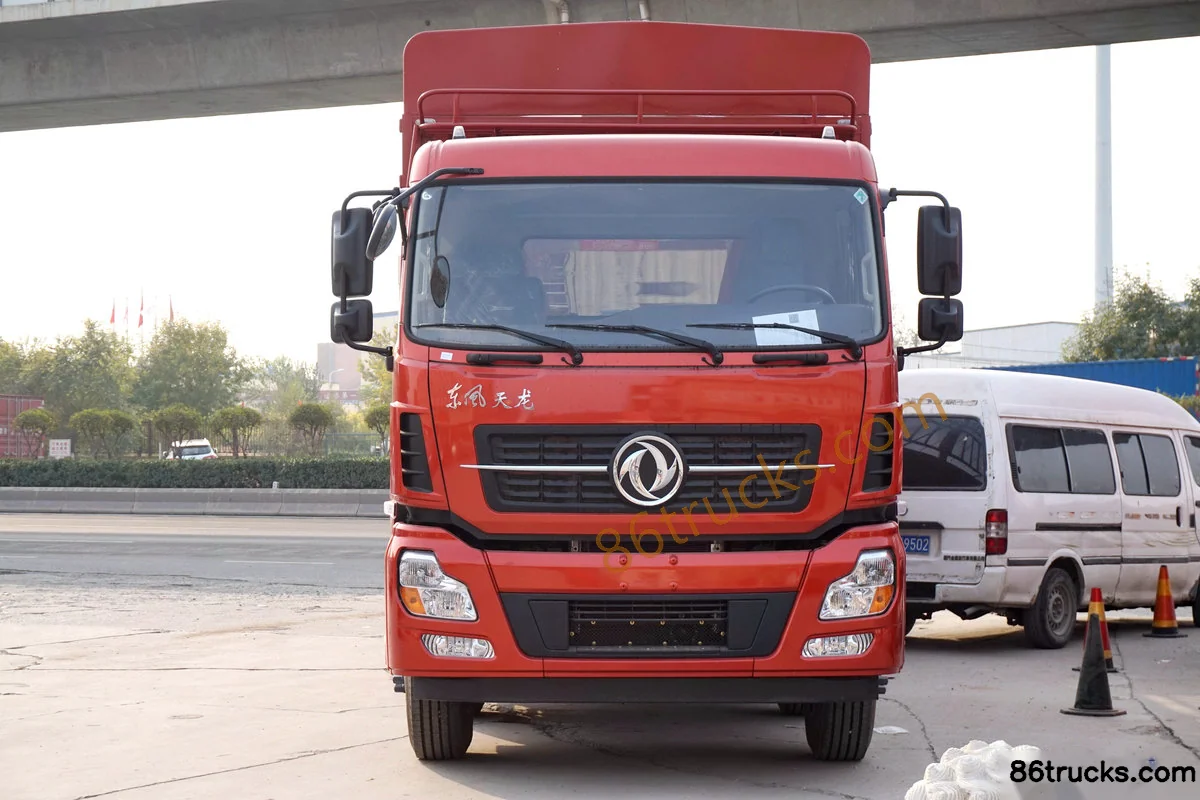

Exterior3

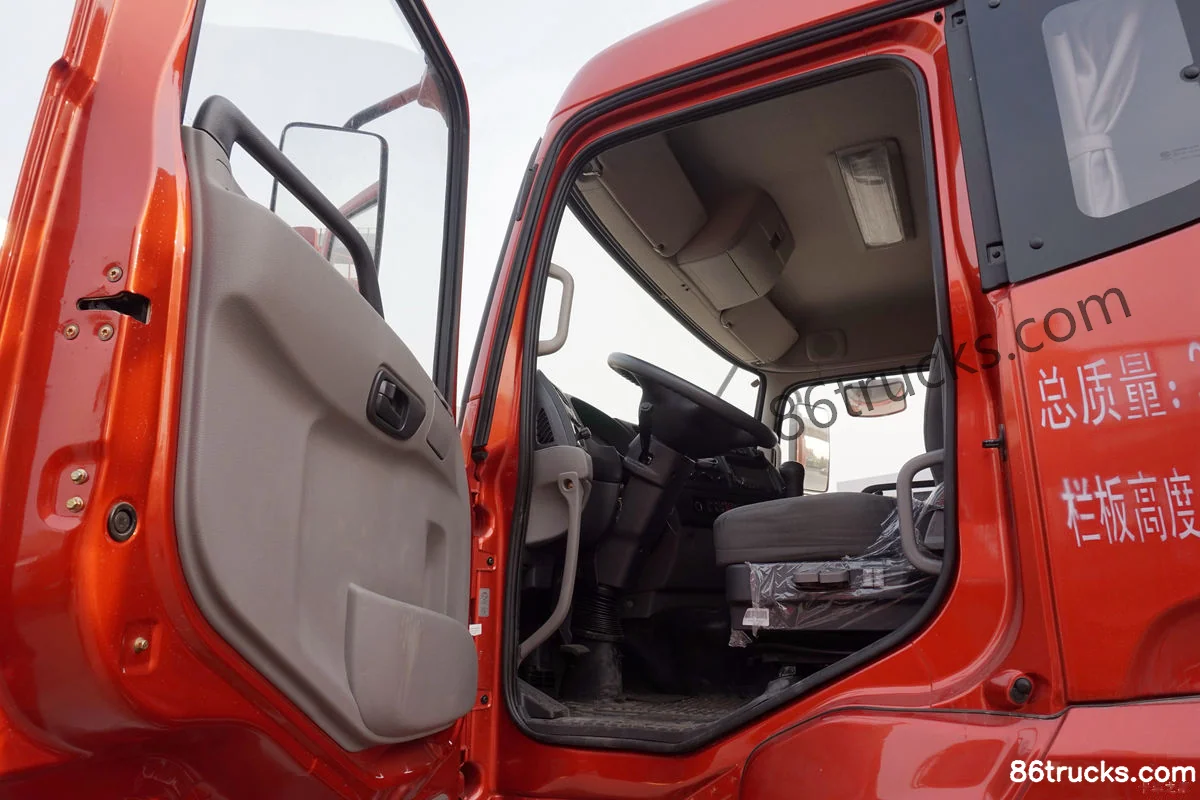

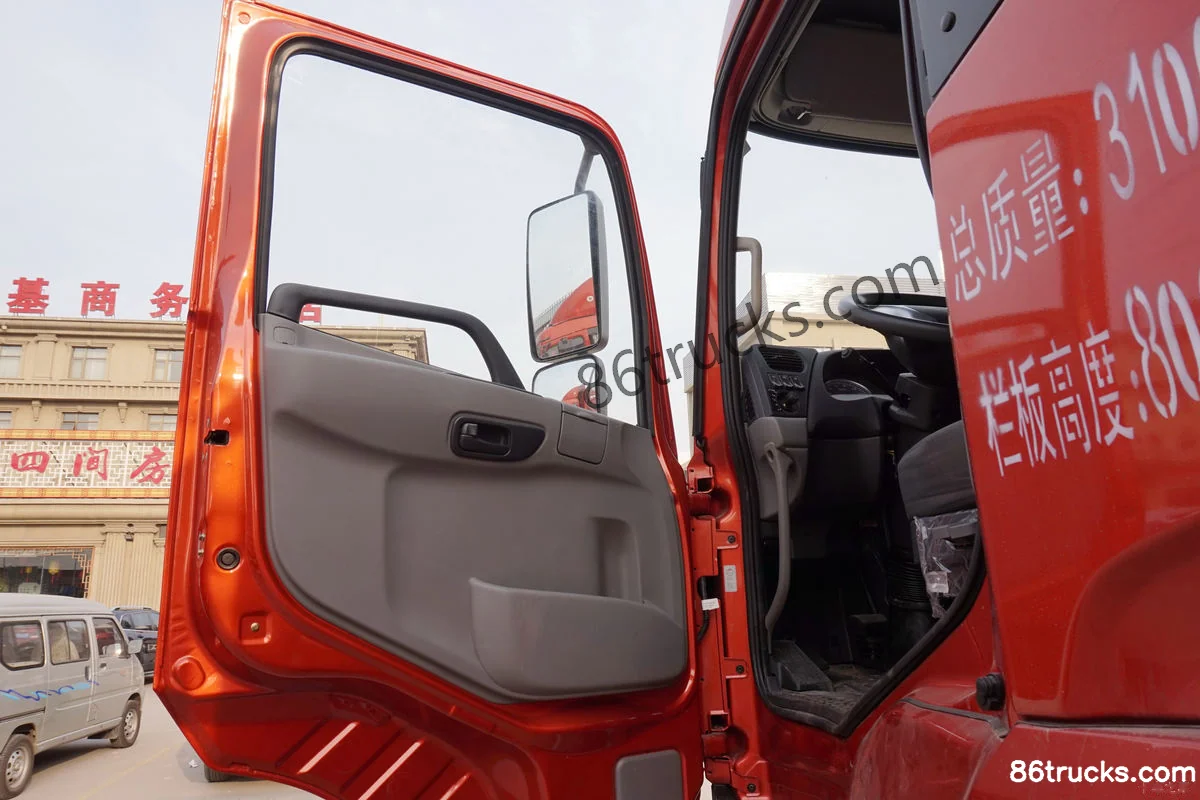

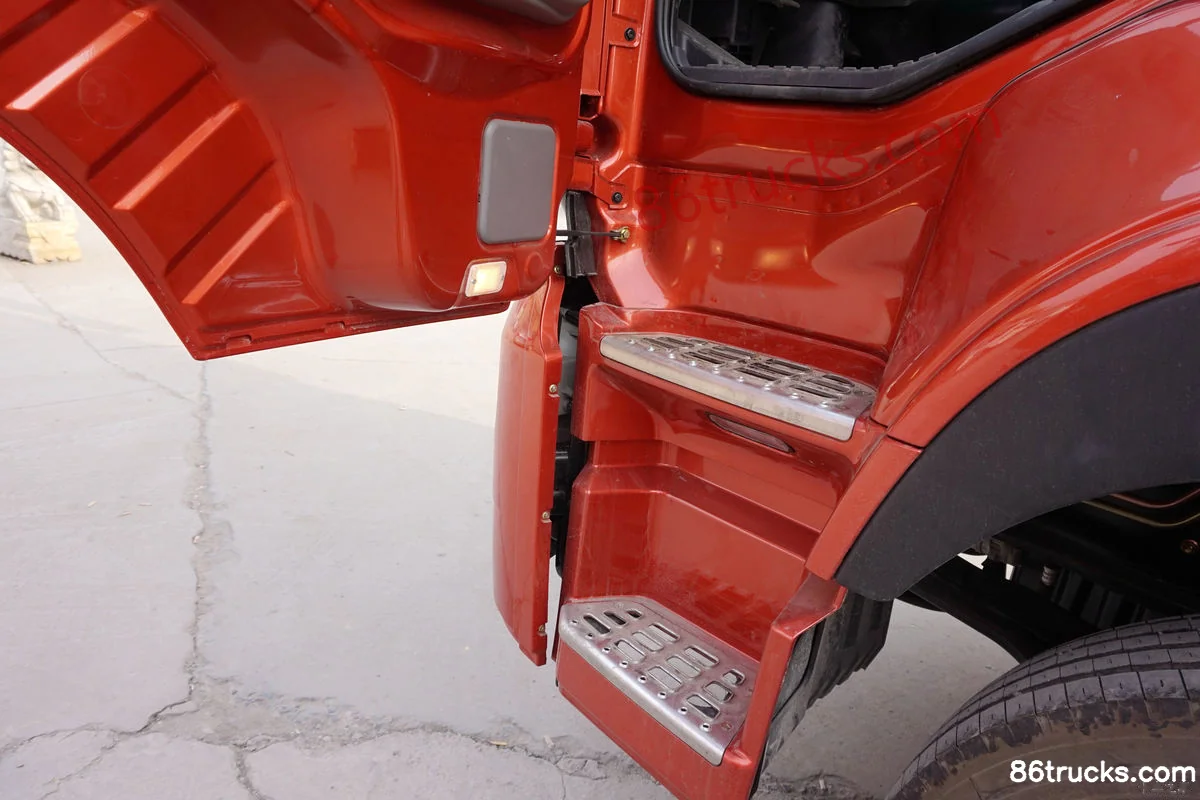

Cab3

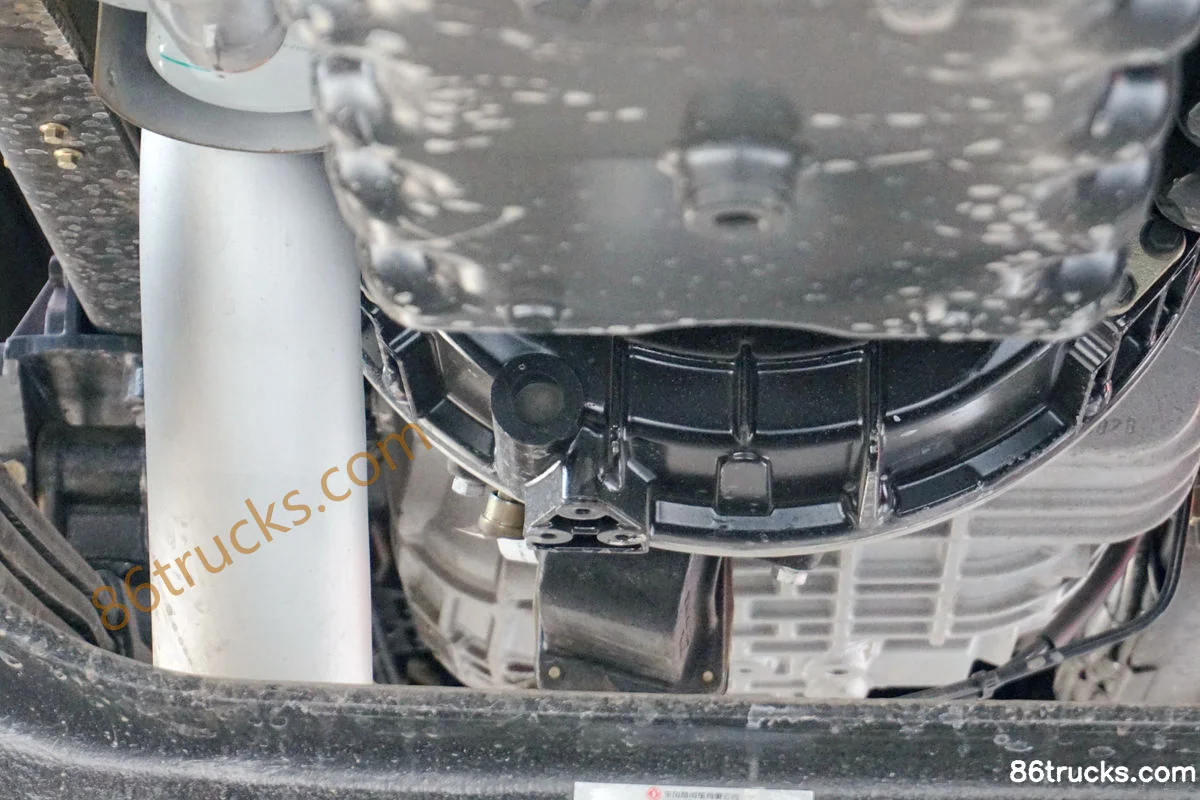

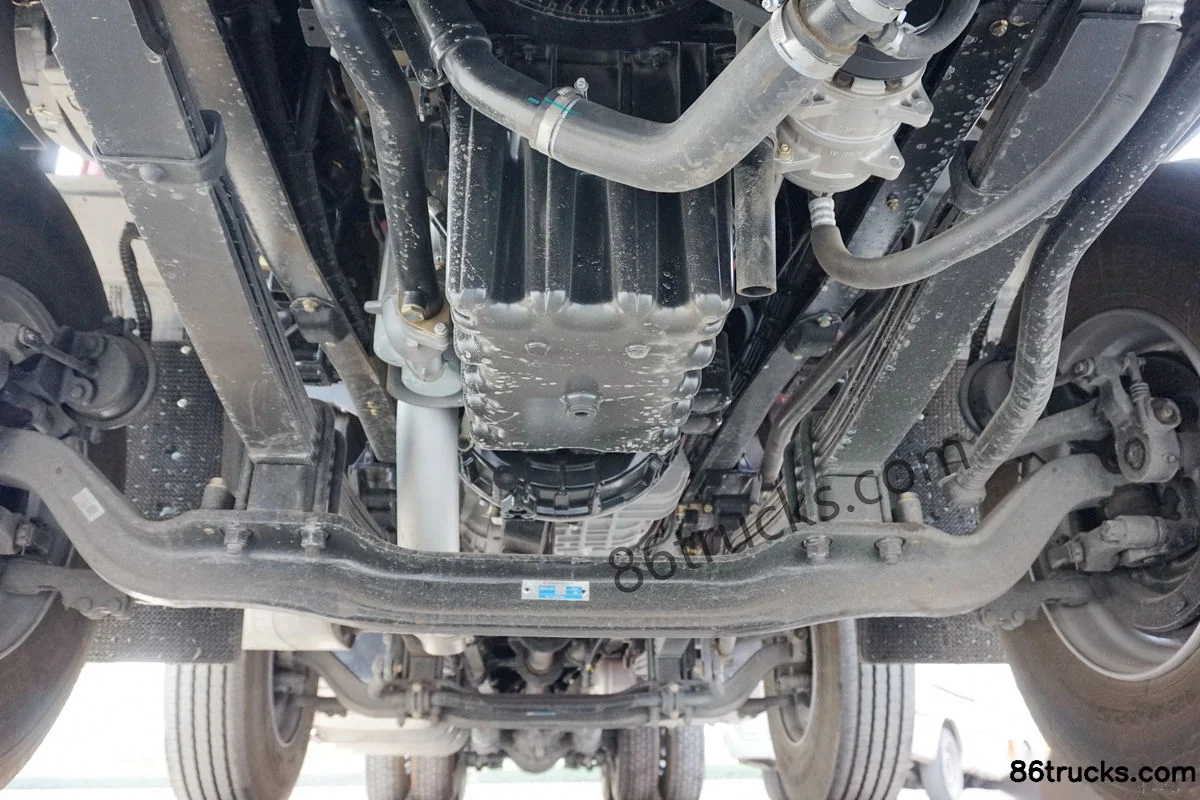

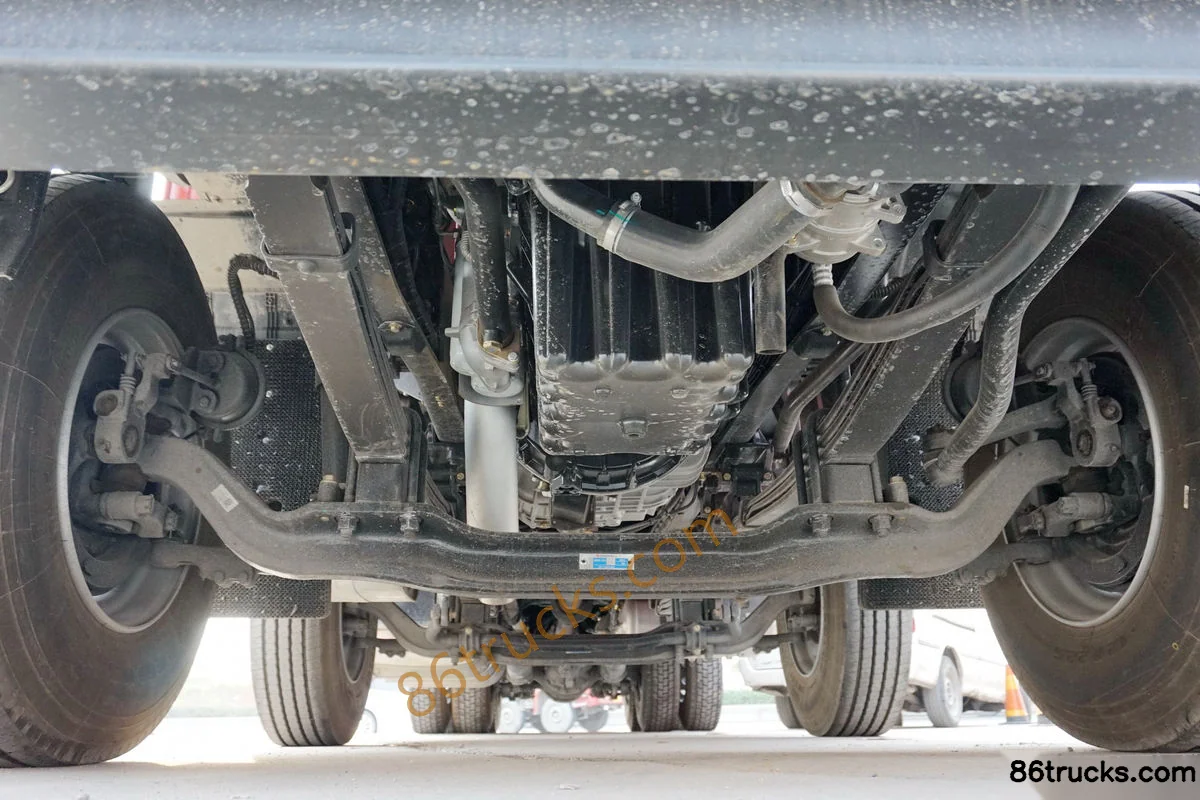

Chassis3

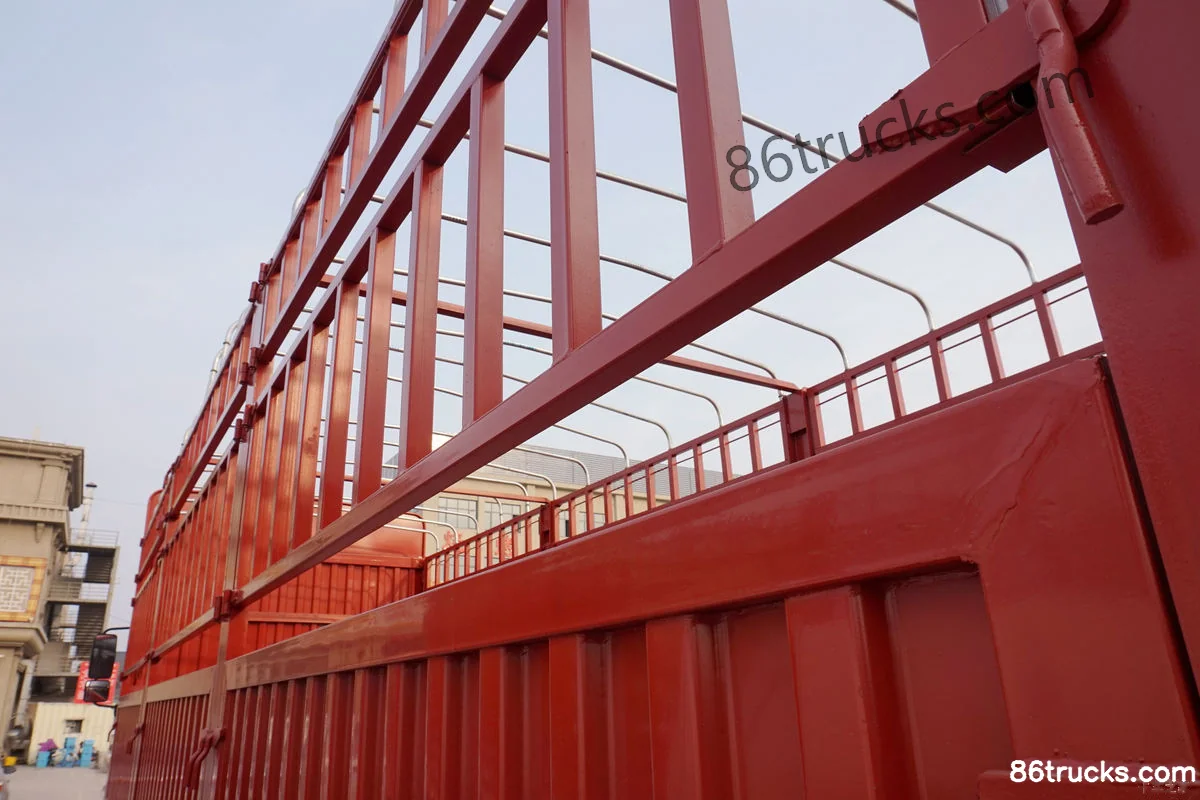

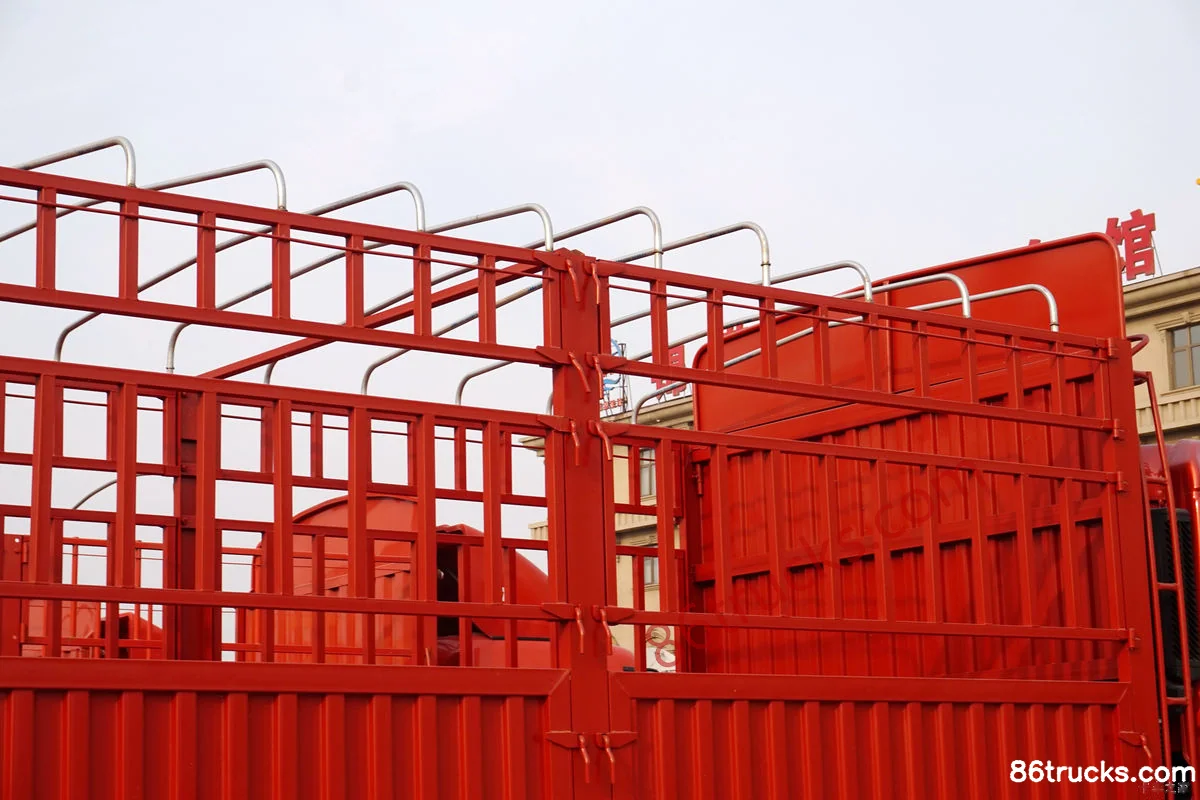

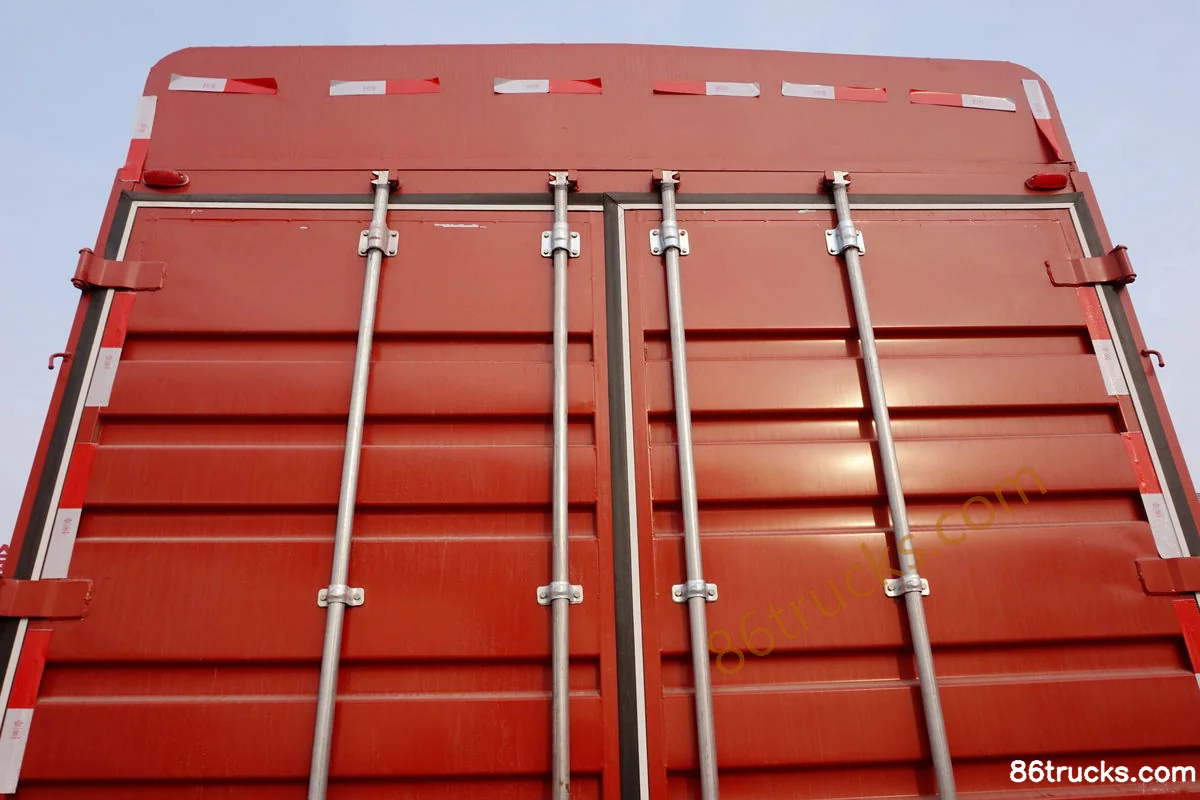

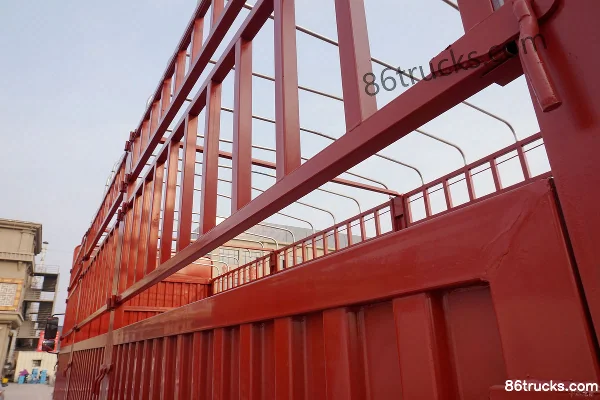

Body3

12 photos

FAQ

What emission standard does Dongfeng Commercial Vehicle Tianlong Heavy Truck 315hp 8X4(12 wheels) 9.6m Stake Truck (High Roof) use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Commercial Vehicle Tianlong Heavy Truck 315hp 8X4(12 wheels) 9.6m Stake Truck (High Roof)?

Key specs of Dongfeng Commercial Vehicle Tianlong Heavy Truck 315hp 8X4(12 wheels) 9.6m Stake Truck (High Roof): Drive: 8x4; Horsepower: 315 hp; Emission: China IV; Fuel: Diesel; Engine: Dongkang 9L; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Commercial Vehicle Tianlong Heavy Truck 315hp 8X4(12 wheels) 9.6m Stake Truck (High Roof) suited for?

Dongfeng Commercial Vehicle Tianlong Heavy Truck 315hp 8X4(12 wheels) 9.6m Stake Truck (High Roof) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Dongfeng Commercial Vehicle Tianlong Heavy Truck 315hp 8X4(12 wheels) 9.6m Stake Truck (High Roof) differ from other variants in the same series?

Dongfeng Commercial Vehicle Tianlong Heavy Truck 315hp 8X4(12 wheels) 9.6m Stake Truck (High Roof) belongs to Dongfeng Tianlong (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Commercial Vehicle Tianlong Heavy Truck 315hp 8X4(12 wheels) 9.6m Stake Truck (High Roof)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Commercial Vehicle Tianlong Heavy Truck 315hp 8X4(12 wheels) 9.6m Stake Truck (High Roof)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
