Yuejin Chaoyue C500 170 hp 4X2(6 wheels) 3.82m semi-row stake truck (China VI)

Export reference
From $17,778
MSRP ¥12.8M CNY
Horsepower: 170
Emission: China VI
Fuel: Diesel
Engine: De Wei D30
Transmission: Fast Gear
Curb Weight:: 2.72ton

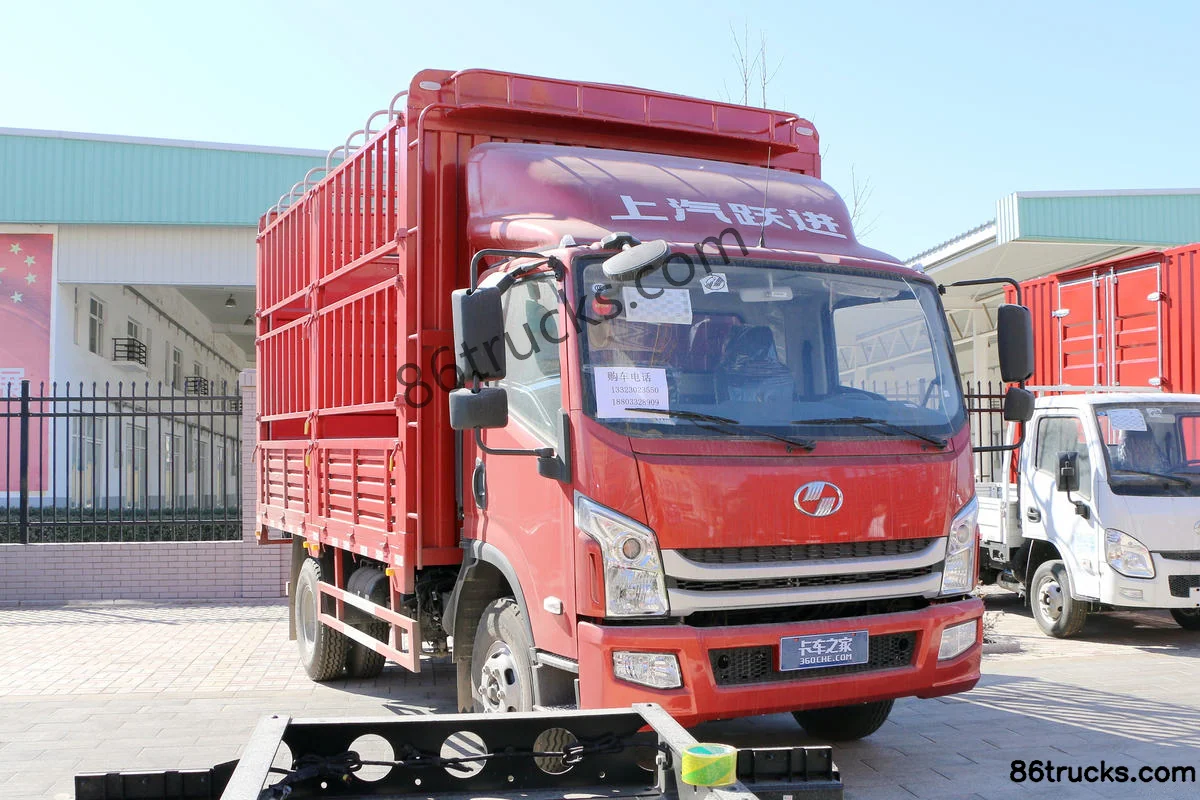

Yuejin Chaoyue C500 170 hp 4X2(6 wheels) 3.82m semi-row stake truck (China VI) exterior
View more photos (12)
seating capacity: 3Personnel
Rated payload: 1.58ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The Yuejin Chaoyue C500 170 hp 4X2(6 wheels) 3.82m semi-row stake truck (China VI) is a Light Truck featuring 3.82m cargo length, Stake type cargo body, 3Personnel volume and 1.58t payload. Its segment focus covers Agricultural product transport and green channel, matching those duty cycles. On the powertrain side, it comes with a De Wei D30 engine, 170 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 170 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): SH5043CCYZFDDWZ1
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3308mm
Box length class: 3.8m
engine: Yunnei PowerD30TCIF1
transmission: Fast Gear8JS75TE-C
Rear Axle Ratio: 4.33
Cab length: 5.995m
Cab width: 2.2m
Cab height: 3.18m
Front track width: 1730mm
rear track: 1620mm
Curb Weight: 2.72ton
Rated payload: 1.58ton
GVWR: 4.495ton
Max. speed: 105km/h
Origin: Nanjing, Jiangsu
tonnage class: Light Truck
Approach angle: 20°
departure angle: 14°
market segment: Agricultural product transport, green channel
Remarks: Frame-type rearview mirror, MP3, smart instrument cluster, frameless wipers, exhaust brake, dual 24V batteries, intelligent working mode, aluminum air tank, welcome lights, patterned floor; optional: auto door lock, telematics, sleeper seat, 130L aluminum fuel tank, 210SMC deflector, 230 fiberglass deflector, 8.25R16 6PR tires, front stabilizer bar, ETC
Front/rear suspension: 1.118/1.569m
Version: C500
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerD30TCIF1
Engine info: De Wei D30
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3L
Emission standard: China VI
Max output power: 125kW
Max hp: 170Horsepower
Max torque: 500N·m
Max torque speed: 1200-2200rpm
Rated speed: 2800rpm
Engine Oil Change Interval: 10000 km / 6 months
Engine Type: Electronic control common rail system HEGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: Fast Gear8JS75TE-C
Transmission Brand: Fast Gear
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Transmission oil change interval: 40000km/12 months
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 3.82m
Cargo box width: 2.31m
*Cargo box interior width: 2.3099999427795
Cab parameters
Cab width: 2050mm
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1595kg
Frame Dimensions: 190×65×(6+4) (constant-section)mm
rear axle description: 6T
rear axle allowable load: 2900kg
Axle ratio: 4.33
Leaf spring count: 10/9+7
Frame Type: Straight-through frame
Aluminum wheels:
rear axle oil change interval: 80,000 km / 12 months
Tire
Tire Size: 7.50R16 6PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
clutch booster:
automatic slack adjuster:
interior configuration
Steering Wheel Material: Plastic
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Electric Heated Rearview Mirror:
Power interface:
Reverse Radar:
Seat material: Fabric
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Aluminum air tank:
Diesel primary filter heating:
Wiper type: Frameless wiper blade
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Bluetooth / hands-free calling:
Radio:
standard instrument cluster:
LCD instrument cluster:
Service brake
Engine brake: none
Brake Type: Air brake
Parking brake: Spring brake
Exhaust brake:
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
lighting configuration
Front fog lamp:
daytime running lights:
Headlight height adjustment:
Halogen Headlights:
smart configuration
Telematics System:
Cruise control (CCS):
Forward Collision Warning (FCW):
maintenance service
Vehicle Warranty Period: 5 years unlimited mileage
24-hour service hotline: 4008281893
Rescue service:

Photos

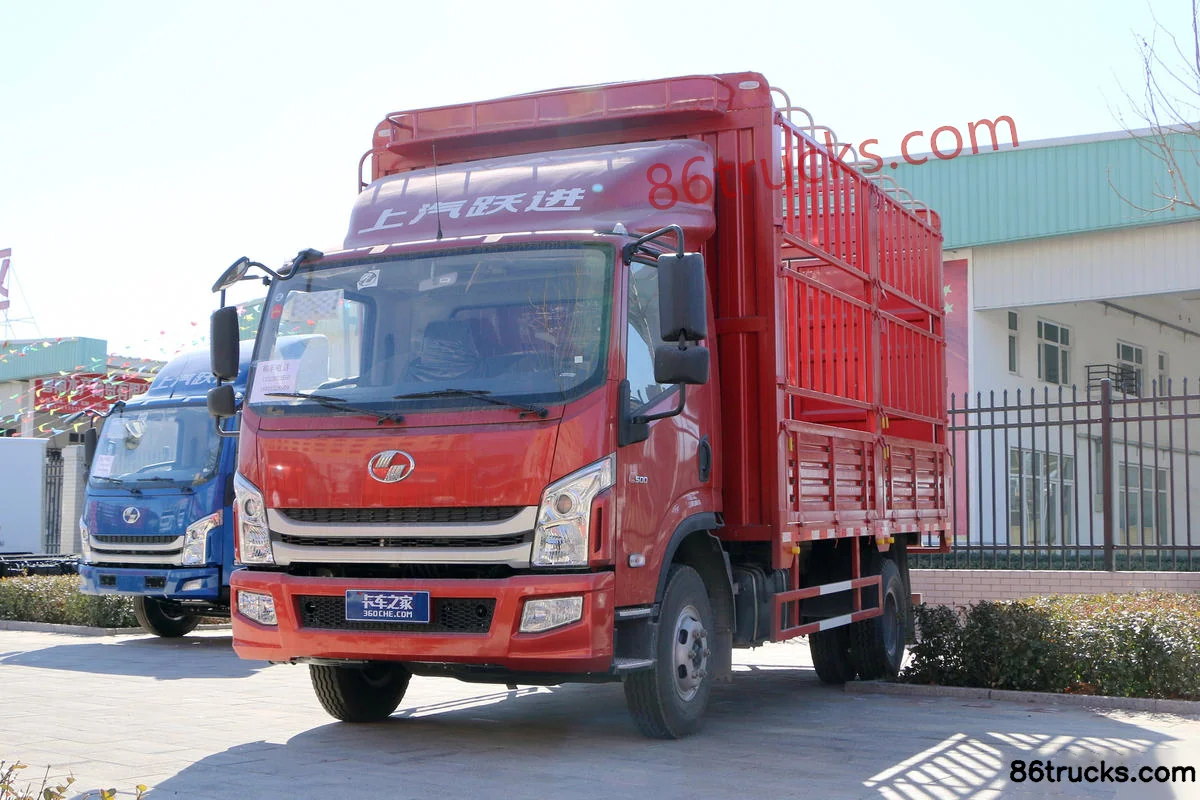

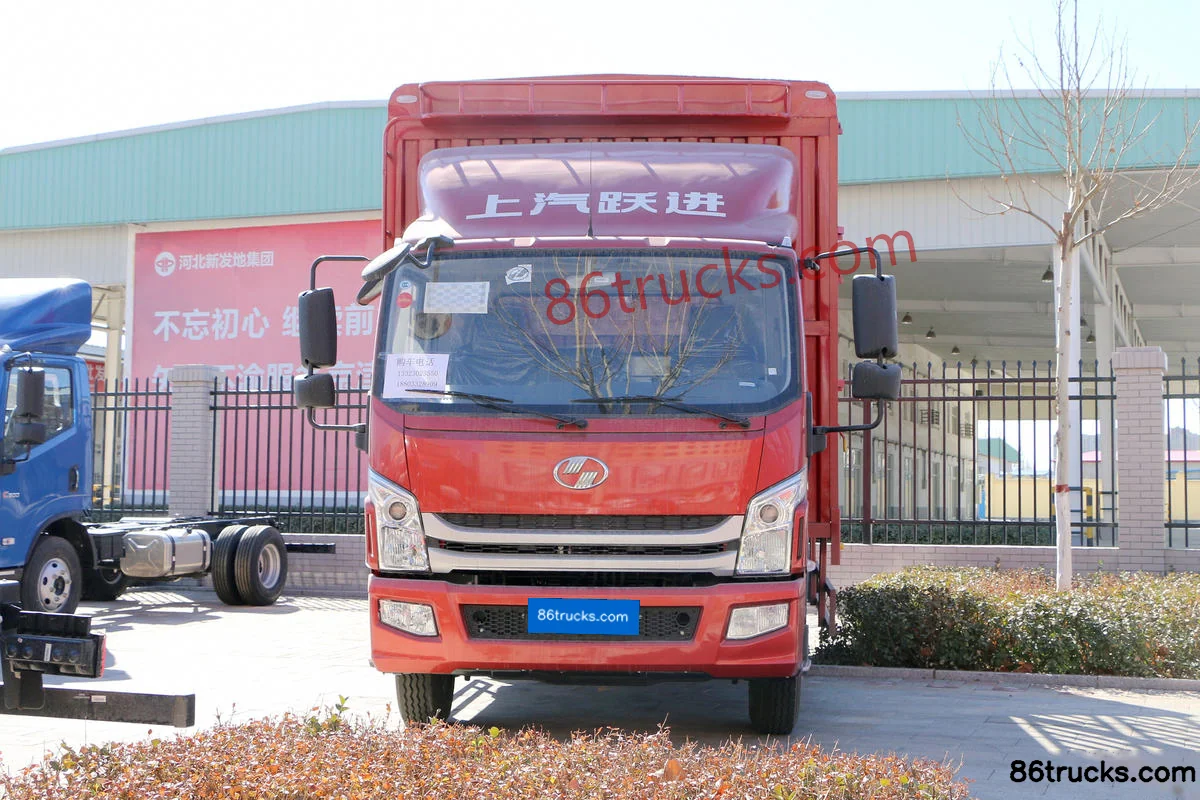

Exterior3

Yuejin Chaoyue C500 170 hp 4X2(6 wheels) 3.82m semi-row stake truck (China VI) Exterior (1) | 86Trucks Yuejin Chaoyue C500 170 hp 4X2(6 wheels) 3.82m semi-row stake truck (China VI) Exterior (2) | 86Trucks Yuejin Chaoyue C500 170 hp 4X2(6 wheels) 3.82m semi-row stake truck (China VI) Exterior (3) | 86Trucks

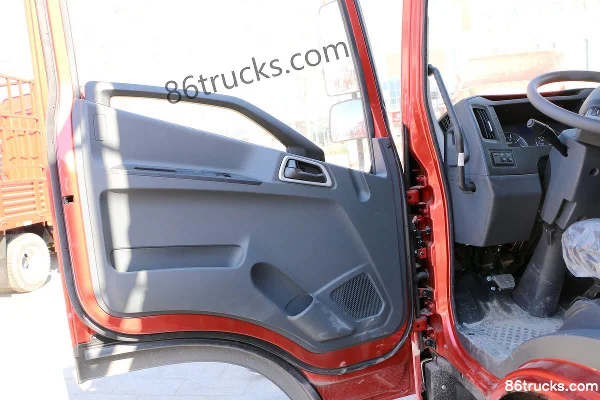

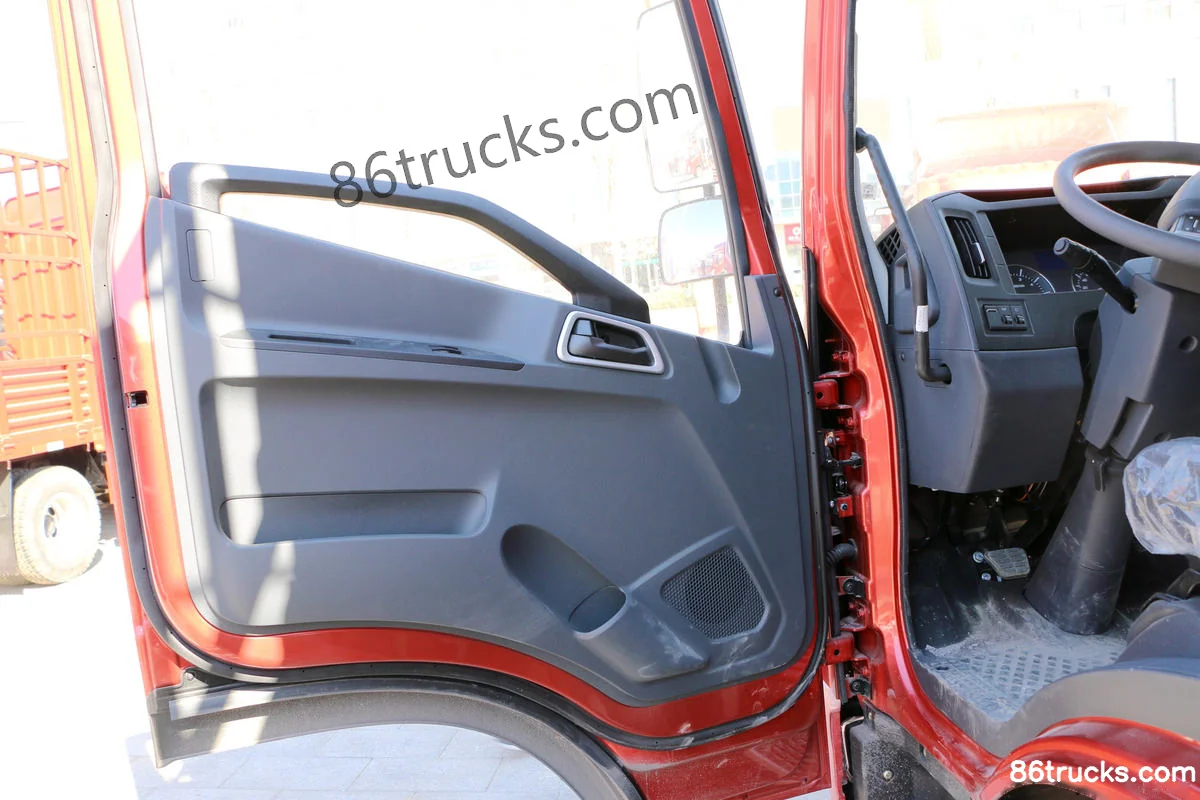

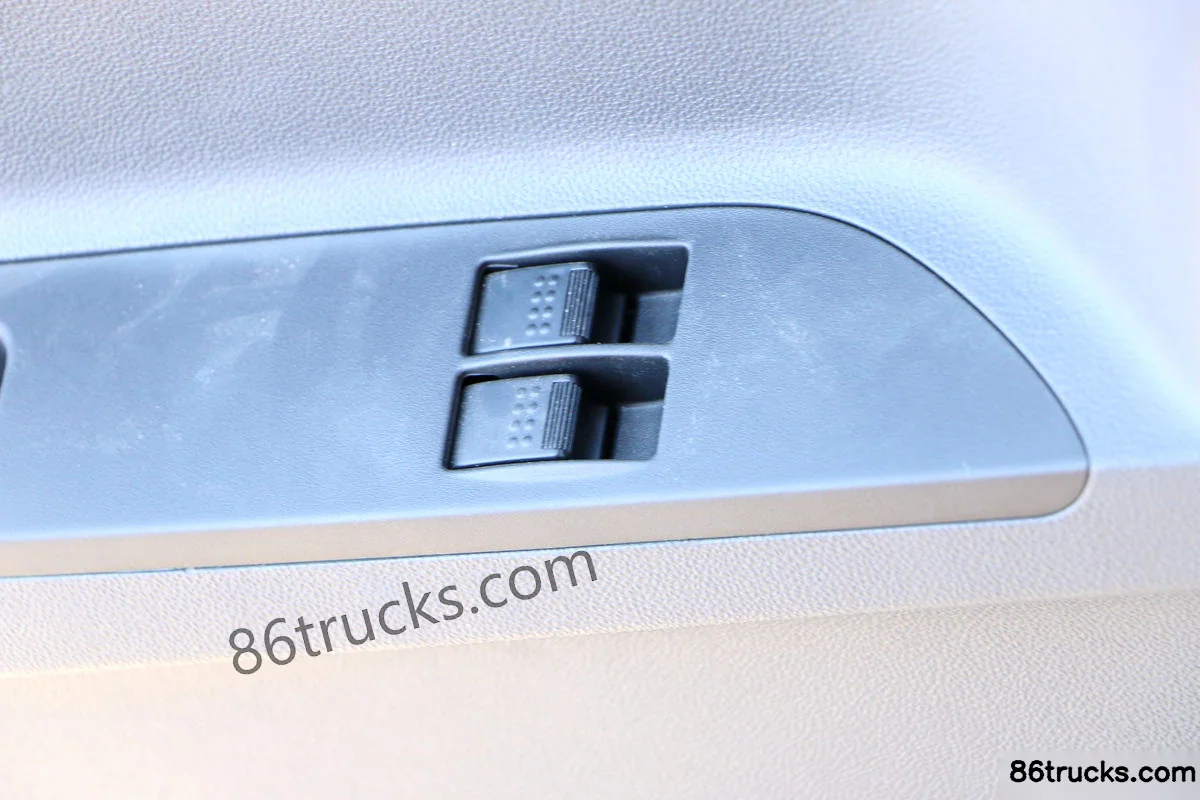

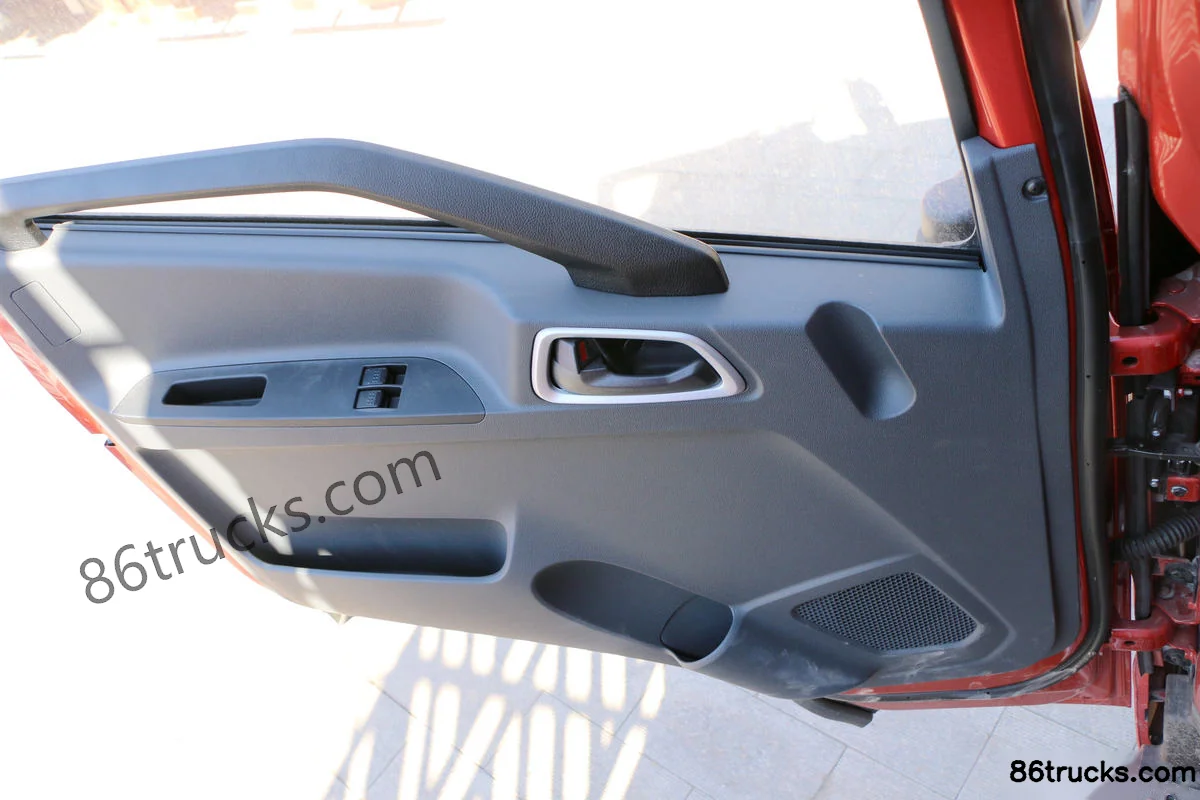

Cab3

Yuejin Chaoyue C500 170 hp 4X2(6 wheels) 3.82m semi-row stake truck (China VI) Cab (1) | 86Trucks Yuejin Chaoyue C500 170 hp 4X2(6 wheels) 3.82m semi-row stake truck (China VI) Cab (2) | 86Trucks Yuejin Chaoyue C500 170 hp 4X2(6 wheels) 3.82m semi-row stake truck (China VI) Cab (3) | 86Trucks

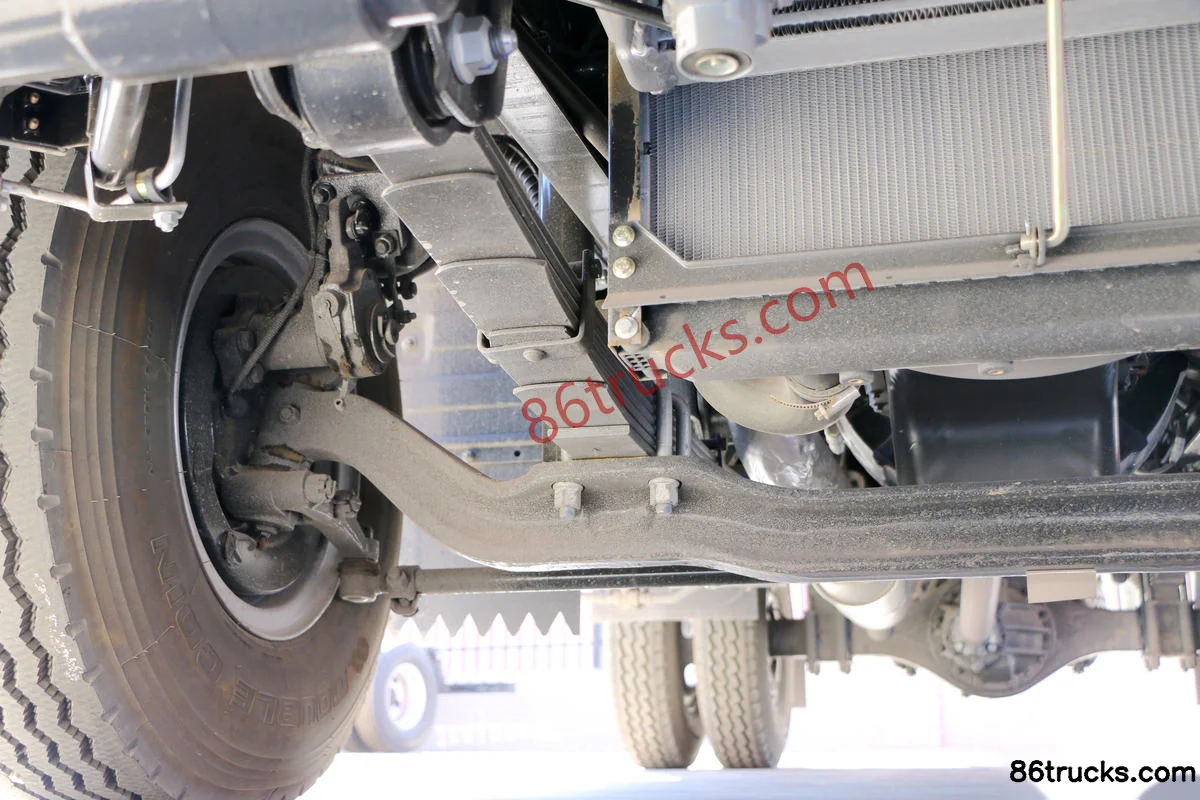

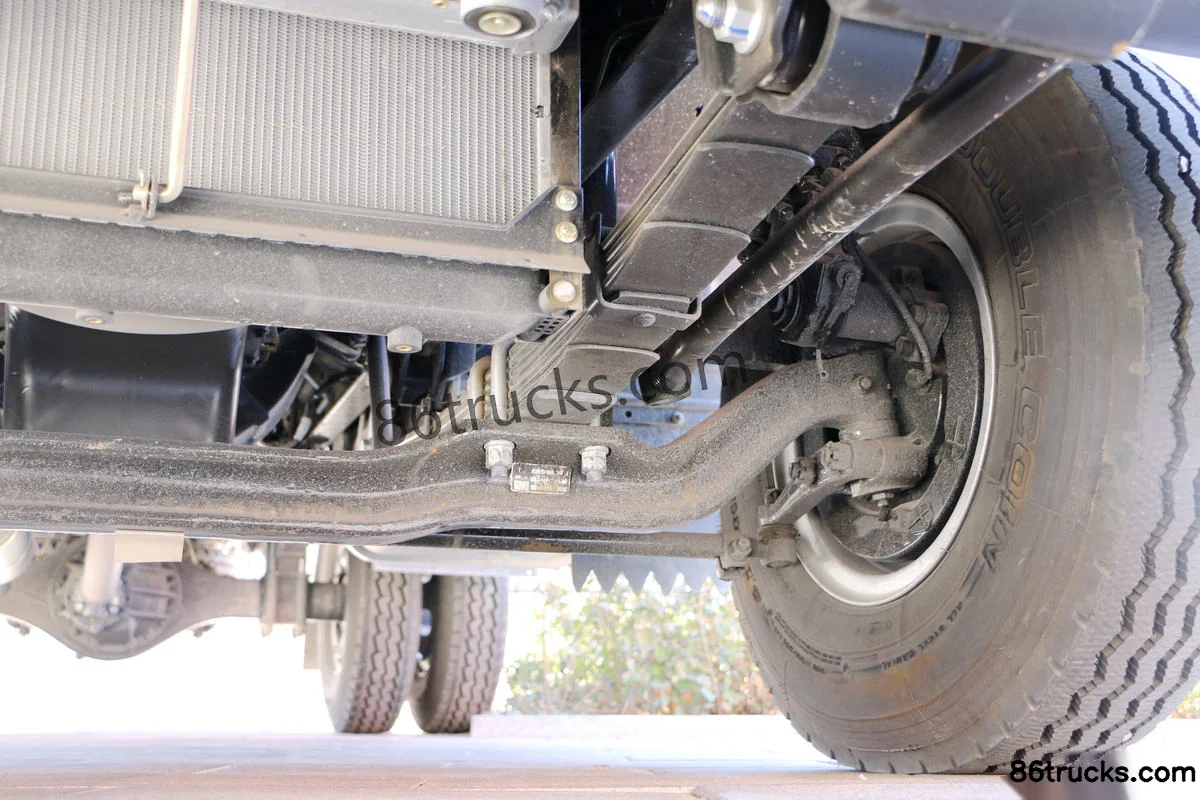

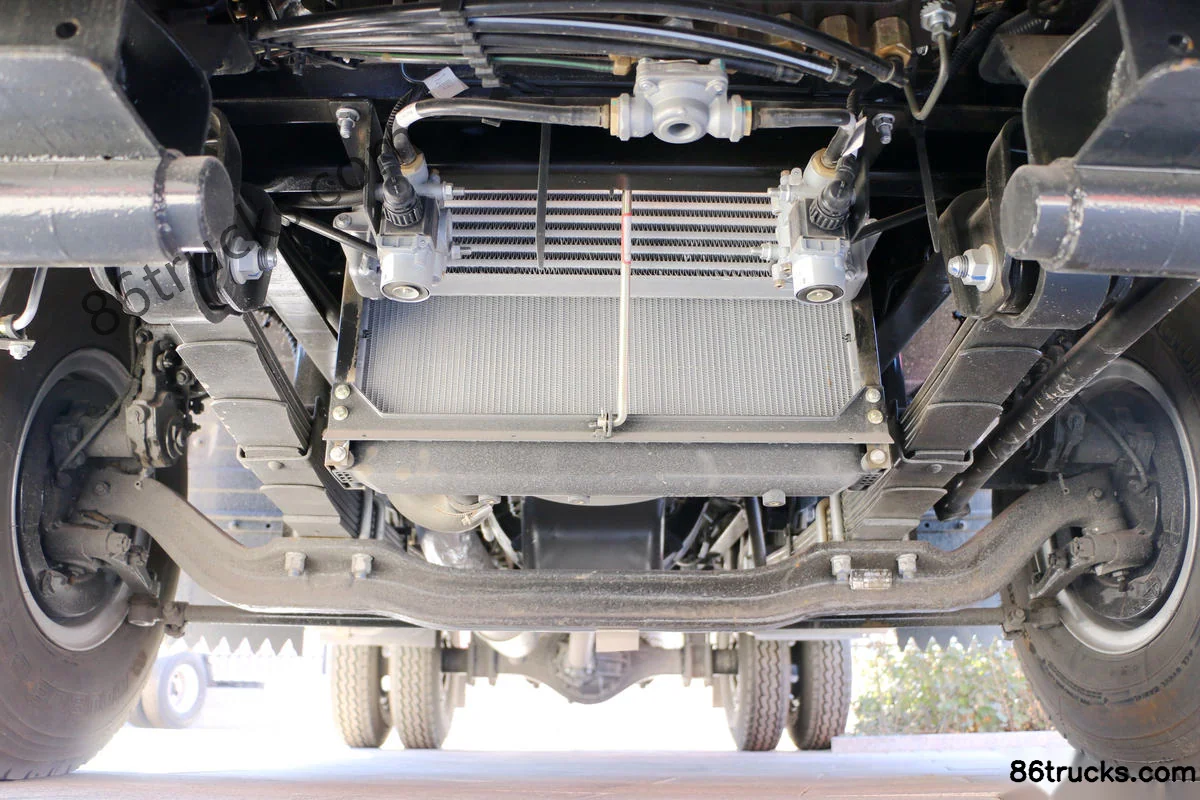

Chassis3

Yuejin Chaoyue C500 170 hp 4X2(6 wheels) 3.82m semi-row stake truck (China VI) Chassis (1) | 86Trucks Yuejin Chaoyue C500 170 hp 4X2(6 wheels) 3.82m semi-row stake truck (China VI) Chassis (2) | 86Trucks Yuejin Chaoyue C500 170 hp 4X2(6 wheels) 3.82m semi-row stake truck (China VI) Chassis (3) | 86Trucks

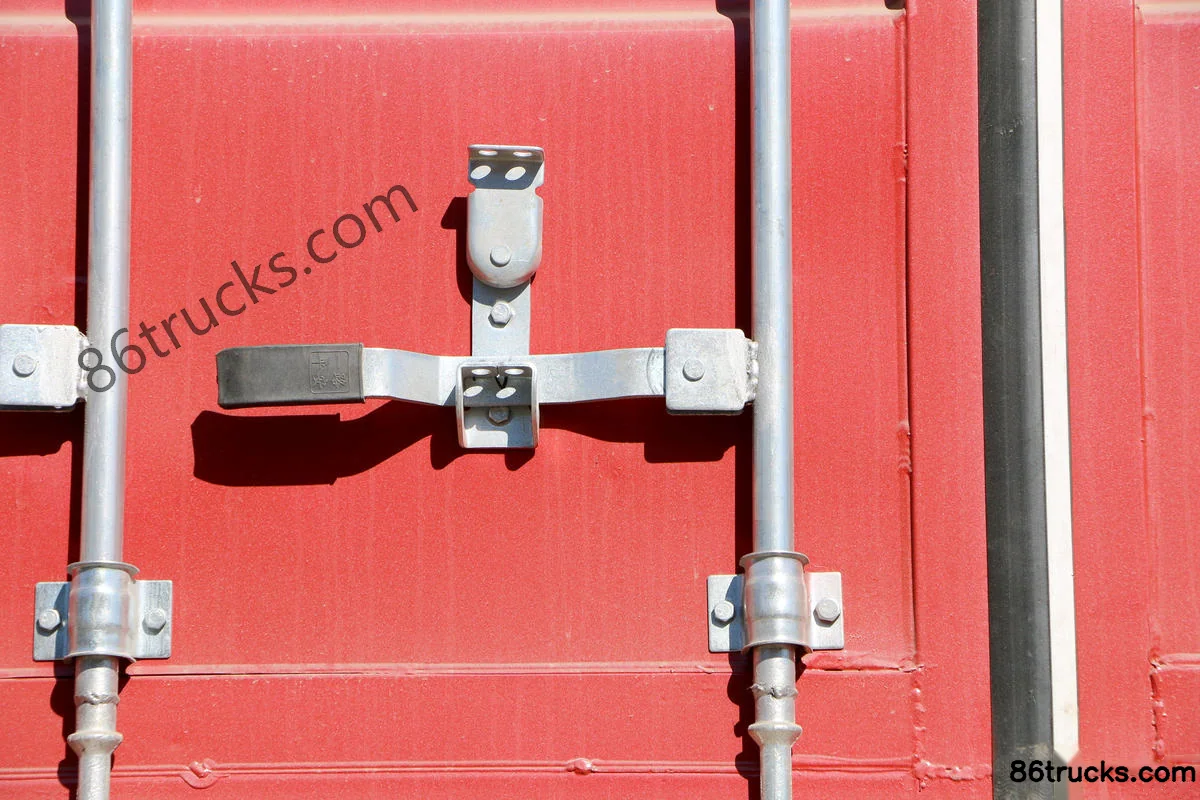

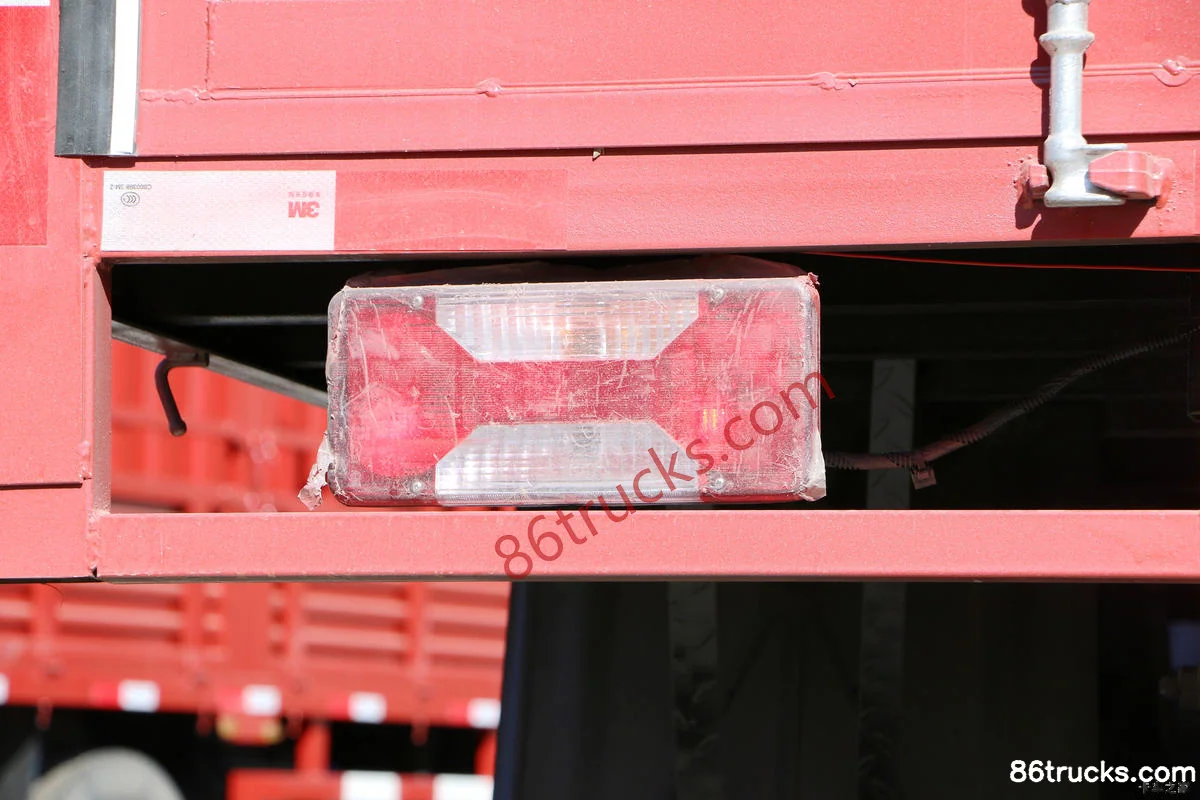

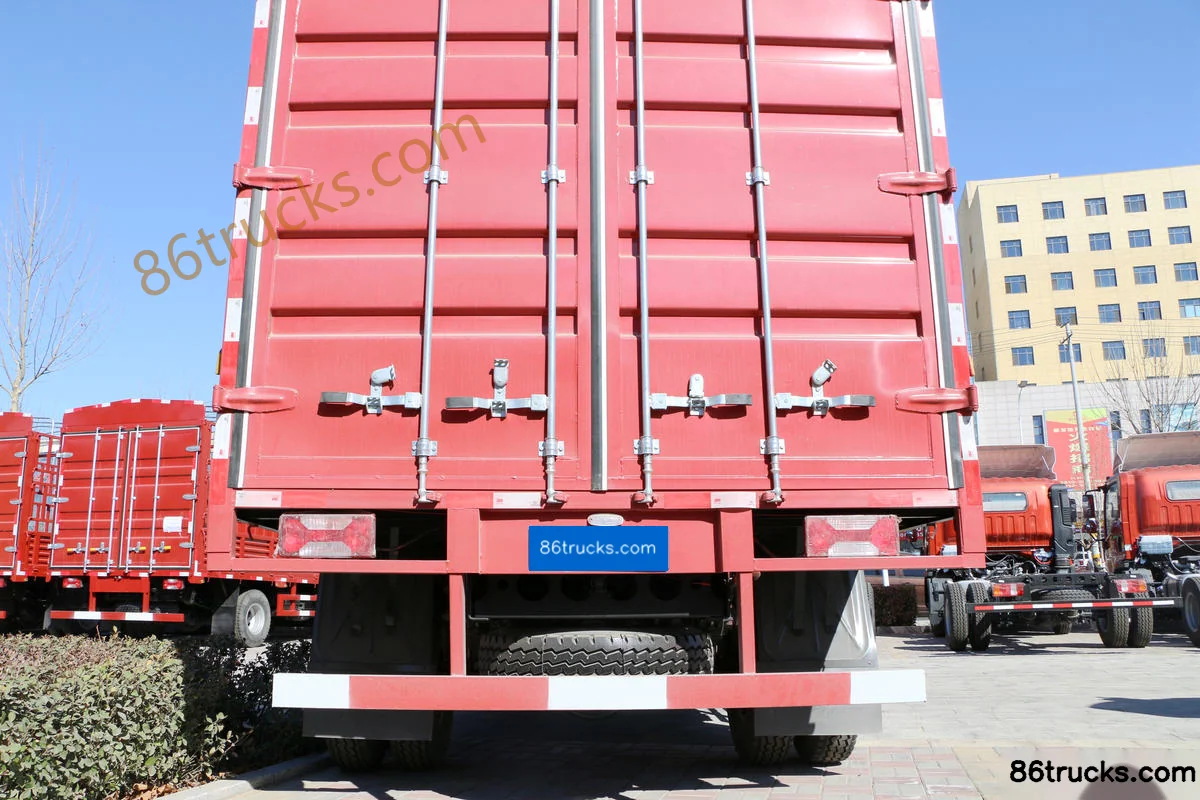

Body3

Yuejin Chaoyue C500 170 hp 4X2(6 wheels) 3.82m semi-row stake truck (China VI) Body (1) | 86Trucks Yuejin Chaoyue C500 170 hp 4X2(6 wheels) 3.82m semi-row stake truck (China VI) Body (2) | 86Trucks Yuejin Chaoyue C500 170 hp 4X2(6 wheels) 3.82m semi-row stake truck (China VI) Body (3) | 86Trucks

12 photos

FAQ

What is the export price of Yuejin Chaoyue C500 170 hp 4X2(6 wheels) 3.82m semi-row stake truck (China VI), and what does it include?

Yuejin Chaoyue C500 170 hp 4X2(6 wheels) 3.82m semi-row stake truck (China VI) export reference is about From $17,778; MSRP is ¥12.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Yuejin Chaoyue C500 170 hp 4X2(6 wheels) 3.82m semi-row stake truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Yuejin Chaoyue C500 170 hp 4X2(6 wheels) 3.82m semi-row stake truck (China VI)?

Key specs of Yuejin Chaoyue C500 170 hp 4X2(6 wheels) 3.82m semi-row stake truck (China VI): Drive: 4x2; Horsepower: 170 hp; Emission: China VI; Fuel: Diesel; Engine: De Wei D30; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Yuejin Chaoyue C500 170 hp 4X2(6 wheels) 3.82m semi-row stake truck (China VI) suited for?

Yuejin Chaoyue C500 170 hp 4X2(6 wheels) 3.82m semi-row stake truck (China VI) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Yuejin Chaoyue C500 170 hp 4X2(6 wheels) 3.82m semi-row stake truck (China VI) differ from other variants in the same series?

Yuejin Chaoyue C500 170 hp 4X2(6 wheels) 3.82m semi-row stake truck (China VI) belongs to Yuejin Chaoyue C Series Light-duty Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Yuejin Chaoyue C500 170 hp 4X2(6 wheels) 3.82m semi-row stake truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Yuejin Chaoyue C500 170 hp 4X2(6 wheels) 3.82m semi-row stake truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
