Sinotruk Sitrak C7H Heavy Truck 440hp 6X4(10 wheels) Tractor Truck (3.7)

Export reference
MSRP N/A
Fuel: Diesel
Gross Trailer Weight:: 40ton
Wheelbase:: 3225+1350mm
Tire brand:: Pirelli
Front axle allowable load:: 7000kg
Displacement:: 10.518L
Drive 6X4 (10 wheels)
Horsepower 440
Emission China V
Transmission ZF

Overview

The Sinotruk Sitrak C7H Heavy Truck 440hp 6X4(10 wheels) Tractor Truck (3.7) is a Heavy truck featuring 6X4 (10 wheels) drive, 440 hp, 25t GVW and China V emissions. Its segment focus covers Logistics & distribution, bulk material transport and daily industrial goods transport, matching those duty cycles. On the powertrain side, it comes with a SinotrukMC11.44-50 engine, ZF transmission and Diesel fuel.

China V 440 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ4256V324HE1B
Drive type: 6X4
Wheelbase: 3225+1350mm
engine: SinotrukMC11.44-50
transmission: ZFZF16S2231 TO
Rear Axle Ratio: 3.7
Cab length: 6.895m
Cab width: 2.496m
Cab height: 3.98m
Front track width: 2022mm
Gross Trailer Weight: 40ton
rear track: 1830/1830mm
Curb Weight: 8.8ton
GVWR: 25ton
Max. speed: 101km/h
Origin: Shandong Zhangqiu
tonnage class: Heavy truck
market segment: Logistics & distribution, bulk material transport, daily industrial goods transport
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukMC11.44-50
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 10.518L
Emission standard: China V
Max output power: 324kW
Max hp: 440Horsepower
Max torque: 2100N·m
Max torque speed: 1000-1400rpm
Rated speed: 1900rpm
Transmission Parameters
Transmission Model: ZFZF16S2231 TO
Transmission Brand: ZF
shift method: Manual
Forward gears: 16Gear
Number of Reverse Gears: 2pcs
fuel tank
Fuel tank/air tank material: aluminum alloy
Fuel tank capacity: 1000L
Cab parameters
Cab: High roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
Lower Bunk Width: 800mm
Chassis Specs
Suspension type: Front 2-leaf + rear 8-bag air suspension
Front axle description: VPD060QB disc
Front axle allowable load: 7000kg
rear axle description: MCY11 axle
rear axle allowable load: 18000 (twin axle)kg
Axle ratio: 3.7
Leaf spring count: 3/2+-/2+-
Tire
Tire brand: Pirelli
Tire Size: 295/80R22.5
Number of tires: 10pcs
Control configuration
ABS:

Photos

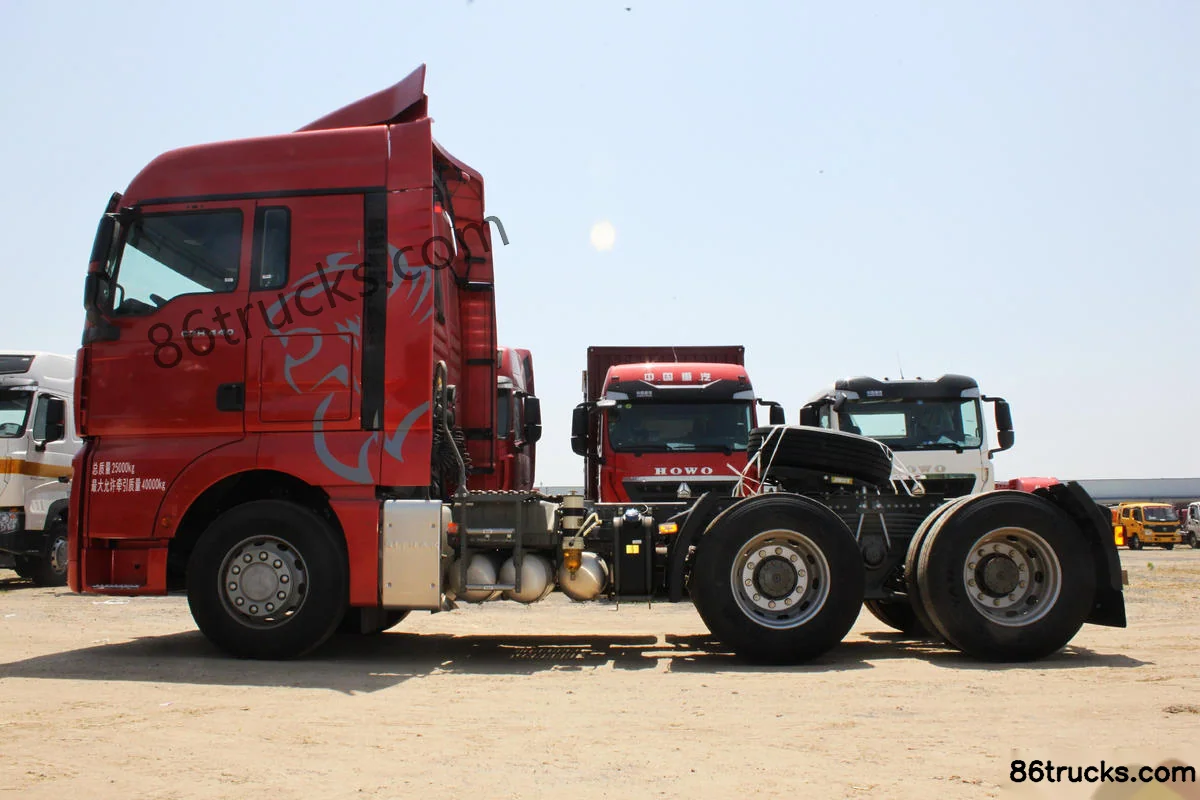

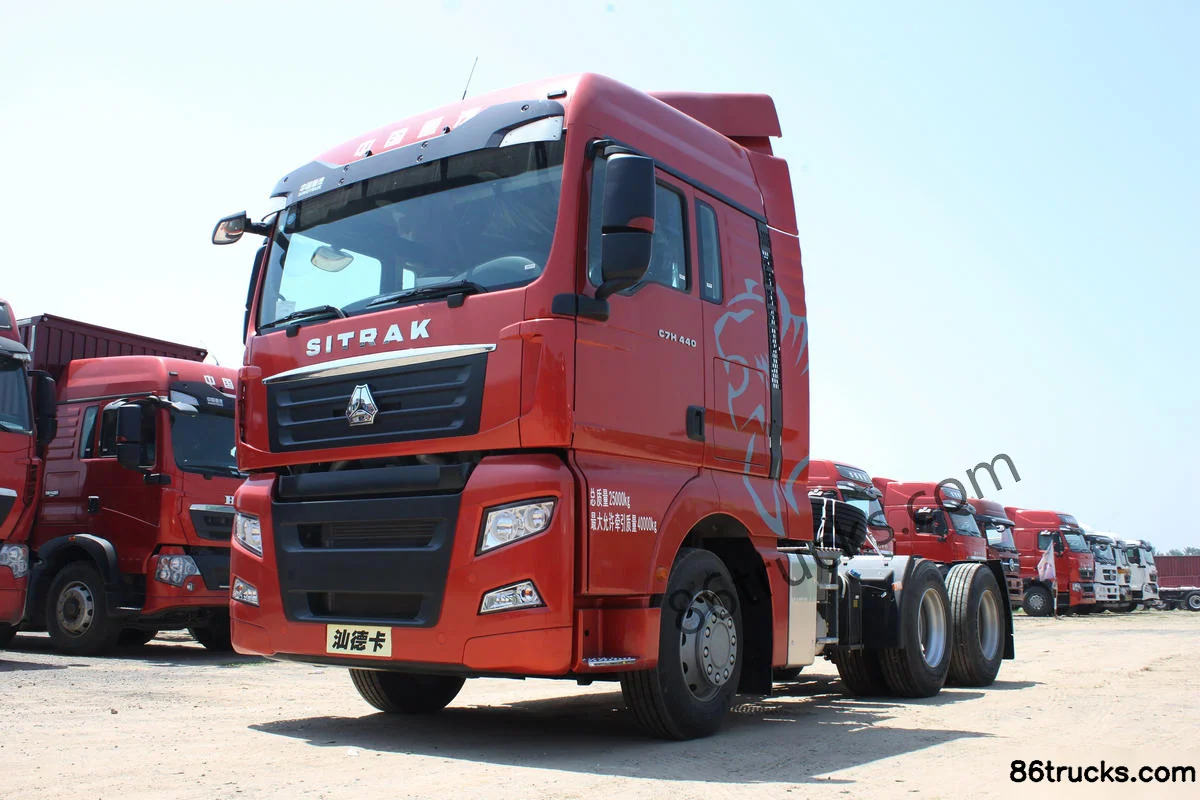

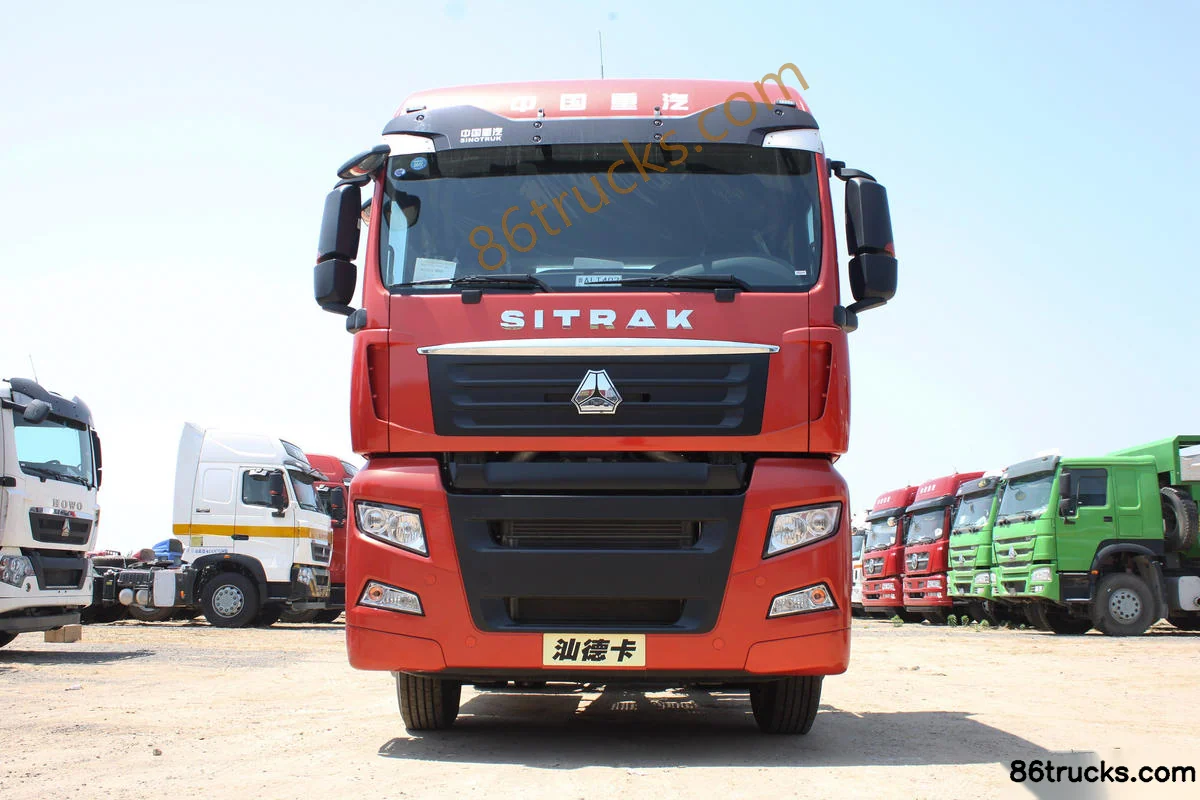

Exterior3

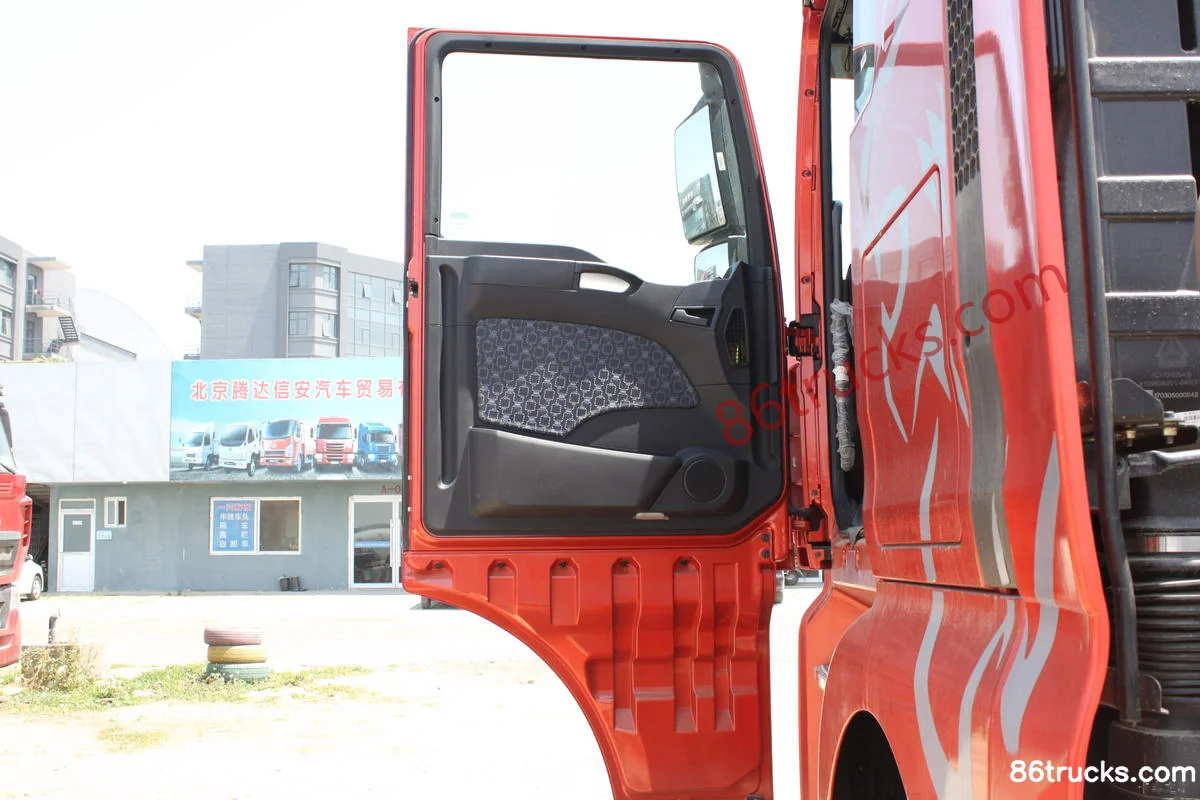

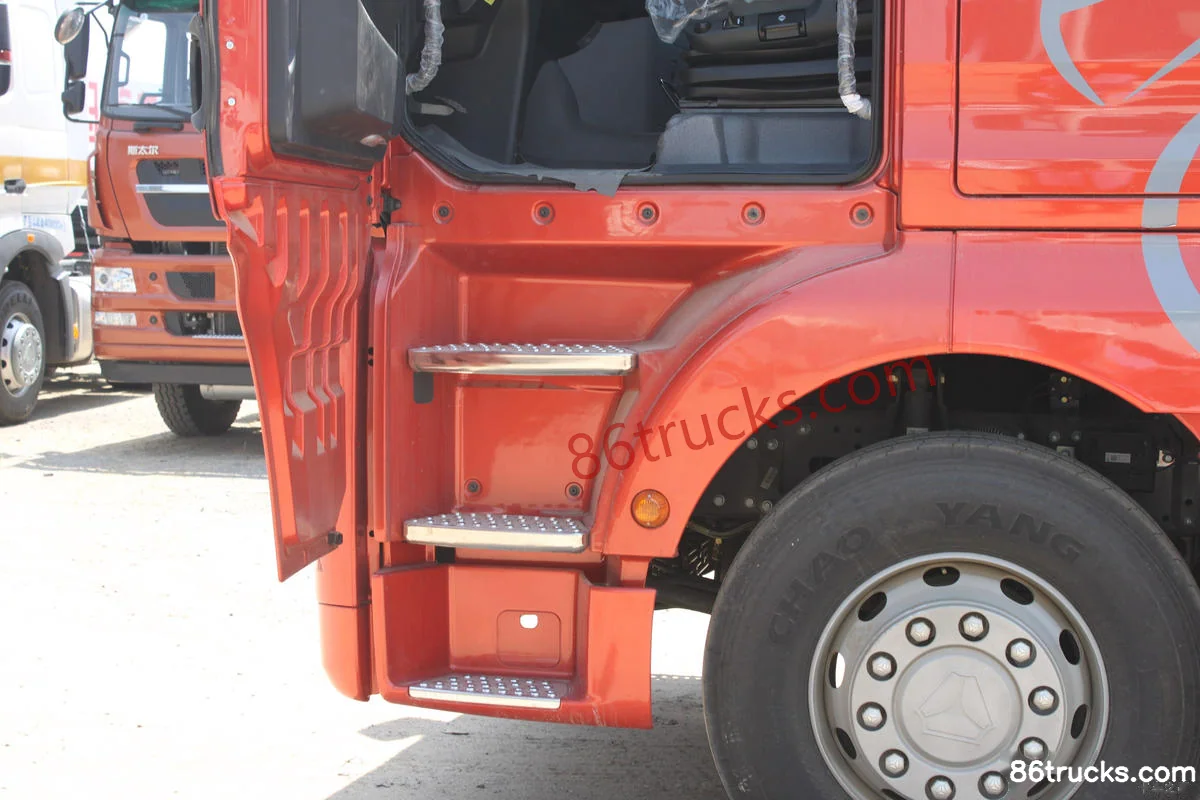

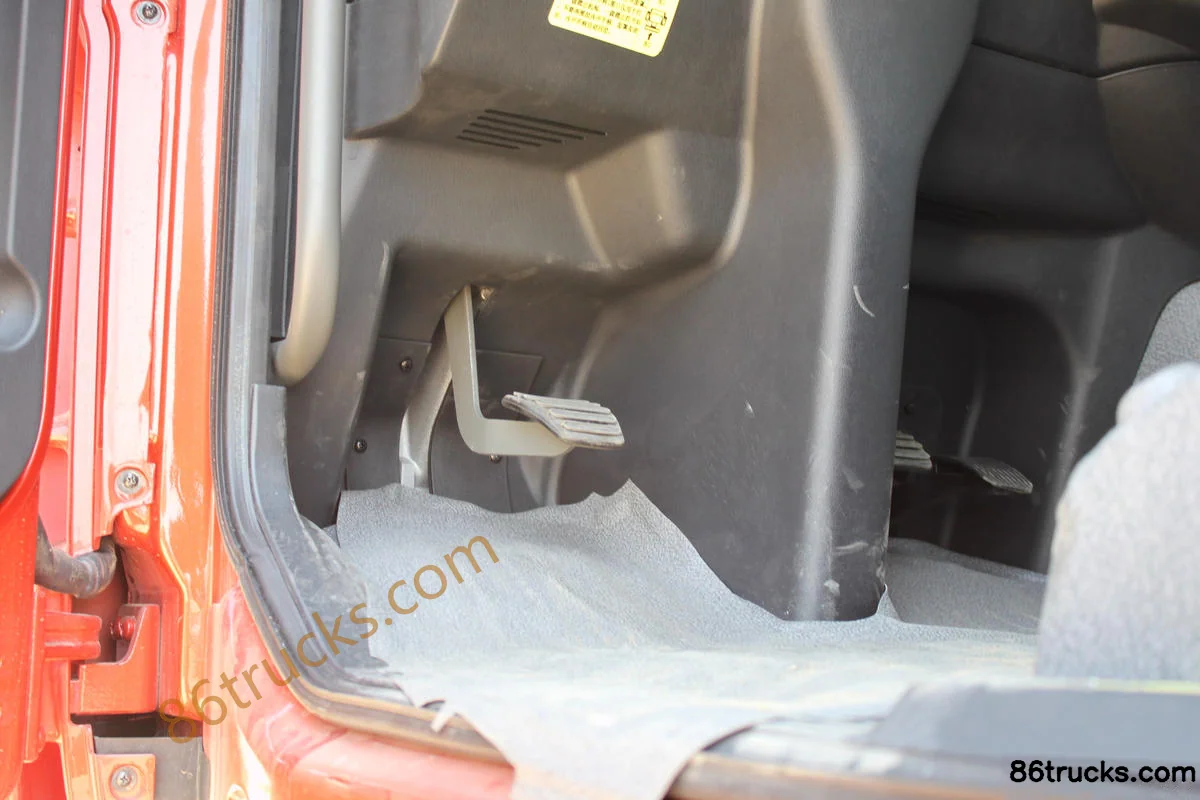

Cab3

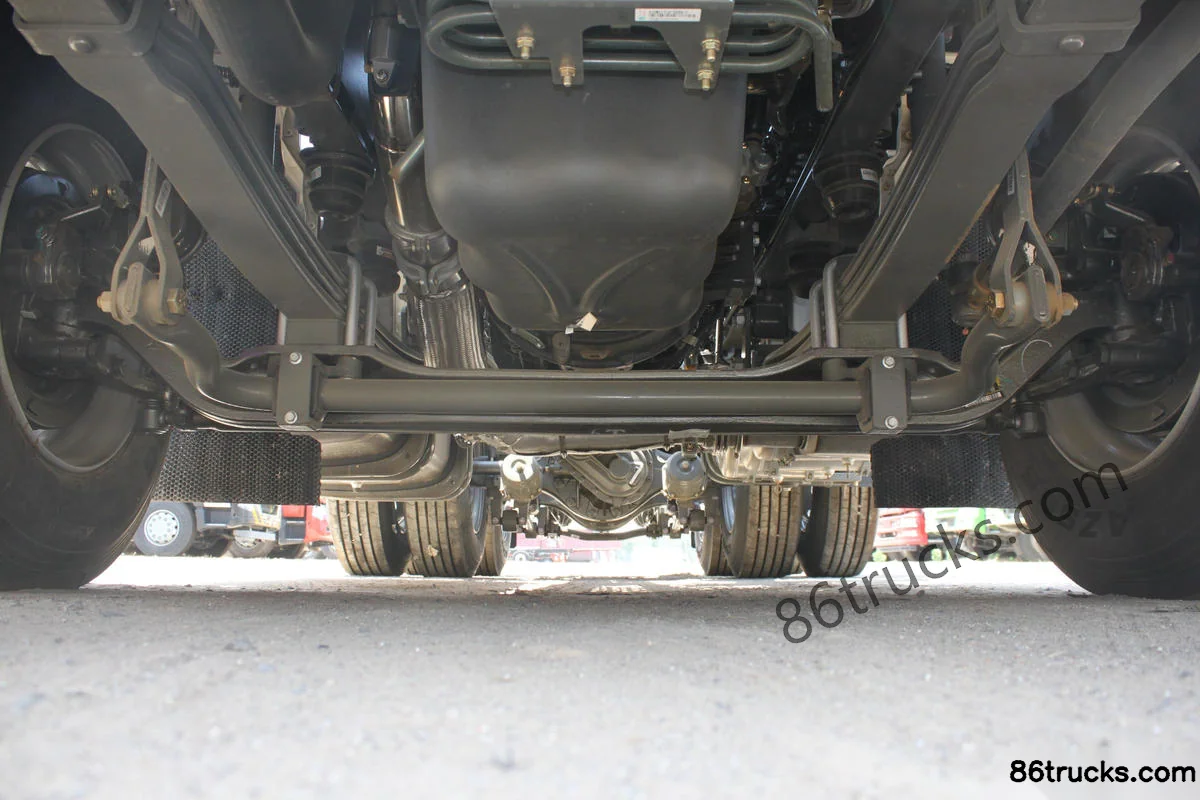

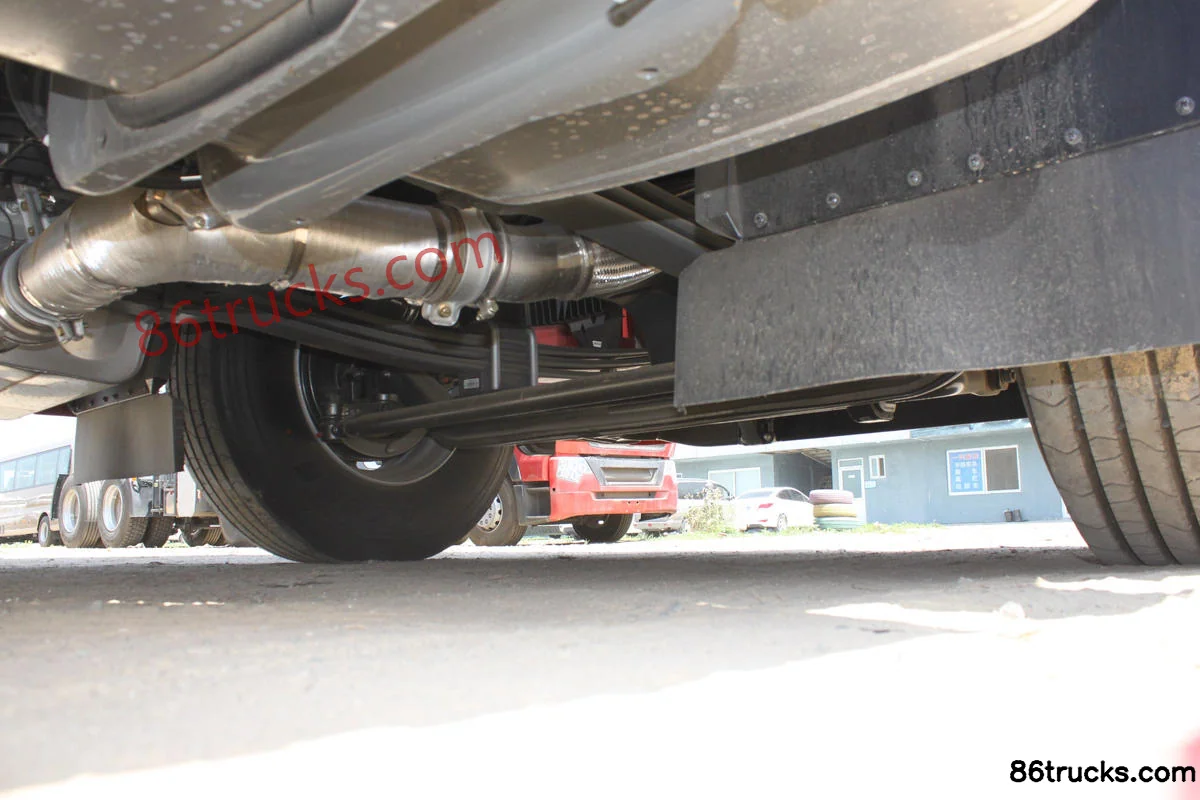

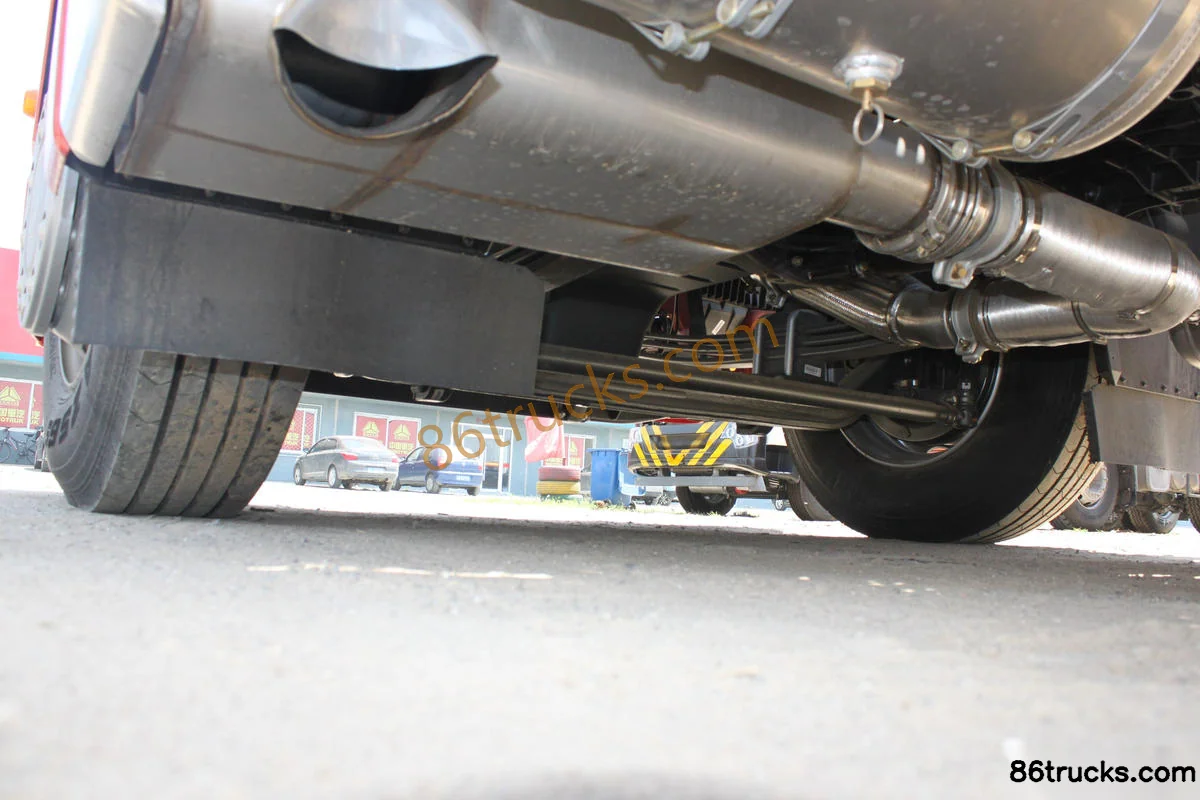

Chassis3

9 photos

FAQ

What emission standard does Sinotruk Sitrak C7H Heavy Truck 440hp 6X4(10 wheels) Tractor Truck (3.7) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Sitrak C7H Heavy Truck 440hp 6X4(10 wheels) Tractor Truck (3.7)?

Key specs of Sinotruk Sitrak C7H Heavy Truck 440hp 6X4(10 wheels) Tractor Truck (3.7): Drive: 6x4; Horsepower: 440 hp; Emission: China V; Fuel: Diesel; Transmission: ZF. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Sitrak C7H Heavy Truck 440hp 6X4(10 wheels) Tractor Truck (3.7) suited for?

Sinotruk Sitrak C7H Heavy Truck 440hp 6X4(10 wheels) Tractor Truck (3.7) is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does Sinotruk Sitrak C7H Heavy Truck 440hp 6X4(10 wheels) Tractor Truck (3.7) differ from other variants in the same series?

Sinotruk Sitrak C7H Heavy Truck 440hp 6X4(10 wheels) Tractor Truck (3.7) belongs to Sitrak SITRAK C7H heavy truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Sitrak C7H Heavy Truck 440hp 6X4(10 wheels) Tractor Truck (3.7)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Sitrak C7H Heavy Truck 440hp 6X4(10 wheels) Tractor Truck (3.7)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
