FAW Jiefang New J6P Heavy Truck 280hp 6X2(8 wheels) 9.65m Flatbed Cargo Truck

Export reference
From $35,694
MSRP ¥25.7M CNY
Horsepower: 280
Emission: China V
Fuel: Diesel
Engine: Dachai7.2L
Transmission: FAW Jiefang
Curb Weight:: 9.7ton
seating capacity: 3Personnel
Rated payload: 15.07ton
Drive 6X2 (8 wheels)
Cargo box type: stake body

Overview

The FAW Jiefang New J6P Heavy Truck 280hp 6X2(8 wheels) 9.65m Flatbed Cargo Truck is a Heavy-duty cargo trucks featuring 9.65m cargo length, stake body cargo body, 3Personnel volume and 15.07t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a Dachai7.2L engine, 280 hp, 6X2 (8 wheels) drive and China V emissions.

China V 280 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA1250P66K1L6T3E5
Type: Cargo Trucks
Drive type: 6X2
Wheelbase: 1900+5600mm
Box length class: 9.6m
engine: DachaiCA6DK1-28E51
transmission: FAW JiefangCA10TAX130M
Rear Axle Ratio: 4.1
Cab length: 11.995m
Cab width: 2.55m
Cab height: 3.78m
Front track width: 1950/1950mm
rear track: 1878mm
Curb Weight: 9.7ton
Rated payload: 15.07ton
GVWR: 24.9ton
Max. speed: 105km/h
Origin: Changchun/Qingdao/Chengdu
tonnage class: Heavy-duty cargo trucks
Approach angle: 15°
departure angle: 10°
market segment: Building materials, agricultural products
Front/rear suspension: 1.5/2.995m
Energy Type: Diesel
Engine parameters
Engine Brand: Dachai
Engine Model: DachaiCA6DK1-28E51
Engine info: Dachai7.2L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 7.146L
Emission standard: China V
Max output power: 209kW
Max hp: 280Horsepower
Max torque: 1100N·m
Max torque speed: 1200-1700rpm
Rated speed: 1900rpm
Engine Type: Common Rail SCR
Transmission Parameters
Transmission Model: FAW JiefangCA10TAX130M
Transmission Brand: FAW Jiefang
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: stake body
Cargo box length: 9.65m
Cargo box width: 2.46m
Cargo box height: 0.8m
*Cargo box interior width: 2.460000038147
Cab parameters
Cab: New J6P High Roof Extended Cab Cabin
Cab width: 2550mm
seating capacity: 3Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 600L
Chassis Specs
Front axle description: 1950 front axle
Front axle allowable load: 6700/6700kg
Frame Dimensions: 300×80×8mm
rear axle description: 457 stamped-welded axle
rear axle allowable load: 11500kg
Axle ratio: 4.1
Leaf spring count: 3/3/10+9,3/3/4+3
Tire
Tire Size: 11.00R20,295/80R22.5,12R22.5,295/60R22.5
Number of tires: 8pcs
Control configuration
ABS:

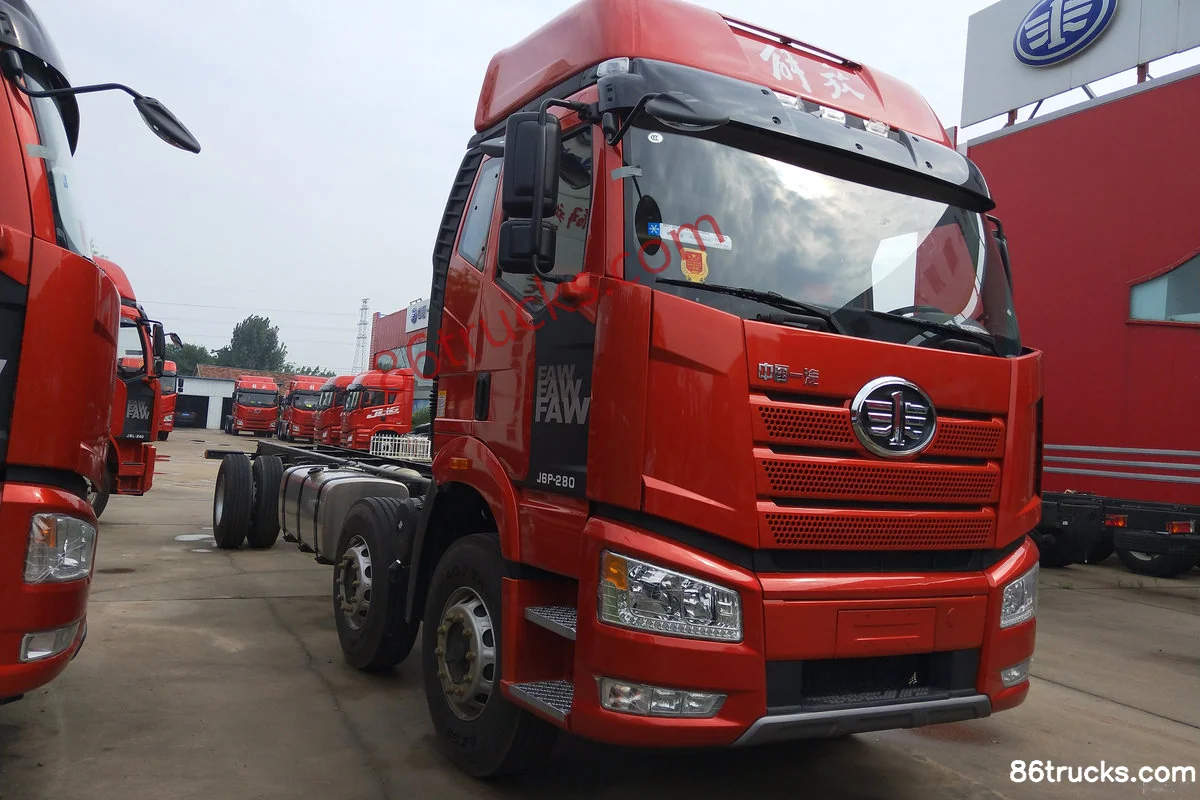

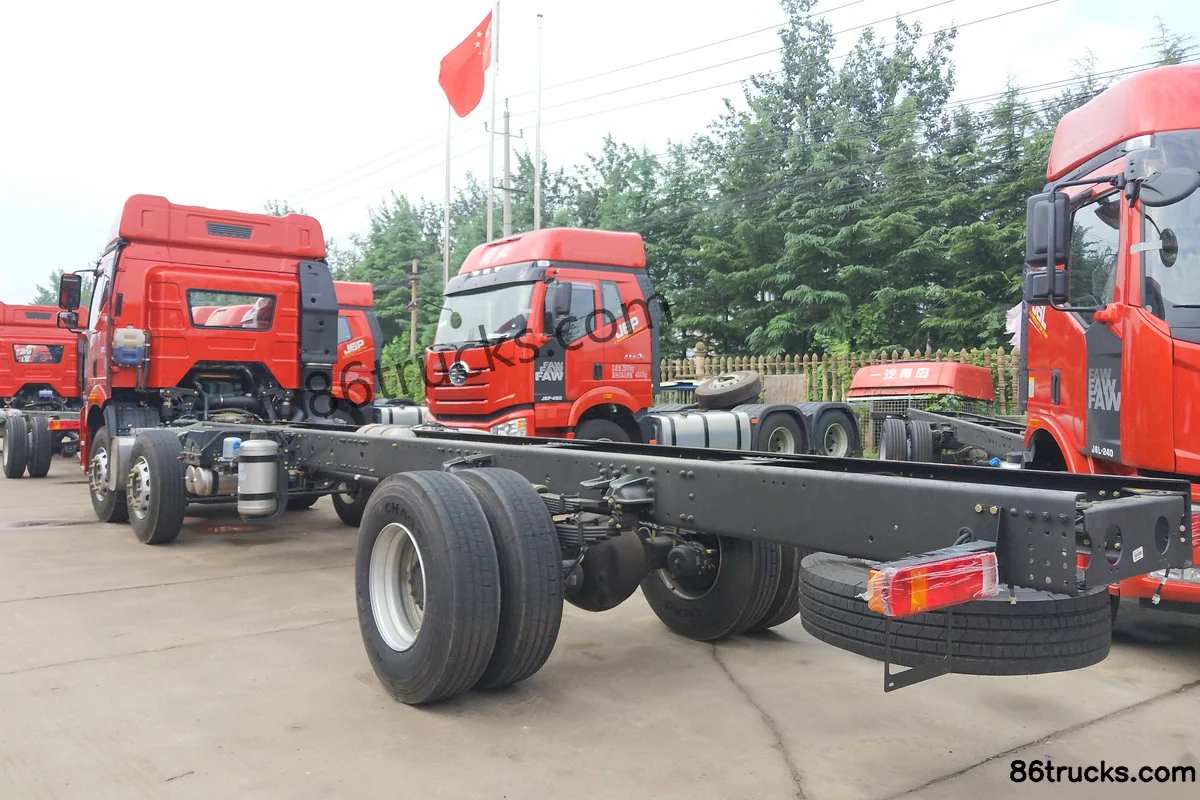

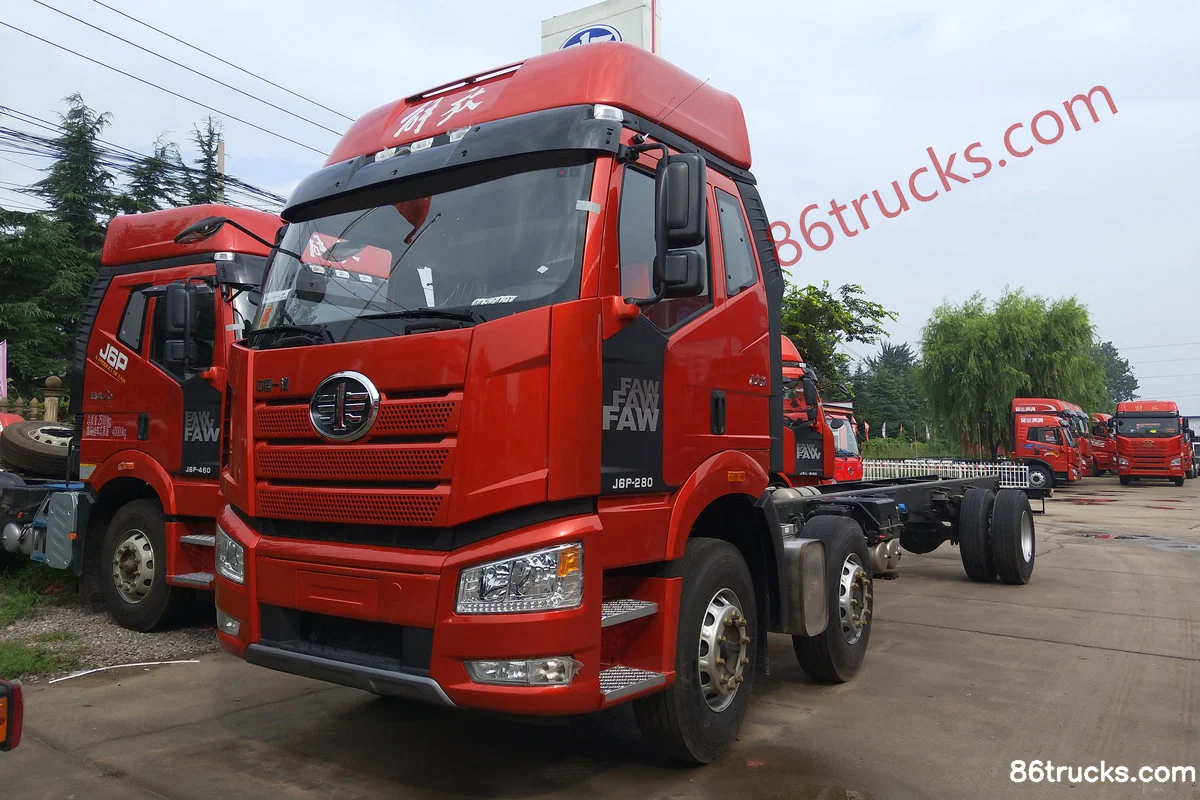

Photos

Exterior3

3 photos

FAQ

What is the export price of FAW Jiefang New J6P Heavy Truck 280hp 6X2(8 wheels) 9.65m Flatbed Cargo Truck, and what does it include?

FAW Jiefang New J6P Heavy Truck 280hp 6X2(8 wheels) 9.65m Flatbed Cargo Truck export reference is about From $35,694; MSRP is ¥25.7M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang New J6P Heavy Truck 280hp 6X2(8 wheels) 9.65m Flatbed Cargo Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang New J6P Heavy Truck 280hp 6X2(8 wheels) 9.65m Flatbed Cargo Truck?

Key specs of FAW Jiefang New J6P Heavy Truck 280hp 6X2(8 wheels) 9.65m Flatbed Cargo Truck: Drive: 6x2; Horsepower: 280 hp; Emission: China V; Fuel: Diesel; Engine: Dachai7.2L; Transmission: FAW Jiefang. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang New J6P Heavy Truck 280hp 6X2(8 wheels) 9.65m Flatbed Cargo Truck suited for?

FAW Jiefang New J6P Heavy Truck 280hp 6X2(8 wheels) 9.65m Flatbed Cargo Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang New J6P Heavy Truck 280hp 6X2(8 wheels) 9.65m Flatbed Cargo Truck differ from other variants in the same series?

FAW Jiefang New J6P Heavy Truck 280hp 6X2(8 wheels) 9.65m Flatbed Cargo Truck belongs to FAW Jiefang J6P Heavy Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang New J6P Heavy Truck 280hp 6X2(8 wheels) 9.65m Flatbed Cargo Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang New J6P Heavy Truck 280hp 6X2(8 wheels) 9.65m Flatbed Cargo Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
