FAW Jiefang Hu VN 95 hp 4X2(6 wheels) 3.65m Single Row Flatbed Light Truck

Export reference
MSRP N/A
Horsepower: 95
Emission: China V
Fuel: Diesel
Engine: WeichaiWP2.1
Transmission: WLY
Curb Weight:: 2.56ton
seating capacity: 3Personnel
Rated payload: 1.74ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The FAW Jiefang Hu VN 95 hp 4X2(6 wheels) 3.65m Single Row Flatbed Light Truck is a Light Truck featuring 3.65m cargo length, stake body cargo body, 3Personnel volume and 1.74t payload. On the powertrain side, it comes with a WeichaiWP2.1 engine, 95 hp, 4X2 (6 wheels) drive and China V emissions.

China V 95 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA1047P40K50LE5A84
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 2800mm
Box length class: 3.7m
engine: WeichaiWP2.1Q95E50
transmission: WLYWLY5T32
Rear Axle Ratio: 5.125
Cab length: 5.438m
Cab width: 2.025m
Cab height: 2.395m
Front track width: 1510mm
rear track: 1475mm
Curb Weight: 2.56ton
Rated payload: 1.74ton
GVWR: 4.495ton
Max. speed: 110km/h
Origin: Qingdao, Shandong
tonnage class: Light Truck
Approach angle: 21°
departure angle: 17°
Remarks: Telematics, maintenance-free battery
Front/rear suspension: 1.15/1.488m
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP2.1Q95E50
Engine info: WeichaiWP2.1
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.088L
Emission standard: China V
Max output power: 70kW
Max hp: 95Horsepower
Max torque: 245N·m
Max torque speed: 1700-2300rpm
Rated speed: 3200rpm
Engine Type: Common Rail SCR
Transmission Parameters
Transmission Model: WLYWLY5T32
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.65m
Cargo box width: 1.91m
Cargo box height: 0.41m
*Cargo box interior width: 1.9099999666214
Cab parameters
Cab: Hu VN Cab
Cab width: 1910mm
seating capacity: 3Personnel
Seat rows: Single Row
Chassis Specs
Front axle description: DD051
Front axle allowable load: 1950kg
Frame Dimensions: 180×65×5mm
rear axle description: 130 stamped-welded axle
rear axle allowable load: 2545kg
Axle ratio: 5.125
Leaf spring count: 7/7+3
Tire
Tire Size: 7.00R16
Number of tires: 6pcs
Control configuration
ABS:

Photos

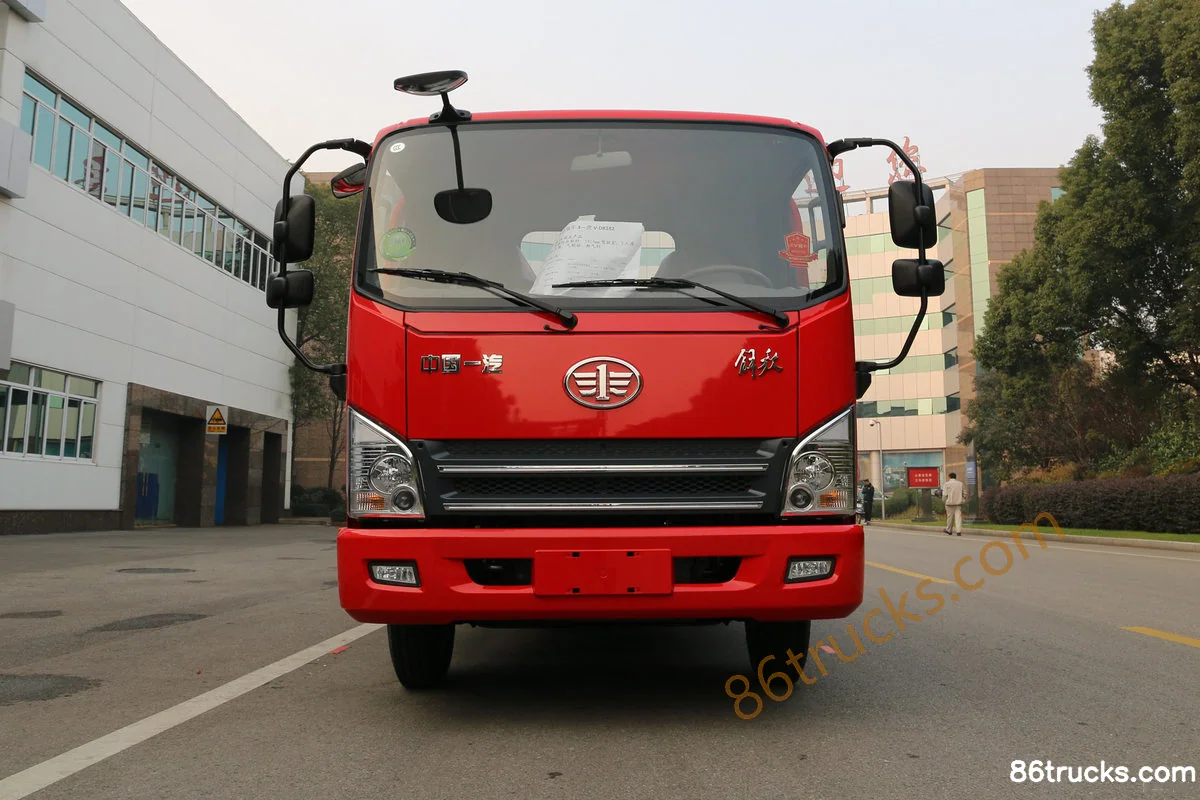

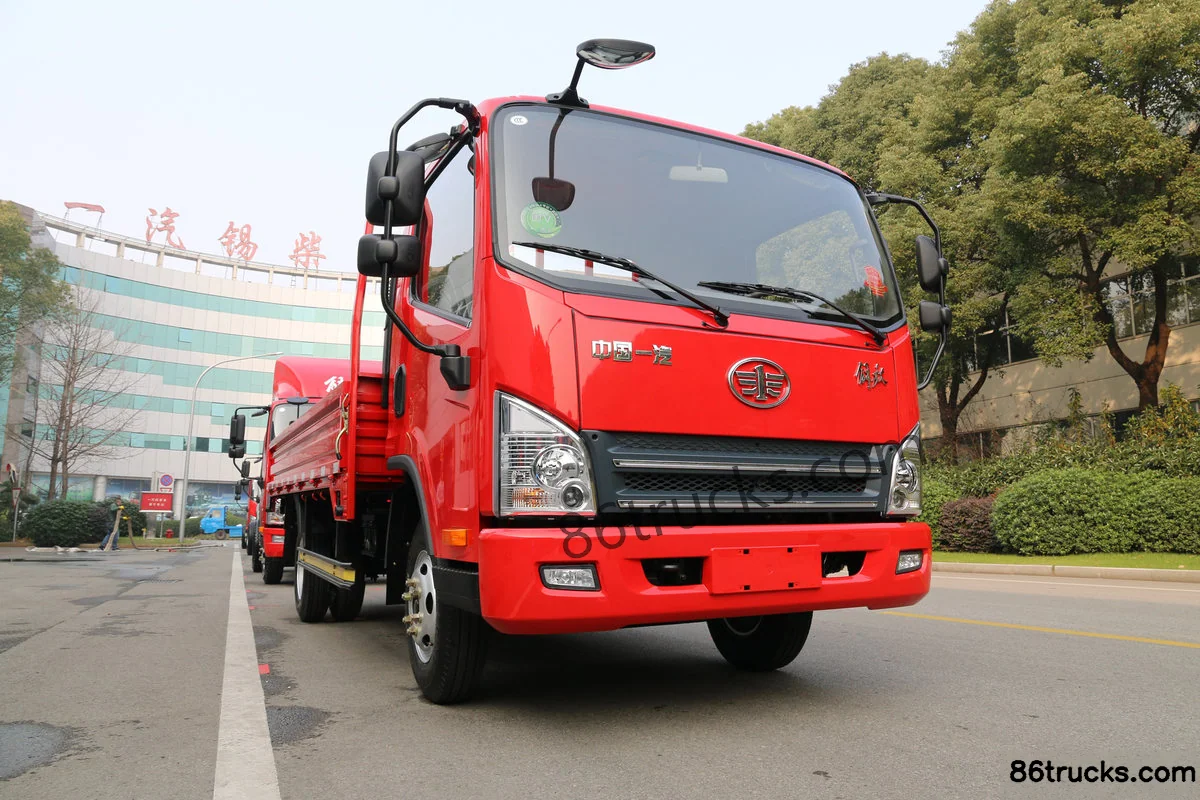

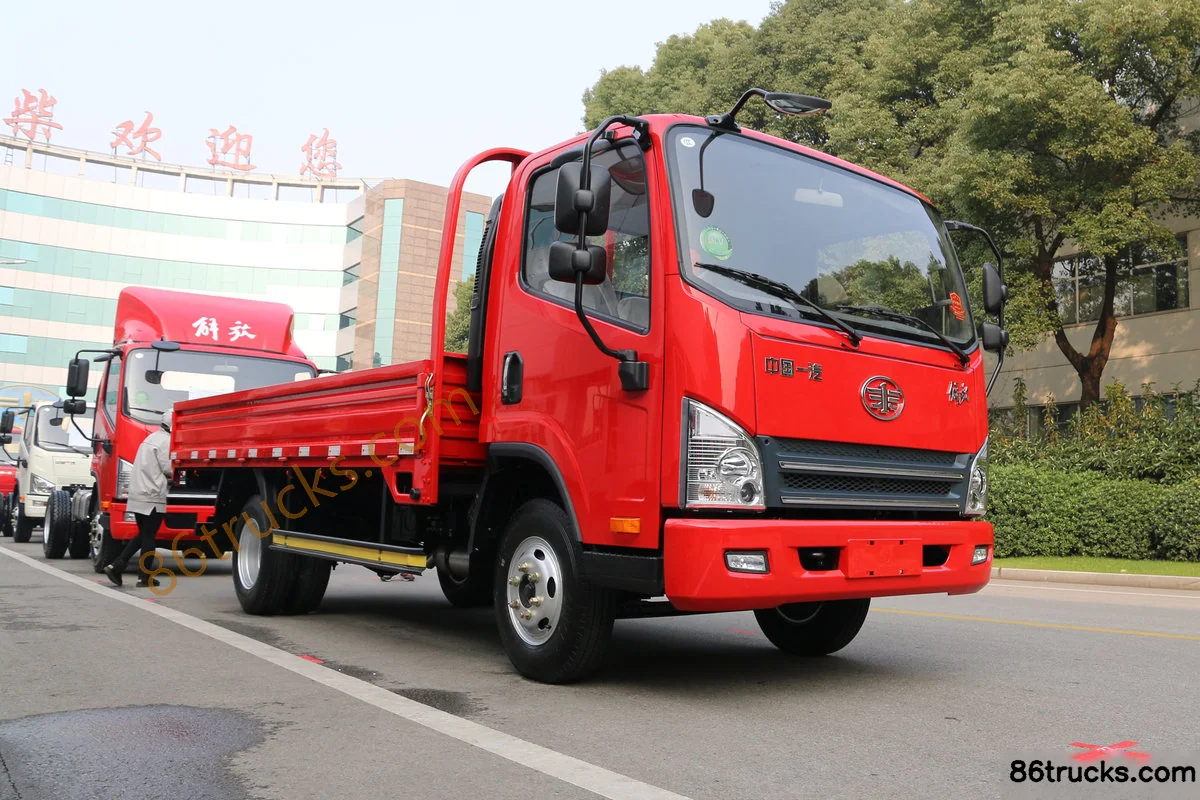

Exterior3

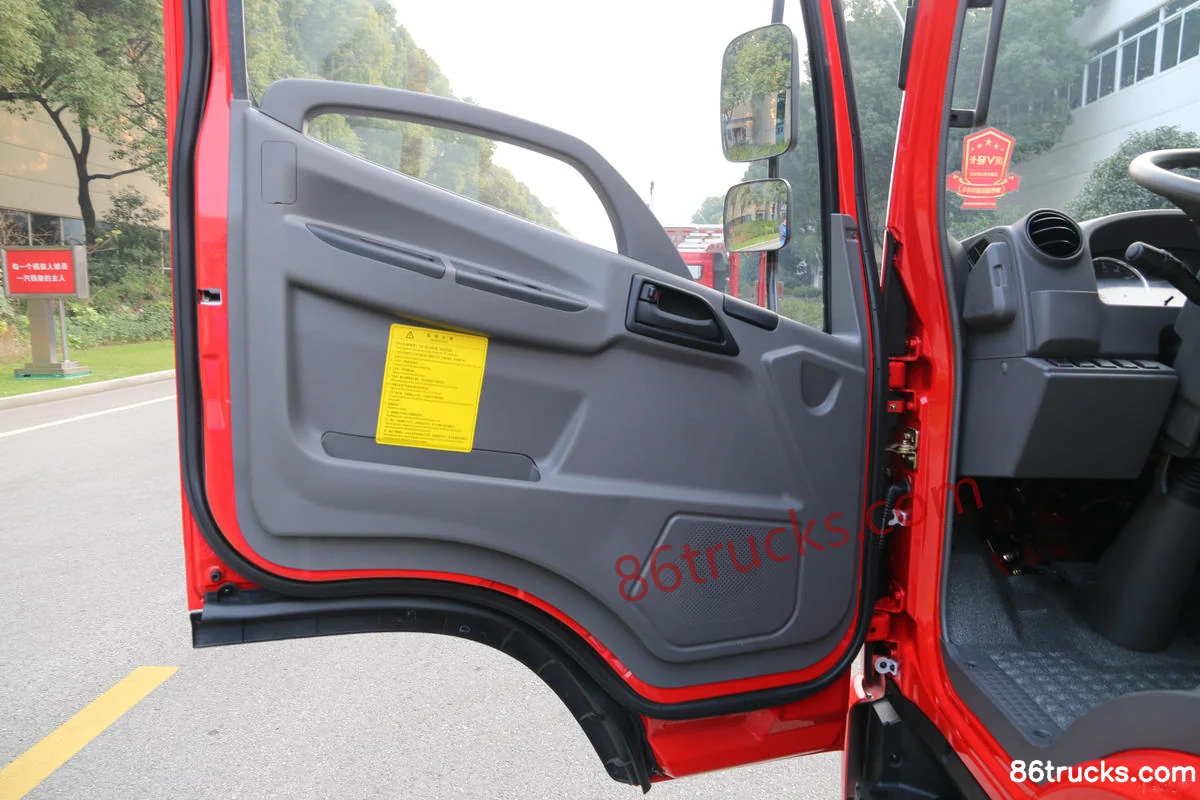

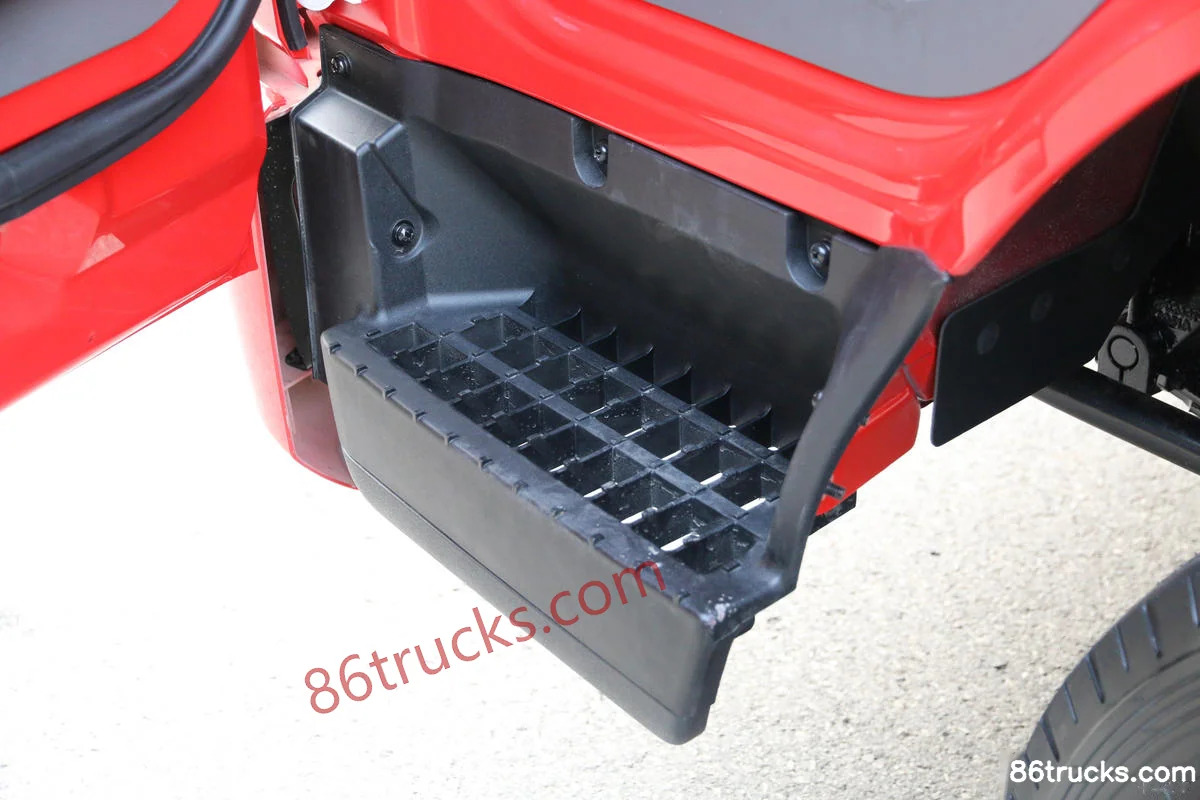

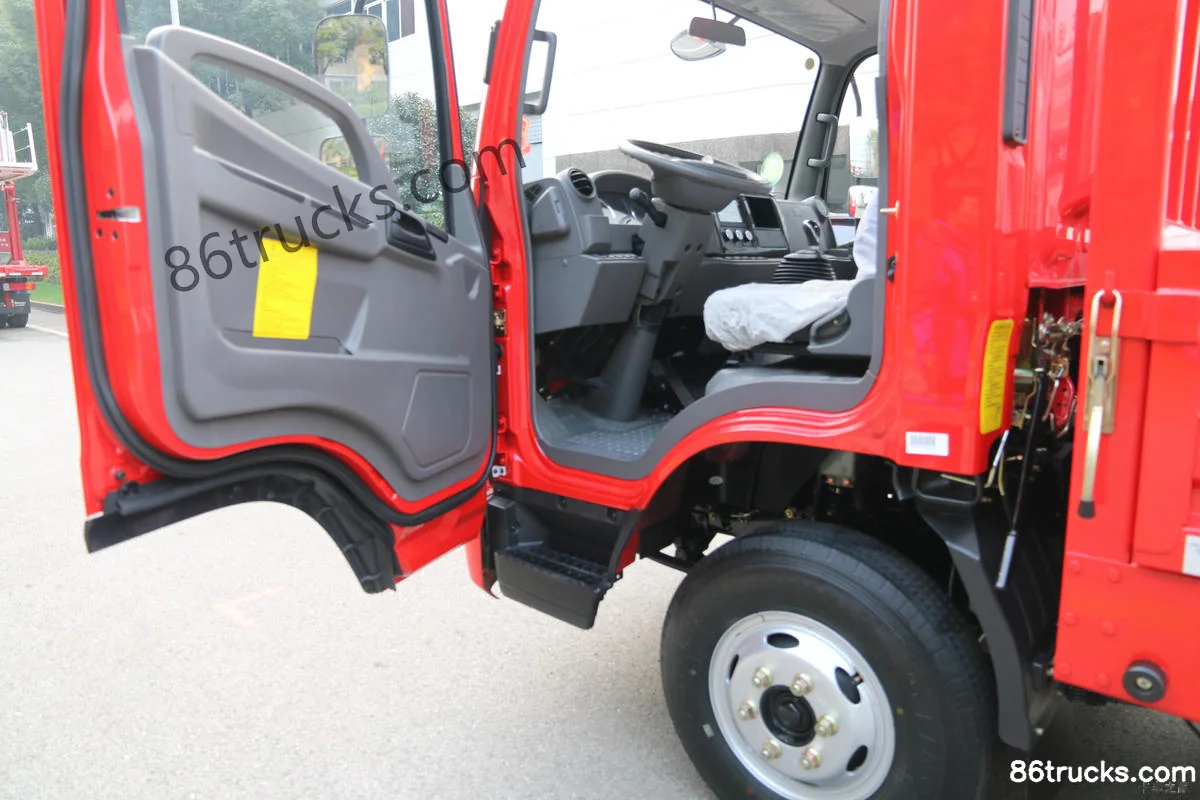

Cab3

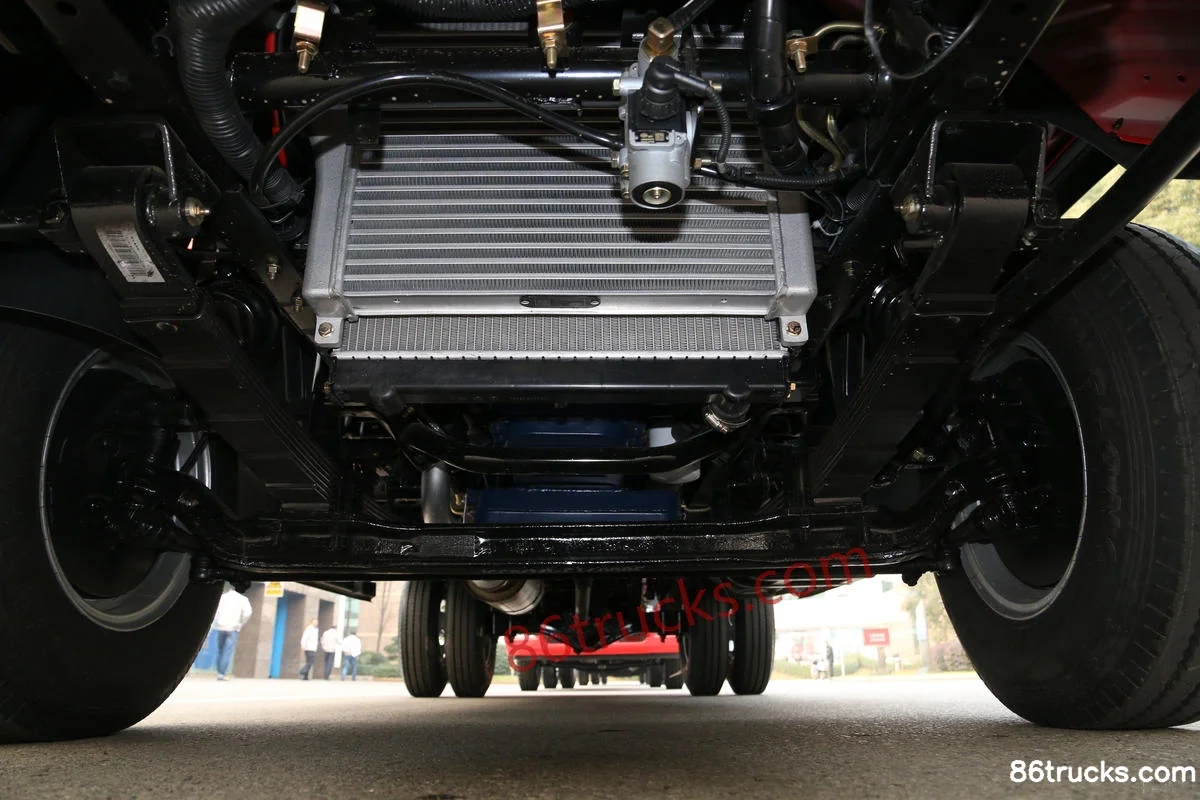

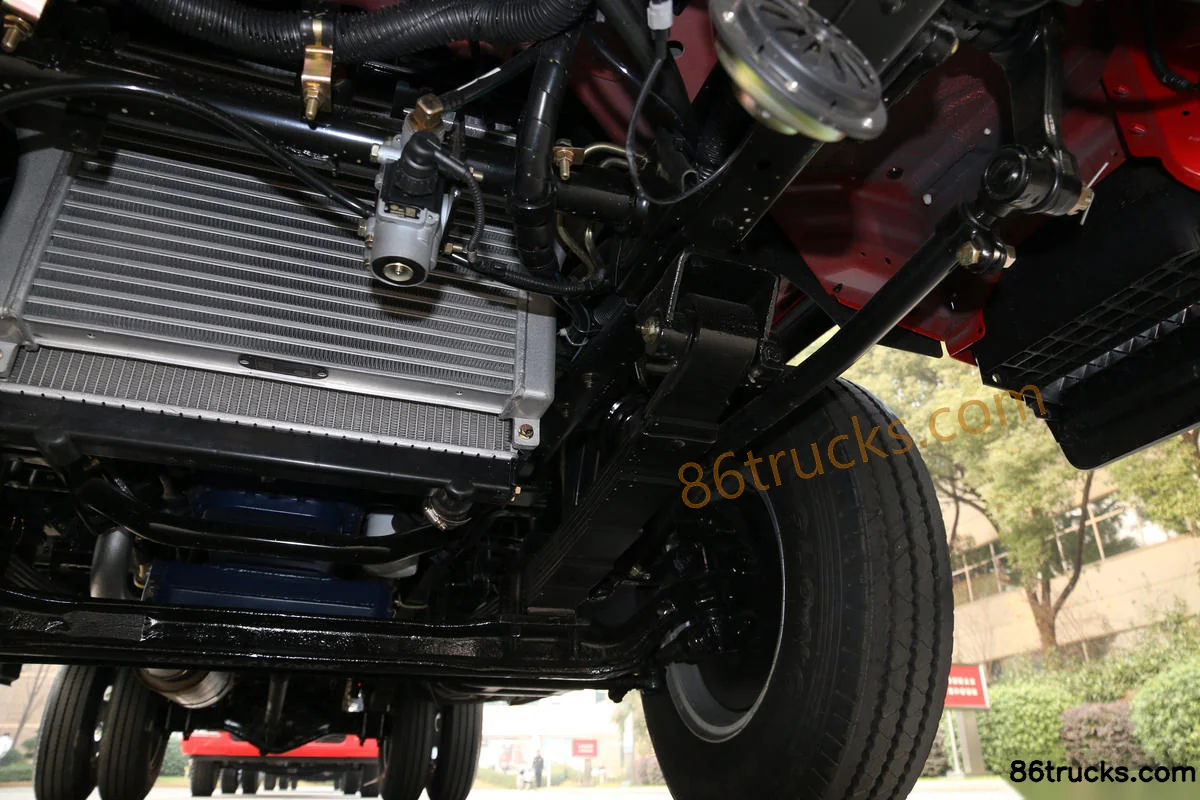

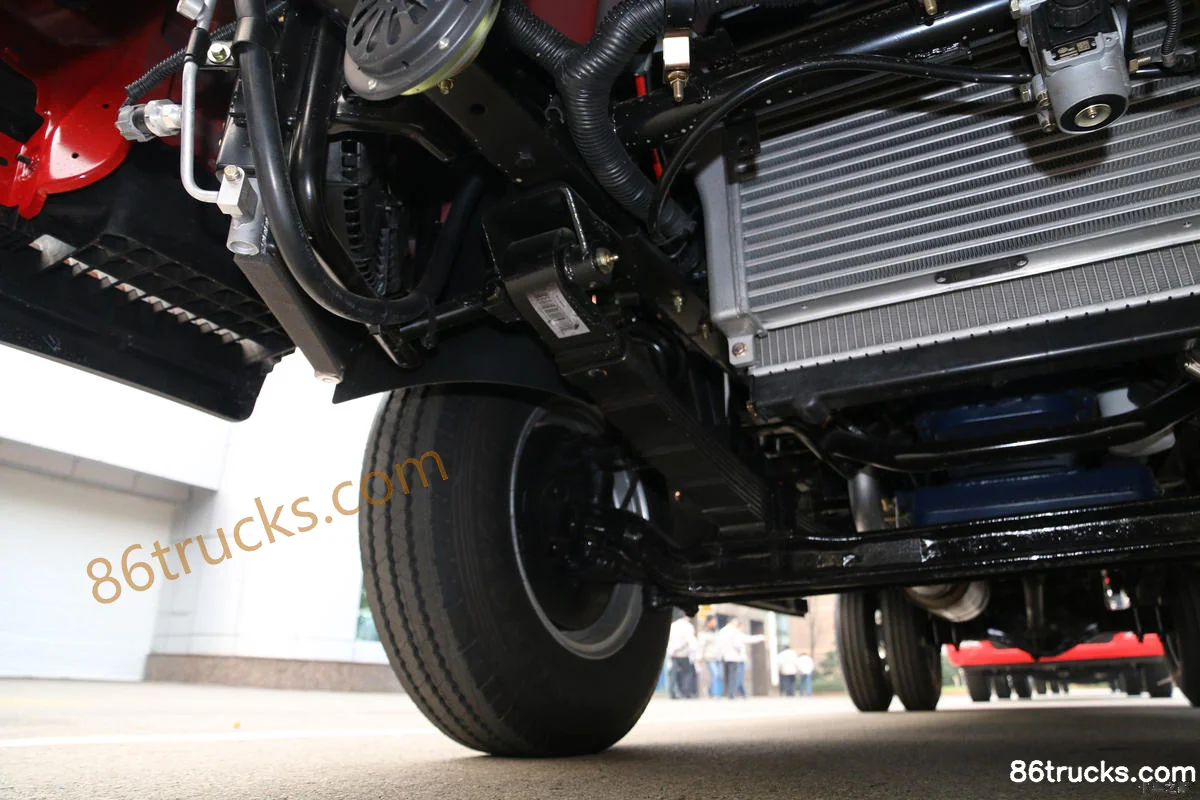

Chassis3

9 photos

FAQ

What emission standard does FAW Jiefang Hu VN 95 hp 4X2(6 wheels) 3.65m Single Row Flatbed Light Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Hu VN 95 hp 4X2(6 wheels) 3.65m Single Row Flatbed Light Truck?

Key specs of FAW Jiefang Hu VN 95 hp 4X2(6 wheels) 3.65m Single Row Flatbed Light Truck: Drive: 4x2; Horsepower: 95 hp; Emission: China V; Fuel: Diesel; Engine: WeichaiWP2.1; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Hu VN 95 hp 4X2(6 wheels) 3.65m Single Row Flatbed Light Truck suited for?

FAW Jiefang Hu VN 95 hp 4X2(6 wheels) 3.65m Single Row Flatbed Light Truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang Hu VN 95 hp 4X2(6 wheels) 3.65m Single Row Flatbed Light Truck differ from other variants in the same series?

FAW Jiefang Hu VN 95 hp 4X2(6 wheels) 3.65m Single Row Flatbed Light Truck belongs to FAW Jiefang Hu V Light-duty Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Hu VN 95 hp 4X2(6 wheels) 3.65m Single Row Flatbed Light Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Hu VN 95 hp 4X2(6 wheels) 3.65m Single Row Flatbed Light Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
