Foton Tunland S 2.8L Diesel 161hp 4WD Double Row Pickup

Export reference
MSRP N/A
Curb Weight:: 1.95ton
Wheelbase:: 3105mm
Front tire specification:: P265/70R16
Rated payload:: 0.7ton
Displacement:: 2.8L
Model code (announced):: BJ2037Y3MDV

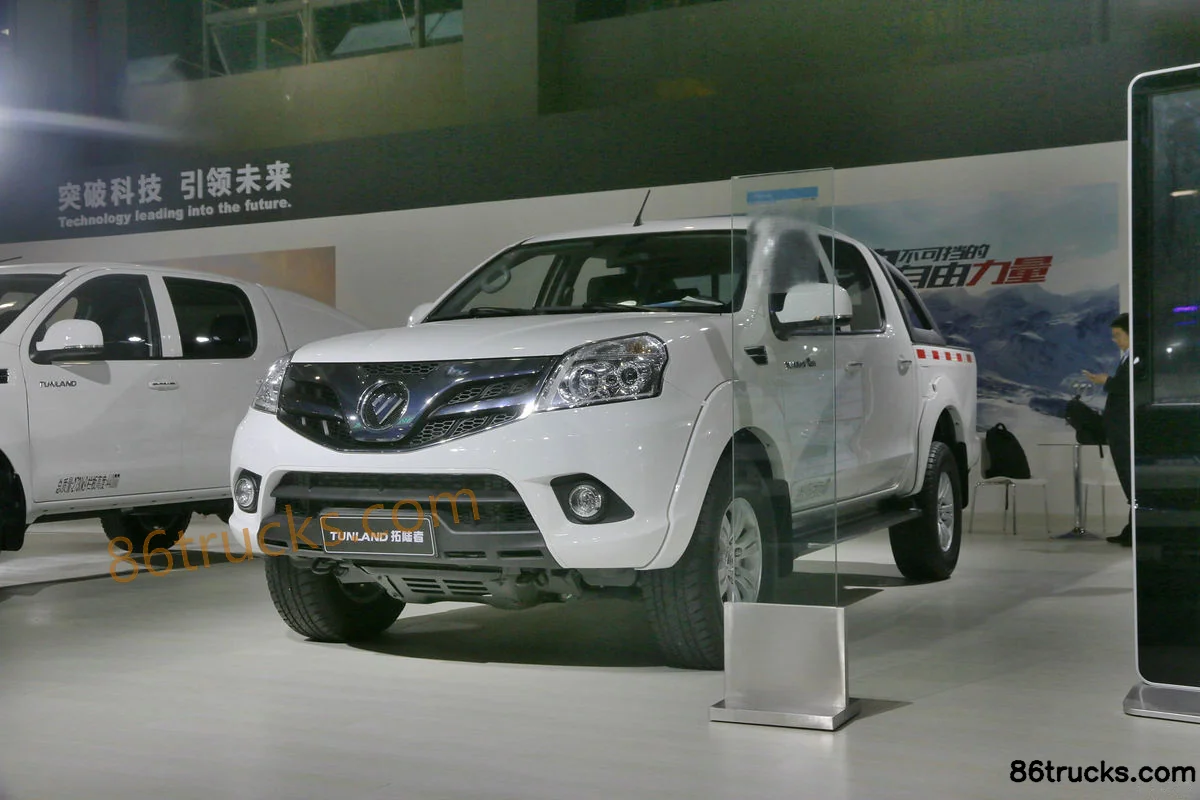

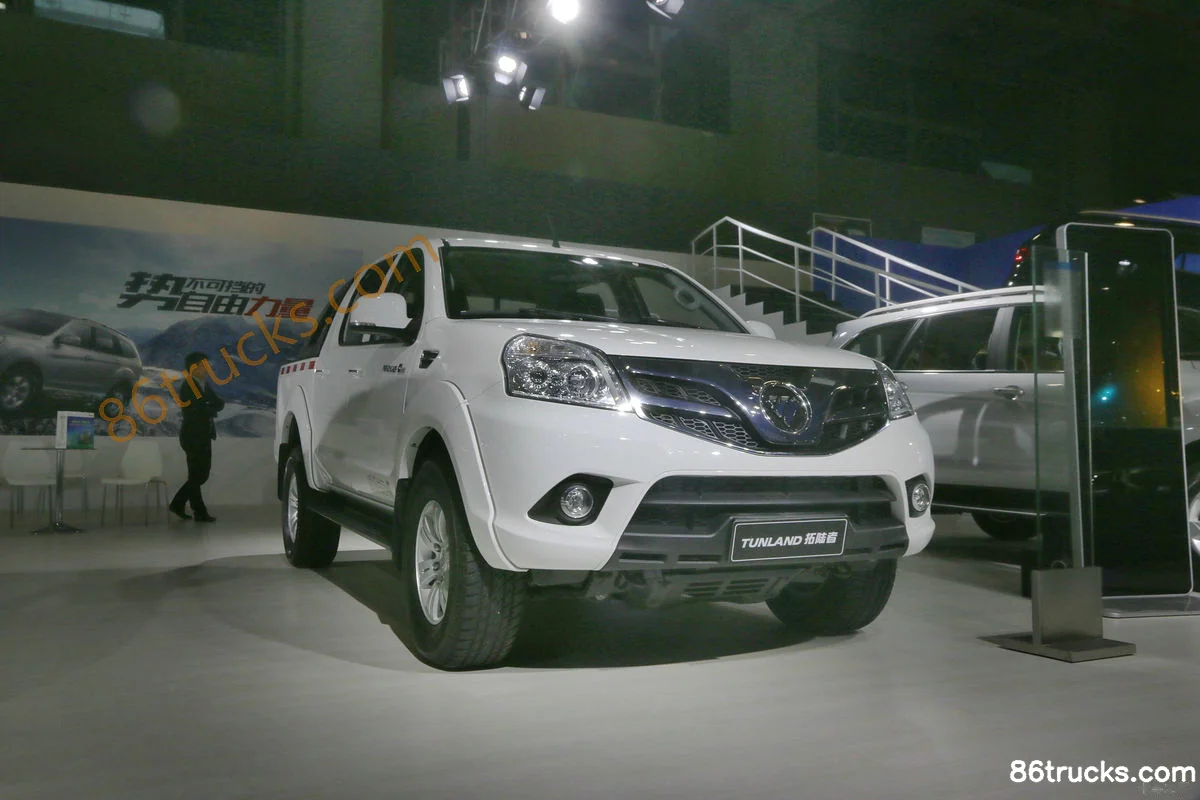

Foton Tunland S 2.8L Diesel 161hp 4WD Double Row Pickup exterior
View more photos (12)
Drive 4WD
Horsepower 161
Emission China IV
Fuel Diesel

Overview

The Foton Tunland S 2.8L Diesel 161hp 4WD Double Row Pickup is a pickup truck featuring 4WD drive, 161 hp, 2.975t GVW and China IV emissions. On the powertrain side, it comes with Diesel fuel.

China IV 161 Diesel 4WD

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): BJ2037Y3MDV
Drive type: 4WD
Wheelbase: 3105mm
Front/rear track width: Front track: 1580; Rear track: 1580mm
Cab length: 5.31m
Cab width: 1.88m
Cab height: 1.87m
Approach/departure angle: 30/27°
Min ground clearance: 230cm
Curb Weight: 1.95ton
Rated payload: 0.7ton
Constant-speed fuel consumption per 100 km: 8.5L/100km
GVWR: 2.975ton
Max. speed: 150km/h
Origin: Beijing
Front/rear suspension: 0.925/1.28m
Energy Type: Diesel
Engine parameters
Engine Model: FotonISF2.8s4161P
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.8L
Emission standard: China IV
Max output power: 120kW
Max hp: 161Horsepower
Max torque: 360N·m
Max torque speed: 1800-3000rpm
Rated speed: 3600rpm
Transmission Parameters
Number of gears: 5Gear
shift type: Manual
Transmission Model: Getrag JC538
Chassis Specs
Front axle suspension type: double wishbone coil spring independent suspension
rear axle suspension type: Leaf spring
power steering type: hydraulic power steering
Aluminum wheels:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 1.52m
Cargo box width: 1.58m
Cargo box height: 0.44m
Wheel brake
Front brake type: Disc
rear brake type: Drum Type
Front tire specification: P265/70R16
Rear Wheel Specification: P265/70R16
Cab parameters
seating capacity: 5Personnel
Seat rows: Double cab
Safety features
Driver airbag:
passenger airbag:
Remote key:
Control configuration
Brake force distribution (EBD/CBC etc.):
ABS:
interior configuration
AC control type: Manual
Power Windows:
Seat material: leather
Reverse Camera:
Multimedia features
External audio input (AUX/USB/iPod etc.):
lighting configuration
Front fog lamp:
Headlight height adjustment:

Photos

Cab3

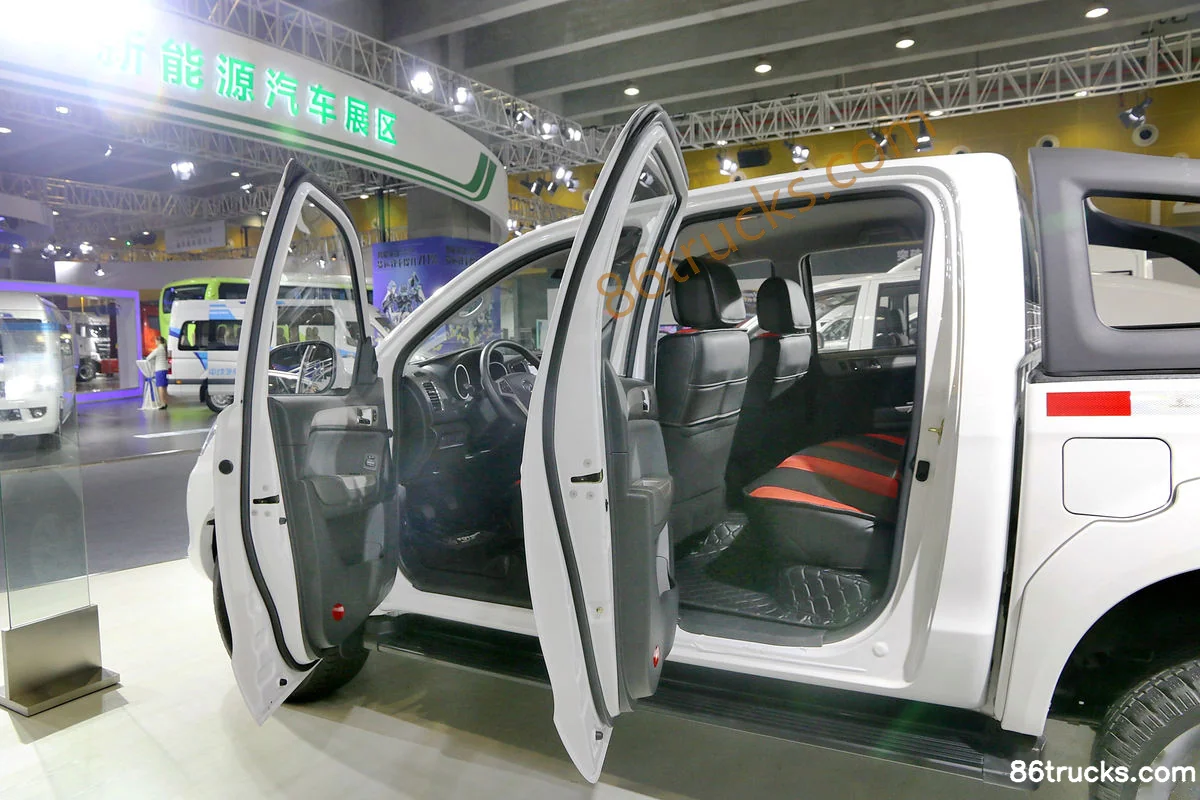

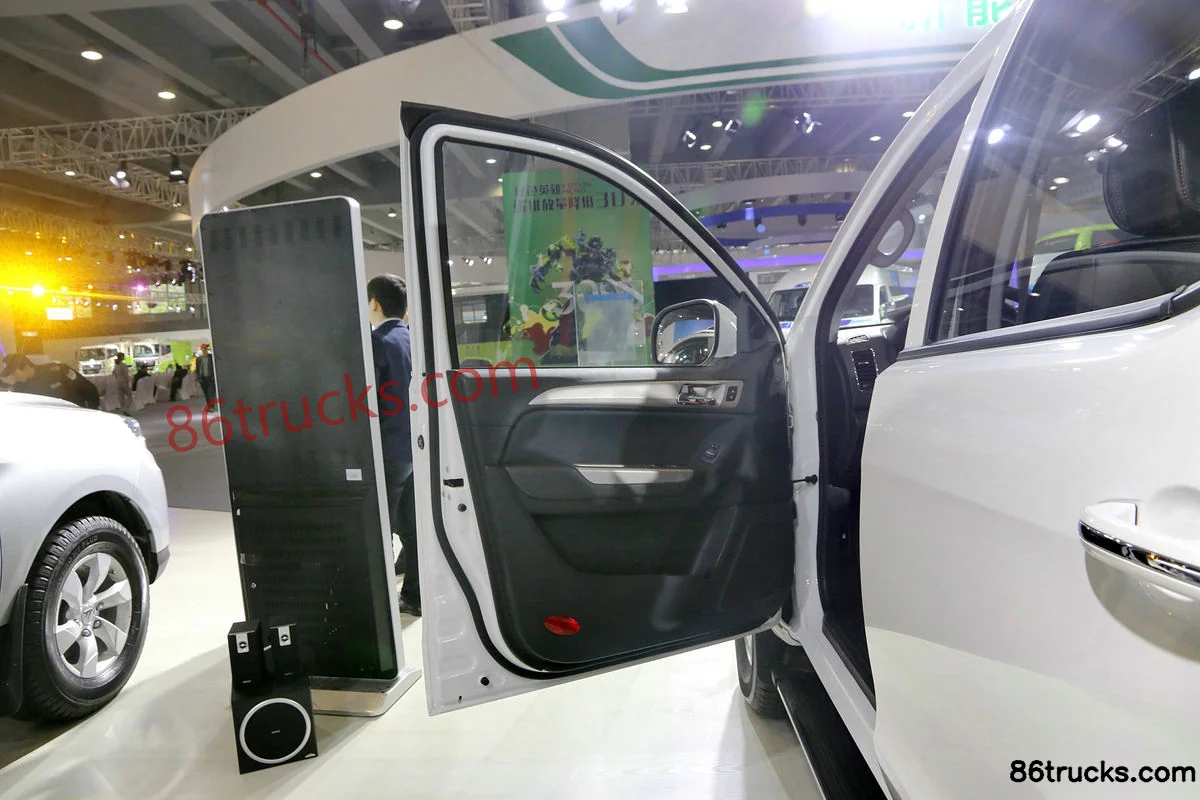

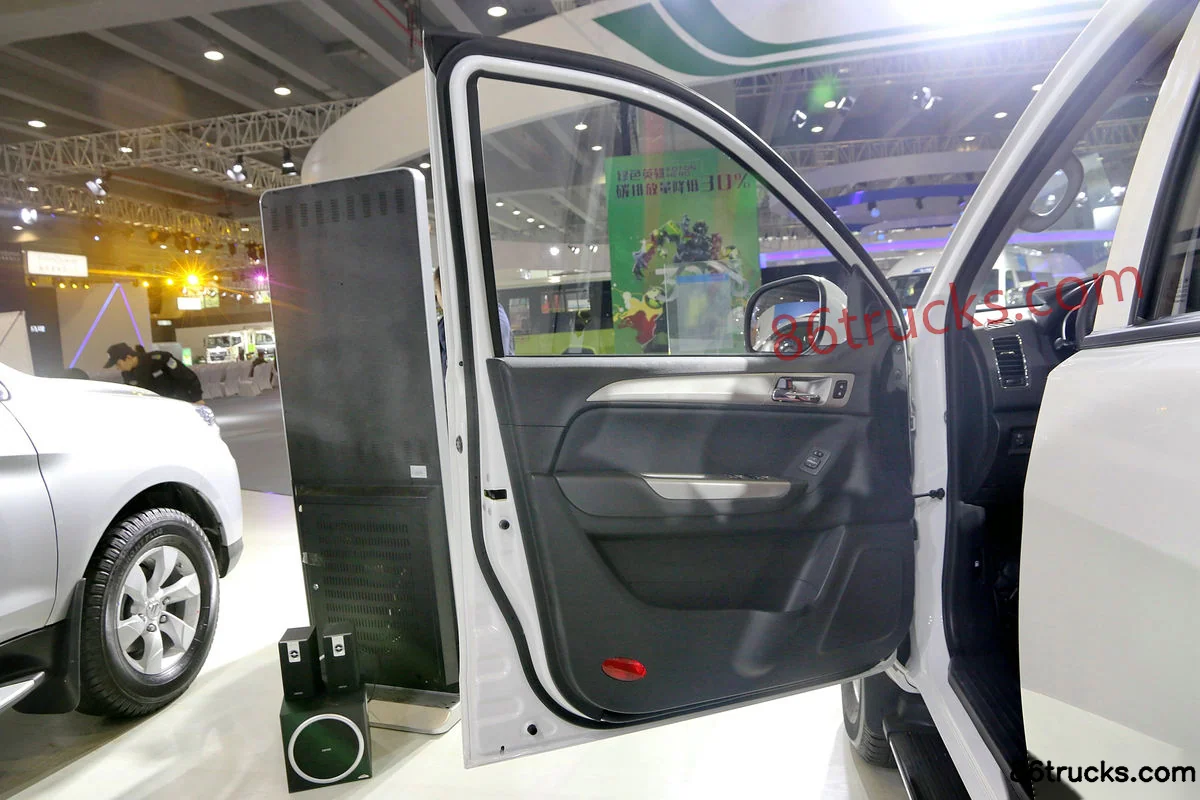

Foton Tunland S 2.8L Diesel 161hp 4WD Double Row Pickup Cab (1) | 86Trucks Foton Tunland S 2.8L Diesel 161hp 4WD Double Row Pickup Cab (2) | 86Trucks Foton Tunland S 2.8L Diesel 161hp 4WD Double Row Pickup Cab (3) | 86Trucks

Chassis3

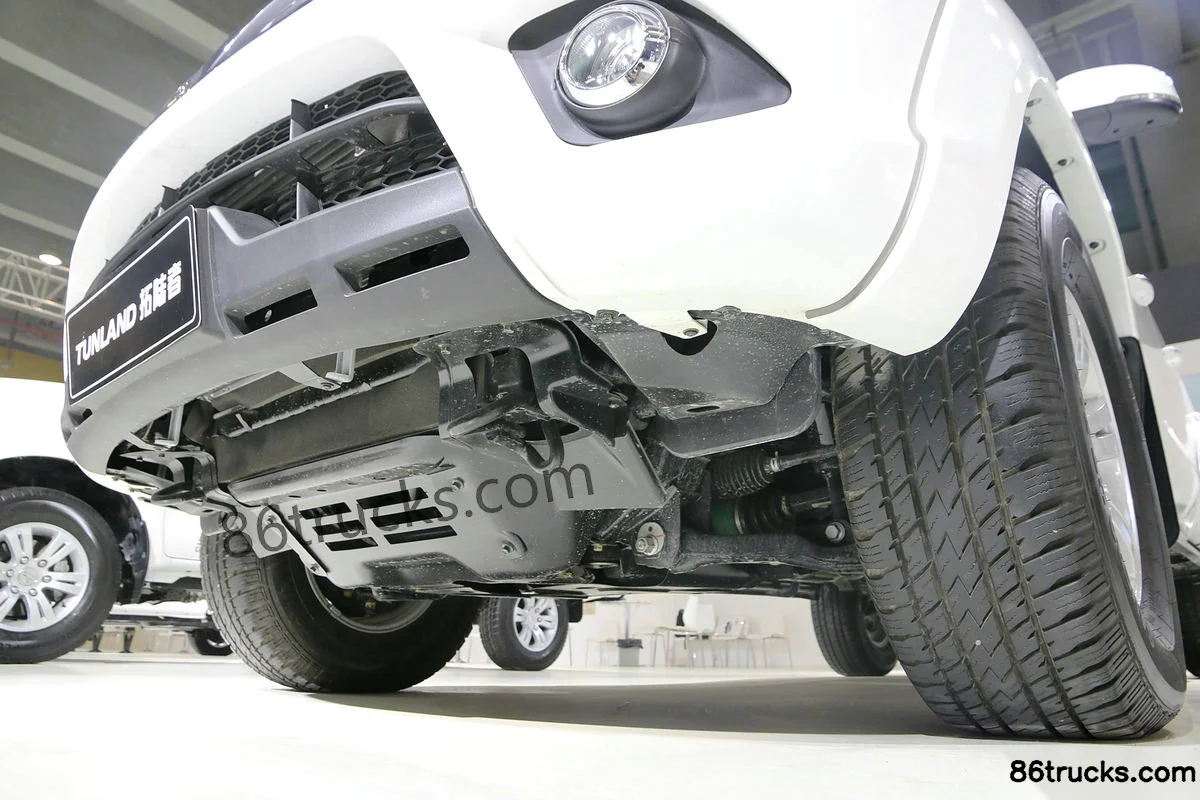

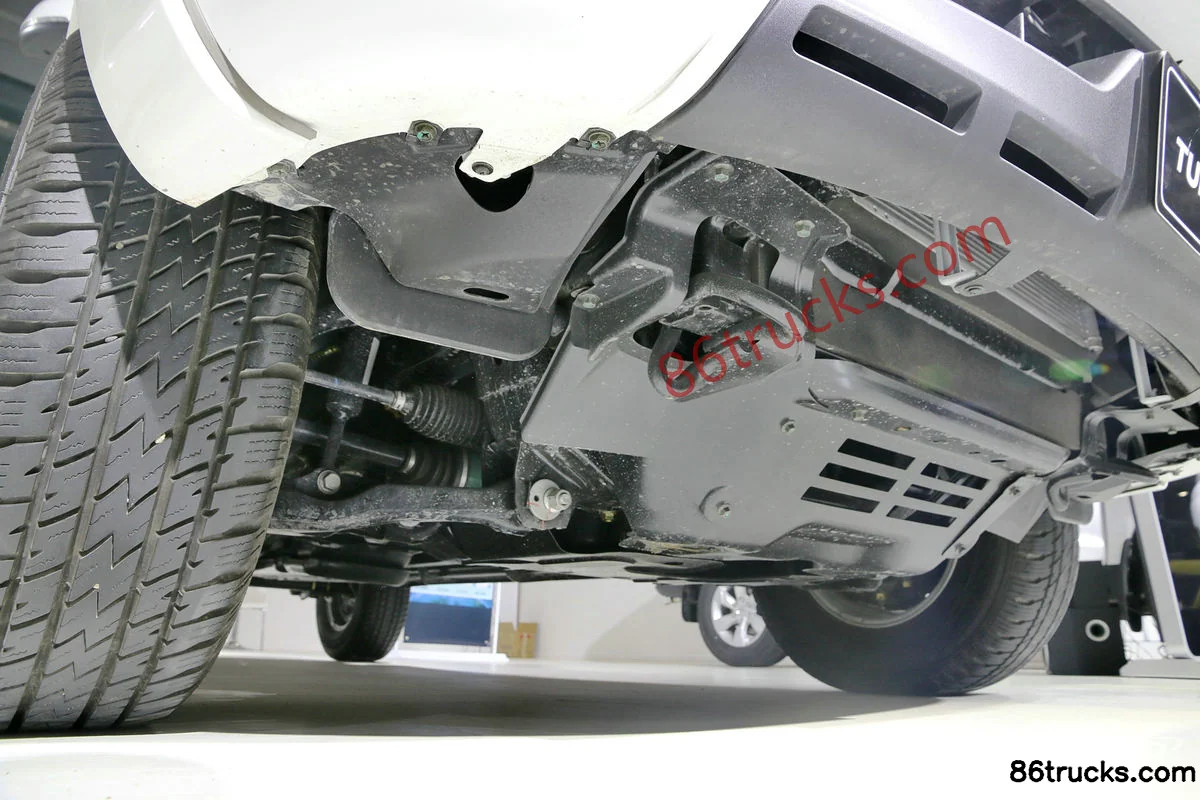

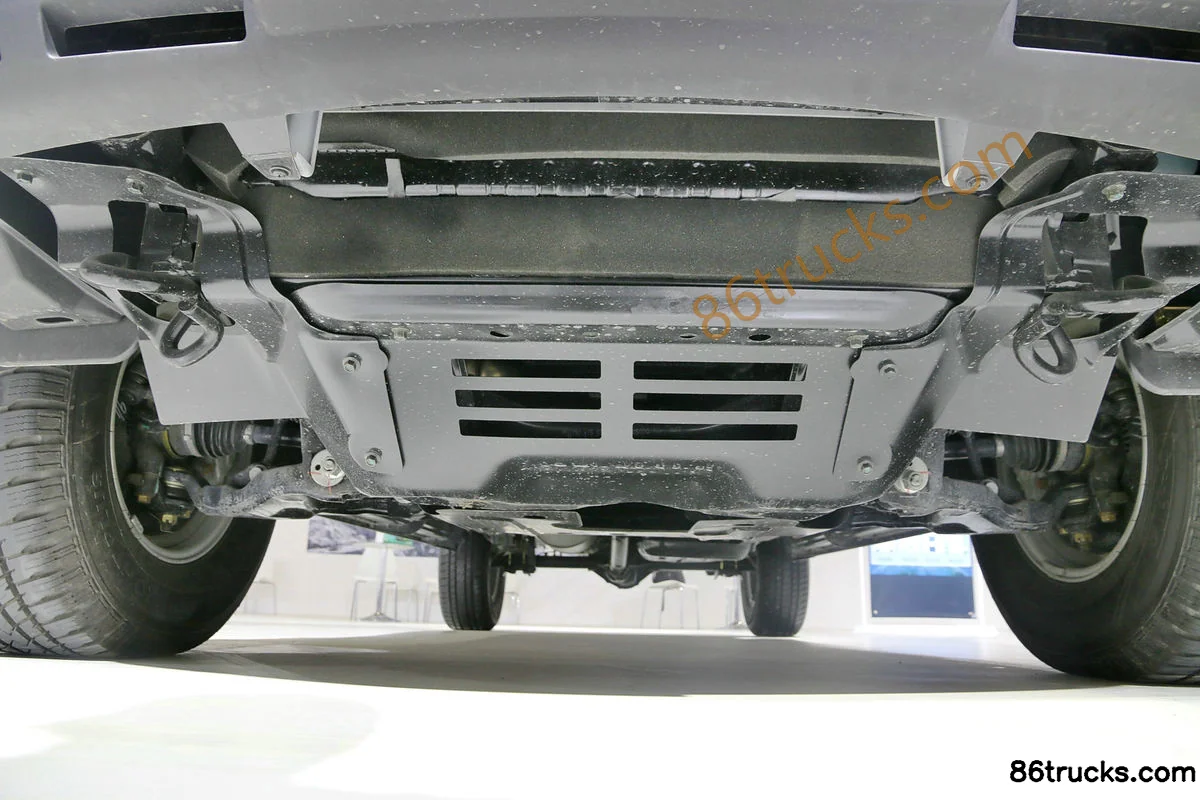

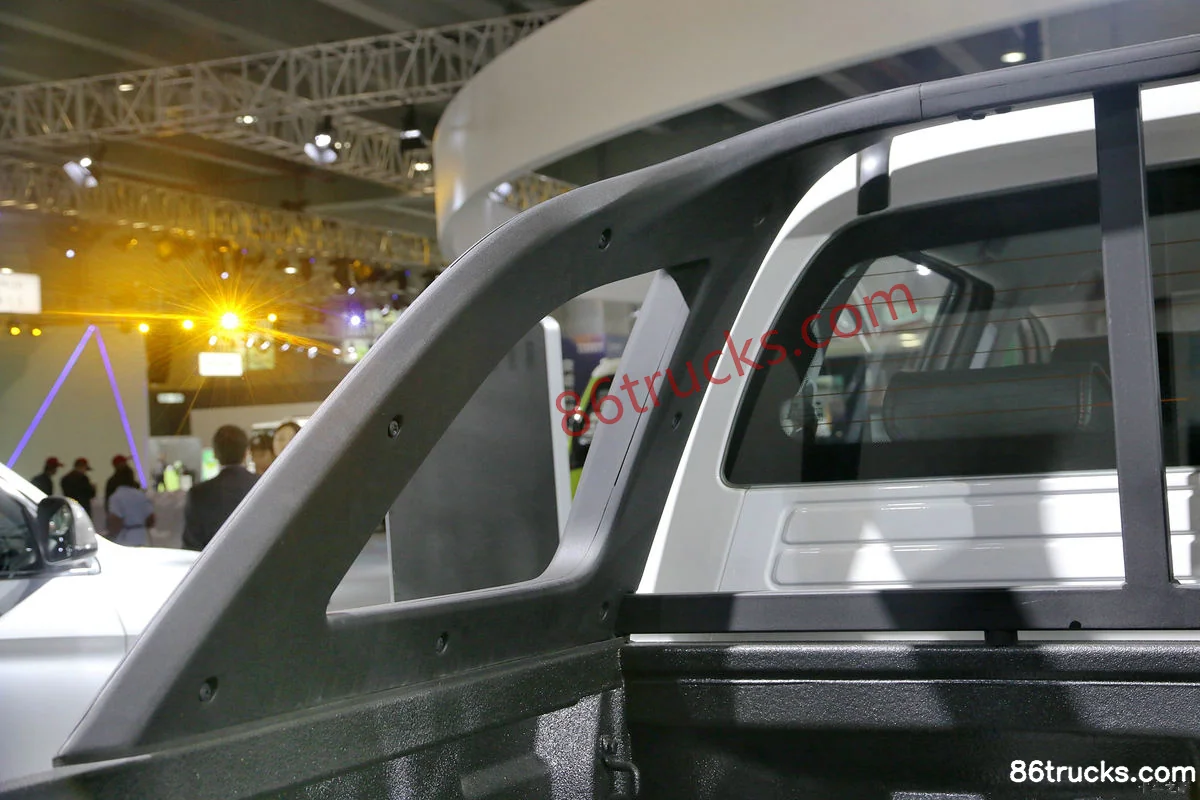

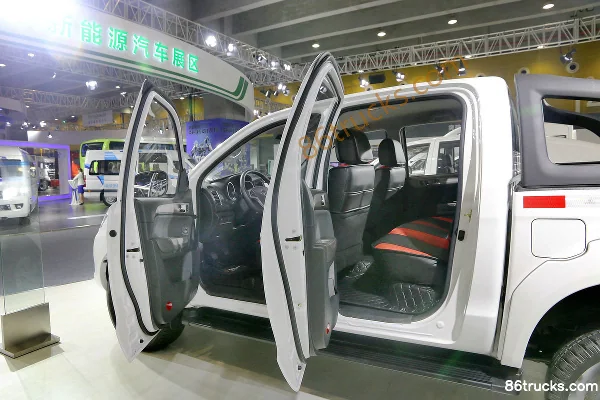

Foton Tunland S 2.8L Diesel 161hp 4WD Double Row Pickup Chassis (1) | 86Trucks Foton Tunland S 2.8L Diesel 161hp 4WD Double Row Pickup Chassis (2) | 86Trucks Foton Tunland S 2.8L Diesel 161hp 4WD Double Row Pickup Chassis (3) | 86Trucks

Body3

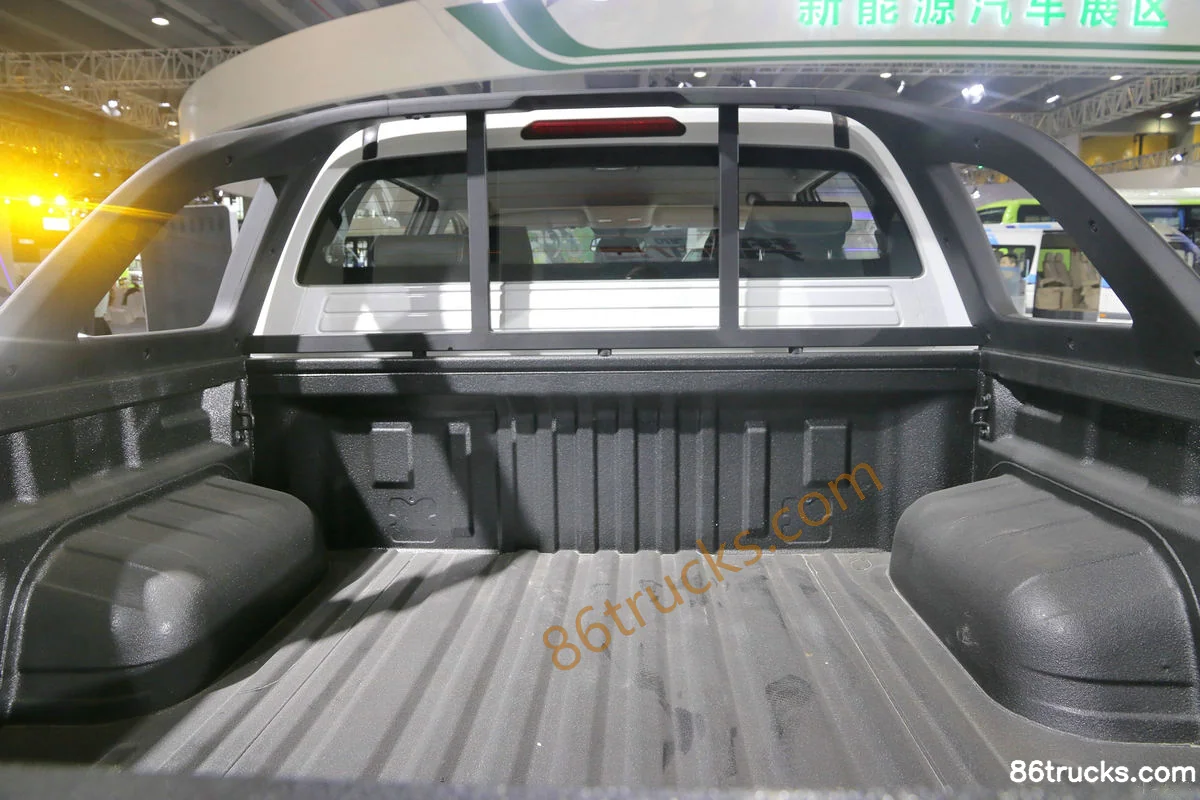

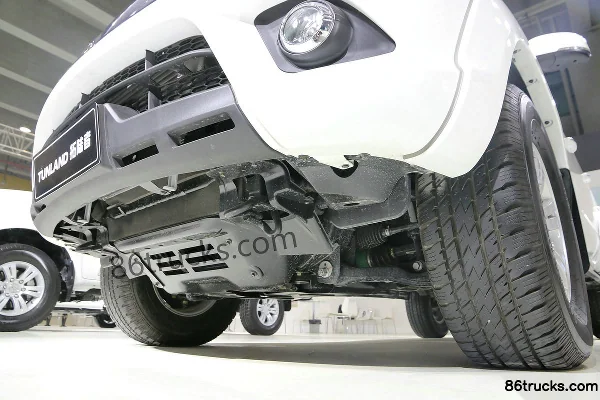

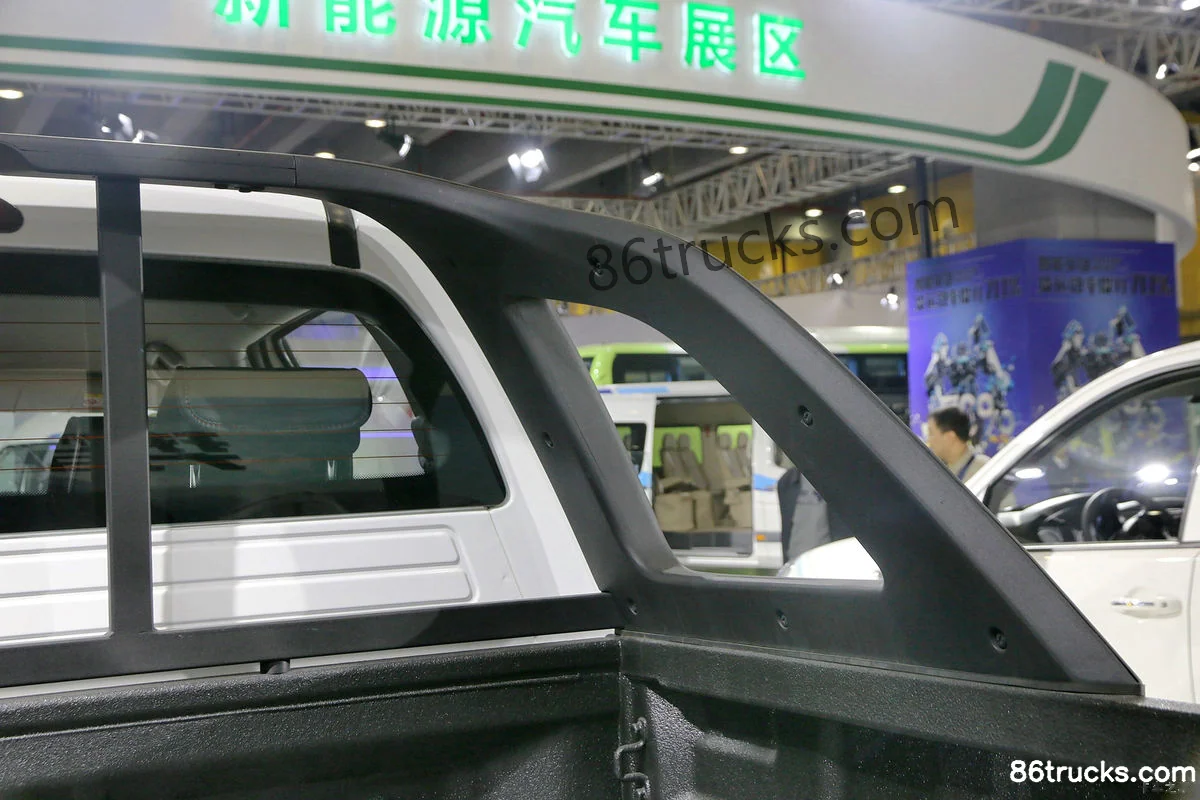

Foton Tunland S 2.8L Diesel 161hp 4WD Double Row Pickup Body (1) | 86Trucks Foton Tunland S 2.8L Diesel 161hp 4WD Double Row Pickup Body (2) | 86Trucks Foton Tunland S 2.8L Diesel 161hp 4WD Double Row Pickup Body (3) | 86Trucks

Official Photos3

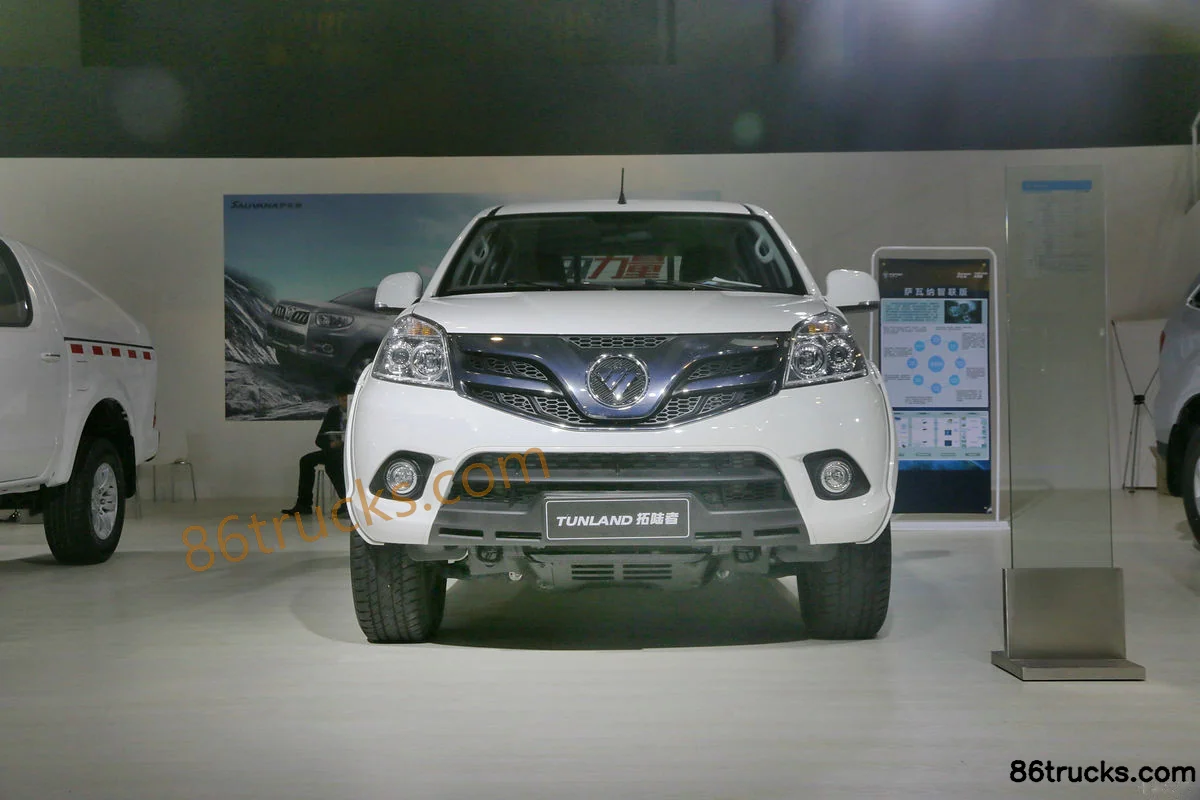

Foton Tunland S 2.8L Diesel 161hp 4WD Double Row Pickup Official Photos (1) | 86Trucks Foton Tunland S 2.8L Diesel 161hp 4WD Double Row Pickup Official Photos (2) | 86Trucks Foton Tunland S 2.8L Diesel 161hp 4WD Double Row Pickup Official Photos (3) | 86Trucks

12 photos

FAQ

What emission standard does Foton Tunland S 2.8L Diesel 161hp 4WD Double Row Pickup use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Tunland S 2.8L Diesel 161hp 4WD Double Row Pickup?

Key specs of Foton Tunland S 2.8L Diesel 161hp 4WD Double Row Pickup: Drive: 4WD; Horsepower: 161 hp; Emission: China IV; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Tunland S 2.8L Diesel 161hp 4WD Double Row Pickup suited for?

Match Foton Tunland S 2.8L Diesel 161hp 4WD Double Row Pickup to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does Foton Tunland S 2.8L Diesel 161hp 4WD Double Row Pickup differ from other variants in the same series?

Foton Tunland S 2.8L Diesel 161hp 4WD Double Row Pickup belongs to Foton Tunland S (pickup truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Tunland S 2.8L Diesel 161hp 4WD Double Row Pickup?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Tunland S 2.8L Diesel 161hp 4WD Double Row Pickup?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
