SHACMAN Delong F3000 Heavy Truck 310 hp 6X4(10 wheels) 5.6m Dump Truck (Medium Long Flat Top)

Export reference
From $40,278
MSRP ¥29M CNY
Emission: China III / Euro III
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 12.4ton
Wheelbase:: 3800+1350mm
Tire Size:: 12.00R20
Rated payload: 12.47ton
Drive 6X4 (10 wheels)
Horsepower 310
Cargo box type: Rear-dump body

Overview

The SHACMAN Delong F3000 Heavy Truck 310 hp 6X4(10 wheels) 5.6m Dump Truck (Medium Long Flat Top) is a Heavy truck featuring 12.47t payload, 25t GVW, Rear-dump body cargo body and 6X4 (10 wheels) drive. On the powertrain side, it comes with a WeichaiWP10.310NE31 engine, 310 hp, China III / Euro III emissions and Fast Gear transmission.

China III / Euro III 310 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SX3255DN3841
Drive type: 6X4
Wheelbase: 3800+1350mm
engine: WeichaiWP10.310NE31
transmission: Fast Gear10JSD120
Rear Axle Ratio: 5.262
Cab length: 8.329m
Cab width: 2.49m
Cab height: 3.45m
Front track width: 2036mm
rear track: 1860/1860mm
Curb Weight: 12.4ton
Rated payload: 12.47ton
GVWR: 25ton
Origin: Xi'an, Shaanxi
tonnage class: Heavy truck
Approach angle: 28°
departure angle: 30°
Remarks: Optional top-covered cargo body and mining bucket. With top cover: curb weight 12400 kg, payload 12470 kg, load utilization factor 1.01. Optional cargo body lengths: 5600 mm × 2300 × 1170 mm → overall length 8329/8354 mm, rear overhang 1654 mm; 5800 mm × 2300 × 1130 mm → overall length 8525/8550 mm, rear overhang 1850 mm. Dump direction: rear. Optional front mask.
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP10.310NE31
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 9.726L
Emission standard: China III / Euro III
Max output power: 228kW
Max hp: 310Horsepower
Max torque: 1250N·m
Max torque speed: 1200-1600rpm
Rated speed: 2200rpm
Engine Type: Water-cooled, four-stroke, with exhaust brake, direct injection, turbocharged intercooled
Transmission Parameters
Transmission Model: Fast Gear10JSD120
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 5.6m
Cargo box width: 2.3m
Cargo box height: 1.13m
fuel tank
Fuel tank capacity: 400L
Chassis Specs
rear axle description: MAN cast
rear axle allowable load: 16000kg
Axle ratio: 5.262
Leaf spring count: 10/12
Tire
Tire Size: 12.00R20
Number of tires: 10pcs

Photos

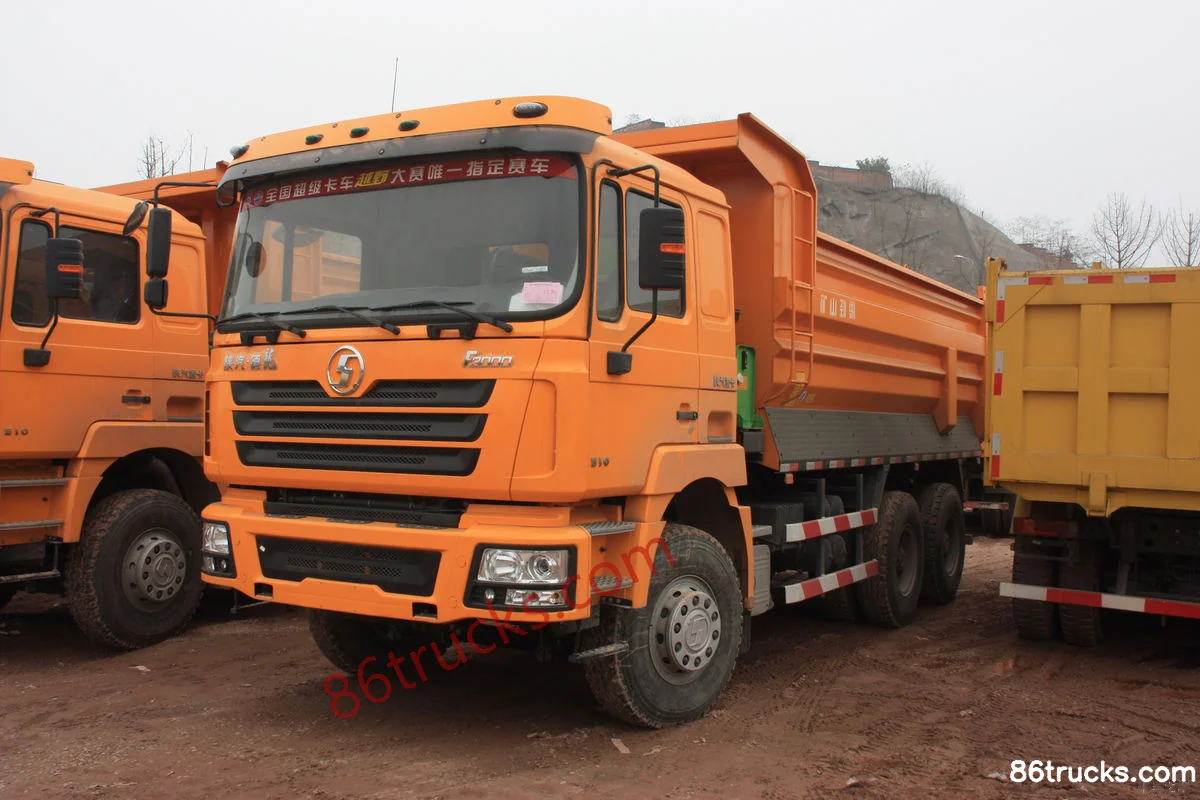

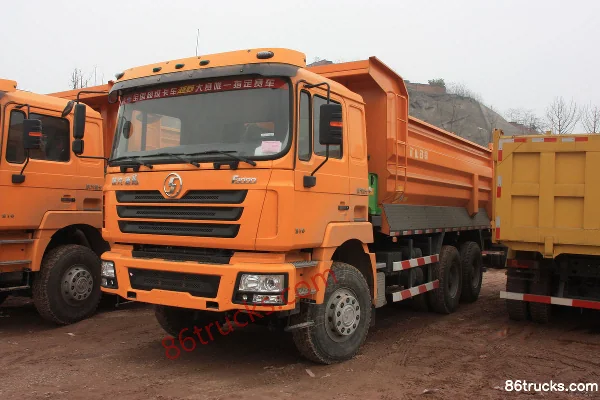

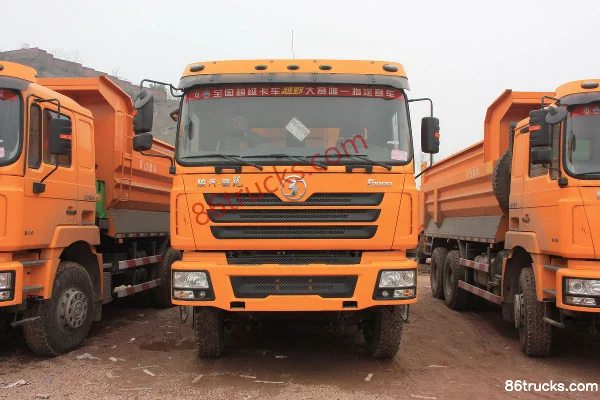

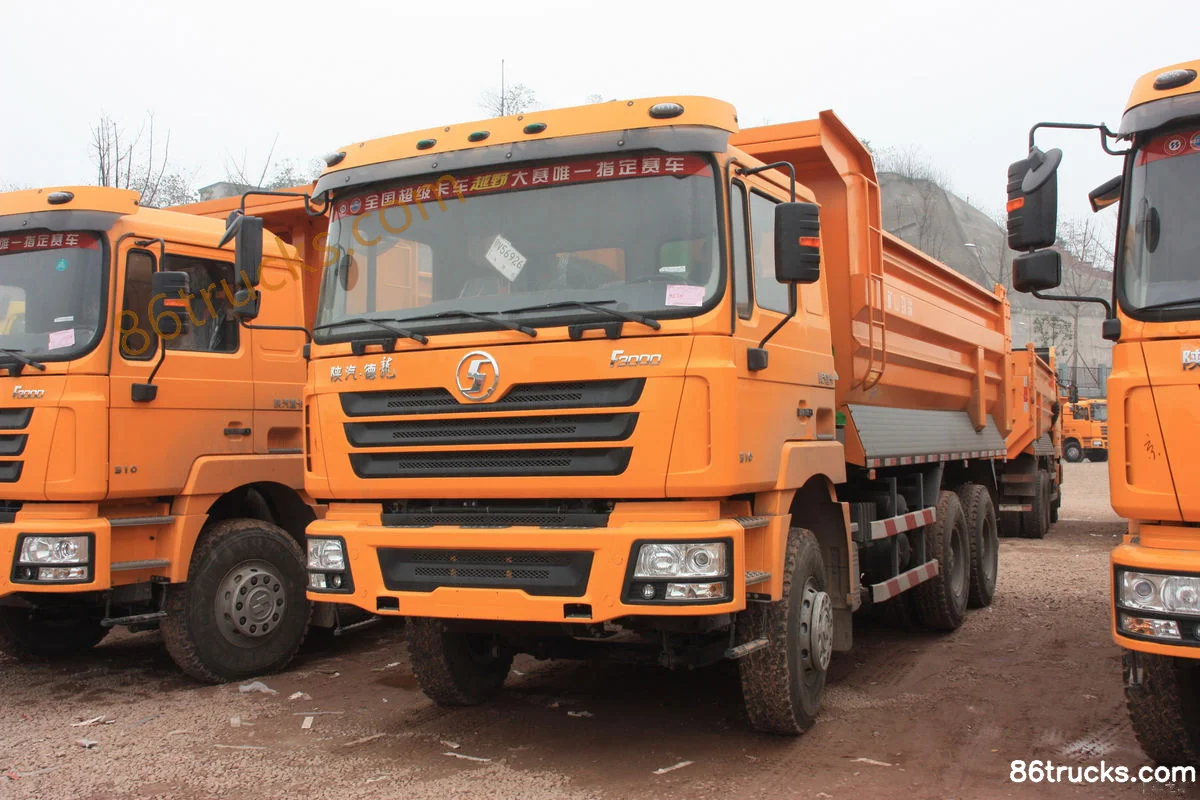

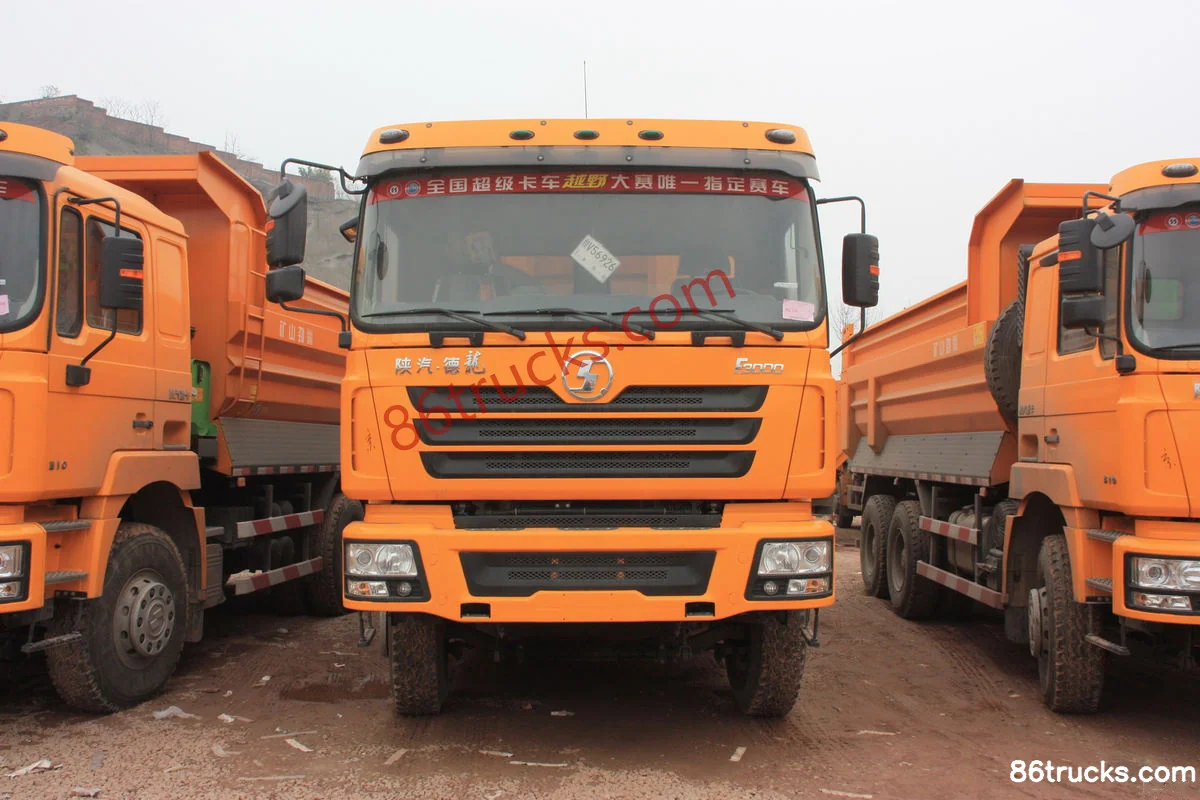

Exterior3

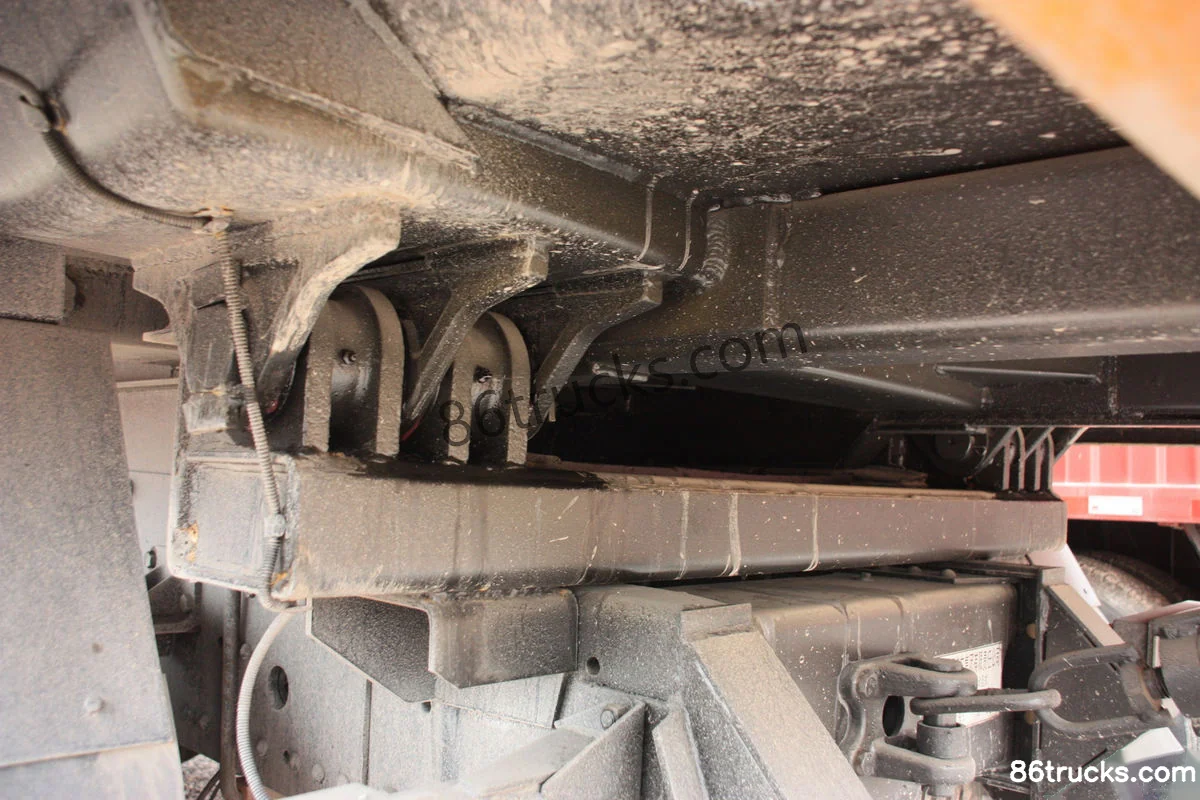

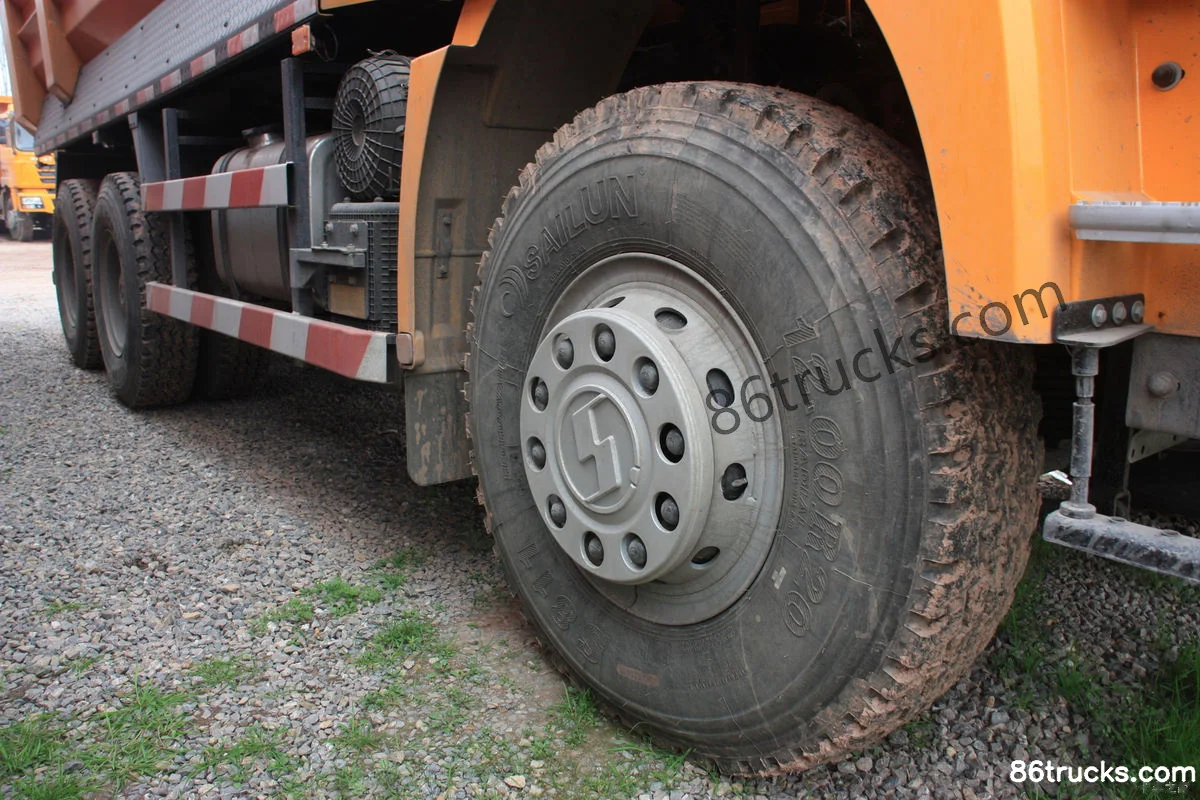

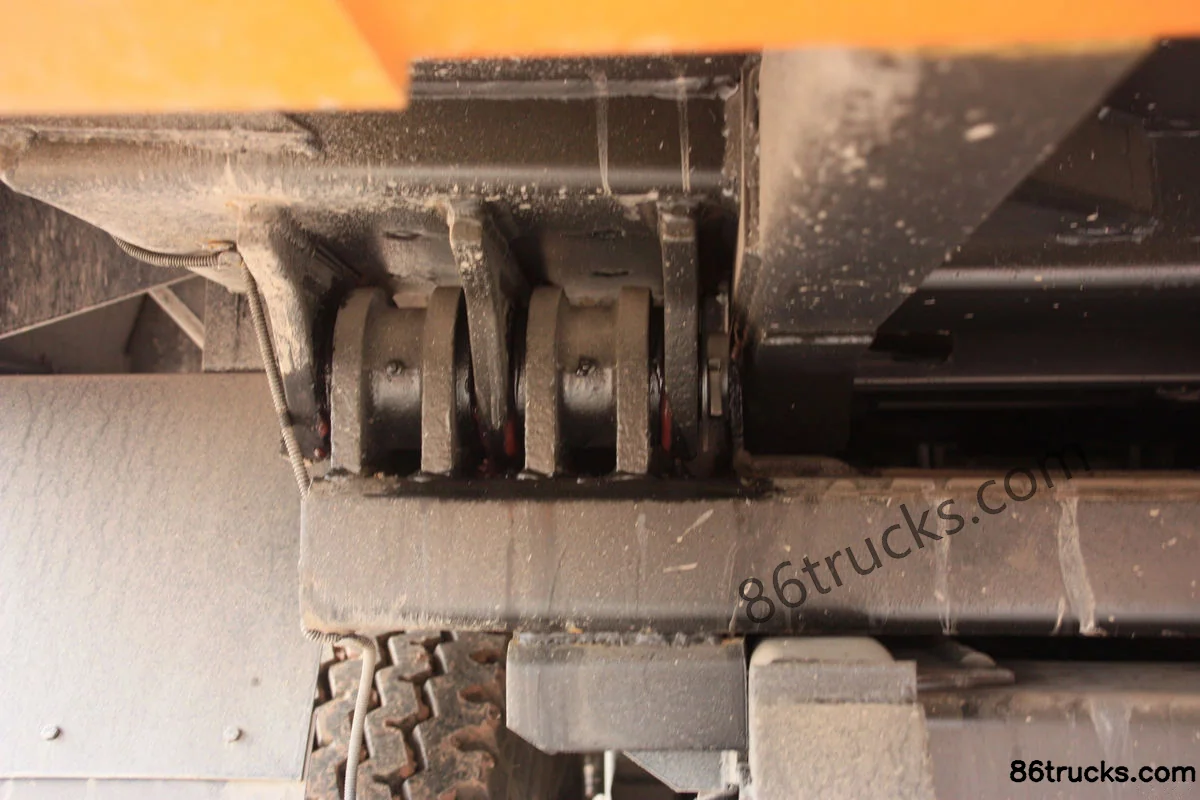

Chassis3

6 photos
