JAC Junling V7 141 hp 4X2(6 wheels) 6.2 m single-row van cargo truck

Export reference
MSRP N/A
Horsepower: 141
Emission: China IV
Fuel: Diesel
Engine: Fukang 3.8
Transmission: Lu'an
Curb Weight:: 4.3ton
JAC Junling V7 141 hp 4X2(6 wheels) 6.2 m single-row van cargo truck exterior
View more photos (12)
seating capacity: 3Personnel
Rated payload: 4.995ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The JAC Junling V7 141 hp 4X2(6 wheels) 6.2 m single-row van cargo truck is a Light Truck featuring 6.2m cargo length, Van body cargo body, 3Personnel volume and 4.995t payload. Its segment focus covers Agricultural product transport, green channel and industrial product transport, matching those duty cycles. On the powertrain side, it comes with a Fukang 3.8 engine, 141 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 141 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): HFC5092XXYP91K1D3
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 4550mm
Box length class: 6.2m
engine: FotonISF3.8s4R141
transmission: Lu'an LC6T450
Cab length: 8.13m
Cab width: 2.27m
Cab height: 3.4m
Front track width: 1665mm
rear track: 1630mm
Curb Weight: 4.3ton
Rated payload: 4.995ton
GVWR: 9.49ton
Max. speed: 90km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
Approach angle: 25°
departure angle: 15°
market segment: Agricultural product transport, green channel, industrial product transport
Remarks: Optional: MP5, anti-slip floor plate, AC; Standard: double-top storage box, five-dial instrument panel, dual ashtrays, dual sun visors, semi-sleeper side window openable, folding key, metallic paint, tube-beam instrument panel, frame-type rearview mirror, double-layer frame, spring energy storage
Front/rear suspension: 1.085/2.495m
Energy Type: Diesel
Engine parameters
Engine Brand: Foton
Engine Model: FotonISF3.8s4R141
Engine info: Fukang 3.8
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.76L
Emission standard: China IV
Max output power: 105kW
Max hp: 141Horsepower
Max torque: 450N·m
Max torque speed: 1200-2200rpm
Rated speed: 2600rpm
Engine Type: Turbocharged Air-to-Air Intercooling Bosch High-Pressure Common Rail Direct Injection SCR
Transmission Parameters
Transmission Model: Lu'an LC6T450
Transmission Brand: Lu'an
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 6.2m
Cargo box width: 2.17m
Cargo box height: 2.3m
*Cargo box interior width: 2.1700000762939
Cab parameters
Cab tilting: Manual
seating capacity: 3Personnel
Seat rows: Single Row
fuel tank
Fuel tank capacity: 120L
Chassis Specs
Front axle description: 3 tons / drum
Front axle allowable load: 3415kg
rear axle description: 7-ton drum
rear axle allowable load: 6075kg
Leaf spring count: 9/8+7
Tire
Tire Size: 8.25R16
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
clutch booster:
interior configuration
Multifunction steering wheel:
Power Windows:
Power Mirrors:
Reverse Camera:
Electronic Central Lock:
Multimedia features
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
lighting configuration
daytime running lights:

Photos

Exterior3

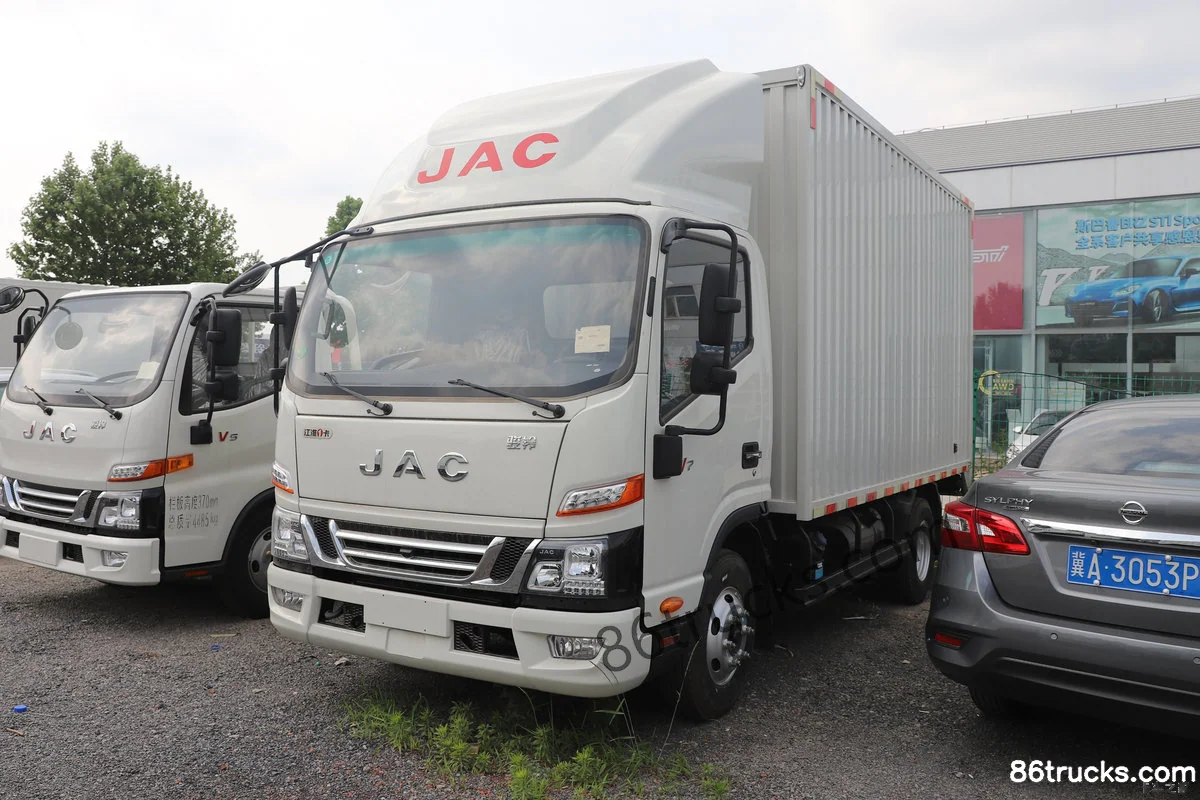

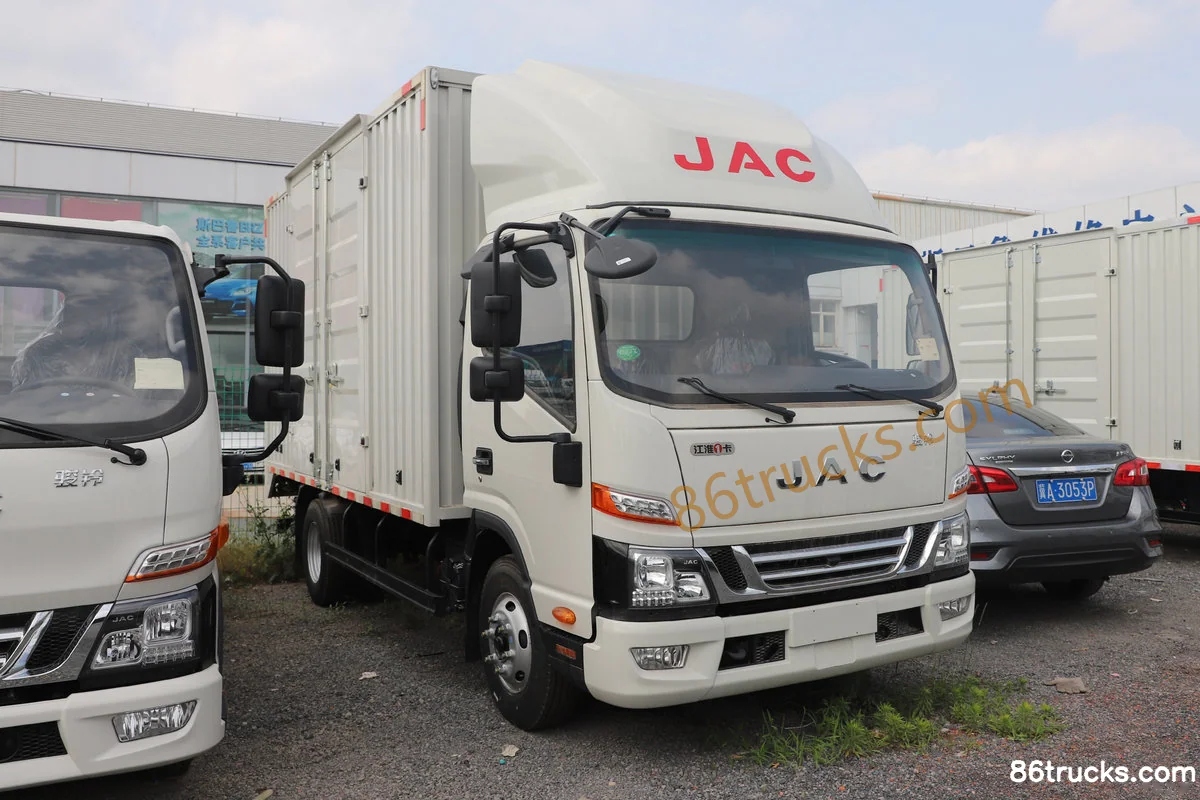

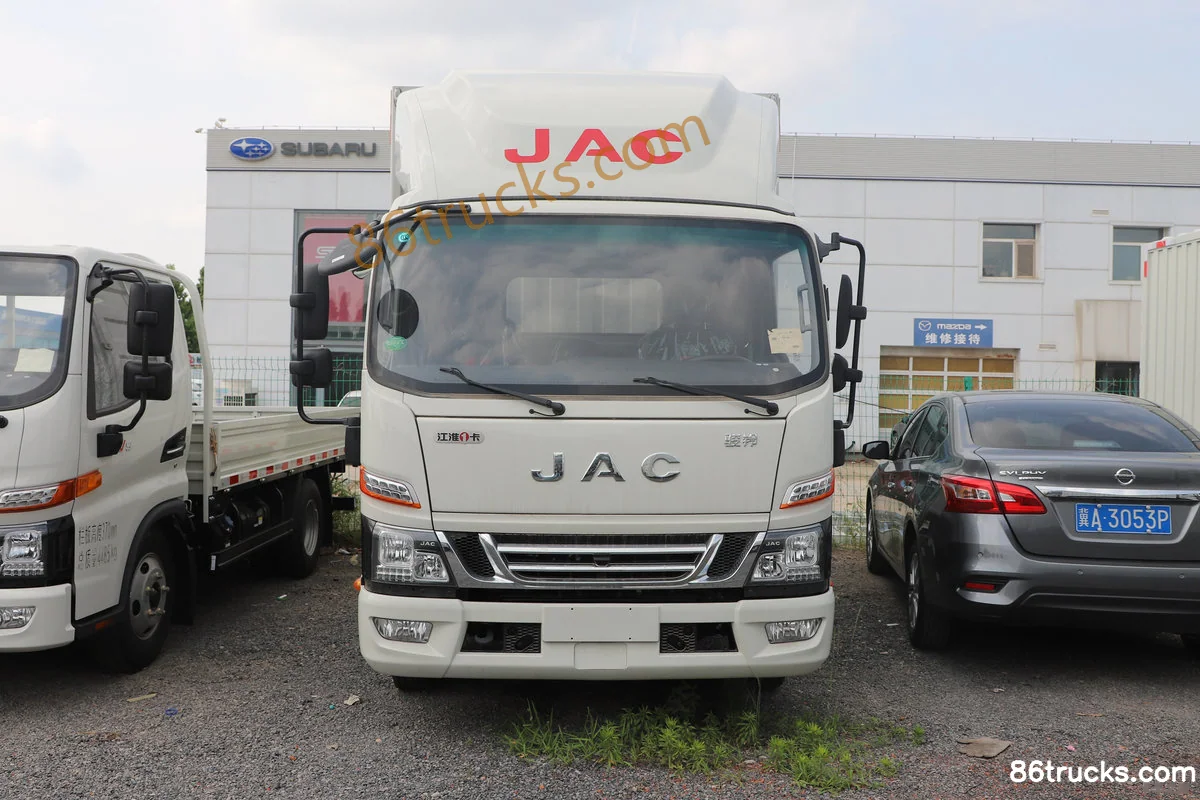

JAC Junling V7 141 hp 4X2(6 wheels) 6.2 m single-row van cargo truck Exterior (1) | 86Trucks JAC Junling V7 141 hp 4X2(6 wheels) 6.2 m single-row van cargo truck Exterior (2) | 86Trucks JAC Junling V7 141 hp 4X2(6 wheels) 6.2 m single-row van cargo truck Exterior (3) | 86Trucks

Cab3

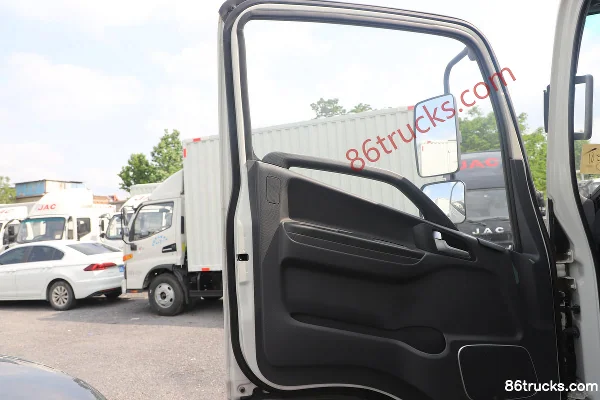

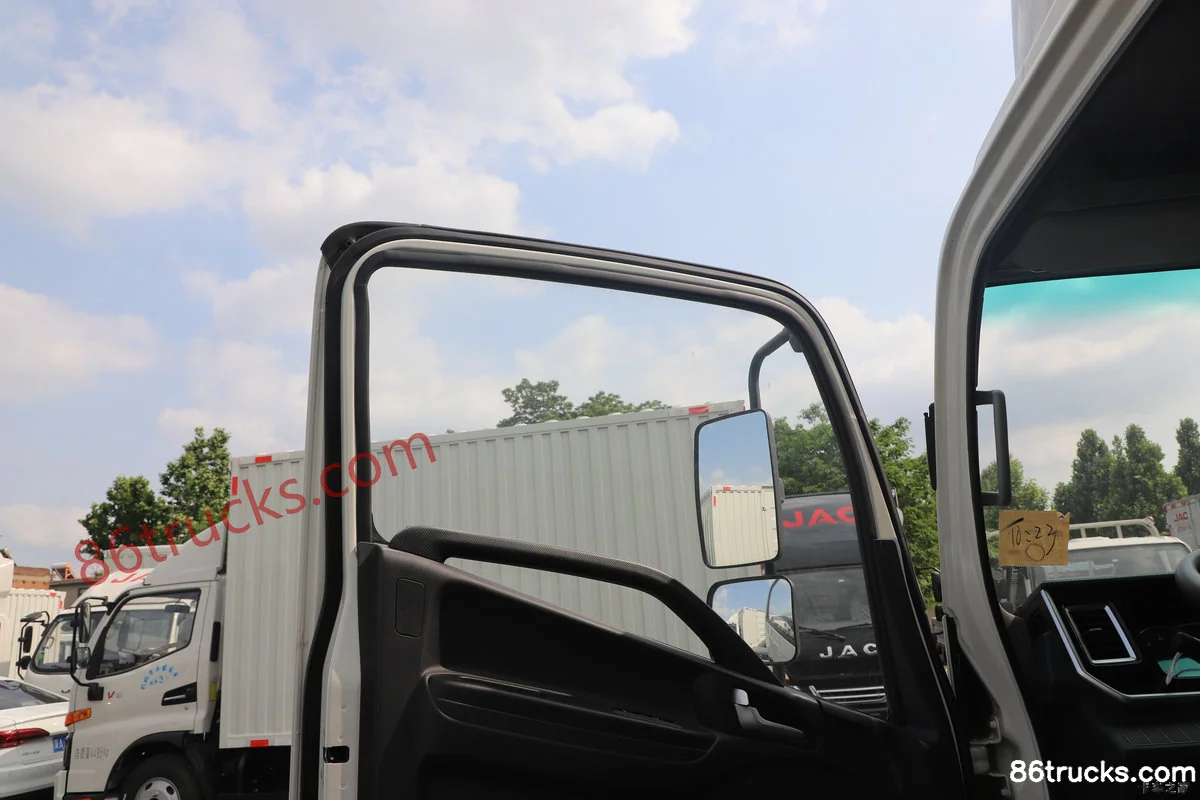

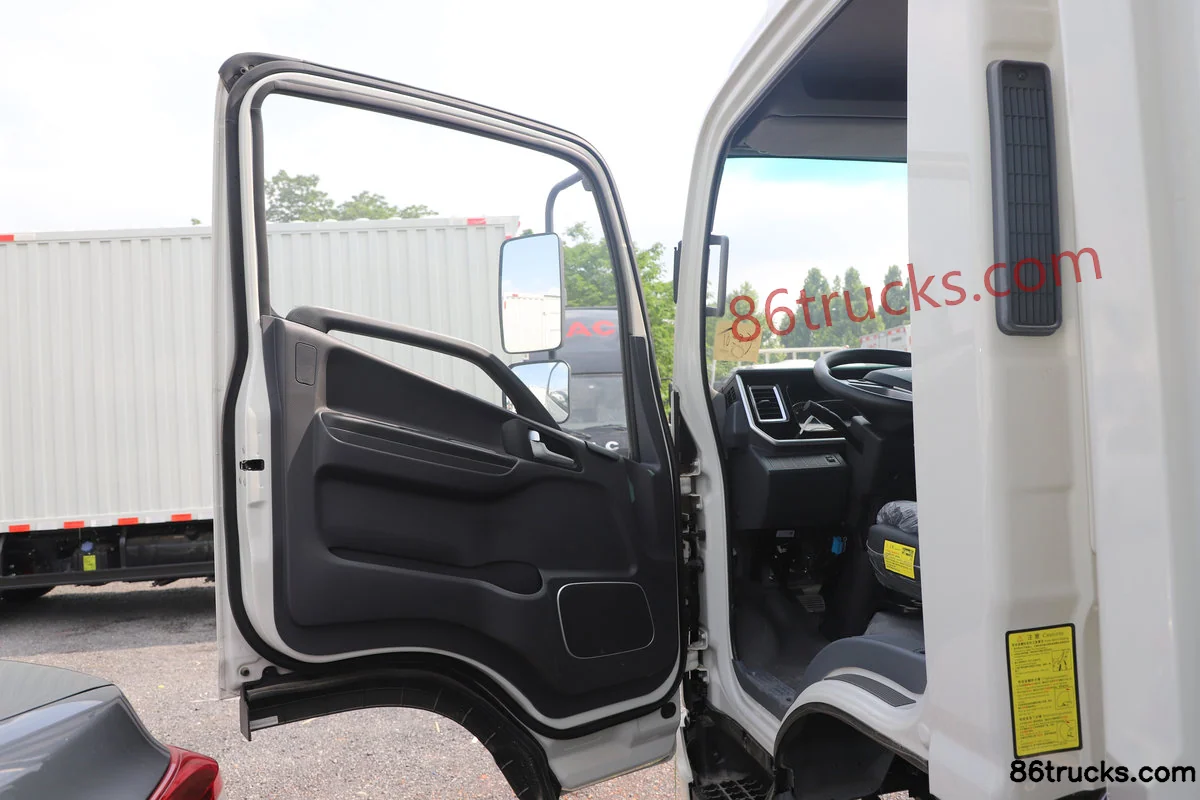

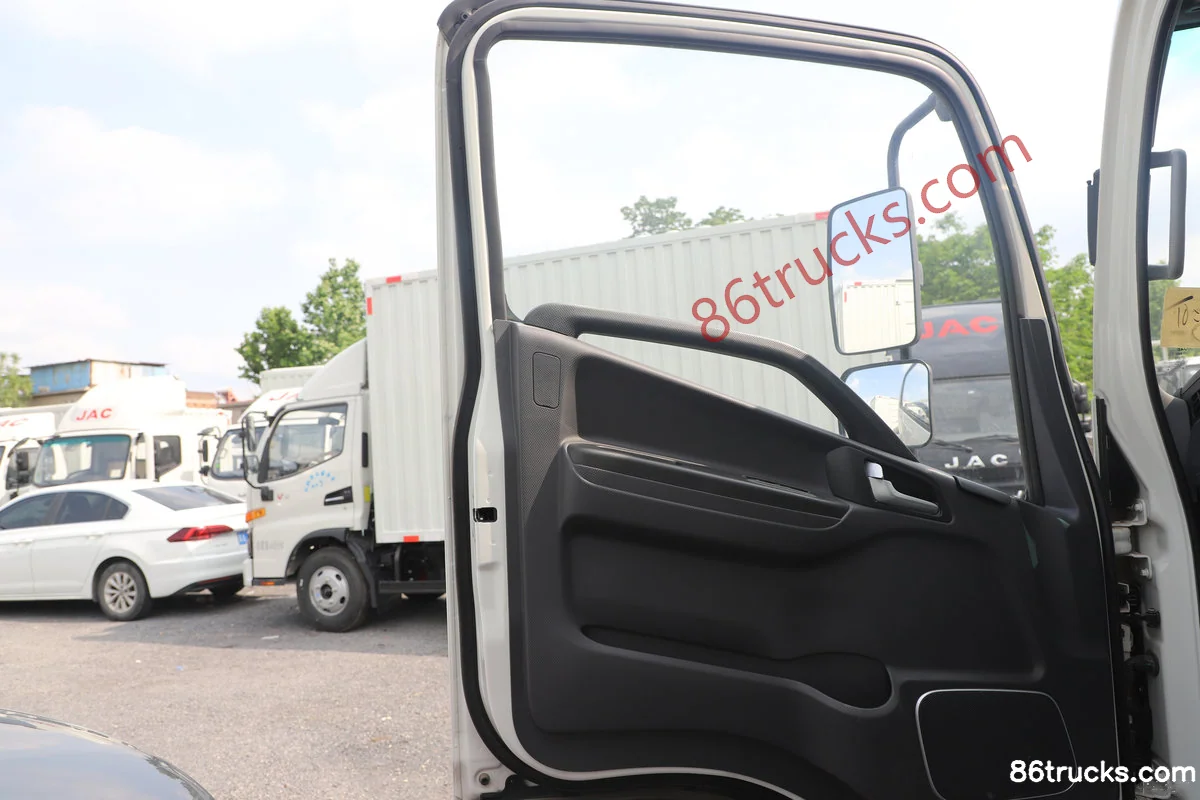

JAC Junling V7 141 hp 4X2(6 wheels) 6.2 m single-row van cargo truck Cab (1) | 86Trucks JAC Junling V7 141 hp 4X2(6 wheels) 6.2 m single-row van cargo truck Cab (2) | 86Trucks JAC Junling V7 141 hp 4X2(6 wheels) 6.2 m single-row van cargo truck Cab (3) | 86Trucks

Chassis3

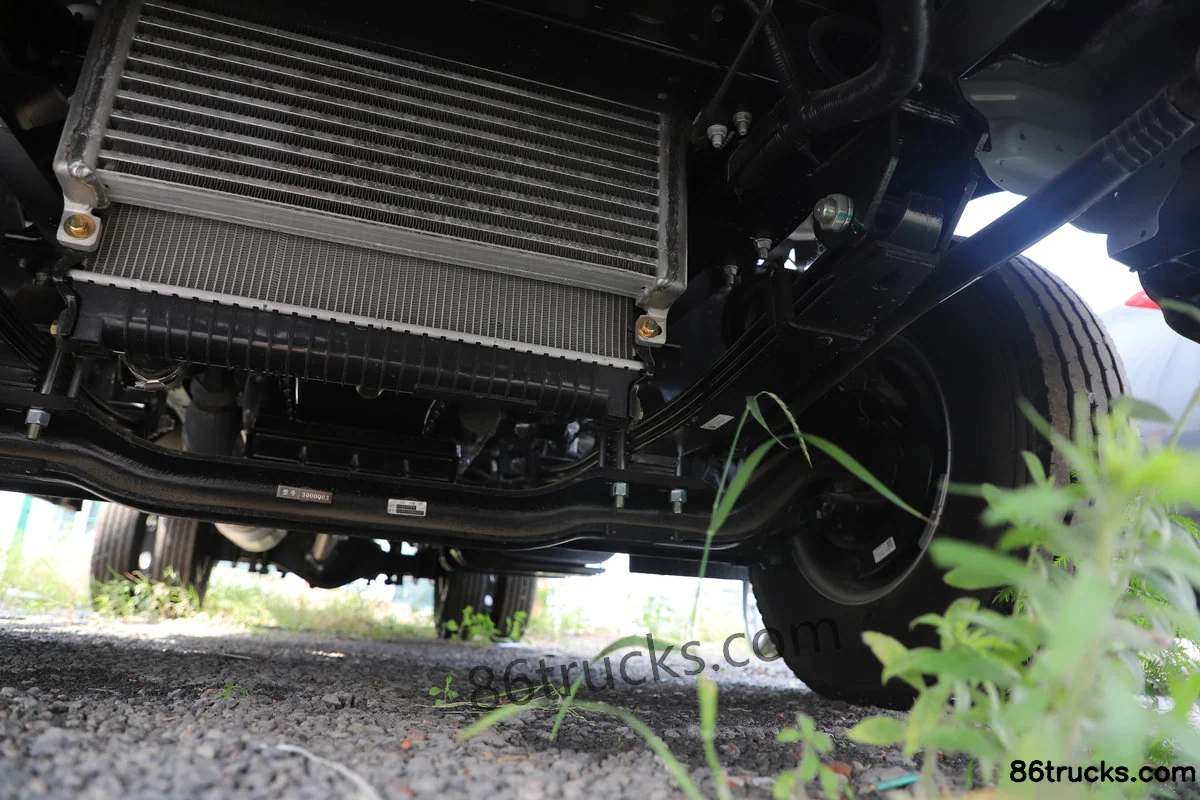

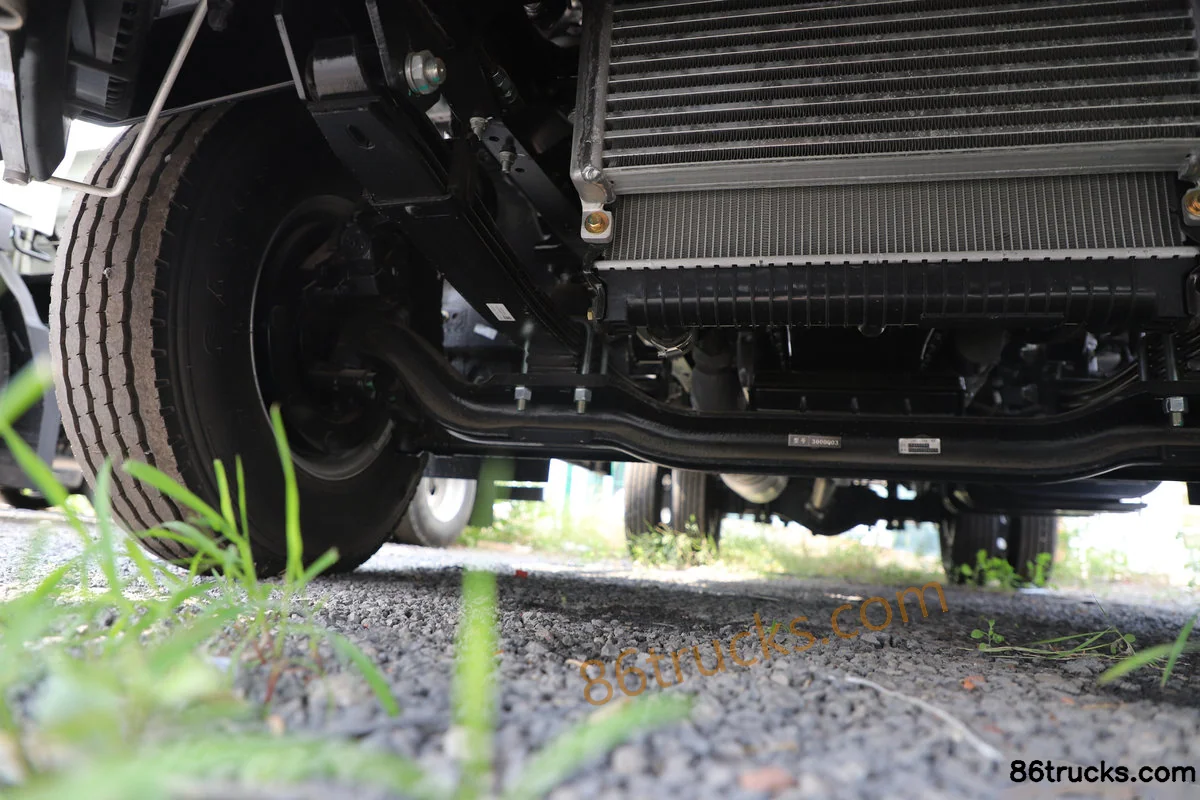

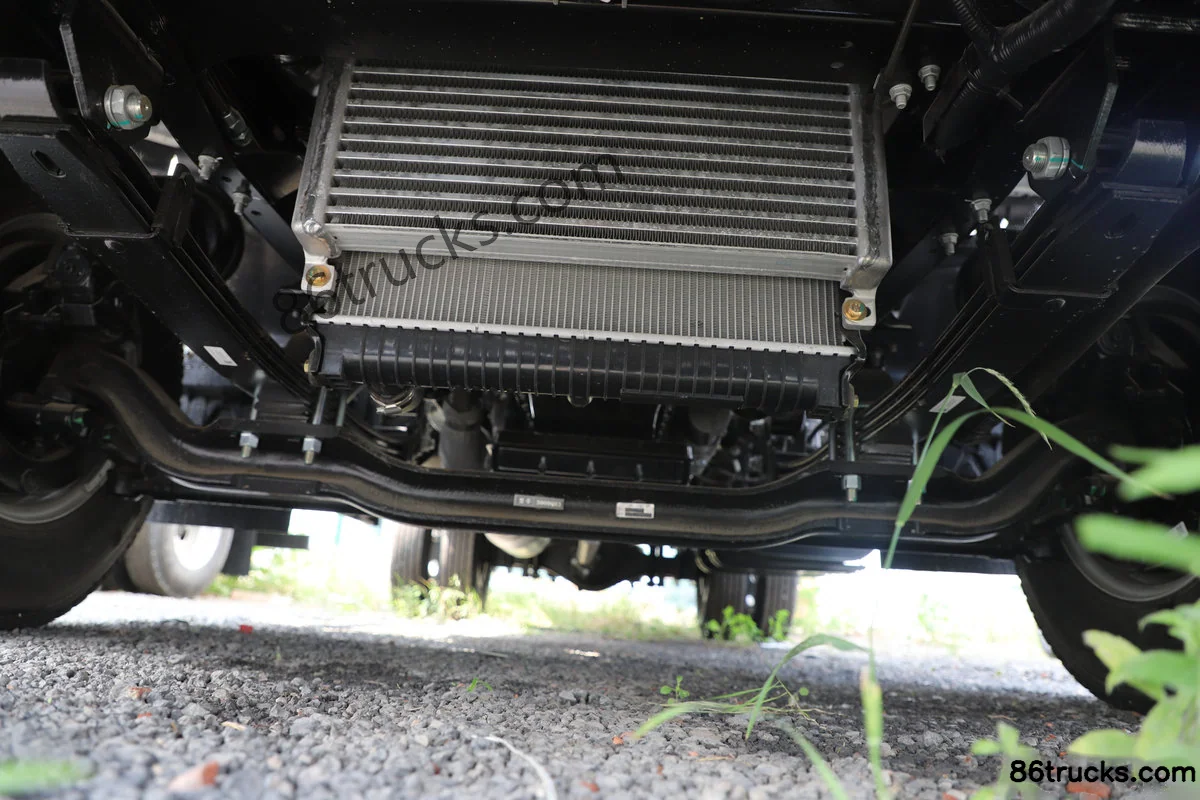

JAC Junling V7 141 hp 4X2(6 wheels) 6.2 m single-row van cargo truck Chassis (1) | 86Trucks JAC Junling V7 141 hp 4X2(6 wheels) 6.2 m single-row van cargo truck Chassis (2) | 86Trucks JAC Junling V7 141 hp 4X2(6 wheels) 6.2 m single-row van cargo truck Chassis (3) | 86Trucks

Body3

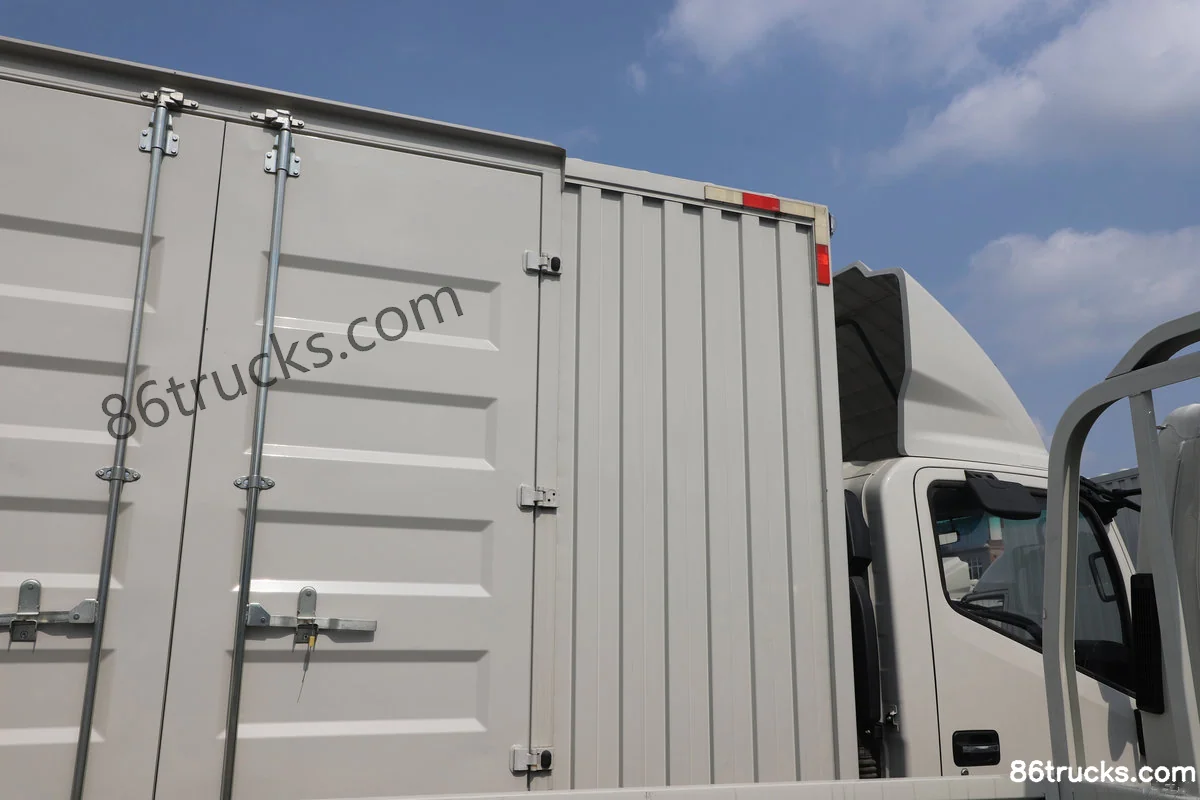

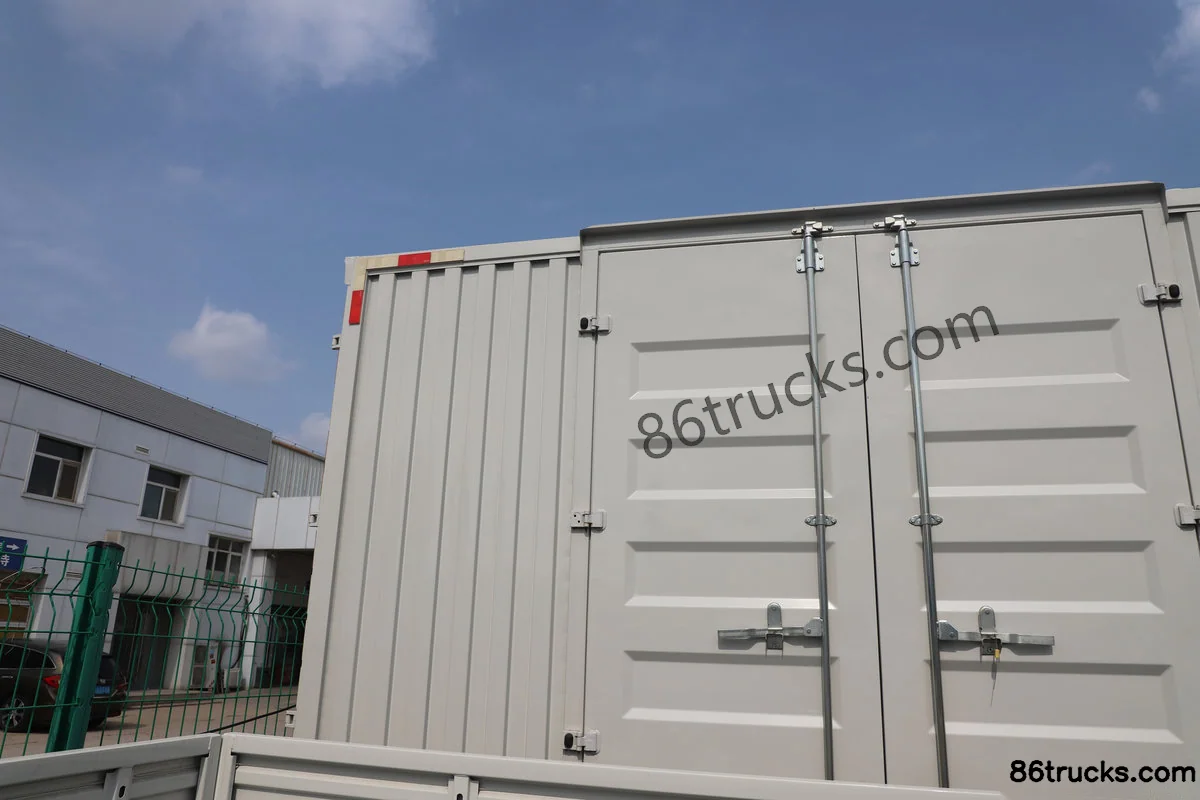

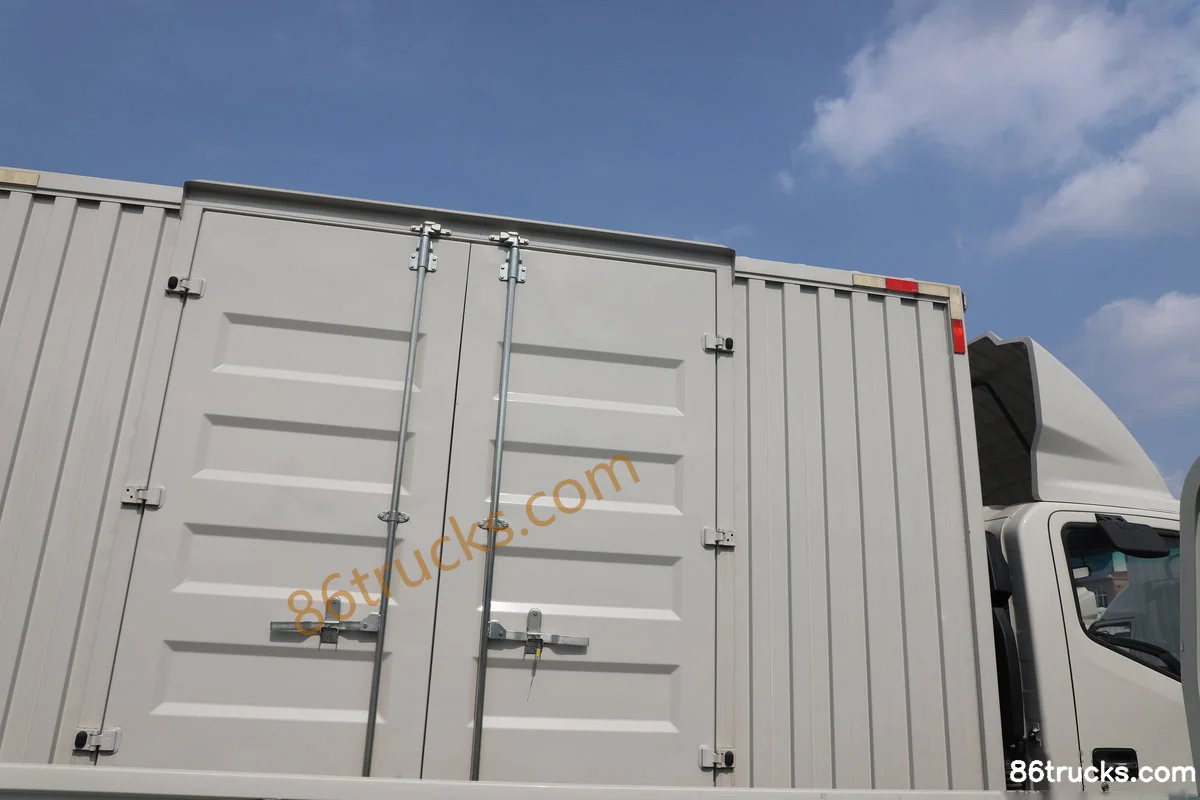

JAC Junling V7 141 hp 4X2(6 wheels) 6.2 m single-row van cargo truck Body (1) | 86Trucks JAC Junling V7 141 hp 4X2(6 wheels) 6.2 m single-row van cargo truck Body (2) | 86Trucks JAC Junling V7 141 hp 4X2(6 wheels) 6.2 m single-row van cargo truck Body (3) | 86Trucks

12 photos

FAQ

What emission standard does JAC Junling V7 141 hp 4X2(6 wheels) 6.2 m single-row van cargo truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Junling V7 141 hp 4X2(6 wheels) 6.2 m single-row van cargo truck?

Key specs of JAC Junling V7 141 hp 4X2(6 wheels) 6.2 m single-row van cargo truck: Drive: 4x2; Horsepower: 141 hp; Emission: China IV; Fuel: Diesel; Engine: Fukang 3.8; Transmission: Lu'an. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Junling V7 141 hp 4X2(6 wheels) 6.2 m single-row van cargo truck suited for?

JAC Junling V7 141 hp 4X2(6 wheels) 6.2 m single-row van cargo truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Junling V7 141 hp 4X2(6 wheels) 6.2 m single-row van cargo truck differ from other variants in the same series?

JAC Junling V7 141 hp 4X2(6 wheels) 6.2 m single-row van cargo truck belongs to JAC V7 light truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Junling V7 141 hp 4X2(6 wheels) 6.2 m single-row van cargo truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Junling V7 141 hp 4X2(6 wheels) 6.2 m single-row van cargo truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
