Yuejin Chaoyue C500-33 Comfort Edition 140 hp 4X2(6 wheels) 4.1m single-row flatbed light truck

Export reference
MSRP N/A
Horsepower: 140
Emission: China IV
Fuel: Diesel
Engine: SDEC4.3L
Transmission: SAIC Motor
Curb Weight:: 2.56ton
seating capacity: 3Personnel
Rated payload: 1.735ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The Yuejin Chaoyue C500-33 Comfort Edition 140 hp 4X2(6 wheels) 4.1m single-row flatbed light truck is a Light Truck featuring 4.06m cargo length, stake body cargo body, 3Personnel volume and 1.735t payload. Its segment focus covers Building materials and agricultural products, matching those duty cycles. On the powertrain side, it comes with a SDEC4.3L engine, 140 hp, 4X2 (6 wheels) drive and China IV emissions.

China IV 140 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): NJ1041ZFDCWZ
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 3308mm
Box length class: 4.1m
engine: SDECSC4H140Q4
transmission: SC50M6
Rear Axle Ratio: 4.44
Cab length: 5.995m
Cab width: 2.27m
Cab height: 2.438m
Front track width: 1767mm
rear track: 1586mm
Curb Weight: 2.56ton
Rated payload: 1.735ton
GVWR: 4.49ton
Max. speed: 105km/h
Origin: Nanjing, Jiangsu
tonnage class: Light Truck
Approach angle: 18°
departure angle: 15°
market segment: Building materials, agricultural products
Front/rear suspension: 1.165/1.522m
Version: Comfort Edition
Energy Type: Diesel
Engine parameters
Engine Brand: SDEC
Engine Model: SDECSC4H140Q4
Engine info: SDEC4.3L
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.295L
Emission standard: China IV
Max output power: 103kW
Max hp: 140Horsepower
Max torque: 550N·m
Max torque speed: 1200-1600rpm
Rated speed: 2300rpm
Engine Type: 4-cylinder inline, electronic common rail, 4-valve, dry cylinder liner, 4-stroke, water-cooled, rear gear train
Transmission Parameters
Transmission Model: SC50M6
Transmission Brand: SAIC Motor
shift method: Manual
Forward gears: 6Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 4.06m
Cargo box width: 2.11m
Cargo box height: 0.45m
*Cargo box interior width: 2.11
Cab parameters
seating capacity: 3Personnel
Seat rows: Single Row
fuel tank
Fuel tank capacity: 100L
Chassis Specs
Front axle allowable load: 1820kg
rear axle allowable load: 2670kg
Axle ratio: 4.44
Leaf spring count: 7/8+8
Suspension (front/rear): Leaf spring
Tire
Tire Size: 7.50R16
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual

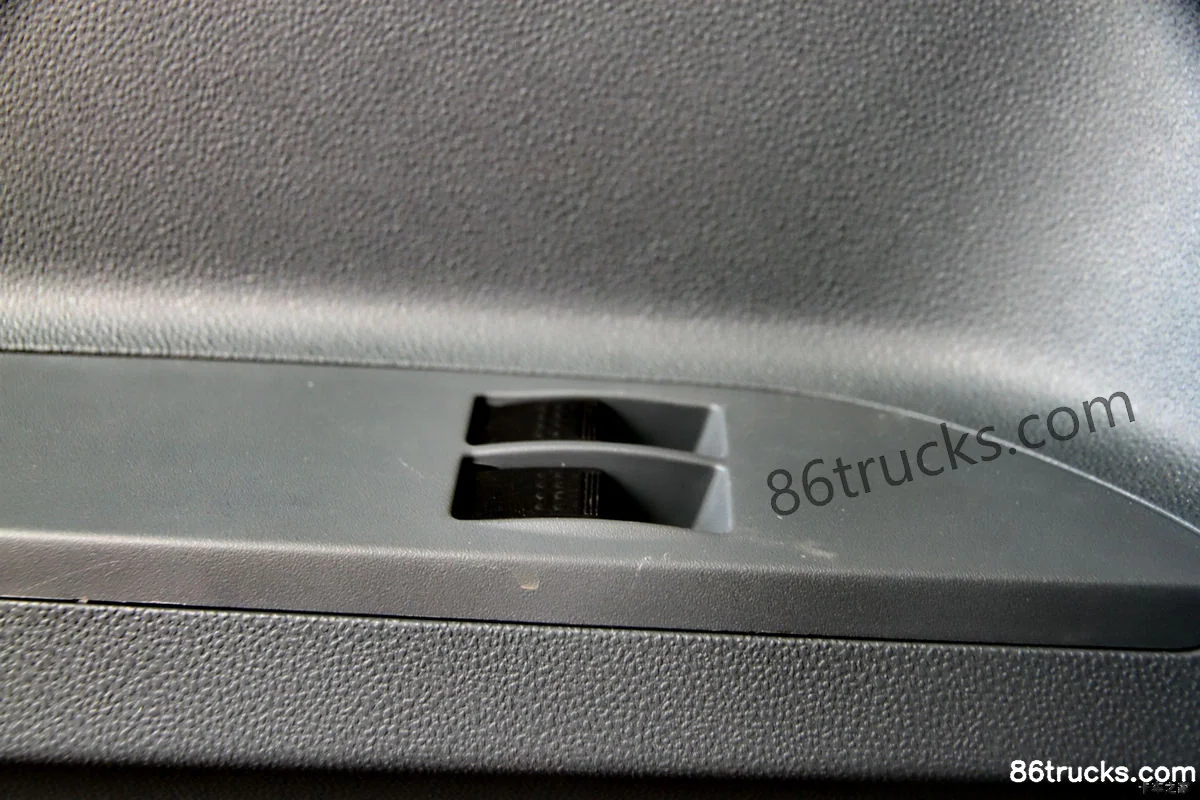

Power Windows:
Power interface:
Remote key:
Electronic Central Lock:
Multimedia features
Radio:
Service brake
Exhaust brake:

Photos

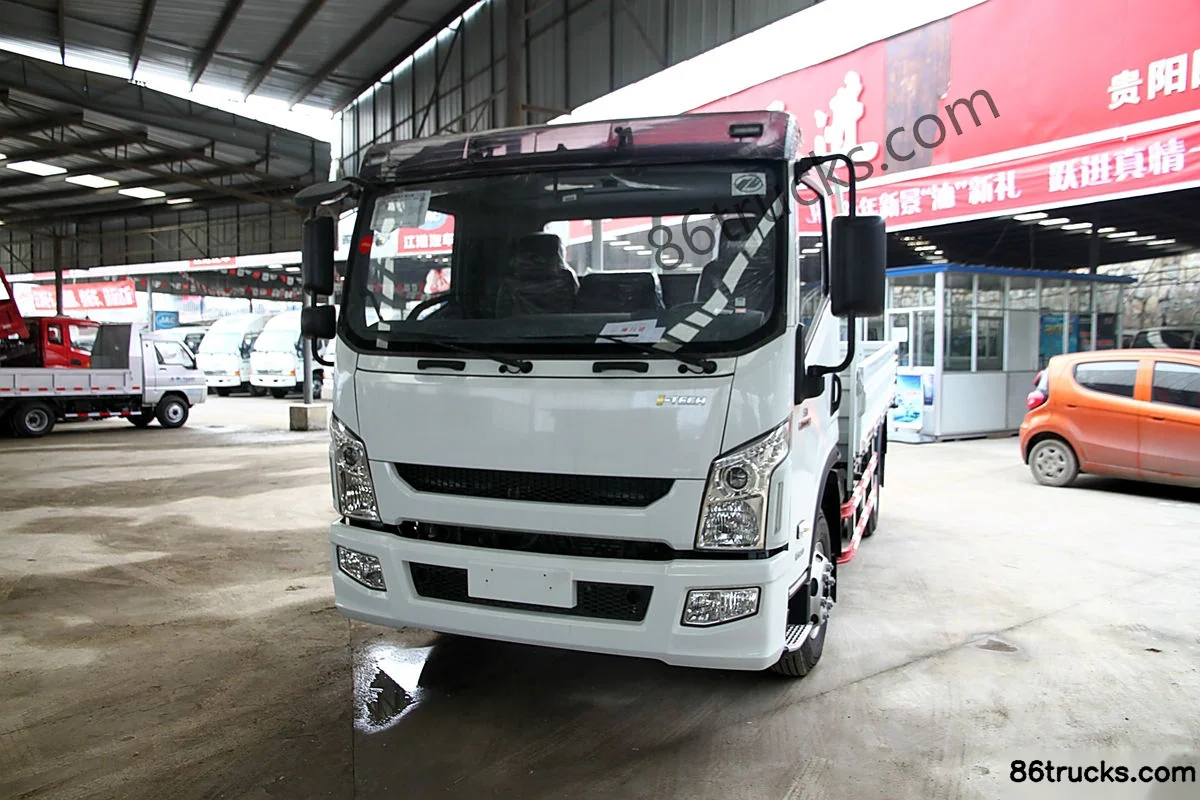

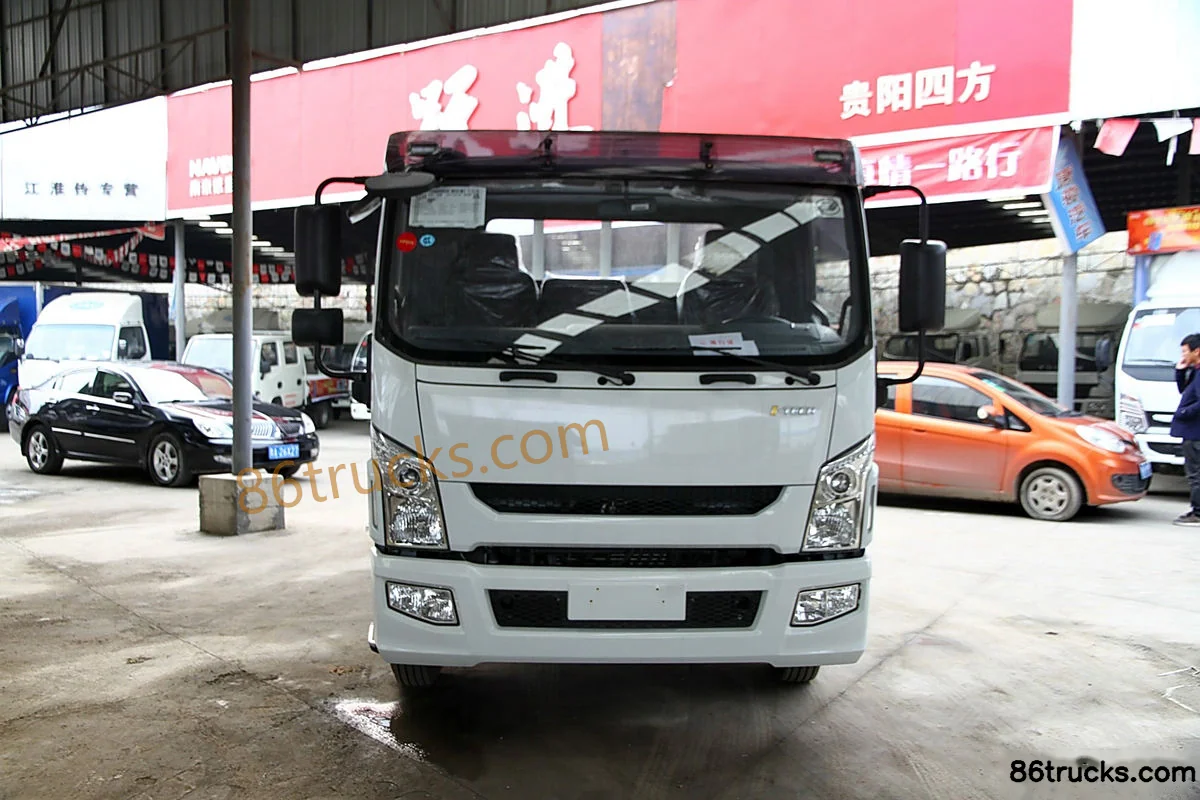

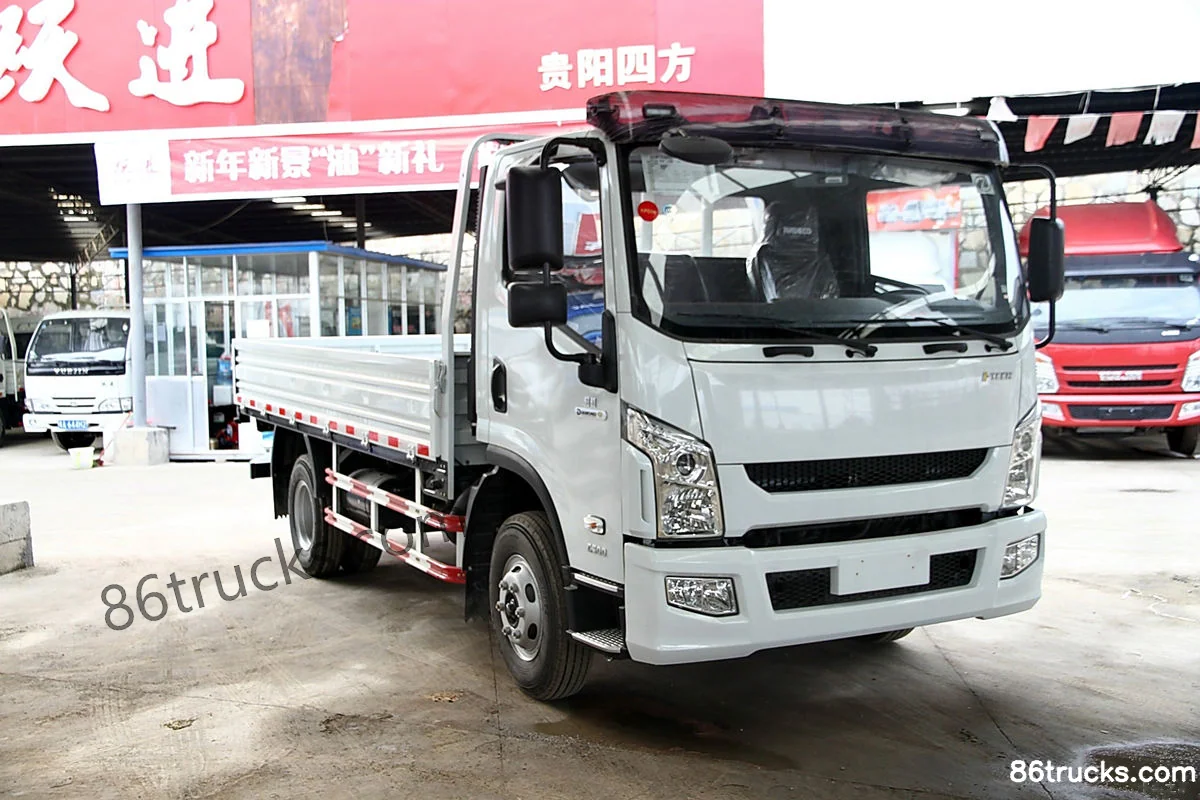

Exterior3

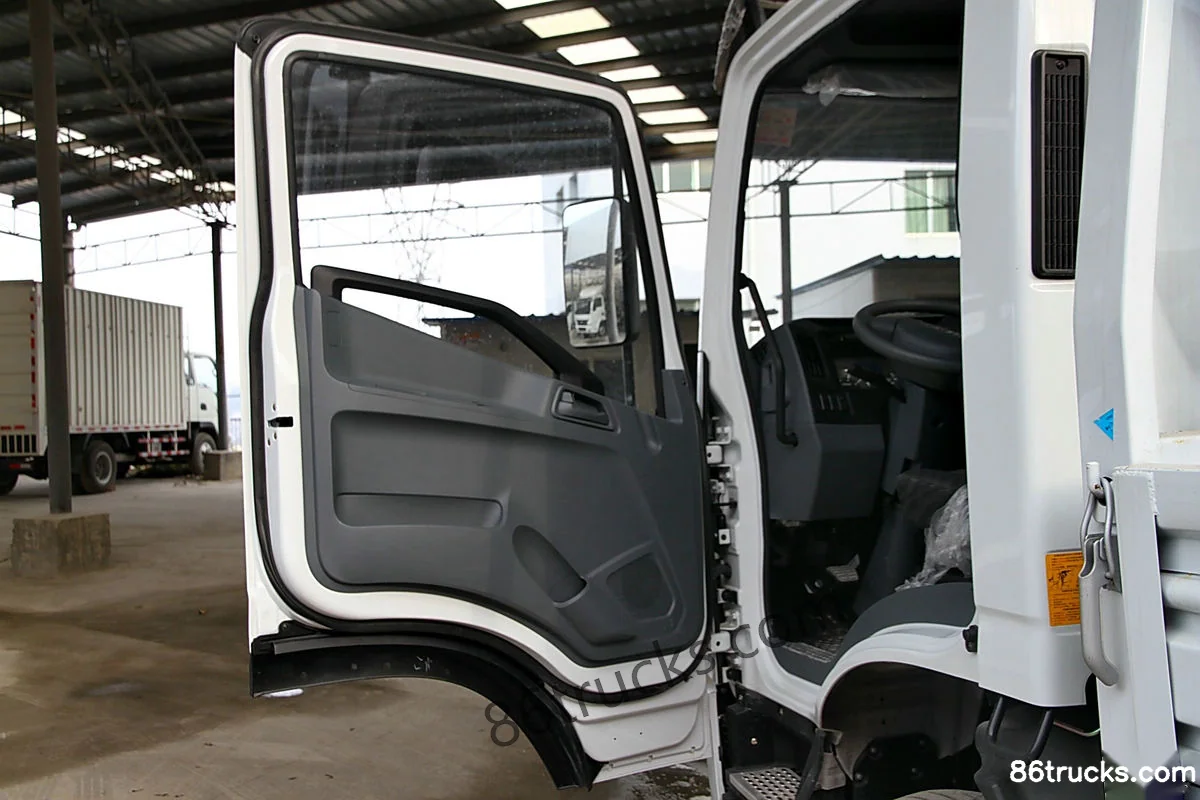

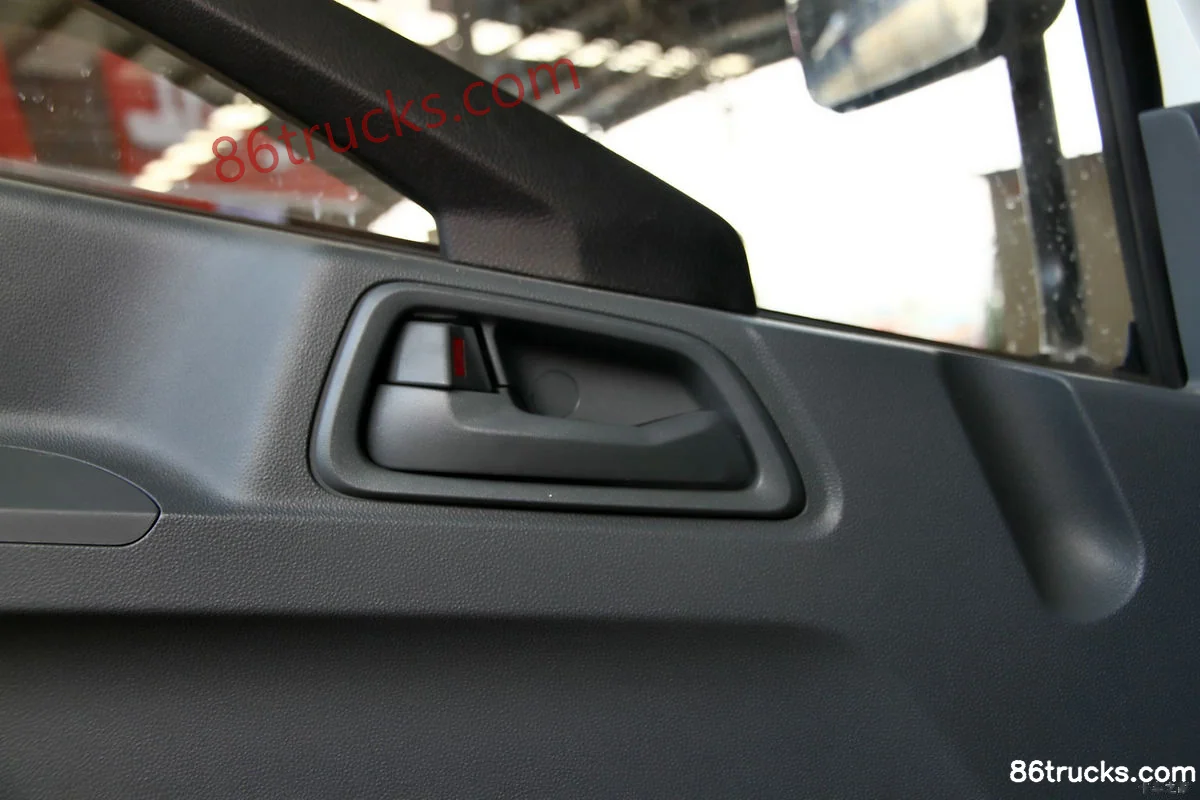

Cab3

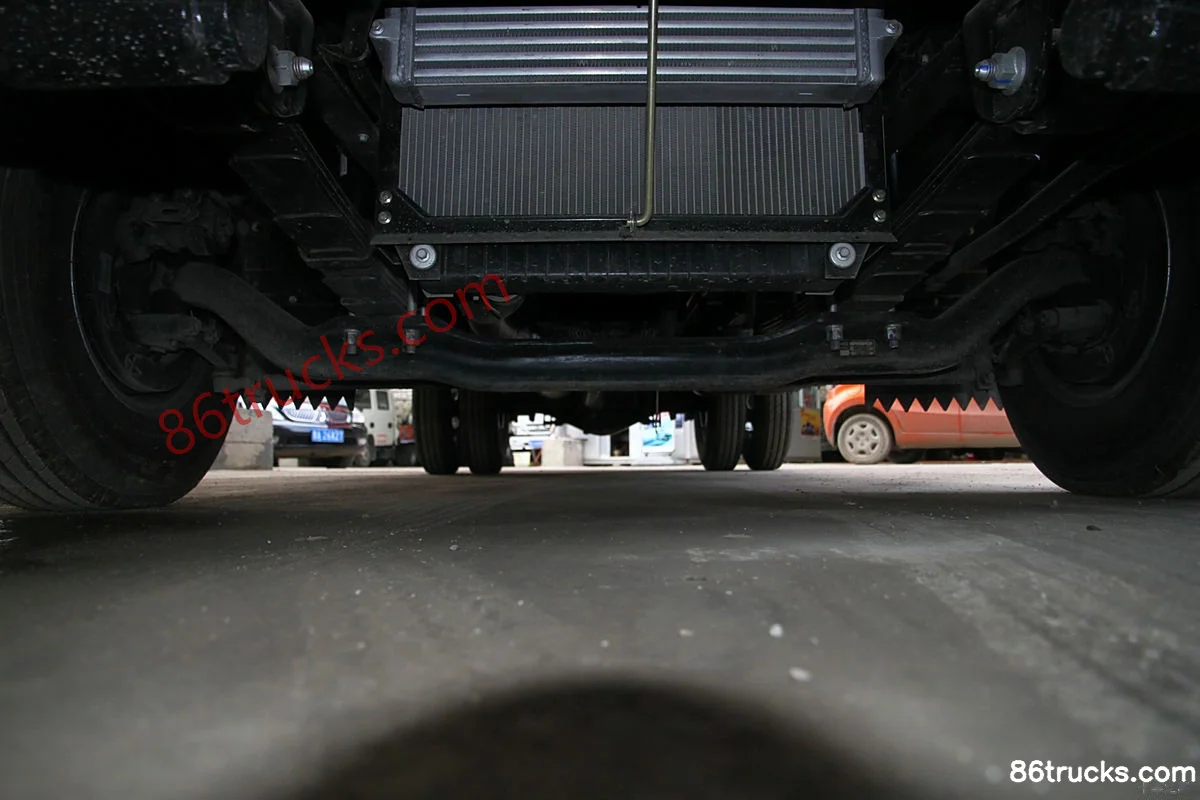

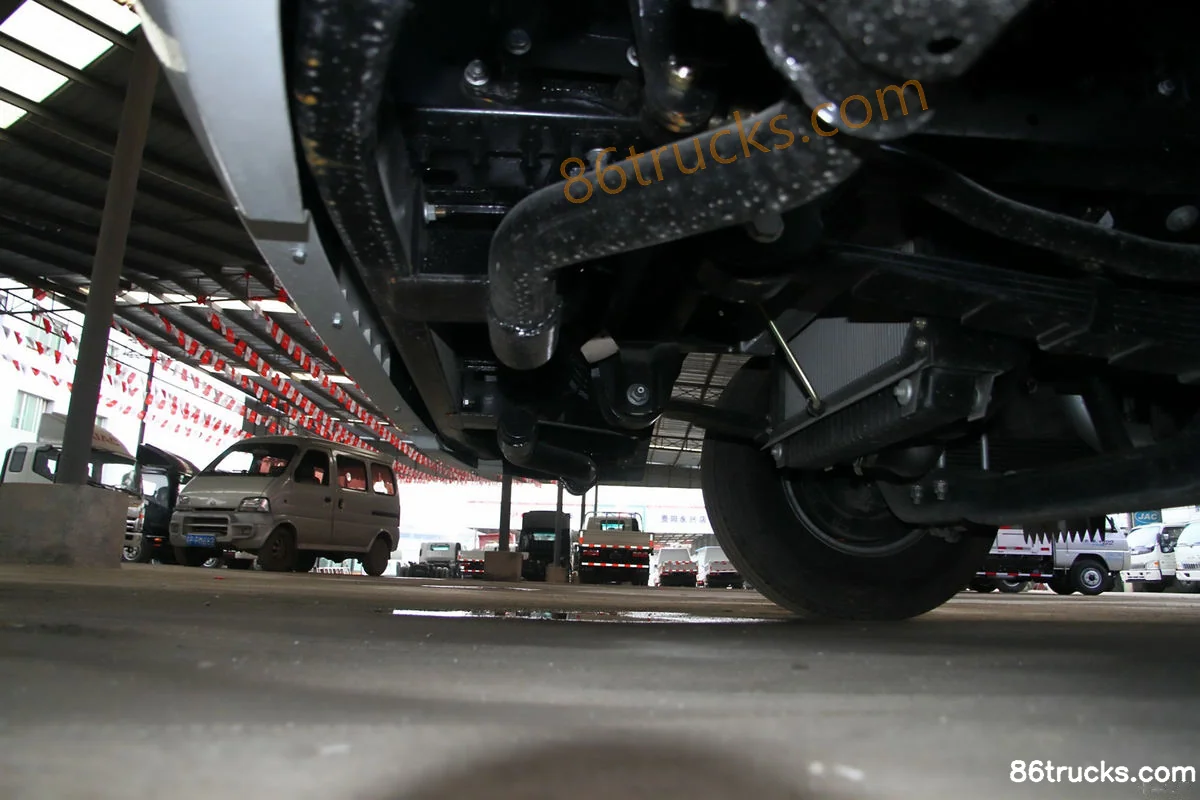

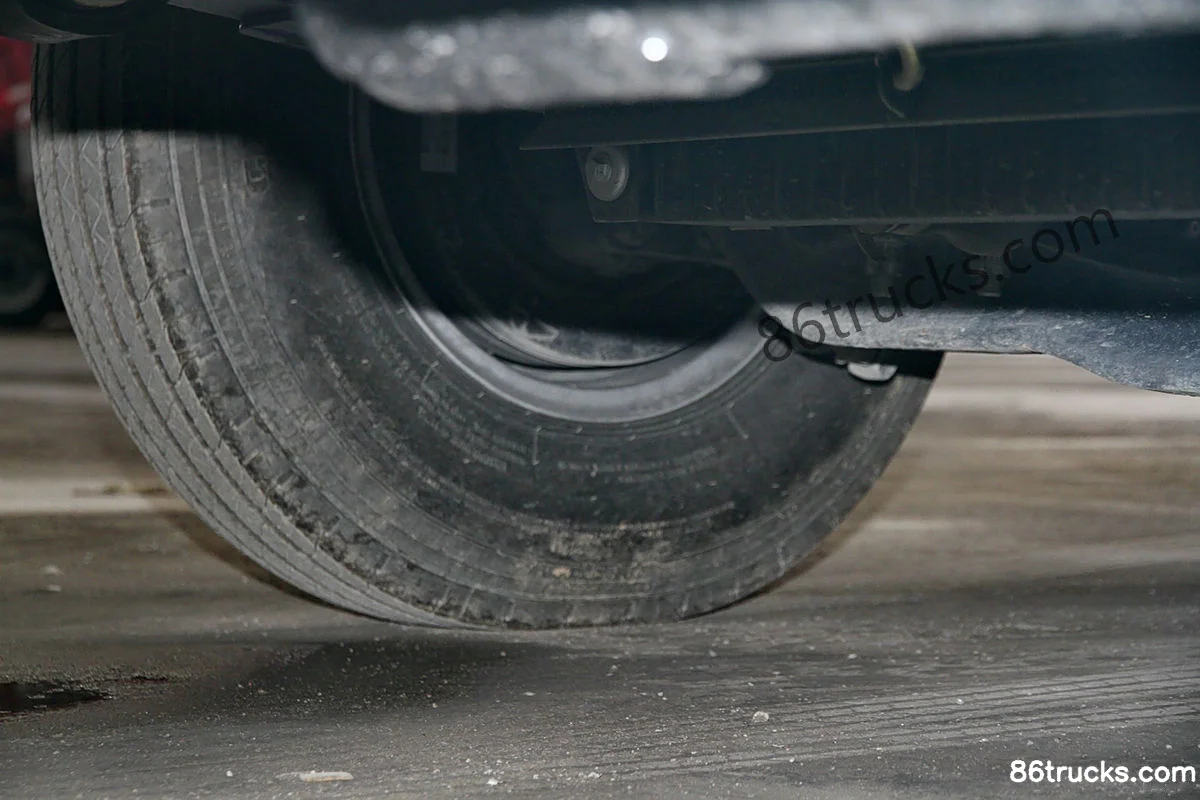

Chassis3

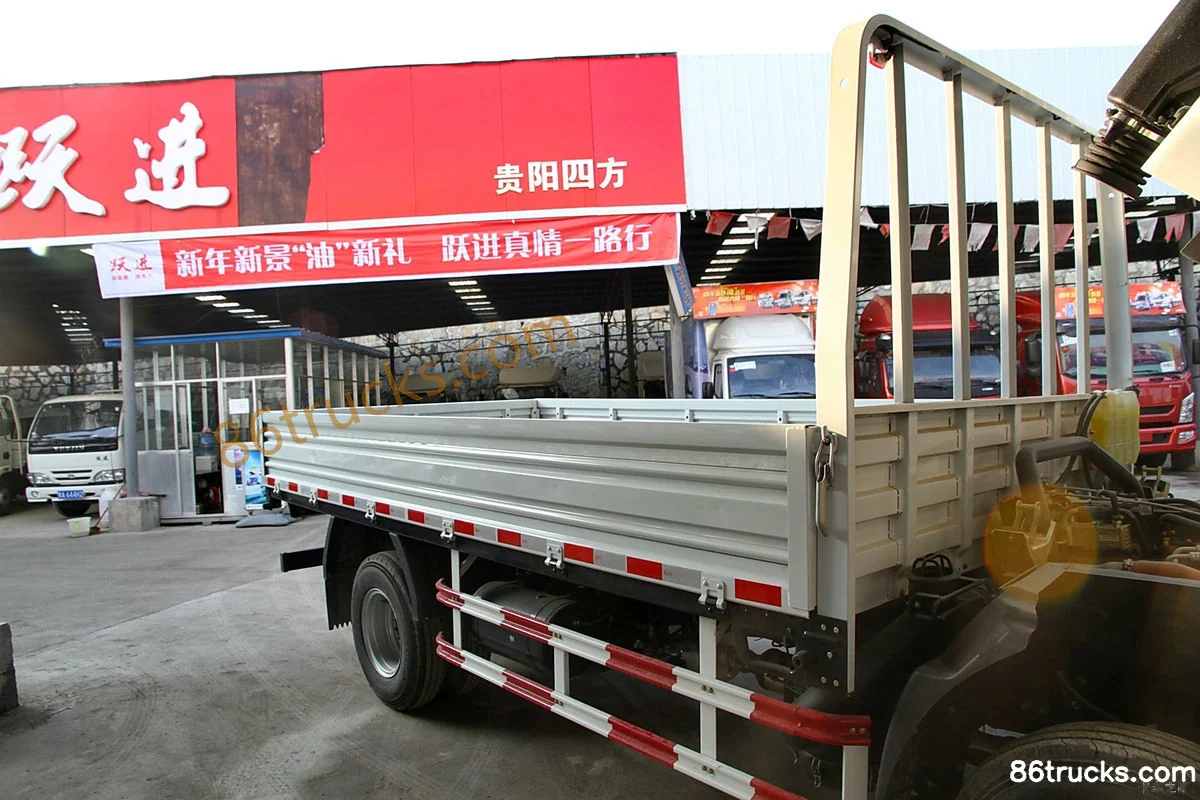

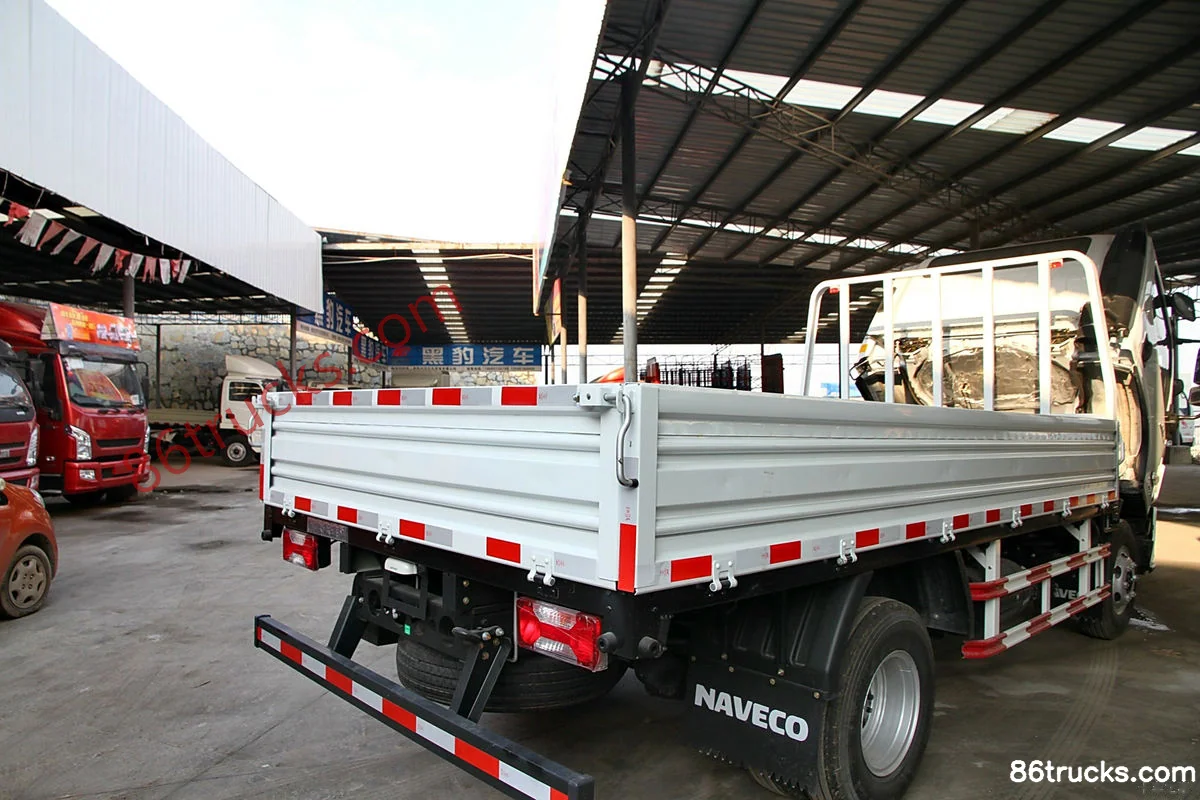

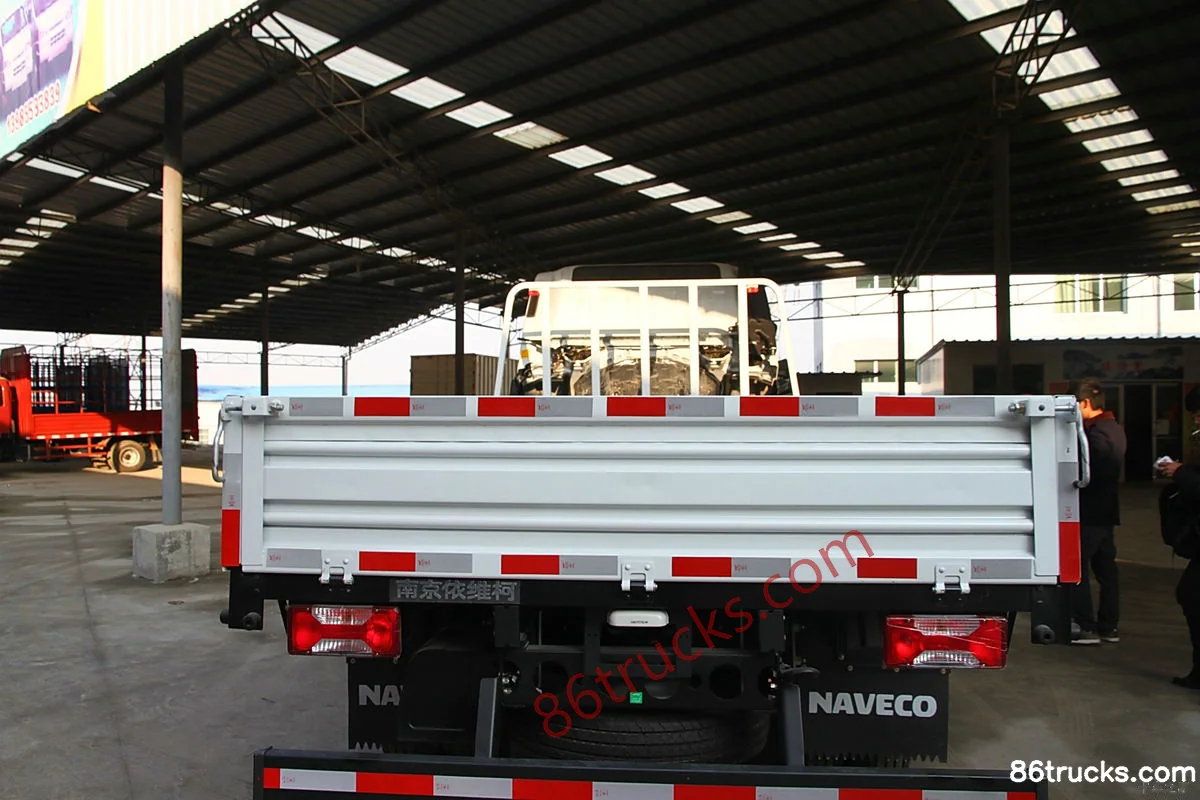

Body3

12 photos

FAQ

What emission standard does Yuejin Chaoyue C500-33 Comfort Edition 140 hp 4X2(6 wheels) 4.1m single-row flatbed light truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Yuejin Chaoyue C500-33 Comfort Edition 140 hp 4X2(6 wheels) 4.1m single-row flatbed light truck?

Key specs of Yuejin Chaoyue C500-33 Comfort Edition 140 hp 4X2(6 wheels) 4.1m single-row flatbed light truck: Drive: 4x2; Horsepower: 140 hp; Emission: China IV; Fuel: Diesel; Engine: SDEC4.3L; Transmission: SAIC Motor. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Yuejin Chaoyue C500-33 Comfort Edition 140 hp 4X2(6 wheels) 4.1m single-row flatbed light truck suited for?

Yuejin Chaoyue C500-33 Comfort Edition 140 hp 4X2(6 wheels) 4.1m single-row flatbed light truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Yuejin Chaoyue C500-33 Comfort Edition 140 hp 4X2(6 wheels) 4.1m single-row flatbed light truck differ from other variants in the same series?

Yuejin Chaoyue C500-33 Comfort Edition 140 hp 4X2(6 wheels) 4.1m single-row flatbed light truck belongs to Yuejin Chaoyue C Series Light-duty Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Yuejin Chaoyue C500-33 Comfort Edition 140 hp 4X2(6 wheels) 4.1m single-row flatbed light truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Yuejin Chaoyue C500-33 Comfort Edition 140 hp 4X2(6 wheels) 4.1m single-row flatbed light truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
