Foton Ruivo Medium Truck 310hp 8X4(12 wheels) 9.5m van cargo truck

Export reference
MSRP N/A
Horsepower: 310
Emission: China IV
Fuel: Diesel
Engine: WeichaiWP10
Transmission: Fast Gear
Curb Weight:: 13.2ton
seating capacity: 3Personnel
Rated payload: 17.605ton
Drive 8X4 (12 wheels)
Cargo box type: Van body

Overview

The Foton Ruivo Medium Truck 310hp 8X4(12 wheels) 9.5m van cargo truck is a Heavy-duty cargo trucks featuring 9.5m cargo length, Van body cargo body, 3Personnel volume and 17.605t payload. Its segment focus covers Agricultural product transport, cold chain transport and logistics distribution, matching those duty cycles. On the powertrain side, it comes with a WeichaiWP10 engine, 310 hp, 8X4 (12 wheels) drive and China IV emissions.

China IV 310 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ5315XXY-2
Type: enclosed cargo truck
Drive type: 8X4
Wheelbase: 1800+4700+1350mm
Box length class: 9.5m
engine: WeichaiWP10.310E42
transmission: Fast Gear 9-speed
Rear Axle Ratio: 4.444
Cab length: 11.99m
Cab width: 2.495m
Cab height: 3.55m
Front track width: 1921/1921mm
rear track: 1860/1860mm
Curb Weight: 13.2ton
Rated payload: 17.605ton
GVWR: 31ton
Max. speed: 90km/h
Origin: Shandong Zhucheng
tonnage class: Heavy-duty cargo trucks
Approach angle: 26°
departure angle: 13°
market segment: Agricultural product transport, cold chain transport, logistics distribution, LTL transport, daily bulk cargo, daily industrial product transport
Front/rear suspension: 1.39/2.78m
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP10.310E42
Engine info: WeichaiWP10
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 9.726L
Emission standard: China IV
Max output power: 228kW
Max hp: 310Horsepower
Max torque: 1420N·m
Max torque speed: 1200-1500rpm
Rated speed: 2200rpm
Engine Type: Electronic high-pressure common rail + SCR
Transmission Parameters
Transmission Model: Fast Gear 9-speed
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 9Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 9.5m
Cargo box width: 2.42m
Cargo box height: 2.5m
*Cargo box interior width: 2.4200000762939
Cab parameters
Cab: Full floating high roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
fuel tank
Fuel tank capacity: 400L
Chassis Specs
Front axle description: 457S
Front axle allowable load: 6600/6600kg
Frame Dimensions: 302×75×(8+5)-865mm
rear axle description: 13T
rear axle allowable load: 17800 (tandem axle)kg
Axle ratio: 4.444
Leaf spring count: 10/10/11
Tire
Tire Size: 11.00R20 (with spare tire)
Number of tires: 12pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Service brake
Parking brake: Spring brake

Photos

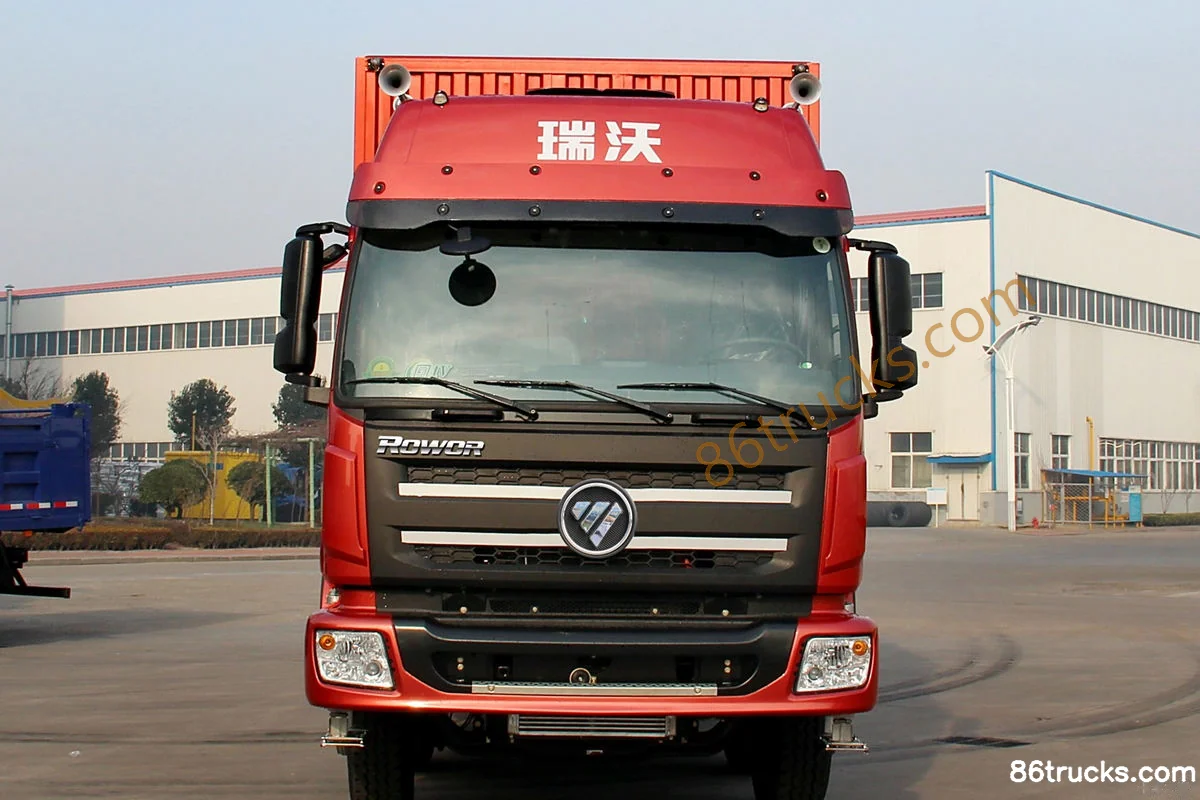

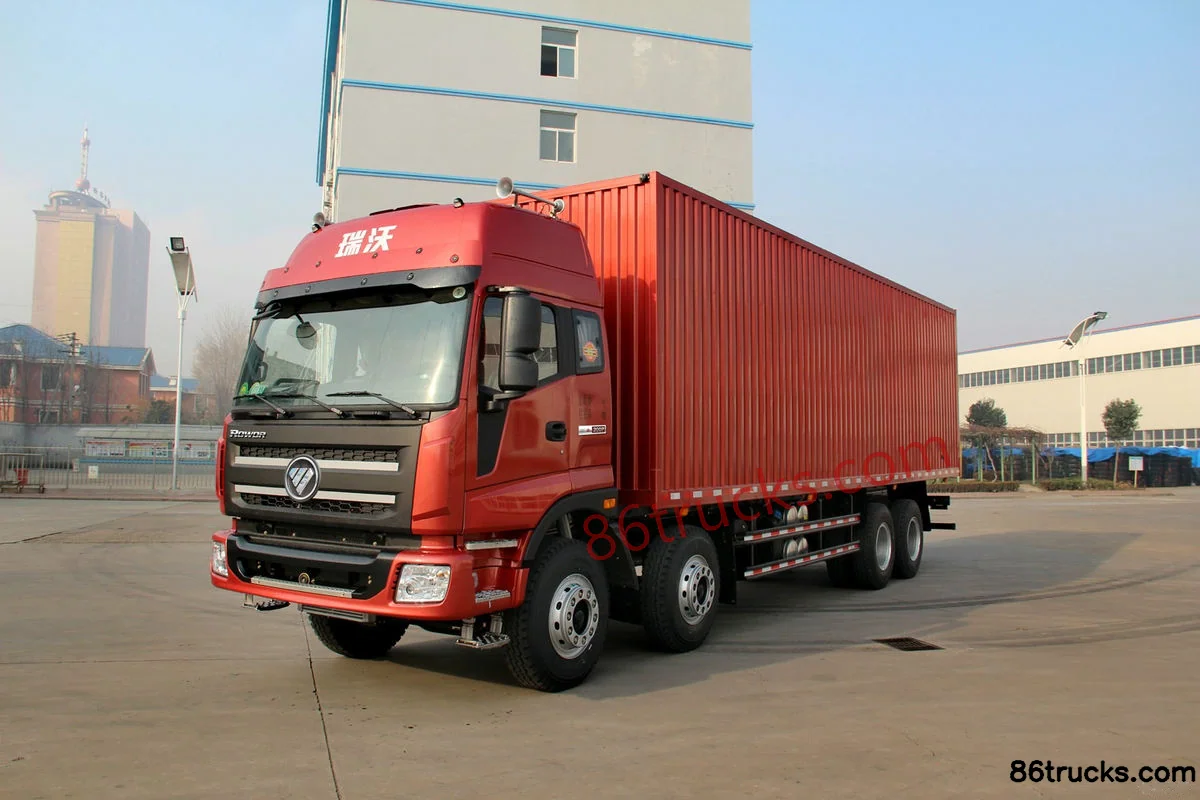

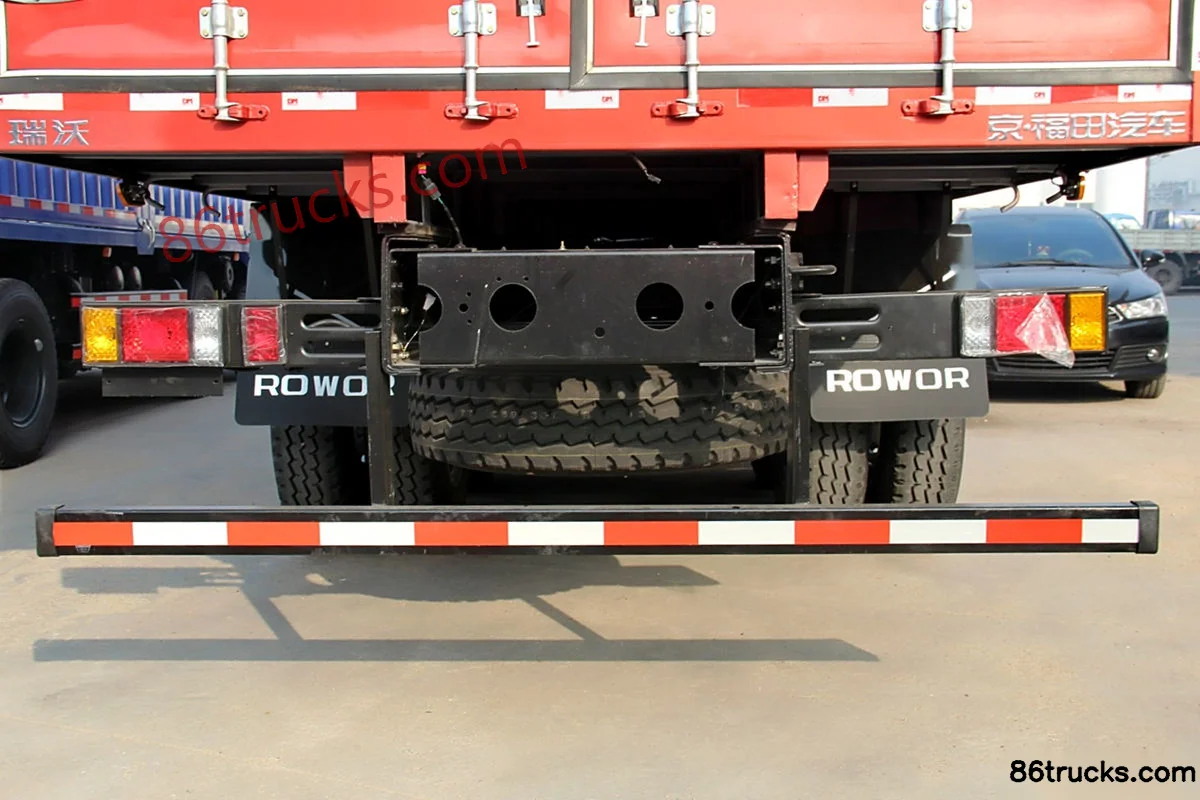

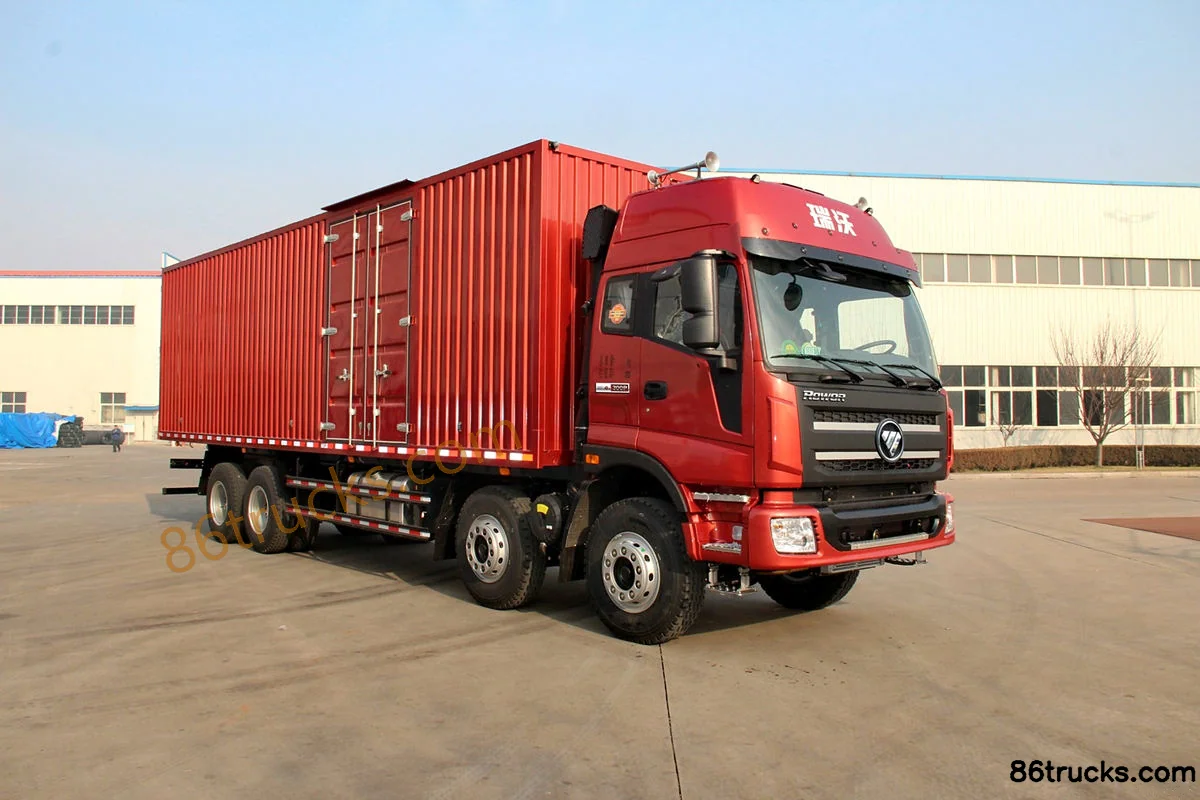

Exterior3

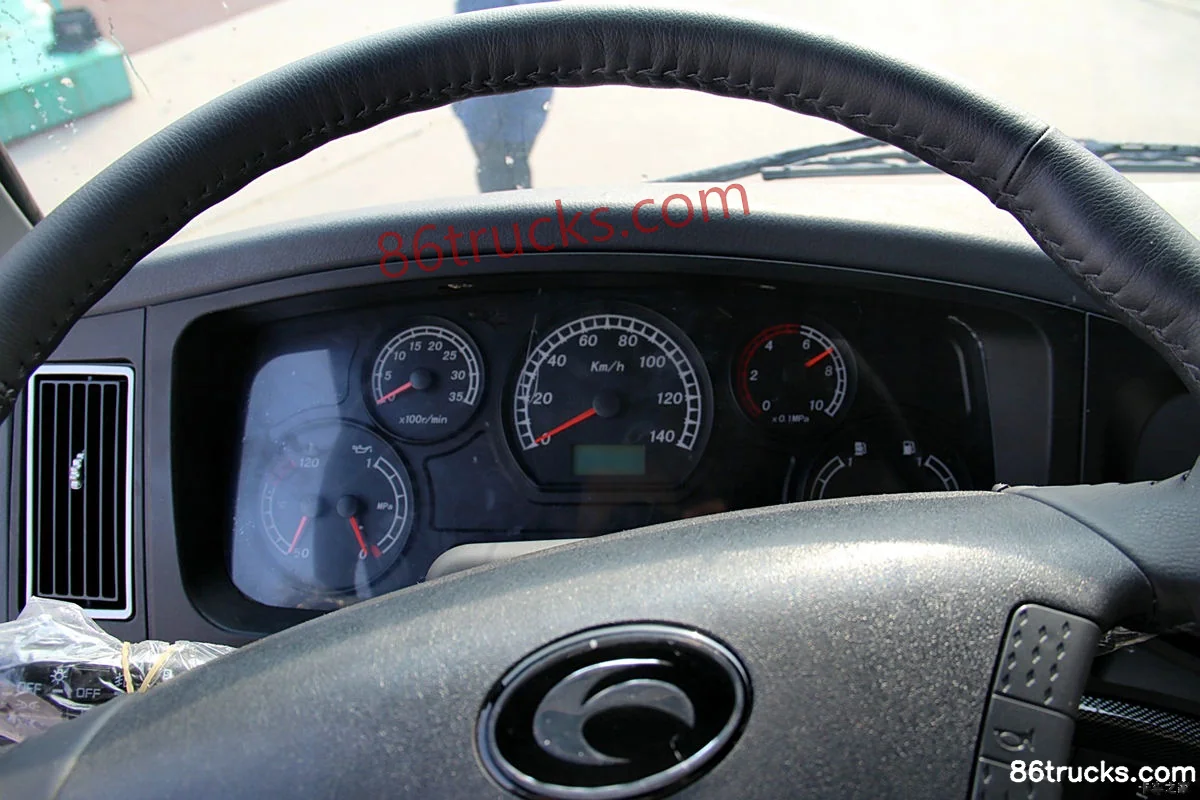

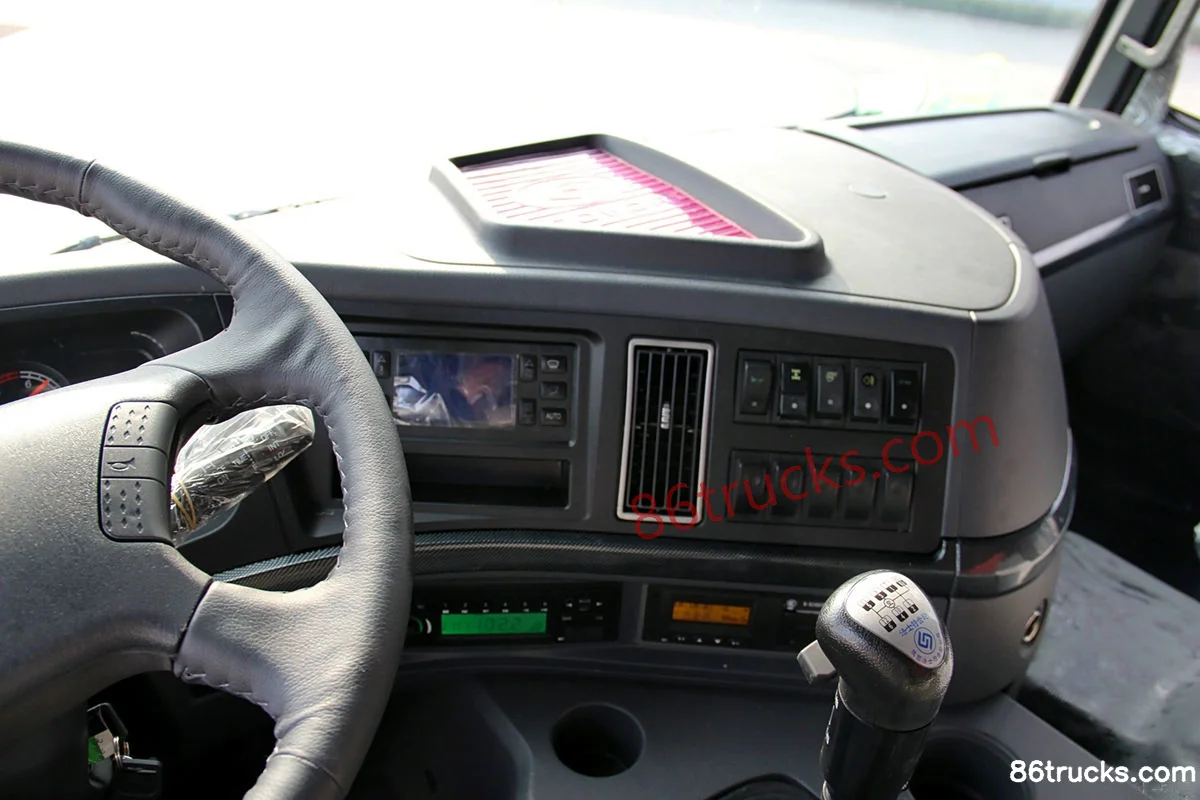

Cab2

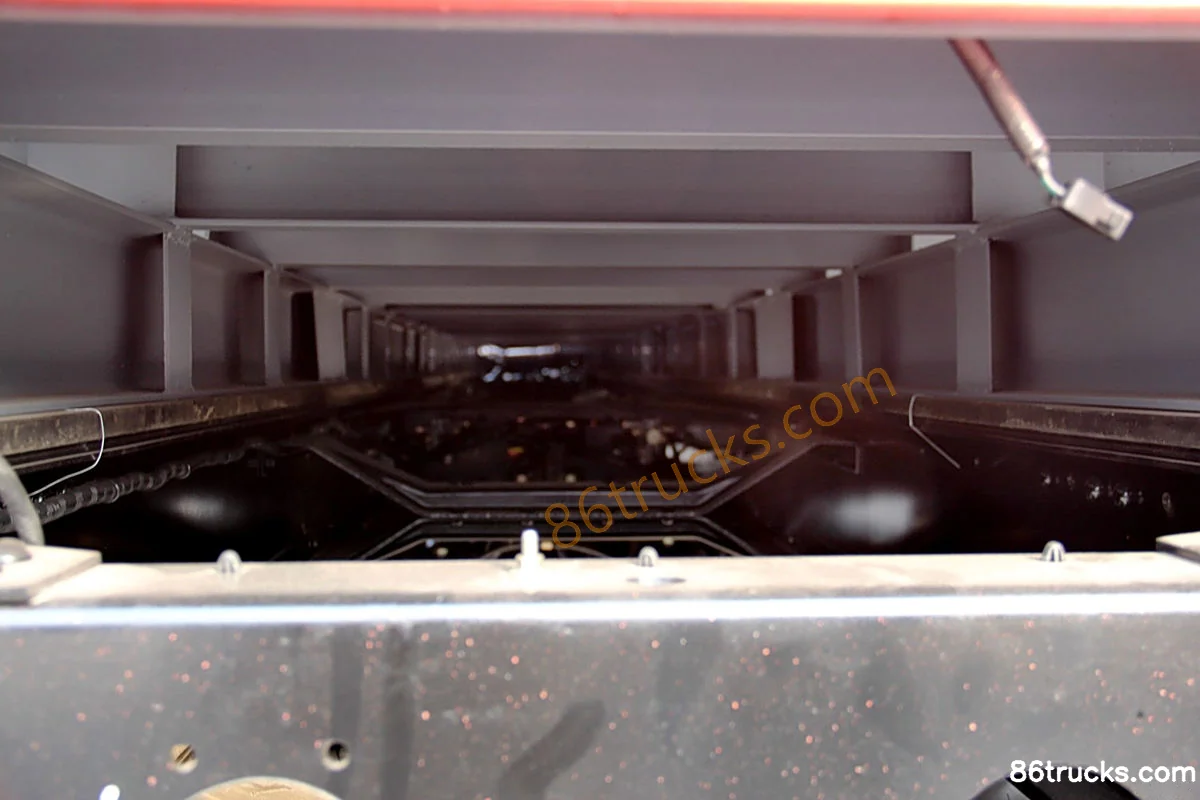

Chassis2

7 photos

FAQ

What emission standard does Foton Ruivo Medium Truck 310hp 8X4(12 wheels) 9.5m van cargo truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Ruivo Medium Truck 310hp 8X4(12 wheels) 9.5m van cargo truck?

Key specs of Foton Ruivo Medium Truck 310hp 8X4(12 wheels) 9.5m van cargo truck: Drive: 8x4; Horsepower: 310 hp; Emission: China IV; Fuel: Diesel; Engine: WeichaiWP10; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Ruivo Medium Truck 310hp 8X4(12 wheels) 9.5m van cargo truck suited for?

Foton Ruivo Medium Truck 310hp 8X4(12 wheels) 9.5m van cargo truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Ruivo Medium Truck 310hp 8X4(12 wheels) 9.5m van cargo truck differ from other variants in the same series?

Foton Ruivo Medium Truck 310hp 8X4(12 wheels) 9.5m van cargo truck belongs to FotonQ5 (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Ruivo Medium Truck 310hp 8X4(12 wheels) 9.5m van cargo truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Ruivo Medium Truck 310hp 8X4(12 wheels) 9.5m van cargo truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
