JMC Baodian Fashion Edition 2016 model 2WD 2.4L diesel

Export reference
MSRP N/A
Curb Weight:: 1.57ton
Wheelbase:: 3025mm
Front tire specification:: 215/75/R15
Rated payload:: 2.375ton
Displacement:: 2.4L
Model code (announced):: JX1020PSDC5
Drive 2WD
Horsepower 136
Emission China IV
Fuel Diesel

Overview

The JMC Baodian Fashion Edition 2016 model 2WD 2.4L diesel is a pickup truck featuring 2WD drive, 136 hp, 0.48t GVW and China IV emissions. On the powertrain side, it comes with Diesel fuel.

China IV 136 Diesel 2WD

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): JX1020PSDC5
Drive type: 2WD
Wheelbase: 3025mm
Front/rear track width: Front track: 1445; Rear track: 1425mm
Cab length: 5.005m
Cab width: 1.69m
Cab height: 1.645m
Approach/departure angle: 29/26°
Fuel tank capacity: 53L
Curb Weight: 1.57ton
Rated payload: 2.375ton
GVWR: 0.48ton
Front/rear suspension: 0.795/1.185m
Version: Fashion Edition
Energy Type: Diesel
Engine parameters
Engine Model: Mitsubishi 4G69
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.4L
Emission standard: China IV
Max output power: 100kW
Max hp: 136Horsepower
Max torque: 200N·m
Max torque speed: 2500-3000rpm
Rated speed: 5250rpm
Transmission Parameters
Number of gears: 5Gear
shift type: Manual
Transmission Model: 5-speed transmission
Chassis Specs
Front axle suspension type: Torsion Bar Spring Independent Suspension
rear axle suspension type: Leaf spring
Chassis Structure: Body-on-frame
Cargo box parameters
Cargo box type: stake body
Cargo box length: 1.48m
Cargo box width: 1.47m
Cargo box height: 0.415m
Wheel brake
Front brake type: Ventilated disc brakes
rear brake type: Drum Type
Front tire specification: 215/75/R15
Rear Wheel Specification: 215/75/R15
Cab parameters
Seat rows: Double cab

Photos

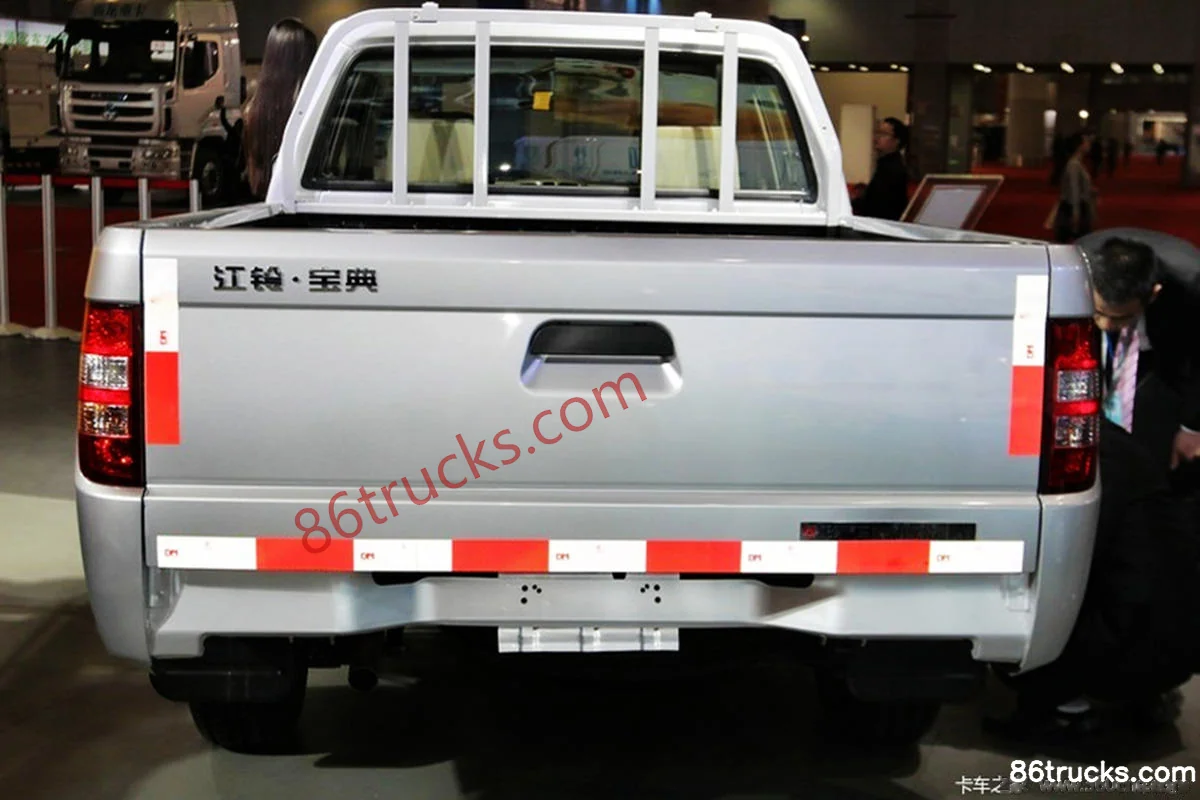

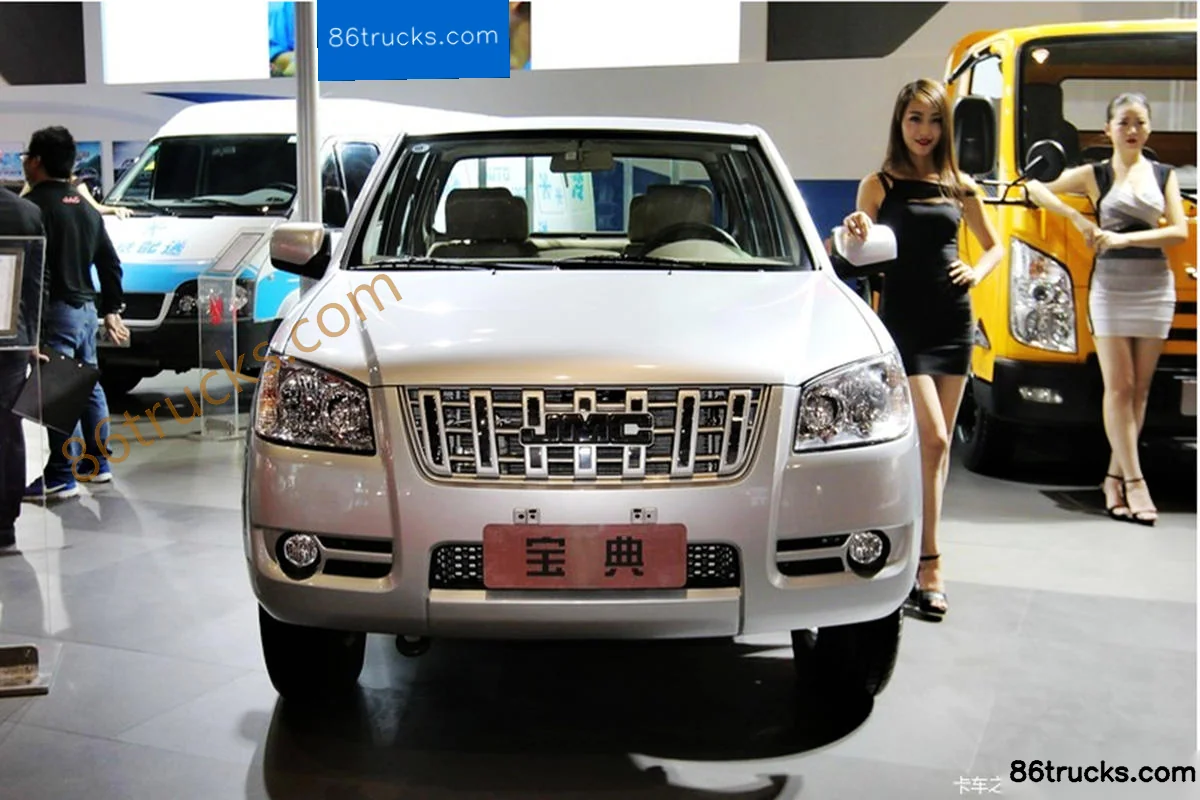

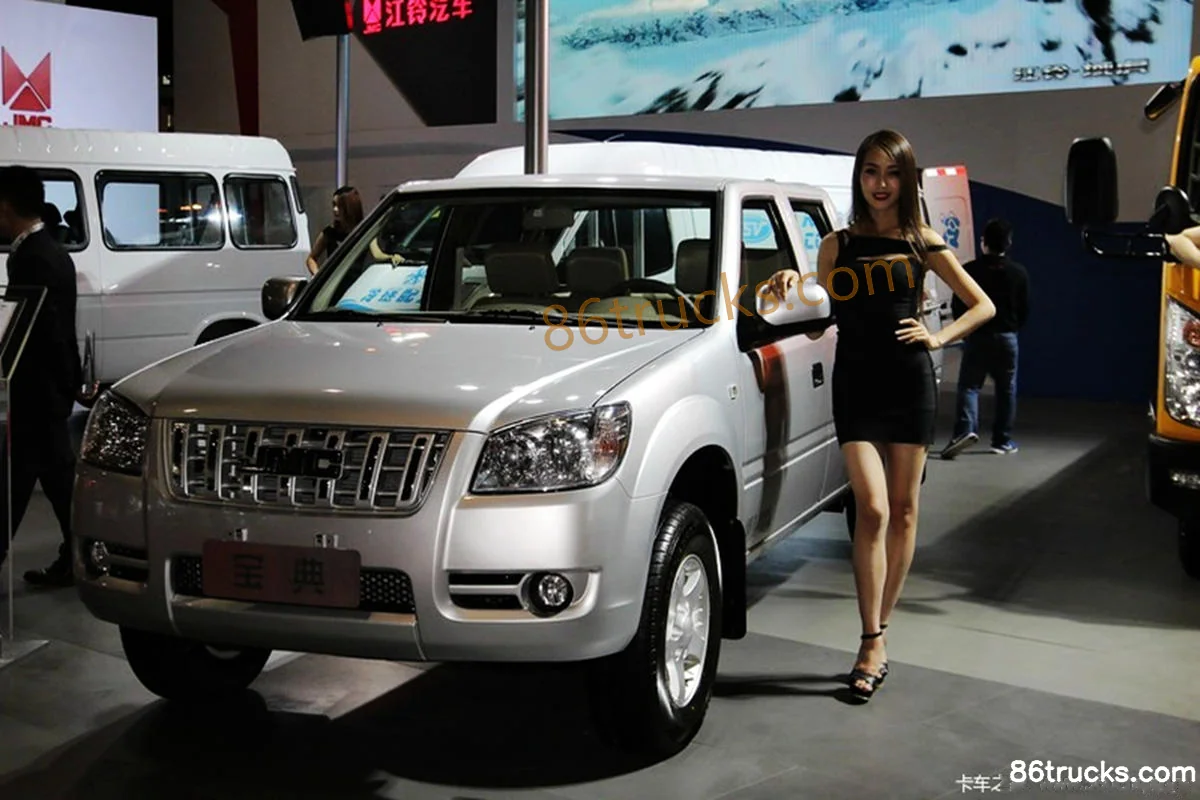

Exterior3

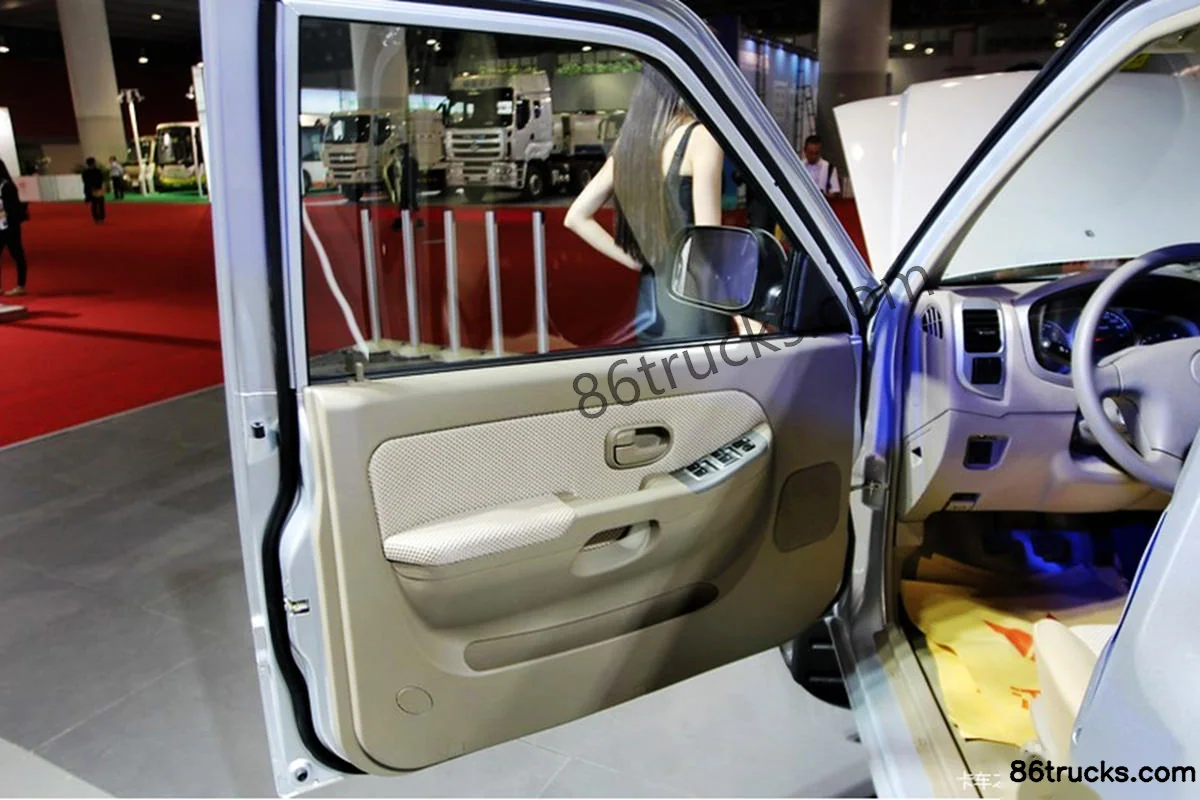

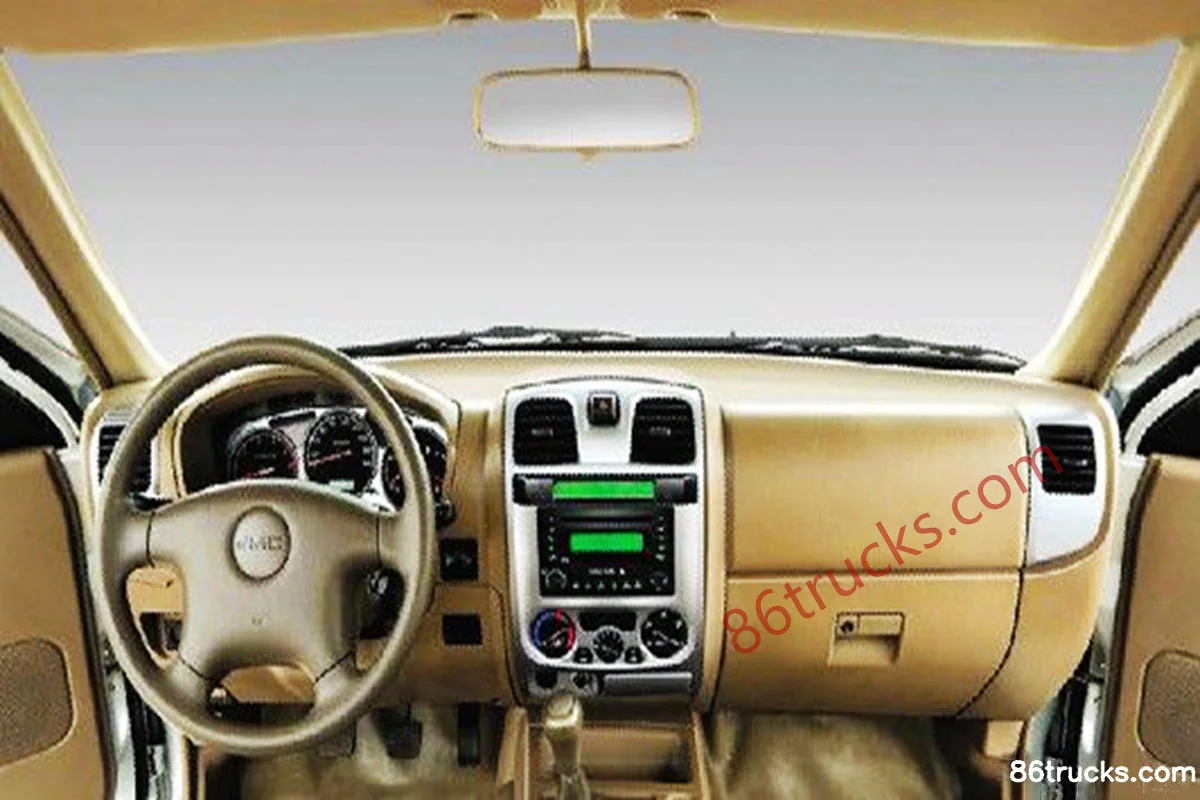

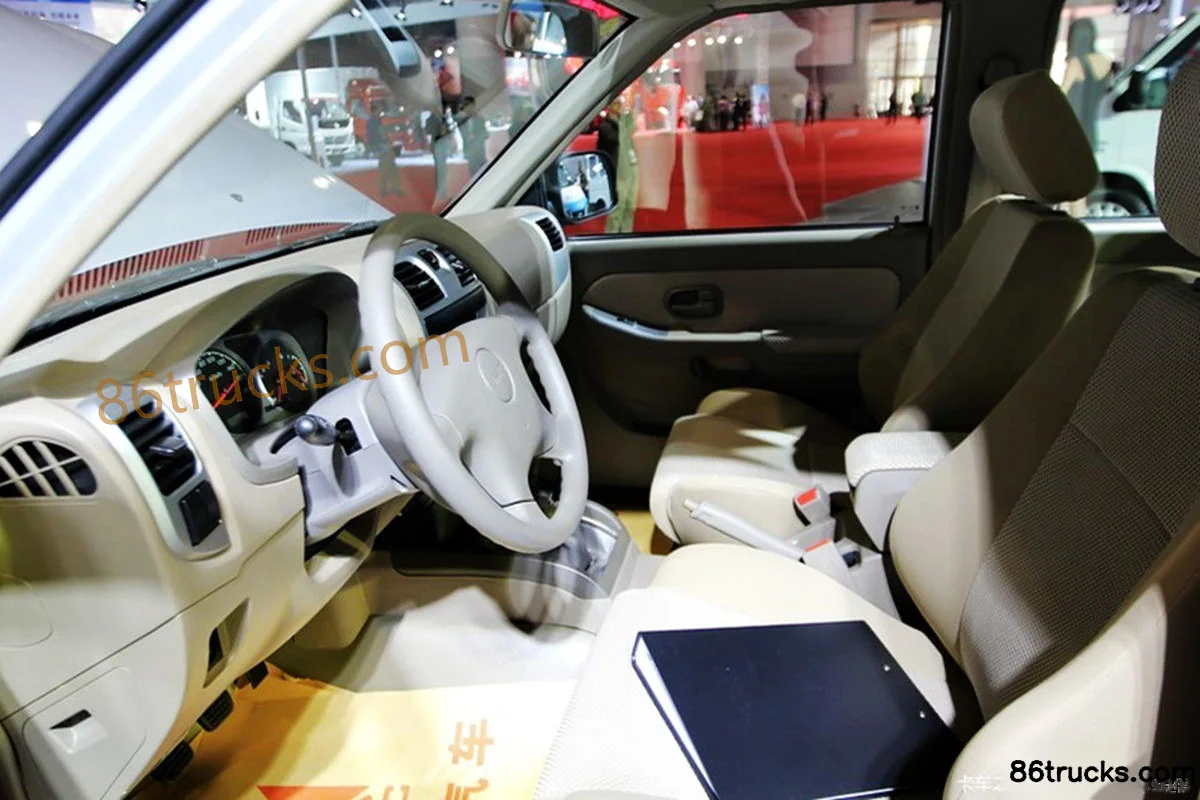

Cab3

6 photos

FAQ

What emission standard does JMC Baodian Fashion Edition 2016 model 2WD 2.4L diesel use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JMC Baodian Fashion Edition 2016 model 2WD 2.4L diesel?

Key specs of JMC Baodian Fashion Edition 2016 model 2WD 2.4L diesel: Drive: 2WD; Horsepower: 136 hp; Emission: China IV; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JMC Baodian Fashion Edition 2016 model 2WD 2.4L diesel suited for?

Match JMC Baodian Fashion Edition 2016 model 2WD 2.4L diesel to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does JMC Baodian Fashion Edition 2016 model 2WD 2.4L diesel differ from other variants in the same series?

JMC Baodian Fashion Edition 2016 model 2WD 2.4L diesel belongs to JMC Baodian (pickup truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JMC Baodian Fashion Edition 2016 model 2WD 2.4L diesel?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JMC Baodian Fashion Edition 2016 model 2WD 2.4L diesel?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
