Feidi W7 220hp 4X2(6 wheels) 5.2m semi-pen van truck (China VI)

Export reference
MSRP N/A
Horsepower: 220
Emission: China VI
Fuel: Diesel
Engine: Dachai 6-cylinder
Transmission: Fast Gear
Curb Weight:: 6.23ton
seating capacity: 3Personnel
Rated payload: 11.575ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The Feidi W7 220hp 4X2(6 wheels) 5.2m semi-pen van truck (China VI) is a Medium-duty truck featuring 5.2m cargo length, Van body cargo body, 3Personnel volume and 11.575t payload. Its segment focus covers Logistics Freight, matching those duty cycles. On the powertrain side, it comes with a Dachai 6-cylinder engine, 220 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 220 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): FD5180XXYP78K6-1
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 4200mm
Box length class: 5.2m
engine: DachaiCA4DK1-22E6
transmission: Fast Gear8JS75TC
Rear Axle Ratio: 4.333
Cab length: 7.37m
Cab width: 2.55m
Cab height: 3.78m
Front track width: 1800mm
rear track: 1805mm
Curb Weight: 6.23ton
Rated payload: 11.575ton
GVWR: 18ton
Max. speed: 88km/h
Origin: Rizhao, Shandong
tonnage class: Medium-duty truck
Approach angle: 22°
departure angle: 12°
market segment: Logistics Freight
Front/rear suspension: 1.2/2.69m
Energy Type: Diesel
Engine parameters
Engine Brand: Dachai
Engine Model: DachaiCA4DK1-22E6
Engine info: Dachai 6-cylinder
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.8L
Emission standard: China VI
Max output power: 162kW
Max hp: 220Horsepower
Max torque: 850N·m
Max torque speed: 1200-1700rpm
Rated speed: 2300rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: Fast Gear8JS75TC
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Van body
Cargo box length: 5.2m
Cargo box width: 2.45m
Cargo box height: 2.4m
*Cargo box interior width: 2.4500000476837
Cab parameters
seating capacity: 3Personnel
Chassis Specs
Front axle allowable load: 6500kg
rear axle allowable load: 11500kg
Axle ratio: 4.333
Leaf spring count: 3/8+7
Tire

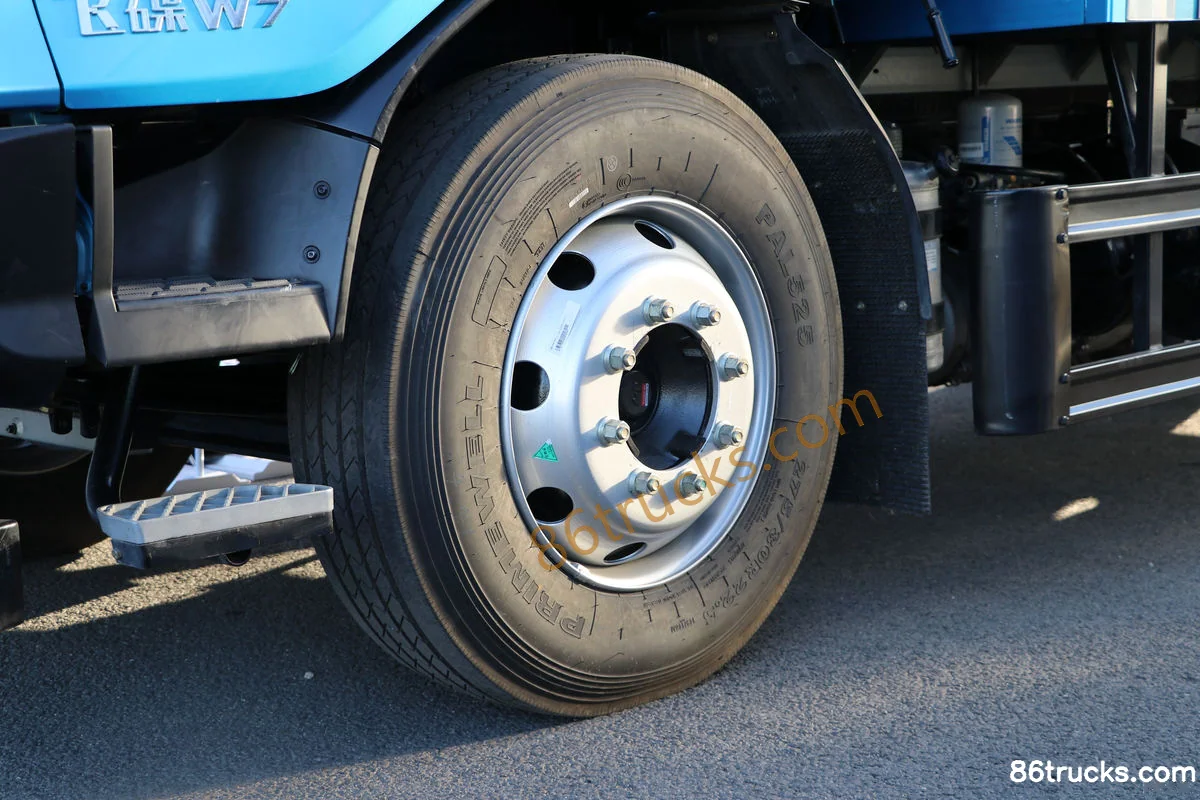

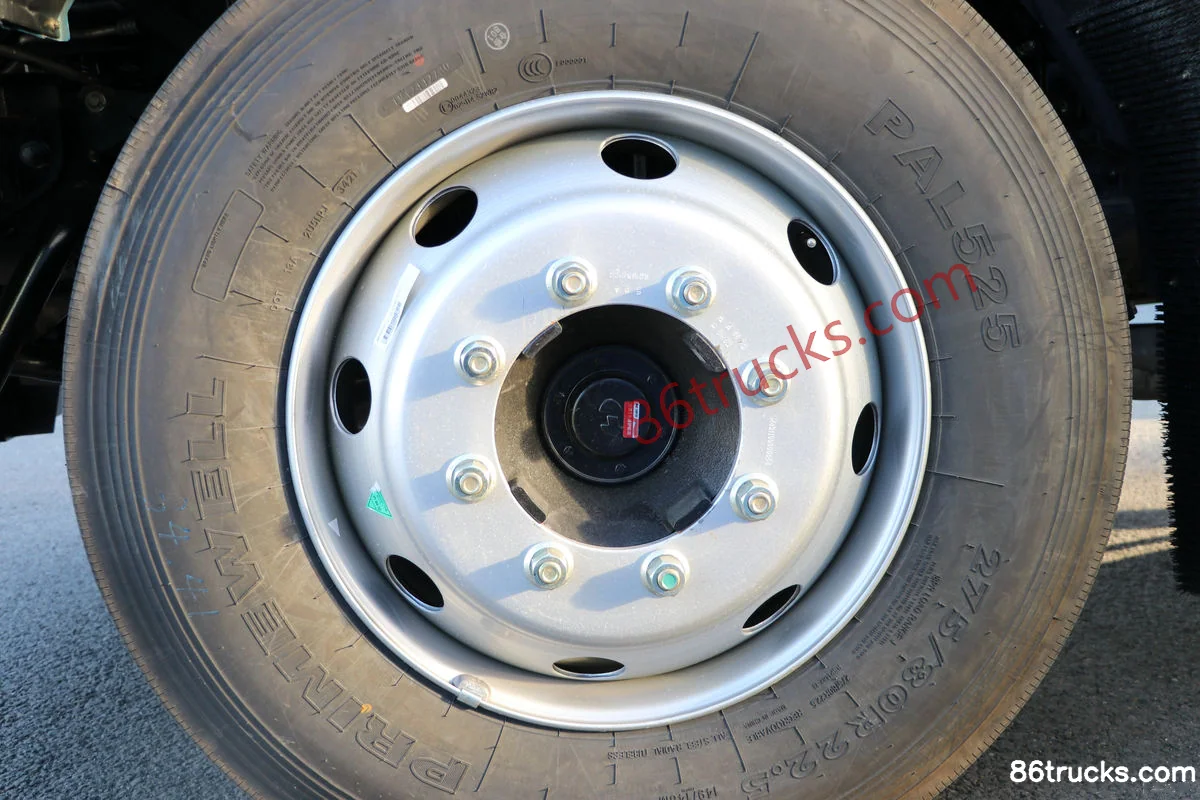

Tire Size: 275/80R22.5 18PR
Number of tires: 6pcs
Control configuration
ABS:
Stability control system:
Brake assist (EBA/BAS/BA etc.):
Traction Control (ASR/TCS/TRC etc.):
Power steering:
EBS electronic braking system:
clutch booster:
interior configuration
steering wheel adjustment: Manual
Multifunction steering wheel:
AC control type: Manual
Independent Heater:
Power Windows:
Power interface:
Reverse Camera:
Remote key:
Electronic Central Lock:
Exterior features
Air deflector:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Radio:
standard instrument cluster: none
LCD instrument cluster: Yes
lighting configuration
Front fog lamp:
daytime running lights:
Headlight height adjustment:
Halogen Headlights:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
smart configuration
Cruise control (CCS):

Photos

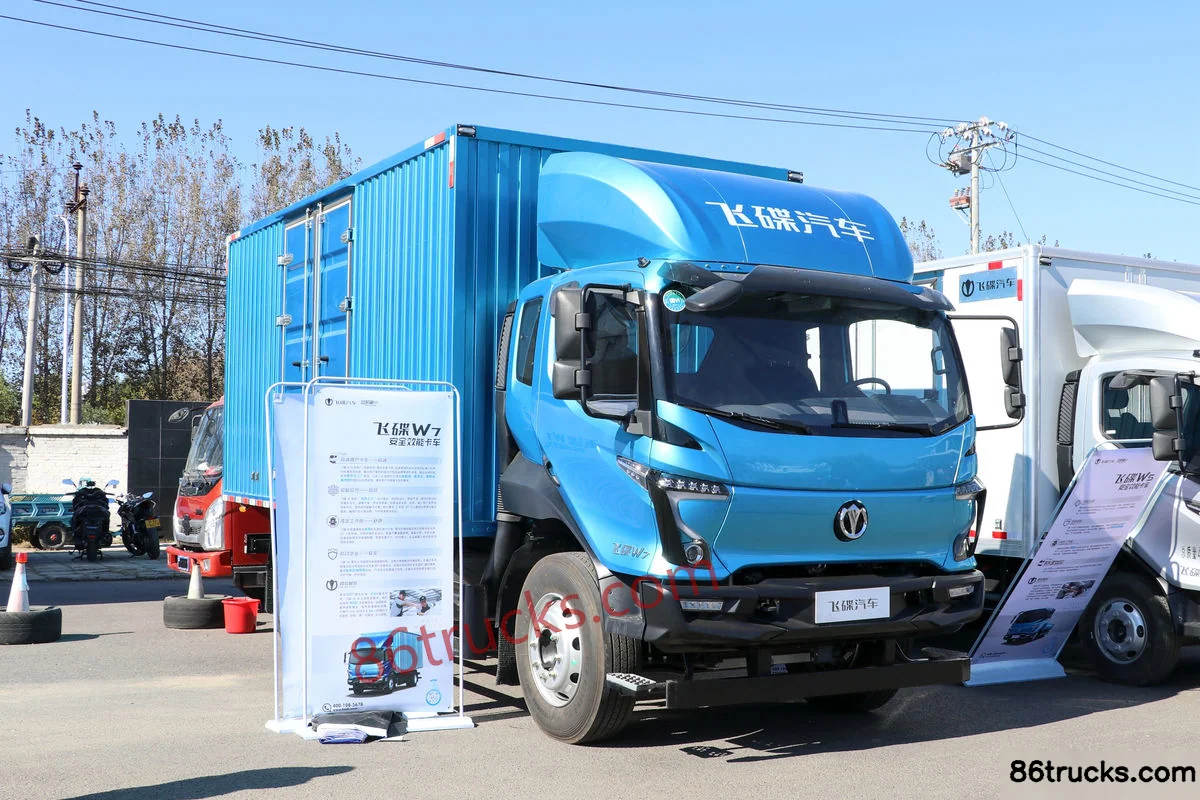

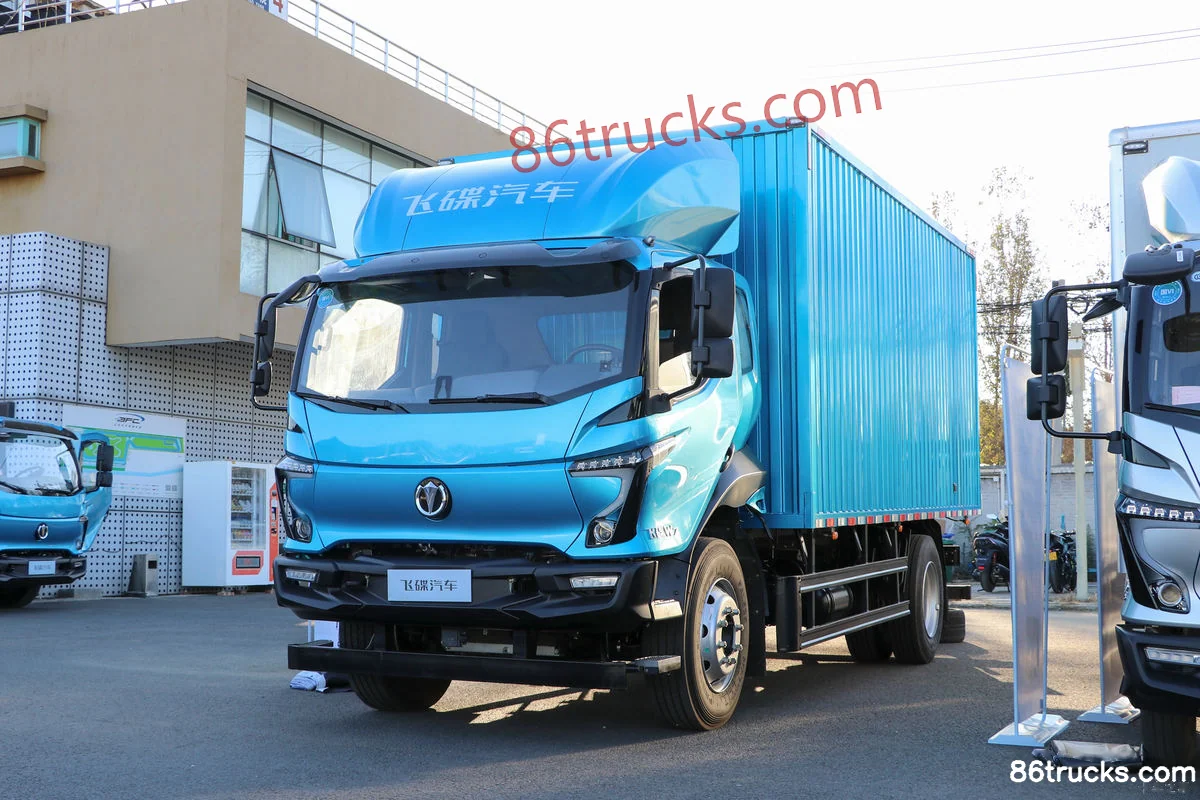

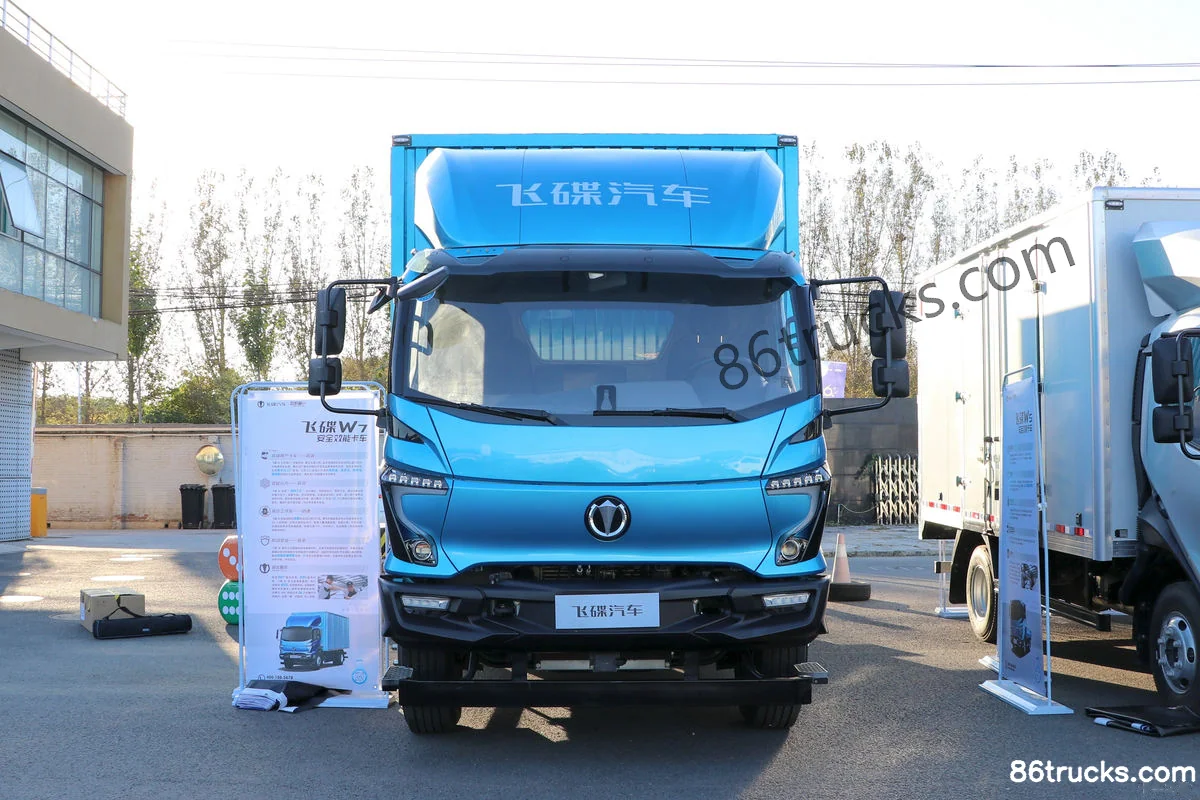

Exterior3

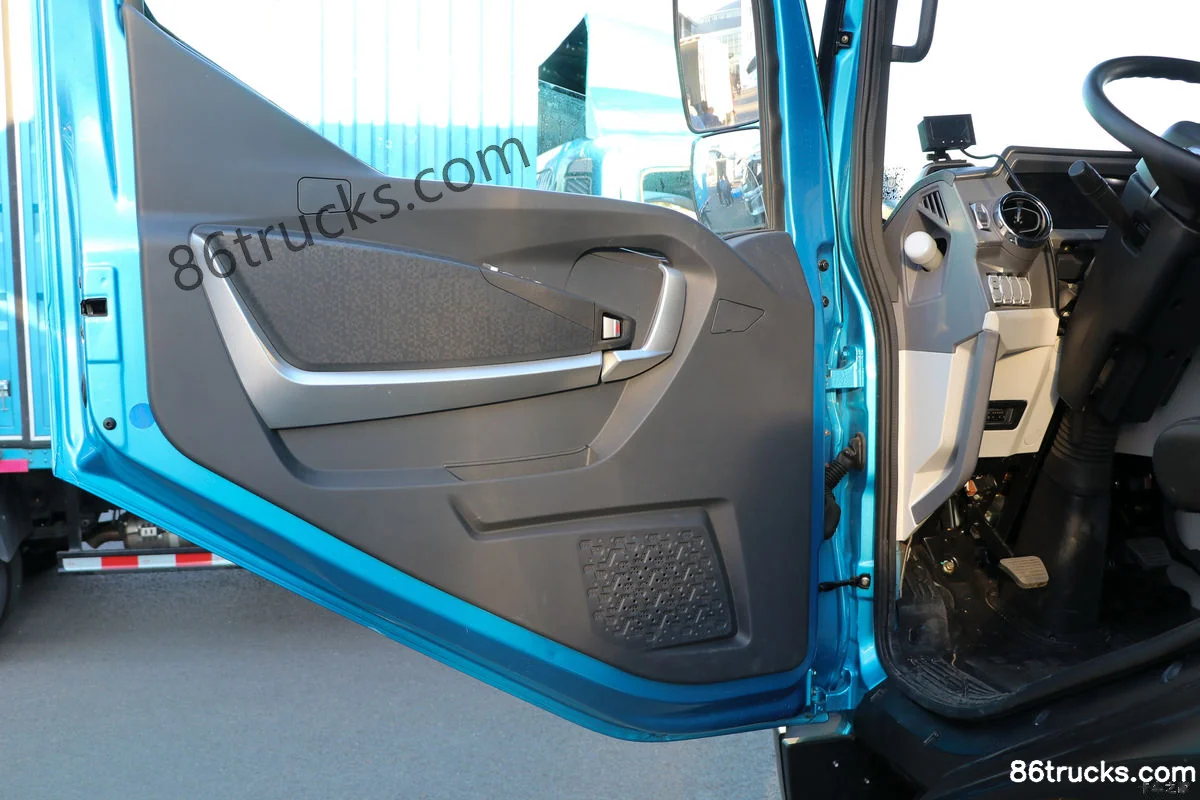

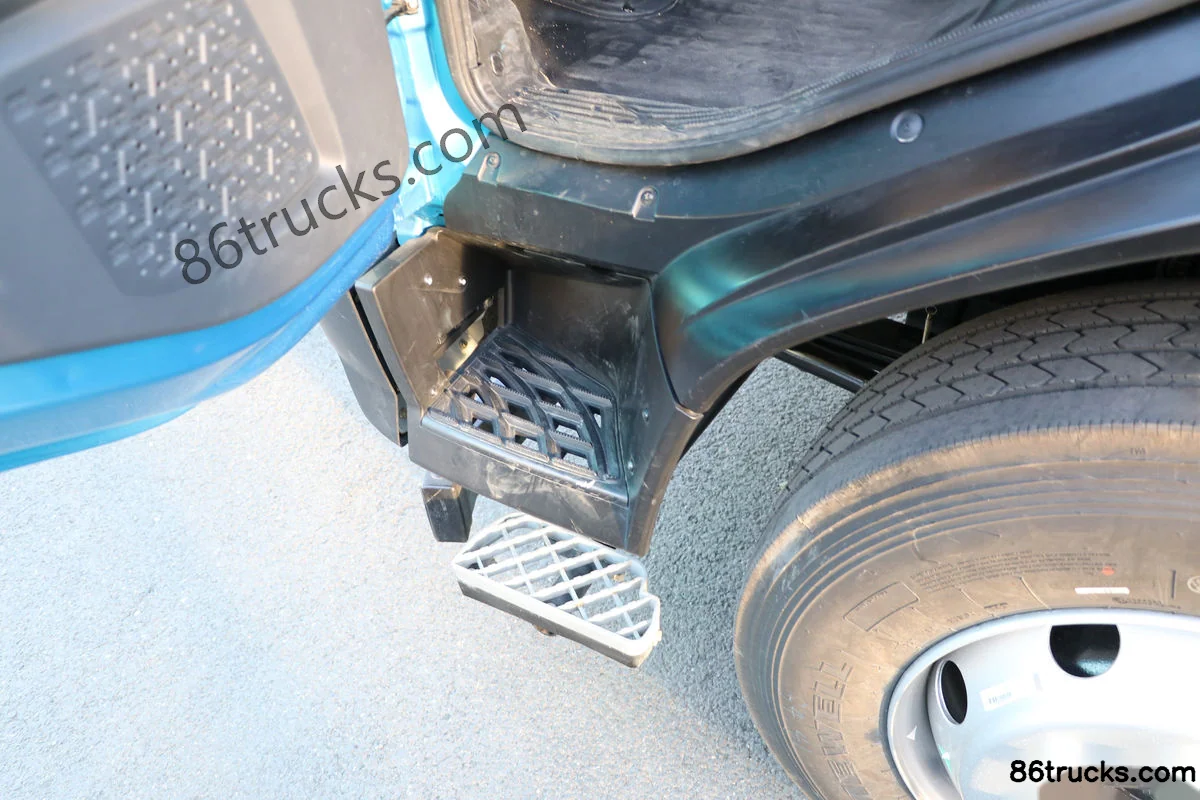

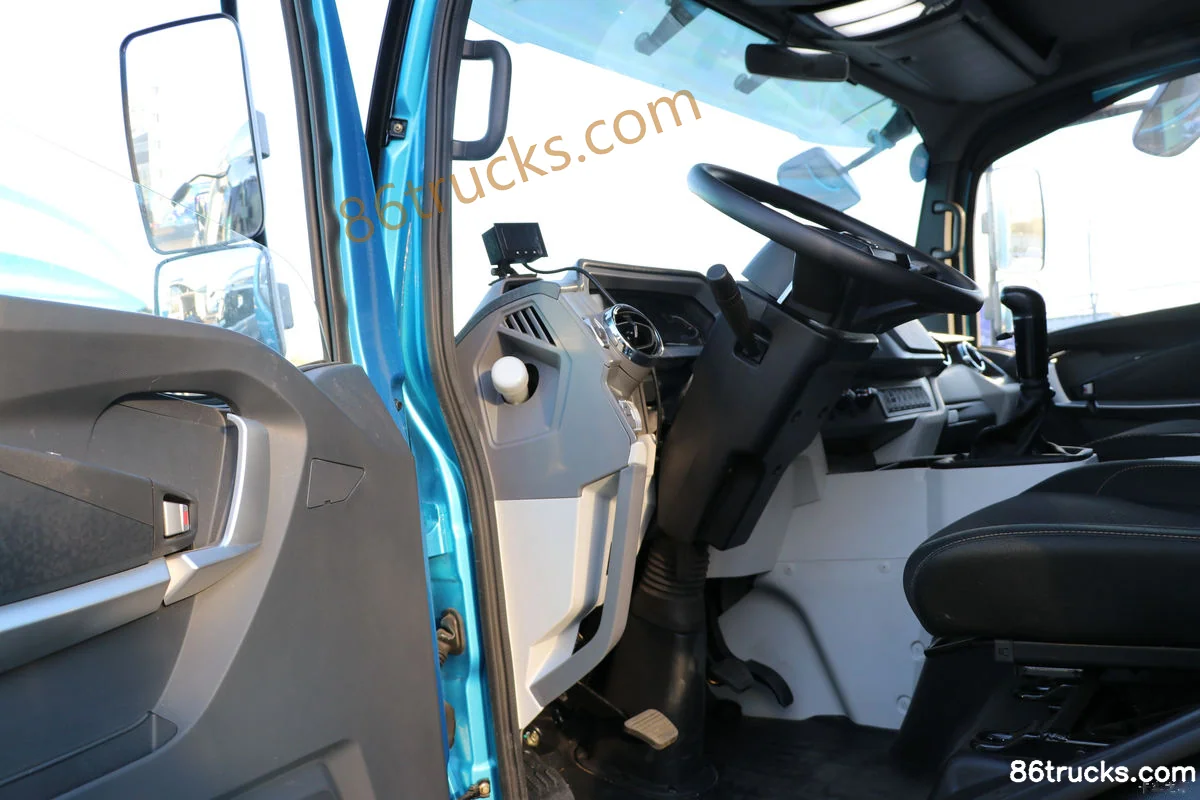

Cab3

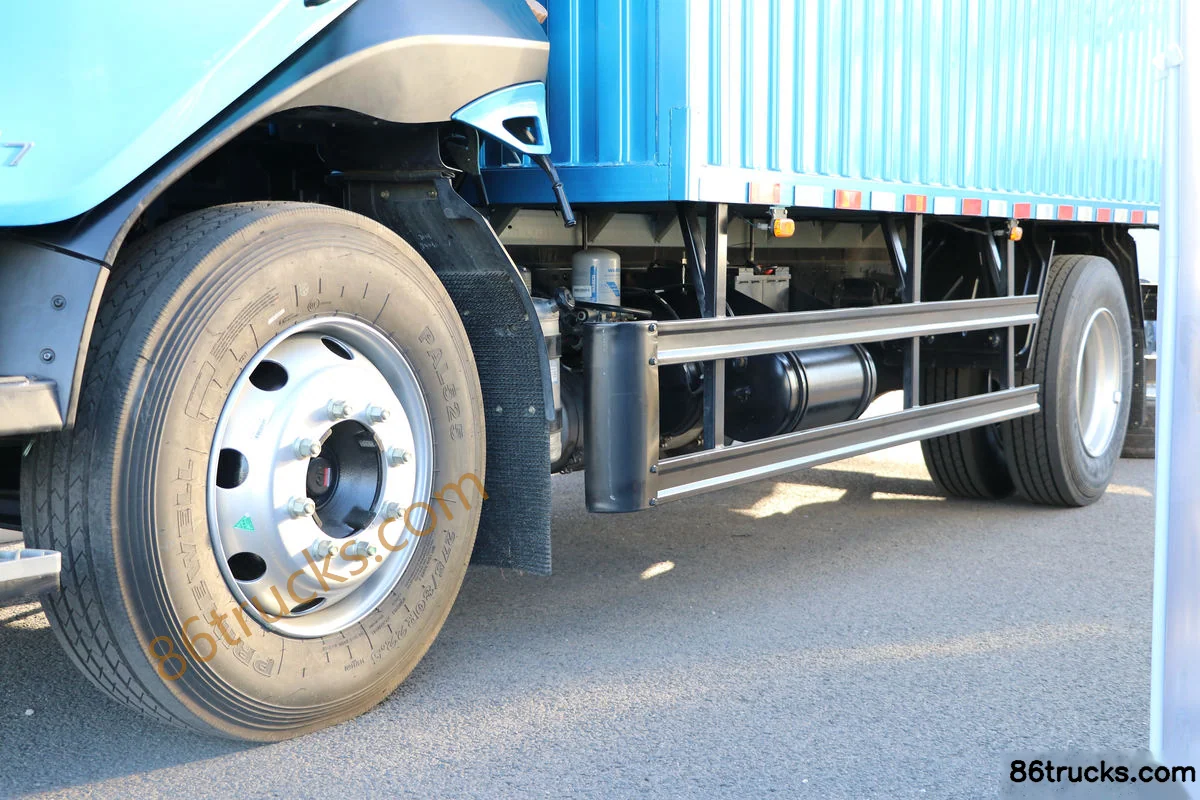

Chassis3

9 photos

FAQ

What emission standard does Feidi W7 220hp 4X2(6 wheels) 5.2m semi-pen van truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Feidi W7 220hp 4X2(6 wheels) 5.2m semi-pen van truck (China VI)?

Key specs of Feidi W7 220hp 4X2(6 wheels) 5.2m semi-pen van truck (China VI): Drive: 4x2; Horsepower: 220 hp; Emission: China VI; Fuel: Diesel; Engine: Dachai 6-cylinder; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Feidi W7 220hp 4X2(6 wheels) 5.2m semi-pen van truck (China VI) suited for?

Feidi W7 220hp 4X2(6 wheels) 5.2m semi-pen van truck (China VI) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Feidi W7 220hp 4X2(6 wheels) 5.2m semi-pen van truck (China VI) differ from other variants in the same series?

Feidi W7 220hp 4X2(6 wheels) 5.2m semi-pen van truck (China VI) belongs to Feidi7 (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Feidi W7 220hp 4X2(6 wheels) 5.2m semi-pen van truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Feidi W7 220hp 4X2(6 wheels) 5.2m semi-pen van truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
