NanJun Ruiji 109 hp 4X2(6 wheels) 3.32m single-row stake light truck

Export reference
From $11,361
MSRP ¥8.18M CNY
Horsepower: 109
Emission: China V
Fuel: Diesel
Engine: Yunnei Dewei D20
Transmission: Xingrui
Curb Weight:: 2.37ton
seating capacity: 2Personnel
Rated payload: 1.995ton
Drive 4X2 (6 wheels)
Cargo box type: stake body

Overview

The NanJun Ruiji 109 hp 4X2(6 wheels) 3.32m single-row stake light truck is a Light Truck featuring 3.32m cargo length, stake body cargo body, 2Personnel volume and 1.995t payload. On the powertrain side, it comes with a Yunnei Dewei D20 engine, 109 hp, 4X2 (6 wheels) drive and China V emissions.

China V 109 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): NJA1040EDE28V
Type: Cargo Trucks
Drive type: 4X2
Wheelbase: 2600mm
Box length class: 3.3m
engine: Yunnei PowerD19TCIE11
transmission: Xingrui 5-30CY2KS
Rear Axle Ratio: 5.833
Cab length: 5.2m
Cab width: 1.75m
Cab height: 2.12m
Front track width: 1470mm
rear track: 1470mm
Curb Weight: 2.37ton
Rated payload: 1.995ton
GVWR: 4.495ton
Max. speed: 105km/h
Origin: Ziyang, Sichuan
tonnage class: Light Truck
Approach angle: 18°
departure angle: 16°
Front/rear suspension: 1.17/1.43m
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerD19TCIE11
Engine info: Yunnei Dewei D20
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 1.91L
Emission standard: China V
Max output power: 80kW
Max hp: 109Horsepower
Max torque: 285N·m
Max torque speed: 1600-2600rpm
Rated speed: 3200rpm
Engine Type: 4-cylinder inline, 16-valve, DOHC, turbocharged intercooled, high-pressure common rail fuel injection
Transmission Parameters
Transmission Model: Xingrui 5-30CY2KS
Transmission Brand: Xingrui
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: stake body
Cargo box length: 3.32m
Cargo box width: 1.85m
Cargo box height: 0.4m
*Cargo box interior width: 1.8500000238419
Cab parameters
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle description: 14Y146B-00
Front axle allowable load: 1570kg
Frame Dimensions: 160×65×5-760mm
rear axle description: 027Y147249B-02
rear axle allowable load: 2925kg
Axle ratio: 5.833
Leaf spring count: 3/5+3
Tire
Tire Size: 6.50R16
Number of tires: 6pcs
Control configuration
ABS:

Photos

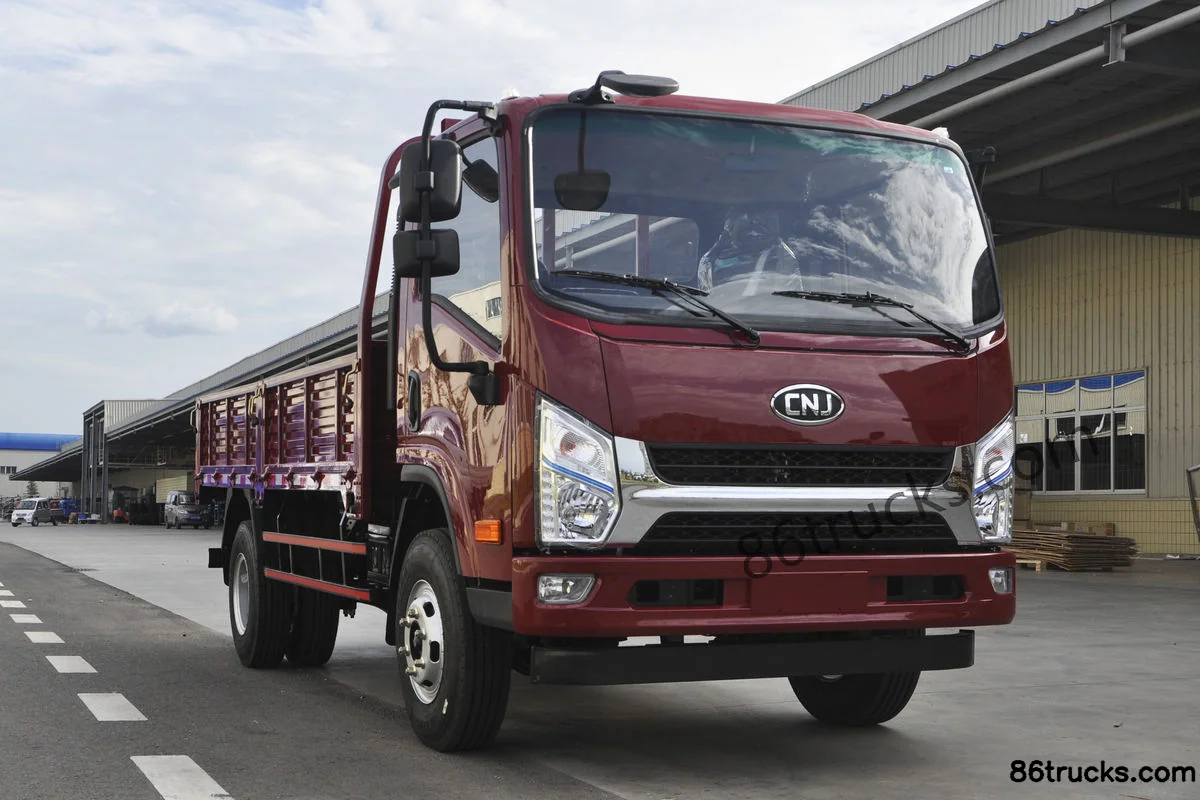

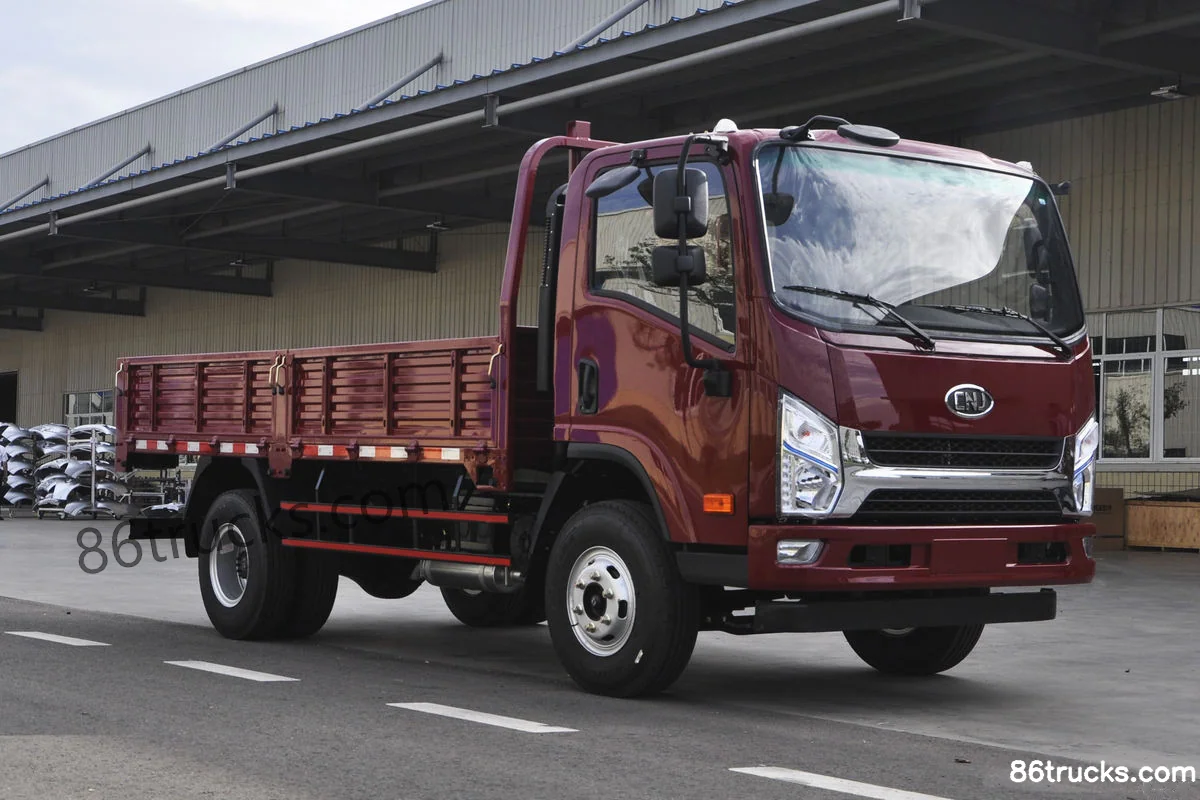

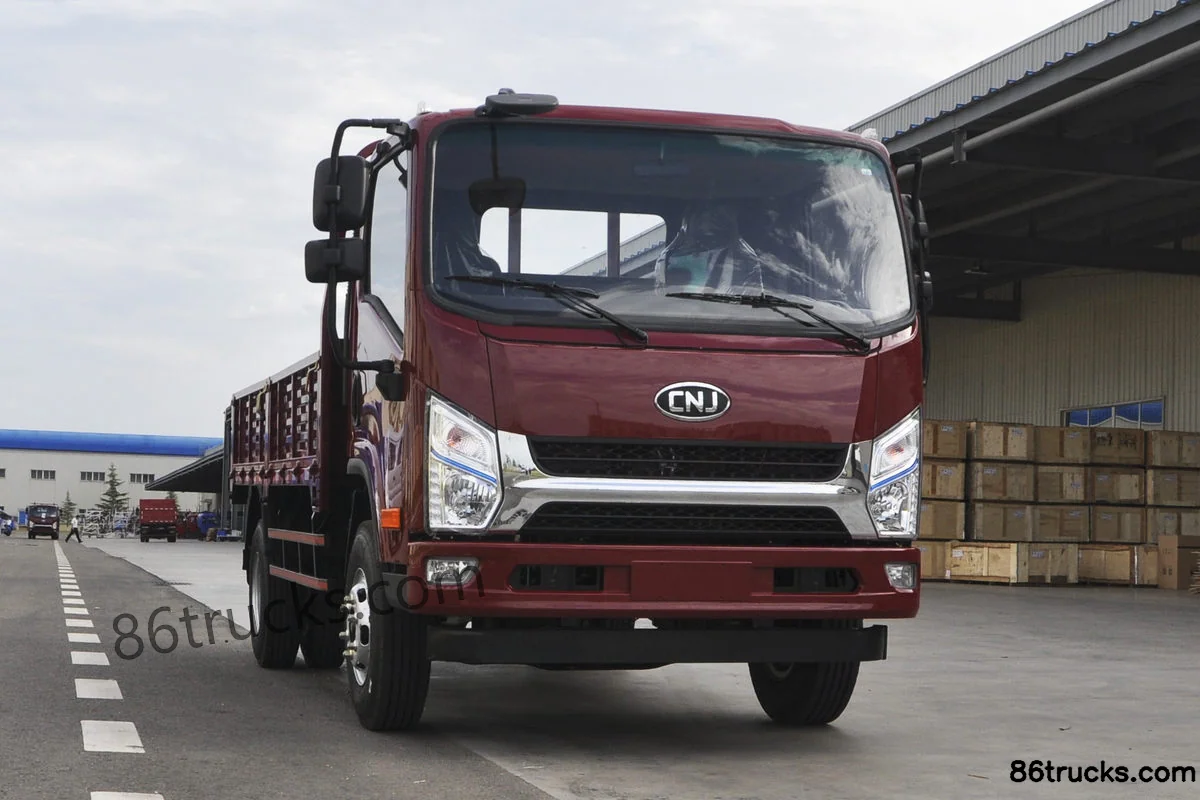

Exterior3

3 photos

FAQ

What is the export price of NanJun Ruiji 109 hp 4X2(6 wheels) 3.32m single-row stake light truck, and what does it include?

NanJun Ruiji 109 hp 4X2(6 wheels) 3.32m single-row stake light truck export reference is about From $11,361; MSRP is ¥8.18M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does NanJun Ruiji 109 hp 4X2(6 wheels) 3.32m single-row stake light truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of NanJun Ruiji 109 hp 4X2(6 wheels) 3.32m single-row stake light truck?

Key specs of NanJun Ruiji 109 hp 4X2(6 wheels) 3.32m single-row stake light truck: Drive: 4x2; Horsepower: 109 hp; Emission: China V; Fuel: Diesel; Engine: Yunnei Dewei D20; Transmission: Xingrui. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is NanJun Ruiji 109 hp 4X2(6 wheels) 3.32m single-row stake light truck suited for?

NanJun Ruiji 109 hp 4X2(6 wheels) 3.32m single-row stake light truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does NanJun Ruiji 109 hp 4X2(6 wheels) 3.32m single-row stake light truck differ from other variants in the same series?

NanJun Ruiji 109 hp 4X2(6 wheels) 3.32m single-row stake light truck belongs to NanJun Ruiji Light Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for NanJun Ruiji 109 hp 4X2(6 wheels) 3.32m single-row stake light truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export NanJun Ruiji 109 hp 4X2(6 wheels) 3.32m single-row stake light truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
