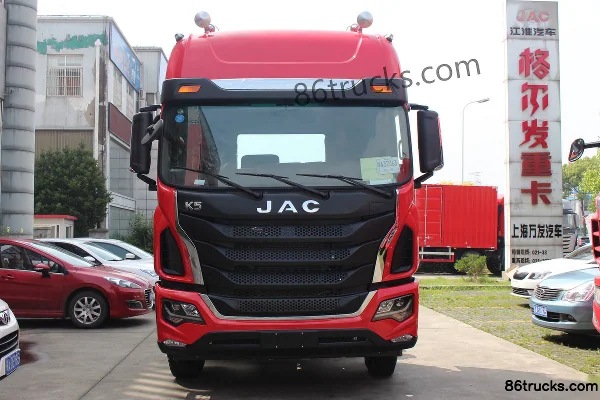

JAC Gallop K5W Heavy Truck Standard Load Edition 380 hp 6X2(8 wheels) Tractor Truck

Export reference
From $43,944
MSRP ¥31.64M CNY
Fuel: Diesel
Gross Trailer Weight:: 38ton
Wheelbase:: 1700+2650mm
Tire Size:: 12R22.5 18PR
Front axle allowable load:: 6750/6750kg
Displacement:: 9.726L
Drive 6X2 (8 wheels)
Horsepower 380
Emission China V
Transmission Fast Gear

Overview

The JAC Gallop K5W Heavy Truck Standard Load Edition 380 hp 6X2(8 wheels) Tractor Truck is a Heavy truck featuring 6X2 (8 wheels) drive, 380 hp, 25t GVW and China V emissions. Its segment focus covers Logistics, Coal Transport and Industrial Goods, matching those duty cycles. On the powertrain side, it comes with a SinotrukD10.38-50 engine, Fast Gear transmission and Diesel fuel.

China V 380 Diesel 6X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC4251P1K6D26S4V
Drive type: 6X2
Wheelbase: 1700+2650mm
engine: SinotrukD10.38-50
transmission: Fast Gear12JSD160T
Rear Axle Ratio: 3.364
Cab length: 6.775m
Cab width: 2.5m
Cab height: 3.835m
Front track width: 2040/2040mm
rear track: 1860mm
Gross Trailer Weight: 38ton
Curb Weight: 7.8ton
GVWR: 25ton
Max. speed: 100km/h
Origin: Hefei, Anhui
tonnage class: Heavy truck
market segment: Logistics, Coal Transport, Industrial Goods
Remarks: Rear axle ratio optional 3.7
Version: Standard Load Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukD10.38-50
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 9.726L
Emission standard: China V
Max output power: 276kW
Max hp: 380Horsepower
Max torque: 1560N·m
Max torque speed: 1200-1500rpm
Rated speed: 2000rpm
Technology route: Common Rail SCR
Transmission Parameters
Transmission Model: Fast Gear12JSD160T
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Housing Material: aluminum alloy
fuel tank
Fuel tank/air tank material: aluminum alloy
Fuel tank capacity: 400L
Cab parameters
Cab: High roof
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Suspension type: Leaf spring
Front axle description: 5T
Fifth wheel: 50#,90#
Front axle allowable load: 6750/6750kg
Frame Dimensions: 280×80×(8+5)mm
rear axle description: 485 rear axle
rear axle allowable load: 11500kg
Axle ratio: 3.364
Leaf spring count: 3/3/4+3
Tire
Tire Size: 12R22.5 18PR
Number of tires: 8pcs
Control configuration
ABS:

Photos

0 photos

FAQ

What is the export price of JAC Gallop K5W Heavy Truck Standard Load Edition 380 hp 6X2(8 wheels) Tractor Truck, and what does it include?

JAC Gallop K5W Heavy Truck Standard Load Edition 380 hp 6X2(8 wheels) Tractor Truck export reference is about From $43,944; MSRP is ¥31.64M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Gallop K5W Heavy Truck Standard Load Edition 380 hp 6X2(8 wheels) Tractor Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Gallop K5W Heavy Truck Standard Load Edition 380 hp 6X2(8 wheels) Tractor Truck?

Key specs of JAC Gallop K5W Heavy Truck Standard Load Edition 380 hp 6X2(8 wheels) Tractor Truck: Drive: 6x2; Horsepower: 380 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Gallop K5W Heavy Truck Standard Load Edition 380 hp 6X2(8 wheels) Tractor Truck suited for?

JAC Gallop K5W Heavy Truck Standard Load Edition 380 hp 6X2(8 wheels) Tractor Truck is a Tractor Trucks model, typically used for semi-trailer haulage, long-haul and port shuttle work. Match axle load, route and emission needs; describe route and payload in your quote request.

How does JAC Gallop K5W Heavy Truck Standard Load Edition 380 hp 6X2(8 wheels) Tractor Truck differ from other variants in the same series?

JAC Gallop K5W Heavy Truck Standard Load Edition 380 hp 6X2(8 wheels) Tractor Truck belongs to JAC Gallop K5 Heavy Truck (Tractor Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Gallop K5W Heavy Truck Standard Load Edition 380 hp 6X2(8 wheels) Tractor Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Gallop K5W Heavy Truck Standard Load Edition 380 hp 6X2(8 wheels) Tractor Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
