SHACMAN Cummins Delong F3000 Super Strong Edition 385hp 8X4(12 wheels) Dump Truck Chassis

Export reference

From $49,972

MSRP ¥35.98M CNY

Emission: China IV

Fuel: Diesel

Transmission: Fast Gear

Curb Weight:: 15.412ton

Wheelbase:: 1800+3975+1400mm

Tire Size:: 12.00R20

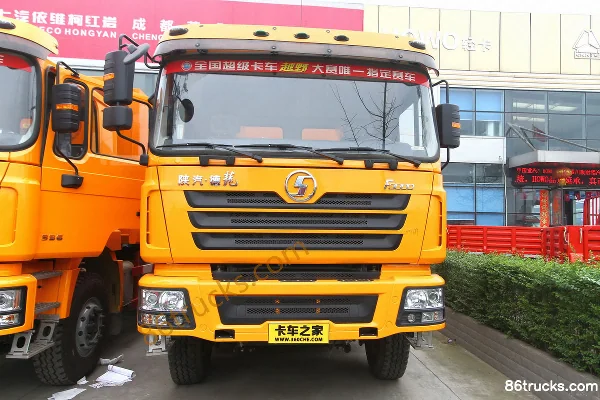

SHACMAN Cummins Delong F3000 Super Strong Edition 385hp 8X4(12 wheels) Dump Truck Chassis exterior

Rated payload: 15.458ton

Drive 8X4 (12 wheels)

Horsepower 385

Cargo box type: Rear-dump body

Overview

The SHACMAN Cummins Delong F3000 Super Strong Edition 385hp 8X4(12 wheels) Dump Truck Chassis is a Heavy truck featuring 15.458t payload, 31t GVW, Rear-dump body cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a Xi’an CumminsISM11E4 385 engine, 385 hp, China IV emissions and Fast Gear transmission.

China IV 385 Diesel 8X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info

Model code (announced): SX3316DR406

Drive type: 8X4

Wheelbase: 1800+3975+1400mm

engine: Xi’an CumminsISM11E4 385

transmission: Fast Gear12JSD180T

Rear Axle Ratio: 5.262

Cab length: 10.55m

Cab width: 2.49m

Cab height: 3.21m

Front track width: 2036/2036mm

rear track: 1860/1860mm

Curb Weight: 15.412ton

Rated payload: 15.458ton

GVWR: 31ton

Origin: Xi'an, Shaanxi

tonnage class: Heavy truck

Approach angle: 28°

departure angle: 37°

Remarks: Metal bumper, air suspension driver seat, automatic AC, power windows, Tianxingjian Zhiya BD onboard terminal, domestic steering gear, oil-bath air filter, domestic Φ430 clutch, transmission with QH50 PTO, reinforced driveshaft, front/rear multi-leaf springs, domestic 4-channel ABS, 165Ah standard battery, ISM engine with standard Jacob brake; Optional: extended flat roof (J) cab, extended high roof (N) cab, central door lock (with remote), left-side fuel tank (reserving radiator space), cargo box floor heating, 180Ah battery; 12JSD180T + 16T MAN dual reduction 5.92;

Version: Ultra Strong Edition

Energy Type: Diesel

Engine parameters

Engine Brand: Xi’an Cummins

Engine Model: Xi’an CumminsISM11E4 385

Number of cylinders: 6cylinder

fuel type: Diesel

Displacement: 10.8L

Emission standard: China IV

Max output power: 283kW

Max hp: 385Horsepower

Max torque: 1825N·m

Max torque speed: 1200rpm

Rated speed: 1900rpm

Engine Type: Turbocharged Intercooled (Turbo), Direct Injection, Electronic Control

Transmission Parameters

Transmission Model: Fast Gear12JSD180T

Transmission Brand: Fast Gear

shift method: Manual

Forward gears: 12Gear

Number of Reverse Gears: 2pcs

Cargo box parameters

Unloading Type: Rear-dump body

Cargo box type: Rear-dump body

Cargo box length: 8m

Cargo box width: 2.3m

Cargo box height:

fuel tank

Fuel tank capacity: 400L

Chassis Specs

Front axle allowable load: 6500/6500kg

Frame Dimensions: 850×300(8+7)mm

rear axle description: 16T MAN double reduction

Steering gear: Domestic

rear axle allowable load: 18000 (twin axle)kg

Axle ratio: 5.262

Leaf spring count: Left 14 Right 13/Left 14 Right 13/12

clutch: Φ430

Tire

Tire Size: 12.00R20

Number of tires: 12pcs

Control configuration

ABS:

Photos

0 photos

FAQ

What is the export price of SHACMAN Cummins Delong F3000 Super Strong Edition 385hp 8X4(12 wheels) Dump Truck Chassis, and what does it include?

SHACMAN Cummins Delong F3000 Super Strong Edition 385hp 8X4(12 wheels) Dump Truck Chassis export reference is about From $49,972; MSRP is ¥35.98M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does SHACMAN Cummins Delong F3000 Super Strong Edition 385hp 8X4(12 wheels) Dump Truck Chassis use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Cummins Delong F3000 Super Strong Edition 385hp 8X4(12 wheels) Dump Truck Chassis?

Key specs of SHACMAN Cummins Delong F3000 Super Strong Edition 385hp 8X4(12 wheels) Dump Truck Chassis: Drive: 8x4; Horsepower: 385 hp; Emission: China IV; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Cummins Delong F3000 Super Strong Edition 385hp 8X4(12 wheels) Dump Truck Chassis suited for?

SHACMAN Cummins Delong F3000 Super Strong Edition 385hp 8X4(12 wheels) Dump Truck Chassis is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SHACMAN Cummins Delong F3000 Super Strong Edition 385hp 8X4(12 wheels) Dump Truck Chassis differ from other variants in the same series?

SHACMAN Cummins Delong F3000 Super Strong Edition 385hp 8X4(12 wheels) Dump Truck Chassis belongs to SHACMAN Delong F3000 Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Cummins Delong F3000 Super Strong Edition 385hp 8X4(12 wheels) Dump Truck Chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Cummins Delong F3000 Super Strong Edition 385hp 8X4(12 wheels) Dump Truck Chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
