JAC Kangling H3 Narrow Body 2.98T Single Row Pure Electric Light Truck Chassis 4X2(6 wheels)

Export reference
MSRP N/A
Wheelbase:: 2600mm
Cargo box type:: Chassis
Model code (announced):: HFC1030EV1
Cab length:: 5.025m
GVWR:: 2.98ton
Max. speed:: 80km/h
Drive 4X2 (6 wheels)
CLTC range: 205km
Motor 1 Brand: Daoyi Power
Curb Weight: 1.58ton

Overview

The JAC Kangling H3 Narrow Body 2.98T Single Row Pure Electric Light Truck Chassis 4X2(6 wheels) is a Light Truck featuring 205km battery/range, Daoyi Power motor, 4X2 (6 wheels) drive and Chassis cargo length.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC1030EV1
Type: Chassis
Drive type: 4X2
Wheelbase: 2600mm
Cab length: 5.025m
Cab width: 1.626m
Cab height: 1.99m
CLTC range: 205km
Curb Weight: 1.58ton
GVWR: 2.98ton
Max. speed: 80km/h
Origin: Hefei, Anhui
tonnage class: Light Truck
Energy Type: Electric
electric motor
Motor 1 Brand: Daoyi Power
Motor 1 Model: TZ200XSJH7
Motor Type: Permanent magnet synchronous motor
Fuel Type: Electric
total rated power: 25kW
Peak power: 50kW
Cargo box parameters
Cargo box type: Chassis
Cab parameters
seating capacity: 2Personnel
Seat rows: Single Row

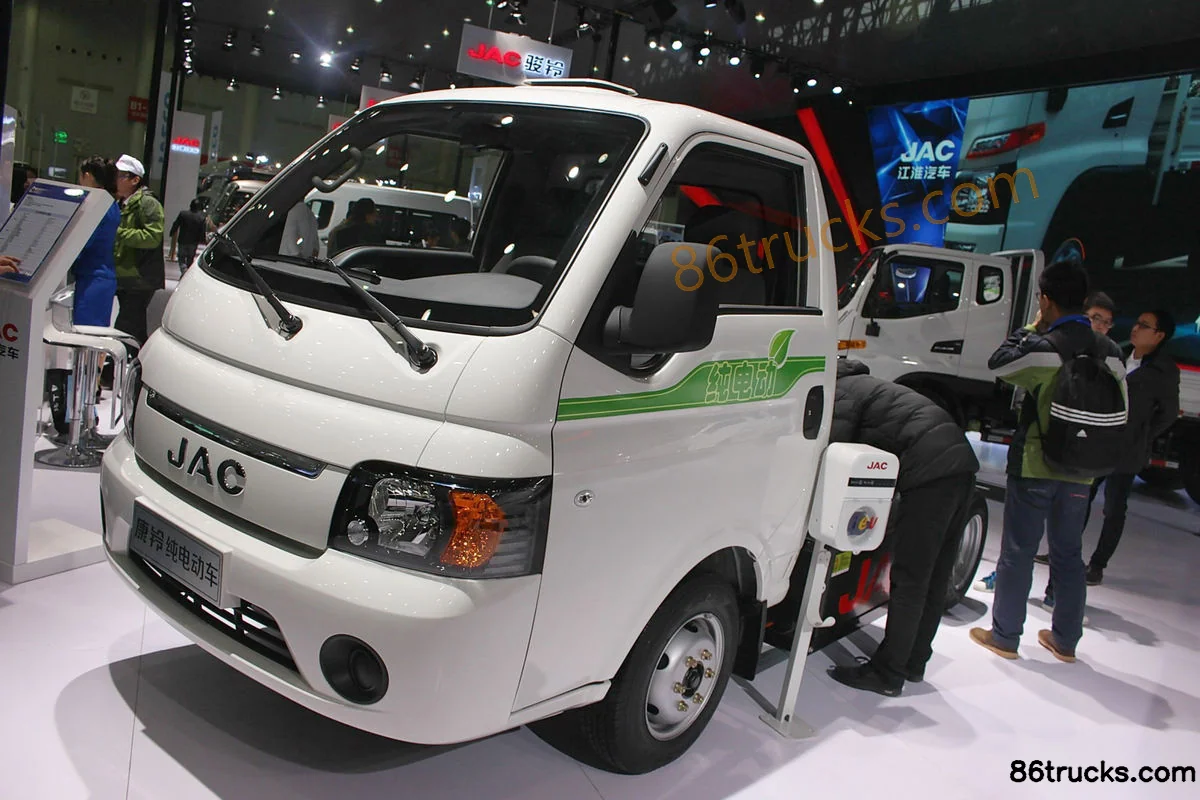

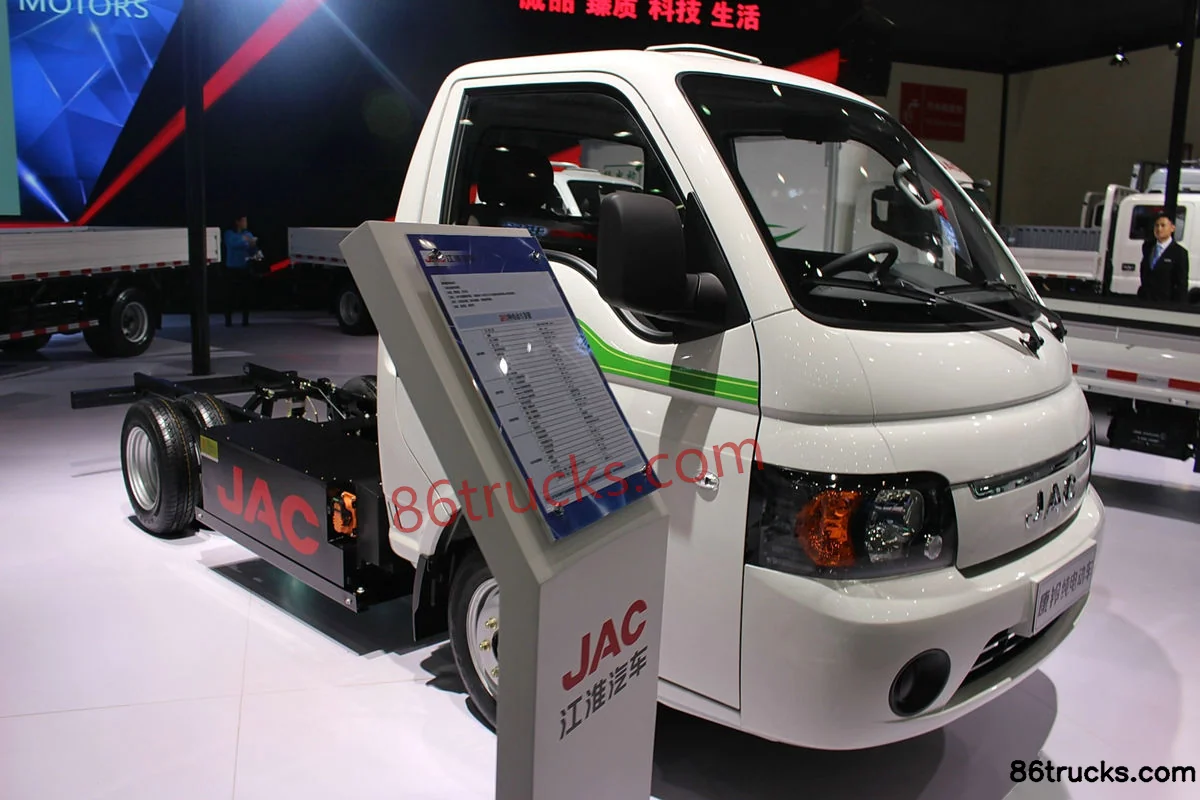

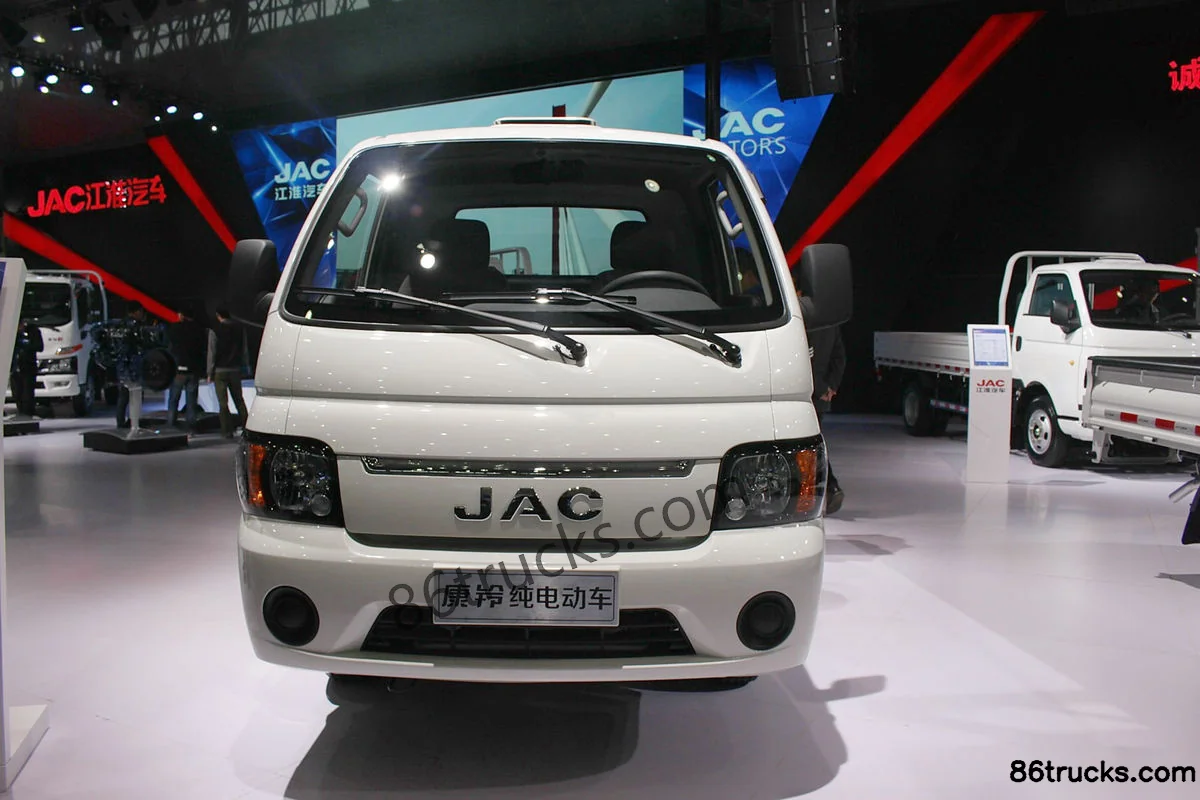

Photos

Exterior3

3 photos

FAQ

What are the key specs of JAC Kangling H3 Narrow Body 2.98T Single Row Pure Electric Light Truck Chassis 4X2(6 wheels)?

Key specs of JAC Kangling H3 Narrow Body 2.98T Single Row Pure Electric Light Truck Chassis 4X2(6 wheels): Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Kangling H3 Narrow Body 2.98T Single Row Pure Electric Light Truck Chassis 4X2(6 wheels) suited for?

JAC Kangling H3 Narrow Body 2.98T Single Row Pure Electric Light Truck Chassis 4X2(6 wheels) is a electric cargo truck model suited to short-haul or fixed routes with charging access. Confirm local charging and registration rules, then request a quote.

How does JAC Kangling H3 Narrow Body 2.98T Single Row Pure Electric Light Truck Chassis 4X2(6 wheels) differ from other variants in the same series?

JAC Kangling H3 Narrow Body 2.98T Single Row Pure Electric Light Truck Chassis 4X2(6 wheels) belongs to JAC H1 light truck (electric cargo truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Kangling H3 Narrow Body 2.98T Single Row Pure Electric Light Truck Chassis 4X2(6 wheels)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Kangling H3 Narrow Body 2.98T Single Row Pure Electric Light Truck Chassis 4X2(6 wheels)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
