FAW Jiefang Qingdao Long V Medium Truck 2.0 Edition 180hp 4X2(6 wheels) 7.8m Van Cargo Truck Chassis

Export reference
MSRP N/A
Horsepower: 180
Emission: China V
Fuel: Diesel
Engine: Dachai4DK
Transmission: Fast Gear
Curb Weight:: 8.51ton
seating capacity: 2Personnel
Rated payload: 9.36ton
Drive 4X2 (6 wheels)
Cargo box type: Chassis

Overview

The FAW Jiefang Qingdao Long V Medium Truck 2.0 Edition 180hp 4X2(6 wheels) 7.8m Van Cargo Truck Chassis is a Medium-duty truck featuring Chassis cargo body, 2Personnel volume, 9.36t payload and 5700mm wheelbase. On the powertrain side, it comes with a Dachai4DK engine, 180 hp, 4X2 (6 wheels) drive and China V emissions.

China V 180 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA5189XXYPK2L5E5A80
Type: Tilt
Drive type: 4X2
Wheelbase: 5700mm
Box length class: 7.8m
engine: DachaiCA4DK1-18E5
transmission: Fast Gear8JS75C
Cab length: 10.185m
Cab width: 2.55m
Cab height: 3.995m
Front track width: 1914mm
rear track: 1860mm
Curb Weight: 8.51ton
Rated payload: 9.36ton
GVWR: 18ton
Max. speed: 98km/h
Origin: Qingdao, Shandong
tonnage class: Medium-duty truck
Approach angle: 21°
departure angle: 13°
Front/rear suspension: 1.332/3.153m
Version: 2.0 version
Energy Type: Diesel
Engine parameters
Engine Brand: Dachai
Engine Model: DachaiCA4DK1-18E5
Engine info: Dachai4DK
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.764L
Emission standard: China V
Max output power: 139kW
Max hp: 180Horsepower
Max torque: 720N·m
Max torque speed: 1200-1700rpm
Rated speed: 2300rpm
Engine Type: SCR
Transmission Parameters
Transmission Model: Fast Gear8JS75C
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Chassis
Cab parameters
Cab suspension: 4-point mechanical suspension
seating capacity: 2Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
Chassis Specs
Front axle allowable load: 6500kg
rear axle allowable load: 11500kg
Leaf spring count: 7/10+3,7/7+3,3/4+3,10/10+9
Suspension (front/rear): leaf spring suspension
Tire
Tire Size: 10.00R20,295/80R22.5,275/80R22.5
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Remote key:
Multimedia features
External audio input (AUX/USB/iPod etc.):
Radio:
lighting configuration
Front fog lamp:
Headlight height adjustment:
Service brake
Brake Type: Air brake
Parking brake: Spring brake

Photos

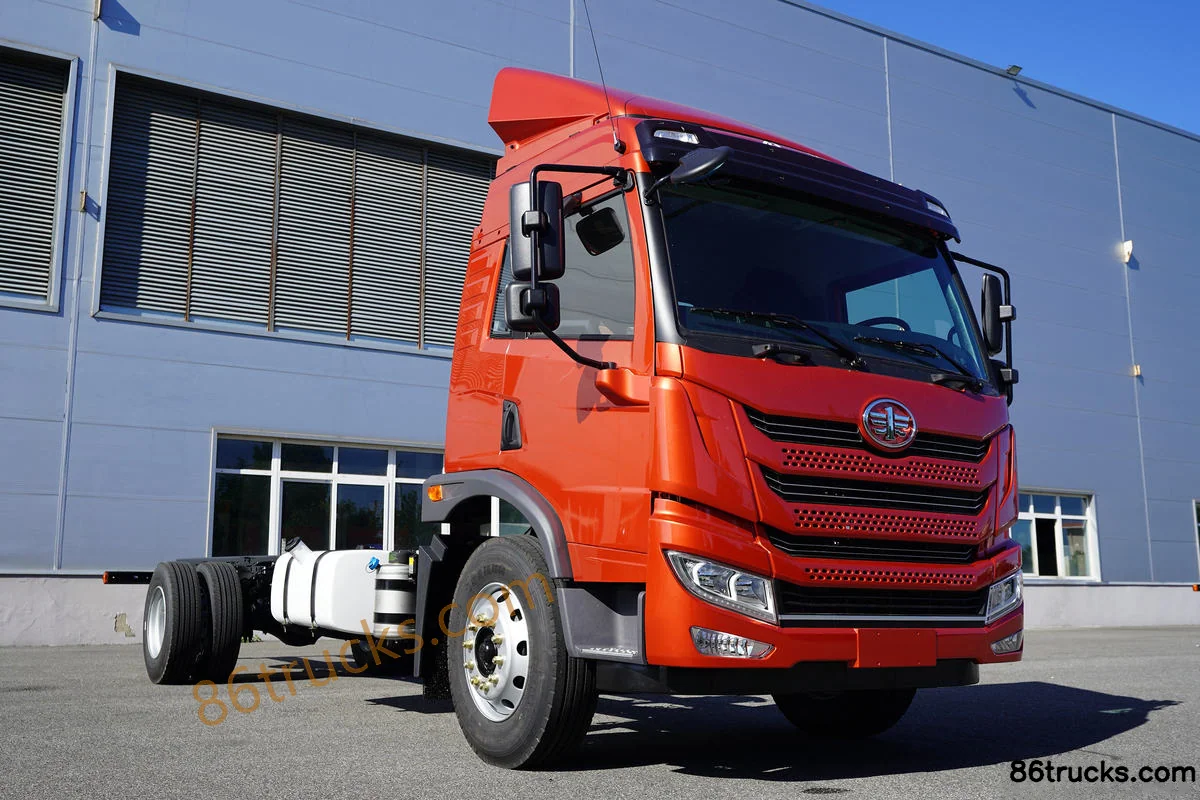

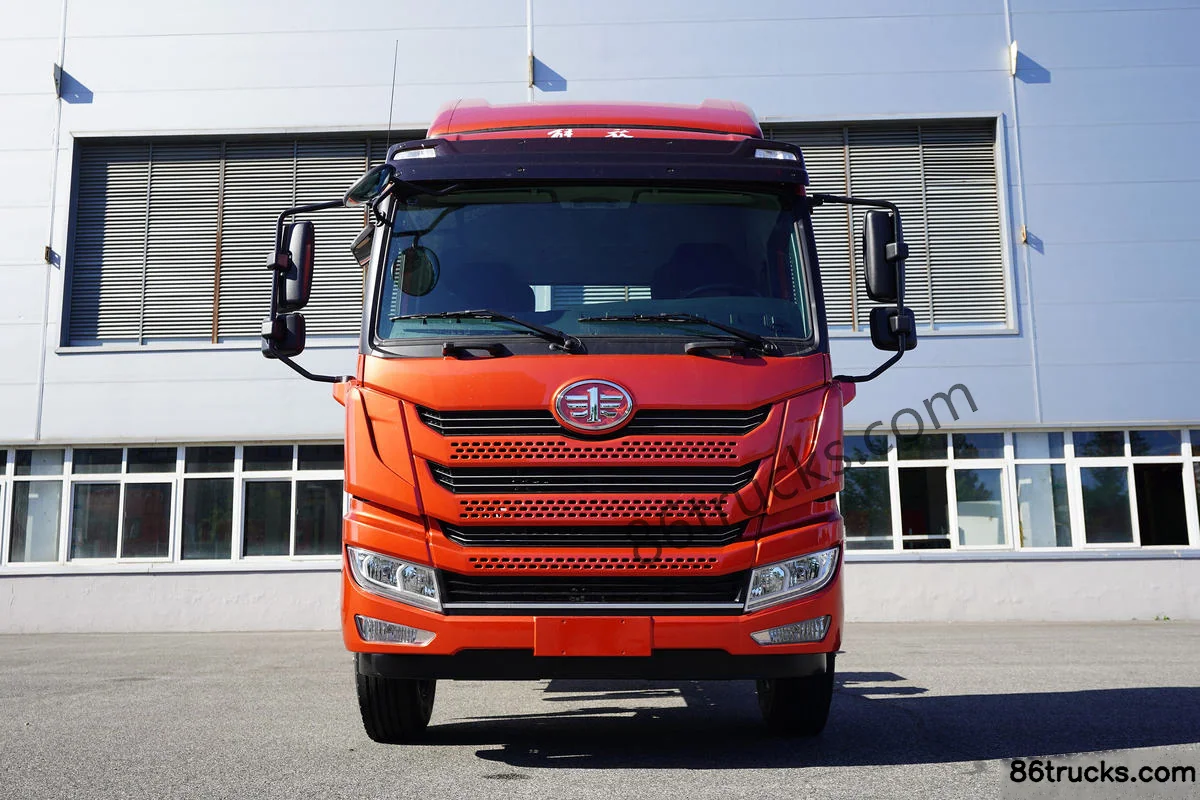

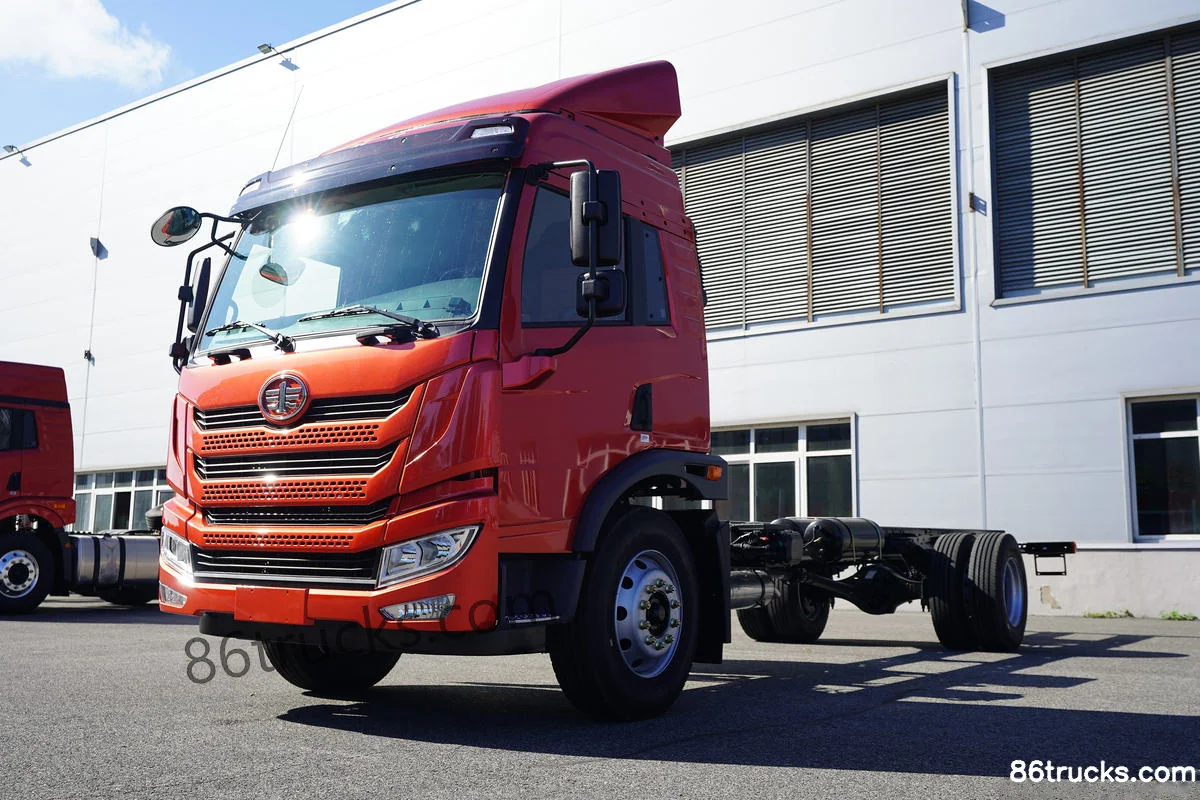

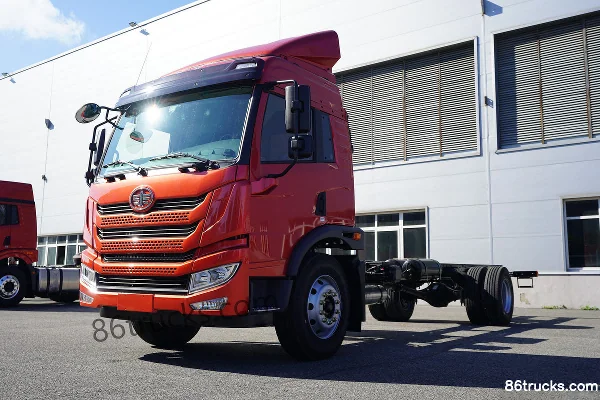

Exterior3

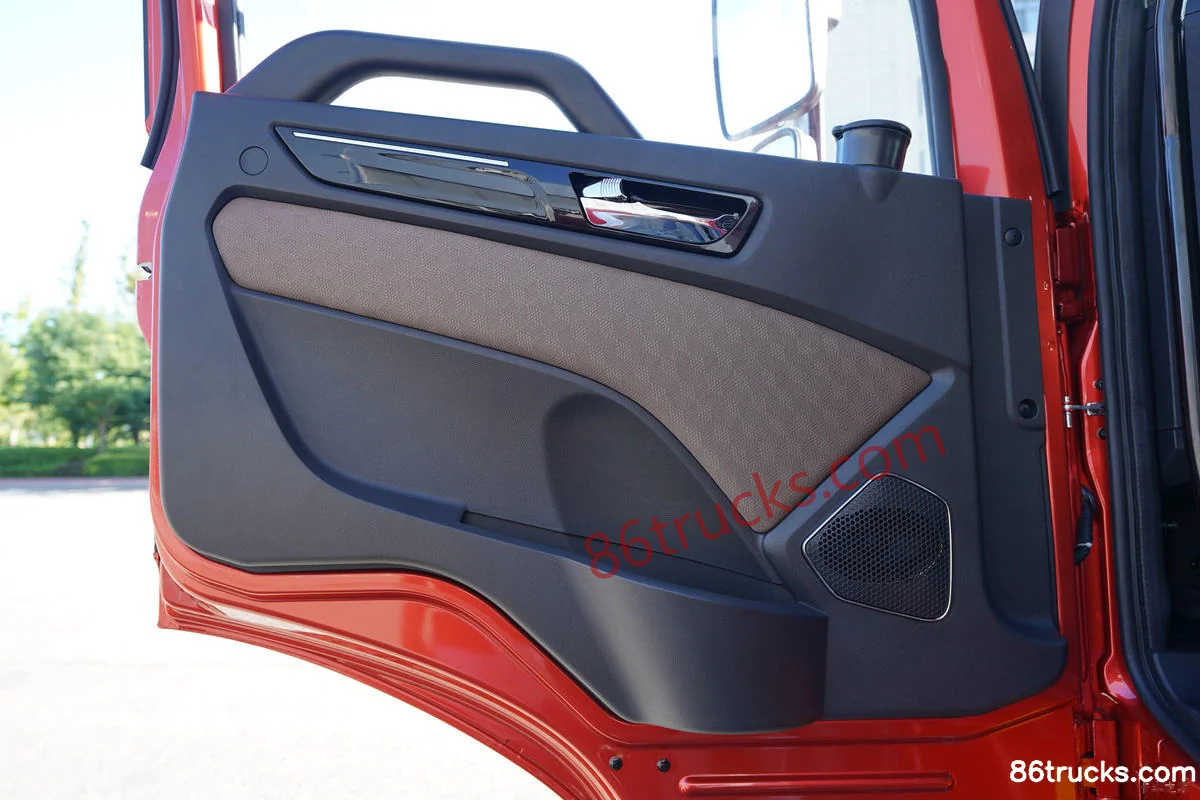

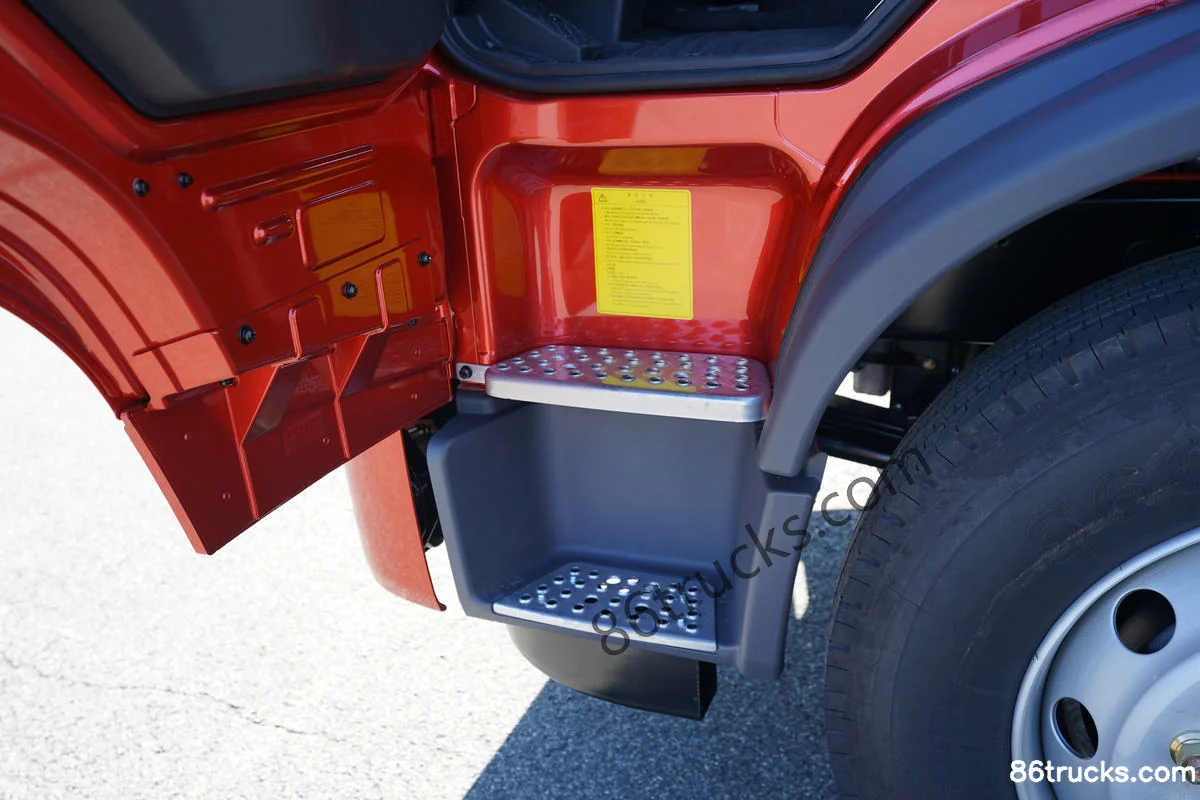

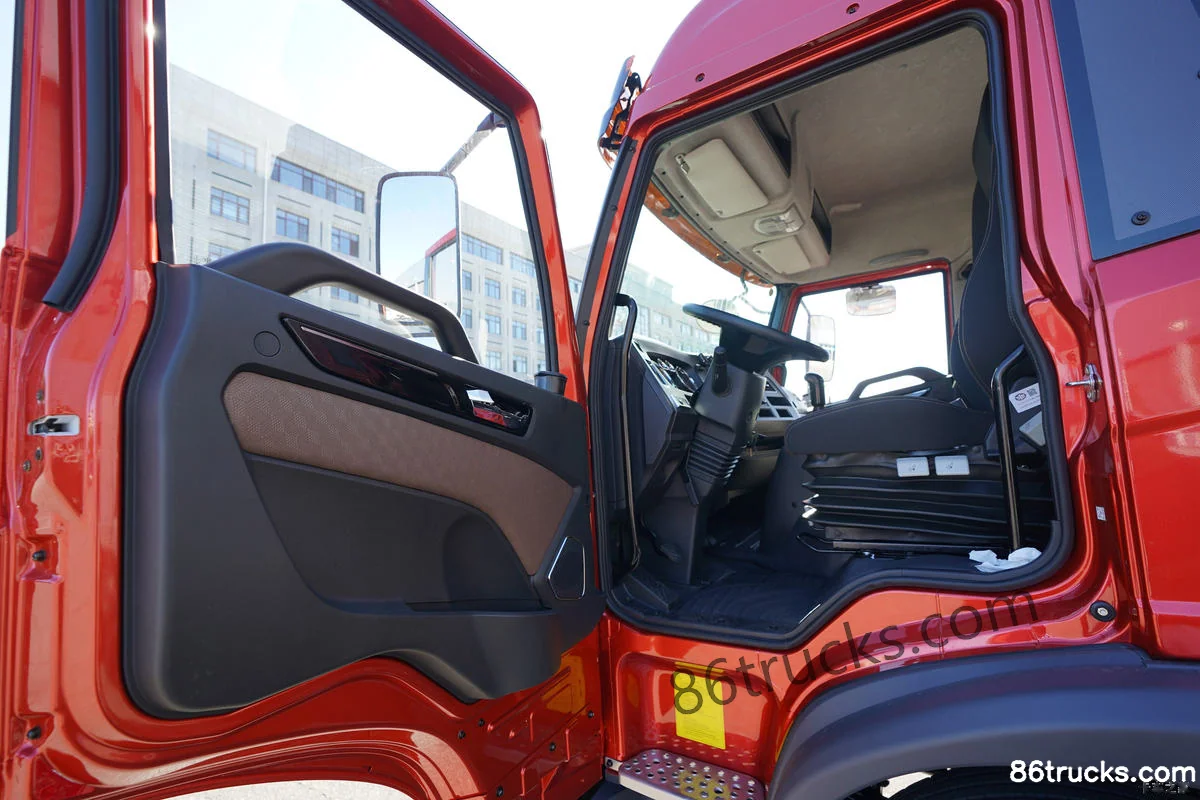

Cab3

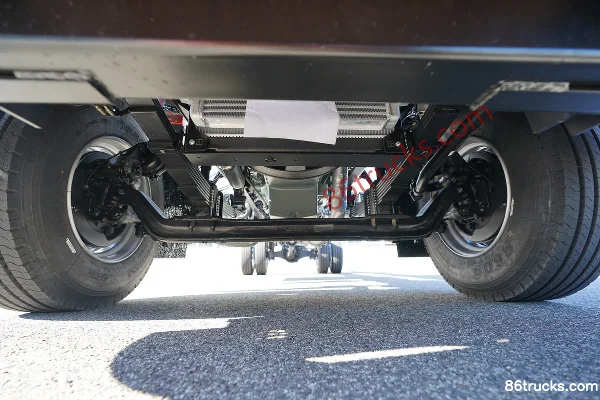

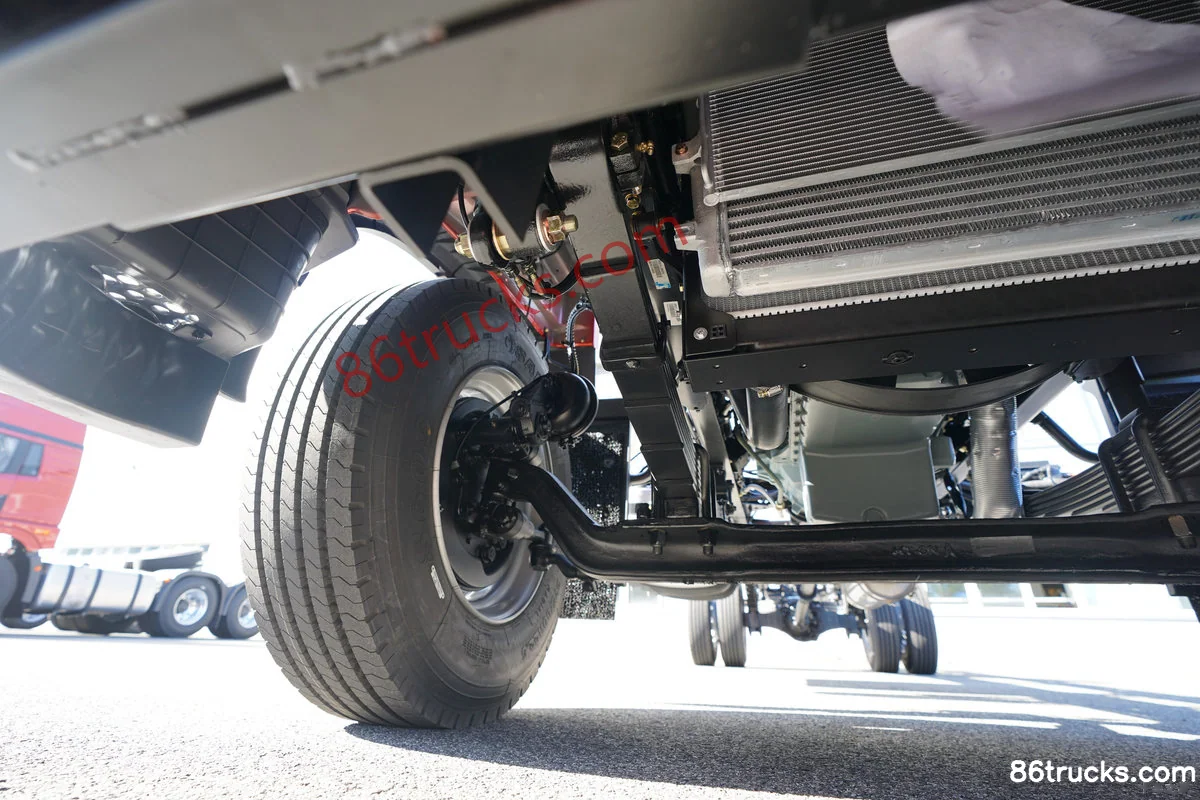

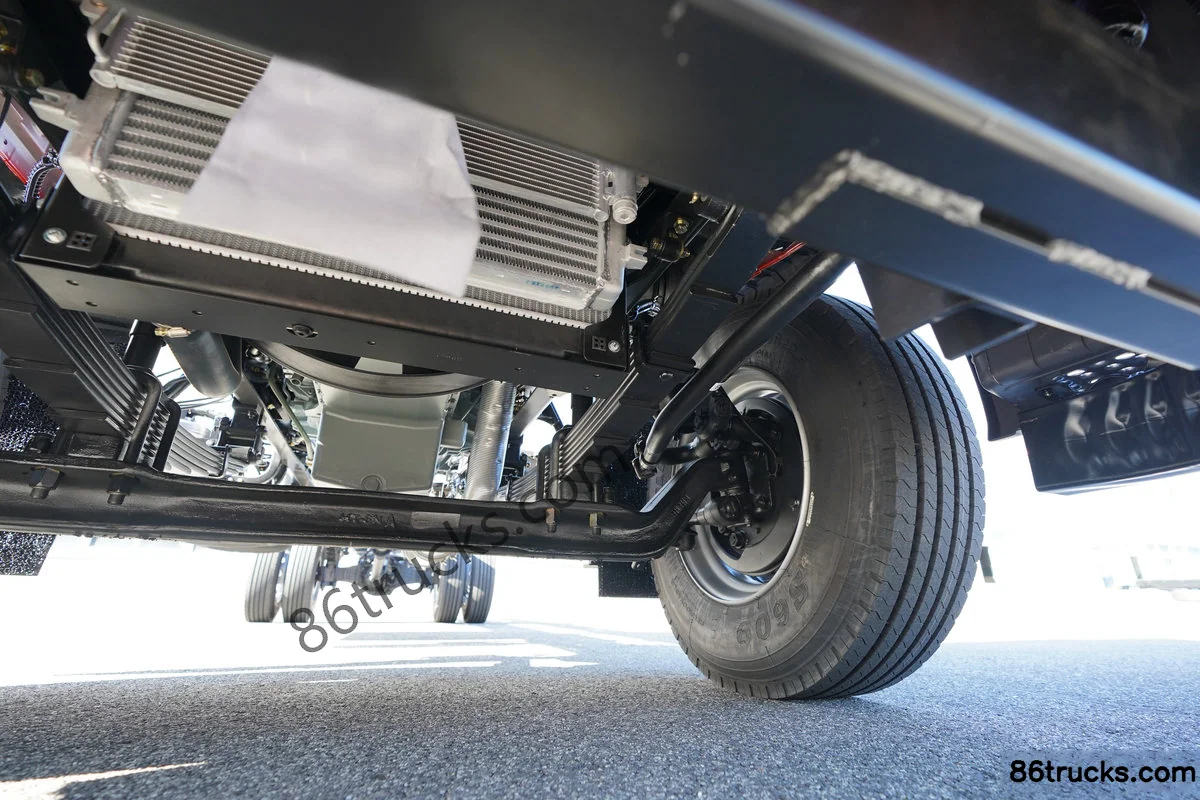

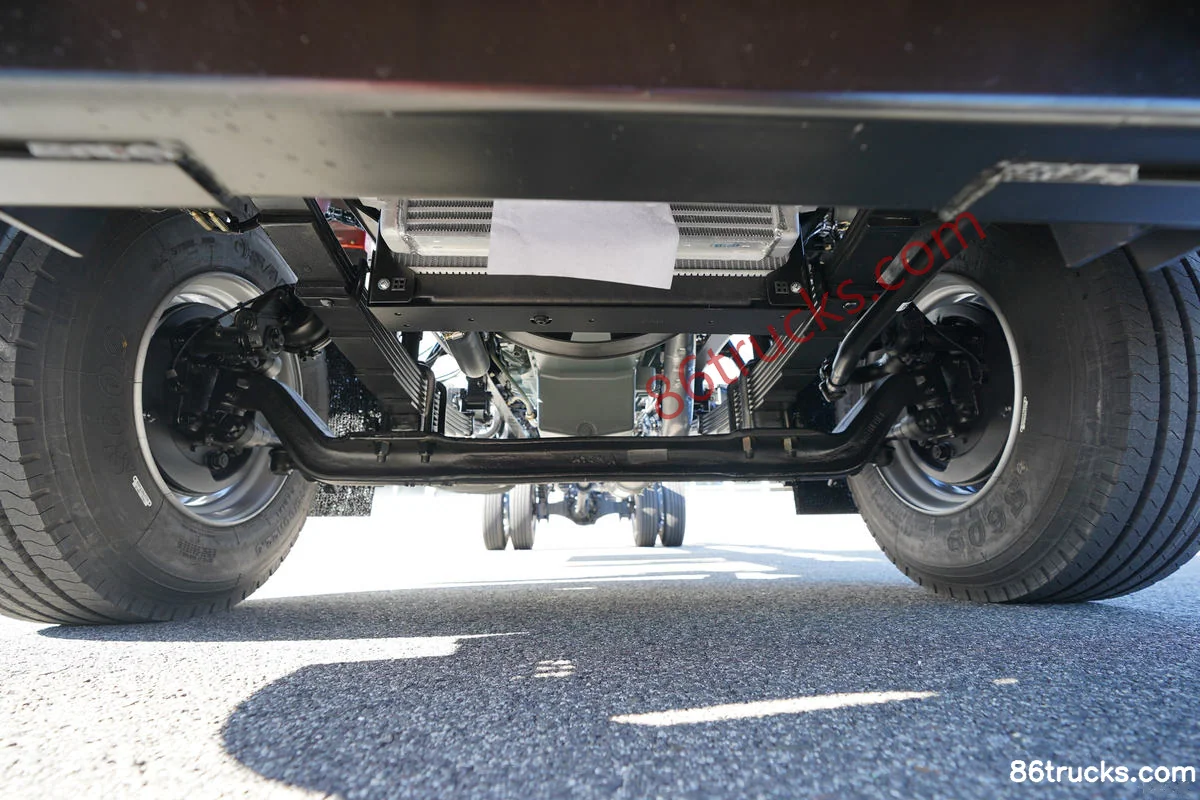

Chassis3

9 photos

FAQ

What emission standard does FAW Jiefang Qingdao Long V Medium Truck 2.0 Edition 180hp 4X2(6 wheels) 7.8m Van Cargo Truck Chassis use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Qingdao Long V Medium Truck 2.0 Edition 180hp 4X2(6 wheels) 7.8m Van Cargo Truck Chassis?

Key specs of FAW Jiefang Qingdao Long V Medium Truck 2.0 Edition 180hp 4X2(6 wheels) 7.8m Van Cargo Truck Chassis: Drive: 4x2; Horsepower: 180 hp; Emission: China V; Fuel: Diesel; Engine: Dachai4DK; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao Long V Medium Truck 2.0 Edition 180hp 4X2(6 wheels) 7.8m Van Cargo Truck Chassis suited for?

FAW Jiefang Qingdao Long V Medium Truck 2.0 Edition 180hp 4X2(6 wheels) 7.8m Van Cargo Truck Chassis is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang Qingdao Long V Medium Truck 2.0 Edition 180hp 4X2(6 wheels) 7.8m Van Cargo Truck Chassis differ from other variants in the same series?

FAW Jiefang Qingdao Long V Medium Truck 2.0 Edition 180hp 4X2(6 wheels) 7.8m Van Cargo Truck Chassis belongs to FAW Jiefang Qingdao Long V Medium Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao Long V Medium Truck 2.0 Edition 180hp 4X2(6 wheels) 7.8m Van Cargo Truck Chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao Long V Medium Truck 2.0 Edition 180hp 4X2(6 wheels) 7.8m Van Cargo Truck Chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
