Foton Aoling Huangfeng 220hp 4X2(6 wheels) 6.8m half-cab stake truck

Export reference
From $30,556
MSRP ¥22M CNY
Horsepower: 220
Emission: China V
Fuel: Diesel
Engine: Yunnei Dewei D45
Transmission: Fast Gear
Curb Weight:: 7.875ton
seating capacity: 3Personnel
Rated payload: 9.995ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The Foton Aoling Huangfeng 220hp 4X2(6 wheels) 6.8m half-cab stake truck is a Medium-duty truck featuring 6.8m cargo length, Stake type cargo body, 3Personnel volume and 9.995t payload. Its segment focus covers Green Pass and daily industrial goods transport, matching those duty cycles. On the powertrain side, it comes with a Yunnei Dewei D45 engine, 220 hp, 4X2 (6 wheels) drive and China V emissions.

China V 220 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ5186CCY-A1
Type: stake truck
Drive type: 4X2
Wheelbase: 5150mm
Box length class: 6.8m
engine: Yunnei PowerD45TCIE1
transmission: Fast Gear8JS85TC
Rear Axle Ratio: 4.875
Cab length: 8.995m
Cab width: 2.55m
Cab height: 3.95m
Front track width: 1914mm
rear track: 1800mm
Curb Weight: 7.875ton
Rated payload: 9.995ton
GVWR: 18ton
Max. speed: 100km/h
Origin: Beijing Changping
tonnage class: Medium-duty truck
Approach angle: 19°
departure angle: 11°
market segment: Green Pass, daily industrial goods transport
Remarks: Fabric seat, rear axle 8T load, optional 600L fuel tank, front disc/rear drum, hydraulic electric tilt cab, MP5, anti-spray, metallic paint
Front/rear suspension: 1.27/2.575m
Series: 9 series
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerD45TCIE1
Engine info: Yunnei Dewei D45
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.46L
Emission standard: China V
Max output power: 162kW
Max hp: 220Horsepower
Max torque: 820N·m
Max torque speed: 1200-2800rpm
Rated speed: 2400rpm
Engine Type: SCR
Transmission Parameters
Transmission Model: Fast Gear8JS85TC
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 6.8m
Cargo box width: 2.45m
*Cargo box interior width: 2.4500000476837
Cab parameters
Cab width: 2200mm
seating capacity: 3Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 300L
Chassis Specs
Front axle allowable load: 6500kg
rear axle description: 385 stamped-welded axle
rear axle allowable load: 11500kg
Axle ratio: 4.875
Leaf spring count: 10/10+8
Tire
Tire Size: 11R22.5 18PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Power Mirrors:
Electric Heated Rearview Mirror:
Reverse Camera:
Remote key:
Exterior features
Air deflector:
Multimedia features
GPS/Beidou driving recorder:
lighting configuration
daytime running lights:
Service brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
smart configuration
Cruise control (CCS):

Photos

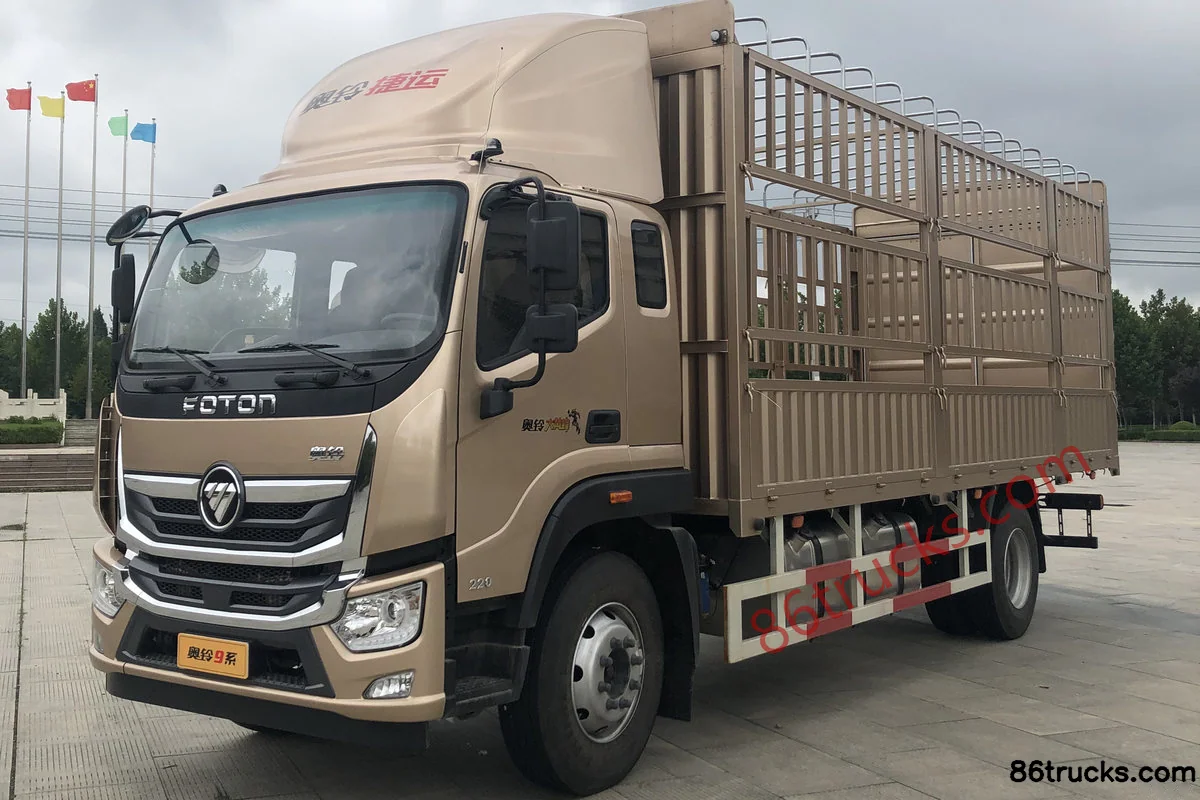

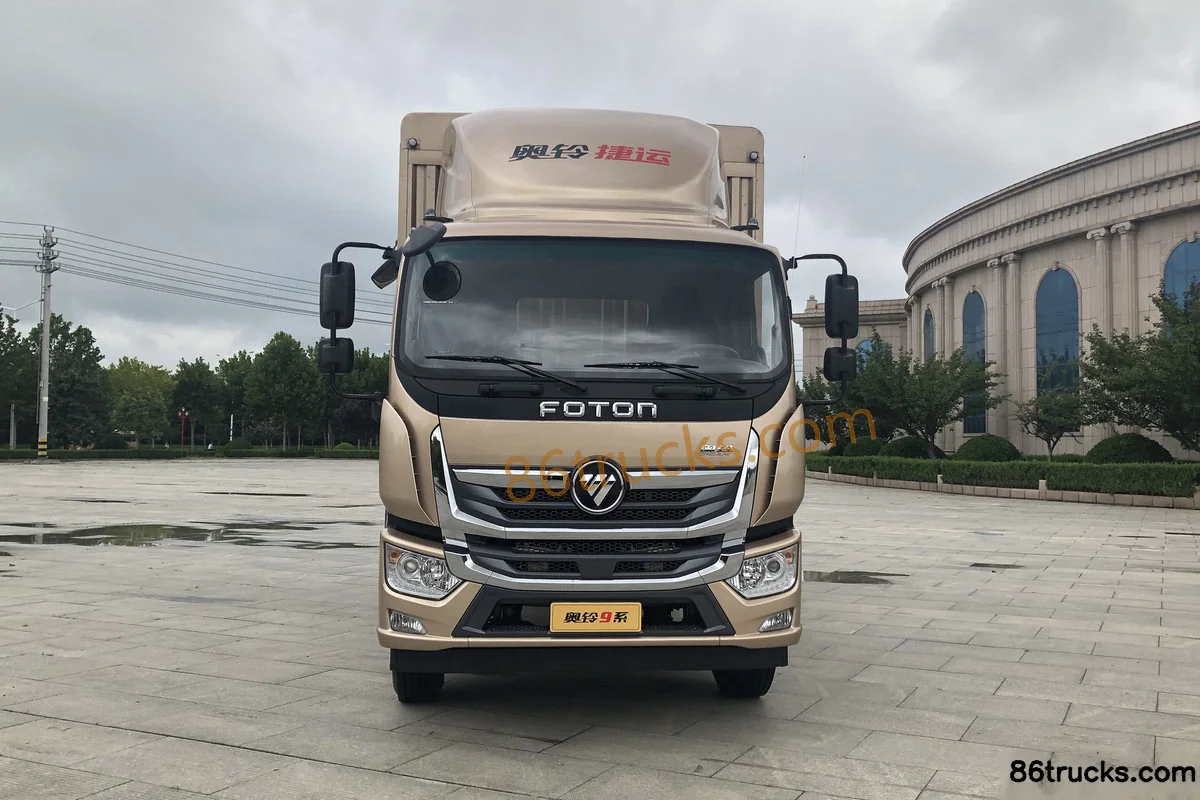

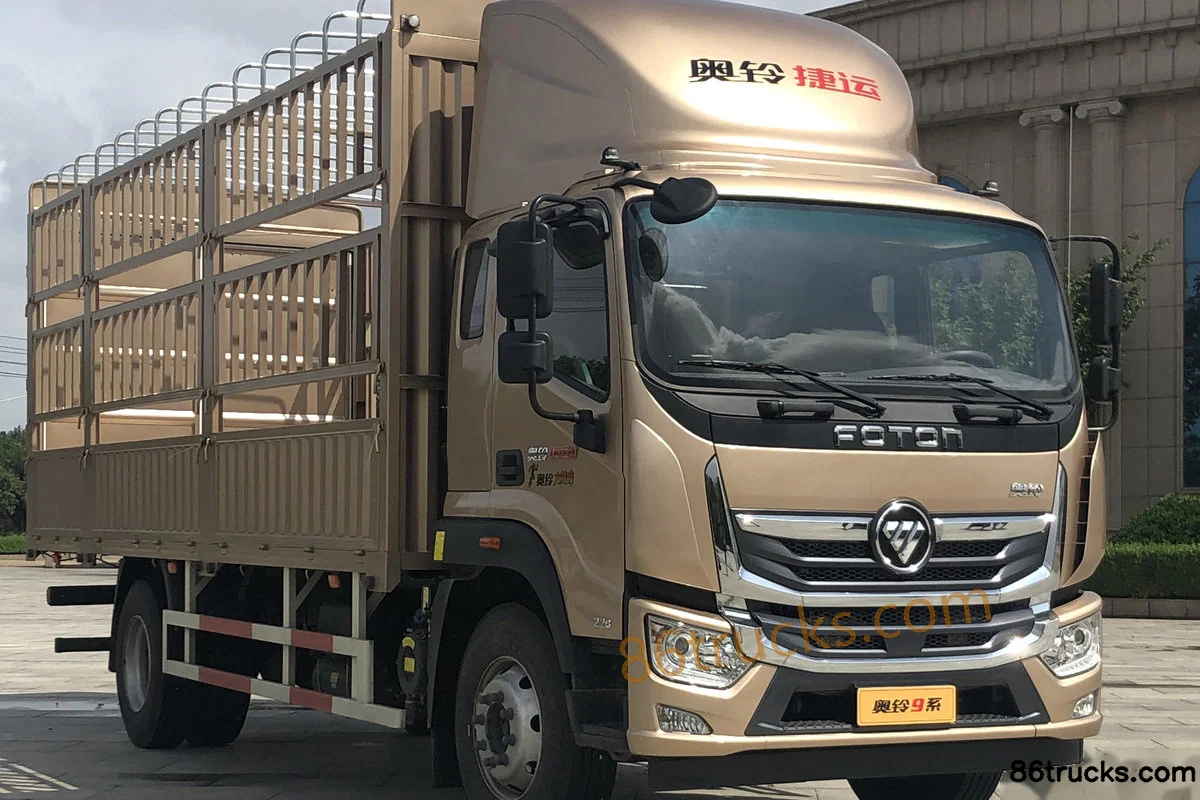

Exterior3

3 photos

FAQ

What is the export price of Foton Aoling Huangfeng 220hp 4X2(6 wheels) 6.8m half-cab stake truck, and what does it include?

Foton Aoling Huangfeng 220hp 4X2(6 wheels) 6.8m half-cab stake truck export reference is about From $30,556; MSRP is ¥22M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Aoling Huangfeng 220hp 4X2(6 wheels) 6.8m half-cab stake truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Aoling Huangfeng 220hp 4X2(6 wheels) 6.8m half-cab stake truck?

Key specs of Foton Aoling Huangfeng 220hp 4X2(6 wheels) 6.8m half-cab stake truck: Drive: 4x2; Horsepower: 220 hp; Emission: China V; Fuel: Diesel; Engine: Yunnei Dewei D45; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Aoling Huangfeng 220hp 4X2(6 wheels) 6.8m half-cab stake truck suited for?

Foton Aoling Huangfeng 220hp 4X2(6 wheels) 6.8m half-cab stake truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Aoling Huangfeng 220hp 4X2(6 wheels) 6.8m half-cab stake truck differ from other variants in the same series?

Foton Aoling Huangfeng 220hp 4X2(6 wheels) 6.8m half-cab stake truck belongs to Foton Bumblebee Medium Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Aoling Huangfeng 220hp 4X2(6 wheels) 6.8m half-cab stake truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Aoling Huangfeng 220hp 4X2(6 wheels) 6.8m half-cab stake truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
