Maxus 3.2L 158 hp 3.2L China IV diesel engine

Export reference
MSRP N/A
Intake type:: twin-scroll variable geometry turbocharger
Compression ratio:: 16.9
Bore × Stroke:: 96x110mm
Suitable Range: Light Truck, Bus, Pickup
Engine Model: 3.2
Engine Series: Navistar MaxxForce

Overview

The JAC Maxus 3.2L 158 hp 3.2L China IV diesel engine is a parts product with fit for Light Truck, Bus, Pickup and spec 3.2.

China IV 158 Diesel

Model Specs

Legend: ● Standard ○ Optional - N/A

Engine parameters
Engine Series: Navistar MaxxForce
Engine manufacturer: Navistar
Suitable Range: Light Truck, Bus, Pickup
Intake type: twin-scroll variable geometry turbocharger
Engine net weight: 290kg
Engine Dimensions: 610×756×677mm
Compression ratio: 16.9
Bore × Stroke: 96x110mm
Valves per cylinder: 4pcs
Engine Brand: JAC
Engine Model: 3.2
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 3.2L
Emission standard: China IV
Max output power: 118kW
Max hp: 158Horsepower
Max torque: 450N·m
Max torque speed: 1500-2200rpm
Rated speed: 3000rpm
Engine Type: direct injection

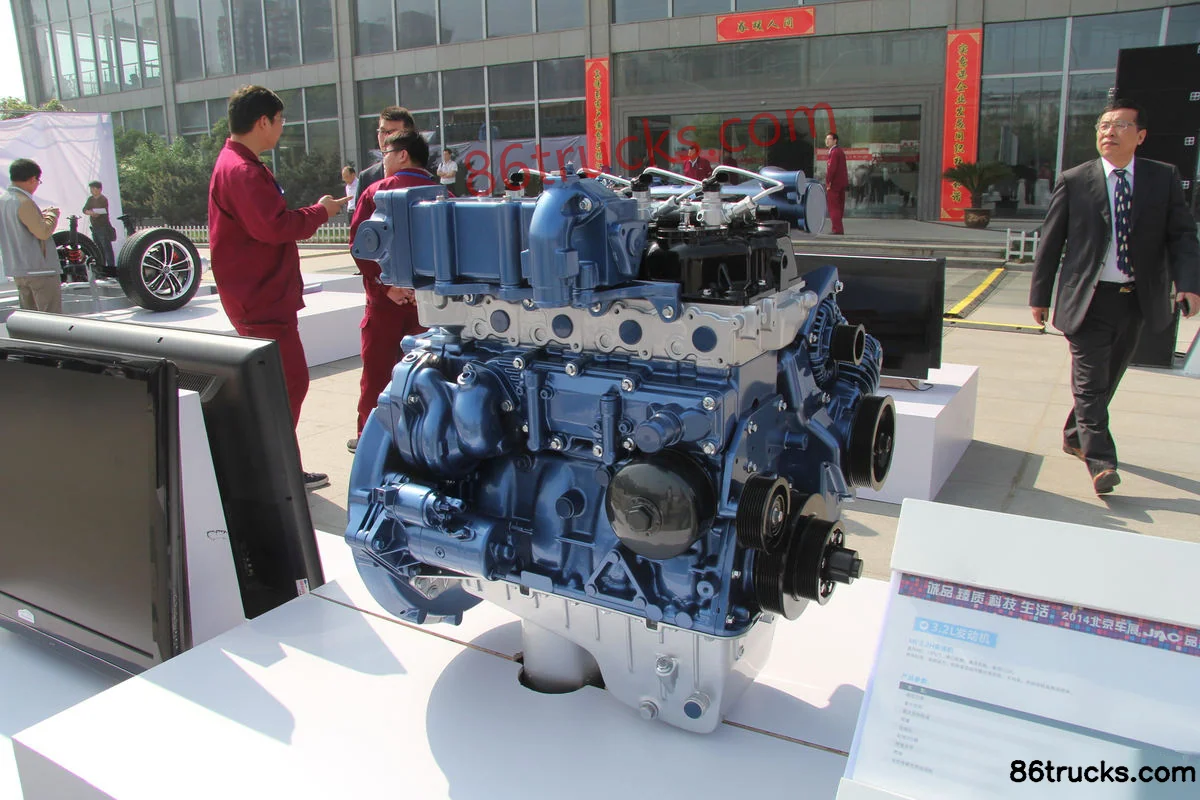

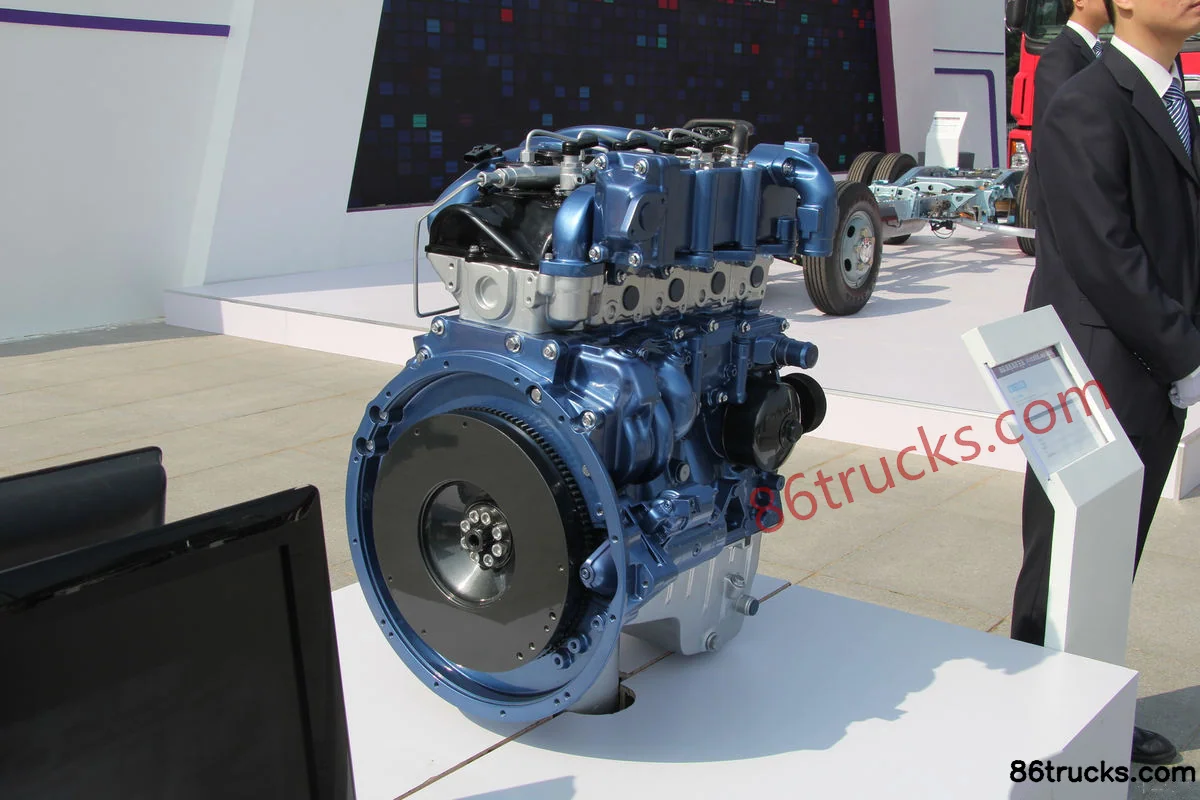

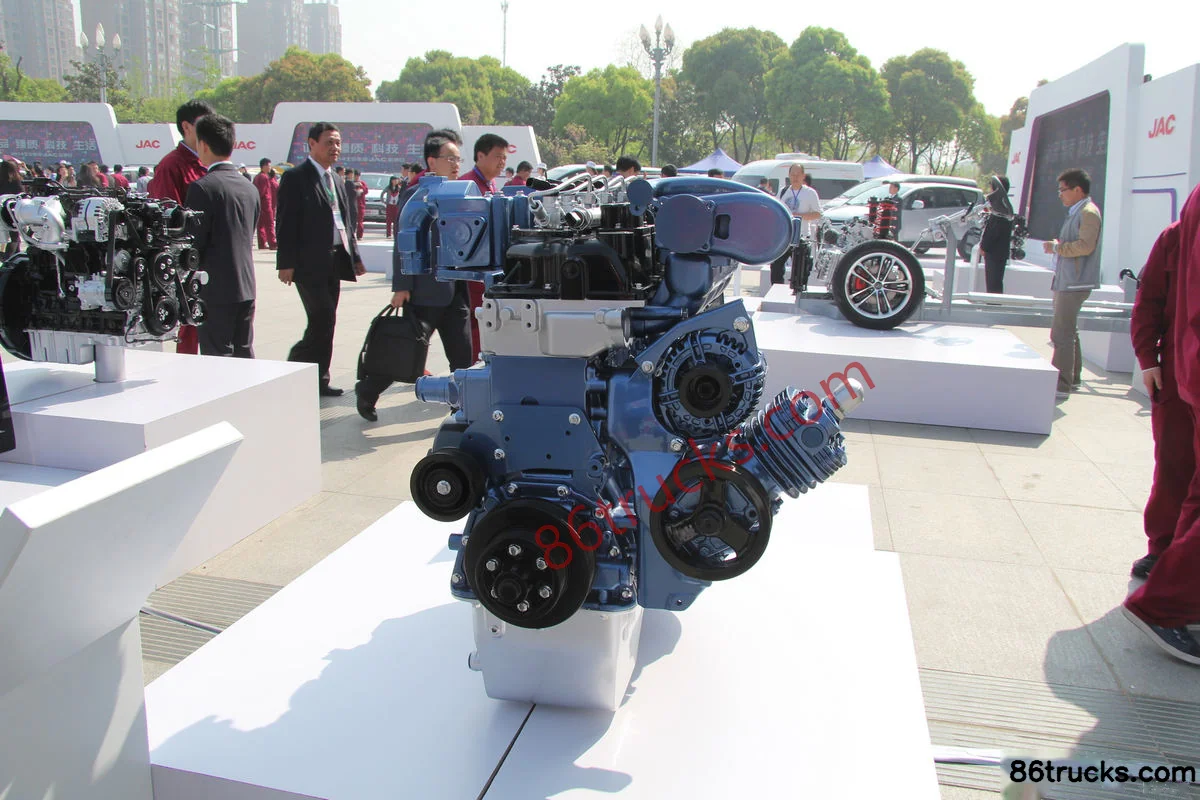

Photos

Exterior3

3 photos

FAQ

What emission standard does Maxus 3.2L 158 hp 3.2L China IV diesel engine use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Maxus 3.2L 158 hp 3.2L China IV diesel engine?

Key specs of Maxus 3.2L 158 hp 3.2L China IV diesel engine: Horsepower: 158 hp; Emission: China IV; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Maxus 3.2L 158 hp 3.2L China IV diesel engine suited for?

Match Maxus 3.2L 158 hp 3.2L China IV diesel engine to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does Maxus 3.2L 158 hp 3.2L China IV diesel engine differ from other variants in the same series?

Maxus 3.2L 158 hp 3.2L China IV diesel engine belongs to JAC Maixifu (engine). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Maxus 3.2L 158 hp 3.2L China IV diesel engine?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Maxus 3.2L 158 hp 3.2L China IV diesel engine?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
