Foton Xiangling M1 1.6L 122hp 4X2(6 wheels) gasoline 3.3m single-row van micro truck

Export reference
From $7,875
MSRP ¥5.67M CNY
Horsepower: 122
Emission: China VI
Fuel: gasoline
Engine: Dongan gasoline 1.6L
Curb Weight:: 1.545ton
Wheelbase:: 2750mm
Foton Xiangling M1 1.6L 122hp 4X2(6 wheels) gasoline 3.3m single-row van micro truck exterior
View more photos (12)
seating capacity: 2Personnel
Rated payload: 1.8ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The Foton Xiangling M1 1.6L 122hp 4X2(6 wheels) gasoline 3.3m single-row van micro truck is a mini truck featuring 3.3m cargo length, Van body cargo body, 2Personnel volume and 1.8t payload. On the powertrain side, it comes with a Dongan gasoline 1.6L engine, 122 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 122 gasoline 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): BJ5031XXY5JV4-51
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 2750mm
Box length class: 3.3m
engine: DonganDAM16KL
transmission: 5-speed gearbox
Rear Axle Ratio: 4.875
Cab length: 5.22m
Cab width: 1.79m
Cab height: 2.585m
Front track width: 1320mm
rear track: 1280mm
Curb Weight: 1.545ton
Rated payload: 1.8ton
GVWR: 3.475ton
Max. speed: 100km/h
Origin: Shandong Zhucheng
tonnage class: mini truck
Approach angle: 22°
departure angle: 20°
Front/rear suspension: 1.075/1.395m
Energy Type: gasoline
Engine parameters
Engine Brand: Dongan
Engine Model: DonganDAM16KL
Engine info: Dongan gasoline 1.6L
Number of cylinders: 4cylinder
fuel type: gasoline
Cylinder arrangement: Inline
Displacement: 1.597L
Emission standard: China VI
Max output power: 90kW
Max hp: 122Horsepower
Max torque: 158N·m
Max torque speed: 4400rpm
Rated speed: 6000rpm
Engine Oil Change Interval: 5,000 km
Transmission Parameters
Transmission Model: 5-speed gearbox
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 3.3m
Cargo box width: 1.65m
Cargo box height: 1.7m
*Cargo box interior width: 1.65
Cab parameters
Cab width: 1550mm
seating capacity: 2Personnel
Seat rows: Single Row
Chassis Specs
Front axle allowable load: 1200kg
rear axle allowable load: 2275kg
Axle ratio: 4.875
Leaf spring count: 3/5
Tire
Tire Size: 175R14LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
Brake assist (EBA/BAS/BA etc.):
Power steering:
EBS electronic braking system:
clutch booster:
interior configuration
Steering Wheel Material: leather
AC control type: Optional manual.
Power interface:
Seat material: Fabric
Electronic Central Lock:
Exterior features
Air deflector:
Wiper type: flat wiper blades
Service brake
Engine brake: none
Brake Type: Hydraulic brake
Parking brake: parking brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
Multimedia features
External audio input (AUX/USB/iPod etc.):
Radio:
standard instrument cluster:
lighting configuration
Headlight brand: Philips/Osram
Front fog lamp:
daytime running lights:
Headlight height adjustment:
Halogen Headlights:

Photos

Exterior3

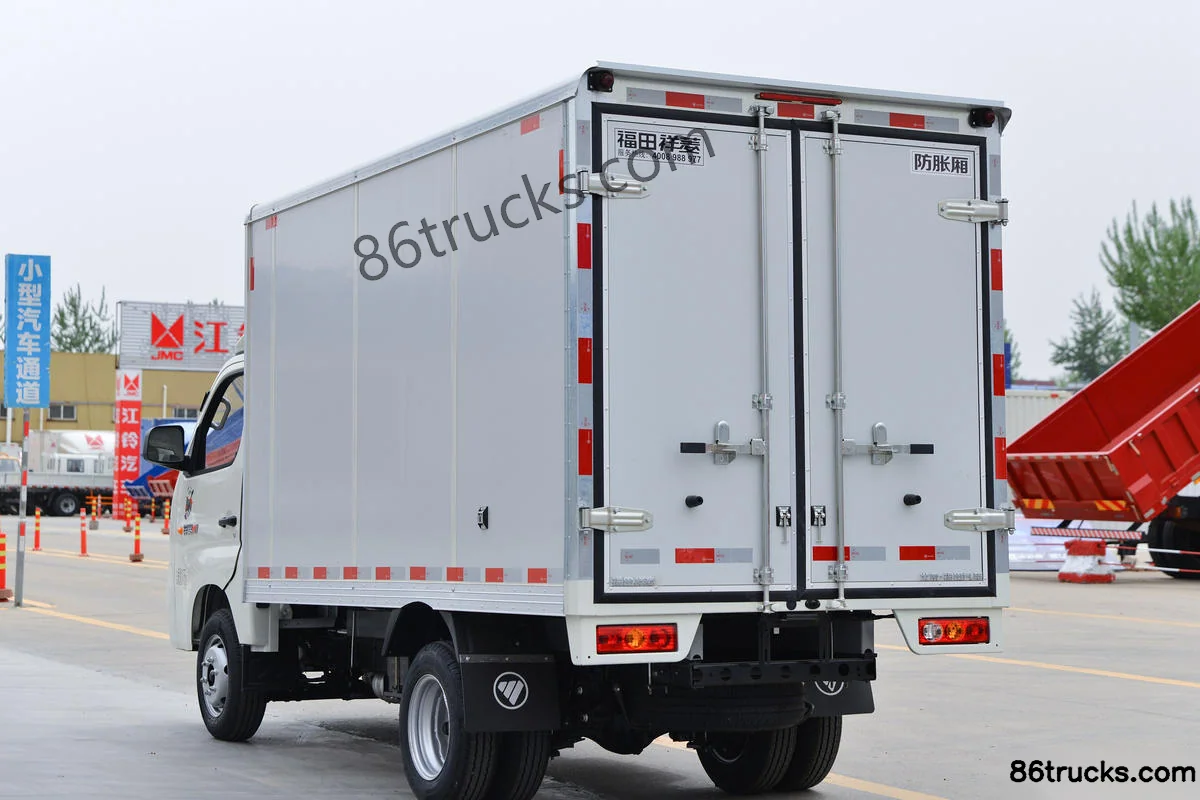

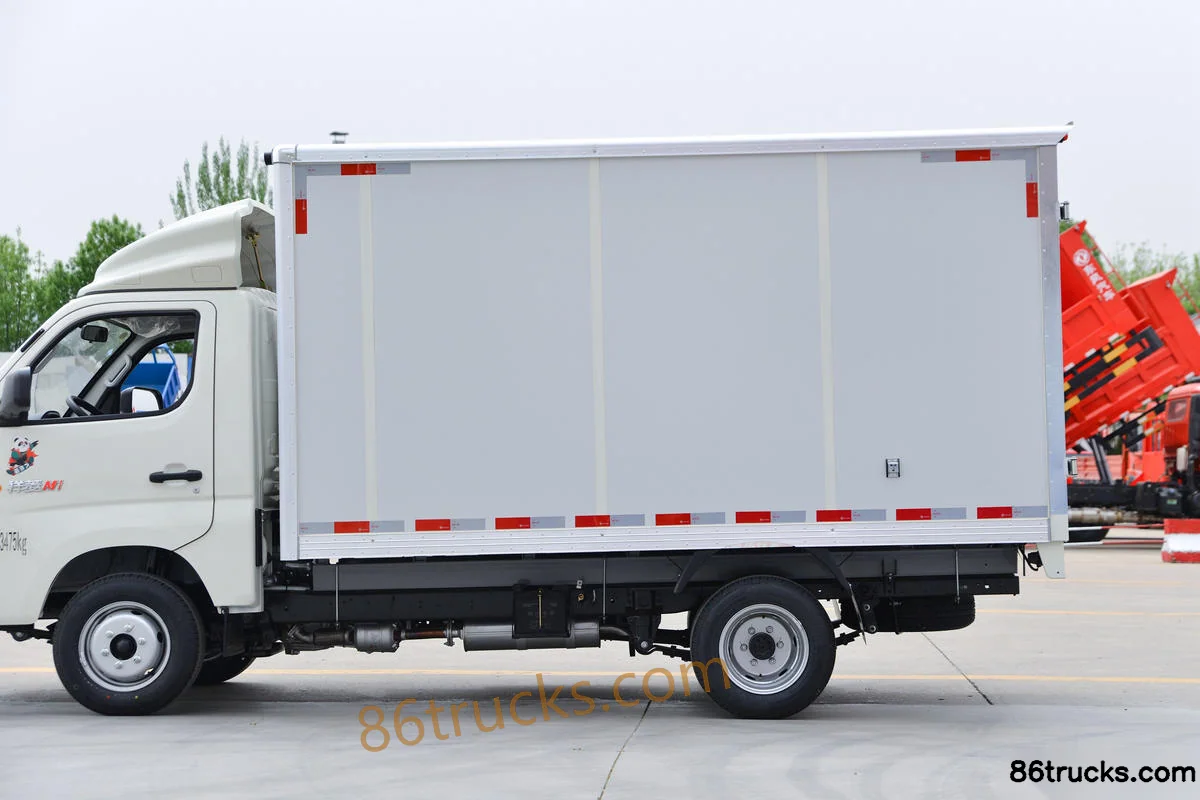

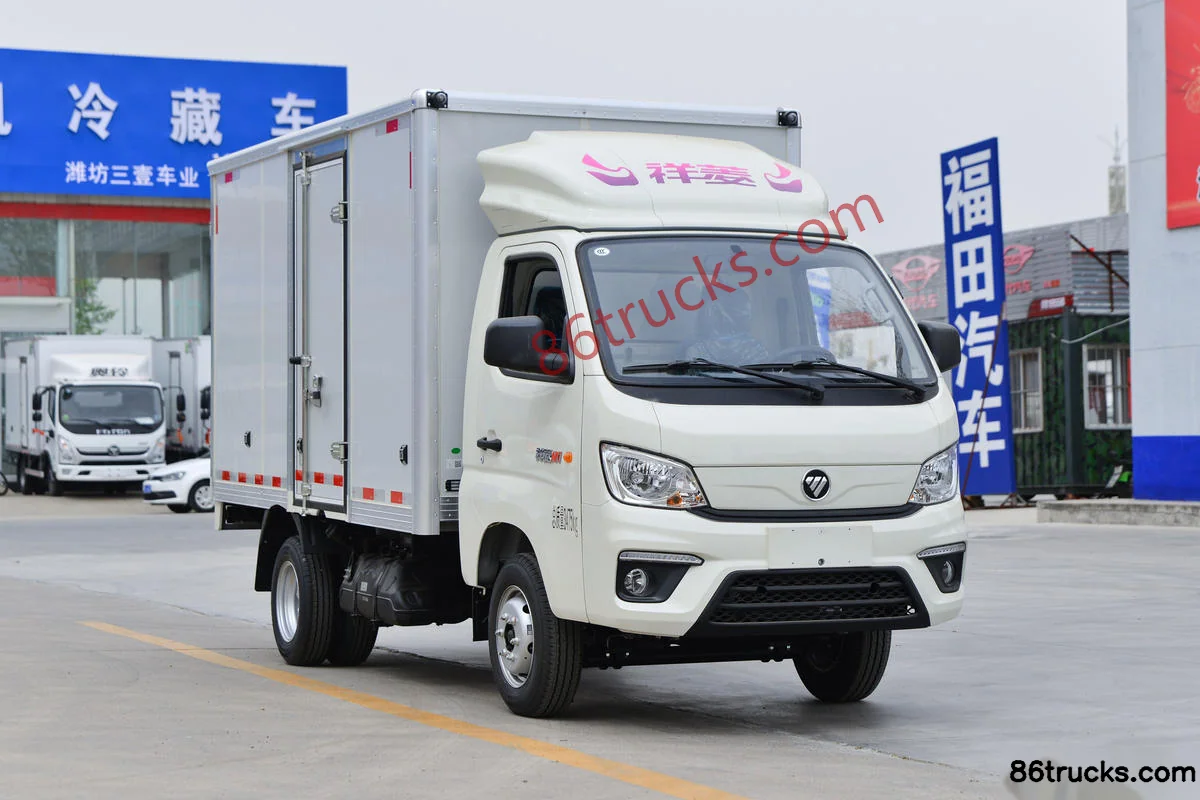

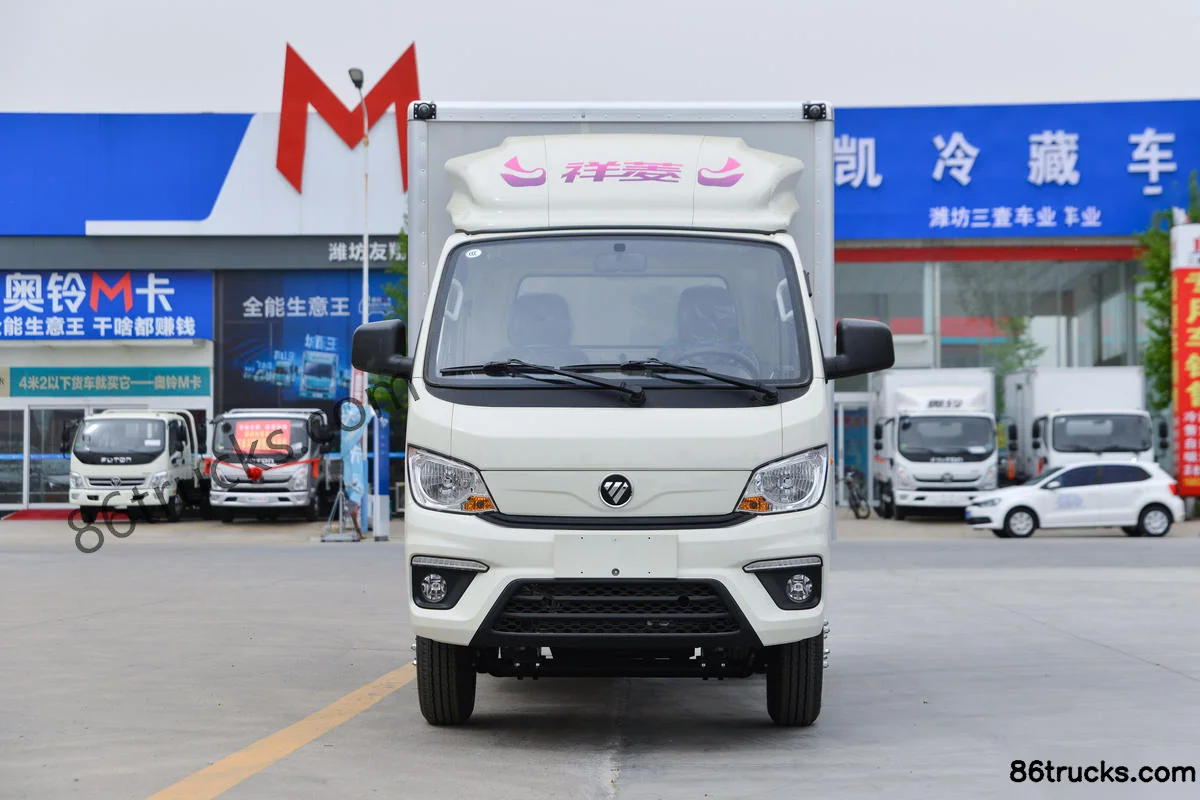

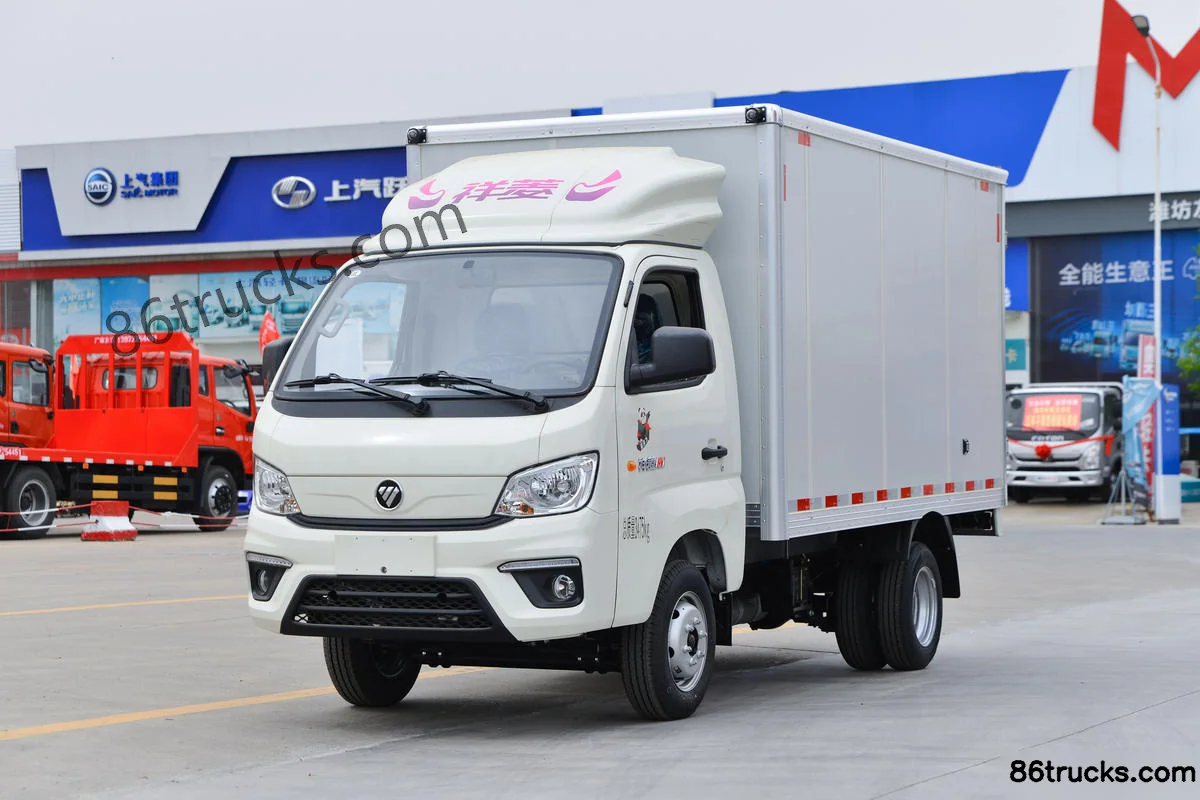

Foton Xiangling M1 1.6L 122hp 4X2(6 wheels) gasoline 3.3m single-row van micro truck Exterior (1) | 86Trucks Foton Xiangling M1 1.6L 122hp 4X2(6 wheels) gasoline 3.3m single-row van micro truck Exterior (2) | 86Trucks Foton Xiangling M1 1.6L 122hp 4X2(6 wheels) gasoline 3.3m single-row van micro truck Exterior (3) | 86Trucks

Cab3

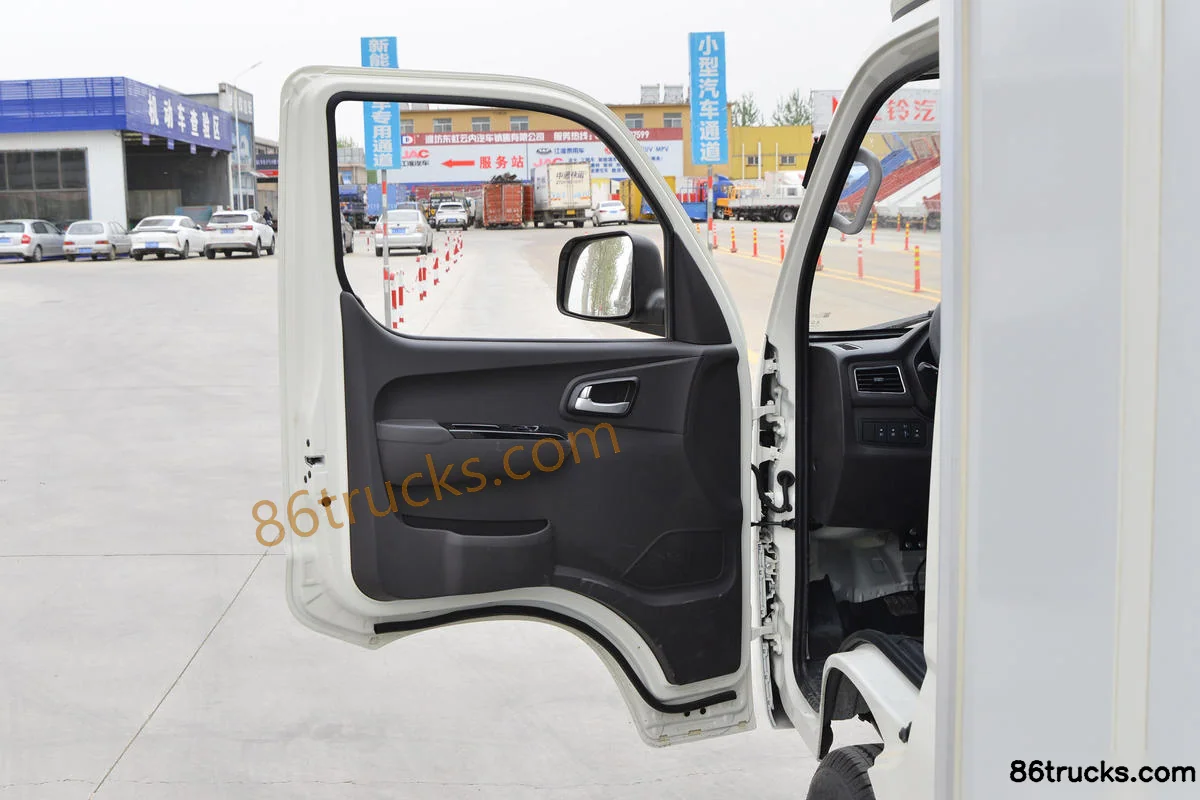

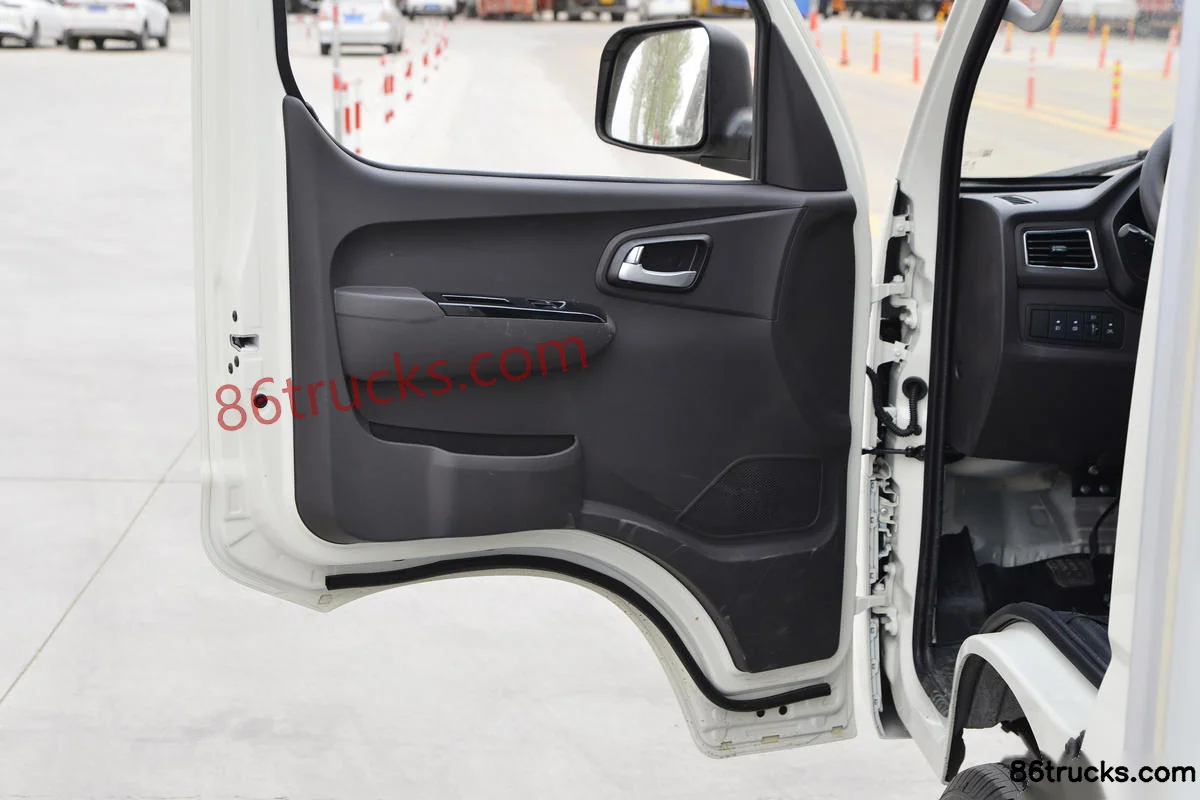

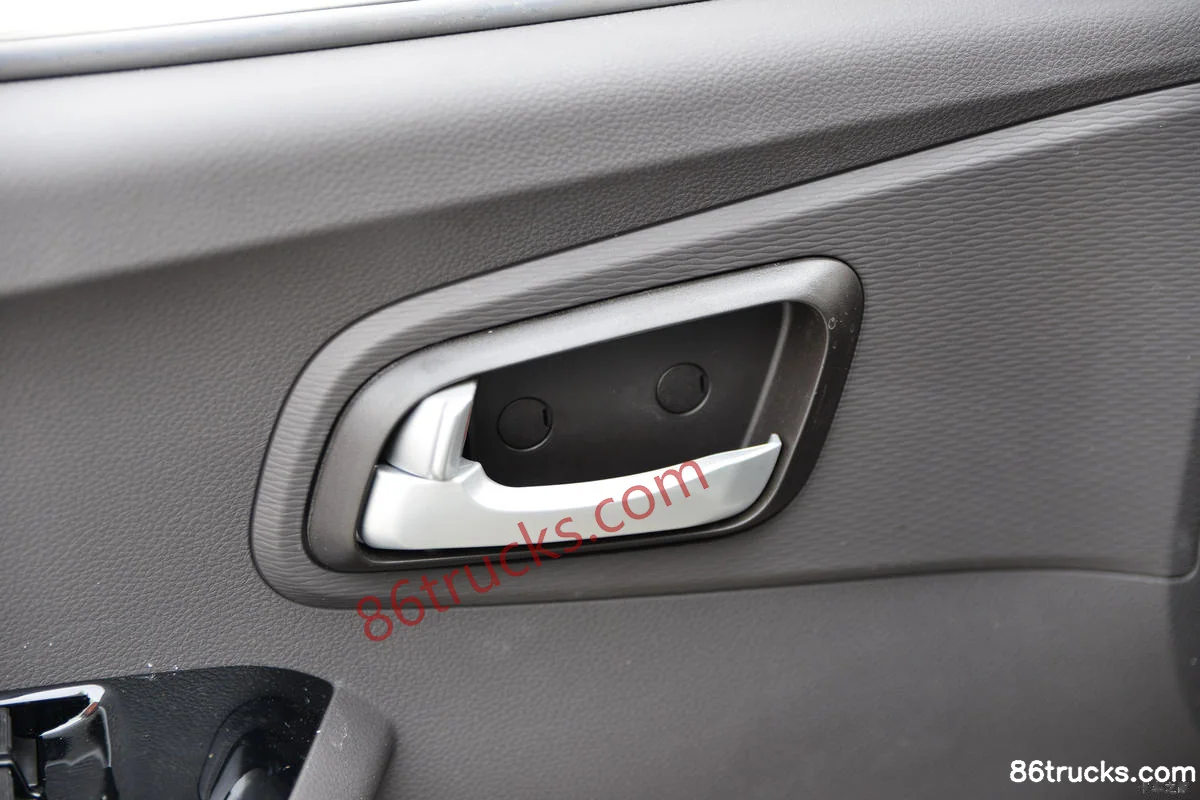

Foton Xiangling M1 1.6L 122hp 4X2(6 wheels) gasoline 3.3m single-row van micro truck Cab (1) | 86Trucks Foton Xiangling M1 1.6L 122hp 4X2(6 wheels) gasoline 3.3m single-row van micro truck Cab (2) | 86Trucks Foton Xiangling M1 1.6L 122hp 4X2(6 wheels) gasoline 3.3m single-row van micro truck Cab (3) | 86Trucks

Chassis3

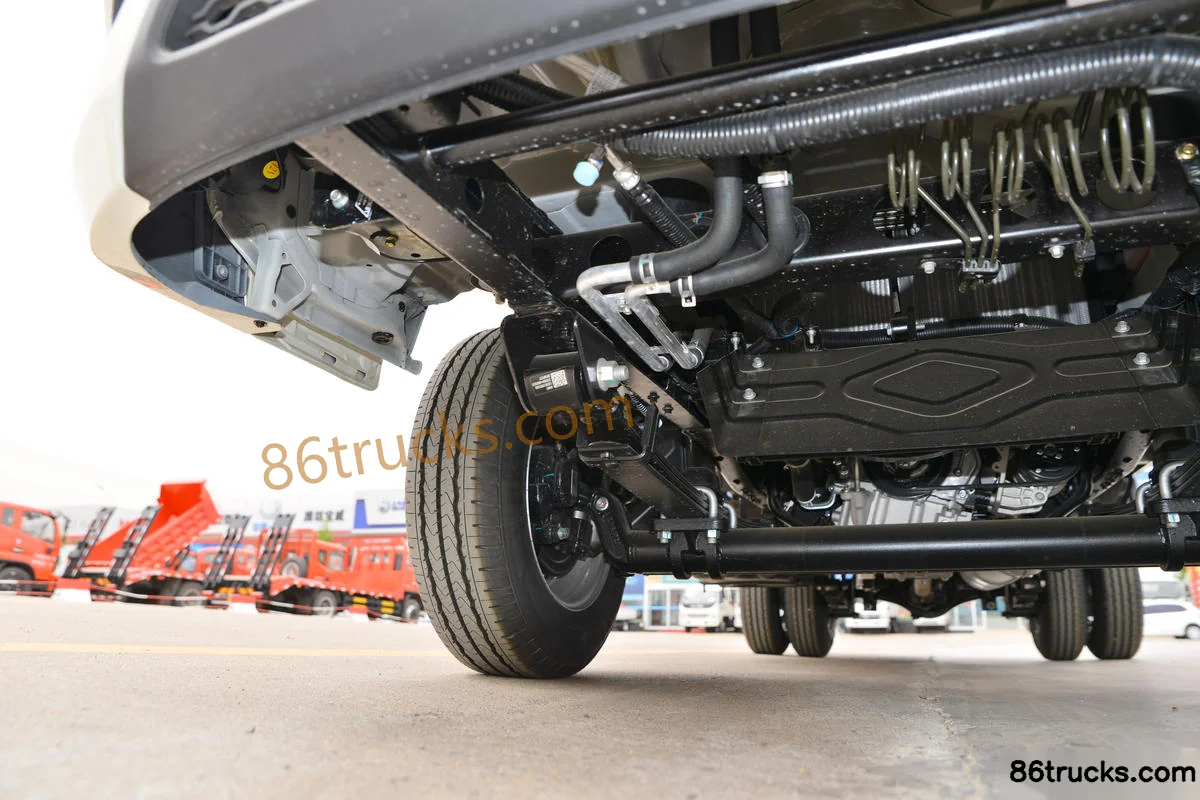

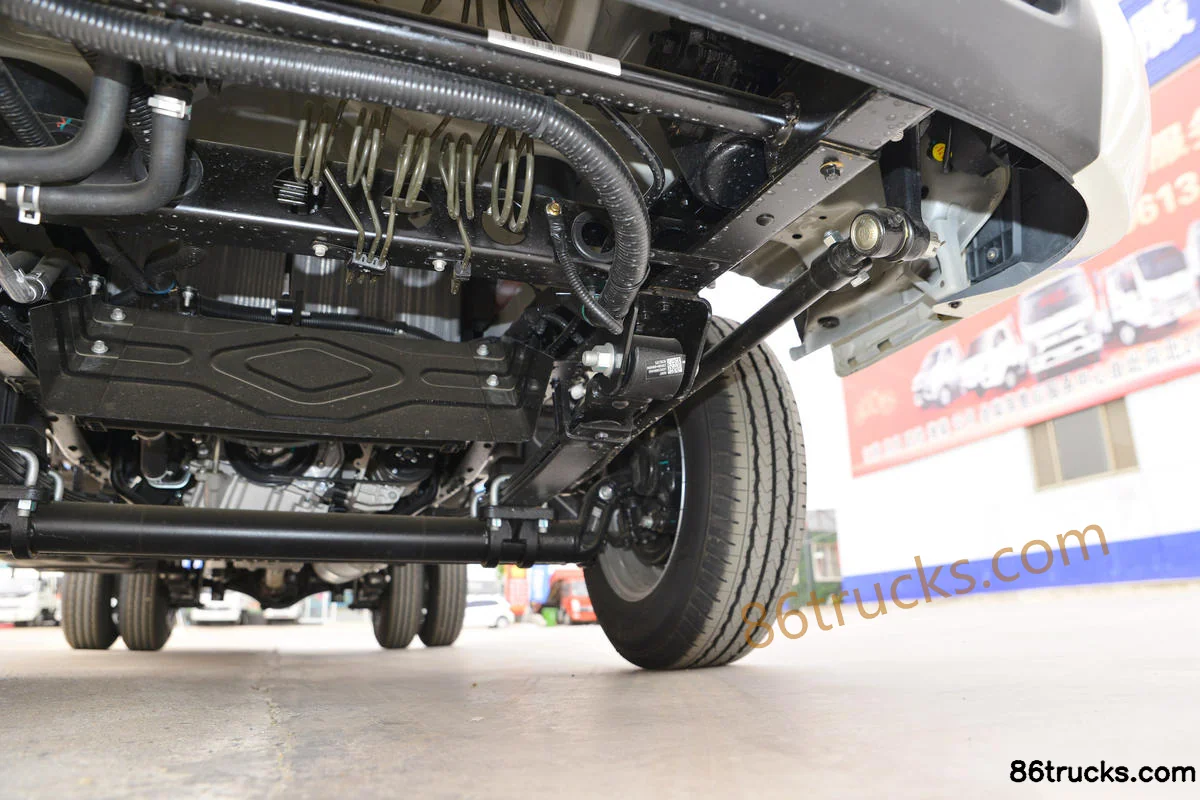

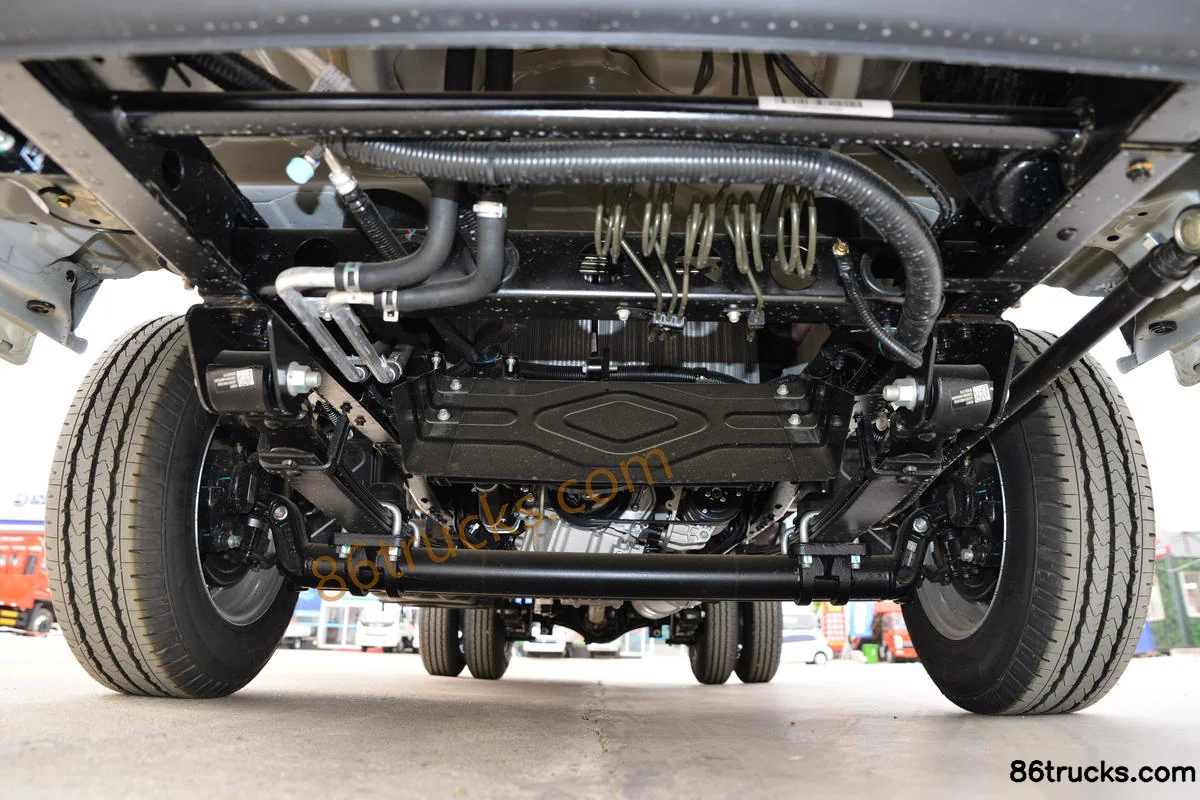

Foton Xiangling M1 1.6L 122hp 4X2(6 wheels) gasoline 3.3m single-row van micro truck Chassis (1) | 86Trucks Foton Xiangling M1 1.6L 122hp 4X2(6 wheels) gasoline 3.3m single-row van micro truck Chassis (2) | 86Trucks Foton Xiangling M1 1.6L 122hp 4X2(6 wheels) gasoline 3.3m single-row van micro truck Chassis (3) | 86Trucks

Body3

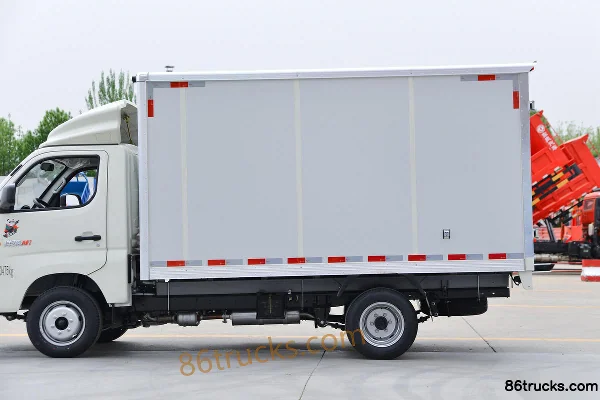

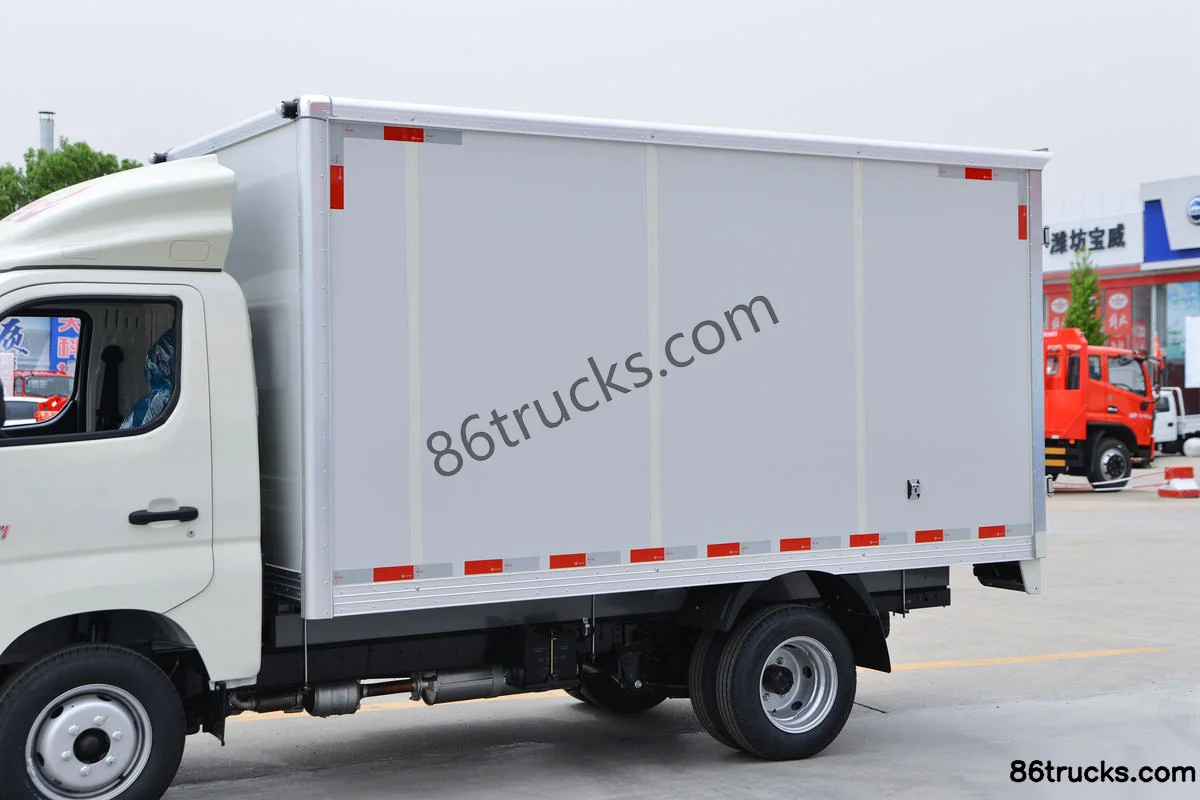

Foton Xiangling M1 1.6L 122hp 4X2(6 wheels) gasoline 3.3m single-row van micro truck Body (1) | 86Trucks Foton Xiangling M1 1.6L 122hp 4X2(6 wheels) gasoline 3.3m single-row van micro truck Body (2) | 86Trucks Foton Xiangling M1 1.6L 122hp 4X2(6 wheels) gasoline 3.3m single-row van micro truck Body (3) | 86Trucks

12 photos

FAQ

What is the export price of Foton Xiangling M1 1.6L 122hp 4X2(6 wheels) gasoline 3.3m single-row van micro truck, and what does it include?

Foton Xiangling M1 1.6L 122hp 4X2(6 wheels) gasoline 3.3m single-row van micro truck export reference is about From $7,875; MSRP is ¥5.67M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Foton Xiangling M1 1.6L 122hp 4X2(6 wheels) gasoline 3.3m single-row van micro truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton Xiangling M1 1.6L 122hp 4X2(6 wheels) gasoline 3.3m single-row van micro truck?

Key specs of Foton Xiangling M1 1.6L 122hp 4X2(6 wheels) gasoline 3.3m single-row van micro truck: Drive: 4x2; Horsepower: 122 hp; Emission: China VI; Fuel: gasoline; Engine: Dongan gasoline 1.6L. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton Xiangling M1 1.6L 122hp 4X2(6 wheels) gasoline 3.3m single-row van micro truck suited for?

Foton Xiangling M1 1.6L 122hp 4X2(6 wheels) gasoline 3.3m single-row van micro truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Foton Xiangling M1 1.6L 122hp 4X2(6 wheels) gasoline 3.3m single-row van micro truck differ from other variants in the same series?

Foton Xiangling M1 1.6L 122hp 4X2(6 wheels) gasoline 3.3m single-row van micro truck belongs to Foton M1 Mini Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton Xiangling M1 1.6L 122hp 4X2(6 wheels) gasoline 3.3m single-row van micro truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton Xiangling M1 1.6L 122hp 4X2(6 wheels) gasoline 3.3m single-row van micro truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
